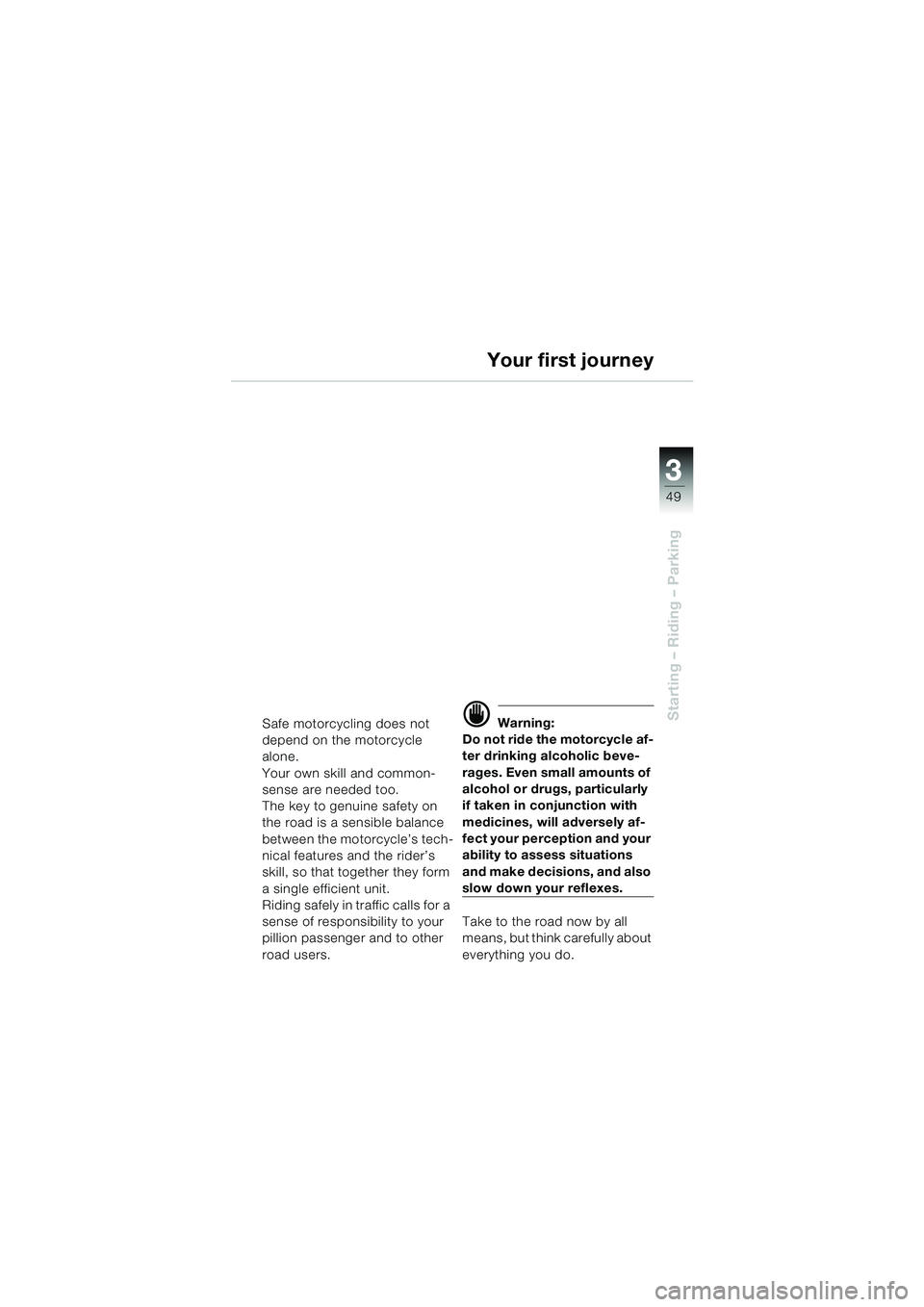

Starting – Riding – Parking
Your first journey
Safe motorcycling does not
depend on the motorcycle
alone.
Your own skill and common-
sense are needed too.
The key to genuine safety on
the road is a sensible balance
between the motorcycle’s tech-
nical features and the rider’s
skill, so that together they form
a single efficient unit.
Riding safely in traffic calls for a
sense of responsibility to your
pillion passenger and to other
road users.d Warning:
Do not ride the motorcycle af-
ter drinking alcoholic beve-
rages. Even small amounts of
alcohol or drugs, particularly
if taken in conjunction with
medicines, will adversely af-
fect your perception and your
ability to assess situations
and make decisions, and also
slow down your reflexes.
Take to the road now by all
means, but think carefully about
everything you do.
10r28bkg3.book Seite 49 Dienstag, 25. Mai 2004 5:26 17

33
50
Starting – Riding – Parking
Important notes
BMW Integral ABSOE
Motorcycle equipped with
BMW Integral ABS (
b 68)
d Warning:
When the ignition is switched
off or if the BMW Integral ABS
fails, only a “RESIDUAL
BRAKING FUNCTION” is
available (
b 71).
Under these circumstances
you must apply CONSIDERA-
BLY higher pressure to the
brake levers in order to apply
the brakes, and lever travel is
longer.

Optional extra
Risk of poisoningExhaust fumes contain carbon
monoxide, which is colourless
and odourless but highly toxic.
d Warning:
Inhaling the exhaust fumes
therefore represents a health
hazard and can even cause
loss of consciousness with
fatal consequences.
Do not run the engine in an
enclosed space.
Risk of fatal accidentYour motorcycle is equipped
with Digital Motor Electronics
(Motronic) and high-power
ignition system.
d Warning:
When the engine is running or
the ignition switched on, nev-
er touch electrically live parts
of the ignition system or the
digital engine electronics.
10r28bkg3.book Seite 50 Dienstag, 25. Mai 2004 5:26 17

3
51
3
Starting – Riding – Parking
Important notes

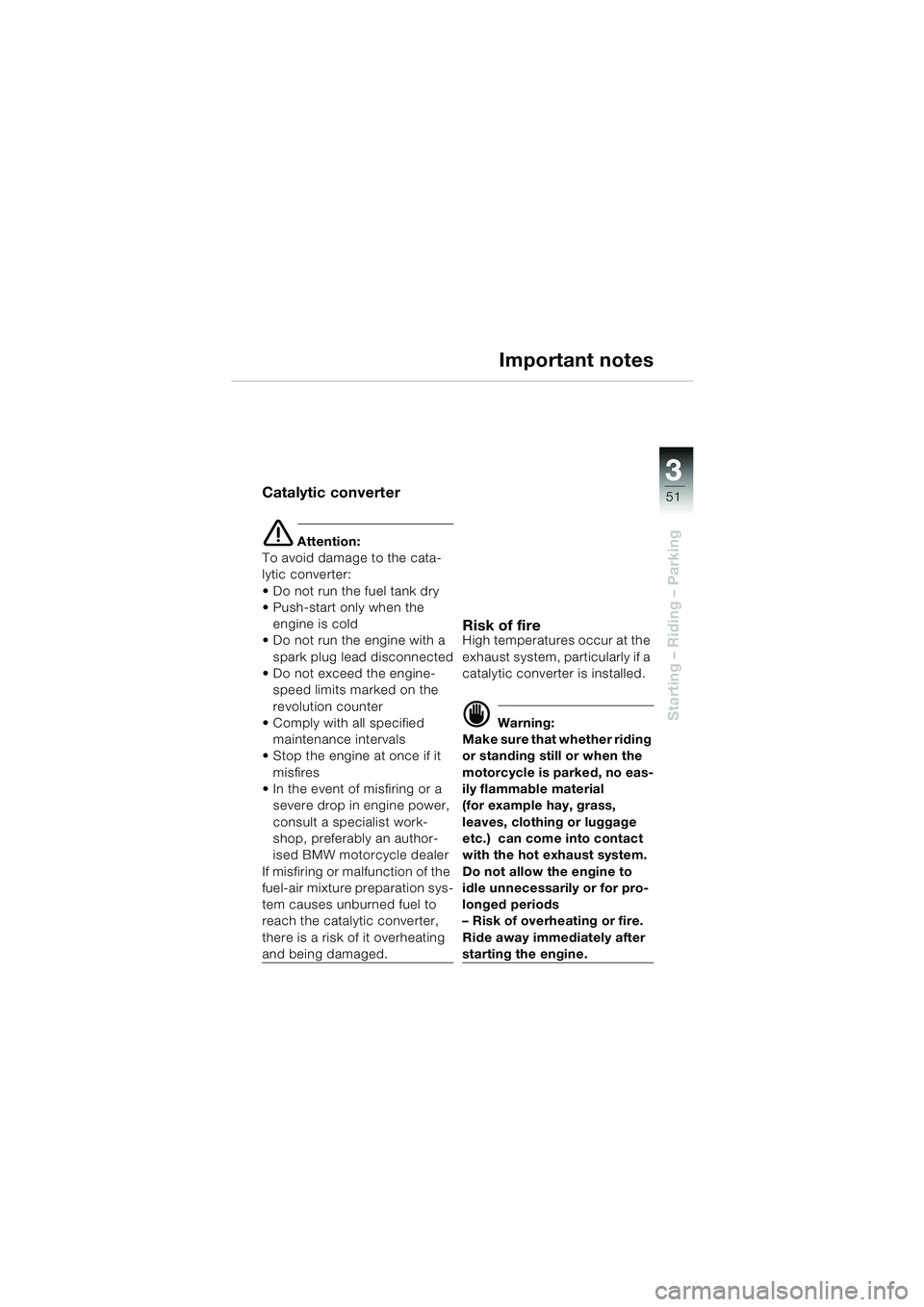

Catalytic converter
e Attention:
To avoid damage to the cata-
lytic converter:
 Do not run the fuel tank dry
 Push-start only when the
engine is cold
 Do not run the engine with a
spark plug lead disconnected
 Do not exceed the engine- speed limits marked on the
revolution counter
 Comply with all specified
maintenance intervals
 Stop the engine at once if it
misfires
 In the event of misfiring or a severe drop in engine power,
consult a specialist work-
shop, preferably an author-
ised BMW motorcycle dealer
If misfiring or malfunction of the
fuel-air mixture preparation sys-
tem causes unburned fuel to
reach the catalytic converter,
there is a risk of it overheating
and being damaged.
Risk of fireHigh temperatures occur at the
exhaust system, particularly if a
catalytic converter is installed.
d Warning:
Make sure that whether riding
or standing still or when the
motorcycle is parked, no eas-
ily flammable material
(for example hay, grass,
leaves, clothing or luggage
etc.) can come into contact
with the hot exhaust system.
Do not allow the engine to
idle unnecessarily or for pro-
longed periods
– Risk of overheating or fire.
Ride away immediately after
starting the engine.
10r28bkg3.book Seite 51 Dienstag, 25. Mai 2004 5:26 17

33
52
Starting – Riding – Parking

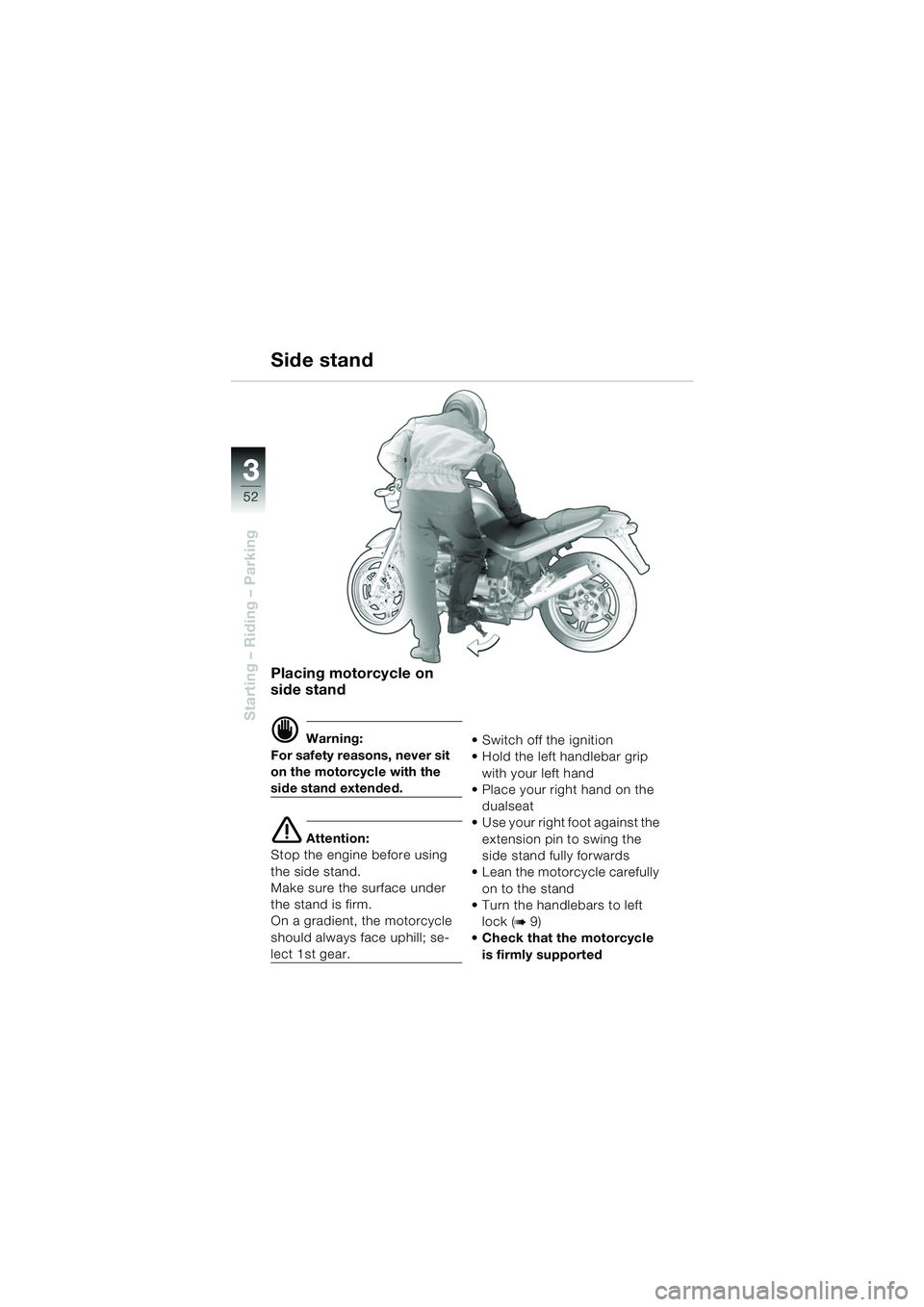

Placing motorcycle on
side stand
d Warning:
For safety reasons, never sit
on the motorcycle with the
side stand extended.
e Attention:
Stop the engine before using
the side stand.
Make sure the surface under
the stand is firm.
On a gradient, the motorcycle
should always face uphill; se-
lect 1st gear.  Switch off the ignition
 Hold the left handlebar grip
with your left hand
 Place your right hand on the
dualseat
 Use your right foot against the
extension pin to swing the
side stand fully forwards
 Lean the motorcycle carefully
on to the stand
 Turn the handlebars to left
lock (
b 9)
 Check that the motorcycle
is firmly supported
Side stand
10r28bkg3.book Seite 52 Dienstag, 25. Mai 2004 5:26 17

3
53
3
Starting – Riding – Parking

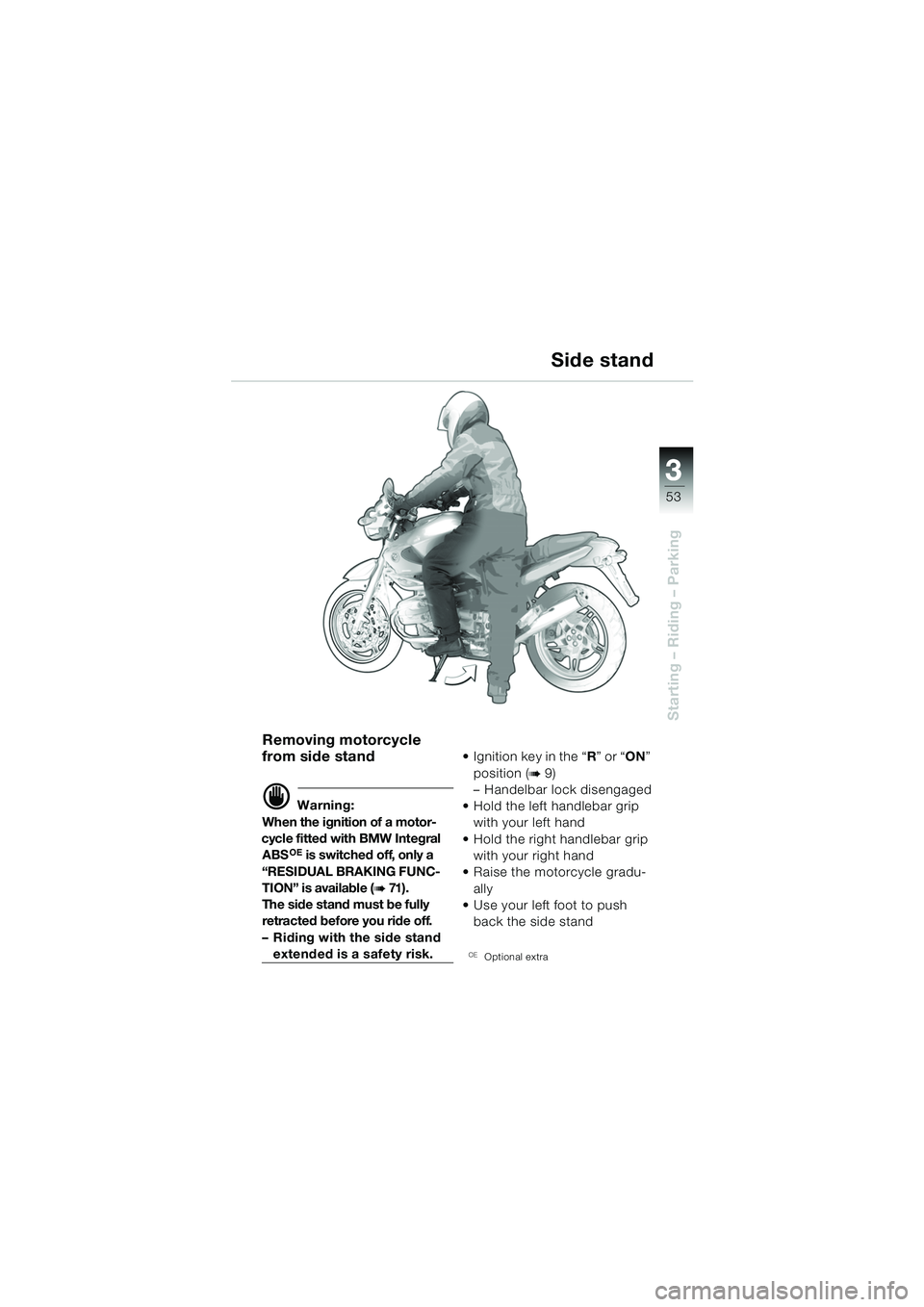

Removing motorcycle
from side stand
d Warning:
When the ignition of a motor-
cycle fitted with BMW Integral
ABS
OE is switched off, only a
“RESIDUAL BRAKING FUNC-
TION” is available (
b 71 ) .
The side stand must be fully
retracted before you ride off.
– Riding with the side stand
extended is a safety risk.  Ignition key in the “
R” or “ ON”
position (
b 9)
– Handelbar lock disengaged
 Hold the left handlebar grip with your left hand
 Hold the right handlebar grip with your right hand
 Raise the motorcycle gradu-
ally
 Use your left foot to push
back the side stand

Optional extra
Side stand
10r28bkg3.book Seite 53 Dienstag, 25. Mai 2004 5:26 17

33
54

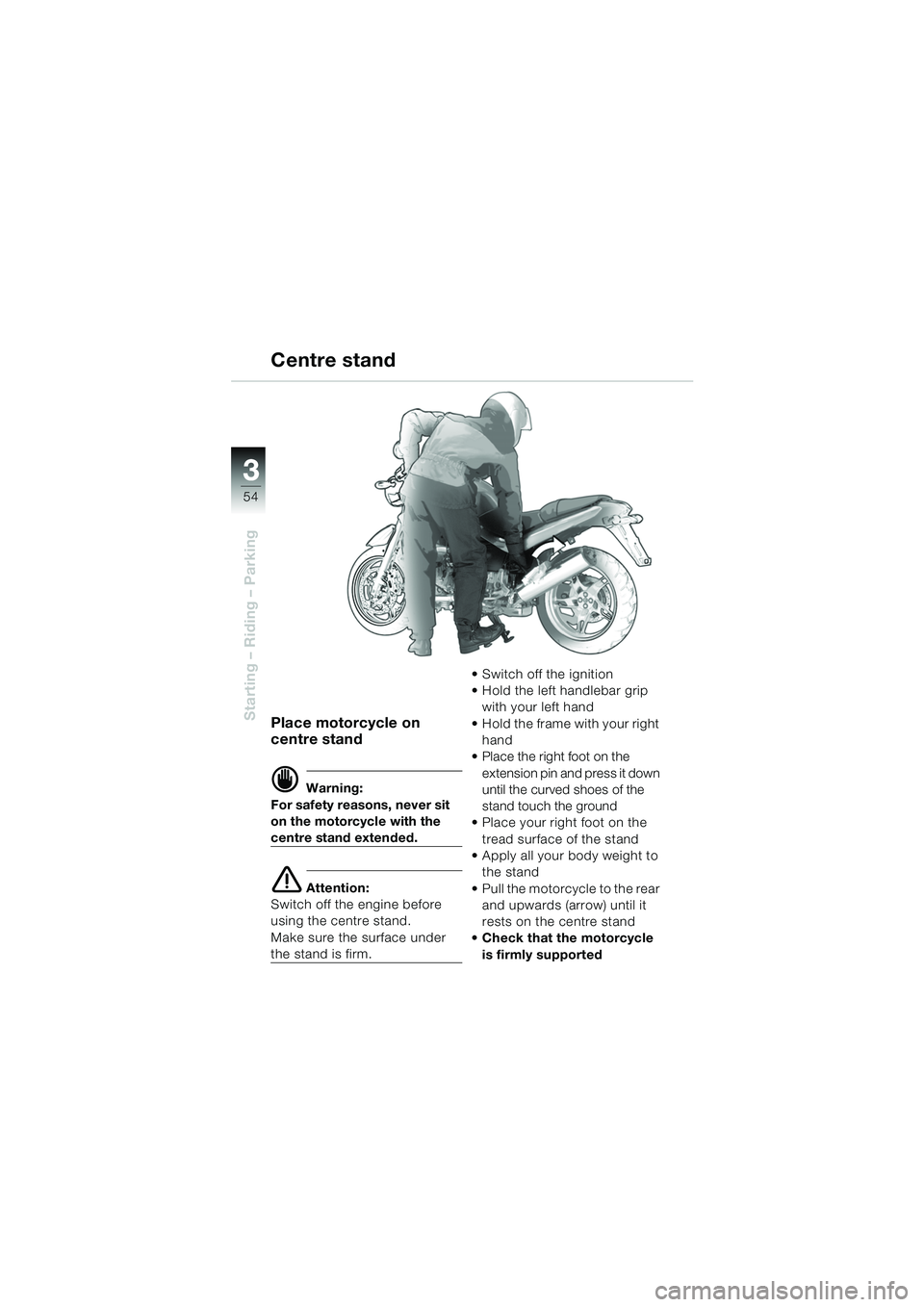

Starting – Riding – ParkingPlace motorcycle on
centre stand
d Warning:
For safety reasons, never sit
on the motorcycle with the
centre stand extended.
e Attention:
Switch off the engine before
using the centre stand.
Make sure the surface under
the stand is firm.  Switch off the ignition
 Hold the left handlebar grip
with your left hand
 Hold the frame with your right hand
 Place the right foot on the extension pin and press it down
until the curved shoes of the
stand touch the ground
 Place your right foot on the
tread surface of the stand
 Apply all your body weight to the stand
 Pull the motorcycle to the rear and upwards (arrow) until it
rests on the centre stand
 Check that the motorcycle
is firmly supported
Centre stand
10r28bkg3.book Seite 54 Dienstag, 25. Mai 2004 5:26 17

3
55
3
Starting – Riding – Parking
Removing motorcycle
from centre stand
d Warning:
If the motorcycle is fitted with
BMW Integral ABS
OE, only RE-
SIDUAL BRAKING FUNC-
TIONALITY is available when
the ignition is switched off
(
b 71).
Make sure the centre stand is
fully retracted before you
ride off.  Ignition key in the “
R” or “ ON”
position (
b 9)
– Handelbar lock disengaged
 Hold the left handlebar grip with your left hand
 Hold the frame with your right hand
 Push the motorcycle forwards
off the stand
 Check that the stand has
fully retracted

Optional extra
Centre stand
10r28bkg3.book Seite 55 Dienstag, 25. Mai 2004 5:26 17

33

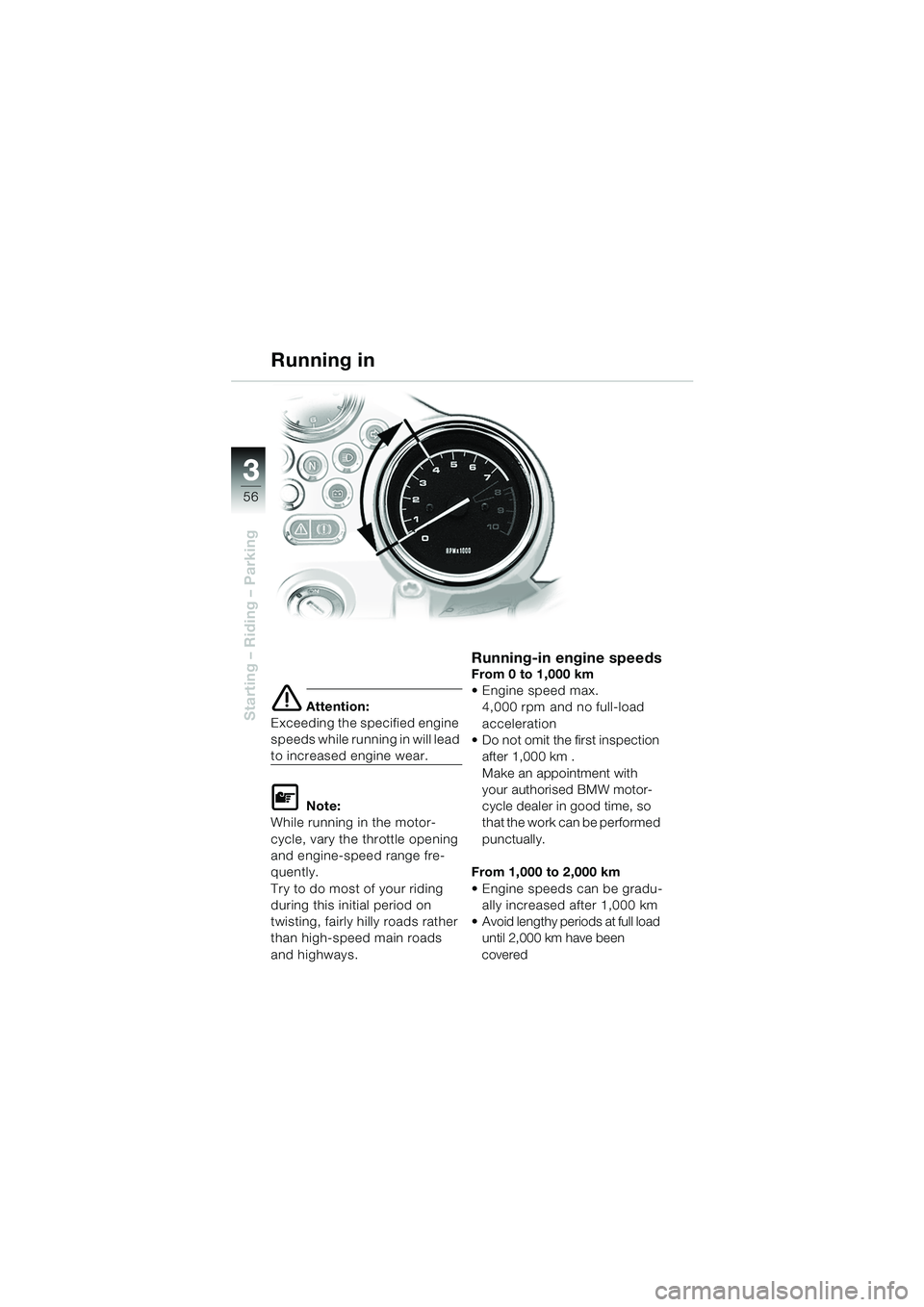

56
Starting – Riding – Parkinge Attention:
Exceeding the specified engine
speeds while running in will lead
to increased engine wear.
L Note:
While running in the motor-
cycle, vary the throttle opening
and engine-speed range fre-
quently.
Try to do most of your riding
during this initial period on
twisting, fairly hilly roads rather
than high-speed main roads
and highways.
Running-in engine speedsFrom 0 to 1,000 km
 Engine speed max. 4,000 rpm and no full-load
acceleration
 Do not omit the first inspection
after 1,000 km .
Make an appointment with
your authorised BMW motor-
cycle dealer in good time, so
that the work can be performed
punctually.
From 1,000 to 2,000 km
 Engine speeds can be gradu- ally increased after 1,000 km
 Avoid lengthy periods at full load until 2,000 km have been
covered
Running in
10r28bkg3.book Seite 56 Dienstag, 25. Mai 2004 5:26 17

3
57
3

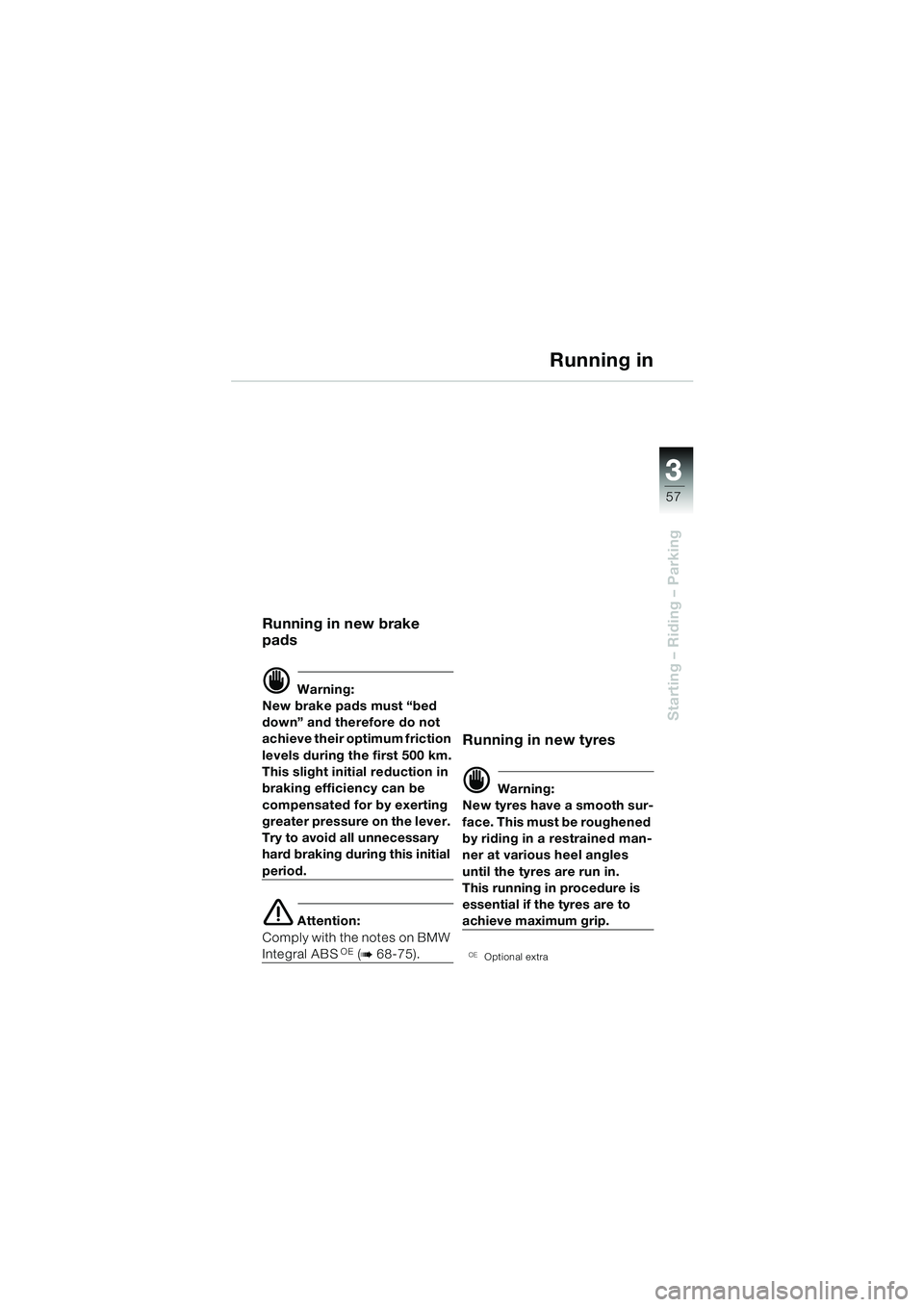

Starting – Riding – Parking
Running in
Running in new brake
pads
d Warning:
New brake pads must “bed
down” and therefore do not
achieve their optimum friction
levels during the first 500 km.
This slight initial reduction in
braking efficiency can be
compensated for by exerting
greater pressure on the lever.
Try to avoid all unnecessary
hard braking during this initial
period.
e Attention:
Comply with the notes on BMW
Integral ABSOE (b 68-75).
Running in new tyres
d Warning:
New tyres have a smooth sur-
face. This must be roughened
by riding in a restrained man-
ner at various heel angles
until the tyres are run in.
This running in procedure is
essential if the tyres are to
achieve maximum grip.

Optional extra
10r28bkg3.book Seite 57 Dienstag, 25. Mai 2004 5:26 17

33
58
Starting – Riding – Parking
A
B
B
1

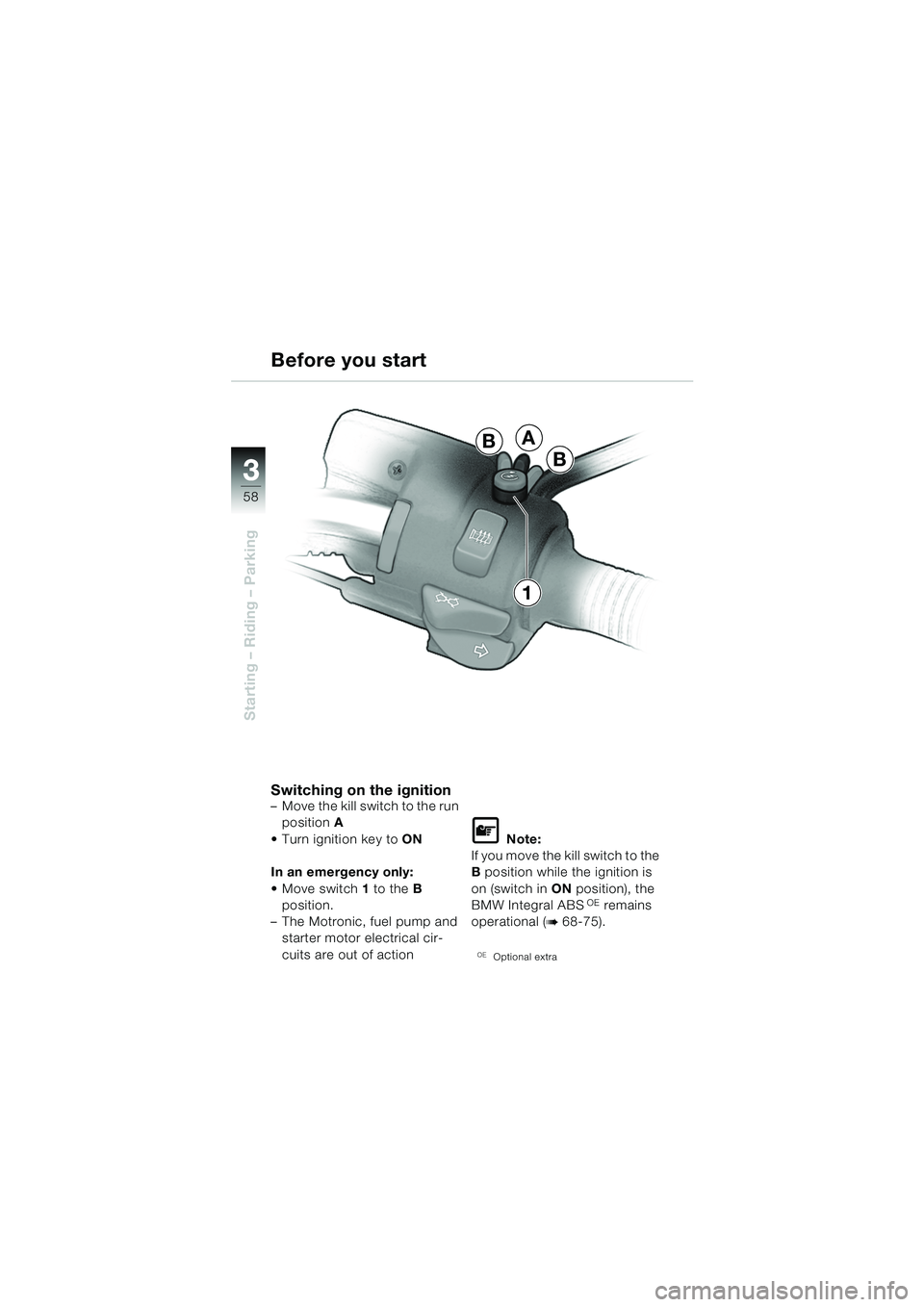

Switching on the ignition– Move the kill switch to the run position A
 Turn ignition key to ON
In an emergency only:
 Move switch 1 to the B
position.
– The Motronic, fuel pump and starter motor electrical cir-
cuits are out of action
L Note:
If you move the kill switch to the
B position while the ignition is
on (switch in ON position), the
BMW Integral ABS
OE remains
operational (
b 68-75).

Optional extra
Before you start
