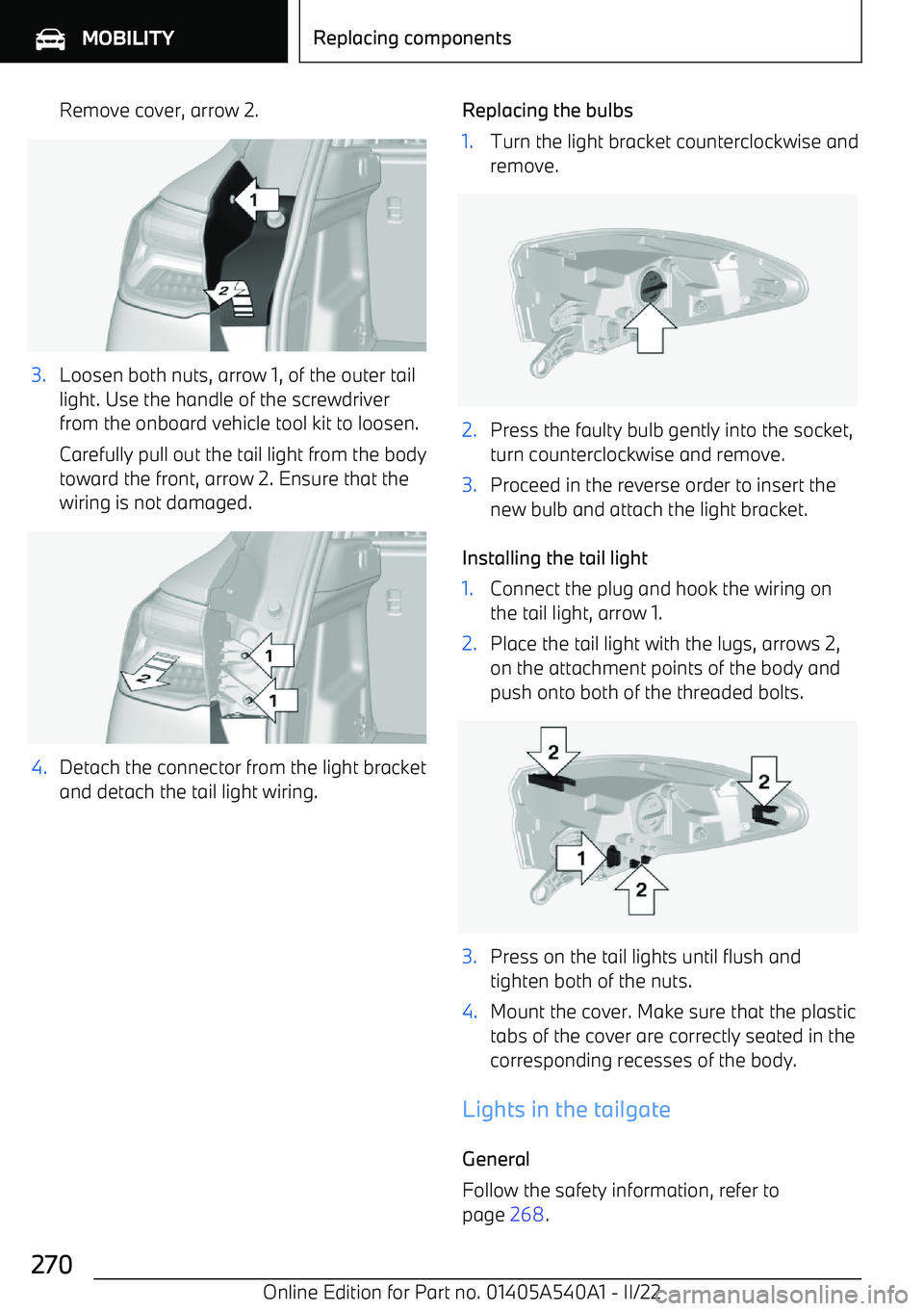

Remove cover, arrow 2.3.Loosen both nuts, arrow 1, of the outer tail
light. Use the handle of the screwdriver from the onboard vehicle tool kit to loosen.
Carefully pull out the tail light from the body
toward the front, arrow 2. Ensure that the
wiring is not damaged.4.Detach the connector from the light bracket
and detach the tail light wiring.Replacing the bulbs1.Turn the light bracket counterclockwise and remove.2.Press the faulty bulb gently into the socket,turn counterclockwise and remove.3.Proceed in the reverse order to insert thenew bulb and attach the light bracket.
Installing the tail light
1.Connect the plug and hook the wiring onthe tail light, arrow 1.2.Place the tail light with the lugs, arrows 2,on the attachment points of the body and
push onto both of the threaded bolts.3.Press on the tail lights until flush and
tighten both of the nuts.4.Mount the cover. Make sure that the plastic tabs of the cover are correctly seated in the
corresponding recesses of the body.
Lights in the tailgate
General
Follow the safety information, refer to
page 268.
