BMW X3 2014 F25 Owner's Manual

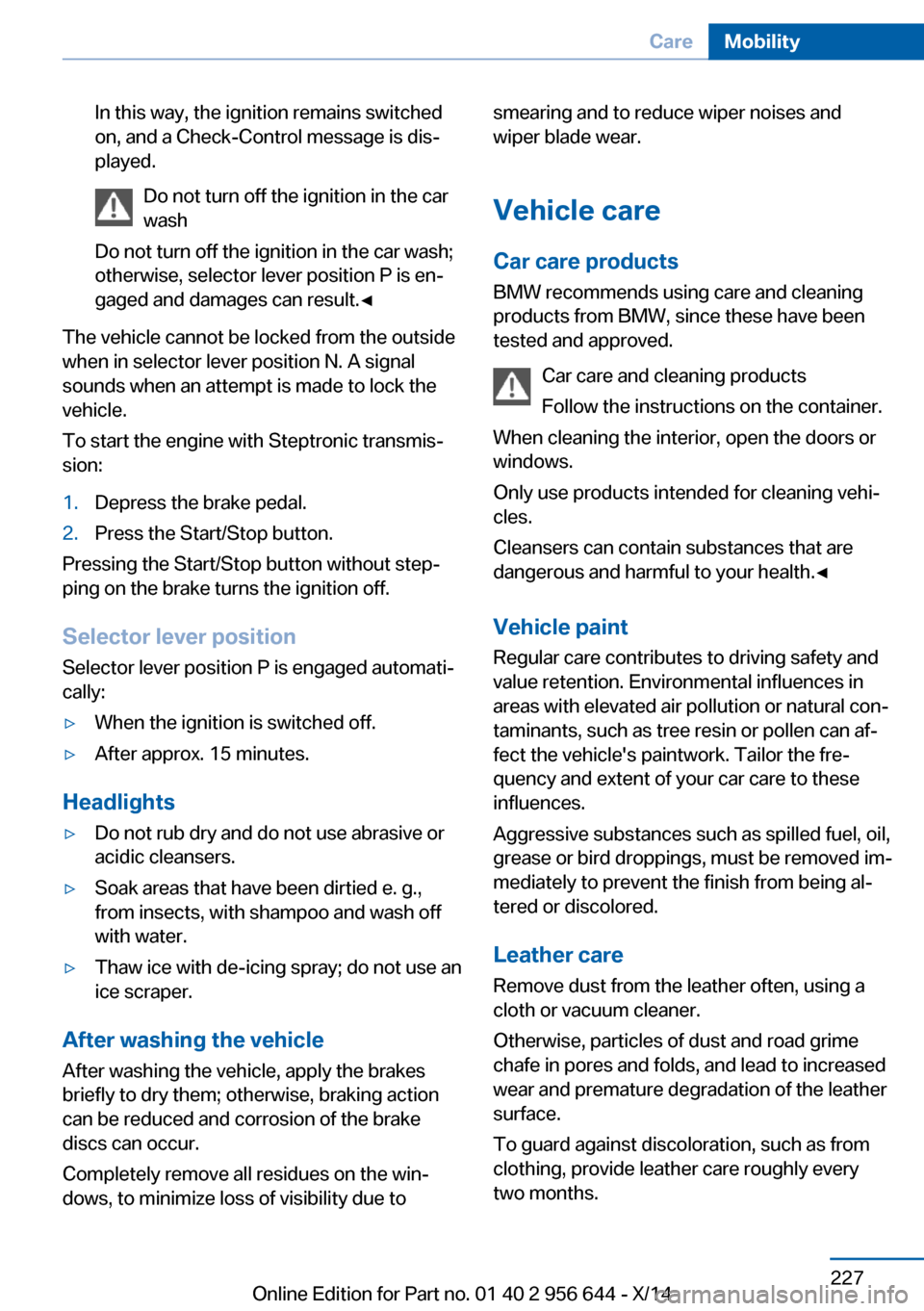

In this way, the ignition remains switched
on, and a Check-Control message is dis‐
played.
Do not turn off the ignition in the car
wash
Do not turn off the ignition in the car wash;
otherwise, selector lever position P is en‐
gaged and damages can result.◀
The vehicle cannot be locked from the outside
when in selector lever position N. A signal
sounds when an attempt is made to lock the
vehicle.
To start the engine with Steptronic transmis‐
sion:
1.Depress the brake pedal.2.Press the Start/Stop button.
Pressing the Start/Stop button without step‐
ping on the brake turns the ignition off.
Selector lever positionSelector lever position P is engaged automati‐
cally:
▷When the ignition is switched off.▷After approx. 15 minutes.
Headlights
▷Do not rub dry and do not use abrasive or
acidic cleansers.▷Soak areas that have been dirtied e. g.,
from insects, with shampoo and wash off
with water.▷Thaw ice with de-icing spray; do not use an
ice scraper.
After washing the vehicle
After washing the vehicle, apply the brakes
briefly to dry them; otherwise, braking action
can be reduced and corrosion of the brake
discs can occur.
Completely remove all residues on the win‐
dows, to minimize loss of visibility due to
smearing and to reduce wiper noises and
wiper blade wear.
Vehicle care
Car care products BMW recommends using care and cleaning
products from BMW, since these have been
tested and approved.
Car care and cleaning products
Follow the instructions on the container.
When cleaning the interior, open the doors or
windows.
Only use products intended for cleaning vehi‐
cles.
Cleansers can contain substances that are
dangerous and harmful to your health.◀
Vehicle paint
Regular care contributes to driving safety and
value retention. Environmental influences in
areas with elevated air pollution or natural con‐
taminants, such as tree resin or pollen can af‐
fect the vehicle's paintwork. Tailor the fre‐
quency and extent of your car care to these
influences.
Aggressive substances such as spilled fuel, oil,
grease or bird droppings, must be removed im‐
mediately to prevent the finish from being al‐
tered or discolored.
Leather care
Remove dust from the leather often, using a
cloth or vacuum cleaner.
Otherwise, particles of dust and road grime
chafe in pores and folds, and lead to increased
wear and premature degradation of the leather
surface.
To guard against discoloration, such as from
clothing, provide leather care roughly every
two months.Seite 227CareMobility227
Online Edition for Part no. 01 40 2 956 644 - X/14

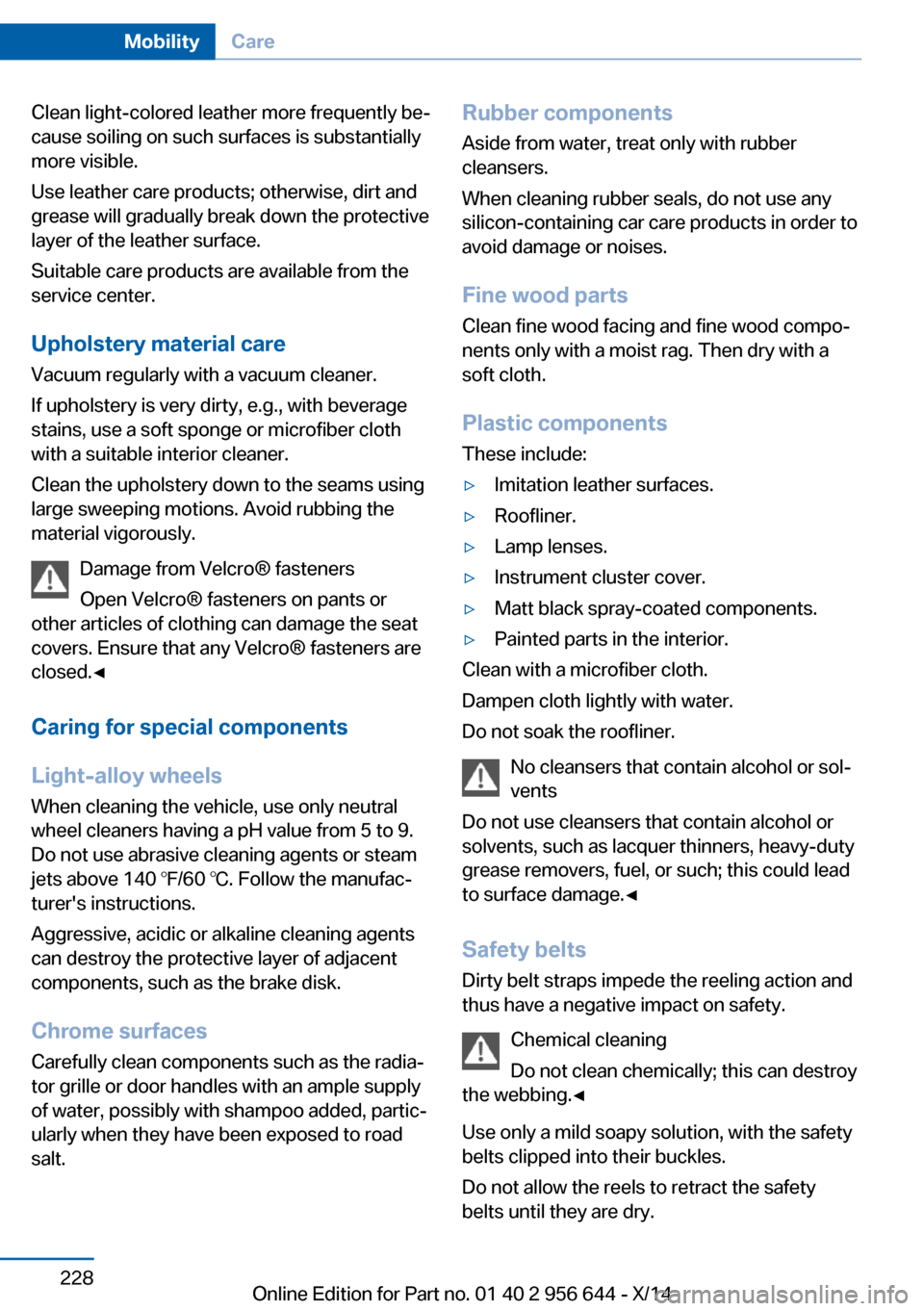

Clean light-colored leather more frequently be‐
cause soiling on such surfaces is substantially
more visible.
Use leather care products; otherwise, dirt and
grease will gradually break down the protective
layer of the leather surface.
Suitable care products are available from the
service center.
Upholstery material care Vacuum regularly with a vacuum cleaner.
If upholstery is very dirty, e.g., with beverage
stains, use a soft sponge or microfiber cloth
with a suitable interior cleaner.
Clean the upholstery down to the seams using
large sweeping motions. Avoid rubbing the
material vigorously.
Damage from Velcro® fasteners
Open Velcro® fasteners on pants or
other articles of clothing can damage the seat
covers. Ensure that any Velcro® fasteners are
closed.◀
Caring for special components
Light-alloy wheels When cleaning the vehicle, use only neutral
wheel cleaners having a pH value from 5 to 9.
Do not use abrasive cleaning agents or steam
jets above 140 ℉/60 ℃. Follow the manufac‐
turer's instructions.
Aggressive, acidic or alkaline cleaning agents
can destroy the protective layer of adjacent
components, such as the brake disk.
Chrome surfaces Carefully clean components such as the radia‐
tor grille or door handles with an ample supply of water, possibly with shampoo added, partic‐
ularly when they have been exposed to road
salt.Rubber components
Aside from water, treat only with rubber
cleansers.
When cleaning rubber seals, do not use any
silicon-containing car care products in order to
avoid damage or noises.
Fine wood partsClean fine wood facing and fine wood compo‐
nents only with a moist rag. Then dry with a
soft cloth.
Plastic components
These include:▷Imitation leather surfaces.▷Roofliner.▷Lamp lenses.▷Instrument cluster cover.▷Matt black spray-coated components.▷Painted parts in the interior.
Clean with a microfiber cloth.
Dampen cloth lightly with water.
Do not soak the roofliner.
No cleansers that contain alcohol or sol‐
vents
Do not use cleansers that contain alcohol or
solvents, such as lacquer thinners, heavy-duty
grease removers, fuel, or such; this could lead
to surface damage.◀
Safety belts
Dirty belt straps impede the reeling action and
thus have a negative impact on safety.
Chemical cleaning
Do not clean chemically; this can destroy
the webbing.◀
Use only a mild soapy solution, with the safety
belts clipped into their buckles.
Do not allow the reels to retract the safety
belts until they are dry.
Seite 228MobilityCare228
Online Edition for Part no. 01 40 2 956 644 - X/14

Carpets and floor matsNo objects in the area around the pedals
Keep floor mats, carpets, and any other
objects out of the pedal area; otherwise, the
function of the pedals could be impeded while driving and create the risk of an accident.
Do not place additional floor mats over existing
mats or other objects.
Only use floor mats that have been approved
for the vehicle and can be properly attached to
floor.
Ensure that the floor mats are securely fas‐
tened again after they were removed for clean‐
ing, e.g.◀
Floor mats can be removed from the car's inte‐
rior for cleaning.
If the floor carpets are very dirty, clean with a microfiber cloth and water or a textile cleaner.
To prevent matting of the carpet, rub back and
forth in the direction of travel only.
Sensors/cameras
To clean sensors and cameras, use a cloth
moistened with a small amount of glass
cleaner.
Displays/monitors Cleaning displays and screens
Do not use any chemical or household
cleaning agents; otherwise, surfaces can be af‐
fected.◀
Keeping out moisture
Keep all fluids and moisture away from
the unit; otherwise, electrical components can
be damaged.◀
Avoid pressure
Avoid pressing too hard when cleaning
and do not use abrasive materials; otherwise,
damage can result.◀
Clean with a clean, antistatic microfiber cloth.Long-term When the vehicle is shut down for longer than
three months, special measures must be
taken. Additional information is available from
the service center.Seite 229CareMobility229
Online Edition for Part no. 01 40 2 956 644 - X/14

Online Edition for Part no. 01 40 2 956 644 - X/14

Reference
This chapter contains the technical data and an
index that will quickly take you to the information you need.Online Edition for Part no. 01 40 2 956 644 - X/14

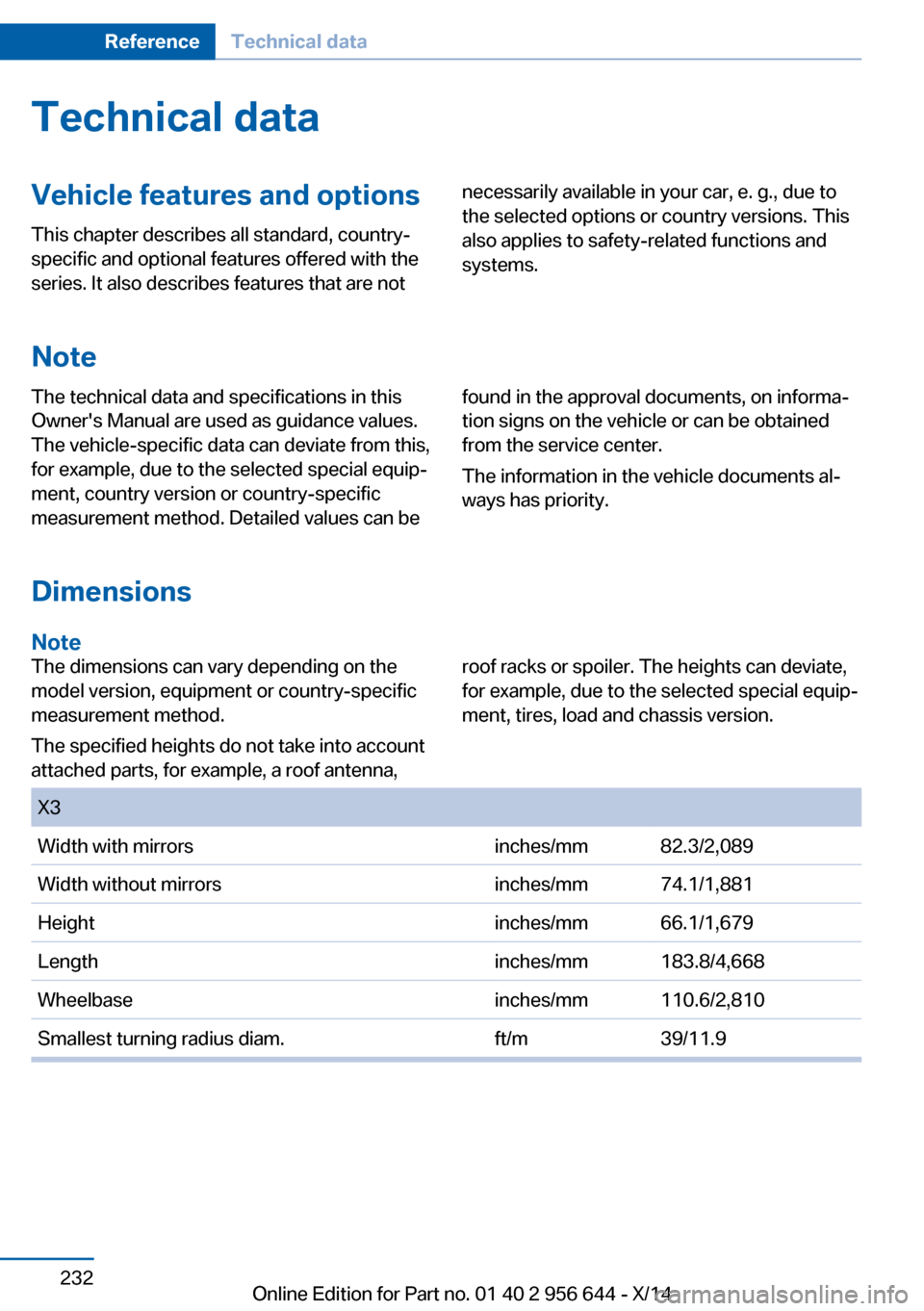

Technical dataVehicle features and options
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and
systems.Note
The technical data and specifications in this
Owner's Manual are used as guidance values.
The vehicle-specific data can deviate from this,
for example, due to the selected special equip‐
ment, country version or country-specific
measurement method. Detailed values can be
found in the approval documents, on informa‐
tion signs on the vehicle or can be obtained
from the service center.
The information in the vehicle documents al‐
ways has priority.
Dimensions
Note
The dimensions can vary depending on the
model version, equipment or country-specific
measurement method.
The specified heights do not take into account
attached parts, for example, a roof antenna,
roof racks or spoiler. The heights can deviate,
for example, due to the selected special equip‐
ment, tires, load and chassis version.
X3Width with mirrorsinches/mm82.3/2,089Width without mirrorsinches/mm74.1/1,881Heightinches/mm66.1/1,679Lengthinches/mm183.8/4,668Wheelbaseinches/mm110.6/2,810Smallest turning radius diam.ft/m39/11.9Seite 232ReferenceTechnical data232
Online Edition for Part no. 01 40 2 956 644 - X/14

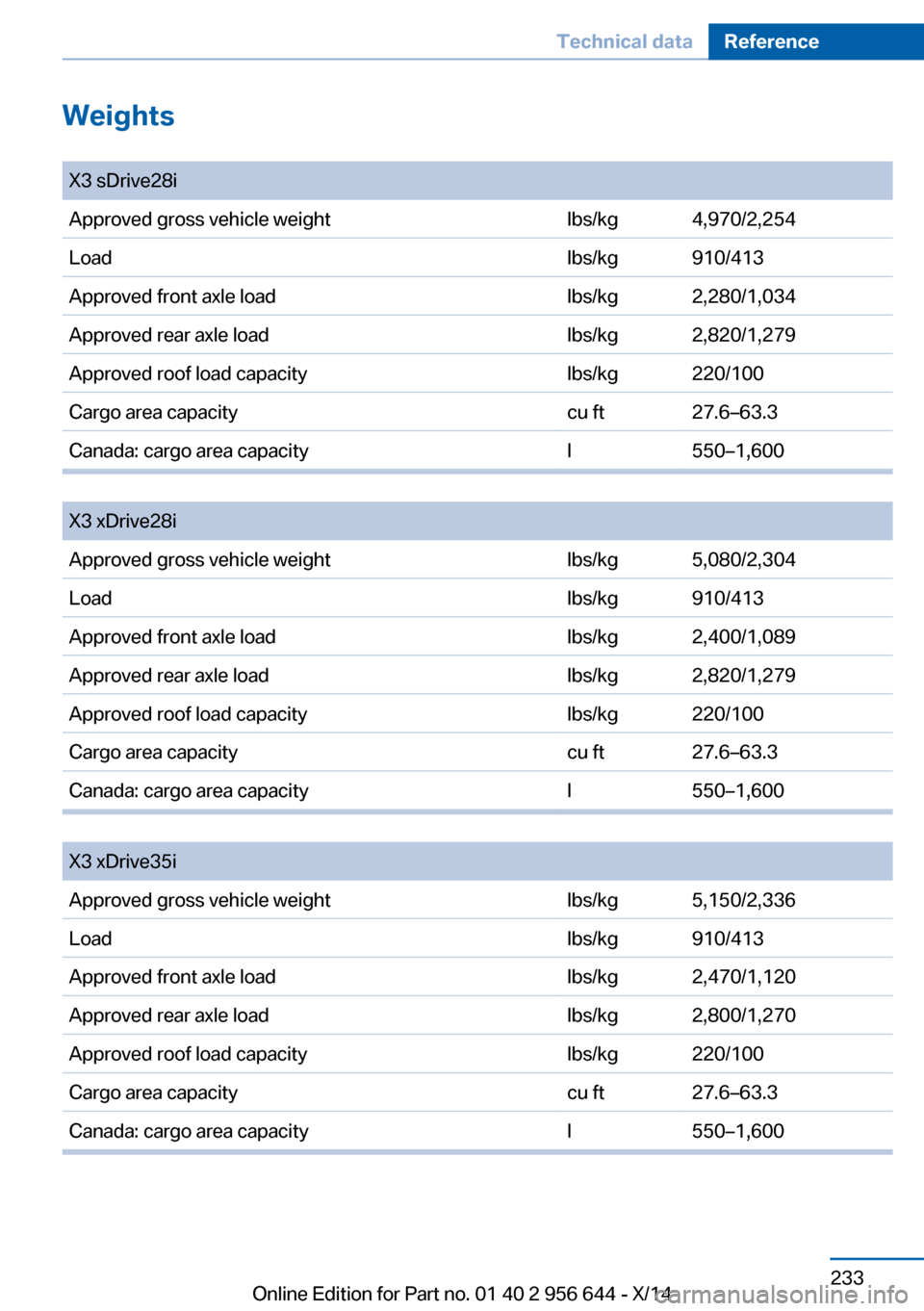

Weights
X3 sDrive28iApproved gross vehicle weightlbs/kg4,970/2,254Loadlbs/kg910/413Approved front axle loadlbs/kg2,280/1,034Approved rear axle loadlbs/kg2,820/1,279Approved roof load capacitylbs/kg220/100Cargo area capacitycu ft27.6–63.3Canada: cargo area capacity550–1,600

X3 xDrive28iApproved gross vehicle weightlbs/kg5,080/2,304Loadlbs/kg910/413Approved front axle loadlbs/kg2,400/1,089Approved rear axle loadlbs/kg2,820/1,279Approved roof load capacitylbs/kg220/100Cargo area capacitycu ft27.6–63.3Canada: cargo area capacity550–1,600

X3 xDrive35iApproved gross vehicle weightlbs/kg5,150/2,336Loadlbs/kg910/413Approved front axle loadlbs/kg2,470/1,120Approved rear axle loadlbs/kg2,800/1,270Approved roof load capacitylbs/kg220/100Cargo area capacitycu ft27.6–63.3Canada: cargo area capacity550–1,600Seite 233Technical dataReference233
Online Edition for Part no. 01 40 2 956 644 - X/14
lll

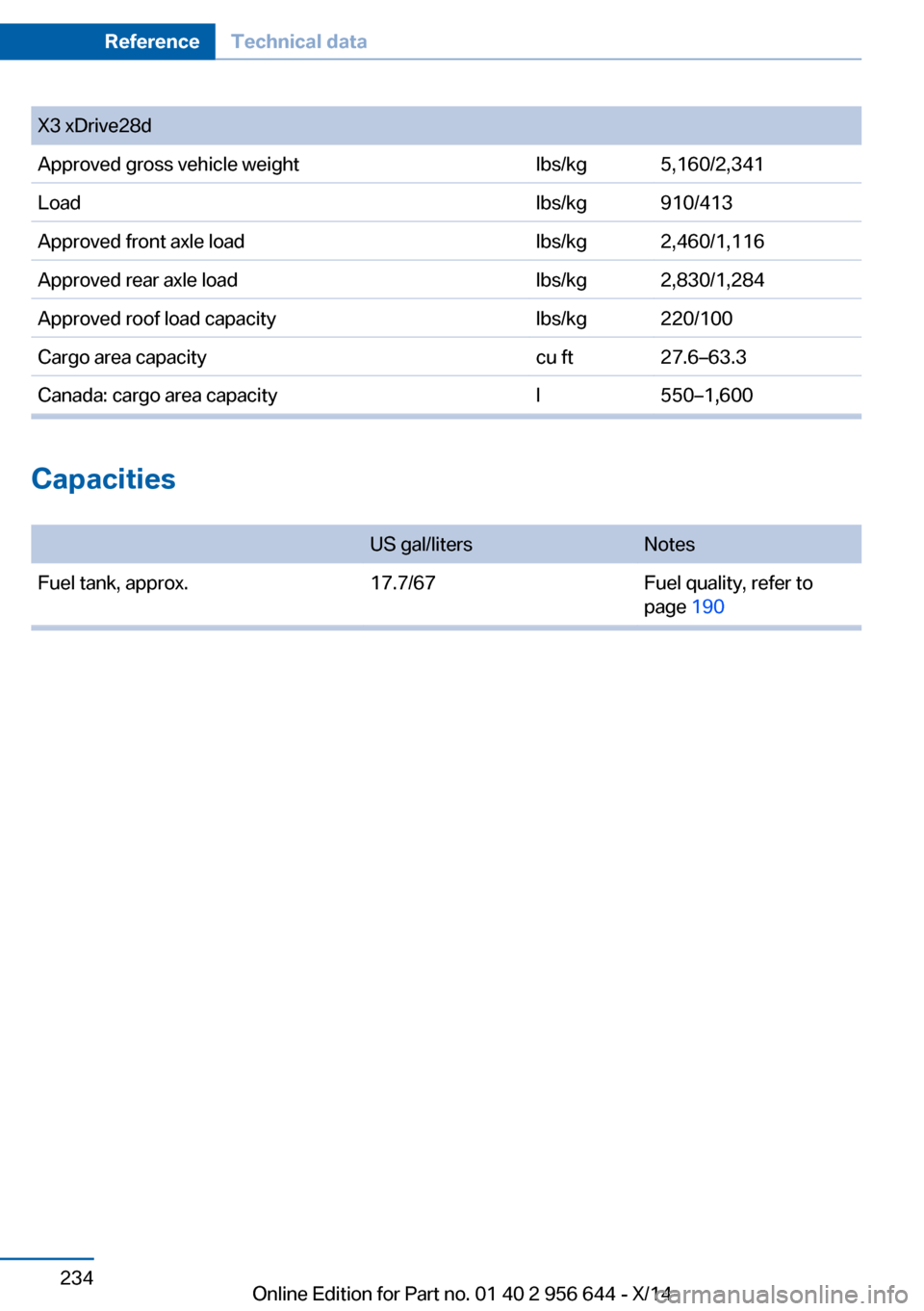

X3 xDrive28dApproved gross vehicle weightlbs/kg5,160/2,341Loadlbs/kg910/413Approved front axle loadlbs/kg2,460/1,116Approved rear axle loadlbs/kg2,830/1,284Approved roof load capacitylbs/kg220/100Cargo area capacitycu ft27.6–63.3Canada: cargo area capacity550–1,600
Capacities
US gal/litersNotesFuel tank, approx.17.7/67Fuel quality, refer to
page 190
Seite 234ReferenceTechnical data234
Online Edition for Part no. 01 40 2 956 644 - X/14
l

Seite 235Technical dataReference235
Online Edition for Part no. 01 40 2 956 644 - X/14

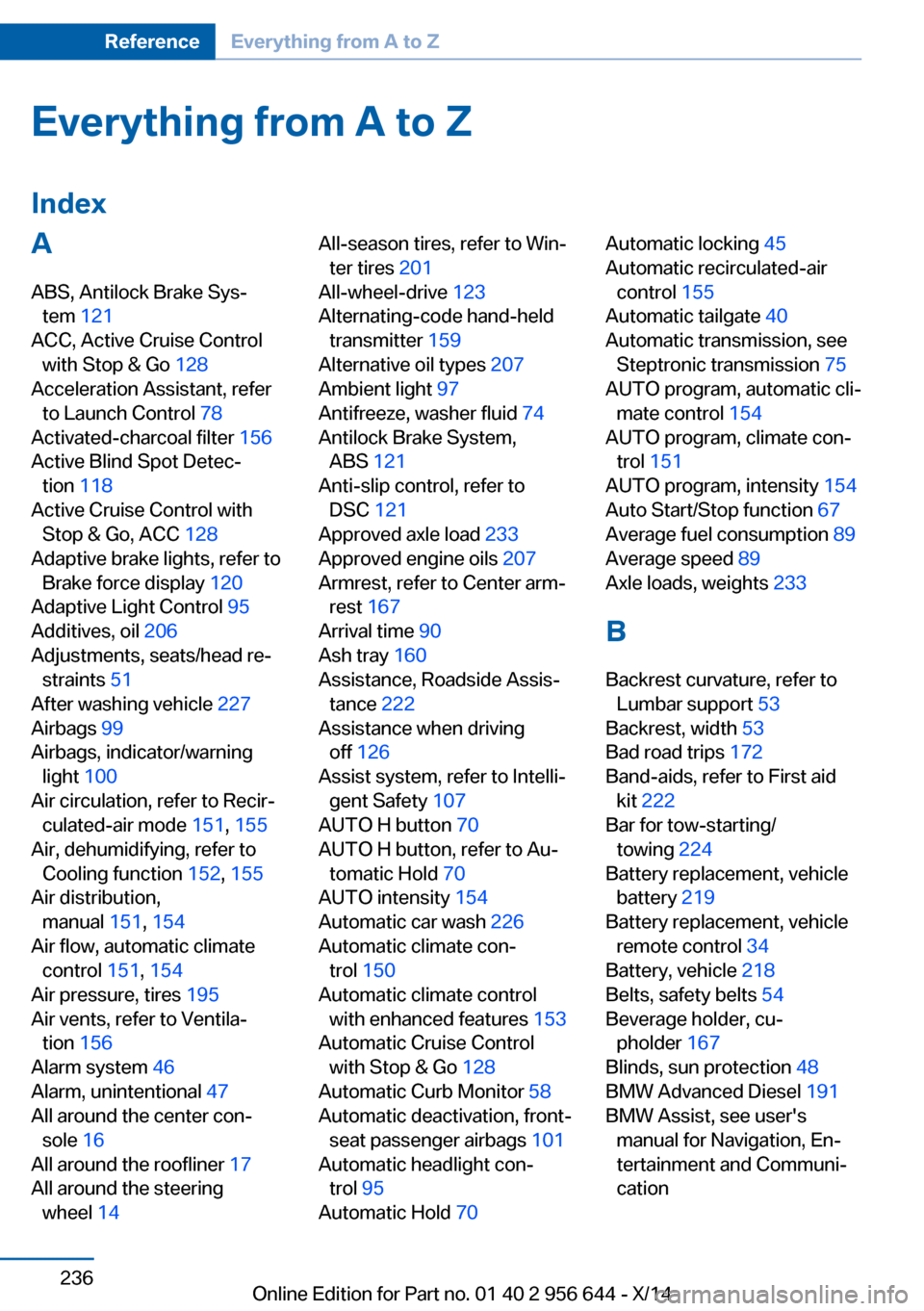

Everything from A to Z
IndexA ABS, Antilock Brake Sys‐ tem 121
ACC, Active Cruise Control with Stop & Go 128
Acceleration Assistant, refer to Launch Control 78
Activated-charcoal filter 156
Active Blind Spot Detec‐ tion 118
Active Cruise Control with Stop & Go, ACC 128
Adaptive brake lights, refer to Brake force display 120
Adaptive Light Control 95
Additives, oil 206
Adjustments, seats/head re‐ straints 51
After washing vehicle 227
Airbags 99
Airbags, indicator/warning light 100
Air circulation, refer to Recir‐ culated-air mode 151, 155
Air, dehumidifying, refer to Cooling function 152, 155
Air distribution, manual 151, 154
Air flow, automatic climate control 151, 154
Air pressure, tires 195
Air vents, refer to Ventila‐ tion 156
Alarm system 46
Alarm, unintentional 47
All around the center con‐ sole 16
All around the roofliner 17
All around the steering wheel 14 All-season tires, refer to Win‐
ter tires 201
All-wheel-drive 123
Alternating-code hand-held transmitter 159
Alternative oil types 207
Ambient light 97
Antifreeze, washer fluid 74
Antilock Brake System, ABS 121
Anti-slip control, refer to DSC 121
Approved axle load 233
Approved engine oils 207
Armrest, refer to Center arm‐ rest 167
Arrival time 90
Ash tray 160
Assistance, Roadside Assis‐ tance 222
Assistance when driving off 126
Assist system, refer to Intelli‐ gent Safety 107
AUTO H button 70
AUTO H button, refer to Au‐ tomatic Hold 70
AUTO intensity 154
Automatic car wash 226
Automatic climate con‐ trol 150
Automatic climate control with enhanced features 153
Automatic Cruise Control with Stop & Go 128
Automatic Curb Monitor 58
Automatic deactivation, front- seat passenger airbags 101
Automatic headlight con‐ trol 95
Automatic Hold 70 Automatic locking 45
Automatic recirculated-air control 155
Automatic tailgate 40
Automatic transmission, see Steptronic transmission 75
AUTO program, automatic cli‐ mate control 154
AUTO program, climate con‐ trol 151
AUTO program, intensity 154
Auto Start/Stop function 67
Average fuel consumption 89
Average speed 89
Axle loads, weights 233
B Backrest curvature, refer to Lumbar support 53
Backrest, width 53
Bad road trips 172
Band-aids, refer to First aid kit 222
Bar for tow-starting/ towing 224
Battery replacement, vehicle battery 219
Battery replacement, vehicle remote control 34
Battery, vehicle 218
Belts, safety belts 54
Beverage holder, cu‐ pholder 167
Blinds, sun protection 48
BMW Advanced Diesel 191
BMW Assist, see user's manual for Navigation, En‐
tertainment and Communi‐
cation Seite 236ReferenceEverything from A to Z236
Online Edition for Part no. 01 40 2 956 644 - X/14
