Page 29 of 139
Reference
At a glance
Controls
Driving tips
Mobility
27
Adjustments
Sitting safely
The ideal sitting position can make a vital con-
tribution to relaxed driving that is as fatigue-free
as possible. Together with safety belts, head
restraints, and airbags, sitting position plays an
important role in an accident. Compliance with
the following instructions is important; failure to
do so could impair the protective function of the
safety systems.
For additional information on transporting chil-
dren safely, refer to page34.
Airbags
Always maintain an adequate distance
between yourself and the airbags. Always
hold the steering wheel by its rim with hands at
the 9 o'clock and 3 o'clock positions, to mini-
mize the risk of injuries to your hands and arms
in the event of airbag deployment.
No one and nothing is to come between the air-
bags and the seat occupant.
Do not use the cover of the front airbag on the
front passenger side as a storage area. Make
sure that the passenger sits correctly, e.g. does
not rest his feet or legs on the dashboard. Oth-
erwise, a triggering of the front airbag could
result in leg injuries. Make sure that passengers
do not lean their heads against side or head air-
bags. Otherwise, a triggering of the airbag could
result in injuries.<
Even if you adhere to all the instructions, inju-
ries resulting from contact with airbags cannot
be entirely ruled out, depending on the circum-
stances. The ignition and inflation noise may
provoke a mild – usually temporary – hearing
loss in extremely sensitive individuals.
For airbag locations and additional information
on airbags, refer to page56.
Head restraint
A correctly adjusted head restraint reduces the
risk of damage to the cervical vertebrae in acci-
dents.
Adjust the head restraint so that its mid-
dle lies approximately at the height of
your ears. Otherwise, there is an increased risk
of injury in the event of an accident.<
Head restraints, refer to page29.
Safety belts
Make sure the safety belts are worn in all occu-
pied seats every time you drive. Although air-
bags enhance safety by providing added pro-
tection, they are not a substitute for safety
belts.
Your vehicle has five seats that are each
equipped with a safety belt.
Never allow more than one person to
wear a single safety belt. Infants and chil-
dren must not ride on a lap. Make sure that the
belt in the lap area sits low against the hips and
does not press against the abdomen. The
safety belt must never rest against the throat,
rub against sharp edges, pass over hard or frag-
ile objects or be pinched. Fasten the safety belt
around your body snugly, making sure that it is
pulled taut across your lap and shoulder and
that it is not twisted; otherwise, the belt can
slide over the hips in the event of a frontal colli-
sion and injure your abdomen. Avoid wearing
clothing that prevents the belt from fitting prop-
erly and pull the shoulder belt upward periodi-
cally to readjust the tension across your lap in
order to avoid a reduction in the restraining
action of the safety belt.
If the middle safety belt is used, the larger part
of the backrest must be locked in position, refer
to page74; otherwise, the middle safety belt
cannot exert any restraining action.<
Safety belts, refer to page31.

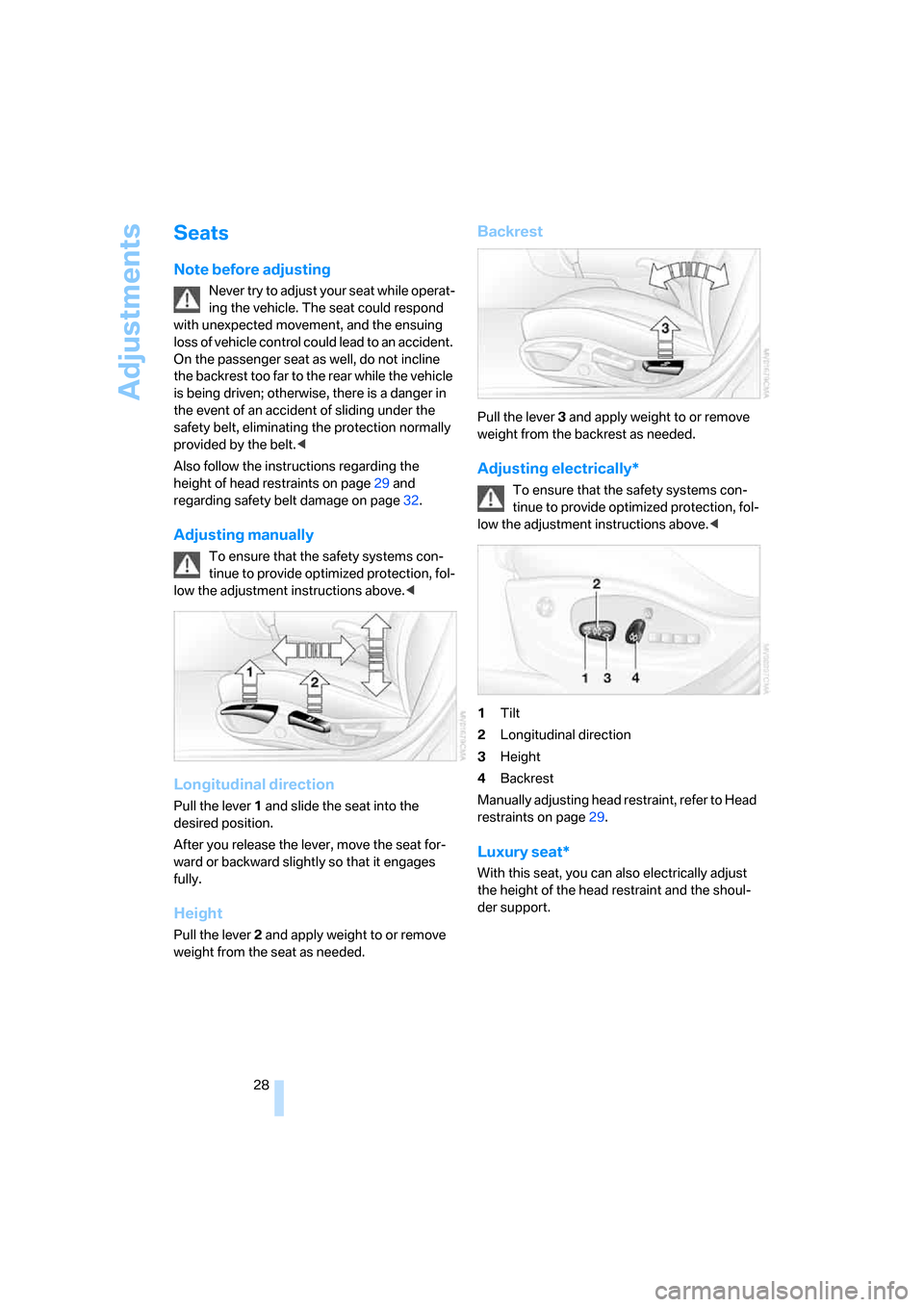

Page 30 of 139
Adjustments
28
Seats
Note before adjusting
Never try to adjust your seat while operat-
ing the vehicle. The seat could respond
with unexpected movement, and the ensuing
loss of vehicle control could lead to an accident.
On the passenger seat as well, do not incline
the backrest too far to the rear while the vehicle
is being driven; otherwise, there is a danger in
the event of an accident of sliding under the
safety belt, eliminating the protection normally
provided by the belt.<
Also follow the instructions regarding the
height of head restraints on page29 and
regarding safety belt damage on page32.
Adjusting manually
To ensure that the safety systems con-
tinue to provide optimized protection, fol-
low the adjustment instructions above.<
Longitudinal direction
Pull the lever 1 and slide the seat into the
desired position.
After you release the lever, move the seat for-
ward or backward slightly so that it engages
fully.
Height
Pull the lever 2 and apply weight to or remove
weight from the seat as needed.
Backrest
Pull the lever 3 and apply weight to or remove
weight from the backrest as needed.
Adjusting electrically*
To ensure that the safety systems con-
tinue to provide optimized protection, fol-
low the adjustment instructions above.<
1Tilt
2Longitudinal direction
3Height
4Backrest
Manually adjusting head restraint, refer to Head
restraints on page29.
Luxury seat*
With this seat, you can also electrically adjust
the height of the head restraint and the shoul-
der support.

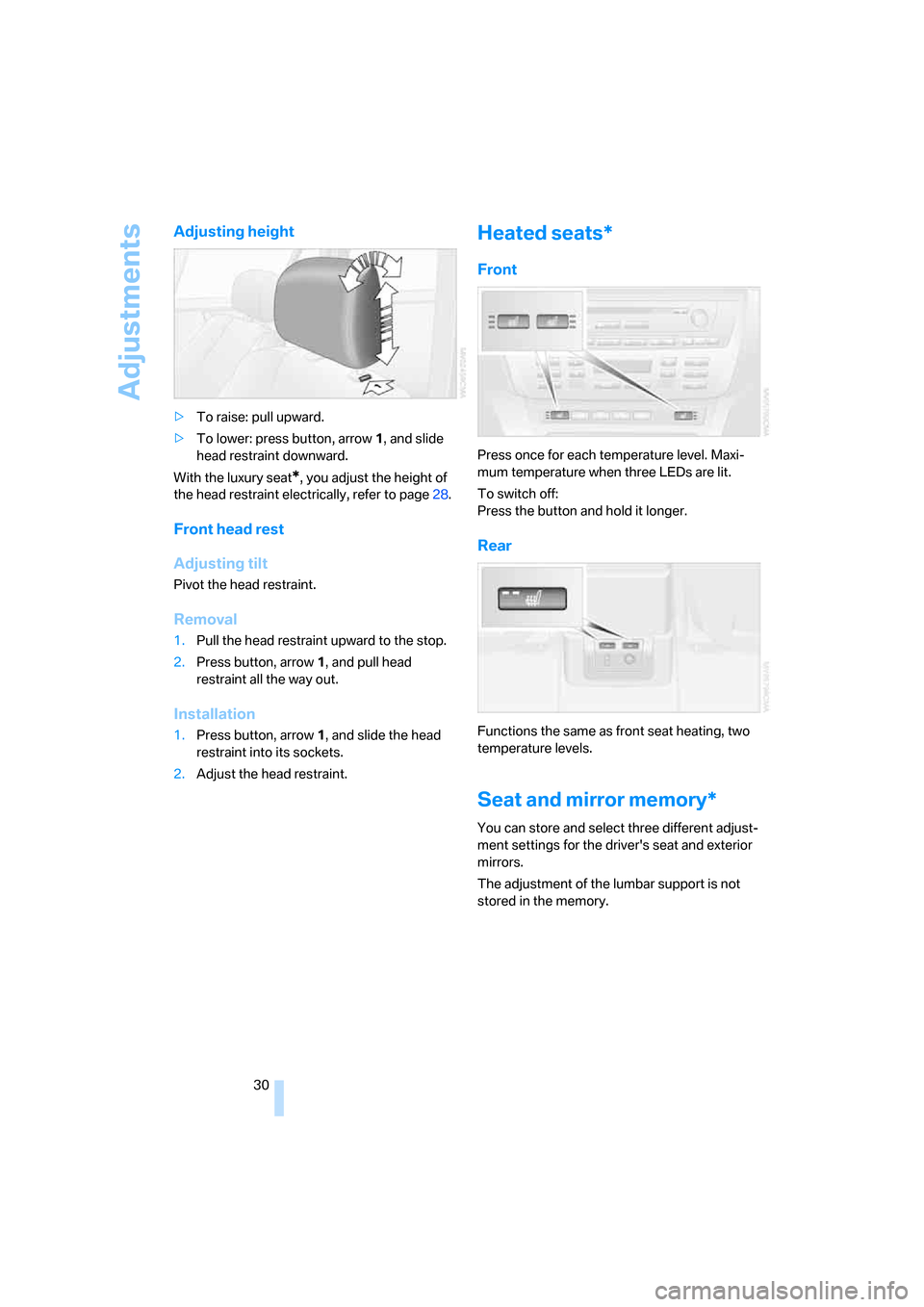

Page 32 of 139
Adjustments
30
Adjusting height
>To raise: pull upward.
>To lower: press button, arrow 1, and slide
head restraint downward.
With the luxury seat
*, you adjust the height of
the head restraint electrically, refer to page28.
Front head rest
Adjusting tilt
Pivot the head restraint.
Removal
1.Pull the head restraint upward to the stop.
2.Press button, arrow 1, and pull head
restraint all the way out.
Installation
1.Press button, arrow 1, and slide the head
restraint into its sockets.
2.Adjust the head restraint.
Heated seats*
Front
Press once for each temperature level. Maxi-
mum temperature when three LEDs are lit.
To switch off:
Press the button and hold it longer.
Rear
Functions the same as front seat heating, two
temperature levels.
Seat and mirror memory*
You can store and select three different adjust-
ment settings for the driver's seat and exterior
mirrors.
The adjustment of the lumbar support is not
stored in the memory.

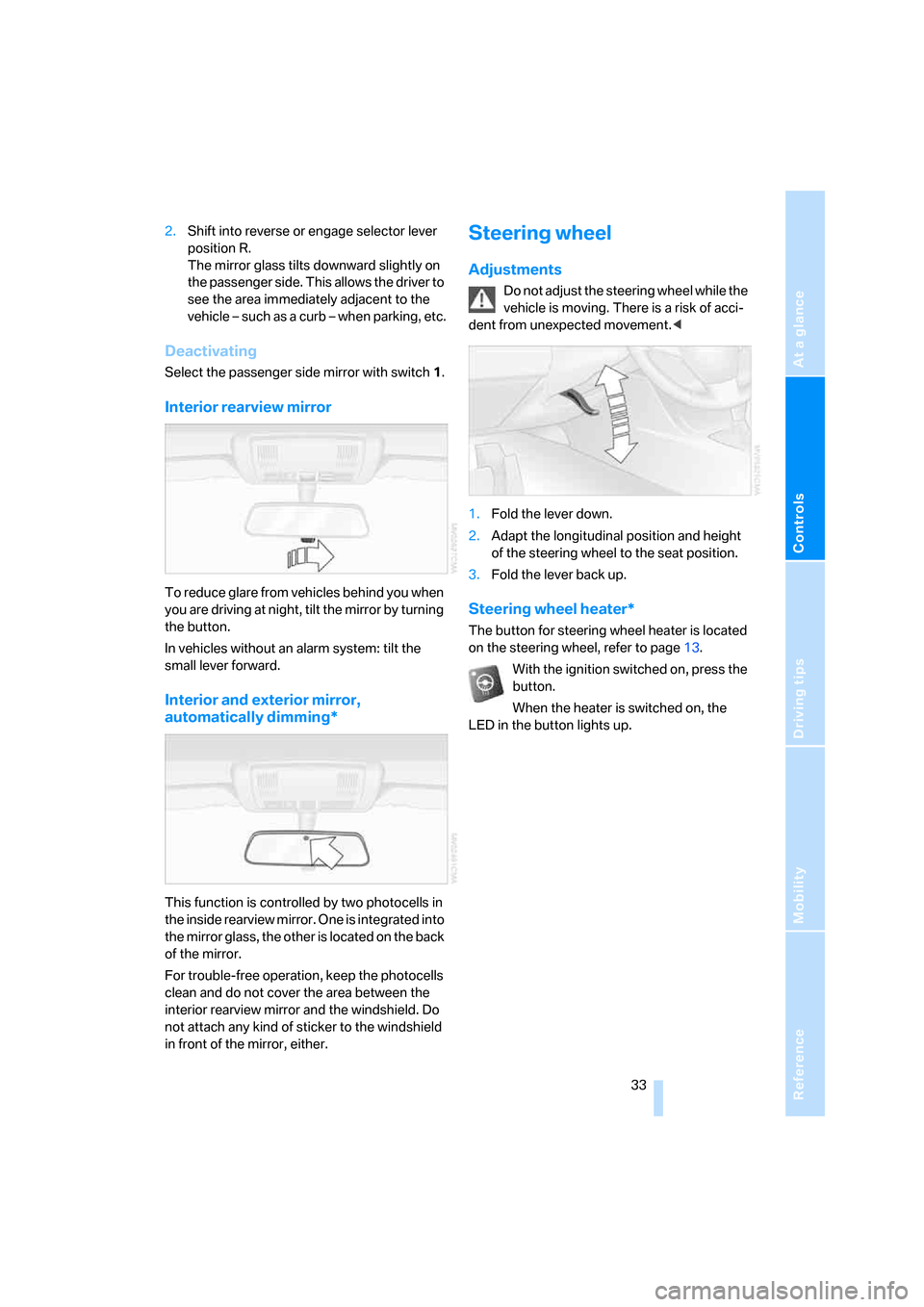

Page 35 of 139
Reference
At a glance
Controls
Driving tips
Mobility
33
2.Shift into reverse or engage selector lever
position R.
The mirror glass tilts downward slightly on
the passenger side. This allows the driver to
see the area immediately adjacent to the
vehicle – such as a curb – when parking, etc.
Deactivating
Select the passenger side mirror with switch1.
Interior rearview mirror
To reduce glare from vehicles behind you when
you are driving at night, tilt the mirror by turning
the button.
In vehicles without an alarm system: tilt the
small lever forward.
Interior and exterior mirror,
automatically dimming*
This function is controlled by two photocells in
the inside rearview mirror. One is integrated into
the mirror glass, the other is located on the back
of the mirror.
For trouble-free operation, keep the photocells
clean and do not cover the area between the
interior rearview mirror and the windshield. Do
not attach any kind of sticker to the windshield
in front of the mirror, either.
Steering wheel
Adjustments
Do not adjust the steering wheel while the
vehicle is moving. There is a risk of acci-
dent from unexpected movement.<
1.Fold the lever down.
2.Adapt the longitudinal position and height
of the steering wheel to the seat position.
3.Fold the lever back up.
Steering wheel heater*
The button for steering wheel heater is located
on the steering wheel, refer to page13.
With the ignition switched on, press the
button.
When the heater is switched on, the
LED in the button lights up.

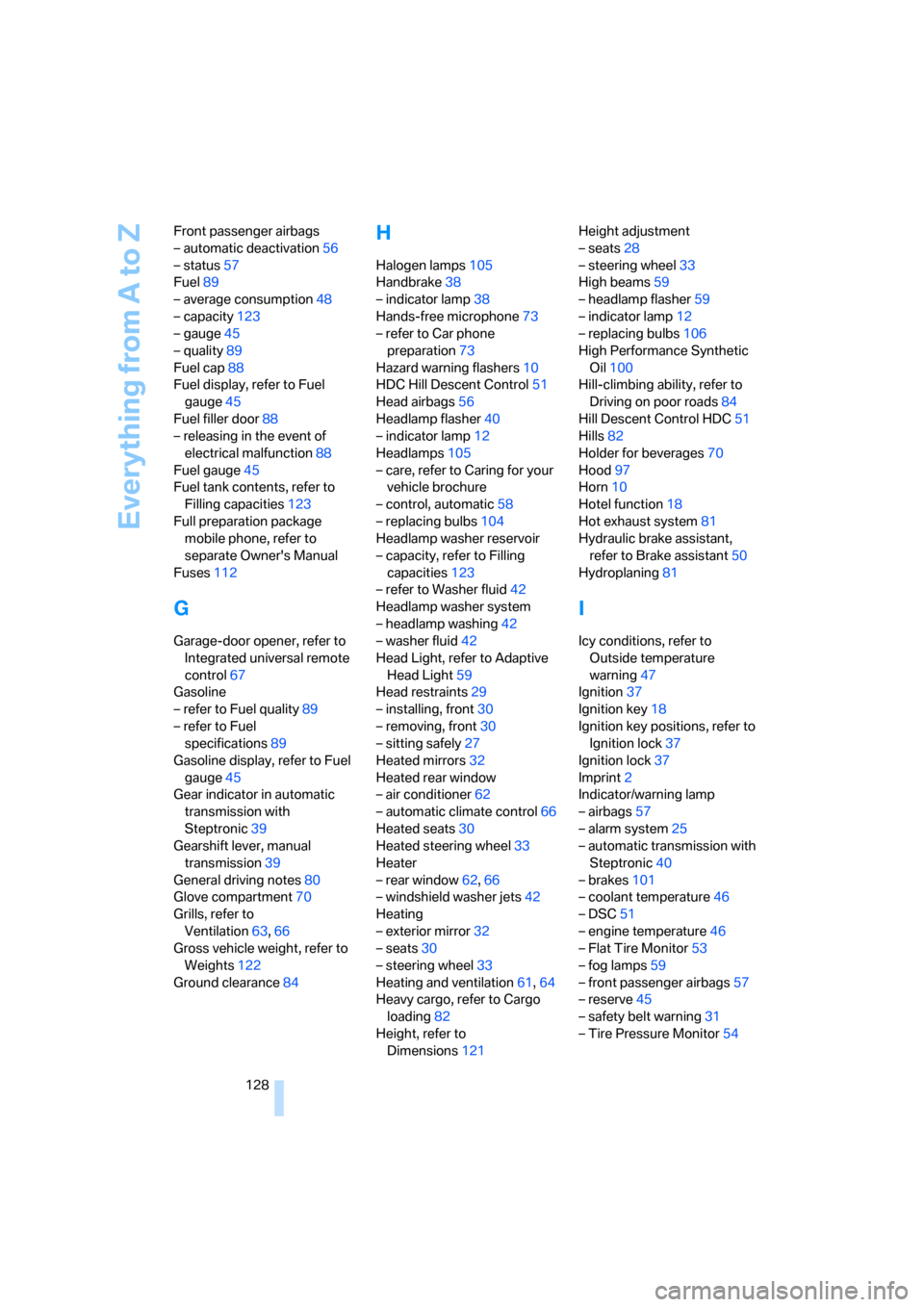

Page 130 of 139
Everything from A to Z
128 Front passenger airbags
– automatic deactivation56
– status57
Fuel89
– average consumption48
– capacity123
– gauge45
– quality89
Fuel cap88
Fuel display, refer to Fuel
gauge45
Fuel filler door88
– releasing in the event of
electrical malfunction88
Fuel gauge45
Fuel tank contents, refer to
Filling capacities123
Full preparation package
mobile phone, refer to
separate Owner's Manual
Fuses112
G
Garage-door opener, refer to
Integrated universal remote
control67
Gasoline
– refer to Fuel quality89
– refer to Fuel
specifications89
Gasoline display, refer to Fuel
gauge45
Gear indicator in automatic
transmission with
Steptronic39
Gearshift lever, manual
transmission39
General driving notes80
Glove compartment70
Grills, refer to
Ventilation63,66
Gross vehicle weight, refer to
Weights122
Ground clearance84
H
Halogen lamps105
Handbrake38
– indicator lamp38
Hands-free microphone73
– refer to Car phone
preparation73
Hazard warning flashers10
HDC Hill Descent Control51
Head airbags56
Headlamp flasher40
– indicator lamp12
Headlamps105
– care, refer to Caring for your
vehicle brochure
– control, automatic58
– replacing bulbs104
Headlamp washer reservoir
– capacity, refer to Filling
capacities123
– refer to Washer fluid42
Headlamp washer system
– headlamp washing42
– washer fluid42
Head Light, refer to Adaptive
Head Light59
Head restraints29
– installing, front30
– removing, front30
– sitting safely27
Heated mirrors32
Heated rear window
– air conditioner62
– automatic climate control66
Heated seats30
Heated steering wheel33
Heater
– rear window62,66
– windshield washer jets42
Heating
– exterior mirror32
– seats30
– steering wheel33
Heating and ventilation61,64
Heavy cargo, refer to Cargo
loading82
Height, refer to
Dimensions121Height adjustment
– seats28
– steering wheel33
High beams59
– headlamp flasher59
– indicator lamp12
– replacing bulbs106
High Performance Synthetic
Oil100
Hill-climbing ability, refer to
Driving on poor roads
84
Hill Descent Control HDC51
Hills82
Holder for beverages70
Hood97
Horn10
Hotel function18
Hot exhaust system81
Hydraulic brake assistant,
refer to Brake assistant50
Hydroplaning81
I
Icy conditions, refer to
Outside temperature
warning47
Ignition37
Ignition key18
Ignition key positions, refer to
Ignition lock37
Ignition lock37
Imprint2
Indicator/warning lamp
– airbags57
– alarm system25
– automatic transmission with
Steptronic40
– brakes101
– coolant temperature46
– DSC51
– engine temperature46
– Flat Tire Monitor53
– fog lamps59
– front passenger airbags57
– reserve45
– safety belt warning31
– Tire Pressure Monitor54
