BMW X3 3.0SI 2008 Owners Manual

Reference
At a glance
Controls
Driving tips
Mobility
119

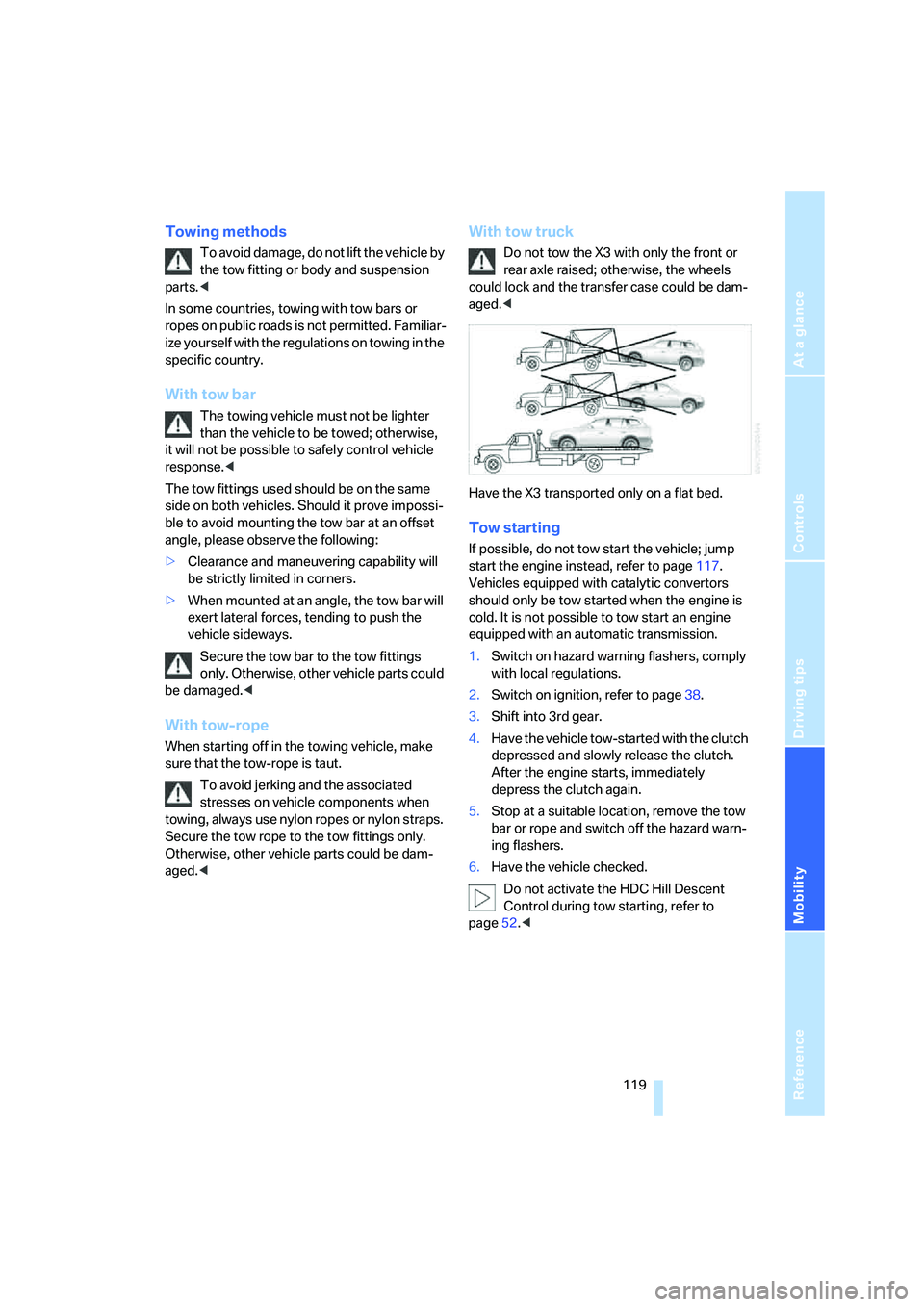

Towing methods
To avoid damage, do not lift the vehicle by
the tow fitting or body and suspension
parts.<
In some countries, towing with tow bars or
ropes on public roads is not permitted. Familiar-
ize yourself with the regulations on towing in the
specific country.
With tow bar
The towing vehicle must not be lighter
than the vehicle to be towed; otherwise,
it will not be possible to safely control vehicle
response.<
The tow fittings used should be on the same
side on both vehicles. Should it prove impossi-
ble to avoid mounting the tow bar at an offset
angle, please observe the following:
>Clearance and maneuvering capability will
be strictly limited in corners.
>When mounted at an angle, the tow bar will
exert lateral forces, tending to push the
vehicle sideways.
Secure the tow bar to the tow fittings
only. Otherwise, other vehicle parts could
be damaged.<
With tow-rope
When starting off in the towing vehicle, make
sure that the tow-rope is taut.
To avoid jerking and the associated
stresses on vehicle components when
towing, always use nylon ropes or nylon straps.
Secure the tow rope to the tow fittings only.
Otherwise, other vehicle parts could be dam-
aged.<
With tow truck
Do not tow the X3 with only the front or
rear axle raised; otherwise, the wheels
could lock and the transfer case could be dam-
aged.<
Have the X3 transported only on a flat bed.
Tow starting
If possible, do not tow start the vehicle; jump
start the engine instead, refer to page117.
Vehicles equipped with catalytic convertors
should only be tow started when the engine is
cold. It is not possible to tow start an engine
equipped with an automatic transmission.
1.Switch on hazard warning flashers, comply
with local regulations.
2.Switch on ignition, refer to page38.
3.Shift into 3rd gear.
4.Have the vehicle tow-started with the clutch
depressed and slowly release the clutch.
After the engine starts, immediately
depress the clutch again.
5.Stop at a suitable location, remove the tow
bar or rope and switch off the hazard warn-
ing flashers.
6.Have the vehicle checked.
Do not activate the HDC Hill Descent
Control during tow starting, refer to
page52.<

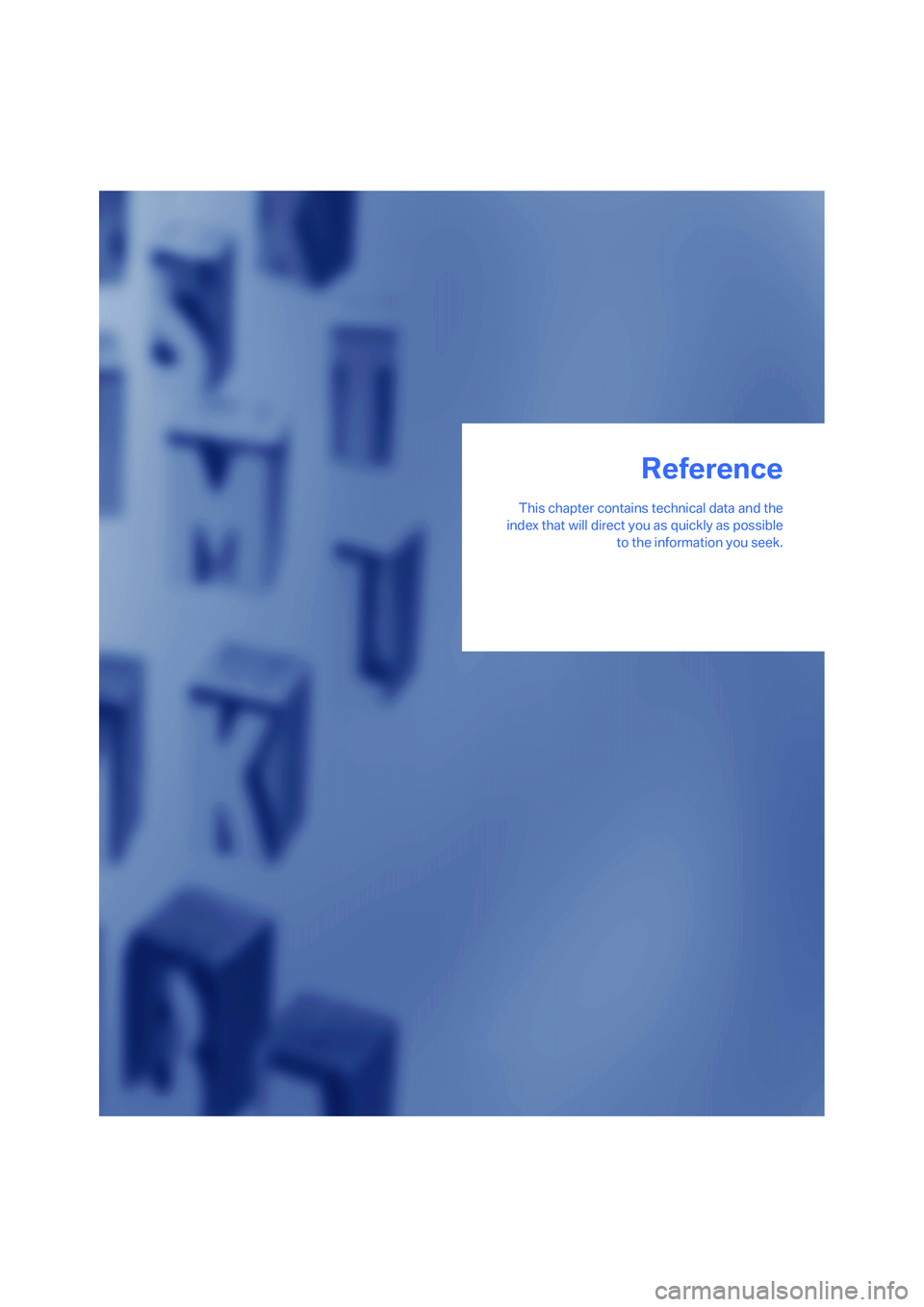

Reference
This chapter contains technical data and the
index that will direct you as quickly as possible
to the information you seek.
Reference

Technical data
122

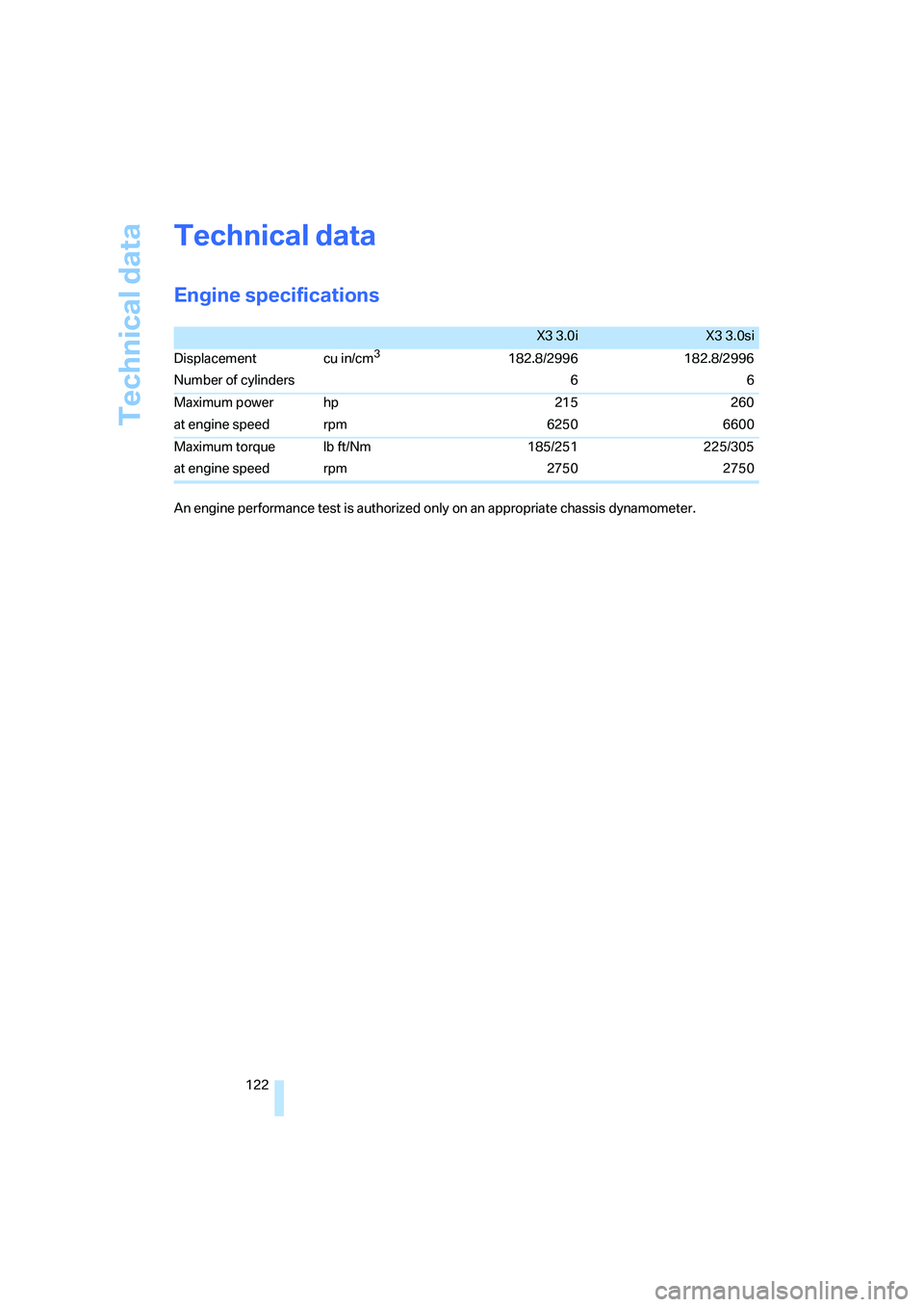

Technical data
Engine specifications
X3 3.0iX3 3.0si
Displacement
Number of cylinderscu in/cm
3182.8/2996
6182.8/2996
6
Maximum power
at engine speedhp
rpm215
6250260
6600
Maximum torque
at engine speedIb ft/Nm
rpm185/251
2750225/305
2750
An engine performance test is authorized only on an appropriate chassis dynamometer.

Reference
At a glance
Controls
Driving tips
Mobility
123

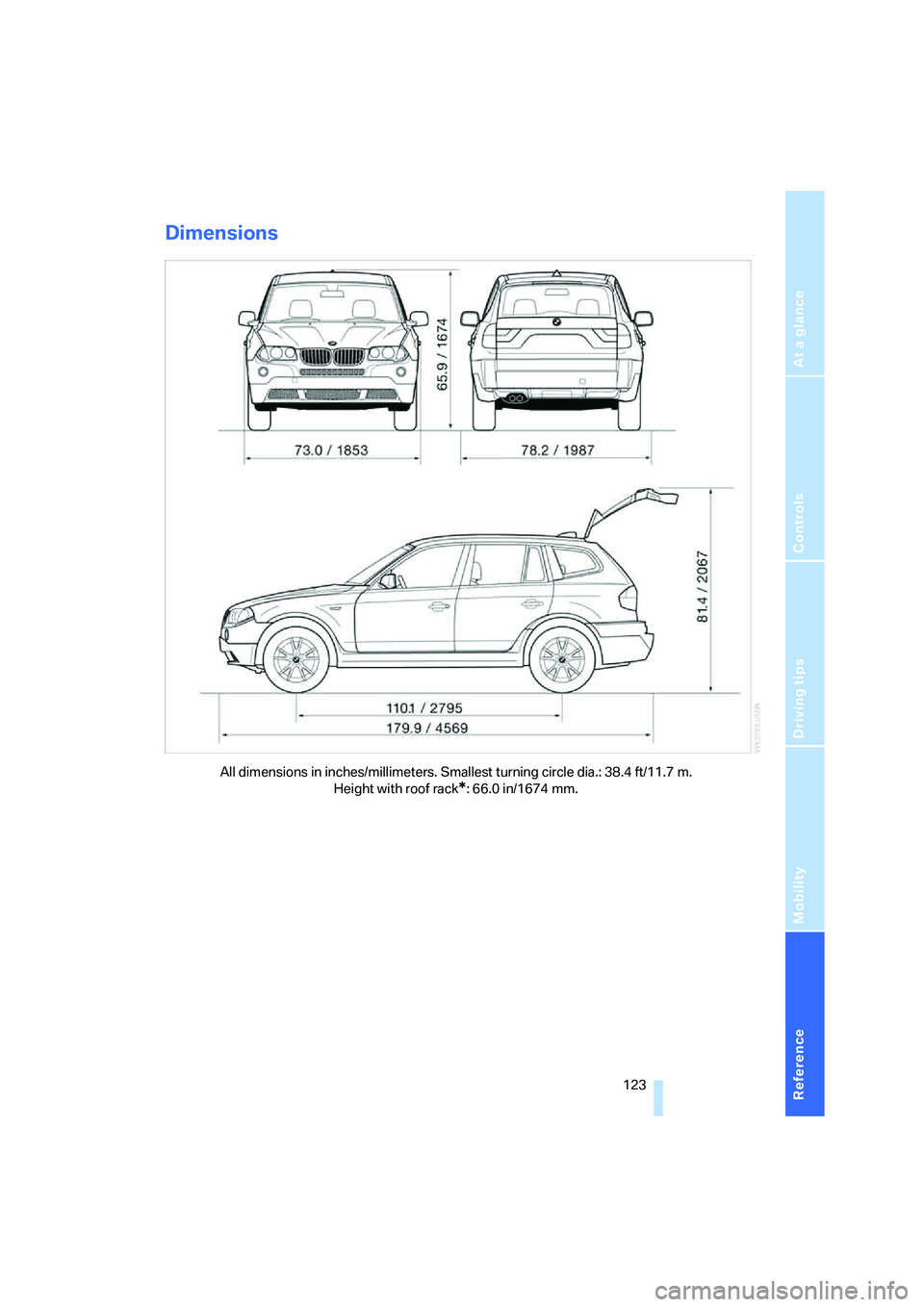

Dimensions
All dimensions in inches/millimeters. Smallest turning circle dia.: 38.4 ft/11.7 m.
Height with roof rack
*: 66.0 in/1674 mm.

Technical data
124

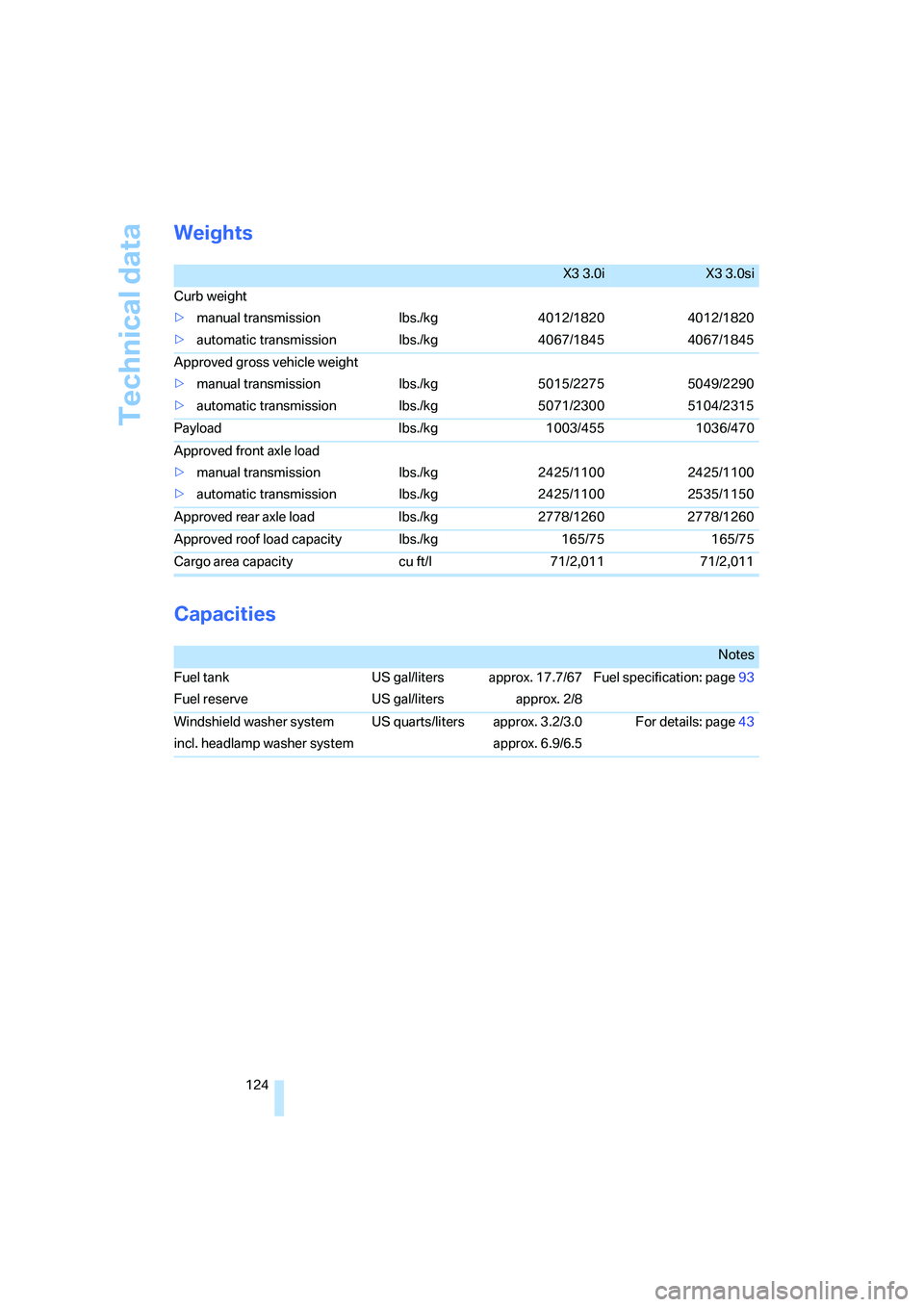

Weights
Capacities
X3 3.0iX3 3.0si
Curb weight
>manual transmission
>automatic transmissionlbs./kg
lbs./kg4012/1820
4067/18454012/1820
4067/1845
Approved gross vehicle weight
>manual transmission
>automatic transmissionlbs./kg
lbs./kg5015/2275
5071/23005049/2290
5104/2315
Payload lbs./kg 1003/455 1036/470
Approved front axle load
>manual transmission
>automatic transmissionlbs./kg
lbs./kg2425/1100
2425/11002425/1100
2535/1150
Approved rear axle load lbs./kg 2778/1260 2778/1260
Approved roof load capacity lbs./kg 165/75 165/75
Cargo area capacity cu ft/l 71/2,011 71/2,011
Notes
Fuel tank
Fuel reserve US gal/liters
US gal/litersapprox. 17.7/67
approx. 2/8Fuel specification: page93
Windshield washer system
incl. headlamp washer systemUS quarts/liters approx. 3.2/3.0
approx. 6.9/6.5For details: page43

Reference
At a glance
Controls
Driving tips
Mobility
125

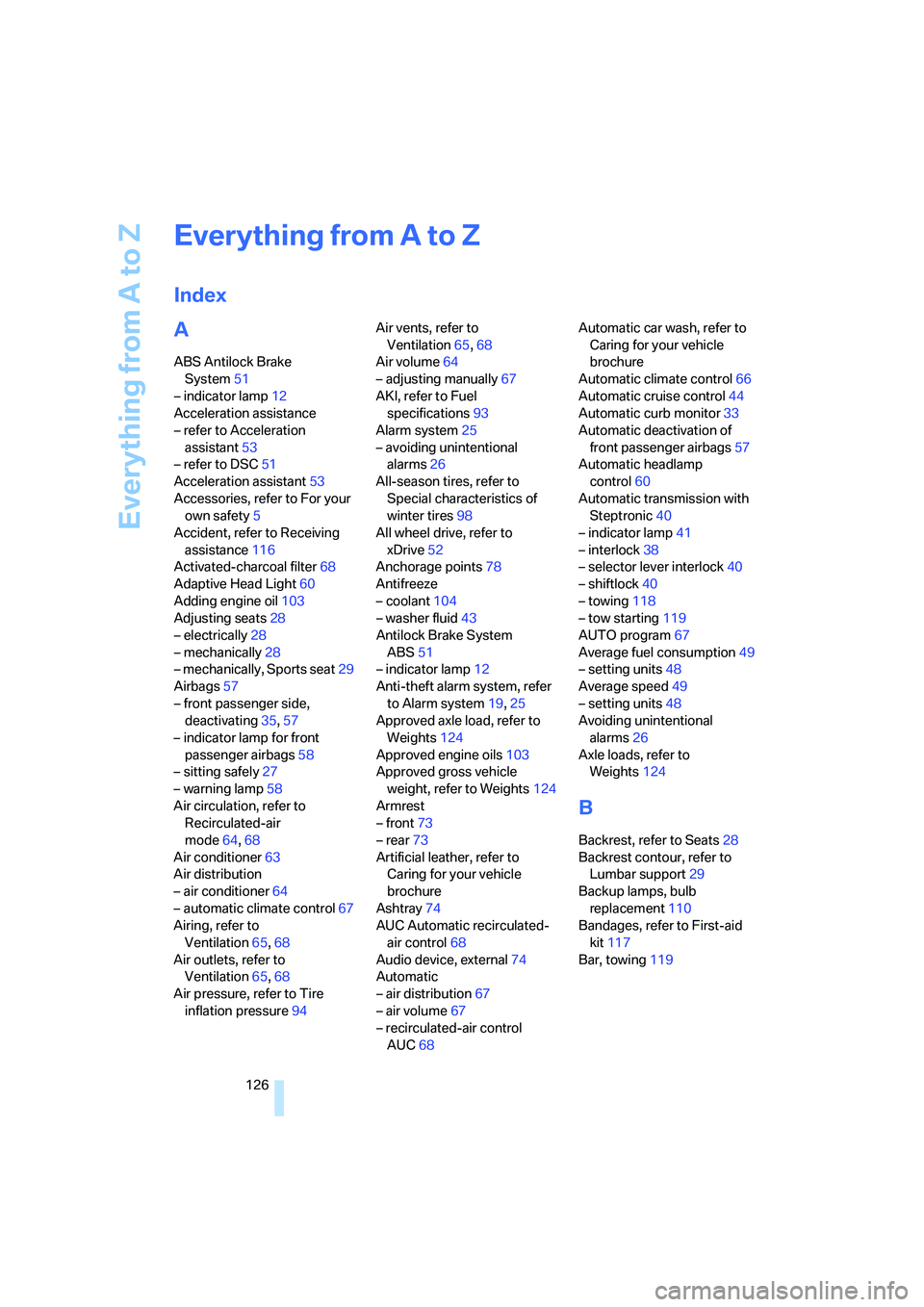

Everything from A to Z
126
Everything from A to Z
Index
A
ABS Antilock Brake
System51
– indicator lamp12
Acceleration assistance
– refer to Acceleration
assistant53
– refer to DSC51
Acceleration assistant53
Accessories, refer to For your
own safety5
Accident, refer to Receiving
assistance116
Activated-charcoal filter68
Adaptive Head Light60
Adding engine oil103
Adjusting seats28
– electrically28
– mechanically28
– mechanically, Sports seat29
Airbags57
– front passenger side,
deactivating35,57
– indicator lamp for front
passenger airbags58
– sitting safely27
– warning lamp58
Air circulation, refer to
Recirculated-air
mode64,68
Air conditioner63
Air distribution
– air conditioner64
– automatic climate control67
Airing, refer to
Ventilation65,68
Air outlets, refer to
Ventilation65,68
Air pressure, refer to Tire
inflation pressure94Air vents, refer to
Ventilation65,68
Air volume64
– adjusting manually67
AKI, refer to Fuel
specifications93
Alarm system25
– avoiding unintentional
alarms26
All-season tires, refer to
Special characteristics of
winter tires98
All wheel drive, refer to
xDrive52
Anchorage points78
Antifreeze
– coolant104
– washer fluid43
Antilock Brake System
ABS51
– indicator lamp12
Anti-theft alarm system, refer
to Alarm system19,25
Approved axle load, refer to
Weights124
Approved engine oils103
Approved gross vehicle
weight, refer to Weights124
Armrest
– front73
– rear73
Artificial leather, refer to
Caring for your vehicle
brochure
Ashtray74
AUC Automatic recirculated-
air control68
Audio device, external74
Automatic
– air distribution67
– air volume67
– recirculated-air control
AUC68Automatic car wash, refer to
Caring for your vehicle
brochure
Automatic climate control66
Automatic cruise control44
Automatic curb monitor33
Automatic deactivation of
front passenger airbags57
Automatic headlamp
control60
Automatic transmission with
Steptronic40
– indicator lamp41
– interlock38
– selector lever interlock40
– shiftlock40
– towing118
– tow starting119
AUTO program67
Average fuel consumption49
– setting units48
Average speed49
– setting units48
Avoiding unintentional
alarms26
Axle loads, refer to
Weights124
B
Backrest, refer to Seats28
Backrest contour, refer to
Lumbar support29
Backup lamps, bulb
replacement110
Bandages, refer to First-aid
kit117
Bar, towing119

Reference
At a glance
Controls
Driving tips
Mobility
127

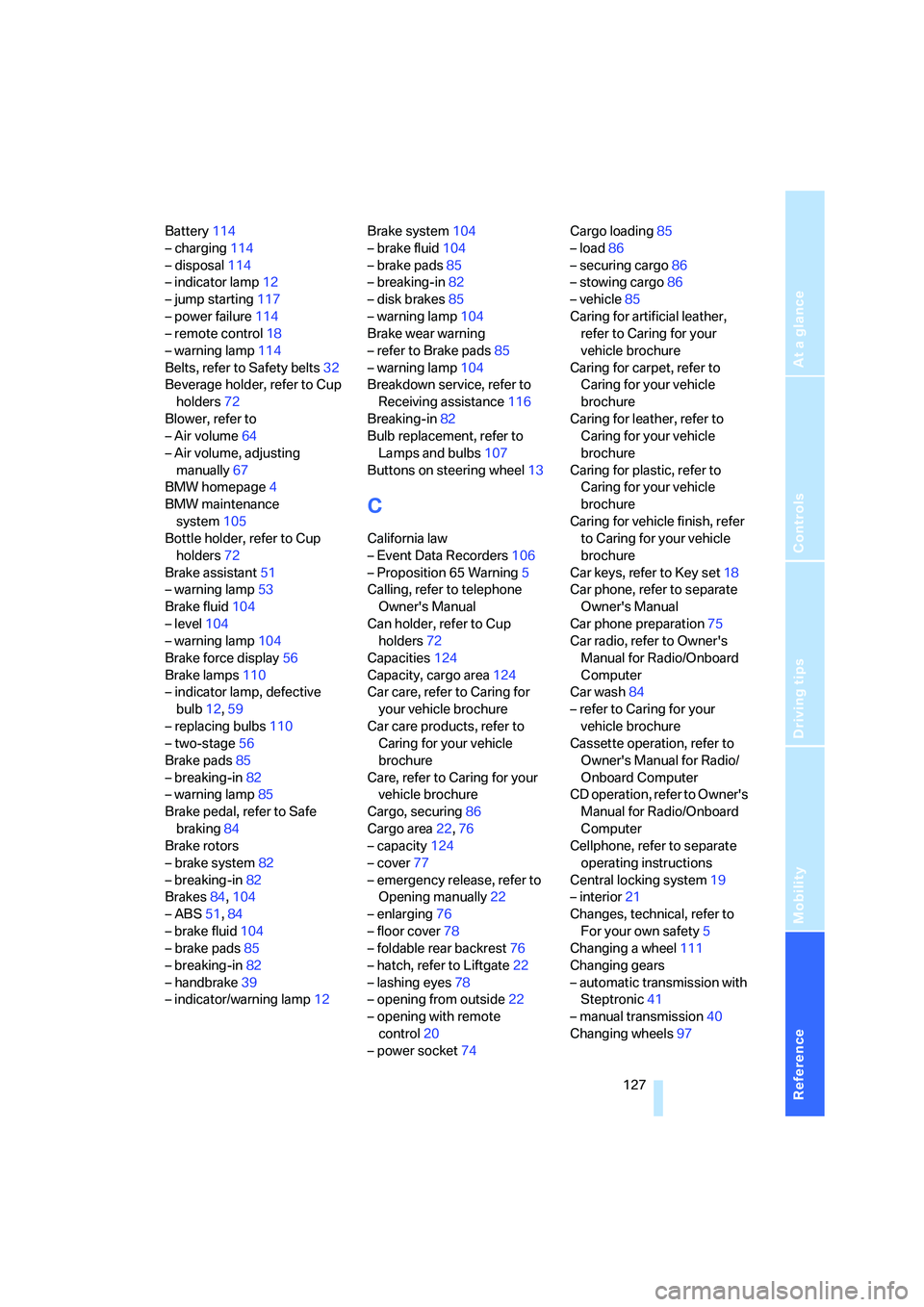

Battery114
– charging114
– disposal114
– indicator lamp12
– jump starting117
– power failure114
– remote control18
– warning lamp114
Belts, refer to Safety belts32
Beverage holder, refer to Cup
holders72
Blower, refer to
– Air volume64
– Air volume, adjusting
manually67
BMW homepage4
BMW maintenance
system105
Bottle holder, refer to Cup
holders72
Brake assistant51
– warning lamp53
Brake fluid104
– level104
– warning lamp104
Brake force display56
Brake lamps110
– indicator lamp, defective
bulb12,59
– replacing bulbs110
– two-stage56
Brake pads85
– breaking-in82
– warning lamp85
Brake pedal, refer to Safe
braking84
Brake rotors
– brake system82
– breaking-in82
Brakes84,104
– ABS51,84
– brake fluid104
– brake pads85
– breaking-in82
– handbrake39
– indicator/warning lamp12Brake system104
– brake fluid104
– brake pads85
– breaking-in82
– disk brakes85
– warning lamp
104
Brake wear warning
– refer to Brake pads85
– warning lamp104
Breakdown service, refer to
Receiving assistance116
Breaking-in82
Bulb replacement, refer to
Lamps and bulbs107
Buttons on steering wheel13
C
California law
– Event Data Recorders106
– Proposition 65 Warning5
Calling, refer to telephone
Owner's Manual
Can holder, refer to Cup
holders72
Capacities124
Capacity, cargo area124
Car care, refer to Caring for
your vehicle brochure
Car care products, refer to
Caring for your vehicle
brochure
Care, refer to Caring for your
vehicle brochure
Cargo, securing86
Cargo area22,76
– capacity124
– cover77
– emergency release, refer to
Opening manually22
– enlarging76
– floor cover78
– foldable rear backrest76
– hatch, refer to Liftgate22
– lashing eyes78
– opening from outside22
– opening with remote
control20
– power socket74Cargo loading85
– load86
– securing cargo86
– stowing cargo86
– vehicle85
Caring for artificial leather,
refer to Caring for your
vehicle brochure
Caring for carpet, refer to
Caring for your vehicle
brochure
Caring for leather, refer to
Caring for your vehicle
brochure
Caring for plastic, refer to
Caring for your vehicle
brochure
Caring for vehicle finish, refer
to Caring for your vehicle
brochure
Car keys, refer to Key set18
Car phone, refer to separate
Owner's Manual
Car phone preparation75
Car radio, refer to Owner's
Manual for Radio/Onboard
Computer
Car wash84
– refer to Caring for your
vehicle brochure
Cassette operation, refer to
Owner's Manual for Radio/
Onboard Computer
CD operation, refer to Owner's
Manual for Radio/Onboard
Computer
Cellphone, refer to separate
operating instructions
Central locking system19
– interior21
Changes, technical, refer to
For your own safety5
Changing a wheel111
Changing gears
– automatic transmission with
Steptronic41
– manual transmission40
Changing wheels97

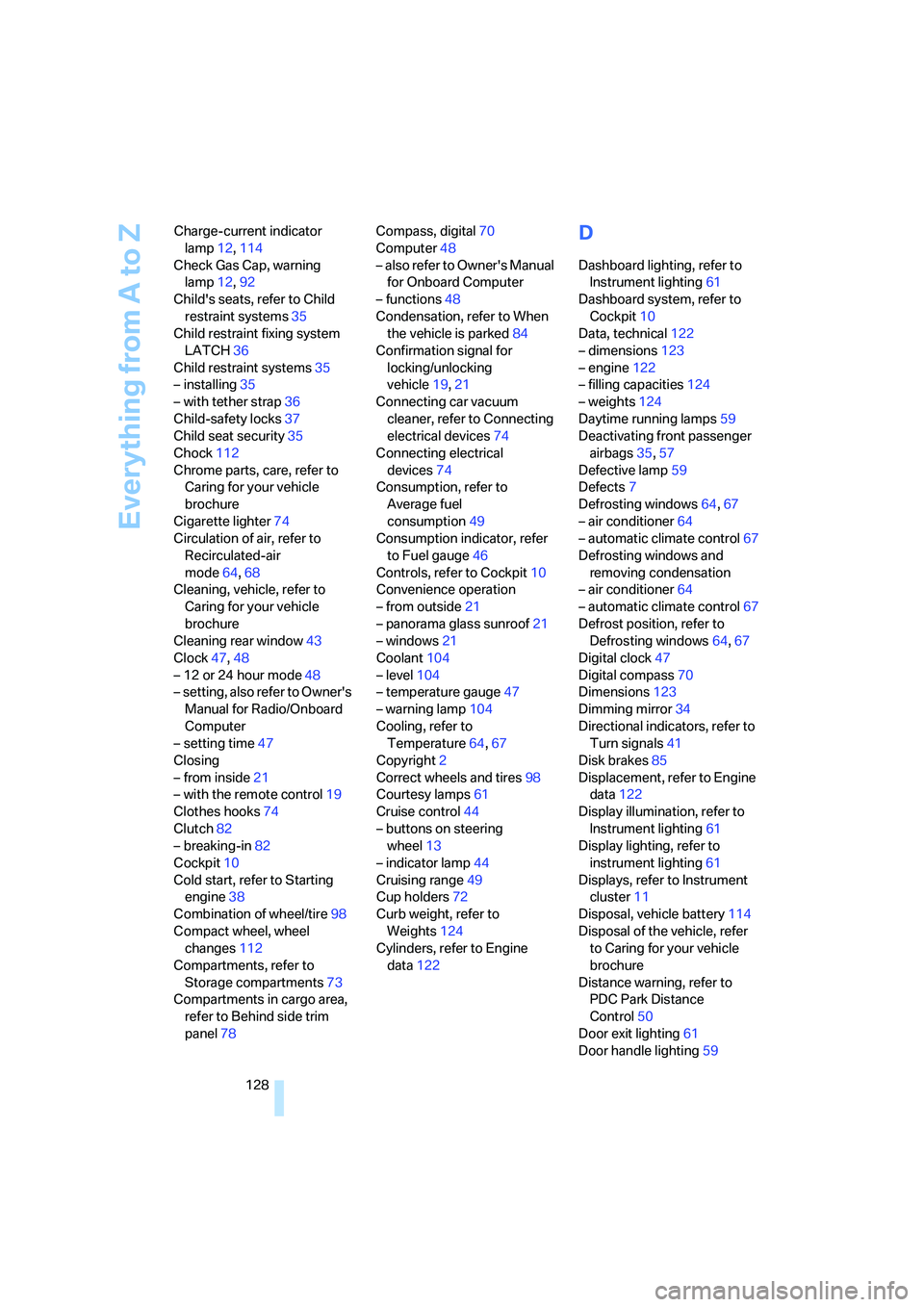

Everything from A to Z
128 Charge-current indicator
lamp12,114
Check Gas Cap, warning
lamp12,92
Child's seats, refer to Child
restraint systems35
Child restraint fixing system
LATCH36
Child restraint systems35
– installing35
– with tether strap36
Child-safety locks37
Child seat security35
Chock112
Chrome parts, care, refer to
Caring for your vehicle
brochure
Cigarette lighter74
Circulation of air, refer to
Recirculated-air
mode64,68
Cleaning, vehicle, refer to
Caring for your vehicle
brochure
Cleaning rear window43
Clock47,48
– 12 or 24 hour mode48
– setting, also refer to Owner's
Manual for Radio/Onboard
Computer
– setting time47
Closing
– from inside21
– with the remote control19
Clothes hooks74
Clutch82
– breaking-in82
Cockpit10
Cold start, refer to Starting
engine38
Combination of wheel/tire98
Compact wheel, wheel
changes112
Compartments, refer to
Storage compartments73
Compartments in cargo area,
refer to Behind side trim
panel78Compass, digital70
Computer48
– also refer to Owner's Manual
for Onboard Computer
– functions48
Condensation, refer to When
the vehicle is parked84
Confirmation signal for
locking/unlocking
vehicle19,21
Connecting car vacuum
cleaner, refer to Connecting
electrical devices74
Connecting electrical
devices74
Consumption, refer to
Average fuel
consumption49
Consumption indicator, refer
to Fuel gauge46
Controls, refer to Cockpit10
Convenience operation
– from outside21
– panorama glass sunroof21
– windows21
Coolant104
– level104
– temperature gauge47
– warning lamp104
Cooling, refer to
Temperature64,67
Copyright2
Correct wheels and tires98
Courtesy lamps61
Cruise control44
– buttons on steering
wheel13
– indicator lamp44
Cruising range49
Cup holders72
Curb weight, refer to
Weights124
Cylinders, refer to Engine
data122
D
Dashboard lighting, refer to
Instrument lighting61
Dashboard system, refer to
Cockpit10
Data, technical122
– dimensions123
– engine122
– filling capacities124
– weights124
Daytime running lamps59
Deactivating front passenger
airbags35,57
Defective lamp59
Defects7
Defrosting windows64,67
– air conditioner64
– automatic climate control67
Defrosting windows and
removing condensation
– air conditioner64
– automatic climate control67
Defrost position, refer to
Defrosting windows64,67
Digital clock47
Digital compass70
Dimensions123
Dimming mirror34
Directional indicators, refer to
Turn signals41
Disk brakes85
Displacement, refer to Engine
data122
Display illumination, refer to
Instrument lighting61
Display lighting, refer to
instrument lighting61
Displays, refer to Instrument
cluster11
Disposal, vehicle battery114
Disposal of the vehicle, refer
to Caring for your vehicle
brochure
Distance warning, refer to
PDC Park Distance
Control50
Door exit lighting61
Door handle lighting59
