109

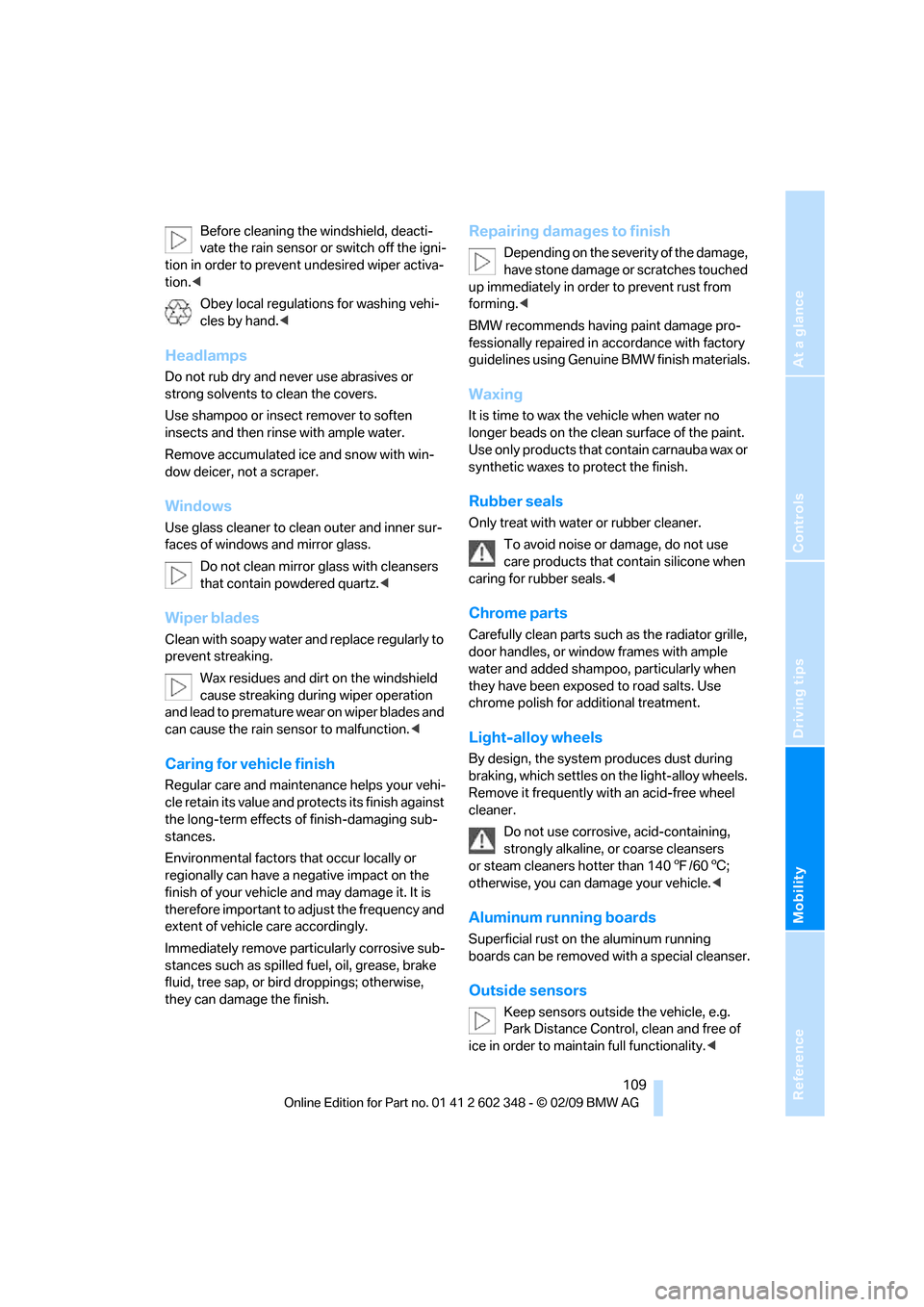

Before cleaning the windshield, deacti-
vate the rain sensor or switch off the igni-
tion in order to prevent undesired wiper activa-
tion.<
Obey local regulations for washing vehi-
cles by hand.<
Headlamps
Do not rub dry and never use abrasives or
strong solvents to clean the covers.
Use shampoo or insect remover to soften
insects and then rinse with ample water.
Remove accumulated ice and snow with win-
dow deicer, not a scraper.
Windows
Use glass cleaner to clean outer and inner sur-
faces of windows and mirror glass.
Do not clean mirror glass with cleansers
that contain powdered quartz.<
Wiper blades
Clean with soapy water and replace regularly to
prevent streaking.
Wax residues and dirt on the windshield
cause streaking during wiper operation
and lead to premature wear on wiper blades and
can cause the rain sensor to malfunction.<
Caring for vehicle finish
Regular care and maintenance helps your vehi-
cle retain its value and protects its finish against
the long-term effects of finish-damaging sub-
stances.
Environmental factors that occur locally or
regionally can have a negative impact on the
finish of your vehicle and may damage it. It is
therefore important to adjust the frequency and
extent of vehicle care accordingly.
Immediately remove particularly corrosive sub-
stances such as spilled fuel, oil, grease, brake
fluid, tree sap, or bird droppings; otherwise,
they can damage the finish.
Repairing damages to finish
Depending on the severity of the damage,
have stone damage or scratches touched
up immediately in order to prevent rust from
forming.<
BMW recommends having paint damage pro-
fessionally repaired in accordance with factory
guidelines using Genuine BMW finish materials.
Waxing
It is time to wax the vehicle when water no
longer beads on the clean surface of the paint.
Use only products that contain carnauba wax or
synthetic waxes to protect the finish.
Rubber seals
Only treat with water or rubber cleaner.
To avoid noise or damage, do not use
care products that contain silicone when
caring for rubber seals.<
Chrome parts
Carefully clean parts such as the radiator grille,
door handles, or window frames with ample
water and added shampoo, particularly when
they have been exposed to road salts. Use
chrome polish for additional treatment.
Light-alloy wheels
By design, the system produces dust during
braking, which settles on the light-alloy wheels.
Remove it frequently with an acid-free wheel
cleaner.
Do not use corrosive, acid-containing,
strongly alkaline, or coarse cleansers
or steam cleaners hotter than 1407/606;
otherwise, you can damage your vehicle.<
Aluminum running boards
Superficial rust on the aluminum running
boards can be removed with a special cleanser.
Outside sensors
Keep sensors outside the vehicle, e.g.
Park Distance Control, clean and free of
ice in order to maintain full functionality.<

Care
110

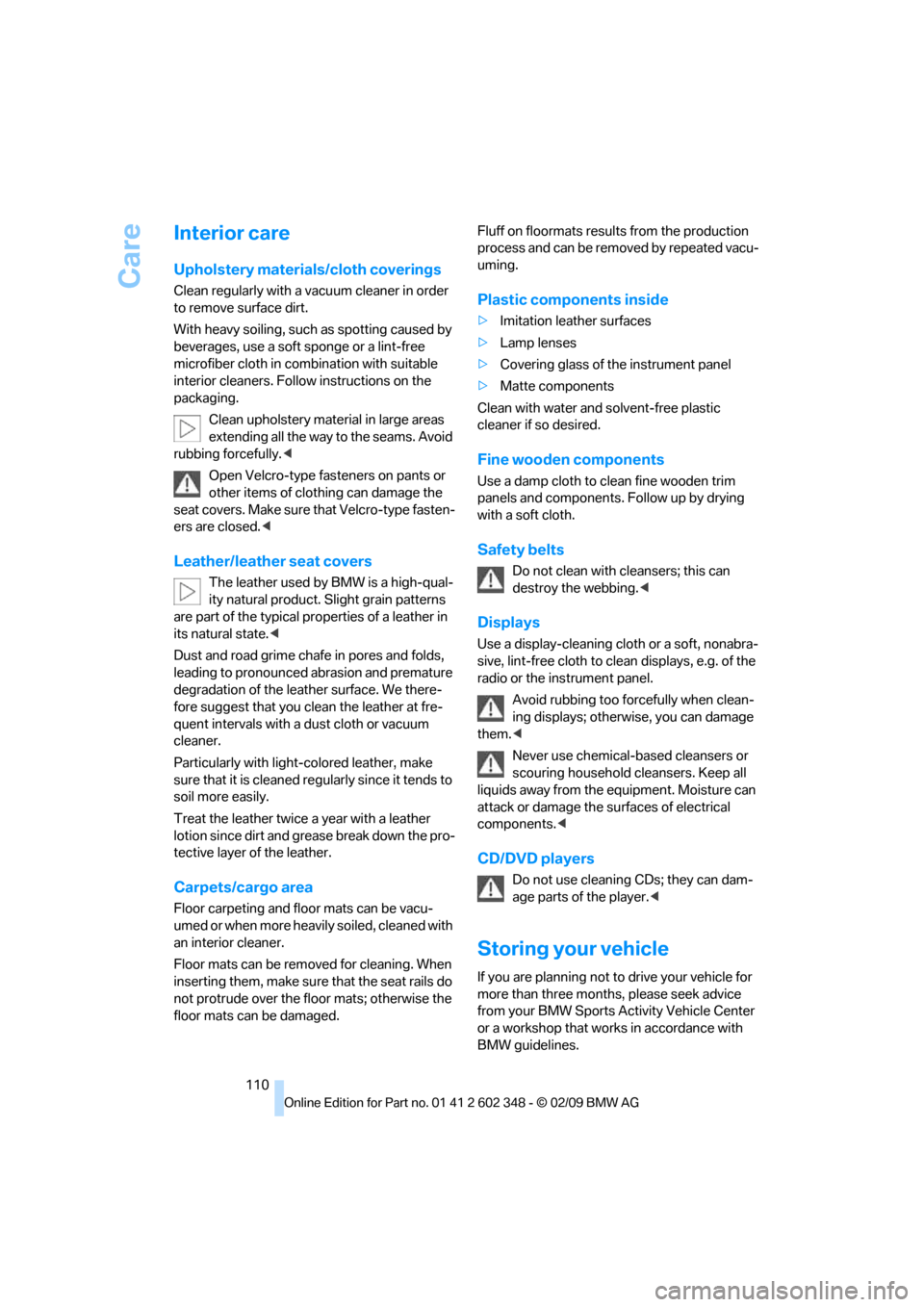

Interior care
Upholstery materials/cloth coverings
Clean regularly with a vacuum cleaner in order
to remove surface dirt.
With heavy soiling, such as spotting caused by
beverages, use a soft sponge or a lint-free
microfiber cloth in combination with suitable
interior cleaners. Follow instructions on the
packaging.
Clean upholstery material in large areas
extending all the way to the seams. Avoid
rubbing forcefully.<
Open Velcro-type fasteners on pants or
other items of clothing can damage the
seat covers. Make sure that Velcro-type fasten-
ers are closed.<
Leather/leather seat covers
The leather used by BMW is a high-qual-
ity natural product. Slight grain patterns
are part of the typical properties of a leather in
its natural state.<
Dust and road grime chafe in pores and folds,
leading to pronounced abrasion and premature
degradation of the leather surface. We there-
fore suggest that you clean the leather at fre-
quent intervals with a dust cloth or vacuum
cleaner.
Particularly with light-colored leather, make
sure that it is cleaned regularly since it tends to
soil more easily.
Treat the leather twice a year with a leather
lotion since dirt and grease break down the pro-
tective layer of the leather.
Carpets/cargo area
Floor carpeting and floor mats can be vacu-
umed or when more heavily soiled, cleaned with
an interior cleaner.
Floor mats can be removed for cleaning. When
inserting them, make sure that the seat rails do
not protrude over the floor mats; otherwise the
floor mats can be damaged.Fluff on floormats results from the production
process and can be removed by repeated vacu-
uming.
Plastic components inside
>Imitation leather surfaces
>Lamp lenses
>Covering glass of the instrument panel
>Matte components
Clean with water and solvent-free plastic
cleaner if so desired.
Fine wooden components
Use a damp cloth to clean fine wooden trim
panels and components. Follow up by drying
with a soft cloth.
Safety belts
Do not clean with cleansers; this can
destroy the webbing.<
Displays
Use a display-cleaning cloth or a soft, nonabra-
sive, lint-free cloth to clean displays, e.g. of the
radio or the instrument panel.
Avoid rubbing too forcefully when clean-
ing displays; otherwise, you can damage
them.<
Never use chemical-based cleansers or
scouring household cleansers. Keep all
liquids away from the equipment. Moisture can
attack or damage the surfaces of electrical
components.<
CD/DVD players
Do not use cleaning CDs; they can dam-
age parts of the player.<
Storing your vehicle
If you are planning not to drive your vehicle for
more than three months, please seek advice
from your BMW Sports Activity Vehicle Center
or a workshop that works in accordance with
BMW guidelines.

Reference
At a glance
Controls
Driving tips
Mobility
111

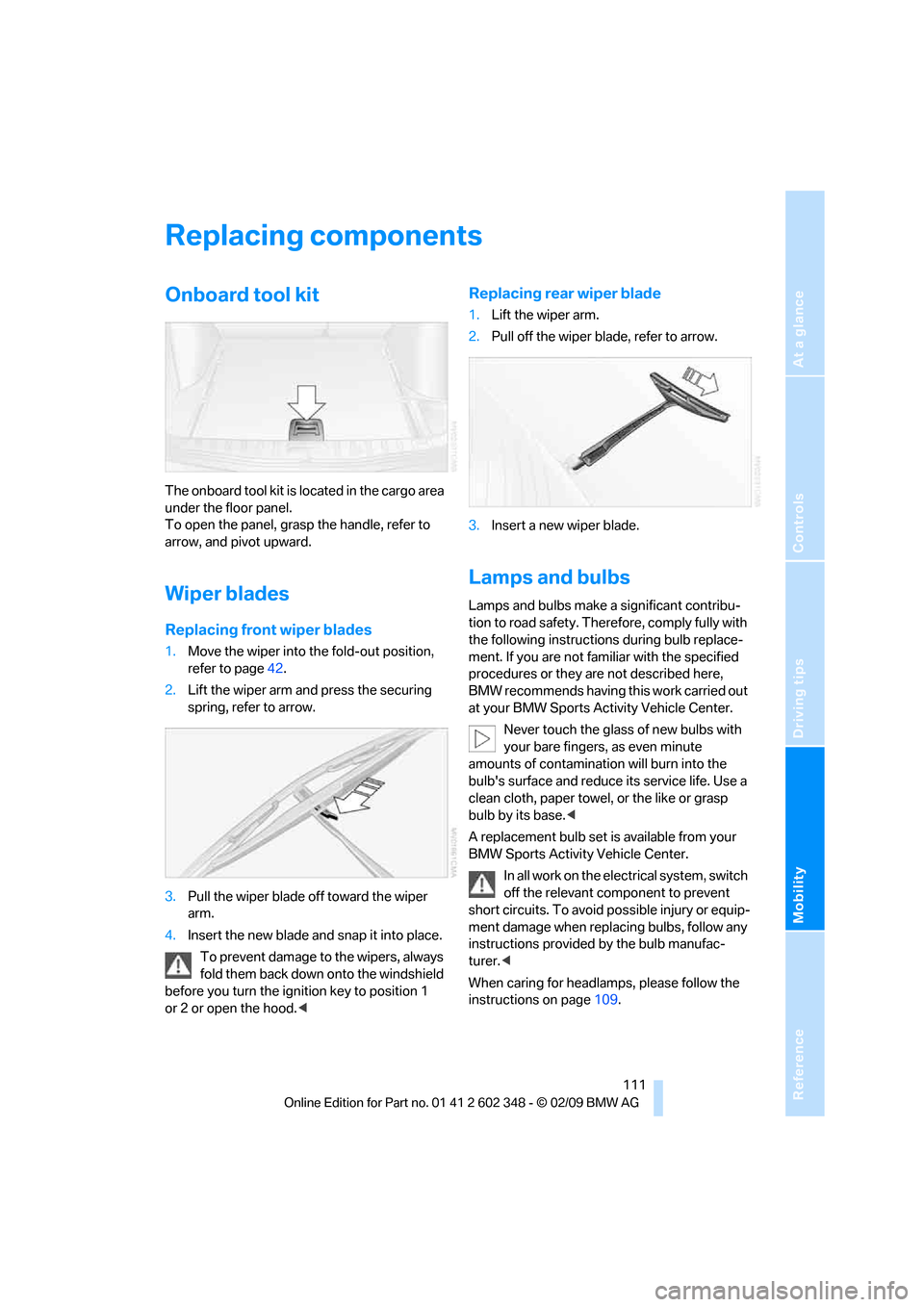

Replacing components
Onboard tool kit
The onboard tool kit is located in the cargo area
under the floor panel.
To open the panel, grasp the handle, refer to
arrow, and pivot upward.
Wiper blades
Replacing front wiper blades
1.Move the wiper into the fold-out position,
refer to page42.
2.Lift the wiper arm and press the securing
spring, refer to arrow.
3.Pull the wiper blade off toward the wiper
arm.
4.Insert the new blade and snap it into place.
To prevent damage to the wipers, always
fold them back down onto the windshield
before you turn the ignition key to position 1
or 2 or open the hood.<
Replacing rear wiper blade
1.Lift the wiper arm.
2.Pull off the wiper blade, refer to arrow.
3.Insert a new wiper blade.
Lamps and bulbs
Lamps and bulbs make a significant contribu-
tion to road safety. Therefore, comply fully with
the following instructions during bulb replace-
ment. If you are not familiar with the specified
procedures or they are not described here,
BMW recommends having this work carried out
at your BMW Sports Activity Vehicle Center.
Never touch the glass of new bulbs with
your bare fingers, as even minute
amounts of contamination will burn into the
bulb's surface and reduce its service life. Use a
clean cloth, paper towel, or the like or grasp
bulb by its base.<
A replacement bulb set is available from your
BMW Sports Activity Vehicle Center.
In all work on the electrical system, switch
off the relevant component to prevent
short circuits. To avoid possible injury or equip-
ment damage when replacing bulbs, follow any
instructions provided by the bulb manufac-
turer.<
When caring for headlamps, please follow the
instructions on page109.

Replacing components

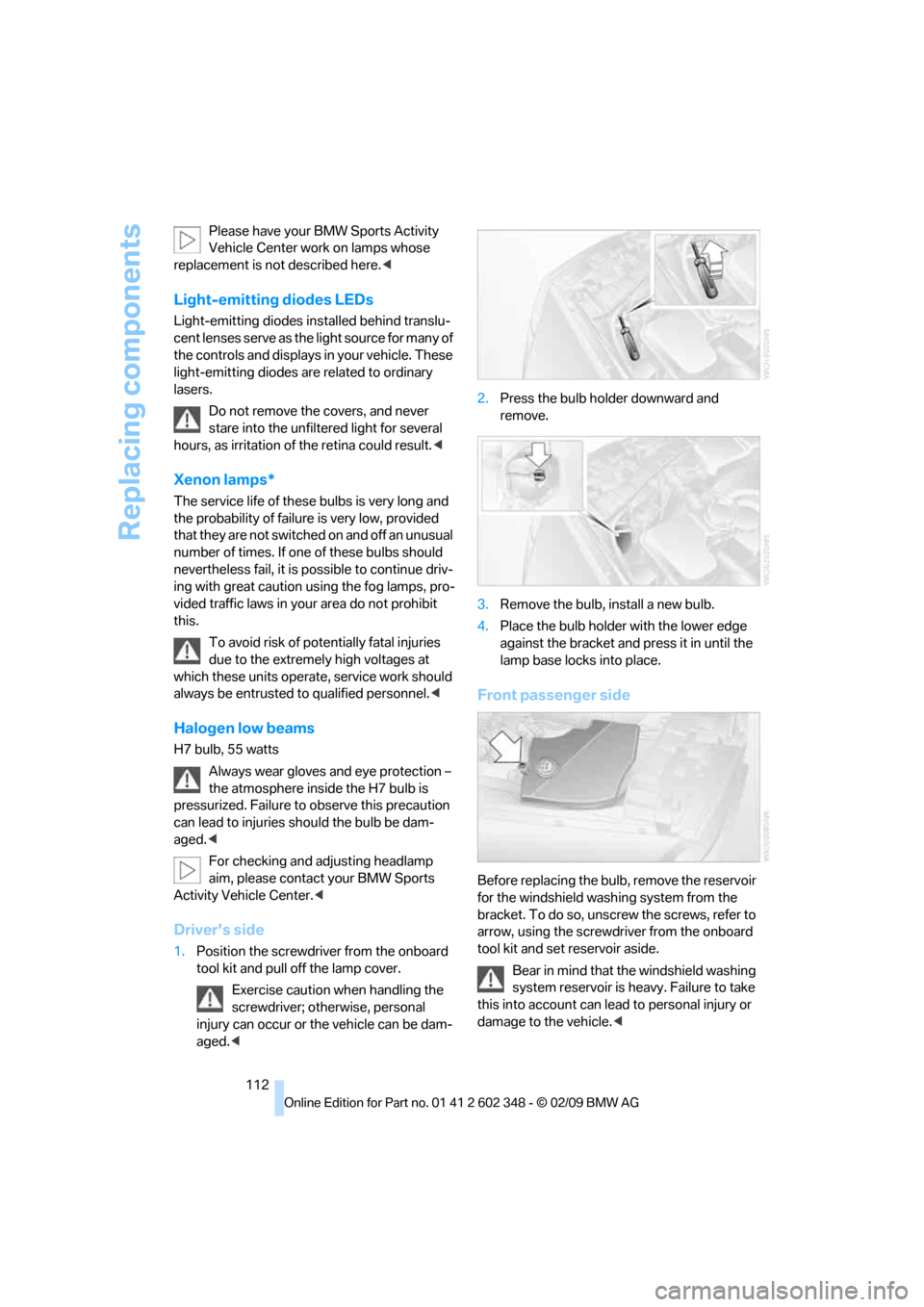

112 Please have your BMW Sports Activity
Vehicle Center work on lamps whose
replacement is not described here.<
Light-emitting diodes LEDs
Light-emitting diodes installed behind translu-
cent lenses serve as the light source for many of
the controls and displays in your vehicle. These
light-emitting diodes are related to ordinary
lasers.
Do not remove the covers, and never
stare into the unfiltered light for several
hours, as irritation of the retina could result.<
Xenon lamps*
The service life of these bulbs is very long and
the probability of failure is very low, provided
that they are not switched on and off an unusual
number of times. If one of these bulbs should
nevertheless fail, it is possible to continue driv-
ing with great caution using the fog lamps, pro-
vided traffic laws in your area do not prohibit
this.
To avoid risk of potentially fatal injuries
due to the extremely high voltages at
which these units operate, service work should
always be entrusted to qualified personnel.<
Halogen low beams
H7 bulb, 55 watts
Always wear gloves and eye protection –
the atmosphere inside the H7 bulb is
pressurized. Failure to observe this precaution
can lead to injuries should the bulb be dam-
aged.<
For checking and adjusting headlamp
aim, please contact your BMW Sports
Activity Vehicle Center.<
Driver's side
1.Position the screwdriver from the onboard
tool kit and pull off the lamp cover.
Exercise caution when handling the
screwdriver; otherwise, personal
injury can occur or the vehicle can be dam-
aged.<2.Press the bulb holder downward and
remove.
3.Remove the bulb, install a new bulb.
4.Place the bulb holder with the lower edge
against the bracket and press it in until the
lamp base locks into place.
Front passenger side
Before replacing the bulb, remove the reservoir
for the windshield washing system from the
bracket. To do so, unscrew the screws, refer to
arrow, using the screwdriver from the onboard
tool kit and set reservoir aside.
Bear in mind that the windshield washing
system reservoir is heavy. Failure to take
this into account can lead to personal injury or
damage to the vehicle.<

Reference
At a glance
Controls
Driving tips
Mobility
113

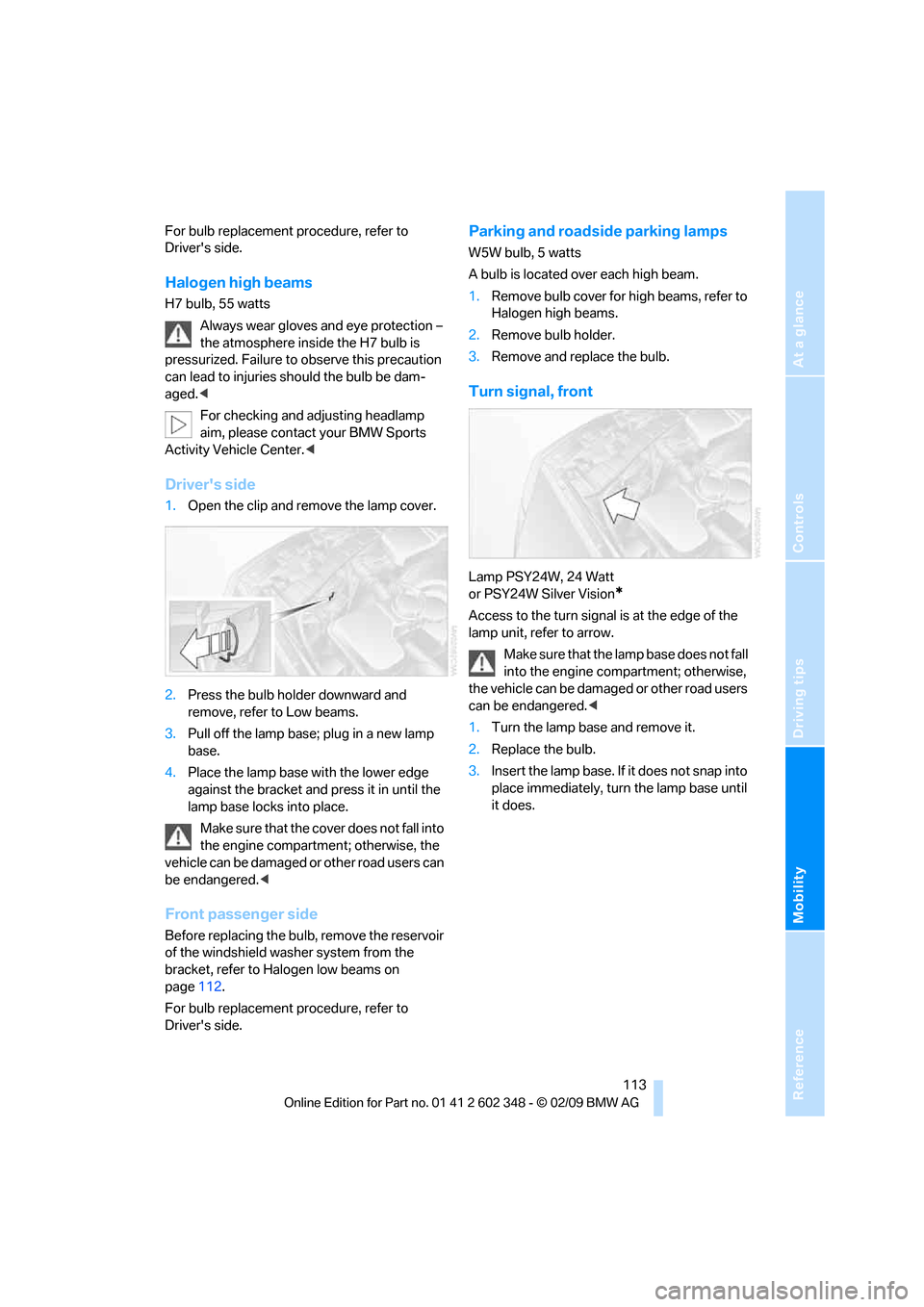

For bulb replacement procedure, refer to
Driver's side.
Halogen high beams
H7 bulb, 55 watts
Always wear gloves and eye protection –
the atmosphere inside the H7 bulb is
pressurized. Failure to observe this precaution
can lead to injuries should the bulb be dam-
aged.<
For checking and adjusting headlamp
aim, please contact your BMW Sports
Activity Vehicle Center.<
Driver's side
1.Open the clip and remove the lamp cover.
2.Press the bulb holder downward and
remove, refer to Low beams.
3.Pull off the lamp base; plug in a new lamp
base.
4.Place the lamp base with the lower edge
against the bracket and press it in until the
lamp base locks into place.
Make sure that the cover does not fall into
the engine compartment; otherwise, the
vehicle can be damaged or other road users can
be endangered.<
Front passenger side
Before replacing the bulb, remove the reservoir
of the windshield washer system from the
bracket, refer to Halogen low beams on
page112.
For bulb replacement procedure, refer to
Driver's side.
Parking and roadside parking lamps
W5W bulb, 5 watts
A bulb is located over each high beam.
1.Remove bulb cover for high beams, refer to
Halogen high beams.
2.Remove bulb holder.
3.Remove and replace the bulb.
Turn signal, front
Lamp PSY24W, 24 Watt
or PSY24W Silver Vision
*
Access to the turn signal is at the edge of the
lamp unit, refer to arrow.
Make sure that the lamp base does not fall
into the engine compartment; otherwise,
the vehicle can be damaged or other road users
can be endangered.<
1.Turn the lamp base and remove it.
2.Replace the bulb.
3.Insert the lamp base. If it does not snap into
place immediately, turn the lamp base until
it does.

Replacing components
114

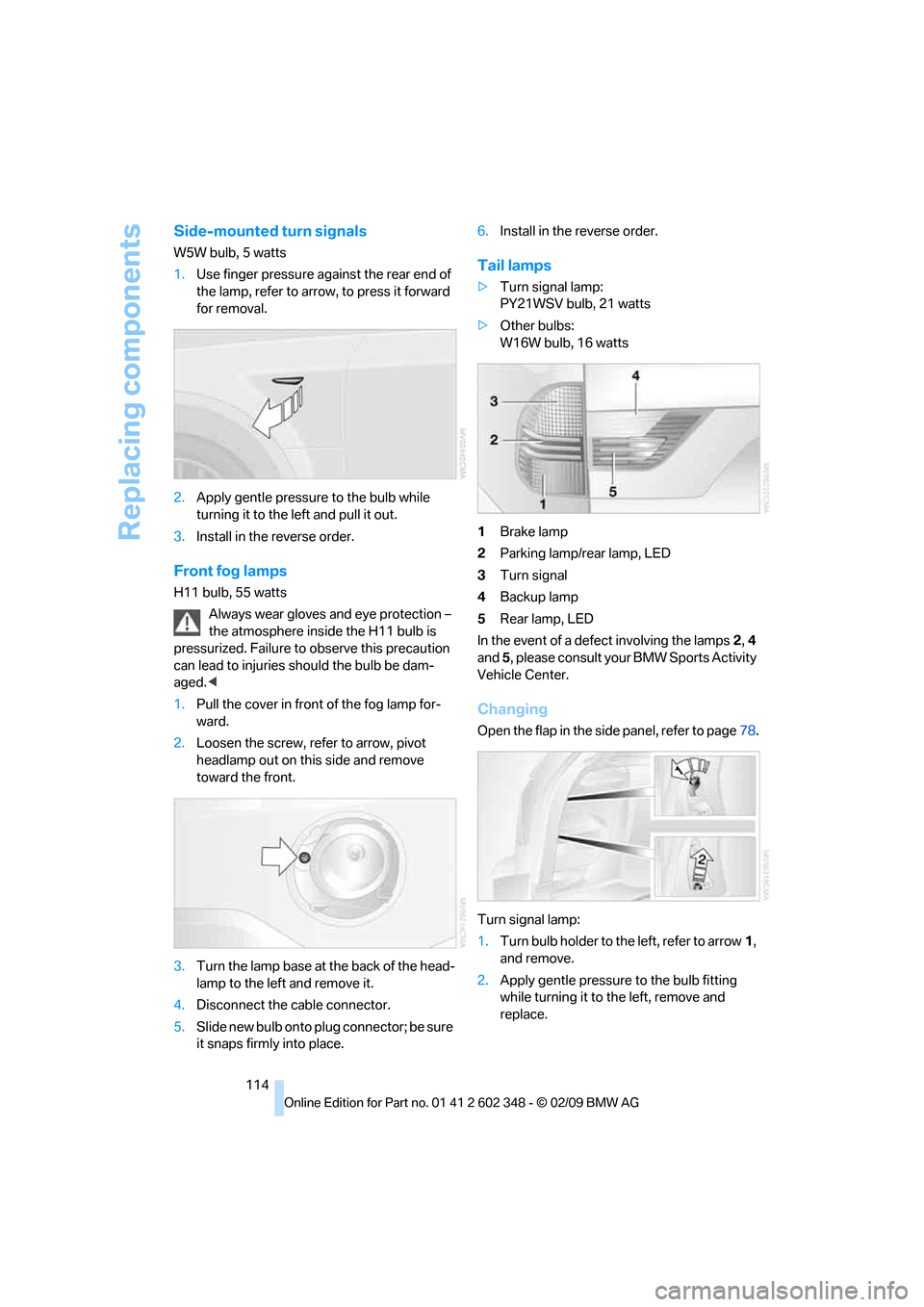

Side-mounted turn signals
W5W bulb, 5 watts
1.Use finger pressure against the rear end of
the lamp, refer to arrow, to press it forward
for removal.
2.Apply gentle pressure to the bulb while
turning it to the left and pull it out.
3.Install in the reverse order.
Front fog lamps
H11 bulb, 55 watts
Always wear gloves and eye protection –
the atmosphere inside the H11 bulb is
pressurized. Failure to observe this precaution
can lead to injuries should the bulb be dam-
aged.<
1.Pull the cover in front of the fog lamp for-
ward.
2.Loosen the screw, refer to arrow, pivot
headlamp out on this side and remove
toward the front.
3.Turn the lamp base at the back of the head-
lamp to the left and remove it.
4.Disconnect the cable connector.
5.Slide new bulb onto plug connector; be sure
it snaps firmly into place.6.Install in the reverse order.
Tail lamps
>Turn signal lamp:
PY21WSV bulb, 21 watts
>Other bulbs:
W16W bulb, 16 watts
1Brake lamp
2Parking lamp/rear lamp, LED
3Turn signal
4Backup lamp
5Rear lamp, LED
In the event of a defect involving the lamps 2, 4
and 5, please consult your BMW Sports Activity
Vehicle Center.
Changing
Open the flap in the side panel, refer to page78.
Turn signal lamp:
1.Turn bulb holder to the left, refer to arrow1,
and remove.
2.Apply gentle pressure to the bulb fitting
while turning it to the left, remove and
replace.

Reference
At a glance
Controls
Driving tips
Mobility
115

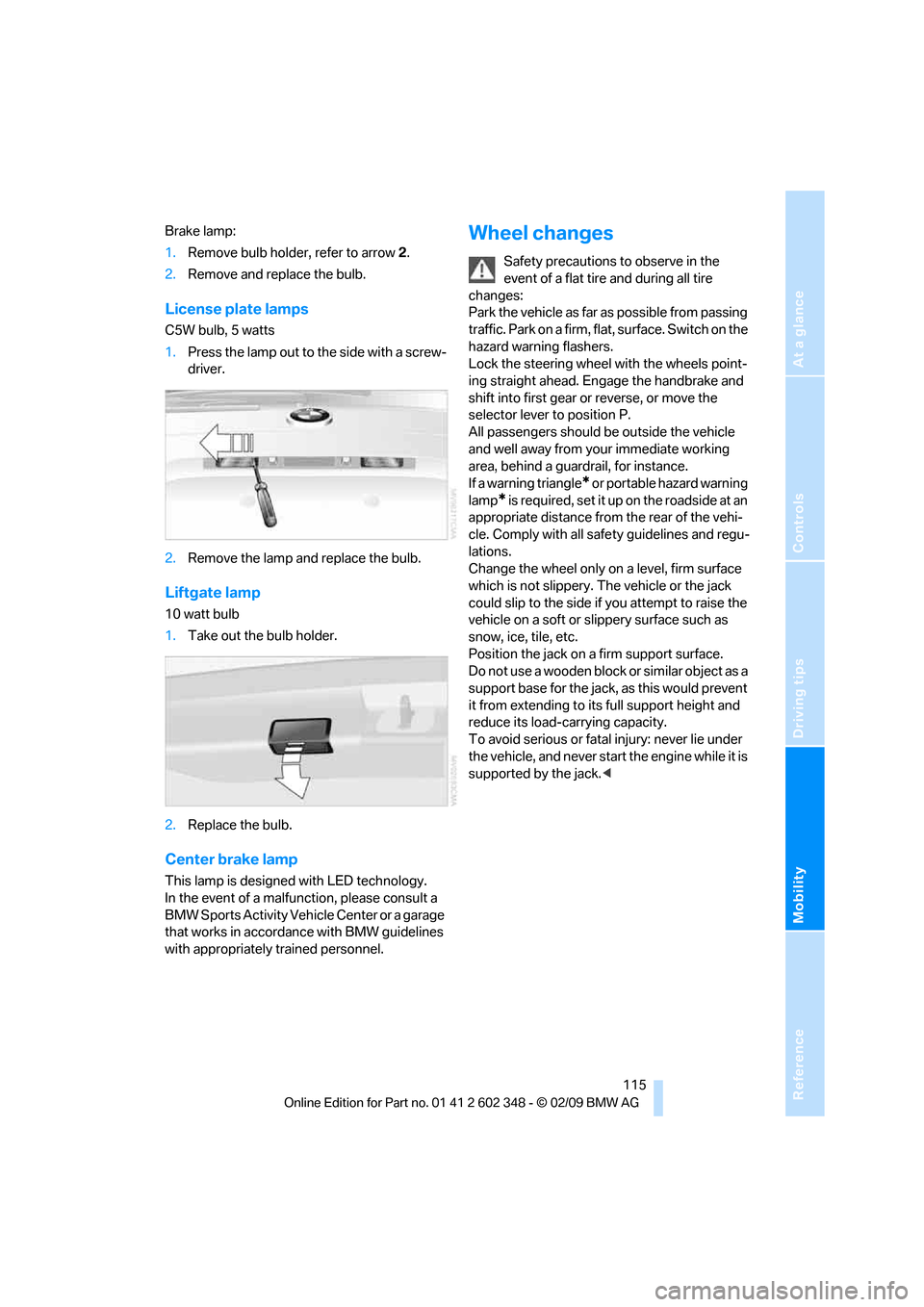

Brake lamp:
1.Remove bulb holder, refer to arrow 2.
2.Remove and replace the bulb.
License plate lamps
C5W bulb, 5 watts
1.Press the lamp out to the side with a screw-
driver.
2.Remove the lamp and replace the bulb.
Liftgate lamp
10 watt bulb
1.Take out the bulb holder.
2.Replace the bulb.
Center brake lamp
This lamp is designed with LED technology.
In the event of a malfunction, please consult a
BMW Sports Activity Vehicle Center or a garage
that works in accordance with BMW guidelines
with appropriately trained personnel.
Wheel changes
Safety precautions to observe in the
event of a flat tire and during all tire
changes:
Park the vehicle as far as possible from passing
traffic. Park on a firm, flat, surface. Switch on the
hazard warning flashers.
Lock the steering wheel with the wheels point-
ing straight ahead. Engage the handbrake and
shift into first gear or reverse, or move the
selector lever to position P.
All passengers should be outside the vehicle
and well away from your immediate working
area, behind a guardrail, for instance.
If a warning triangle
* or portable hazard warning
lamp
* is required, set it up on the roadside at an
appropriate distance from the rear of the vehi-
cle. Comply with all safety guidelines and regu-
lations.
Change the wheel only on a level, firm surface
which is not slippery. The vehicle or the jack
could slip to the side if you attempt to raise the
vehicle on a soft or slippery surface such as
snow, ice, tile, etc.
Position the jack on a firm support surface.
Do not use a wooden block or similar object as a
support base for the jack, as this would prevent
it from extending to its full support height and
reduce its load-carrying capacity.
To avoid serious or fatal injury: never lie under
the vehicle, and never start the engine while it is
supported by the jack.<

Replacing components
116

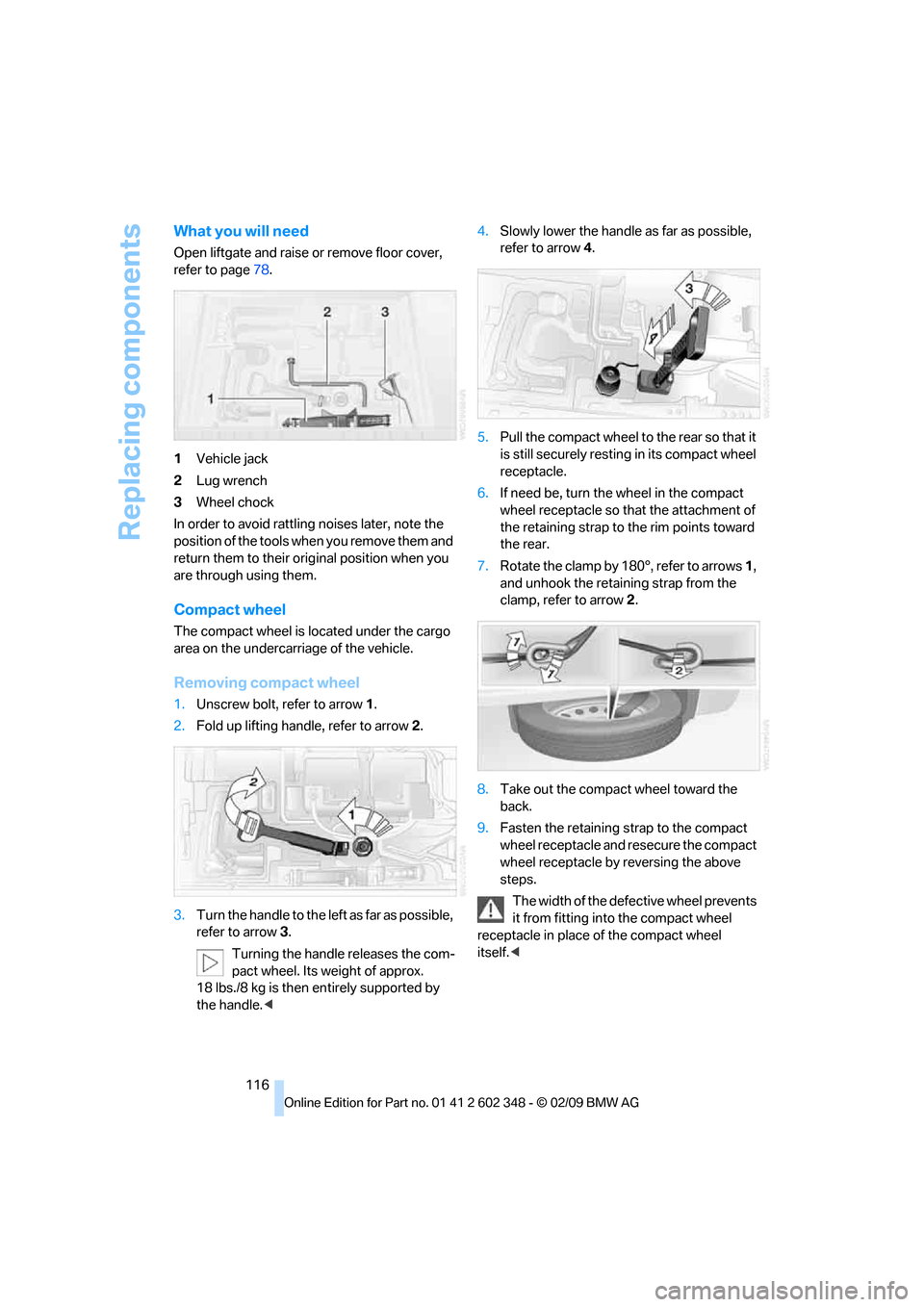

What you will need
Open liftgate and raise or remove floor cover,
refer to page78.
1Vehicle jack
2Lug wrench
3Wheel chock
In order to avoid rattling noises later, note the
position of the tools when you remove them and
return them to their original position when you
are through using them.
Compact wheel
The compact wheel is located under the cargo
area on the undercarriage of the vehicle.
Removing compact wheel
1.Unscrew bolt, refer to arrow1.
2.Fold up lifting handle, refer to arrow2.
3.Turn the handle to the left as far as possible,
refer to arrow3.
Turning the handle releases the com-
pact wheel. Its weight of approx.
18 lbs./8 kg is then entirely supported by
the handle.<4.Slowly lower the handle as far as possible,
refer to arrow4.
5.Pull the compact wheel to the rear so that it
is still securely resting in its compact wheel
receptacle.
6.If need be, turn the wheel in the compact
wheel receptacle so that the attachment of
the retaining strap to the rim points toward
the rear.
7.Rotate the clamp by 180°, refer to arrows 1,
and unhook the retaining strap from the
clamp, refer to arrow 2.
8.Take out the compact wheel toward the
back.
9.Fasten the retaining strap to the compact
wheel receptacle and resecure the compact
wheel receptacle by reversing the above
steps.
The width of the defective wheel prevents
it from fitting into the compact wheel
receptacle in place of the compact wheel
itself.<

Reference
At a glance
Controls
Driving tips
Mobility
117

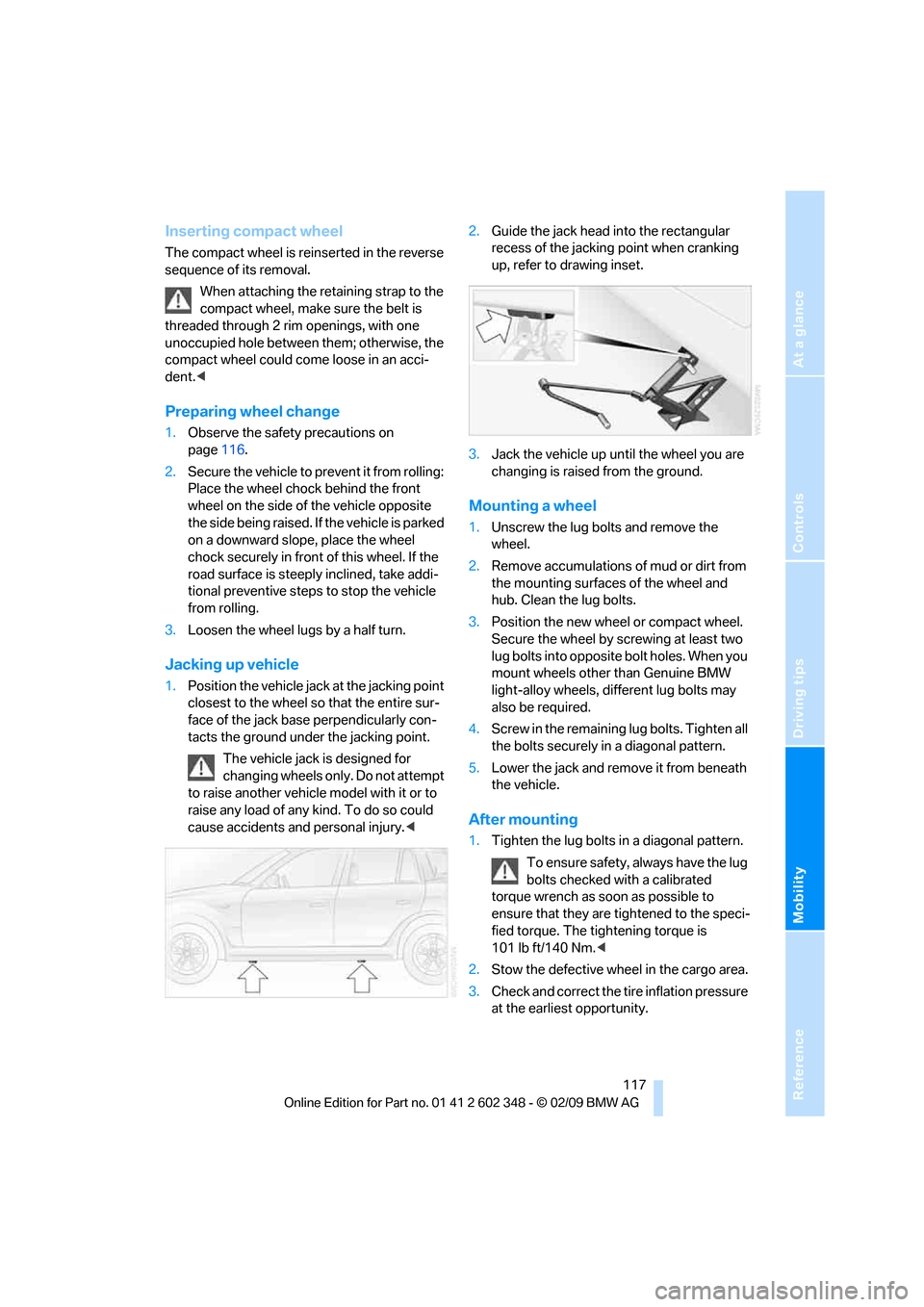

Inserting compact wheel
The compact wheel is reinserted in the reverse
sequence of its removal.
When attaching the retaining strap to the
compact wheel, make sure the belt is
threaded through 2 rim openings, with one
unoccupied hole between them; otherwise, the
compact wheel could come loose in an acci-
dent.<
Preparing wheel change
1.Observe the safety precautions on
page116.
2.Secure the vehicle to prevent it from rolling:
Place the wheel chock behind the front
wheel on the side of the vehicle opposite
the side being raised. If the vehicle is parked
on a downward slope, place the wheel
chock securely in front of this wheel. If the
road surface is steeply inclined, take addi-
tional preventive steps to stop the vehicle
from rolling.
3.Loosen the wheel lugs by a half turn.
Jacking up vehicle
1.Position the vehicle jack at the jacking point
closest to the wheel so that the entire sur-
face of the jack base perpendicularly con-
tacts the ground under the jacking point.
The vehicle jack is designed for
changing wheels only. Do not attempt
to raise another vehicle model with it or to
raise any load of any kind. To do so could
cause accidents and personal injury.<2.Guide the jack head into the rectangular
recess of the jacking point when cranking
up, refer to drawing inset.
3.Jack the vehicle up until the wheel you are
changing is raised from the ground.
Mounting a wheel
1.Unscrew the lug bolts and remove the
wheel.
2.Remove accumulations of mud or dirt from
the mounting surfaces of the wheel and
hub. Clean the lug bolts.
3.Position the new wheel or compact wheel.
Secure the wheel by screwing at least two
lug bolts into opposite bolt holes. When you
mount wheels other than Genuine BMW
light-alloy wheels, different lug bolts may
also be required.
4.Screw in the remaining lug bolts. Tighten all
the bolts securely in a diagonal pattern.
5.Lower the jack and remove it from beneath
the vehicle.
After mounting
1.Tighten the lug bolts in a diagonal pattern.
To ensure safety, always have the lug
bolts checked with a calibrated
torque wrench as soon as possible to
ensure that they are tightened to the speci-
fied torque. The tightening torque is
101 lb ft/140 Nm.<
2.Stow the defective wheel in the cargo area.
3.Check and correct the tire inflation pressure
at the earliest opportunity.

Replacing components

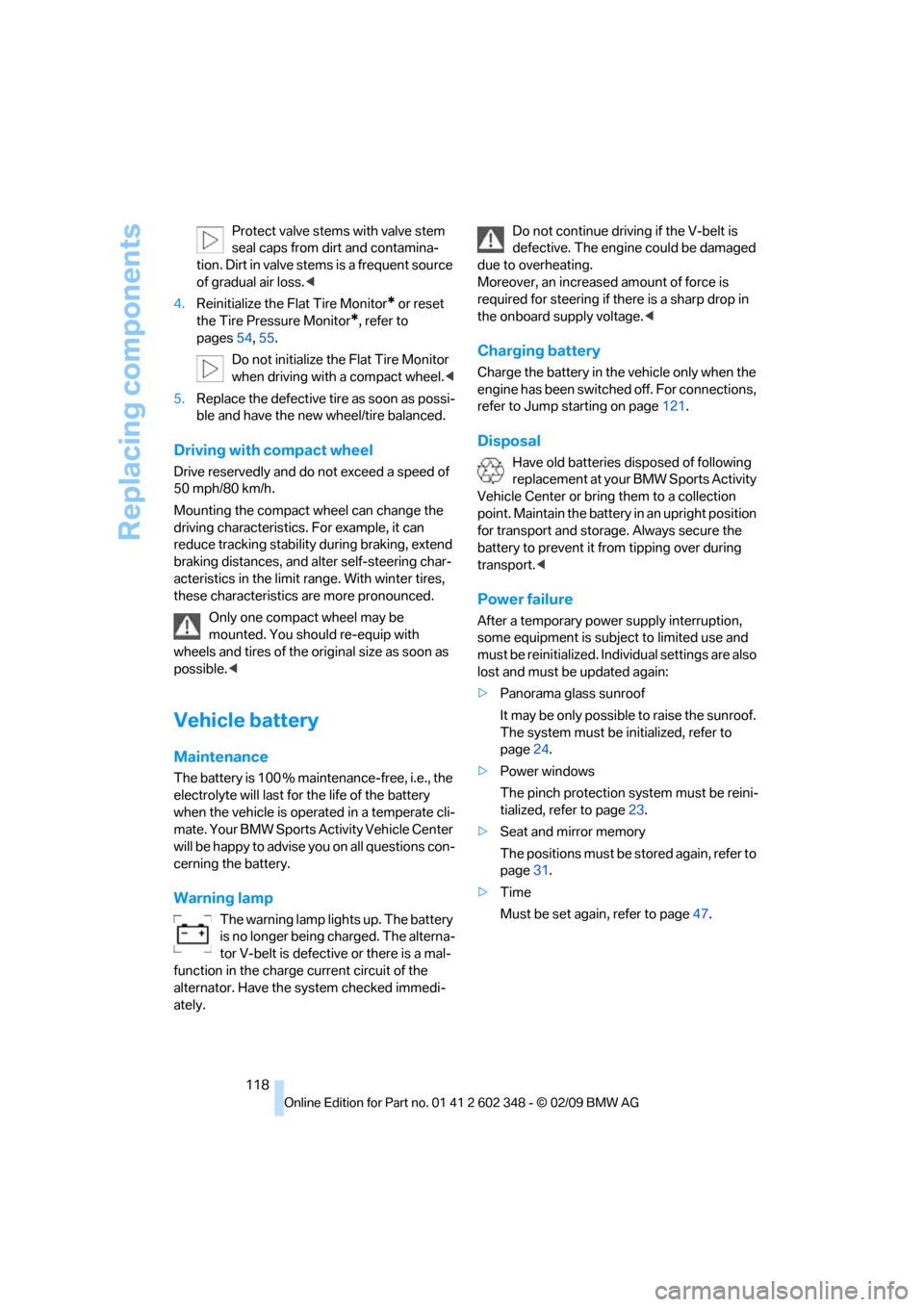

118 Protect valve stems with valve stem
seal caps from dirt and contamina-
tion. Dirt in valve stems is a frequent source
of gradual air loss.<
4.Reinitialize the Flat Tire Monitor
* or reset
the Tire Pressure Monitor
*, refer to
pages54, 55.
Do not initialize the Flat Tire Monitor
when driving with a compact wheel.<
5.Replace the defective tire as soon as possi-
ble and have the new wheel/tire balanced.
Driving with compact wheel
Drive reservedly and do not exceed a speed of
50 mph/80 km/h.
Mounting the compact wheel can change the
driving characteristics. For example, it can
reduce tracking stability during braking, extend
braking distances, and alter self-steering char-
acteristics in the limit range. With winter tires,
these characteristics are more pronounced.
Only one compact wheel may be
mounted. You should re-equip with
wheels and tires of the original size as soon as
possible.<
Vehicle battery
Maintenance
The battery is 100 % maintenance-free, i.e., the
electrolyte will last for the life of the battery
when the vehicle is operated in a temperate cli-
mate. Your BMW Sports Activity Vehicle Center
will be happy to advise you on all questions con-
cerning the battery.
Warning lamp
The warning lamp lights up. The battery
is no longer being charged. The alterna-
tor V-belt is defective or there is a mal-
function in the charge current circuit of the
alternator. Have the system checked immedi-
ately.Do not continue driving if the V-belt is
defective. The engine could be damaged
due to overheating.
Moreover, an increased amount of force is
required for steering if there is a sharp drop in
the onboard supply voltage.<
Charging battery
Charge the battery in the vehicle only when the
engine has been switched off. For connections,
refer to Jump starting on page121.
Disposal
Have old batteries disposed of following
replacement at your BMW Sports Activity
Vehicle Center or bring them to a collection
point. Maintain the battery in an upright position
for transport and storage. Always secure the
battery to prevent it from tipping over during
transport.<
Power failure
After a temporary power supply interruption,
some equipment is subject to limited use and
must be reinitialized. Individual settings are also
lost and must be updated again:
>Panorama glass sunroof
It may be only possible to raise the sunroof.
The system must be initialized, refer to
page24.
>Power windows
The pinch protection system must be reini-
tialized, refer to page23.
>Seat and mirror memory
The positions must be stored again, refer to
page31.
>Time
Must be set again, refer to page47.
