width BMW X5 2002 E53 Workshop Manual

5
Specifications
X5 3.0iX5 4.4i
Doors 5 5
Length 4666 mm 4666 mm
Width 1872 mm 1872 mm
Height 1717 mm 1717 mm
DImensions:
Vechicle Weigth withTransmission:
Automatic 2015 Kg 2085 Kg
Manual 1990 Kg Not Available
General
Fuel 92l 92l
Drag Coefficient 0.35 0.36
Payload 610 kg 555 kg
Roof Load 150 kg 150 kg
Gross Weight 2600 kg Not Available
Manual Trans.
Gross Weight 2625kg 2650kg
Auto Trans.
Cargo Volume 16.1/54.4 cu ft. 16.1/54,4 cu ft.
Towed Weight Braked 1600 kg Not Available
Manual
Towed Weight Braked 1700 kg 750 kg
Automatic
Turning Circle 39.7 ft. 39.7 ft.
X5 3.0iX5 4.4i
X5 3.0iX5 4.4i
Designation M54B30 M62 TU B44
Engine Management Syst. MS 43 ME 7.2
Horsepower (HP) 225@5900RPM 282@5400RPM
Torque 293@3500RPM 440@3600RPM
Bore 84mm 92mm
Stroke 89.6mm 82.7mm
Compression 10.2:1 10.0:1
X5 3.0iX5 4.4i
Engine:

12

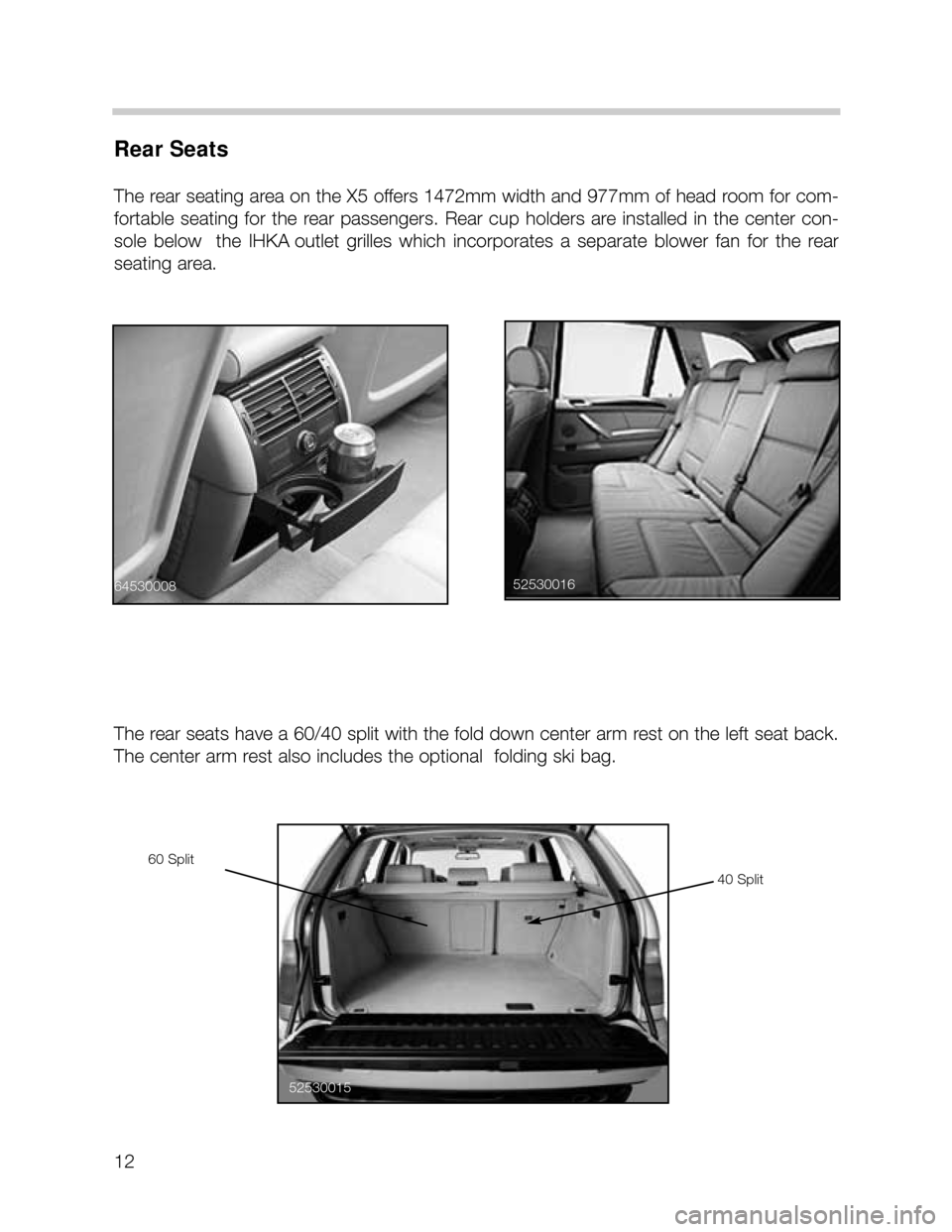

Rear Seats
The rear seating area on the X5 offers 1472mm width and 977mm of head room for com-
fortable seating for the rear passengers. Rear cup holders are installed in the center con-
sole below the IHKA outlet grilles which incorporates a separate blower fan for the rear
seating area.
The rear seats have a 60/40 split with the fold down center arm rest on the left seat back.
The center arm rest also includes the optional folding ski bag.
52530015
40 Split
60 Split52530016
64530008
