BMW X5 2005 E53 Service and warranty information
Manufacturer: BMW, Model Year: 2005, Model line: X5, Model: BMW X5 2005 E53Pages: 53, PDF Size: 0.69 MB
Page 11 of 53
7
Inspection I
Engine Compartment
Read out diagnostic system.
Check engine cooling system/heater hose connections for leaks.
Check coolant level and antifreeze protection level. Add coolant if required.
Check windshield washer fluid level and antifreeze protection.
Fill up and/or correct if required.
Check air conditioner for operation.
Replace microfilter. (Note: reduce replacement interval in dusty
operating conditions.)
Reset service interval indicator.
X5 3.0i,
4.4i, 4.8is
Body/Electrical
Check battery state-of-charge indicator and charge if required.
Check lighting system, i.e.: headlights, foglights, parking, back-up,
license plate, interior (including map reading lights), glove box, flashlight,
illuminated makeup mirrors, luggage compartment/area lights.
Check instrument panel and dashboard illumination.
Check all warning/indicator lights, check control.
Check turn signals, hazard warning flashers, brake lights, horns, headlight
dimmer and flasher switch.
Check wipers and washer system(s); wiper blades, washer jet positions.
Check condition and function of safety belts.
Visually examine all SRS airbag units for torn covers, obvious damage or
attachment of decals, decorations or accessories.
Check central locking/double lock.
Check operation of all latches.
Check heater/air conditioner blower, rear window defogger.
Check rear view mirrors.
Final Inspection
Road test with check of brakes, suspension, steering, clutch/manual
transmission or automatic transmission.
Page 12 of 53
8
X5 3.0i,
4.4i, 4.8is
Replace air cleaner element. (Note: Reduce replacement interval in
dusty operating conditions).
Inspection II
Includes all items listed under Inspection I, and the following checks
and maintenance operations.
Engine Compartment
Brake Fluid Service
Replace brake fluid every 2 years (time interval begins from the
vehicle’s production date).
Oxygen Sensor Service
Replace Oxygen Sensor every 100,000 miles.
Spark Plug Service
Replace spark plugs every 100,000 miles.
Automatic Transmission Service
Replace ATF every 100,000 miles.
Page 13 of 53
9
Speedometer
(Odometer Memory)
changed:
Mileage
DateSpeedometer
(Odometer Memory)
changed:
Mileage
Date
Record of
Record of Spark Plug Record of Oxygen Record of brake/ ATF change
Replacement Sensor replacementclutch fluid changes (Every 100,000
(Every 100,000 Mi.) (Every 100,000 Miles) (Every 2 years) miles)
Date Mileage Date Mileage Date Date
Page 14 of 53
Date/Stamp/Signature
Date/Stamp/Signature
Date/Stamp/Signature
Date/Stamp/Signature
Date/Stamp/Signature
Date/Stamp/Signature
Date/Stamp/Signature
Date/Stamp/Signature
Date/Stamp/Signature
Date/Stamp/Signature
Date/Stamp/Signature
Date/Stamp/Signature
10
Page 15 of 53
Date/Stamp/Signature
Date/Stamp/Signature
Date/Stamp/Signature
Date/Stamp/Signature
Date/Stamp/Signature
Date/Stamp/Signature
Date/Stamp/Signature
Date/Stamp/Signature
Date/Stamp/Signature
Date/Stamp/Signature
Date/Stamp/Signature
Date/Stamp/Signature
11
Page 16 of 53
Date/Stamp/Signature
Date/Stamp/Signature
Date/Stamp/Signature
Date/Stamp/Signature
Date/Stamp/Signature
Date/Stamp/Signature
Date/Stamp/Signature
Date/Stamp/Signature
Date/Stamp/Signature
Date/Stamp/Signature
Date/Stamp/Signature
Date/Stamp/Signature
12
Page 17 of 53
13 The maintenance schedule as shown
is required for the proper functioning
of the emission control systems for
optimum vehicle performance and fuel
economy.
Abbreviations:
I - Inspect
R - Replace part(s) and/or fluid listed
Basic Engine
Engine oil....................................................
Engine oil filter..........................................
Fuel System
Air filter.......................................................
Ignition System
Spark plugs...............................................
Emission Control Components
Oxygen sensor..........................................
Emission Control Maintenance Schedule: X5 3.0i, 4.4i, 4.8is
Oxygen Sensor Service: The oxygen sensor deteriorates strictly on a mileage basis and must
therefore be replaced to maximize vehicle fuel economy and minimize exhaust pollution.
The mileage interval varies according to individual driving conditions and is determined by the
service interval indicator.
Oil Service
Inspection I
Oil Service
Inspection II
RRR R
RRR R
R
Replace at intervals of
100,000 miles
Replace at intervals of
100,000 milesX5
Continue sequence of
Oil Services and
Inspections per Service
Interval Indicator.
Page 18 of 53
14 If your X5 is driven only for short distances of
less than 10 miles over a prolonged period of
time, without an occasional drive at highway
speeds, the engine’s charging system will not
maintain the battery. Insufficient use of the SAV
could result in short term starting problems
and in the long term could damage the battery.
In case the SAV is not operated for more than
four weeks it is advisable to:
a) consider using a proper trickle charger,
following the charger manufacturer’s
instructions, to maintain the battery’s state of
charge; or
b) consult your BMW SAV center regarding
battery removal. Once removed, the battery
must be charged and stored in a cool, dry
place where it can be protected from
freezing. If the battery will be stored for over
3 months, it must be recharged every 3
months, or else it will become damaged and
useless.
Please consult with your BMW SAV center for
further guidance and information.
Corrosion Protection
Extensive corrosion protection measures
implemented by BMW now make it possible to
offer a twelve-year limited mileage anti-
corrosion warranty against rust perforation on
your SAV provided that the SAV is maintained
in accordance with the provisions of the New
SAV Limited Warranty as outlined in the
Warranty Section of this Statement (page 29).
The major degree of corrosion protection is
due to the electrophoretic dip painting process
which cathodically deposits paint particles on
all body parts, attracting paint particles into the
minutest cavities or seams. Body parts are
designed to provide optimum corrosion
protection.During manufacture, exterior body parts
receive an additional corrosion protection coat.
Hood, trunk, doors and other body parts with
metal folds are coated with PVC and sealed
from the outside.
All floor panels receive a resilient coating of
PVC for maximum protection against damage
due to stones, etc.
Corrosion protection materials tested over
many years are applied to the surfaces of
cavities and to the entire underside of the
vehicle during and after assembly.
Requirements for maintaining the twelve-year
unlimited mileage anti-corrosion warranty are
outlined in the Warranty Section of this Booklet
(page 31).
Restoring corrosion protection
Please take care that anti-corrosion material is
replaced when your car is repaired after body
or chassis damage.
BMW will not accept any liability for any
parts and accessories not approved by
BMW.
Underbody maintenance
The underbody has to be cleaned at least
once a year, in spring, with plain water in order
to remove mud, chemical sediments and other
deposits. If those materials are not removed,
corrosion (rust) will occur.
Your BMW SAV center will do this anti-
corrosion service for you.
WARNING
Do not apply additional undercoating or rust-
proofing on or near the exhaust manifold,
exhaust pipes, catalytic converter or heat
shields. During driving, the substance used
for undercoating could overheat and cause
a fire.
Battery Care
Page 19 of 53
15
Body Inspection
Show damage location above with codes:
X Stone damage O Dent
Scratch Collision damage
Undercoating damage (explain in remarks)
The undersigned herewith confirms that this inspection has been carried out by the
authorized BMW SAV center below and this BMW center has given notification of any
body repairs necessary.
Customer's
signatureDate
Performed by BMW SAV center/Stamp with Code
BMW center authorized signature
SAV inspected and repaired if
necessary to BMW standards
required by BMW twelve year
unlimited mileage anti-
corrosion warranty
Ye s
No
Partially*
*Remarks–explain (use repair
order if necessary)
Page 20 of 53
16

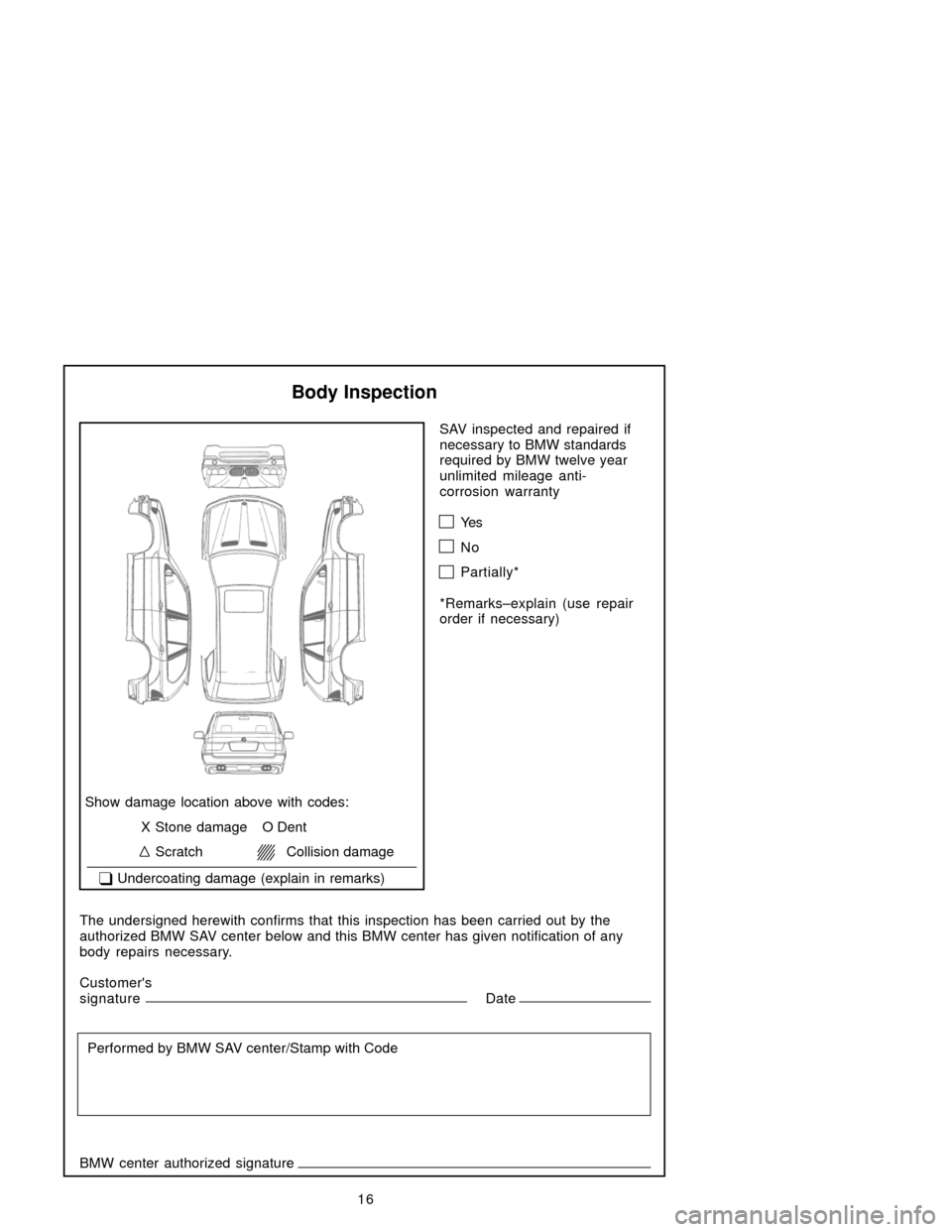

Body Inspection
Show damage location above with codes:
X Stone damage O Dent
Scratch Collision damage
Undercoating damage (explain in remarks)
The undersigned herewith confirms that this inspection has been carried out by the
authorized BMW SAV center below and this BMW center has given notification of any
body repairs necessary.
Customer's
signatureDate
Performed by BMW SAV center/Stamp with Code
BMW center authorized signature
SAV inspected and repaired if
necessary to BMW standards
required by BMW twelve year
unlimited mileage anti-
corrosion warranty
Ye s
No
Partially*
*Remarks–explain (use repair
order if necessary)
