key BMW X5 2008 E70 Service and warranty information

Oil changes performed outside the recom-
mended maintenance intervals as indicated
by the Service Interval Indicator
Maintenance Upgrade Option
Please contact your authorized BMW center for
information and availability on the optional Main-
tenance Program Upgrade for coverage up to
6 years and 100,000 miles.
Intervals
Time intervals should be followed using the
maintenance interval as indicated by the Condi-
tion Based Service (CBS) display.
Maintenance intervals on motor vehicles have
conventionally been specified based upon accu-
mulated mileage. However, driving conditions
have a major influence on routine maintenance
requirements; distance traveled is only one of
the significant factors. A vehicle driven for
50,000 miles of short trips in the city with
numerous cold starts, prolonged periods of
idling, stop-and-go driving, and high engine
speeds during acceleration requires more fre-
quent maintenance intervals than a vehicle
driven for 50,000 miles for long distances at low
engine speeds primarily at operating
temperature.
The advanced technologies at BMW have led to
the development of the unique BMW Condition
Based Service (CBS) system which computes
the actual optimum maintenance requirements
based not only upon the accumulated mileage,
but taking into account important factors such
as high or low engine speeds, short or long trip
driving, and condition of the engine oil and
brake pads.
Condition Based Service (CBS)
CBS is a further development of the Service
Interval Indicator System. Sensors and sophisti-
cated algorithms take even more detailed
account of the various conditions of vehicle use.
The remaining times for selected maintenance
tasks as well as any legally prescribed dates are
displayed to you individually:
 Engine oil
Brakes - front and rear separately
 Brake fluid
 Vehicle check
 Required State Inspection(s)
CBS thus determines the current and future
maintenance requirements. This data can also
be read from the vehicle key by your BMW Ser-
vice Advisor and used to propose the optimum
scope of maintenance.
Disconnecting the battery during periods
of long-term storage will interrupt the
calculation of time-based services. Have all
items requiring time-based maintenance, such
as brake fluid and coolant, and possibly also the
engine oil, brought up to date by your BMW
SAV center. Also see the section on battery care
on page 15 of this statement.
Service Interval Display
Info Display screen contents
The distance remaining until your next service
briefly appears when you switch on the ignition.
The Info Display immediately switches to
its compute mode when you press one
of the two buttons in the turn signal indicator
lever.
Control Display screen contents
The current Status of Service items determined
by the CBS are shown in the Control Display.
You can also view additional information on the
service and maintenance requirements.
1. Open the start menu.
2. Press the controller to select the i-menu.
2

3. Select “Info sources” and press the controller.
4. Select “Service” and press the controller.
5. Change to the upper field if necessary. Turn the controller until “Service requirements” is
selected and press the controller.
6. Select “Status” and press the controller.
You can request more detailed information on
every entry.
Turn the controller to scroll through the list, then
confirm the selected entry.
Confirm to exit the list.
Symbols
No service is currently required.
The service deadline has already passed.
The deadline for service or a state inspec-
tion is approaching. Please contact your
SAV center for an appointment.
The current service status is automatically
saved in the vehicle’s ignition key. The Service
Advisor at your SAV center has a device called a
key reader. When your Service Advisor inserts
your key into the key reader, all pertinent vehicle
and servicing data will be available, and a cus-
tomized maintenance checklist is printed out
based on the specific operations called for by
the Condition Based Service.
Special Note
The maintenance requirements for your vehicle
are determined dynamically by the Condition
Based Service (CBS) system. The maintenance
items stated herein reflect the latest information
available at the time of the printing of this state-
ment, and are subject to change. The most cur-
rent maintenance recommendations are
available from your authorized BMW SAV center.
The performance of certain subsequent mainte-
nance elements, as required by the SAV New
Vehicle Limited Warranty, will be specified at
intervals computed by the BMW Service Interval
Indicator as follows:
 Oil Service: Engine oil should be changed
with the engine at operating temperature.
Note: Change oil at least once a year.
All 2008 model year X5 vehicles are factory-
filled with BMW High Performance Synthetic
oils. At the time of the printing of this booklet,
the following oils are strongly recommended
and approved by BMW:
 BMW High Performance 5W-30 Synthetic Oil
(BMW part number 07 51 0 017 866)
 Mobil 1 5W-30
 Mobil 1 5W-40
BMW is evaluating various synthetic oils for
inclusion in our list of recommended engine oils.
3

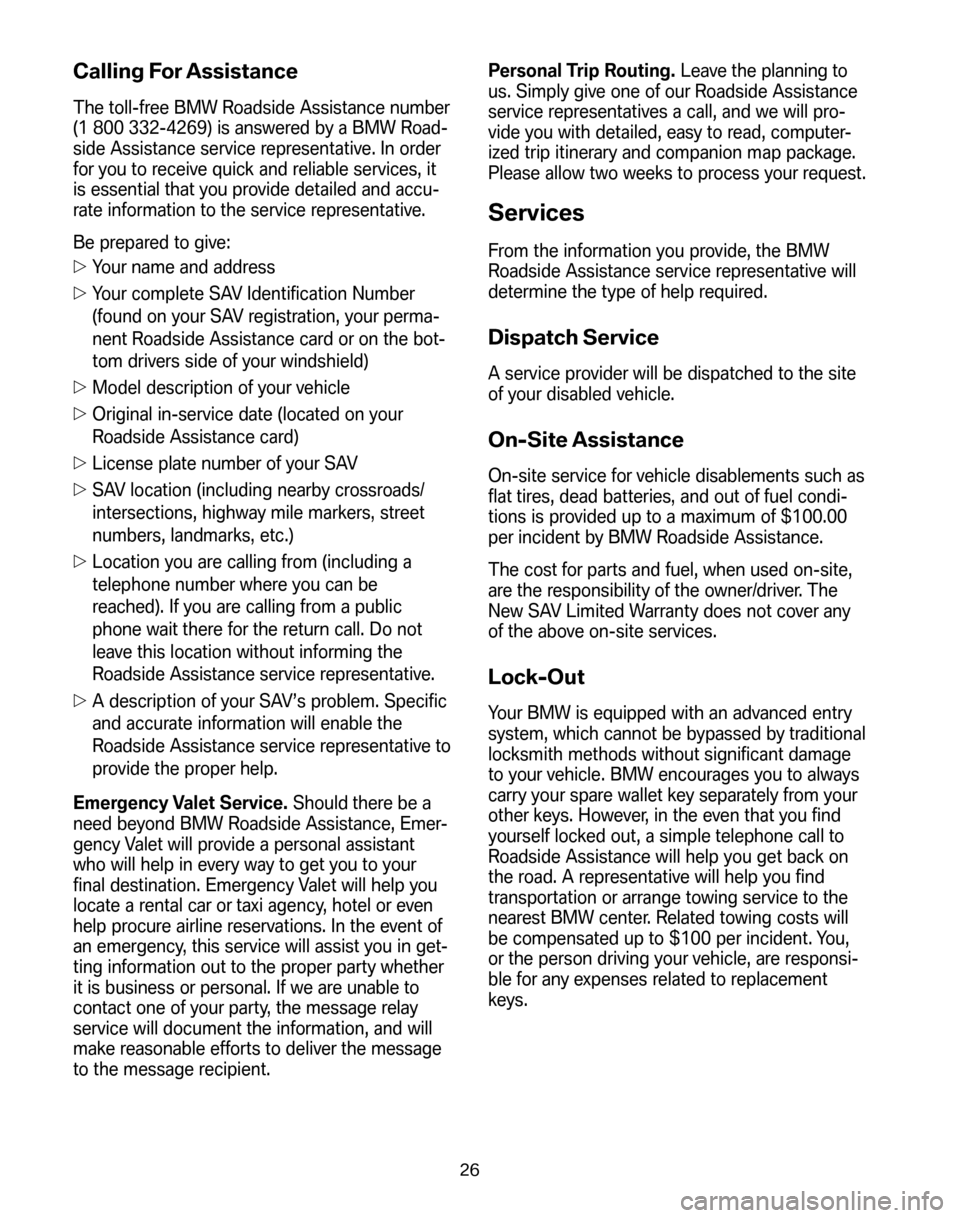

Calling For Assistance
The toll-free BMW Roadside Assistance number
(1 800 332-4269) is answered by a BMW Road-
side Assistance service representative. In order
for you to receive quick and reliable services, it
is essential that you provide detailed and accu-
rate information to the service representative.
Be prepared to give:
 Your name and address
 Your complete SAV Identification Number
(found on your SAV registration, your perma-
nent Roadside Assistance card or on the bot-
tom drivers side of your windshield)
 Model description of your vehicle
 Original in-service date (located on your
Roadside Assistance card)
 License plate number of your SAV
 SAV location (including nearby crossroads/
intersections, highway mile markers, street
numbers, landmarks, etc.)
 Location you are calling from (including a
telephone number where you can be
reached). If you are calling from a public
phone wait there for the return call. Do not
leave this location without informing the
Roadside Assistance service representative.
 A description of your SAV’s problem. Specific
and accurate information will enable the
Roadside Assistance service representative to
provide the proper help.
Emergency Valet Service. Should there be a
need beyond BMW Roadside Assistance, Emer-
gency Valet will provide a personal assistant
who will help in every way to get you to your
final destination. Emergency Valet will help you
locate a rental car or taxi agency, hotel or even
help procure airline reservations. In the event of
an emergency, this service will assist you in get-
ting information out to the proper party whether
it is business or personal. If we are unable to
contact one of your party, the message relay
service will document the information, and will
make reasonable efforts to deliver the message
to the message recipient. Personal Trip Routing.
Leave the planning to
us. Simply give one of our Roadside Assistance
service representatives a call, and we will pro-
vide you with detailed, easy to read, computer-
ized trip itinerary and companion map package.
Please allow two weeks to process your request.
Services
From the information you provide, the BMW
Roadside Assistance service representative will
determine the type of help required.
Dispatch Service
A service provider will be dispatched to the site
of your disabled vehicle.
On-Site Assistance
On-site service for vehicle disablements such as
flat tires, dead batteries, and out of fuel condi-
tions is provided up to a maximum of $100.00
per incident by BMW Roadside Assistance.
The cost for parts and fuel, when used on-site,
are the responsibility of the owner/driver. The
New SAV Limited Warranty does not cover any
of the above on-site services.
Lock-Out
Your BMW is equipped with an advanced entry
system, which cannot be bypassed by traditional
locksmith methods without significant damage
to your vehicle. BMW encourages you to always
carry your spare wallet key separately from your
other keys. However, in the even that you find
yourself locked out, a simple telephone call to
Roadside Assistance will help you get back on
the road. A representative will help you find
transportation or arrange towing service to the
nearest BMW center. Related towing costs will
be compensated up to $100 per incident. You,
or the person driving your vehicle, are responsi-
ble for any expenses related to replacement
keys.
26
