Wheels and tires
220
Run-flat tires
You will recognize run-flat tires by the circular
symbol containing the letters RSC on the side
of the tire.
Run-flat tires consist of partially self-contained
tires and special rims. The sidewall reinforce-
ment ensures that the tire retains some residual
safety in the event of pressure drop and driving
remains possible to a restricted degree.
To continue driving with a damaged tire:
>With Flat Tire Monitor, refer to Indication of
a flat tire page88
>With Tire Pressure Monitor, refer to Mes-
sage with low tire inflation pressure page90
New wheels and tires
Have new wheels and tires installed only
by your BMW Sports Activity Vehicle
Center or a tire shop that works according to
BMW repair procedures with correspondingly
trained personnel. If this work is not carried out
properly, there is a danger of subsequent dam-
age and related safety hazards. Make sure that
the new wheels are balanced.<
Retreaded tires
BMW does not recommend that you use
retreaded tires, as driving safety may be
impaired. The causes for this include the possi-
bly different tire casing structures and the often
wide variations in their age, which can result in a
limited service life.<
The right wheels and tires
BMW recommends that you use only
wheel and tire combinations that BMW
has tested and approved for your particular
vehicle. Variations in factors such as manufac-
turing tolerances mean that even wheels and
tires with identical official size ratings could
actually have different dimensions than the
approved units – these differences could lead to
body contact, and with it the risk of severe acci-
dents. If non-approved wheels and tires are
used, BMW cannot evaluate their suitability,
and therefore cannot be held liable for driving
safety.<
When changing to larger wheels and tires,
it may be necessary to make changes to
the wheel-well trim piece, as otherwise road
users could be endangered or the vehicle could
be damaged. Only have this work carried out by
a BMW Sports Activity Vehicle Center or a
workshop that works in accordance with BMW
guidelines and uses appropriately trained per-
sonnel.<
You can ask your BMW Sports Activity Vehicle
Center for the correct wheel/tire combination.
The correct wheel/tire combination also affects
various systems whose function would other-
wise be impaired, e.g. ABS, DSC, xDrive or Flat
Tire Monitor
*.
To maintain good handling and vehicle
response, use only tires of a single tread config-
uration from a single manufacturer. Following
tire damage, have the original wheel and tire
combination remounted on the vehicle as soon
as possible.
Wheels with electronics for
TPM Tire Pressure Monitor
When mounting new tires or changing from
summer to winter tires or vice versa, only use
wheels with TPM electronics, otherwise the
Tire Pressure Monitor cannot detect a flat tire,
refer to page89. Your BMW Sports Activity
Vehicle Center will be happy to advise you on
this subject.

Mobility
233Reference
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Removing compact wheel
The compact wheel is located in the cargo bay
under the floor panel.
1.Remove the tool mount
2.Unscrew the wing nut 1.
3.Remove the washer 2 laterally.
4.Remove the compact wheel.
Preparing wheel change
1.Observe the safety precautions above.
2.Loosen the lug bolts a half turn.
Jacking up vehicle
1.Position the vehicle jack at the jacking point
closest to the wheel so that the entire sur-
face of the jack base rests on the ground
perpendicularly beneath the jacking point.
The vehicle jack is designed for
changing wheels only. Do not attempt
to raise another vehicle model with it or to
raise any load of any kind. To do so could
cause accidents and personal injury.<2.Guide the jack head into the rectangular
recess of the jacking point when cranking
up, refer to illustration detail.
3.Jack the vehicle up until the wheel you are
changing is raised from the ground.
Mounting a wheel
1.Unscrew the lug bolts and remove the
wheel.
2.Remove accumulations of mud or dirt from
the mounting surfaces of the wheel and
hub. Also clean the lug bolts.
3.Position the new wheel or compact wheel.
Secure the wheel by screwing at least two
lug bolts into opposite bolt holes.
When you mount wheels other than Genu-
ine BMW light-alloy wheels, different lug
bolts may also be required.
4.Screw in the remaining lug bolts. Tighten all
the bolts securely in a diagonal pattern.
5.Lower the vehicle and remove the jack from
beneath the vehicle.
After mounting
1.Tighten the lug bolts in a diagonal pattern.
To ensure safety, always have the
lug bolts checked with a calibrated
torque wrench as soon as possible to
ensure that they are tightened to the speci-
fied torque. The tightening torque is
101lbft/140Nm.<
2.Stow the defective wheel in the cargo bay.
The defective wheel cannot be stored
under the floor panel flap due to its
different dimensions.<

Reference 243
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

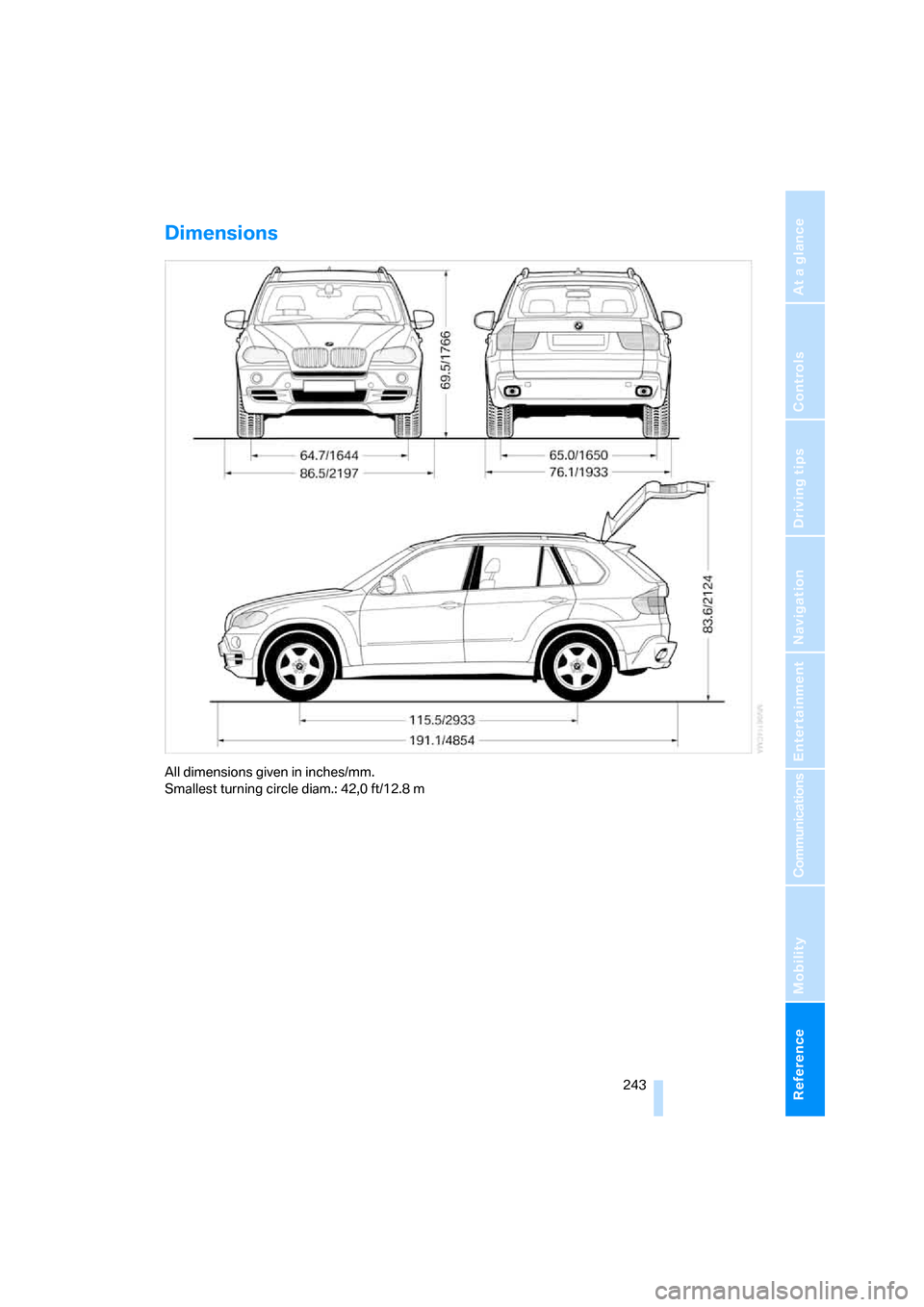

Dimensions
All dimensions given in inches/mm.
Smallest turning circle diam.: 42,0 ft/12.8 m

Everything from A to Z
254 Consumption, refer to
Average fuel
consumption69
Consumption indicator,
Energy Control68
Consumption statistics, refer
to Average fuel
consumption69
"Continue guidance to
destination?"144
"Contrast" for DVD system in
rear176
Control Center, refer to
iDrive16
Control Display, refer to
iDrive16
– setting brightness78
Controller, refer to iDrive16
Controls, refer to Cockpit10
Controls of DVD system in
rear172
Coolant225
– checking level225
– temperature68
Cooling, maximum104
Cornering Brake Control
CBC84
Courtesy lamps100
Cradle for telephone or mobile
phone113
Cruise control64
Cruising range69
Cup holders114
Curb weight, refer to
Weights244
Current fuel consumption68
"Current position"150
Current position
– displaying150
– entering139
– storing139
"Customer
Relations"196,205
Cylinders, refer to Engine
data242
D
Dashboard, refer to
Cockpit10
Data242
– capacities244
– dimensions243
– engine242
– technical data242
– weights244
"Date"78
Date67
– display format78
– retrieving67
– setting78
"Date format"78
"Daytime running lamps"98
Daytime running lamps98
DBC Dynamic Brake
Control84
"Deactivated"43
Decommissioning the vehicle,
refer to Caring for your
vehicle brochure
Defrosting windows103
Defrosting windows and
removing condensation103
Defrost position, refer to
Defrosting windows103
"Delete address book" for
navigation140
"Delete all numbers" on the
mobile phone196
"Delete data" for
navigation140
"Delete" for mobile
phone196
Destination address
– deleting140
– entering131,134
Destination for navigation
– destination list138
– entry131
– selecting from address
book139
– selecting using
information137
– selecting using voice134
– storing139Destination guidance143
– canceling voice
instructions51
– changing specified
route141
– displaying route144
– distance and arrival143
– ending/continuing143
– starting143
– voice instructions146
– volume of voice
instructions146
Destination list for navigation
system
138
Destinations recently driven
to138
"Details", DVD system in
rear181
"Detour" for navigation149
Detour for navigation149
"Dial" for mobile phone193
"Dial number"194
"Diamond button"50
Digital clock67
Digital compass111
Dimensions243
Directional indicators, refer to
Turn signals62
Direction announcements,
refer to Voice
instructions146
Direction instructions, refer to
Voice instructions146
Directory for navigation, refer
to Address book139
Direct selection buttons21
Displacement, refer to Engine
data242
"Display"78
Display, refer to iDrive16
Displaying images181
Display lighting, refer to
Instrument lighting99
"Display off"21
Displays, refer to Instrument
cluster12
"Display settings"78,94

Reference 257
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Glove compartment113
– lighting113
GPS navigation, refer to
Navigation system130
Grills, refer to Ventilation105
Grills of the automatic climate
control101
Gross vehicle weight, refer to
Weights244
H
Handbrake, refer to Parking
brake57
Hand lamp, refer to
Rechargeable flashlight113
Hands-free system, refer to
Microphone14
Hazard warning flashers15
HDC Hill Descent Control85
Head airbags92
Headlamp control,
automatic97
Headlamp flasher62
Headlamps97
– care, refer to Caring for your
vehicle brochure
– cleaning, refer to Washer/
wiper system63
Head Light, refer to Adaptive
Head Light98
Head restraints43
– removing43
– sitting safely40
"Head-Up Display"95
Head-Up Display94
Heated
– mirrors49
– rear window103
– seats47
– steering wheel50
Heating101
– exterior mirrors49
– interior101
– rear window103
– residual heat105
– seats47
– steering wheel50Heating with engine switched
off, refer to Residual
heat105
Heavy cargo, refer to Securing
cargo125
Height, refer to
Dimensions243
Height adjustment
– seats41
– steering wheel49
High beams62,99
– headlamp flasher99
– indicator lamp13
Highs, refer to Treble and
bass155
High water, refer to Driving
through water123
Highway, refer to Route
criteria141
Hill Descent Control HDC85
Hills123
Holder for cups114
Home address141
"Home address" for
navigation141
Homepage4
Hood222
Horn10
Hot exhaust system122
"Hour memo"78
"House number" for
destination entry134
Hydraulic brake assistant,
refer to DBC Dynamic Brake
Control84
Hydroplaning123
I
Ice, refer to Outside
temperature warning67
ID3 tag, refer to Information on
track167iDrive16
– assistance window20
– changing language79
– changing menu page19
– changing settings77
– changing units of measure
and display type79
– confirming selection or
entry19
– controller16
– controls16
– displays, menus17
– selecting menu item19
– setting brightness78
– setting date78
– setting time77
– start menu17
– status information20
– symbols18
Ignition56
– switched off56
– switched on56
Ignition key, refer to Keys/
remote control28
Ignition key position 1, refer to
Radio readiness56
Ignition key position 2, refer to
Ignition on56
Ignition lock56
– starting engine with comfort
access36
Independent ventilation, refer
to Parked car ventilation108
Indicator/warning lamps13
– active steering91
– airbags94
– DSC13,84
– DTC13,85
– fasten safety belt46
– Flat Tire Monitor88
– fog lamps13
– TPM Tire Pressure
Monitor90
Individual air distribution104
Individually programmable
buttons on steering
wheel50
Individual settings, refer to
Personal Profile28

Everything from A to Z
258 Inflation pressure, refer to Tire
inflation pressure214
Inflation pressure monitoring
– refer to Flat Tire Monitor87
– refer to TPM Tire Pressure
Monitor89
Information
– on another location137
– on country137
– on current position137
– on destination location137
"Information on
destination"138
Information service205
"Info sources"72
Initializing
– Flat Tire Monitor87
– refer to Power failure234
– refer to Setting date78
– refer to Setting time77
– seat, mirror and steering
wheel memory42
"Input map"136
Installation location
– drive for navigation DVD130
– mobile phone113
Instructions for navigation
system, refer to Voice
instructions146
Instrument cluster12
Instrument lighting99
Instrument panel
– refer to Cockpit10
– refer to Instrument
cluster12
Integrated key28
Integrated universal remote
control110
Interesting destination for
navigation137
"Interim time"76
Interior lamps100
– switching on with remote
control30
Interior motion sensor35
– switching off35Interior rearview mirror49
– automatic dimming
feature49
– compass111
Intermittent mode of the
wipers63
J
Jacking points233
Joystick
– refer to iDrive16
– refer to Selector lever,
selecting transmission
positions60
Jumpering, refer to Jump
starting237
Jump starting237
K
Keyless-Go, refer to Comfort
access35
Keyless opening and closing,
refer to Comfort access35
Key Memory, refer to Personal
Profile28
"Keypad"197
Keys28
– key-related settings, refer to
Personal Profile28
Kick-down, automatic
transmission with
Steptronic61
Knock control213
L
Lamps, refer to Parking lamps/
low beams97
Lamps and bulbs228
"Language / Units"79
– for navigation146
"Language" for DVD system
in rear177
"Languages"79
– for DVD system in rear176
– for navigation146Lashing eyes, refer to
Securing cargo125
Last destinations, refer to
Destination list138
"Last seat pos."43
LATCH child restraint fixing
system54
LEDs light-emitting
diodes229
Length, refer to
Dimensions243
License plate lamp, replacing
bulbs231
Liftgate33
– closing33
– locking and unlocking from
inside32
– opening from inside33
– opening from outside33
– opening manually33
Light-emitting diodes
LEDs229
Lighter115
Lighter socket115
"Lighting"63,98
Lighting
– instruments99
– of the vehicle, refer to
Lamps97
Light switch97
"Limit"76
Loading
– securing cargo125
– stowing cargo125
– vehicle124
Load securing equipment,
refer to Securing cargo125
"Lock after driving"32
Lock buttons in the doors,
refer to Locking32
Locking
– from inside32
– from outside30
– setting confirmation
signals31
– without key, refer to Comfort
access35

Reference 265
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Temperature display
– outside temperature67
– setting units79
– temperature warning67
Temperature warning67
Tempomat, refer to Cruise
control64
"Terminate services"207
"Text language"79
The individual vehicle5
Third brake lamp, refer to
Center brake lamp231
3rd row seats45
"TI"148
Tightening torque of the lug
bolts, refer to After
mounting233
Tilt alarm sensor, switching
off35
Tilting down passenger-side
exterior mirror49
"Time"77
"Time / Date"77,78
"Time format"78
Timer, refer to Preselecting
activation times109
"Timer 1" for parked car
ventilation109
"Timer 2" for parked car
ventilation109
Tire inflation pressures214
Tire pressure loss88,90
Tire pressure monitoring,
refer to Flat Tire Monitor87
Tire Pressure Monitor
TPM89
Tire Quality Grading218
Tire replacement, new wheels
and tires220Tires
– age218
– air loss88,90
– breaking-in122
– changing220
– condition219
– damage219
– flat tire, refer to Changing
wheels232
– inflation pressure214
– new wheels and tires220
– pressure monitoring87
– pressure monitoring, refer to
TPM Tire Pressure
Monitor89
– replacing232
– retreaded tires220
– run-flat tires
220
– size218
– tread219
– wear indicators219
– wheel/tire combination220
– winter tires221
"Title" for DVD system in
rear177
TMC station, refer to Traffic
information147
"Tone"155
– for DVD system in rear177
Tone in audio mode
– adjusting155
– middle setting157
Tone on locking/unlocking31
Tools, refer to Onboard
toolkit228
"Top 8" for mobile phone194
Torque
– engine242
– lug bolts, refer to After
mounting233
Touch tone dialing196
Tow fitting238
Towing238
– tow fitting238
"Town / City" for destination
entry132
Town/city for destination
entry132
Tow-starting238,239"TPM"90
TPM Tire Pressure
Monitor89
– resetting system89
– system limits89
– warning lamp90
Tracks
– finding167
– random sequence168
– sampling, scan167
Track width, refer to
Dimensions243
Traction-assist feature, refer
to DSC Dynamic Stability
Control84
Traction control, refer to
DSC Dynamic Stability
Control84
Traffic congestion
– bypassing149
– displaying traffic
information147
"Traffic Info"147
Traffic information for
navigation
– depiction in route map149
– displaying148
– during destination
guidance149
– switching on/off147
– symbols150
Transmission
– automatic transmission with
Steptronic59
– manually releasing
transmission lock on
automatic transmission with
Steptronic61
– starting assistant123
Transmission positions, refer
to Automatic transmission
with Steptronic59
Transporting children
safely52
Transport securing device,
refer to Securing cargo125
Tread depth, refer to Minimum
tread depth219

Everything from A to Z
266 Treble, refer to Tone
control155
"Treble / Bass" for DVD
system in rear177
"Trip computer"70
Trip computer70
Trip-distance counter, refer to
Trip odometer67
"Triple turn signal"63
Trip odometer67
Turning circle, refer to
Dimensions243
Turn signals62
– indicator lamp12
– replacing bulbs229
U
Underbody protection, refer to
Caring for your vehicle
brochure
Uniform Tire Quality Grading/
UTQR218
"Units"79
Units
– average fuel
consumption79
– temperature79
Universal garage-door
opener, refer to Integrated
universal remote
control110
Universal remote control110
"Unlock button"30
Unlocking
– from inside32
– from outside30
– without key, refer to Comfort
access35
Unlocking without key, refer to
Comfort access35
"Unlock rear menu" for DVD
system in rear172
"Update services"206
Used batteries
– refer to Disposal234
– refer to Replacing battery37
V
Valve screw caps, refer to
After mounting233
Vehicle
– battery234
– breaking-in122
– care227
– care, refer to Caring for your
vehicle brochure
– decommissioning, refer to
Caring for your vehicle
brochure
– loading124
– measurements, refer to
Dimensions243
– parking57
– washing, refer to Caring for
your vehicle brochure
– weights244
"Vehicle / Tires" for
unlocking30
Vehicle jack232
– jacking points233
Vehicle position, refer to
Displaying current
position150
Ventilation105
– draft-free106
– in the rear106
– rear automatic climate
control108
– 3rd row seats106
– while stationary108
Vent outlets of automatic
climate control101
Vents, refer to Ventilation105
"Vent settings"104
"Video settings" for DVD
system in rear176
Voice, refer to Voice
instructions for navigation
system146
Voice command system23
– short commands245Voice instructions for
navigation system146
– muting51,146
– repeating51,146
– switching on/off51,146
– volume146
Voice phone book199
Volume
– mobile phone192
– setting speed-
dependent156
– voice instructions146
Volume distribution in audio
mode
– front/rear156
– right/left156
Volume of warning tones79
W
Warning lamps, refer to
Indicator and warning
lamps13
Warning messages, refer to
Check Control74
Warning tone, volume79
Warning triangle236
Warranty and Service Guide
Booklet for Canadian
models226
Washer/wiper system63
– rain sensor63
– washer fluid64
– windshield washer
nozzles64
Washer fluid64
– capacity of the reservoir64
Washer fluid reservoir64
Washing the vehicle, also refer
to Caring for your vehicle
brochure
Water on roads, refer to
Driving through water123
Waveband for radio158
"WB"155,161
Wear indicators in tires, refer
to Minimum tread depth219
Weather Band161
Website4

Reference 267
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Weights244
Wheel/tire combination, refer
to New wheels and tires220
Wheel/tire damage219
Wheelbase, refer to
Dimensions243
Wheels and tires214
Width, refer to
Dimensions243
Windows37
– comfort operation30
– comfort operation from
outside32
– comfort operation with
comfort access36
– safety switch38
Windshield
– cleaning, refer to Washer/
wiper system63
– defrosting, refer to
Defrosting windows103
– displays, refer to Head-Up
Display94
Windshield washer system
– refer to Washer/wiper
system63
– windshield washer
nozzles64
Windshield wipers, refer to
Washer/wiper system63
– replacing wiper blades228
Winter tires221
– setting speed limit76
– storage221
"With highways" for
navigation141
Word matching principle for
navigation142
Working in the engine
compartment222
Wrenches/screwdrivers, refer
to Onboard toolkit228
X
xDrive85
Z
"Zoom" for DVD system in
rear177
