BMW X5 3.0I 2007 Owners Manual

SD�\b\b0
T he Ult \fm ate
D
r\f v\fn g M a\bh \fn e¨
S erv ice and
Warrant y
\fnform ation
2007
X5
3 .0i, \b.8 i
The Ult\fm ate
D
r\fv\fngMa\b h\fne¨
Ser vice and
Warran ty
\fnfor mation
2007
X5
3.0i, \b.8 i
©200 6BMW ofN orth Ameri ca, LLC
Wood cliffL ake ,New Jersey 07677
Printe din U.S .A. \f/06
07X5 SW
*07X5SW*

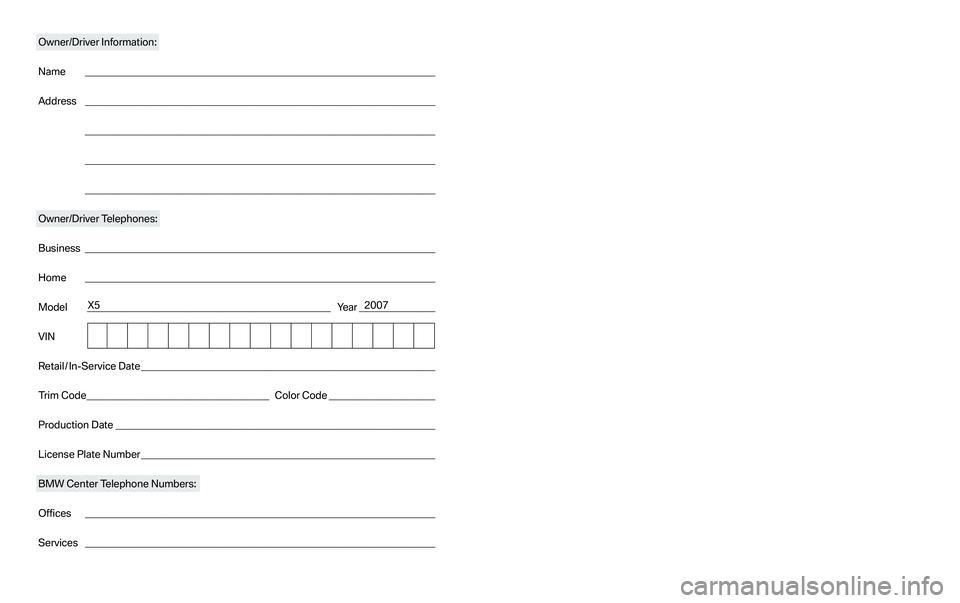

Owner/D river Information :
Name ________________________________________________ _____________________
Address ________________________________________________ _____________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
Owner/D river Telephon es:
Business ________________________________________________ _____________________
Home ________________________________________________ _____________________
Model________________________________________________ Year_______________
VIN
Re tail/ In �Service Date__________________________________________________________
Trim Code____________________________________ ColorCode_____________________
Production Date __________________________________________ _____________________
Lice nse Plate Numbe r_____________________________________ _____________________
BMWCenter Telephon eNumb ers:
Office s ________________________________________________ _____________________
Servic es ________________________________________________ _____________________
X5 2007

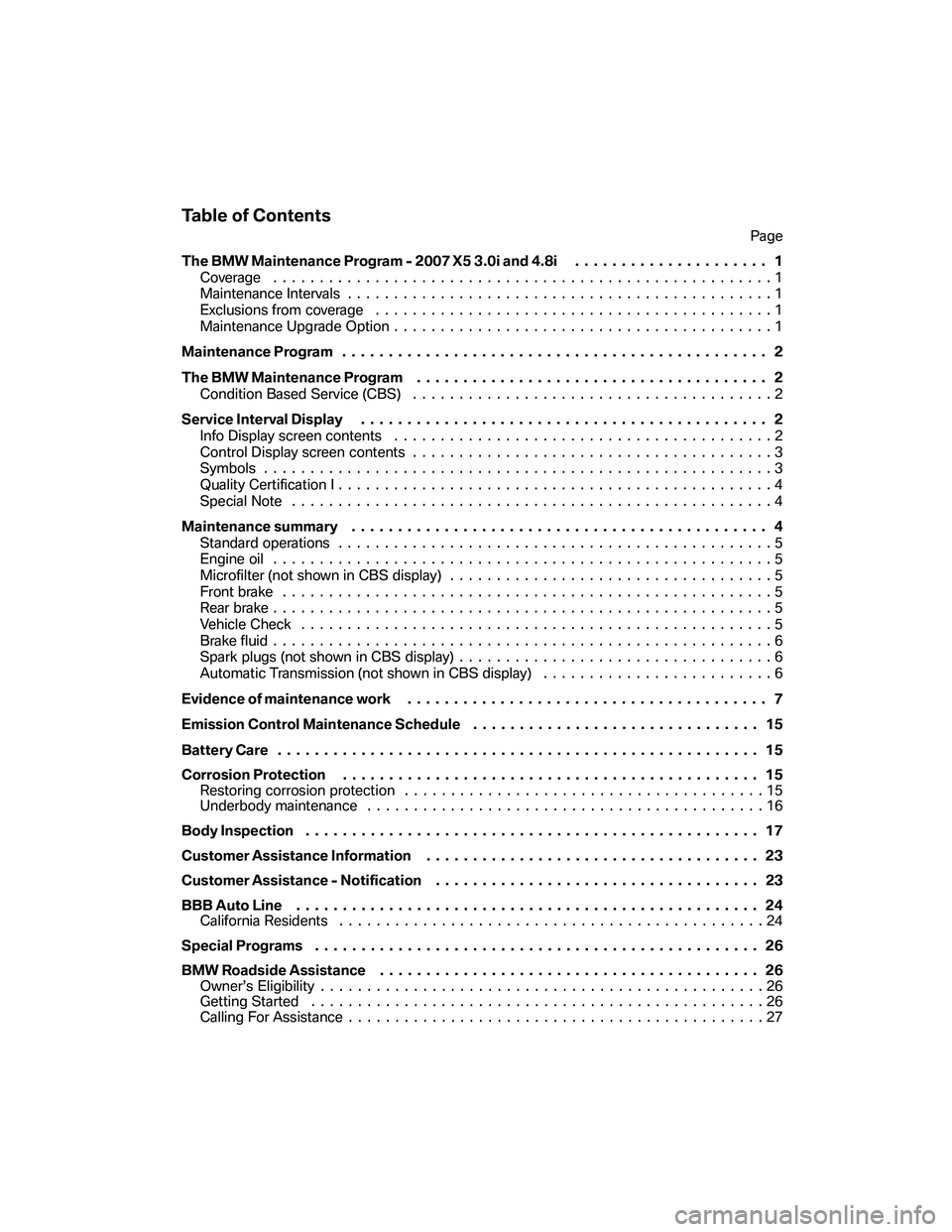

Table of Contents
Page
The BMW Maintenance Program - 2007 X5 3.0i and 4.8i..................... 1
Coverage ......................................................1
Maintenance Intervals..............................................1
Exclusions from coverage...........................................1
Maintenance Upgrade Option.........................................1
Maintenance Program.............................................. 2
The BMW Maintenance Program...................................... 2
Condition Based Service (CBS).......................................2
Service Interval Display............................................ 2
Info Display screen contents.........................................2

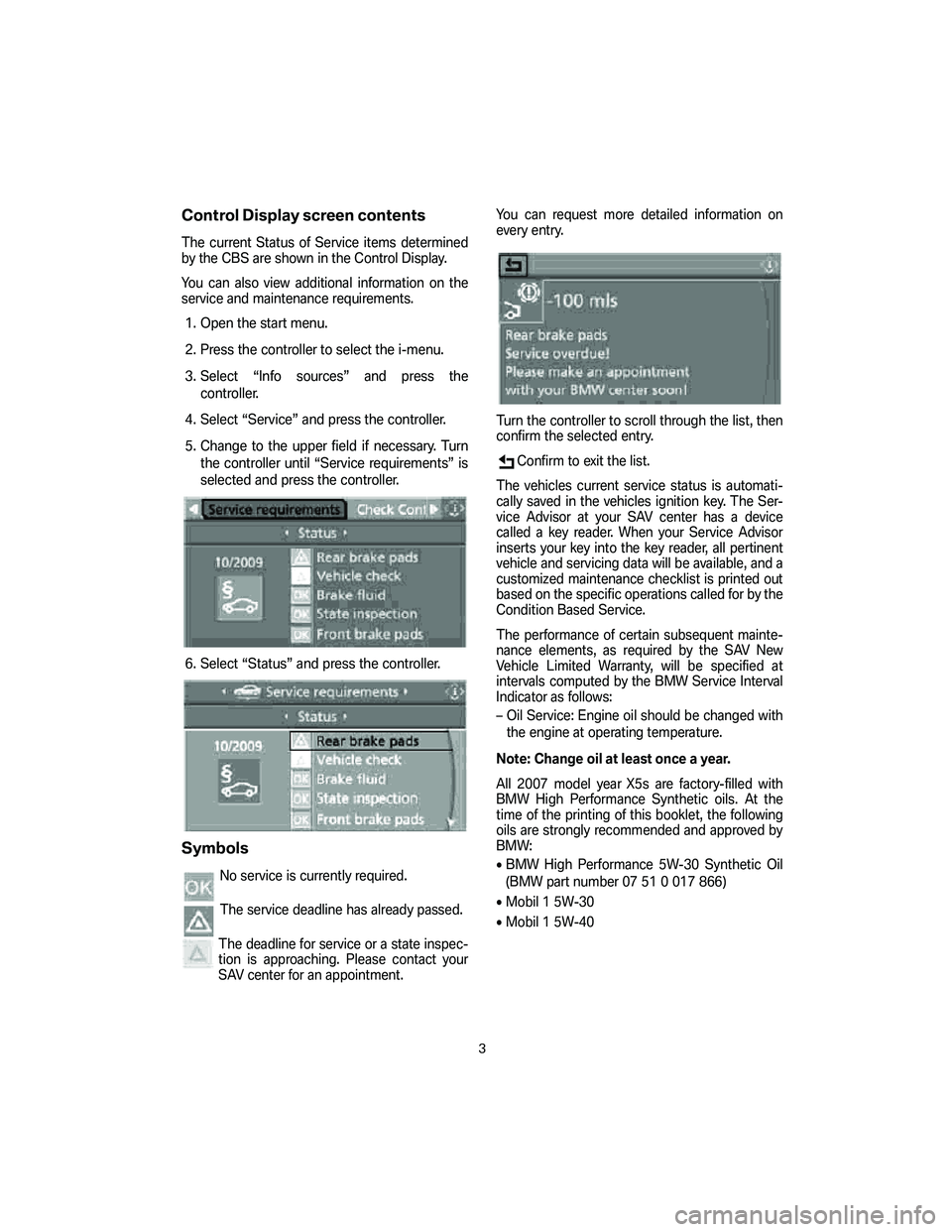

Control Display screen contents.......................................3
Symbols.......................................................3

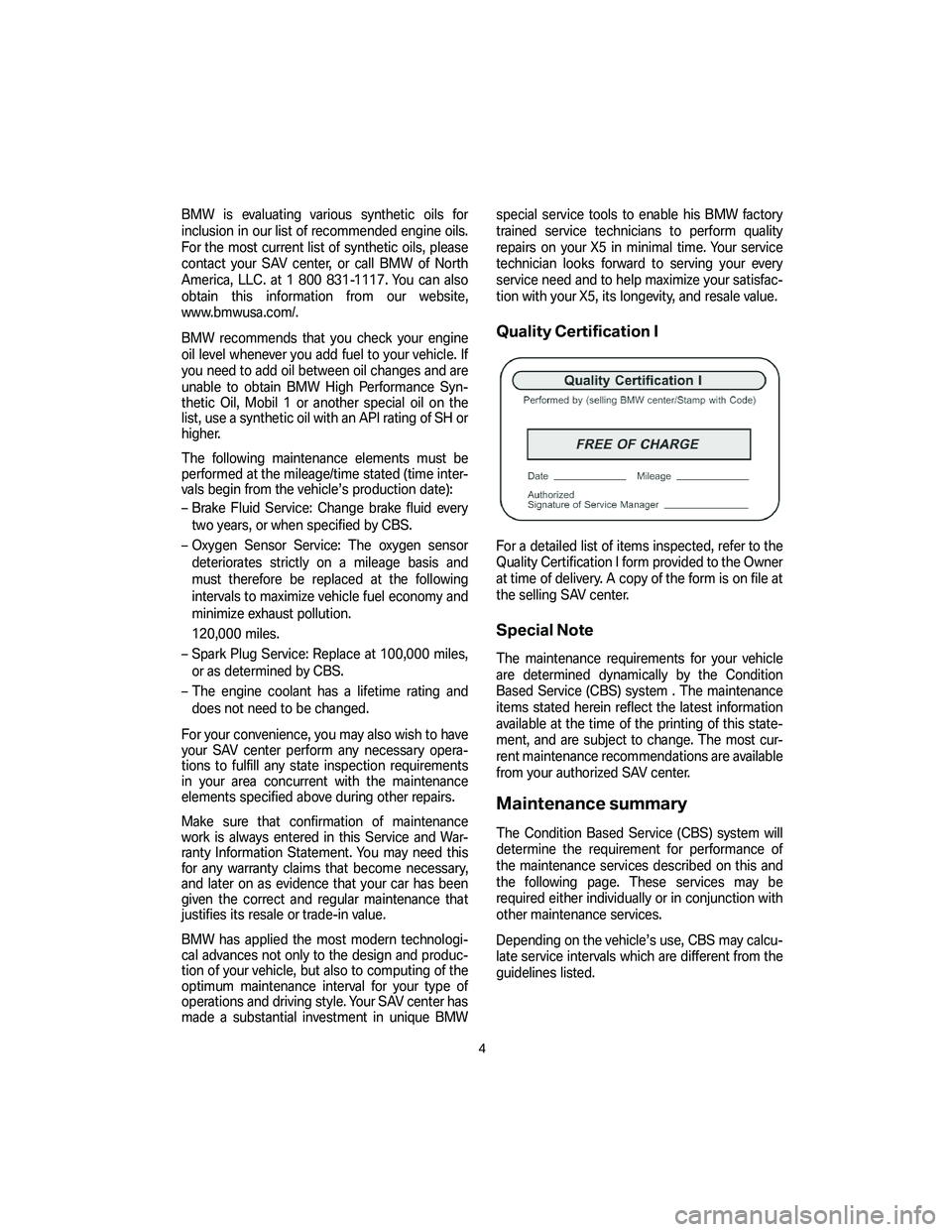

Quality Certification I...............................................4
Special Note....................................................4
Maintenance summary............................................. 4

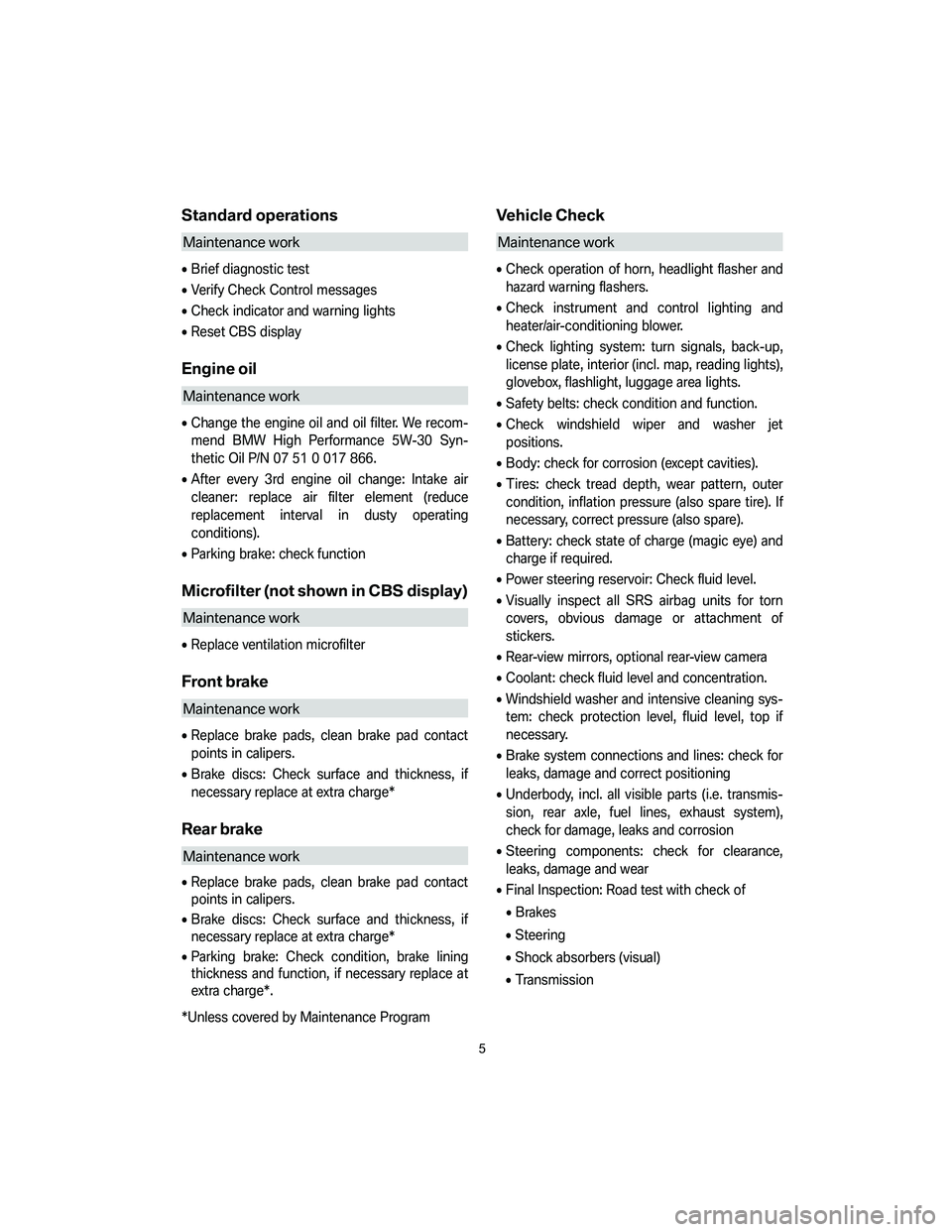

Standard operations...............................................5
Engine oil......................................................5
Microfilter (not shown in CBS display)...................................5
Frontbrake .....................................................5
Rearbrake......................................................5
Vehicle Check...................................................5

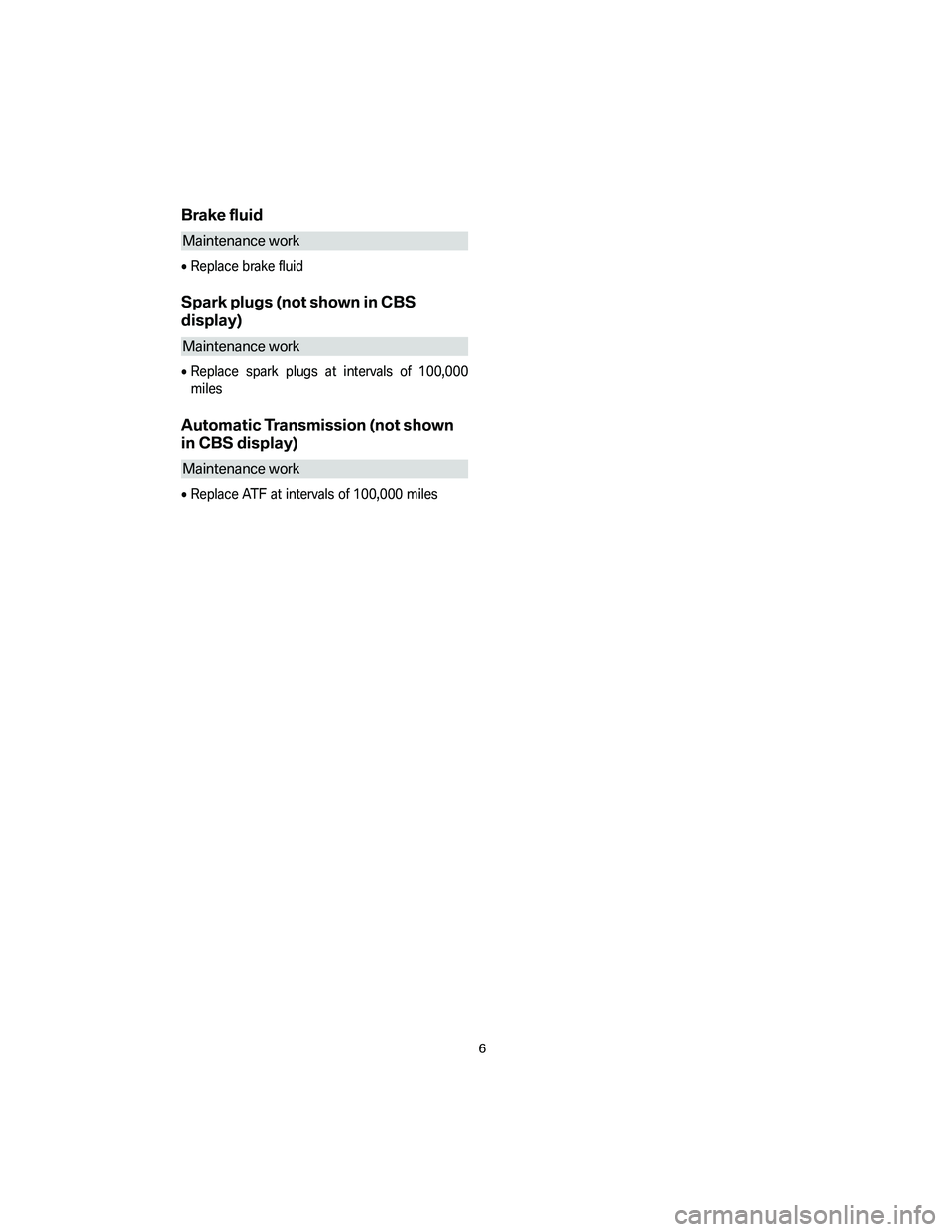

Brake fluid......................................................6
Spark plugs (not shown in CBS display)..................................6
Automatic Transmission (not shown in CBS display).........................6
Evidence of maintenance work....................................... 7
Emission Control Maintenance Schedule............................... 15
BatteryCare .................................................... 15
Corrosion Protection............................................. 15
Restoring corrosion protection.......................................15
Underbody maintenance...........................................16
Body Inspection................................................. 17
Customer Assistance Information.................................... 23
Customer Assistance - Notification ................................... 23
BBB Auto Line.................................................. 24
California Residents..............................................24
Special Programs................................................ 26
BMW Roadside Assistance......................................... 26
Owner’s Eligibility................................................26
Getting Started.................................................26
Calling For Assistance.............................................27

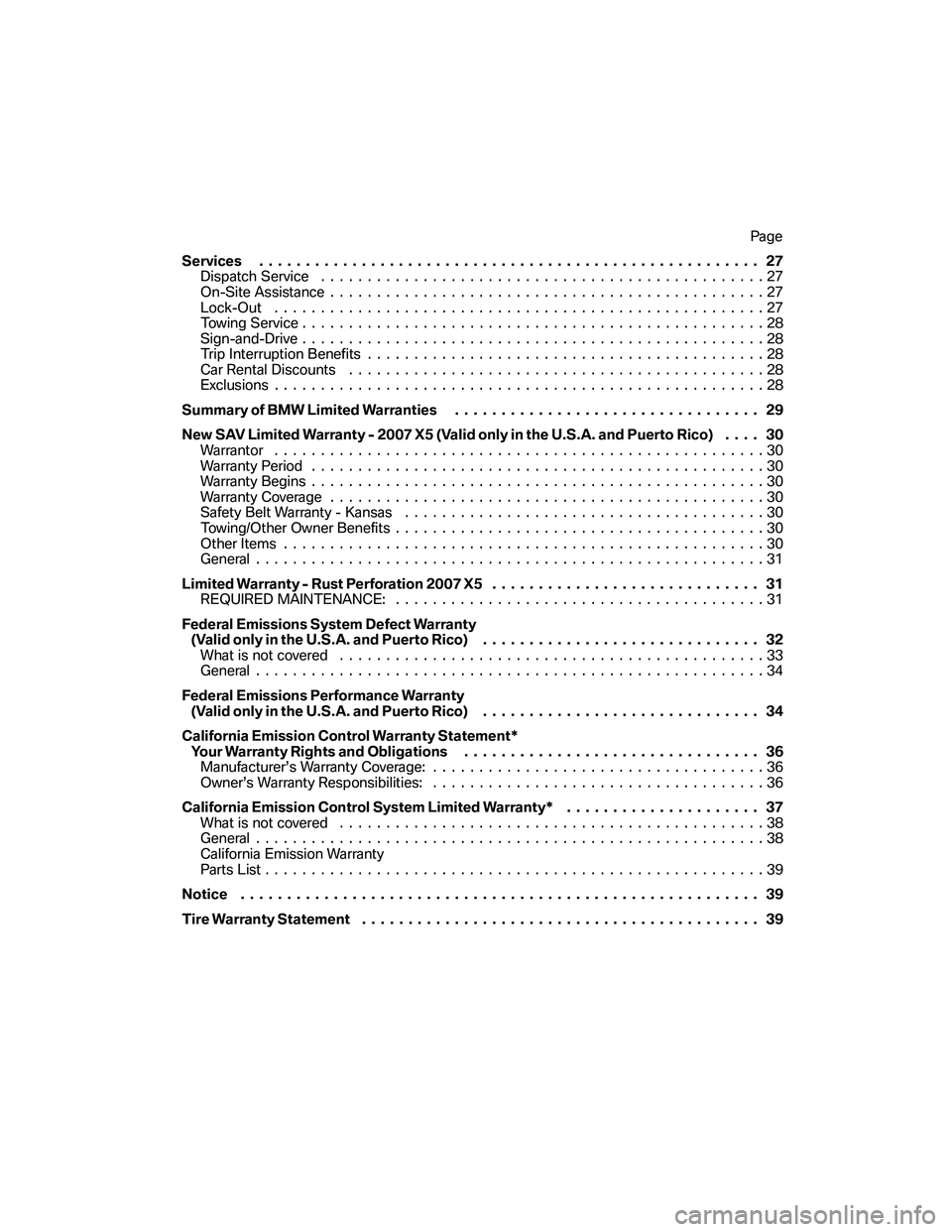

Services...................................................... 27
Dispatch Service................................................27
On-Site Assistance...............................................27
Lock-Out.....................................................27
Towing Service..................................................28
Sign-and-Drive..................................................28
Trip Interruption Benefits...........................................28
Car Rental Discounts.............................................28
Exclusions.....................................................28
Summary of BMW Limited Warranties................................. 29
New SAV Limited Warranty - 2007 X5 (Valid only in the U.S.A. and Puerto Rico) . . . . 30
Warrantor .....................................................30
Warranty Period.................................................30
Warranty Begins.................................................30
Warranty Coverage...............................................30
Safety Belt Warranty - Kansas.......................................30
Towing/Other Owner Benefits........................................30
Other Items....................................................30
General.......................................................31
Limited Warranty - Rust Perforation 2007 X5............................. 31
REQUIRED MAINTENANCE:........................................31
Federal Emissions System Defect Warranty
(Valid only in the U.S.A. and Puerto Rico).............................. 32
What is not covered..............................................33
General.......................................................34
Federal Emissions Performance Warranty
(Valid only in the U.S.A. and Puerto Rico).............................. 34
California Emission Control Warranty Statement*
Your Warranty Rights and Obligations................................ 36
Manufacturer’s Warranty Coverage:....................................36
Owner’s Warranty Responsibilities:....................................36
California Emission Control System Limited Warranty*..................... 37
What is not covered..............................................38
General.......................................................38
California Emission Warranty
Parts List......................................................39
Notice........................................................ 39
Tire Warranty Statement........................................... 39Page

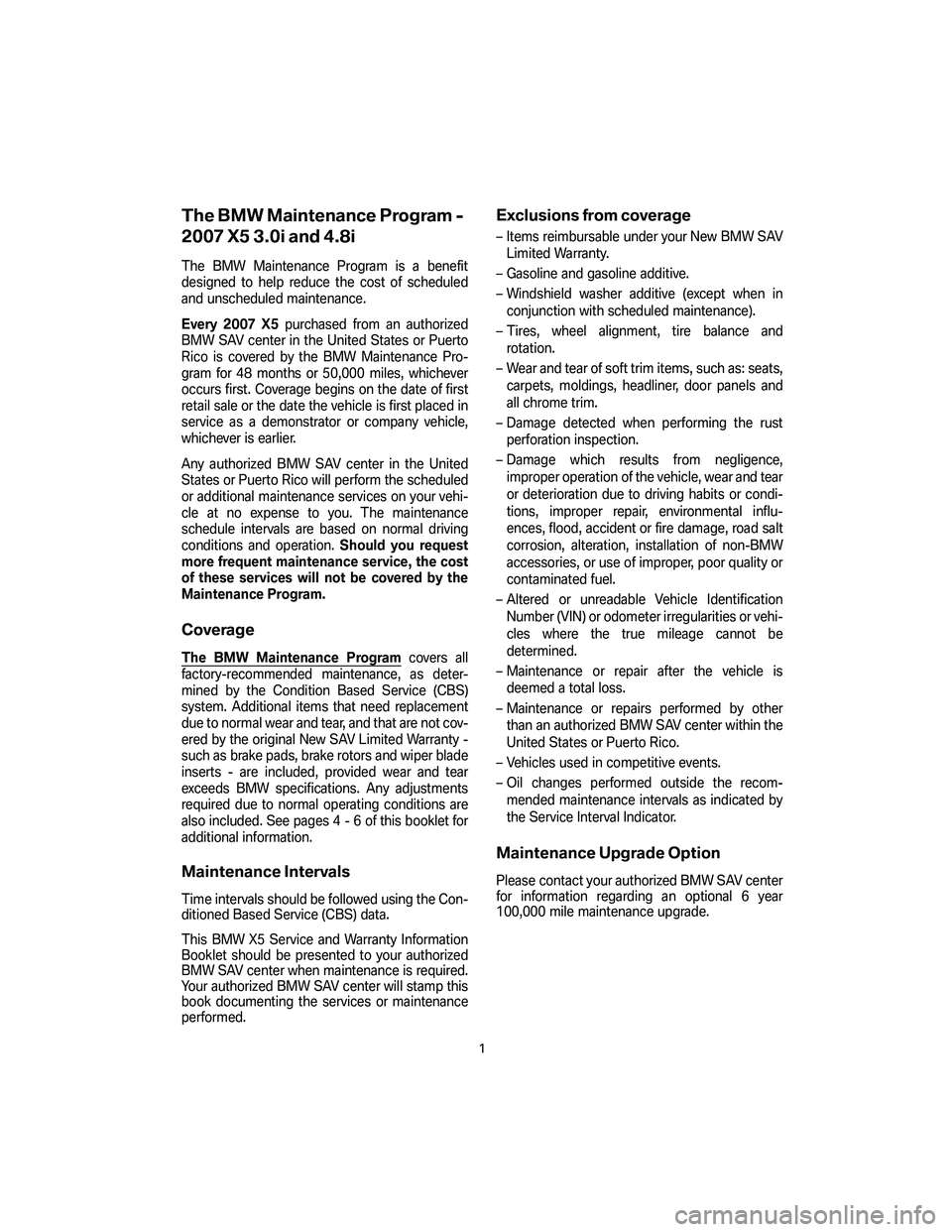

The BMW Maintenance Program -
2007 X5 3.0i and 4.8i
The BMW Maintenance Program is a benefit
designed to help reduce the cost of scheduled
and unscheduled maintenance.
Every 2007 X5purchased from an authorized
BMW SAV center in the United States or Puerto
Rico is covered by the BMW Maintenance Pro-
gram for 48 months or 50,000 miles, whichever
occurs first. Coverage begins on the date of first
retail sale or the date the vehicle is first placed in
service as a demonstrator or company vehicle,
whichever is earlier.
Any authorized BMW SAV center in the United
States or Puerto Rico will perform the scheduled
or additional maintenance services on your vehi-
cle at no expense to you. The maintenance
schedule intervals are based on normal driving
conditions and operation.Should you request
more frequent maintenance service, the cost
of these services will not be covered by the
Maintenance Program.
Coverage
The BMW Maintenance Programcovers all
factory-recommended maintenance, as deter-
mined by the Condition Based Service (CBS)
system. Additional items that need replacement
due to normal wear and tear, and that are not cov-
ered by the original New SAV Limited Warranty -
such as brake pads, brake rotors and wiper blade
inserts - are included, provided wear and tear
exceeds BMW specifications. Any adjustments
required due to normal operating conditions are
also included. See pages4-6ofthis booklet for
additional information.
Maintenance Intervals
Time intervals should be followed using the Con-
ditioned Based Service (CBS) data.
This BMW X5 Service and Warranty Information
Booklet should be presented to your authorized
BMW SAV center when maintenance is required.
Your authorized BMW SAV center will stamp this
book documenting the services or maintenance
performed.
Exclusions from coverage
– Items reimbursable under your New BMW SAV
Limited Warranty.
– Gasoline and gasoline additive.
– Windshield washer additive (except when in
conjunction with scheduled maintenance).
– Tires, wheel alignment, tire balance and
rotation.
– Wear and tear of soft trim items, such as: seats,
carpets, moldings, headliner, door panels and
all chrome trim.
– Damage detected when performing the rust
perforation inspection.
– Damage which results from negligence,
improper operation of the vehicle, wear and tear
or deterioration due to driving habits or condi-
tions, improper repair, environmental influ-
ences, flood, accident or fire damage, road salt
corrosion, alteration, installation of non-BMW
accessories, or use of improper, poor quality or
contaminated fuel.
– Altered or unreadable Vehicle Identification
Number (VIN) or odometer irregularities or vehi-
cles where the true mileage cannot be
determined.
– Maintenance or repair after the vehicle is
deemed a total loss.
– Maintenance or repairs performed by other
than an authorized BMW SAV center within the
United States or Puerto Rico.
– Vehicles used in competitive events.
– Oil changes performed outside the recom-
mended maintenance intervals as indicated by
the Service Interval Indicator.
Maintenance Upgrade Option
Please contact your authorized BMW SAV center
for information regarding an optional 6 year
100,000 mile maintenance upgrade.
1

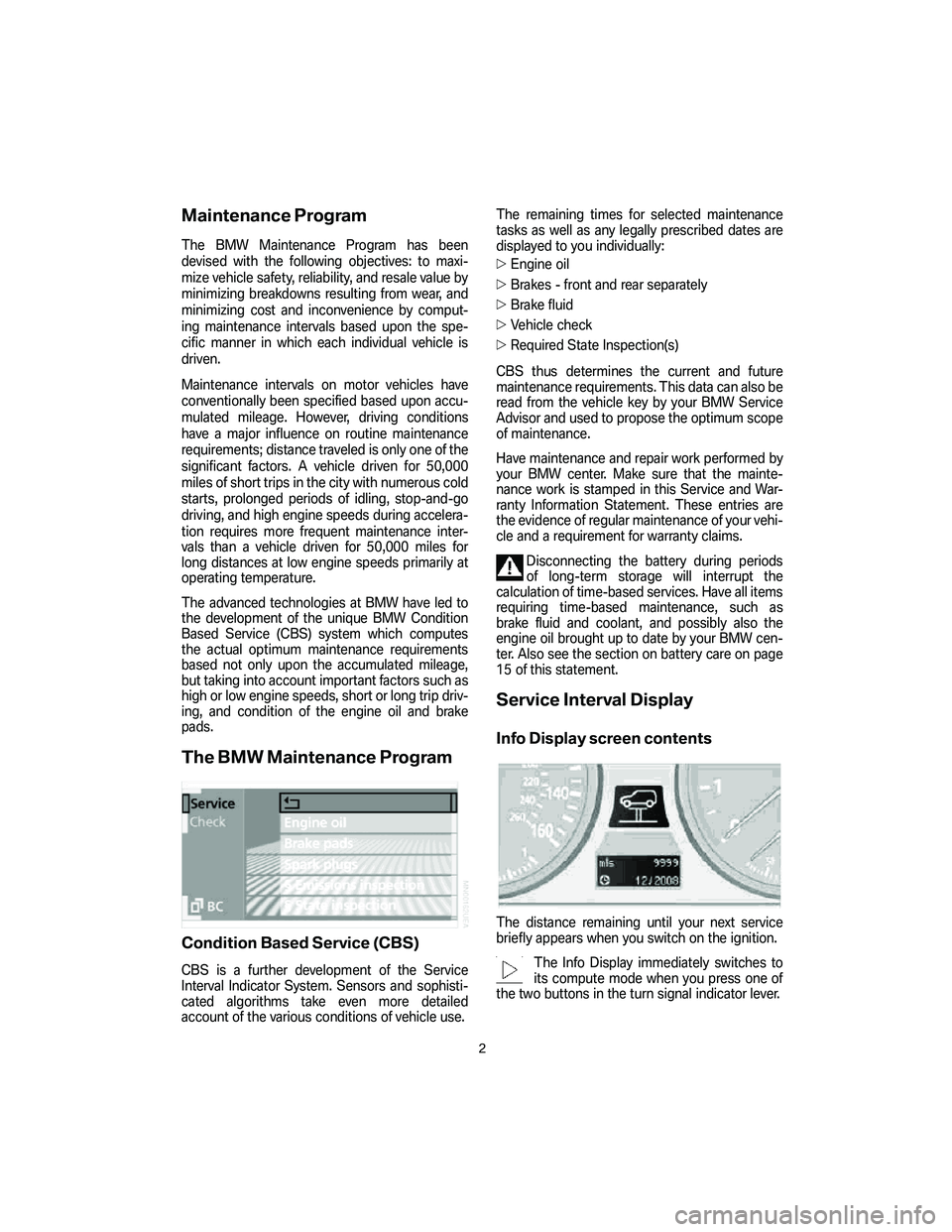

Maintenance Program
The BMW Maintenance Program has been
devised with the following objectives: to maxi-
mize vehicle safety, reliability, and resale value by
minimizing breakdowns resulting from wear, and
minimizing cost and inconvenience by comput-
ing maintenance intervals based upon the spe-
cific manner in which each individual vehicle is
driven.
Maintenance intervals on motor vehicles have
conventionally been specified based upon accu-
mulated mileage. However, driving conditions
have a major influence on routine maintenance
requirements; distance traveled is only one of the
significant factors. A vehicle driven for 50,000
miles of short trips in the city with numerous cold
starts, prolonged periods of idling, stop-and-go
driving, and high engine speeds during accelera-
tion requires more frequent maintenance inter-
vals than a vehicle driven for 50,000 miles for
long distances at low engine speeds primarily at
operating temperature.
The advanced technologies at BMW have led to
the development of the unique BMW Condition
Based Service (CBS) system which computes
the actual optimum maintenance requirements
based not only upon the accumulated mileage,
but taking into account important factors such as
high or low engine speeds, short or long trip driv-
ing, and condition of the engine oil and brake
pads.
The BMW Maintenance Program
Condition Based Service (CBS)
CBS is a further development of the Service
Interval Indicator System. Sensors and sophisti-
cated algorithms take even more detailed
account of the various conditions of vehicle use.The remaining times for selected maintenance
tasks as well as any legally prescribed dates are
displayed to you individually:
Engine oil
Brakes - front and rear separately
Brake fluid
Vehicle check
Required State Inspection(s)
CBS thus determines the current and future
maintenance requirements. This data can also be
read from the vehicle key by your BMW Service
Advisor and used to propose the optimum scope
of maintenance.
Have maintenance and repair work performed by
your BMW center. Make sure that the mainte-
nance work is stamped in this Service and War-
ranty Information Statement. These entries are
the evidence of regular maintenance of your vehi-
cle and a requirement for warranty claims.
Disconnecting the battery during periods
of long-term storage will interrupt the
calculation of time-based services. Have all items
requiring time-based maintenance, such as
brake fluid and coolant, and possibly also the
engine oil brought up to date by your BMW cen-
ter. Also see the section on battery care on page
15 of this statement.
Service Interval Display
Info Display screen contents
The distance remaining until your next service
briefly appears when you switch on the ignition.
The Info Display immediately switches to
its compute mode when you press one of
the two buttons in the turn signal indicator lever.
2

Control Display screen contents
The current Status of Service items determined
by the CBS are shown in the Control Display.
You can also view additional information on the
service and maintenance requirements.
1. Open the start menu.
2. Press the controller to select the i-menu.
3. Select “Info sources” and press the
controller.
4. Select “Service” and press the controller.
5. Change to the upper field if necessary. Turn
the controller until “Service requirements” is
selected and press the controller.
6. Select “Status” and press the controller.
Symbols
No service is currently required.
The service deadline has already passed.
The deadline for service or a state inspec-
tion is approaching. Please contact your
SAV center for an appointment.You can request more detailed information on
every entry.
Turn the controller to scroll through the list, then
confirm the selected entry.
Confirm to exit the list.
The vehicles current service status is automati-
cally saved in the vehicles ignition key. The Ser-
vice Advisor at your SAV center has a device
called a key reader. When your Service Advisor
inserts your key into the key reader, all pertinent
vehicle and servicing data will be available, and a
customized maintenance checklist is printed out
based on the specific operations called for by the
Condition Based Service.
The performance of certain subsequent mainte-
nance elements, as required by the SAV New
Vehicle Limited Warranty, will be specified at
intervals computed by the BMW Service Interval
Indicator as follows:
– Oil Service: Engine oil should be changed with
the engine at operating temperature.
Note: Change oil at least once a year.
All 2007 model year X5s are factory-filled with
BMW High Performance Synthetic oils. At the
time of the printing of this booklet, the following
oils are strongly recommended and approved by
BMW:
•BMW High Performance 5W-30 Synthetic Oil
(BMW part number 07 51 0 017 866)
•Mobil 1 5W-30
•Mobil 1 5W-40
3

BMW is evaluating various synthetic oils for
inclusion in our list of recommended engine oils.
For the most current list of synthetic oils, please
contact your SAV center, or call BMW of North
America, LLC. at 1 800 831-1117. You can also
obtain this information from our website,
www.bmwusa.com/.
BMW recommends that you check your engine
oil level whenever you add fuel to your vehicle. If
you need to add oil between oil changes and are
unable to obtain BMW High Performance Syn-
thetic Oil, Mobil 1 or another special oil on the
list, use a synthetic oil with an API rating of SH or
higher.
The following maintenance elements must be
performed at the mileage/time stated (time inter-
vals begin from the vehicle’s production date):
– Brake Fluid Service: Change brake fluid every
two years, or when specified by CBS.
– Oxygen Sensor Service: The oxygen sensor
deteriorates strictly on a mileage basis and
must therefore be replaced at the following
intervals to maximize vehicle fuel economy and
minimize exhaust pollution.
120,000 miles.
– Spark Plug Service: Replace at 100,000 miles,
or as determined by CBS.
– The engine coolant has a lifetime rating and
does not need to be changed.
For your convenience, you may also wish to have
your SAV center perform any necessary opera-
tions to fulfill any state inspection requirements
in your area concurrent with the maintenance
elements specified above during other repairs.
Make sure that confirmation of maintenance
work is always entered in this Service and War-
ranty Information Statement. You may need this
for any warranty claims that become necessary,
and later on as evidence that your car has been
given the correct and regular maintenance that
justifies its resale or trade-in value.
BMW has applied the most modern technologi-
cal advances not only to the design and produc-
tion of your vehicle, but also to computing of the
optimum maintenance interval for your type of
operations and driving style. Your SAV center has
made a substantial investment in unique BMWspecial service tools to enable his BMW factory
trained service technicians to perform quality
repairs on your X5 in minimal time. Your service
technician looks forward to serving your every
service need and to help maximize your satisfac-
tion with your X5, its longevity, and resale value.
Quality Certification I
For a detailed list of items inspected, refer to the
Quality Certification I form provided to the Owner
at time of delivery. A copy of the form is on file at
the selling SAV center.
Special Note
The maintenance requirements for your vehicle
are determined dynamically by the Condition
Based Service (CBS) system . The maintenance
items stated herein reflect the latest information
available at the time of the printing of this state-
ment, and are subject to change. The most cur-
rent maintenance recommendations are available
from your authorized SAV center.
Maintenance summary
The Condition Based Service (CBS) system will
determine the requirement for performance of
the maintenance services described on this and
the following page. These services may be
required either individually or in conjunction with
other maintenance services.
Depending on the vehicle’s use, CBS may calcu-
late service intervals which are different from the
guidelines listed.
4

Standard operations
Maintenance work
•Brief diagnostic test
•Verify Check Control messages
•Check indicator and warning lights
•Reset CBS display
Engine oil
Maintenance work
•Change the engine oil and oil filter. We recom-
mend BMW High Performance 5W-30 Syn-
thetic Oil P/N 07 51 0 017 866.
•After every 3rd engine oil change: Intake air
cleaner: replace air filter element (reduce
replacement interval in dusty operating
conditions).
•Parking brake: check function
Microfilter (not shown in CBS display)
Maintenance work
•Replace ventilation microfilter
Front brake
Maintenance work
•Replace brake pads, clean brake pad contact
points in calipers.
•Brake discs: Check surface and thickness, if
necessary replace at extra charge*
Rear brake
Maintenance work
•Replace brake pads, clean brake pad contact
points in calipers.
•Brake discs: Check surface and thickness, if
necessary replace at extra charge*
•Parking brake: Check condition, brake lining
thickness and function, if necessary replace at
extra charge*.
*Unless covered by Maintenance Program
Vehicle Check
Maintenance work
•Check operation of horn, headlight flasher and
hazard warning flashers.
•Check instrument and control lighting and
heater/air-conditioning blower.
•Check lighting system: turn signals, back-up,
license plate, interior (incl. map, reading lights),
glovebox, flashlight, luggage area lights.
•Safety belts: check condition and function.
•Check windshield wiper and washer jet
positions.
•Body: check for corrosion (except cavities).
•Tires: check tread depth, wear pattern, outer
condition, inflation pressure (also spare tire). If
necessary, correct pressure (also spare).
•Battery: check state of charge (magic eye) and
charge if required.
•Power steering reservoir: Check fluid level.
•Visually inspect all SRS airbag units for torn
covers, obvious damage or attachment of
stickers.
•Rear-view mirrors, optional rear-view camera
•Coolant: check fluid level and concentration.
•Windshield washer and intensive cleaning sys-
tem: check protection level, fluid level, top if
necessary.
•Brake system connections and lines: check for
leaks, damage and correct positioning
•Underbody, incl. all visible parts (i.e. transmis-
sion, rear axle, fuel lines, exhaust system),
check for damage, leaks and corrosion
•Steering components: check for clearance,
leaks, damage and wear
•Final Inspection: Road test with check of
•Brakes
•Steering
•Shock absorbers (visual)
•Transmission
5

Brake fluid
Maintenance work
•Replace brake fluid
Spark plugs (not shown in CBS
display)
Maintenance work
•Replace spark plugs at intervals of 100,000
miles
Automatic Transmission (not shown
in CBS display)
Maintenance work
•Replace ATF at intervals of 100,000 miles
6
