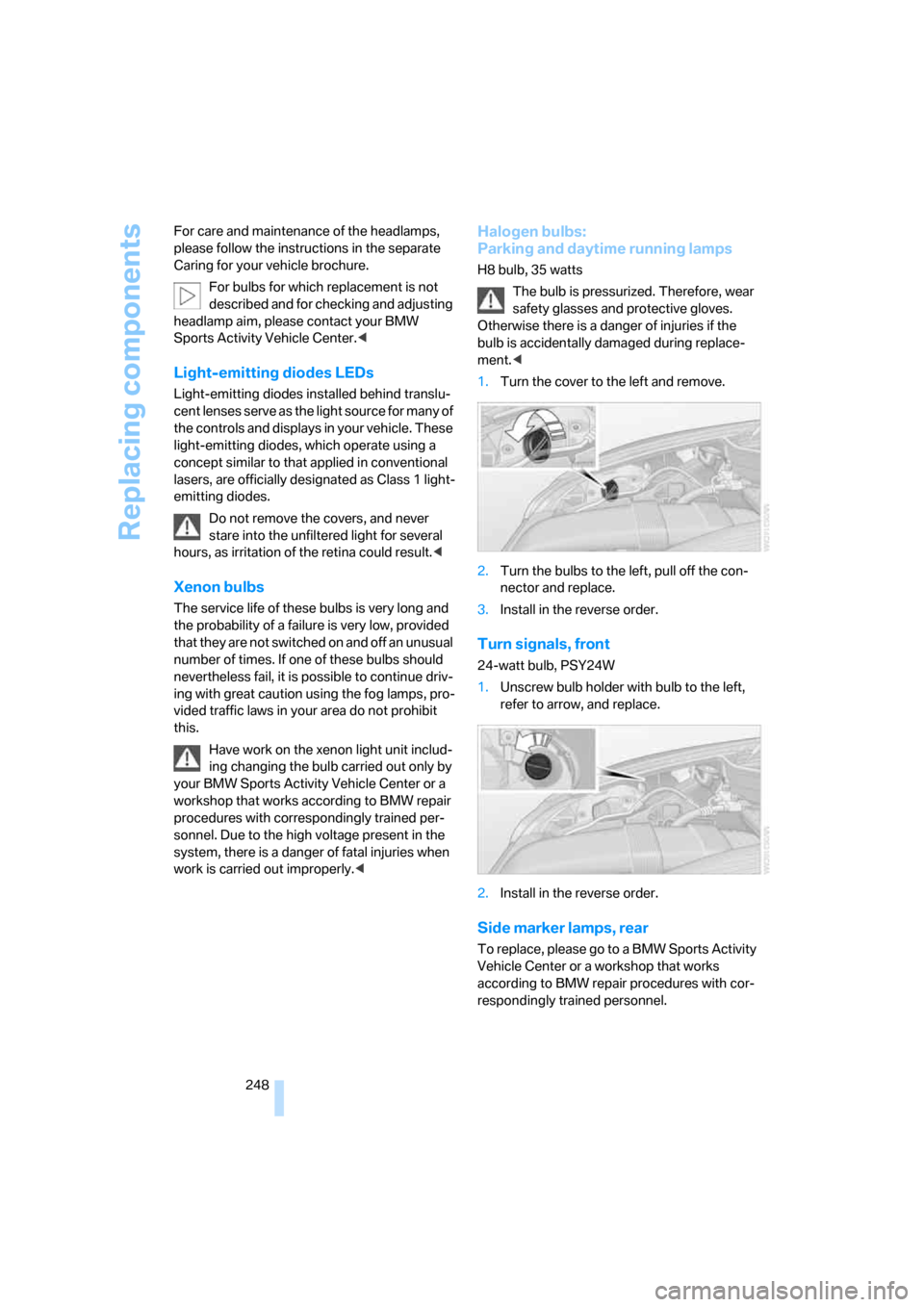

Replacing components
248 For care and maintenance of the headlamps,
please follow the instructions in the separate
Caring for your vehicle brochure.
For bulbs for which replacement is not
described and for checking and adjusting
headlamp aim, please contact your BMW
Sports Activity Vehicle Center.<
Light-emitting diodes LEDs
Light-emitting diodes installed behind translu-
cent lenses serve as the light source for many of
the controls and displays in your vehicle. These
light-emitting diodes, which operate using a
concept similar to that applied in conventional
lasers, are officially designated as Class 1 light-
emitting diodes.
Do not remove the covers, and never
stare into the unfiltered light for several
hours, as irritation of the retina could result.<
Xenon bulbs
The service life of these bulbs is very long and
the probability of a failure is very low, provided
that they are not switched on and off an unusual
number of times. If one of these bulbs should
nevertheless fail, it is possible to continue driv-
ing with great caution using the fog lamps, pro-
vided traffic laws in your area do not prohibit
this.
Have work on the xenon light unit includ-
ing changing the bulb carried out only by
your BMW Sports Activity Vehicle Center or a
workshop that works according to BMW repair
procedures with correspondingly trained per-
sonnel. Due to the high voltage present in the
system, there is a danger of fatal injuries when
work is carried out improperly.<
Halogen bulbs:
Parking and daytime running lamps
H8 bulb, 35 watts
The bulb is pressurized. Therefore, wear
safety glasses and protective gloves.
Otherwise there is a danger of injuries if the
bulb is accidentally damaged during replace-
ment.<
1.Turn the cover to the left and remove.
2.Turn the bulbs to the left, pull off the con-
nector and replace.
3.Install in the reverse order.
Turn signals, front
24-watt bulb, PSY24W
1.Unscrew bulb holder with bulb to the left,
refer to arrow, and replace.
2.Install in the reverse order.
Side marker lamps, rear
To replace, please go to a BMW Sports Activity
Vehicle Center or a workshop that works
according to BMW repair procedures with cor-
respondingly trained personnel.

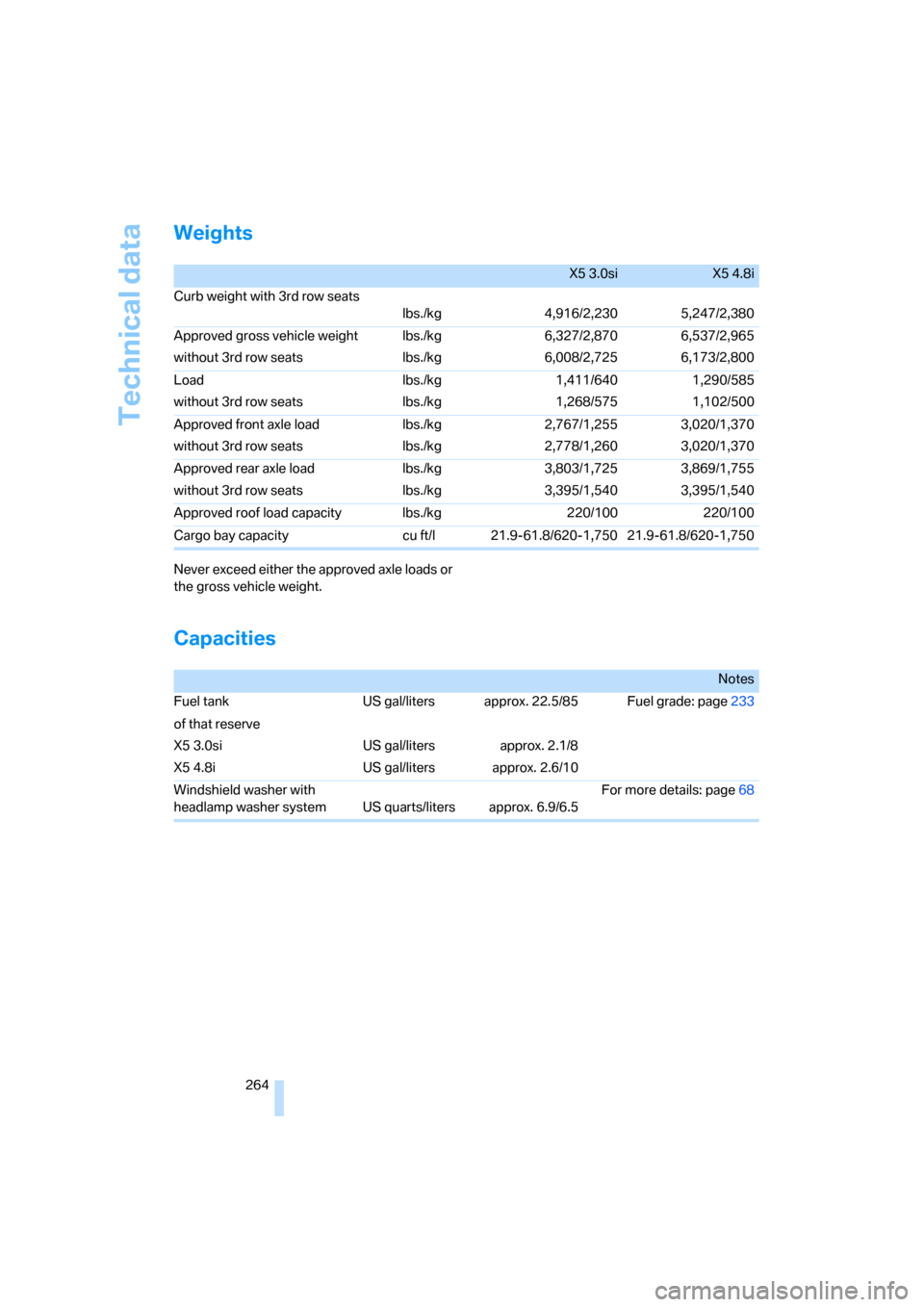

Technical data
264
Weights
Never exceed either the approved axle loads or
the gross vehicle weight.
Capacities
X5 3.0siX5 4.8i
Curb weight with 3rd row seats
lbs./kg 4,916/2,230 5,247/2,380
Approved gross vehicle weight
without 3rd row seatslbs./kg
lbs./kg6,327/2,870
6,008/2,7256,537/2,965
6,173/2,800
Load
without 3rd row seatslbs./kg
lbs./kg1,411/640
1,268/5751,290/585
1,102/500
Approved front axle load
without 3rd row seatslbs./kg
lbs./kg2,767/1,255
2,778/1,2603,020/1,370
3,020/1,370
Approved rear axle load
without 3rd row seatslbs./kg
lbs./kg3,803/1,725
3,395/1,5403,869/1,755
3,395/1,540
Approved roof load capacity lbs./kg 220/100 220/100
Cargo bay capacity cu ft/l 21.9-61.8/620-1,750 21.9-61.8/620-1,750
Notes
Fuel tank US gal/liters approx. 22.5/85 Fuel grade: page233
of that reserve
X5 3.0si
X5 4.8iUS gal/liters
US gal/litersapprox. 2.1/8
approx. 2.6/10
Windshield washer with
headlamp washer system US quarts/liters approx. 6.9/6.5For more details: page68

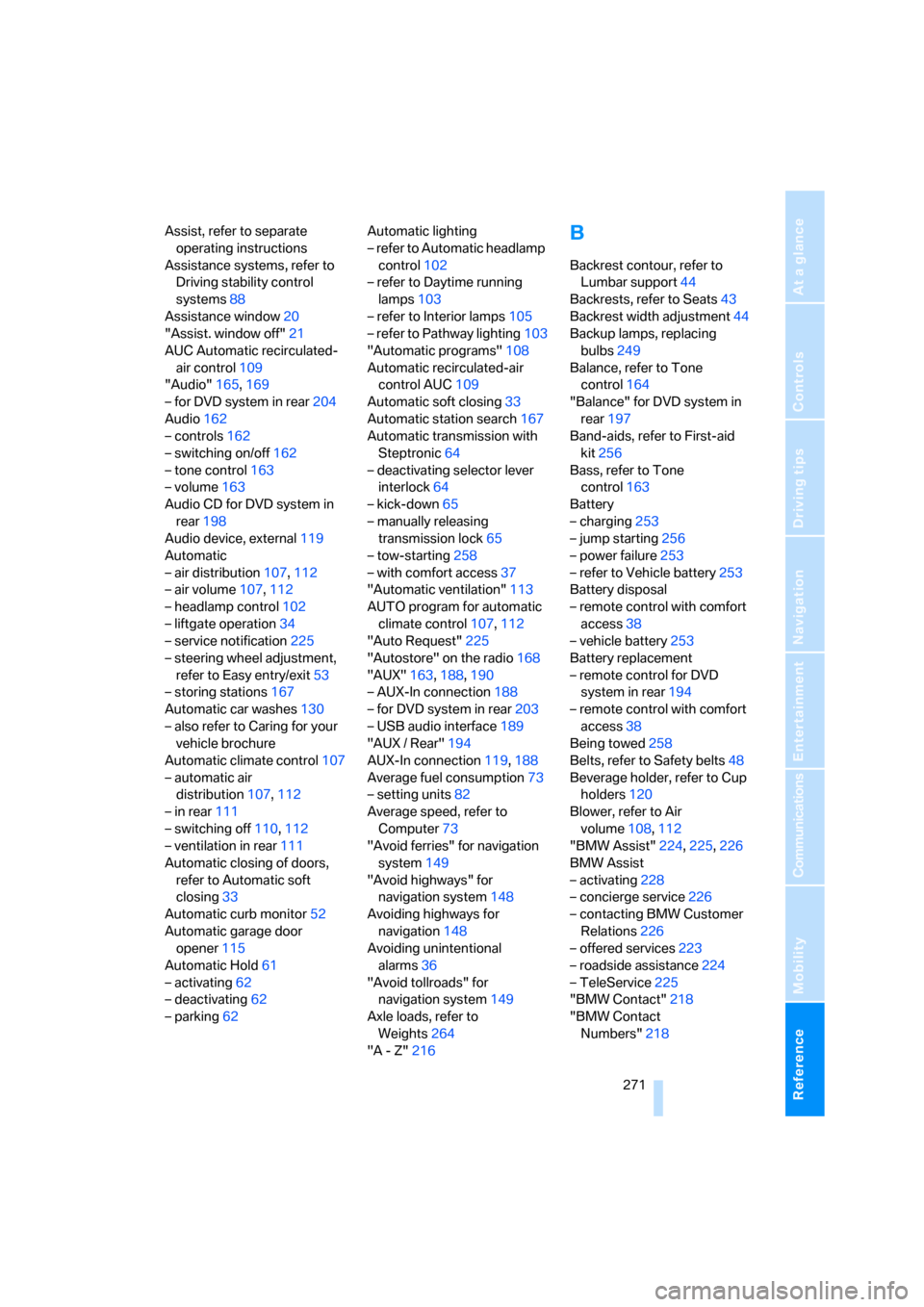

Reference 271
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Assist, refer to separate
operating instructions
Assistance systems, refer to
Driving stability control
systems88
Assistance window20
"Assist. window off"21
AUC Automatic recirculated-
air control109
"Audio"165,169
– for DVD system in rear204
Audio162
– controls162
– switching on/off162
– tone control163
– volume163
Audio CD for DVD system in
rear198
Audio device, external119
Automatic
– air distribution107,112
– air volume107,112
– headlamp control102
– liftgate operation34
– service notification225
– steering wheel adjustment,
refer to Easy entry/exit53
– storing stations167
Automatic car washes130
– also refer to Caring for your
vehicle brochure
Automatic climate control107
– automatic air
distribution107,112
– in rear111
– switching off110,112
– ventilation in rear111
Automatic closing of doors,
refer to Automatic soft
closing33
Automatic curb monitor52
Automatic garage door
opener115
Automatic Hold61
– activating62
– deactivating62
– parking62Automatic lighting
– refer to Automatic headlamp
control102
– refer to Daytime running
lamps103
– refer to Interior lamps105
– refer to Pathway lighting103
"Automatic programs"
108
Automatic recirculated-air
control AUC109
Automatic soft closing33
Automatic station search167
Automatic transmission with
Steptronic64
– deactivating selector lever
interlock64
– kick-down65
– manually releasing
transmission lock65
– tow-starting258
– with comfort access37
"Automatic ventilation"113
AUTO program for automatic
climate control107,112
"Auto Request"225
"Autostore" on the radio168
"AUX"163,188,190
– AUX-In connection188
– for DVD system in rear203
– USB audio interface189
"AUX / Rear"194
AUX-In connection119,188
Average fuel consumption73
– setting units82
Average speed, refer to
Computer73
"Avoid ferries" for navigation
system149
"Avoid highways" for
navigation system148
Avoiding highways for
navigation148
Avoiding unintentional
alarms36
"Avoid tollroads" for
navigation system149
Axle loads, refer to
Weights264
"A - Z"216
B
Backrest contour, refer to
Lumbar support44
Backrests, refer to Seats43
Backrest width adjustment44
Backup lamps, replacing
bulbs249
Balance, refer to Tone
control164
"Balance" for DVD system in
rear197
Band-aids, refer to First-aid
kit256
Bass, refer to Tone
control163
Battery
– charging253
– jump starting256
– power failure253
– refer to Vehicle battery253
Battery disposal
– remote control with comfort
access38
– vehicle battery253
Battery replacement
– remote control for DVD
system in rear194
– remote control with comfort
access38
Being towed258
Belts, refer to Safety belts48
Beverage holder, refer to Cup
holders120
Blower, refer to Air
volume108,112
"BMW Assist"224,225,226
BMW Assist
– activating228
– concierge service226
– contacting BMW Customer
Relations226
– offered services223
– roadside assistance224
– TeleService225
"BMW Contact"218
"BMW Contact
Numbers"218

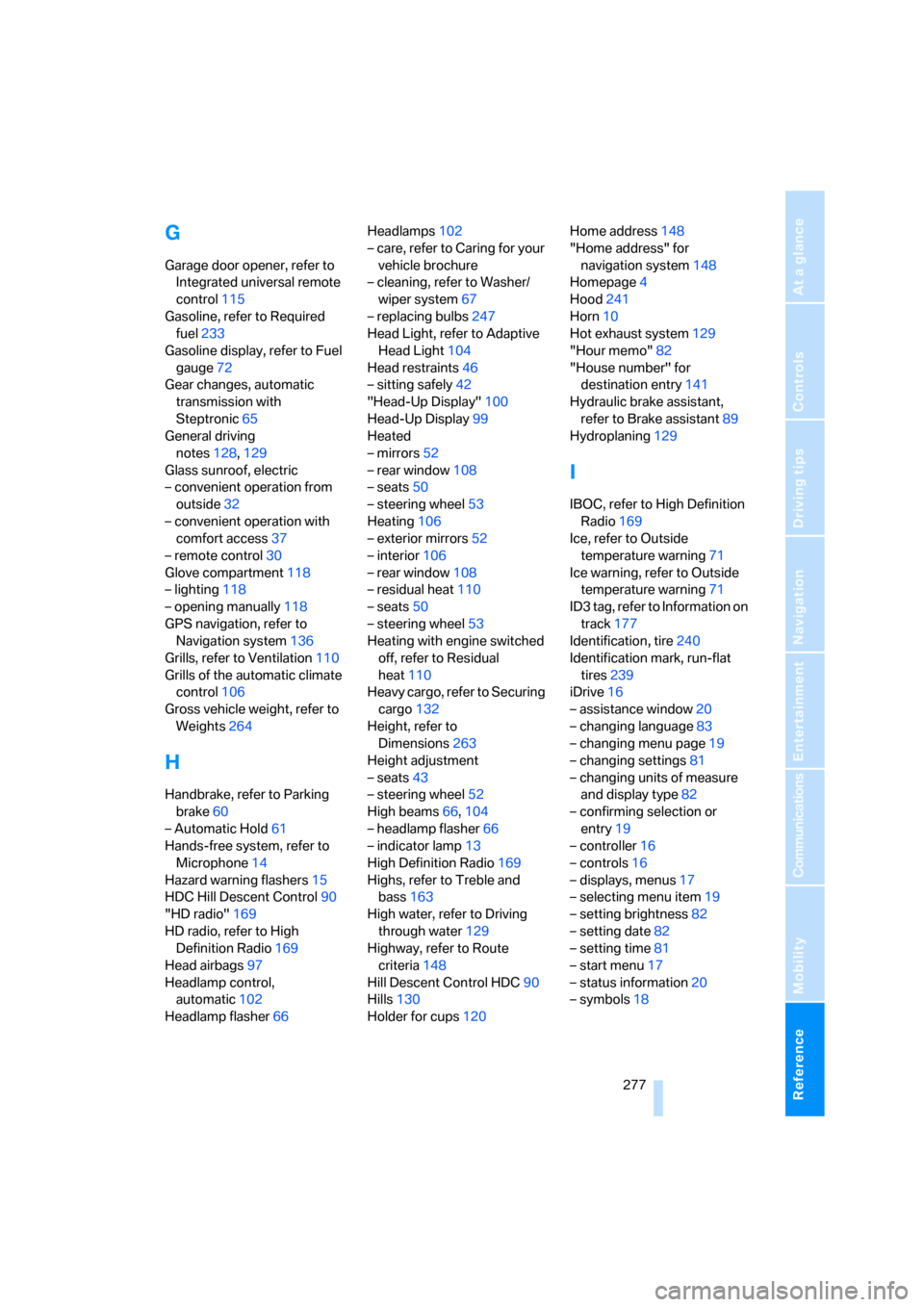

Reference 277
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
G
Garage door opener, refer to
Integrated universal remote
control115
Gasoline, refer to Required
fuel233
Gasoline display, refer to Fuel
gauge72
Gear changes, automatic
transmission with
Steptronic65
General driving
notes128,129
Glass sunroof, electric
– convenient operation from
outside32
– convenient operation with
comfort access37
– remote control30
Glove compartment118
– lighting118
– opening manually118
GPS navigation, refer to
Navigation system136
Grills, refer to Ventilation110
Grills of the automatic climate
control106
Gross vehicle weight, refer to
Weights264
H
Handbrake, refer to Parking
brake60
– Automatic Hold61
Hands-free system, refer to
Microphone14
Hazard warning flashers15
HDC Hill Descent Control90
"HD radio"169
HD radio, refer to High
Definition Radio169
Head airbags97
Headlamp control,
automatic102
Headlamp flasher66Headlamps102
– care, refer to Caring for your
vehicle brochure
– cleaning, refer to Washer/
wiper system67
– replacing bulbs247
Head Light, refer to Adaptive
Head Light104
Head restraints46
– sitting safely42
"Head-Up Display"100
Head-Up Display99
Heated
– mirrors52
– rear window108
– seats50
– steering wheel53
Heating106
– exterior mirrors52
– interior106
– rear window108
– residual heat110
– seats50
– steering wheel53
Heating with engine switched
off, refer to Residual
heat110
Heavy cargo, refer to Securing
cargo132
Height, refer to
Dimensions263
Height adjustment
– seats43
– steering wheel52
High beams66,104
– headlamp flasher66
– indicator lamp13
High Definition Radio169
Highs, refer to Treble and
bass163
High water, refer to Driving
through water129
Highway, refer to Route
criteria148
Hill Descent Control HDC90
Hills130
Holder for cups120Home address148
"Home address" for
navigation system148
Homepage4
Hood241
Horn10
Hot exhaust system129
"Hour memo"82
"House number" for
destination entry141
Hydraulic brake assistant,
refer to Brake assistant89
Hydroplaning129
I
IBOC, refer to High Definition
Radio169
Ice, refer to Outside
temperature warning71
Ice warning, refer to Outside
temperature warning71
ID3 tag, refer to Information on
track177
Identification, tire240
Identification mark, run-flat
tires239
iDrive16
– assistance window20
– changing language83
– changing menu page19
– changing settings81
– changing units of measure
and display type82
– confirming selection or
entry19
– controller16
– controls16
– displays, menus17
– selecting menu item19
– setting brightness82
– setting date82
– setting time81
– start menu17
– status information20
– symbols18

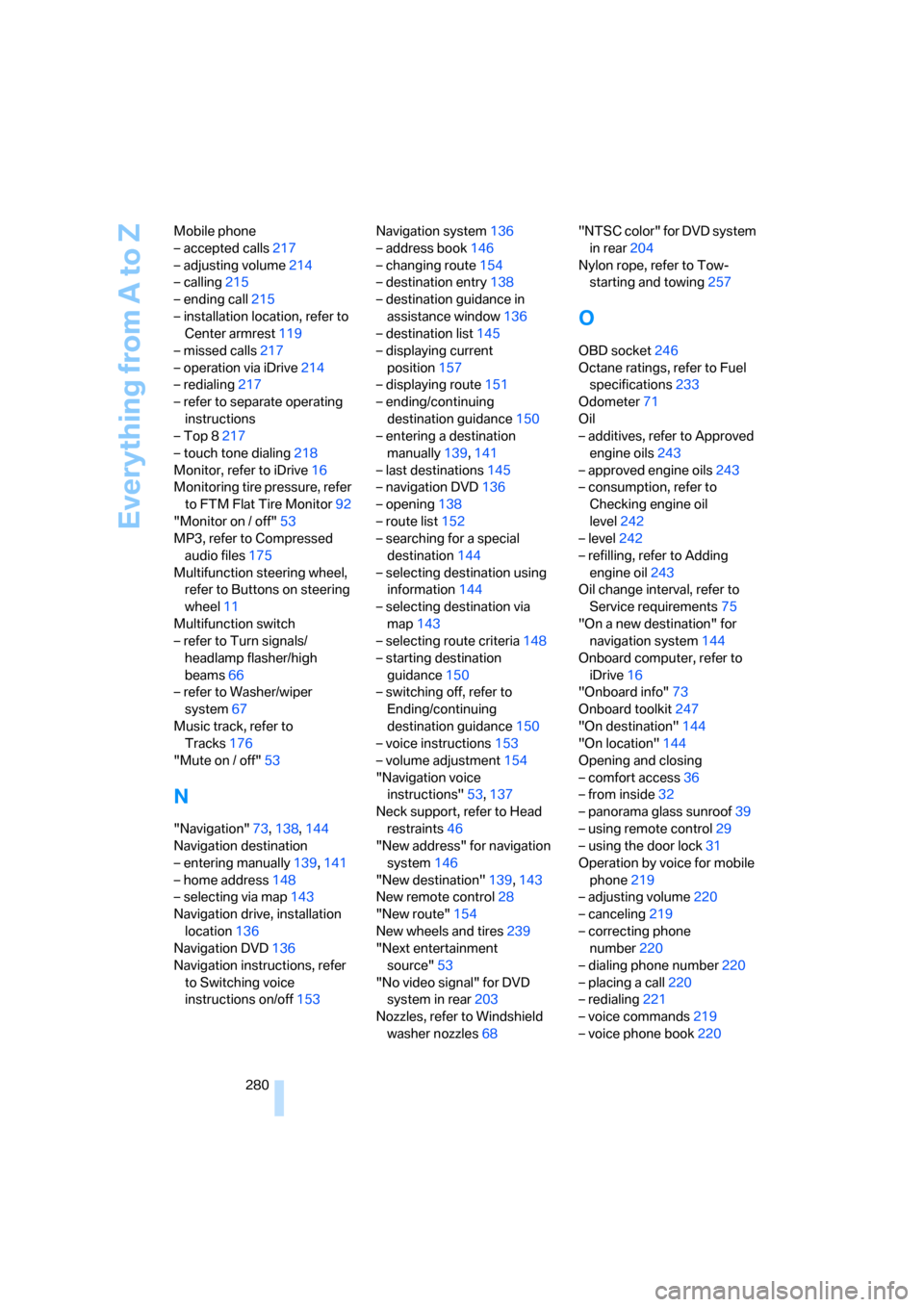

Everything from A to Z
280 Mobile phone
– accepted calls217
– adjusting volume214
– calling215
– ending call215
– installation location, refer to
Center armrest119
– missed calls217
– operation via iDrive214
– redialing217
– refer to separate operating
instructions
– Top 8217
– touch tone dialing218
Monitor, refer to iDrive16
Monitoring tire pressure, refer
to FTM Flat Tire Monitor92
"Monitor on / off"53
MP3, refer to Compressed
audio files175
Multifunction steering wheel,
refer to Buttons on steering
wheel11
Multifunction switch
– refer to Turn signals/
headlamp flasher/high
beams66
– refer to Washer/wiper
system67
Music track, refer to
Tracks176
"Mute on / off"53
N
"Navigation"73,138,144
Navigation destination
– entering manually139,141
– home address148
– selecting via map143
Navigation drive, installation
location136
Navigation DVD136
Navigation instructions, refer
to Switching voice
instructions on/off153Navigation system136
– address book146
– changing route154
– destination entry138
– destination guidance in
assistance window136
– destination list145
– displaying current
position157
– displaying route151
– ending/continuing
destination guidance150
– entering a destination
manually139,141
– last destinations145
– navigation DVD136
– opening138
– route list152
– searching for a special
destination144
– selecting destination using
information144
– selecting destination via
map143
– selecting route criteria148
– starting destination
guidance150
– switching off, refer to
Ending/continuing
destination guidance150
– voice instructions153
– volume adjustment154
"Navigation voice
instructions"53,137
Neck support, refer to Head
restraints46
"New address" for navigation
system146
"New destination"139,143
New remote control28
"New route"154
New wheels and tires239
"Next entertainment
source"53
"No video signal" for DVD
system in rear203
Nozzles, refer to Windshield
washer nozzles68"NTSC color" for DVD system
in rear204
Nylon rope, refer to Tow-
starting and towing257
O
OBD socket246
Octane ratings, refer to Fuel
specifications233
Odometer71
Oil
– additives, refer to Approved
engine oils243
– approved engine oils243
– consumption, refer to
Checking engine oil
level242
– level242
– refilling, refer to Adding
engine oil243
Oil change interval, refer to
Service requirements75
"On a new destination" for
navigation system144
Onboard computer, refer to
iDrive16
"Onboard info"73
Onboard toolkit247
"On destination"144
"On location"144
Opening and closing
– comfort access36
– from inside32
– panorama glass sunroof39
– using remote control29
– using the door lock31
Operation by voice for mobile
phone219
– adjusting volume220
– canceling219
– correcting phone
number220
– dialing phone number220
– placing a call220
– redialing221
– voice commands219
– voice phone book220

Reference 285
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
"Store in address book" for
navigation system146
Storing current position146
Storing radio stations168
Storing sitting position, refer
to Seat, mirror and steering
wheel memory44
Storing tires240
"Street" for destination
entry140
"Subtitles" for DVD system in
rear197
Summer tires, refer to Wheels
and tires234
Switches, refer to Cockpit10
Switching cooling function on
and off109
Switching off engine60
Switching on
– audio162
– CD changer162
– CD player162
– radio162
Switching on hour signal82
Swiveling headlamps, refer to
Adaptive Head Light104
Symbols4
– indicator/warning lamps13
– navigation system156
– traffic information with
navigation system154
T
Tachometer72
"Tailgate"34
Tailgate35
– opening from inside33
– opening from outside33
– opening manually33
Tail lamps249
– replacing bulbs249
Tank contents, refer to
Capacities264
Target cursor for
navigation143
Technical alterations, refer to
For your own safety5Technical data262
Telematic, refer to
TeleService,
BMW Assist223
Telephone
– refer to Mobile phone208
– refer to separate operating
instructions
"Telephone list"53
TeleService225
Temperature
– adjusting in upper body
region108
– adjusting with automatic
climate control108,112
– changing units of
measure82
– refer to Coolant
temperature72
Temperature display
– outside temperature71
– setting units82
– temperature warning71
Temperature warning71
Tempomat, refer to Cruise
control69
"Terminate services"228
"Text language"83
The individual vehicle5
Third brake lamp, refer to
Center brake lamp250
3rd row seats48
Tightening torque of the lug
bolts, refer to After
mounting252
Tilt alarm sensor, switching
off36
Tilting down passenger-side
exterior mirror52
"Time"81
"Time / Date"81
"Time format"82
Timer, refer to Preselecting
activation times114
"Timer 2" for parked car
ventilation114
"Timer 1" for parked car
ventilation114Tire inflation pressure
monitoring, refer to Flat Tire
Monitor92
Tire inflation pressures234
– checking234
Tire Pressure Monitor
TPM94
Tire Quality Grading237
Tires
– age237
– air loss93,95
– breaking-in128
– changing239
– condition238
– damage238
– flat tire, refer to Changing
wheels251
– inflation pressure234
– inflation pressure
monitoring, refer to FTM
Flat Tire Monitor92
– new wheels and tires239
– pressure loss93,95
– pressure monitoring, refer to
TPM Tire Pressure
Monitor94
– replacing251
– retreaded tires239
– run-flat tires239
– size237
– tread238
– wear indicators238
– wheel/tire combination239
– winter tires240
"Title" for DVD system in
rear197
TMC station, refer to Traffic
information154
"Tone"163
– for DVD system in rear197
Tone in audio mode
– adjusting163
– middle setting165
"Tone left" for DVD system in
rear196
Tone on locking/unlocking31
Tools, refer to Onboard
toolkit247
