201nFront axle Integrated rear suspensionLevel control system*
At the same time, particular attention
has been devoted to maintaining the
driving performance you have come
to expect from BMW.
This axle is based on the same multi-
link principle as that in 7 Series vehi-
cles. The axle's kinematics and elastic
kinematics are critical for wheel control
— a significant prerequisite for achieving
the objective of exceptional onroad
handling characteristics with this
vehicle concept.
In order to reduce unsprung mass, the
wheel carriers and the swing arm are
made of aluminum.
For an outstanding quality in acoustics
and vehicle oscillation characteristics,
the differential is isolated with double
elasticity through a chassis sub-frame
toward the vehicle body.
530us131
The level control system for the rear
axle maintains constant ground clear-
ance of your vehicle, even when
carrying a load.
For this purpose, the vehicle is
equipped with air springs instead of
steel springs at the rear axle. With the
help of two sensors, an electronic
control unit calculates the height of the
body at all times and, if it is required, it
allows air which is generated in a
compressor to flow into the air springs.
As a result of the pressure increase in
the air springs, the level control system
ensures not only constant ride height,
but also ride comfort which is indepen-
dent of the load the vehicle is carrying.
530us132

202nXenon lamps*
Xenon lamps illuminate the side and
front areas of the vehicle with signifi-
cantly more brightness and uniformity
than traditional halogen lamps.
In a xenon lamp, an electric arc
replaces the filament to generate
intense illumination. A gas mixture in a
quartz glass tube with metal vapor is
ignited by a high electric voltage. The
arc that is generated is then sustained
by a lower voltage. When the lamp is
turned on, there is a brief warm-up
period. Maximum brightness is attained
in approx. 15 seconds.
390de134
Xenon lamps provide significantly
improved visibility, especially during
adverse weather conditions and driving
situations (driving at night in heavy rain
or through road repair areas where
there are no lane markers, for instance).
Vehicles with xenon lamps
are
equipped with dynamic headlamp
range control. As a result, the highway
is always optimally lighted, regardless
of load conditions, and drivers in
oncoming traffic are not blinded.
Xenon lamps make a significant contri-
bution to highway safety since other
highway users, or bicyclists and motor-
cyclists in the right lane, and pedes-
trians are more easily detected.

Index
Data
Technology
Repairs
Car care
Controls
Overview
203n

204n

Index
Data
Technology
Repairs
Car care
Controls
Overview
Overview
Controls and features Operation, care
and maintenance
Owner service procedures
Technical dataIndex
Advanced technology
205
n
Engine specifications 206
Dimensions 207
Weights 208
Capacities 209
Electrical system 210
Drive belts 210
Data

206n
An engine performance test is authorized only on an appropriate chassis \
dynamometer. BMW X5 3.0i BMW X5 4.4i
Displacement
Number of cylinders cu in (cm
3) 181.8 (2,979)
6 268.4 (4,398)
8
Maximum output
at engine speed hp
rpm 225
5,900282
5,400
Maximum torque
at engine speed Ib ft (Nm)
rpm 214 (290)
3,500324 (440)
3,600
Compression ratio 10.2 10.0
Stroke
Bore in (mm)
in (mm) 3.53 (89.6)
3.31 (84)3.26 (82.7)
3.62 (92)
Fuel-injection system Digital-electronic engine-management system
Engine specifications

Index
Data
Technology
Repairs
Car care
Controls
Overview

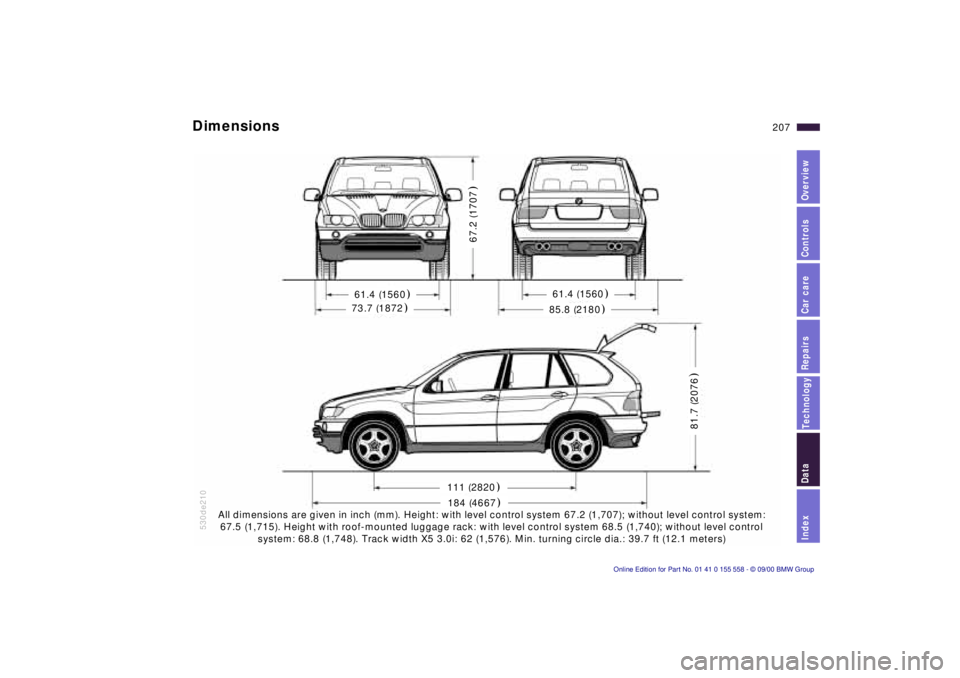

207nDimensions
530de210
All dimensions are given in inch (mm). Height: with level control system 67.2 (1,707); without level control system:
67.5 (1,715). Height with roof-mounted luggage rack: with level control system 68.5 \
(1,740); without level control system: 68.8 (1,748). Track width X5 3.0i: 62 (1,576). Min. turning circle dia.: 39.7 ft (12\
.1 meters)
73.7 (1872)85.8 (2180)
61.4 (1560)61.4 (1560)
111 (2820)
184 (4667)
67.2 (1707
)
81.7 (2076
)

208nWeights
BMW X5 3.0i BMW X5 4.4i
Curb weight (with one person, ready for operation, full tank of fuel, o\
ptions not included)
with manual transmission
with automatic transmission lbs. (kg)
lbs. (kg)4,519 (2050)
4,563 (2070) –
4,795 (2,175)
Approved gross vehicle weight
with manual transmission
with automatic transmission lbs. (kg)
lbs. (kg)6,005 (2,724)
6,005 (2,724) –
6,005 (2,724)
Approved front axle weight lbs. (kg) 2,787 (1,264) 2,787 (1,264)
Approved rear axle weight lbs. (kg) 3,307 (1,500) 3,307 (1,500)
Approved roof load capacity lbs. (kg) 220 (100)
Never exceed either the approved axle weights or the gross vehicle weigh\
t.
Cargo area capacity cu ft (l) 16.1 - 54.4 (455 - 1,540)

Index
Data
Technology
Repairs
Car care
Controls
Overview
209nCapacities
Notes
Fuel tank
Reserve gal. (liters)
gal. (liters)approx. 24.6 (approx. 93)
approx. 2.0 (approx. 8) – BMW X5 3.0i
approx. 2.5 (approx. 10) – BMW X5 4.4i Fuel specification: page
30
Windshield washer system
with headlamp washer system quarts (liters) approx. 8.2 (approx. 7.8) For details: page
156
Cooling system including
heater circuit quarts (liters) 11.1 (10.5) – BMW X5 3.0i
12.7 (12.0) – BMW X5 4.4i For details: page
160
Engine oil and filter change quarts (liters) 7.9 (7.5) – BMW X5 3.0i 8.5 (8.0) – BMW X5 4.4i"BMW High Performance
Synthetic Oil"
For details: page
158
Manual and automatic transmission,
transfer box and differential – – Lifetime fluid, no fluid
change required

210nElectrical system Drive belts
Battery
BMW X5 3.0i: 12 V, 80 Ah
BMW X5 4.4i: 12 V, 90 Ah
Spark plugs
NGK BKR 6 EQUP
Bosch FGR 7 DQP
(not released at this time)
This spark ignition system meets all
requirements of the Canadian Interfer-
ence-Causing Equipment Regulations
(ICES-2). BMW X5 3.0i:
Water pump – Generator – Power
steering
V-belt 6 PK x 1538
A/C compressor
V-belt 5 PK x 863
BMW X5 4.4i:
Water pump – Generator – Power
steering
V-belt 7 K x 1635
A/C compressor
V-belt 5 K x 1023 You can obtain Original BMW
Parts and Accessories, as well
as professional advice from your BMW
center. <
