BMW X5 4.4I 2006 E53 Owner's Manual

121n
OverviewControlsMaintenanceRepairsDataIndex

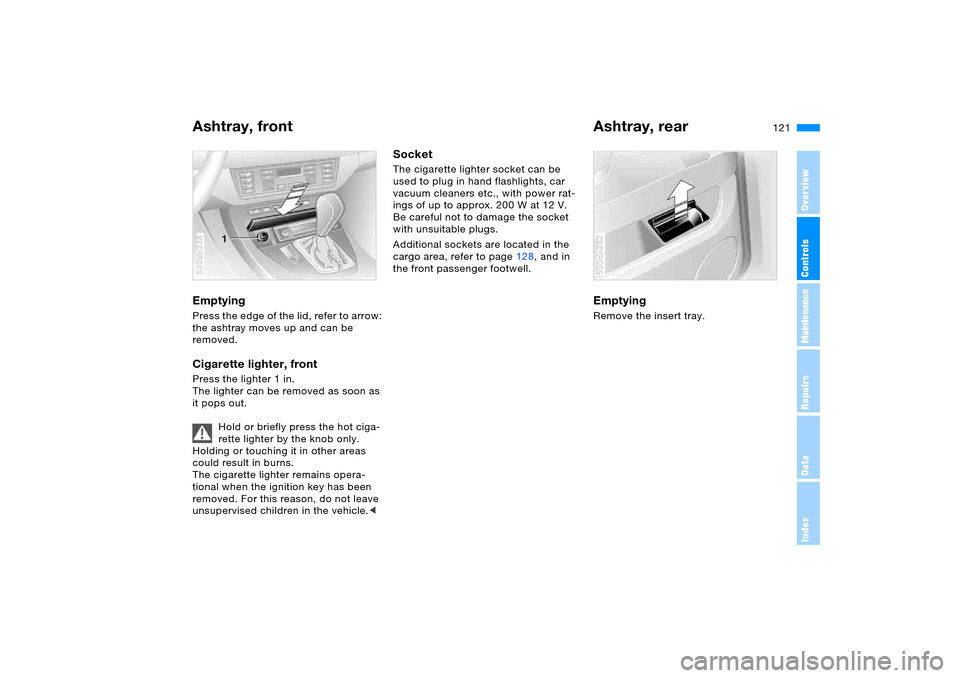

Ashtray, front Ashtray, rear Emptying Press the edge of the lid, refer to arrow:
the ashtray moves up and can be
removed.Cigarette lighter, front Press the lighter 1 in.
The lighter can be removed as soon as
it pops out.
Hold or briefly press the hot ciga-
rette lighter by the knob only.
Holding or touching it in other areas
could result in burns.
The cigarette lighter remains opera-
tional when the ignition key has been
removed. For this reason, do not leave
unsupervised children in the vehicle.< 530de338
Socket The cigarette lighter socket can be
used to plug in hand flashlights, car
vacuum cleaners etc., with power rat-
ings of up to approx. 200 W at 12 V.
Be careful not to damage the socket
with unsuitable plugs.
Additional sockets are located in the
cargo area, refer to page128, and in
the front passenger footwell.
Emptying Remove the insert tray. 530de282

122n

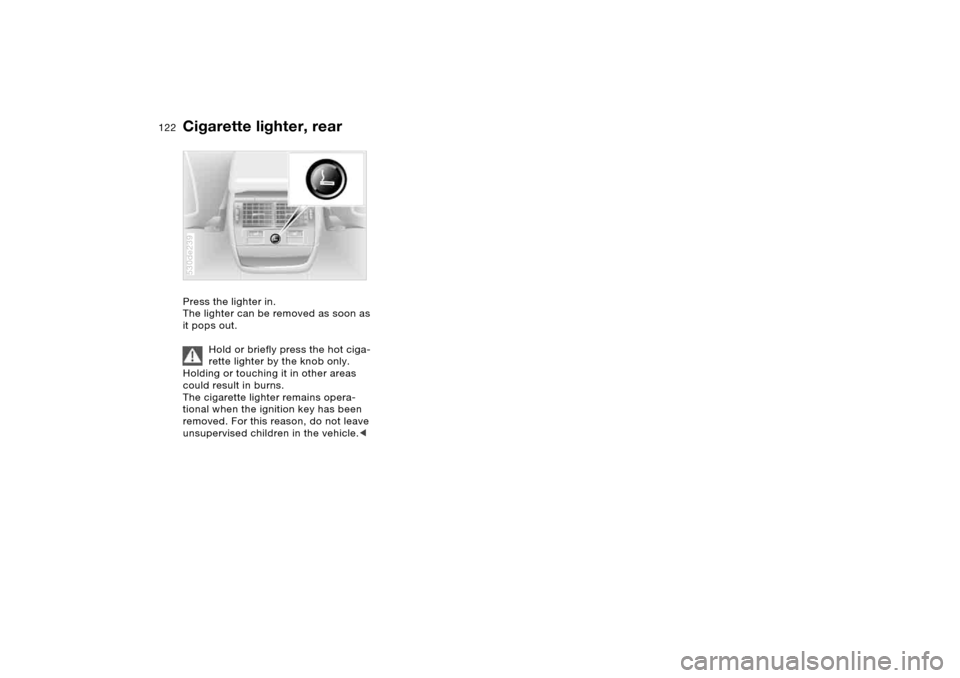

Cigarette lighter, rear Press the lighter in.
The lighter can be removed as soon as
it pops out.
Hold or briefly press the hot ciga-
rette lighter by the knob only.
Holding or touching it in other areas
could result in burns.
The cigarette lighter remains opera-
tional when the ignition key has been
removed. For this reason, do not leave
unsupervised children in the vehicle.< 530de239

123n
OverviewControlsMaintenanceRepairsDataIndex
Ski bag
*
The ski bag allows the safe and clean
transport of up to four pairs of standard
skis or up to two snowboards.
With the length of the ski bag and the
additional space in the cargo area, you
can store skis up to 6.8 ft/2.1 m length.
Because stowing skis of this maximum
length causes the ski bag to narrow, it
can only accommodate two pairs of
skis with a length of 6.8 ft/2.1 m.
Loading 1. Fold down the center armrest.
Loosen the trim from the upper
Velcro® fastener and place it onto the
armrest 530us077
2. Press button 1 downward and swing
the cover forward
3. Press button 2: the cover in the
cargo area is unlocked.
With pull-out cargo floor, refer to
page128: pull out floor, release
cover and push back floor again; the
floor then conceals the cover
4. Place ski bag between the front
seats and load. The zip fastener facil-
itates access to the stowed items.
Make sure that only clean skis are
loaded into the ski bag. Wrap sharp
edges so that no damage occurs.530de283

124n
Ski bag
*
Cargo area
Securing load After loading, secure the ski bag and its
contents. To do so, tighten the retaining
belt at the buckle.
Secure the ski bag in this way. If
you fail to do so, it could endanger
occupants during braking or evasive
maneuvers.<
When stowing the ski bag, proceed in
the reverse order from loading.530de284
If the cover in the cargo area is
concealed by the pull-out cargo
floor, do not fold the larger rear back-
rest down. If you do so, it will damage
the cover.<
Folding rear backrests down Reach into the recess and pull forward,
refer to arrow.
When you fold back the backrest,
be sure that the catch engages
securely. The red warning indicator dis-
appears in the recess when the catch is
engaged.
The center safety belt can only be
pulled out when the larger backrest is
locked.< 530de285

125n
OverviewControlsMaintenanceRepairsDataIndex

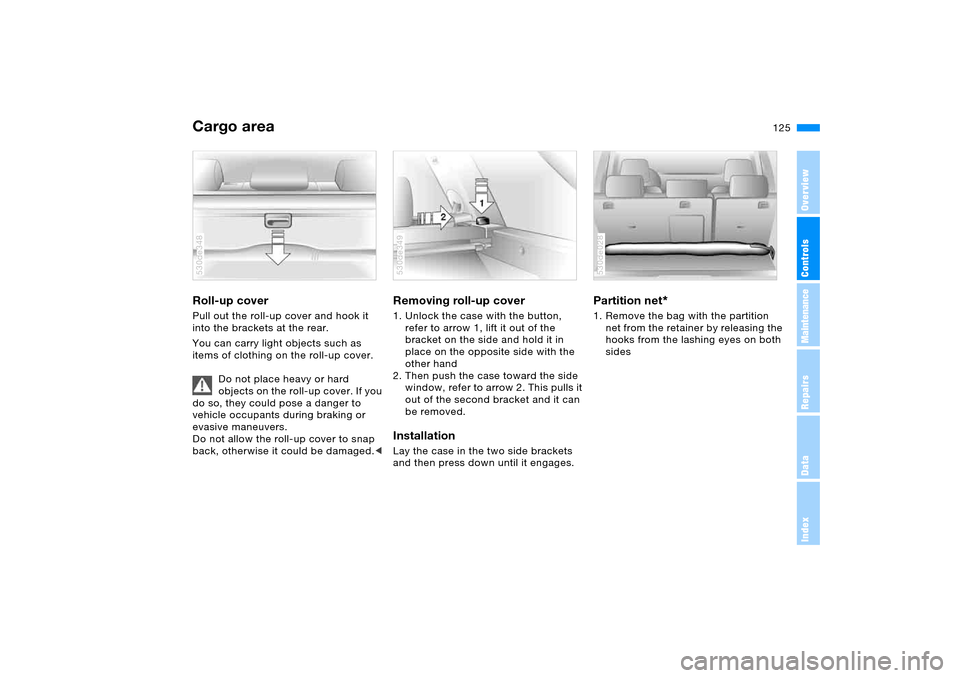

Cargo area Roll-up cover Pull out the roll-up cover and hook it
into the brackets at the rear.
You can carry light objects such as
items of clothing on the roll-up cover.
Do not place heavy or hard
objects on the roll-up cover. If you
do so, they could pose a danger to
vehicle occupants during braking or
evasive maneuvers.
Do not allow the roll-up cover to snap
back, otherwise it could be damaged.<530de348
Removing roll-up cover1. Unlock the case with the button,
refer to arrow 1, lift it out of the
bracket on the side and hold it in
place on the opposite side with the
other hand
2. Then push the case toward the side
window, refer to arrow 2. This pulls it
out of the second bracket and it can
be removed.InstallationLay the case in the two side brackets
and then press down until it engages.530de349
Partition net
*
1. Remove the bag with the partition
net from the retainer by releasing the
hooks from the lashing eyes on both
sides530de028

126n

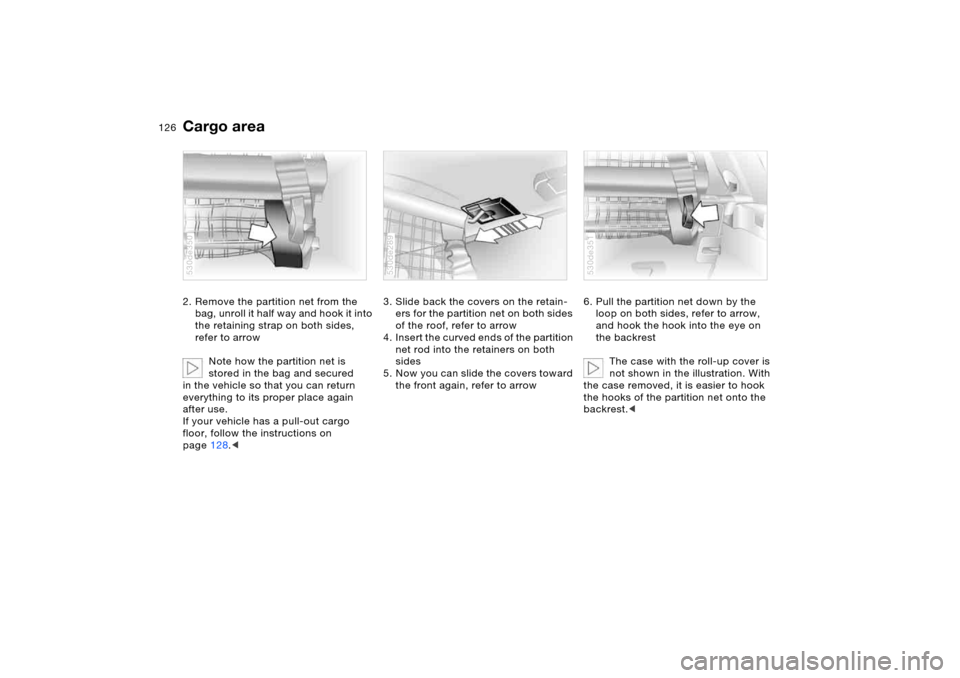

Cargo area 2. Remove the partition net from the
bag, unroll it half way and hook it into
the retaining strap on both sides,
refer to arrow
Note how the partition net is
stored in the bag and secured
in the vehicle so that you can return
everything to its proper place again
after use.
If your vehicle has a pull-out cargo
floor, follow the instructions on
page128.<530de350
3. Slide back the covers on the retain-
ers for the partition net on both sides
of the roof, refer to arrow
4. Insert the curved ends of the partition
net rod into the retainers on both
sides
5. Now you can slide the covers toward
the front again, refer to arrow530de289
6. Pull the partition net down by the
loop on both sides, refer to arrow,
and hook the hook into the eye on
the backrest
The case with the roll-up cover is
not shown in the illustration. With
the case removed, it is easier to hook
the hooks of the partition net onto the
backrest.<530de351

127n
OverviewControlsMaintenanceRepairsDataIndex

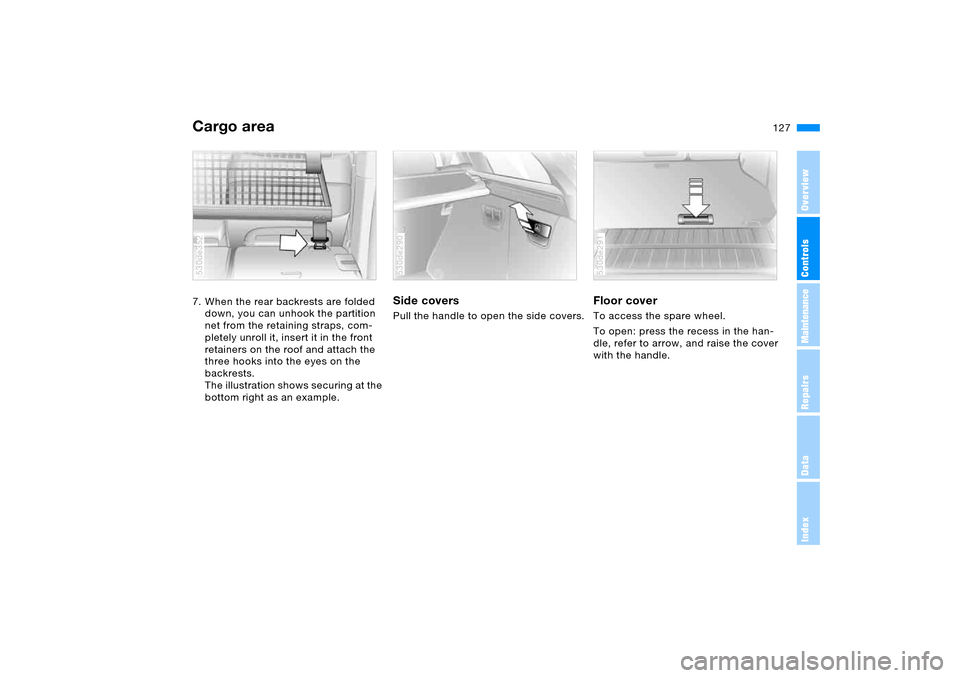

Cargo area 7. When the rear backrests are folded
down, you can unhook the partition
net from the retaining straps, com-
pletely unroll it, insert it in the front
retainers on the roof and attach the
three hooks into the eyes on the
backrests.
The illustration shows securing at the
bottom right as an example.530de352
Side covers Pull the handle to open the side covers.530de290
Floor cover To access the spare wheel.
To open: press the recess in the han-
dle, refer to arrow, and raise the cover
with the handle. 530de291

128n

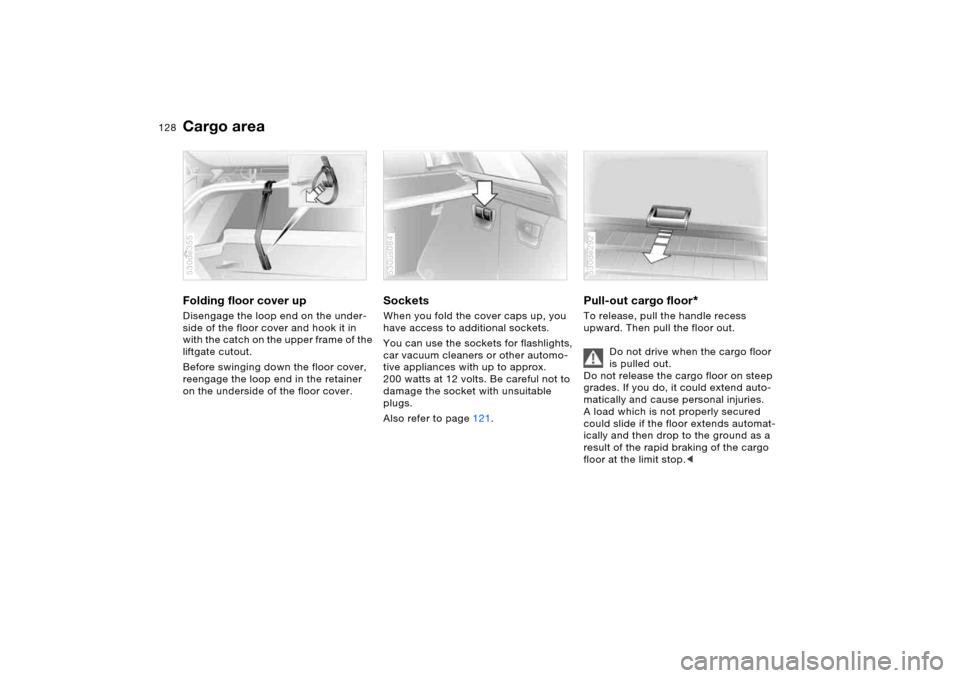

Cargo area Folding floor cover upDisengage the loop end on the under-
side of the floor cover and hook it in
with the catch on the upper frame of the
liftgate cutout.
Before swinging down the floor cover,
reengage the loop end in the retainer
on the underside of the floor cover.530de355
Sockets When you fold the cover caps up, you
have access to additional sockets.
You can use the sockets for flashlights,
car vacuum cleaners or other automo-
tive appliances with up to approx.
200 watts at 12 volts. Be careful not to
damage the socket with unsuitable
plugs.
Also refer to page121. 530us084
Pull-out cargo floor
*
To release, pull the handle recess
upward. Then pull the floor out.
Do not drive when the cargo floor
is pulled out.
Do not release the cargo floor on steep
grades. If you do, it could extend auto-
matically and cause personal injuries.
A load which is not properly secured
could slide if the floor extends automat-
ically and then drop to the ground as a
result of the rapid braking of the cargo
floor at the limit stop.< 530de292

129n
OverviewControlsMaintenanceRepairsDataIndex

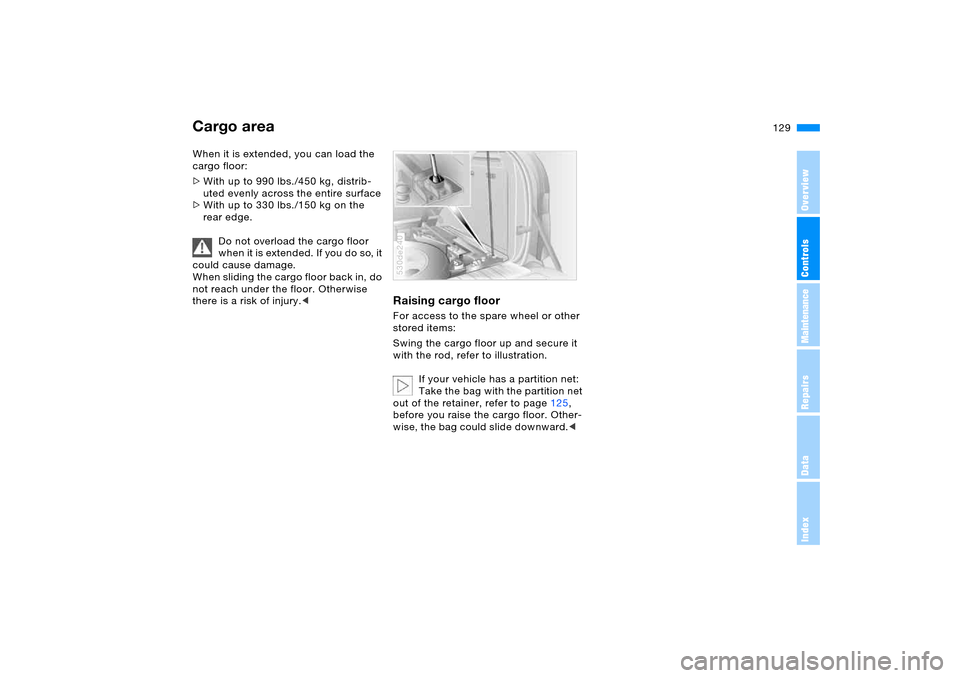

Cargo areaWhen it is extended, you can load the
cargo floor:
>With up to 990 lbs./450 kg, distrib-
uted evenly across the entire surface
>With up to 330 lbs./150 kg on the
rear edge.
Do not overload the cargo floor
when it is extended. If you do so, it
could cause damage.
When sliding the cargo floor back in, do
not reach under the floor. Otherwise
there is a risk of injury.<
Raising cargo floor For access to the spare wheel or other
stored items:
Swing the cargo floor up and secure it
with the rod, refer to illustration.
If your vehicle has a partition net:
Take the bag with the partition net
out of the retainer, refer to page125,
before you raise the cargo floor. Other-
wise, the bag could slide downward.< 530de240

130n

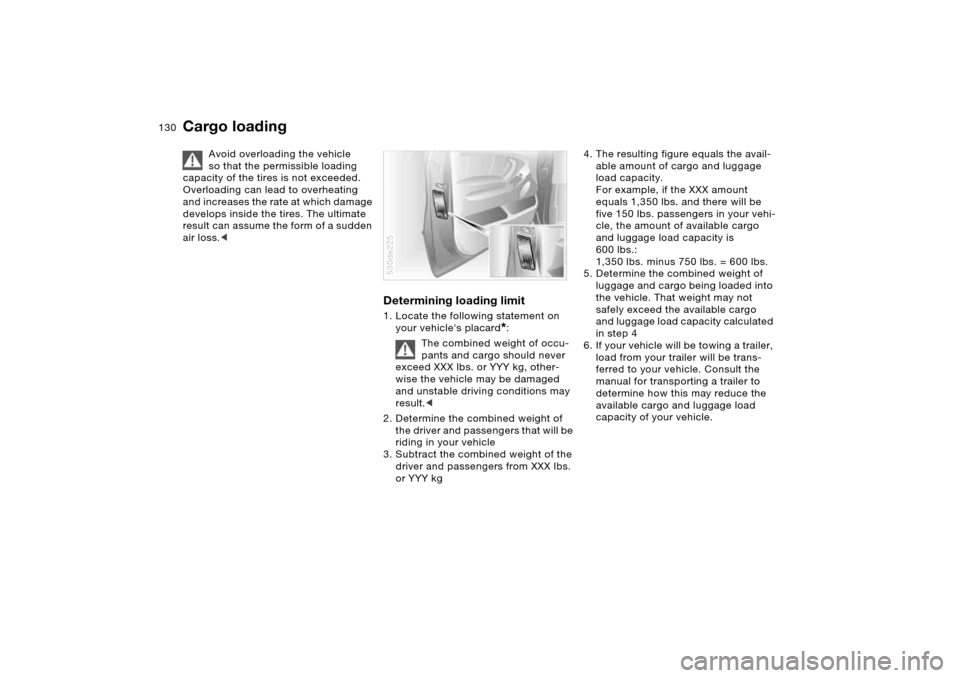

Cargo loading
Avoid overloading the vehicle
so that the permissible loading
capacity of the tires is not exceeded.
Overloading can lead to overheating
and increases the rate at which damage
develops inside the tires. The ultimate
result can assume the form of a sudden
air loss.<
Determining loading limit1. Locate the following statement on
your vehicle's placard
*:
The combined weight of occu-
pants and cargo should never
exceed XXX lbs. or YYY kg, other-
wise the vehicle may be damaged
and unstable driving conditions may
result.<
2. Determine the combined weight of
the driver and passengers that will be
riding in your vehicle
3. Subtract the combined weight of the
driver and passengers from XXX lbs.
or YYY kg
530de225
4. The resulting figure equals the avail-
able amount of cargo and luggage
load capacity.
For example, if the XXX amount
equals 1,350 lbs. and there will be
five 150 lbs. passengers in your vehi-
cle, the amount of available cargo
and luggage load capacity is
600 lbs.:
1,350 lbs. minus 750 lbs. = 600 lbs.
5. Determine the combined weight of
luggage and cargo being loaded into
the vehicle. That weight may not
safely exceed the available cargo
and luggage load capacity calculated
in step 4
6. If your vehicle will be towing a trailer,
load from your trailer will be trans-
ferred to your vehicle. Consult the
manual for transporting a trailer to
determine how this may reduce the
available cargo and luggage load
capacity of your vehicle.
