Overview
Controls and features
Operation, maintenance
Owner service procedures
Index Technical data

Overview

14n
1 Parking lamps/Low beams99
2 Fog lamps100
3

>

Turn signal indicators68

>

Standing lamps100

>

High beams100

>

Headlamp flasher68

>

Computer804 Washer/Wiper system/Rain
sensor68
5 Rear window defroster103, 108
6 Central locking system307 Hazard warning flashers
8 Horn, the entire surface
9 Adjusting steering wheel52

Cockpit
530de328

15n

OverviewControlsMaintenanceRepairsDataIndex

1 Fuel gauge75
2 Indicator lamp for turn signal
indicators223 Speedometer
4 Indicator and warning
lamps19 to 225 Tachometer and Energy Control74
6 Coolant temperature gauge76

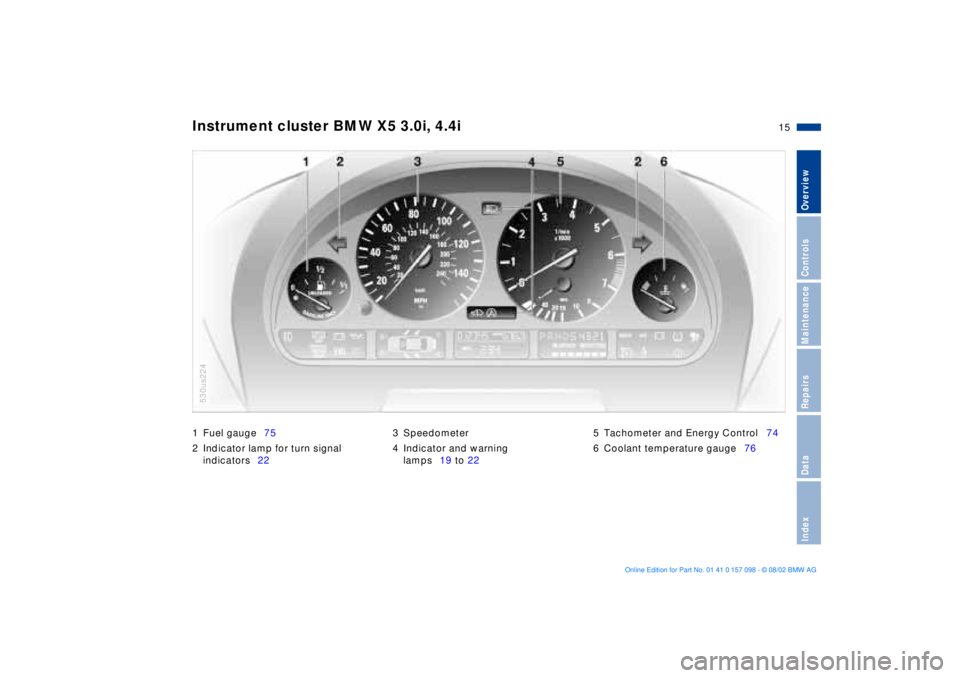

Instrument cluster BMW X5 3.0i, 4.4i
530us224

16n

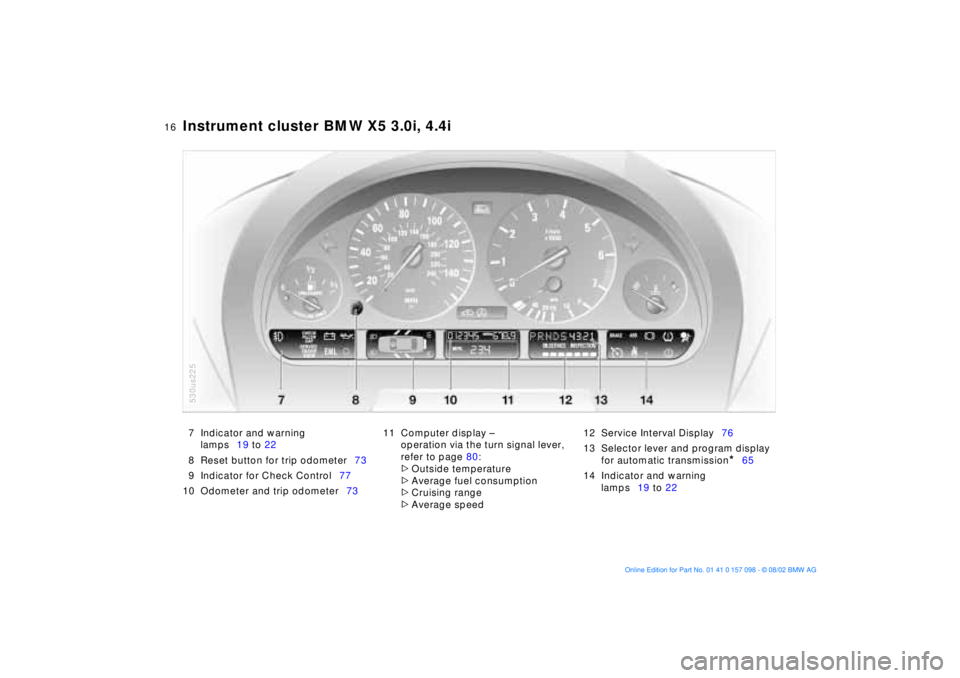

Instrument cluster BMW X5 3.0i, 4.4i

7 Indicator and warning
lamps19 to 22
8 Reset button for trip odometer73
9 Indicator for Check Control77
10 Odometer and trip odometer7311 Computer display Ð
operation via the turn signal lever,
refer to page 80:

>

Outside temperature

>

Average fuel consumption

>

Cruising range

>

Average speed 12 Service Interval Display76
13 Selector lever and program display
for automatic transmission

*
65
14 Indicator and warning
lamps19 to 22
530us225

17n

OverviewControlsMaintenanceRepairsDataIndex

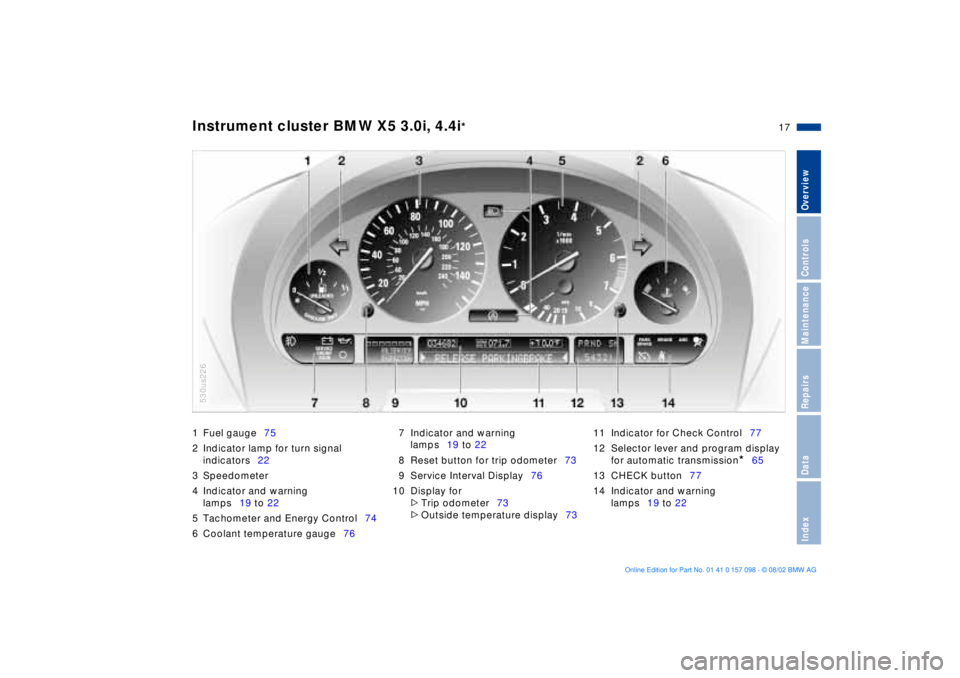

Instrument cluster BMW X5 3.0i, 4.4i

*
1 Fuel gauge75
2 Indicator lamp for turn signal
indicators22
3 Speedometer
4 Indicator and warning
lamps19 to 22
5 Tachometer and Energy Control74
6 Coolant temperature gauge767 Indicator and warning
lamps19 to 22
8 Reset button for trip odometer73
9 Service Interval Display76
10 Display for

>

Trip odometer73

>

Outside temperature display7311 Indicator for Check Control77
12 Selector lever and program display
for automatic transmission

*
65
13 CHECK button77
14 Indicator and warning
lamps19 to 22
530us226530us226

18n

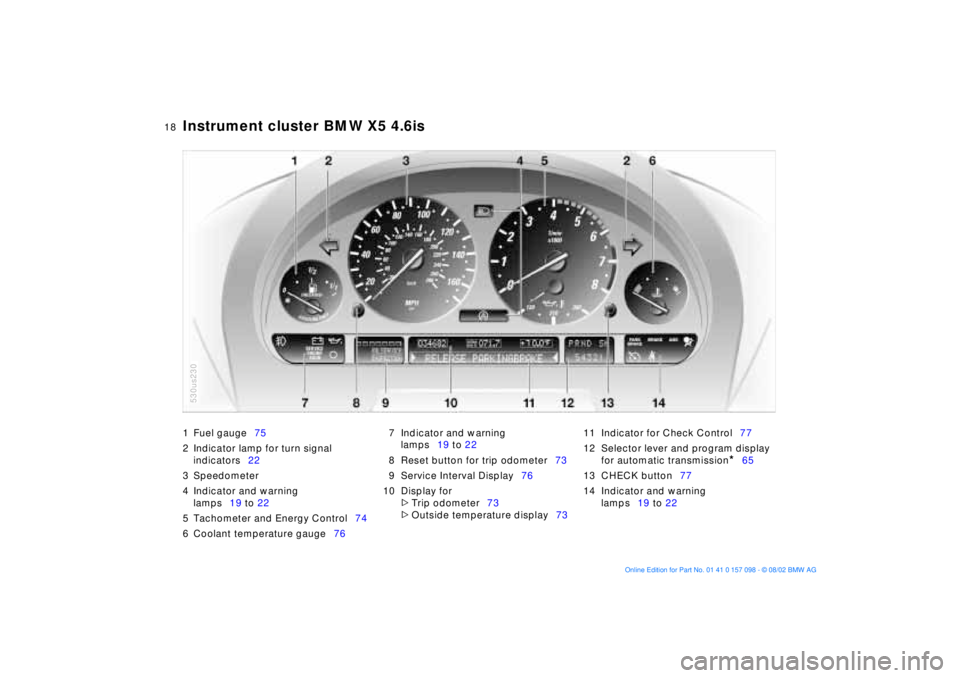

Instrument cluster BMW X5 4.6is

1 Fuel gauge75
2 Indicator lamp for turn signal
indicators22
3 Speedometer
4 Indicator and warning
lamps19 to 22
5 Tachometer and Energy Control74
6 Coolant temperature gauge767 Indicator and warning
lamps19 to 22
8 Reset button for trip odometer73
9 Service Interval Display76
10 Display for

>

Trip odometer73

>

Outside temperature display7311 Indicator for Check Control77
12 Selector lever and program display
for automatic transmission

*
65
13 CHECK button77
14 Indicator and warning
lamps19 to 22
530us226530us230

19n

OverviewControlsMaintenanceRepairsDataIndex

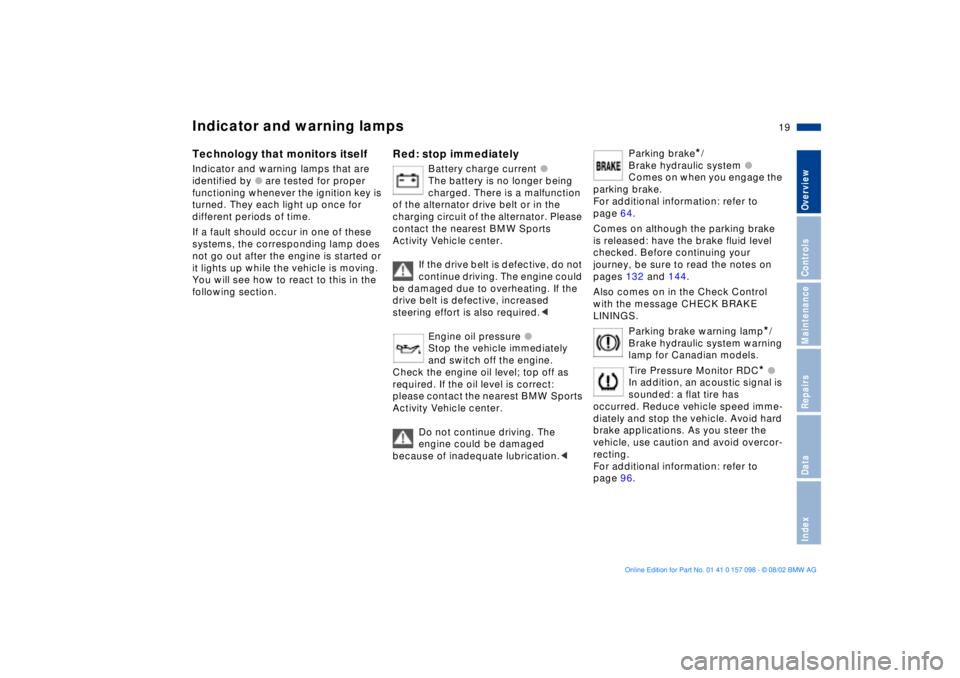

Indicator and warning lamps

Technology that monitors itself

Indicator and warning lamps that are
identified by

l

are tested for proper
functioning whenever the ignition key is
turned. They each light up once for
different periods of time.
If a fault should occur in one of these
systems, the corresponding lamp does
not go out after the engine is started or
it lights up while the vehicle is moving.
You will see how to react to this in the
following section.

Red: stop immediately

Battery charge current

l

The battery is no longer being
charged. There is a malfunction
of the alternator drive belt or in the
charging circuit of the alternator. Please
contact the nearest BMW Sports
Activity Vehicle center.
If the drive belt is defective, do not
continue driving. The engine could
be damaged due to overheating. If the
drive belt is defective, increased
steering effort is also required.

<


Engine oil pressure

l

Stop the vehicle immediately
and switch off the engine.
Check the engine oil level; top off as
required. If the oil level is correct:
please contact the nearest BMW Sports
Activity Vehicle center.
Do not continue driving. The
engine could be damaged
because of inadequate lubrication.

<



Parking brake

*
/
Brake hydraulic system

l

Comes on when you engage the
parking brake.
For additional information: refer to
page 64.
Comes on although the parking brake
is released: have the brake fluid level
checked. Before continuing your
journey, be sure to read the notes on
pages 132 and 144.
Also comes on in the Check Control
with the message CHECK BRAKE
LININGS.
Parking brake warning lamp

*
/
Brake hydraulic system warning
lamp for Canadian models.
Tire Pressure Monitor RDC

*


l

In addition, an acoustic signal is
sounded: a flat tire has
occurred. Reduce vehicle speed imme-
diately and stop the vehicle. Avoid hard
brake applications. As you steer the
vehicle, use caution and avoid overcor-
recting.
For additional information: refer to
page 96.

20n

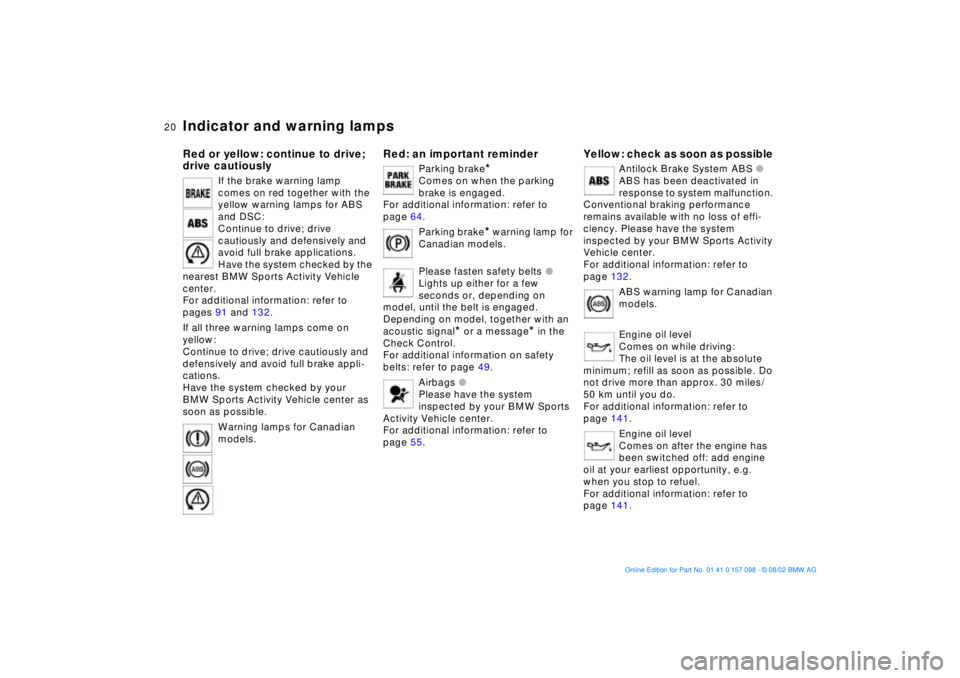

Indicator and warning lamps

Red or yellow: continue to drive;
drive cautiously

If the brake warning lamp
comes on red together with the
yellow warning lamps for ABS
and DSC:
Continue to drive; drive
cautiously and defensively and
avoid full brake applications.
Have the system checked by the
nearest BMW Sports Activity Vehicle
center.
For additional information: refer to
pages 91 and 132.
If all three warning lamps come on
yellow:
Continue to drive; drive cautiously and
defensively and avoid full brake appli-
cations.
Have the system checked by your
BMW Sports Activity Vehicle center as
soon as possible.
Warning lamps for Canadian
models.

Red: an important reminder

Parking brake

*
Comes on when the parking
brake is engaged.
For additional information: refer to
page 64.
Parking brake

*
warning lamp


for
Canadian models.
Please fasten safety belts

l

Lights up either for a few
seconds or, depending on
model, until the belt is engaged.
Depending on model, together with an
acoustic signal

*
or a message

*
in the
Check Control.
For additional information on safety
belts: refer to page 49.
Airbags

l

Please have the system
inspected by your BMW Sports
Activity Vehicle center.
For additional information: refer to
page 55.

Yellow: check as soon as possible

Antilock Brake System ABS

l

ABS has been deactivated in
response to system malfunction.
Conventional braking performance
remains available with no loss of effi-
ciency. Please have the system
inspected by your BMW Sports Activity
Vehicle center.
For additional information: refer to
page 132.
ABS warning lamp for Canadian
models.
Engine oil level
Comes on while driving:
The oil level is at the absolute
minimum; refill as soon as possible. Do
not drive more than approx. 30 miles/
50 km until you do.
For additional information: refer to
page 141.
Engine oil level
Comes on after the engine has
been switched off: add engine
oil at your earliest opportunity, e.g.
when you stop to refuel.
For additional information: refer to
page 141.
