fold seats BMW X5 4.8IS 2006 E53 Owner's Manual

119n
OverviewControlsMaintenanceRepairsDataIndex
Glove compartment Storage compartments Opening Pull the handle. The lamp inside the
glove compartment comes on.Closing Fold the cover up.
To prevent injury in the event of an
accident, close the glove com-
partment immediately after use.< 530de275
Locking Use one of the master keys. A master
key is also required for unlocking.
If you turn over only your spare
key for valet parking, for example,
refer to page30, this prevents unautho-
rized access to the glove compart-
ment.< Rechargeable flashlight Located on the left-hand side of the
glove compartment.
Features integral overload-protection,
so it can be left in its holder continu-
ously.
To avoid completely discharging
and possibly damaging the lamp,
always ensure that it is switched off
before inserting it into the socket.<
You will find two storage compartments
in the armrest between the front seats.
To open the top compartment:
Press the button, refer to arrow 1.
A built-in phone
* is located in this com-
partment.
To move the armrest or open the lower
compartment:
Pull the handle, refer to arrow 2.
This compartment contains a coin tray
and a storage compartment
* for cas-
settes or CDs.
You will find additional storage com-
partments in all of the doors as well as
on the backrests of the front seats.
530de276

123n
OverviewControlsMaintenanceRepairsDataIndex

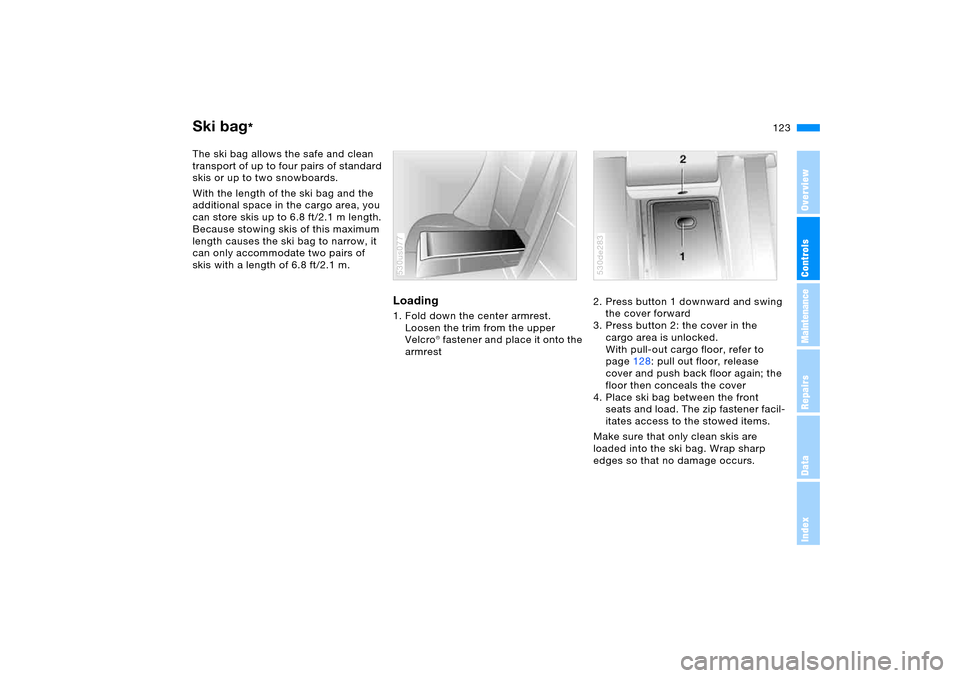

Ski bag
*
The ski bag allows the safe and clean
transport of up to four pairs of standard
skis or up to two snowboards.
With the length of the ski bag and the
additional space in the cargo area, you
can store skis up to 6.8 ft/2.1 m length.
Because stowing skis of this maximum
length causes the ski bag to narrow, it
can only accommodate two pairs of
skis with a length of 6.8 ft/2.1 m.
Loading 1. Fold down the center armrest.
Loosen the trim from the upper
Velcro® fastener and place it onto the
armrest 530us077
2. Press button 1 downward and swing
the cover forward
3. Press button 2: the cover in the
cargo area is unlocked.
With pull-out cargo floor, refer to
page128: pull out floor, release
cover and push back floor again; the
floor then conceals the cover
4. Place ski bag between the front
seats and load. The zip fastener facil-
itates access to the stowed items.
Make sure that only clean skis are
loaded into the ski bag. Wrap sharp
edges so that no damage occurs.530de283

Everything from A to Z
195n
OverviewControlsMaintenanceRepairsDataIndex
Parking brake, refer to
Handbrake64
Parking lamps100
replacing bulbs162
Parking lamps/low
beams100
Parts and accessories, refer
to For your own safety9
Passenger-side mirror tilt
function51
Pathway lighting100
PDC Park Distance
Control90
Permissible axle load, refer
to Weights182
Permissible gross weight,
refer to Weights182
Plastic, care, refer to Caring
for your vehicle brochure
Pollen, refer to
Microfilter106
Microfilter/activated-
charcoal filter112
Power electric seat46
Power failure171
Power rear seat backrest48
Power windows39
safety switch40
Pressure, tires141
Pressure monitoring, tires98
Flat Tire Monitor98Programming settings, refer
to Vehicle Memory, Key
Memory61
Protective function,
panorama glass roof42
Pull-out cargo floor128
R
Radio, refer to Owner's
Manual for Radio/Onboard
Computer
Radio-control key, refer to
Master key with remote
control30
Radio navigation, refer to
separate Owner's Manual
Rain sensor69
Reading lamps
front103
rear103
Real wood, refer to Caring
for your vehicle brochure
Rear backrests, power48
Rear climate control111
air supply112
temperature112
Rear lamps
refer to Tail lamps163
replacing bulbs163
Rear seat back, folding124Rear seat backrest,
electric48
Rear-seat backrest, folding
down124
Rear seats, heating
52
Rearview mirror53
Rear window blinds, refer to
Roller sun blinds113
Rear window defroster
air conditioner105
automatic climate
control110
Rear window safety
switch40
Rear window wiper71
replacing bulbs160
Rechargeable flashlight119
Recirculated-air mode
air conditioner105
automatic climate
control110
Reflectors, refer to Tail
lamps163
Refueling24
fuel filler door24
Remaining distance, refer to
Cruising range80,87
Remaining distance for
service, refer to Service
Interval Display76Remote control31
garage door opener, refer
to Integrated universal
remote control114
liftgate31
malfunction32
Removal aid for spare
wheel168
Removing condensation,
windows
air conditioner106
automatic climate
control109
Replacement fuses172
Replacement keys30
Replacement tire167
Replacing bulbs, refer to
Lamps and bulbs161
Replacing light bulbs161
Replacing tires
changing a wheel165
tire replacement145
Reporting an accident, refer
to Initiating an emergency
call173
Reporting safety defects11
Residual heat110
Restraint systems, refer to
Safety belts49
Restraint systems for
children57
