Convertible Tops - 32
OPERATION
•Top operation is dependent on a stationary vehicle with the brake pedal depressed.
•Unlock the top at the windshield frame and raise past the tension point (microswitch
closes).
•With the windows lowered press the top switch in the console panel.

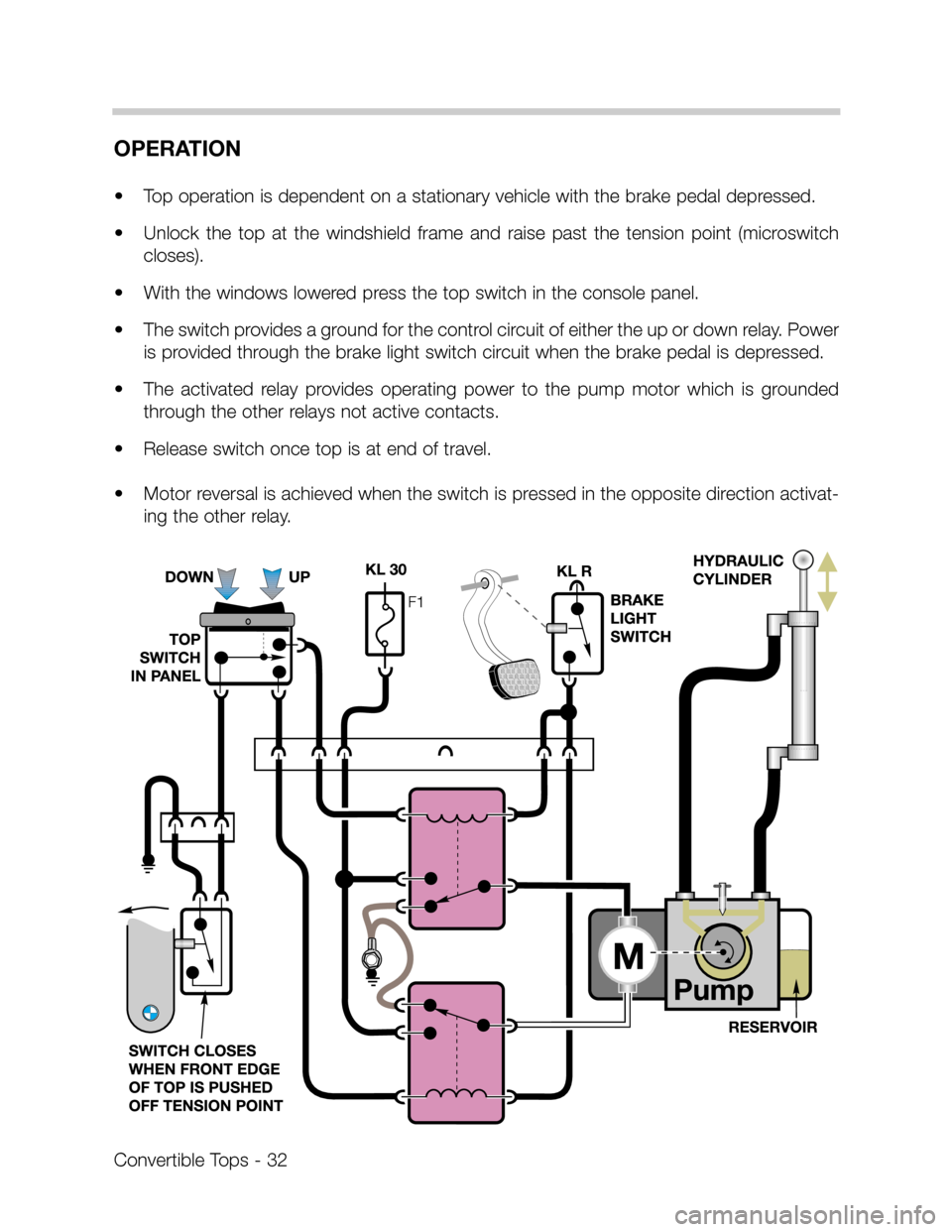

•The switch provides a ground for the control circuit of either the up or down relay. Power
is provided through the brake light switch circuit when the brake pedal is depressed.
•The activated relay provides operating power to the pump motor which is grounded
through the other relays not active contacts.
•Release switch once top is at end of travel.
•Motor reversal is achieved when the switch is pressed in the opposite direction activat-
ing the other relay.
