BMW Z3M ROADSTER 2000 E36 Electrical Troubleshooting Manual

X10470


X333

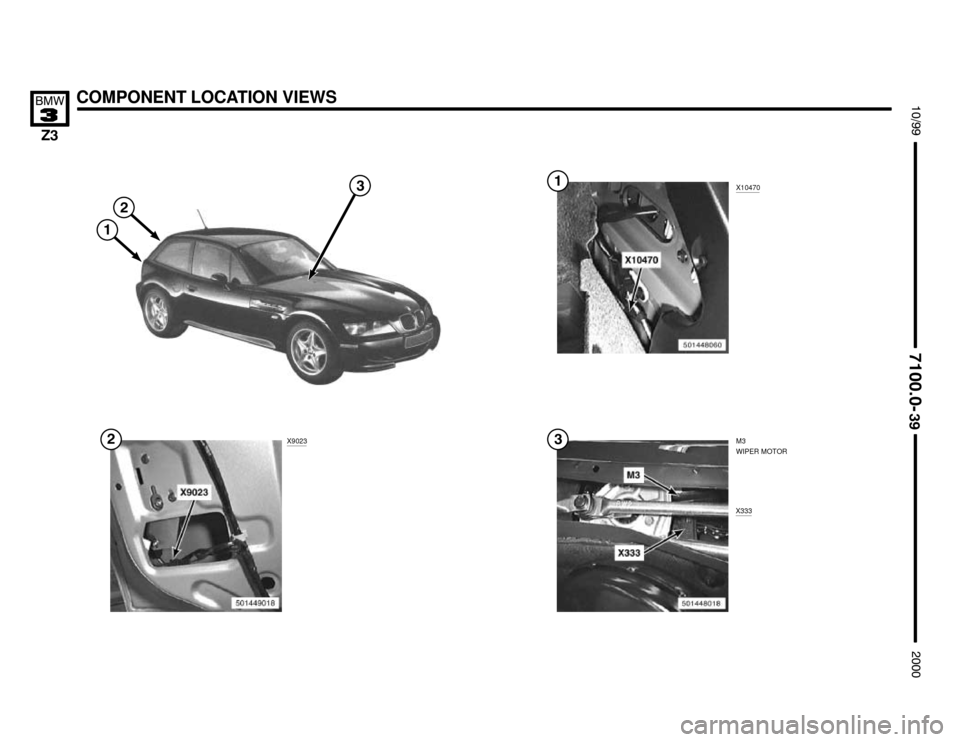

COMPONENT LOCATION VIEWS











M3
WIPER MOTOR


X9023

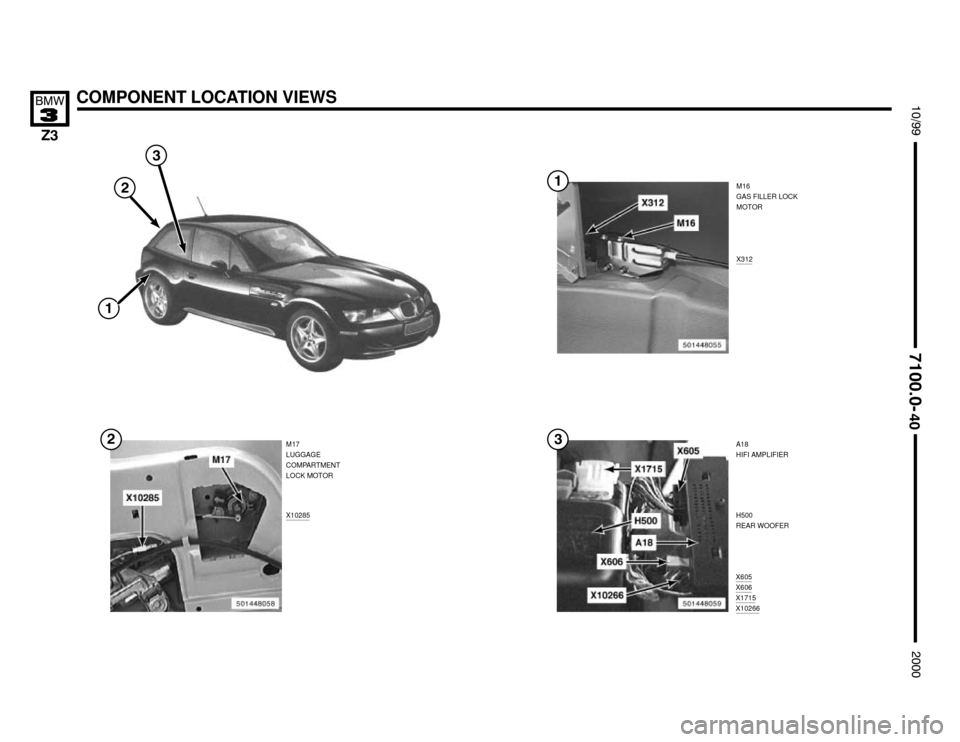

COMPONENT LOCATION VIEWS
















M16
GAS FILLER LOCK
MOTOR
X312
X10285
M17
LUGGAGE
COMPARTMENT
LOCK MOTOR
X605X606X1715X10266
A18
HIFI AMPLIFIER
H500
REAR WOOFER

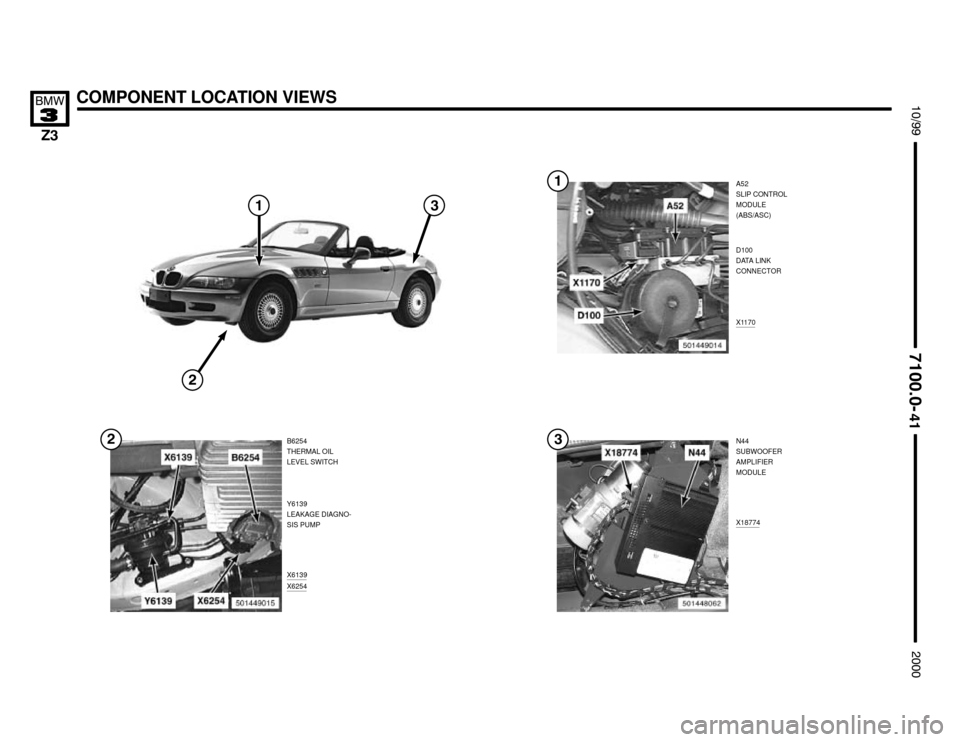

COMPONENT LOCATION VIEWS











A52
SLIP CONTROL
MODULE
(ABS/ASC)
B6254
THERMAL OIL
LEVEL SWITCH
X6139
X6254
X1170



X18774
N44
SUBWOOFER
AMPLIFIER
MODULE


D100
DATA LINK
CONNECTOR
Y6139
LEAKAGE DIAGNO-
SIS PUMP



X6214


X6163
COMPONENT LOCATION VIEWS












Y6163
SECONDARY AIR
PUMP VALVE



P900
AUXILIARY FUSE
BOX

X6524


X6130
X6120X6231X6238
COMPONENT LOCATION VIEWS











B6231
OIL PRESSURE
SWITCH

Y6130
IDLE SPEED
CONTROL VALVE


B6238
OIL TEMPERATURE
SENSOR
Y6120
EVAPORATIVE
EMISSION VALVE



B62101
OXYGEN SENSOR I
(IN FRONT OF
CATALYTIC
CONVERTER)
X62101
X62201


X6279X6236
COMPONENT LOCATION VIEWS











B6236
ENGINE COOLANT
TEMPERATURE
SENSOR

B6279
THERMOSTAT,
CHARACTERISTIC
MAP COOLING


B62201
OXYGEN SENSOR
II (IN FRONT OF
CATALYTIC
CONVERTER)



B6203
CRANKSHAFT
POSITION/RPM
SENSOR
X6203


X6205X6275X62102X62202
X6224X6276
COMPONENT LOCATION VIEWS











B6224
CAMSHAFT
POSITION SENSOR
2 (OUTLET)B6205
INTAKE AIR
TEMPERATURE
SENSOR


Y6276
VARIABLE CAM-
SHAFT CONTROL
VALVE 2 (OUTLET)Y6275z
VARIABLE CAM-
SHAFT CONTROL
VALVE 1 (INLET)



R6385
THROTTLE
POSITION SEN-
SOR/CRUISE
CONTROL
ACTUATOR
X6385


X6240
COMPONENT LOCATION VIEWS












B6240
KNOCK SENSORA65
DYNAMIC STABIL-
ITY CONTROL UNIT
(DSC)



Y6167
VALVE, INDIVIDUAL
CONTROL INTAKE
SYSTEM


X1746X6167

A8500
TRANSMISSION
CONTROL MODULE
(EGS)
X8500


X60001X60002X60003X60004X60005
COMPONENT LOCATION VIEWS











A6000
ENGINE CONTROL
MODULE (DME)K6300
ENGINE CONTROL
MODULE RELAY

K6304
SECONDARY AIR
PUMP RELAY

K6326
UNLOADER RELAY,
TERMINAL 15

X6054X6506



B76
PRESSURE
SENSORX1656X1747X1748


X6011X6021X6031X89977
COMPONENT LOCATION VIEWS











P98
FUSE HOLDER IN
E–BOXG6400
B+ JUNCTION
POINT E–BOX


X6053X18365X64101X64102

M118
PRECHARGE PUMP


Y16z
PRESSURE TRANS-
MITTER
