BMW Z3M ROADSTER 2000 E36 Electrical Troubleshooting Manual



B18
BRAKE FLUID
LEVEL SWITCH
COMPONENT LOCATION VIEWS












K2
HORN RELAYX111
X372
H1w
ANTI–THEFT HORN
(ALPINE)
K4
BLOWER RELAY
K16
HAZARD FLASHER
RELAYK47
FRONT FOG LIGHT
RELAY
K48
LOW BEAM LIGHT
RELAYK9
UNLOADER RELAY,
TERMINAL 15
K19
COMPRESSOR
CONTROL RELAY
K21
NORMAL SPEED
RELAYK22
HIGH SPEED
RELAY
K94
ENGINE CONTROL
RELAY (ABS/ASC)
K95
VALVE RELAY
(ABS/ASC)

K33a
AIR CONDITIONING
RELAY, MOTRONIC



M51
DRIVER’S SEAT
MOVEMENT
MOTOR
X275
X726X728X733
COMPONENT LOCATION VIEWS












H55z
REAR LEFT MID–
HIGH RANGE
SPEAKER
K920
DRIVER’S SEAT
TILT ADJUST CUT–
OFF RELAY
X778
X9991X10214
M52
DRIVER’S SEAT
HEIGHT MOTOR


X537
K921
DRIVER’S SEAT
LENGTH ADJUST
CUT–OFF RELAY


K910
PASSENGER’S
SEAT TILT ADJUST
CUT–OFF RELAY


COMPONENT LOCATION VIEWS











K911
PASSENGER’S
SEAT LENGTH AD-
JUST CUT–OFF
RELAY
A113
SEAT OCCUPANCY
DETECTOR
X279
X737X740X10218X91009


X734X9995X10215X18518


B21
ON–BOARD
COMPUTER
TEMPERATURE
SENSOR
X770

B2
LEFT FRONT
SPEED SENSOR –
ABS
B16
LEFT FRONT
BRAKE PAD
SENSOR B6247
CHARCOAL FILTER
SHUT–OFF VALVE
COMPONENT LOCATION VIEWS













X6247
X114
X118





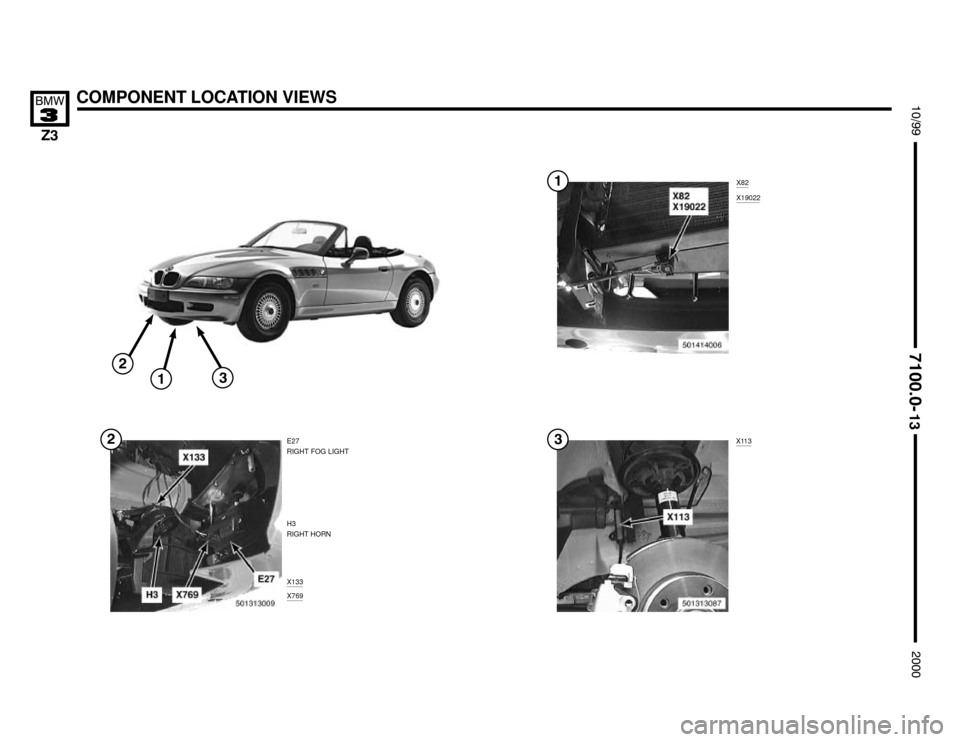

E27
RIGHT FOG LIGHT
X133
X82
X113
COMPONENT LOCATION VIEWS













X769
H3
RIGHT HORN



X19022


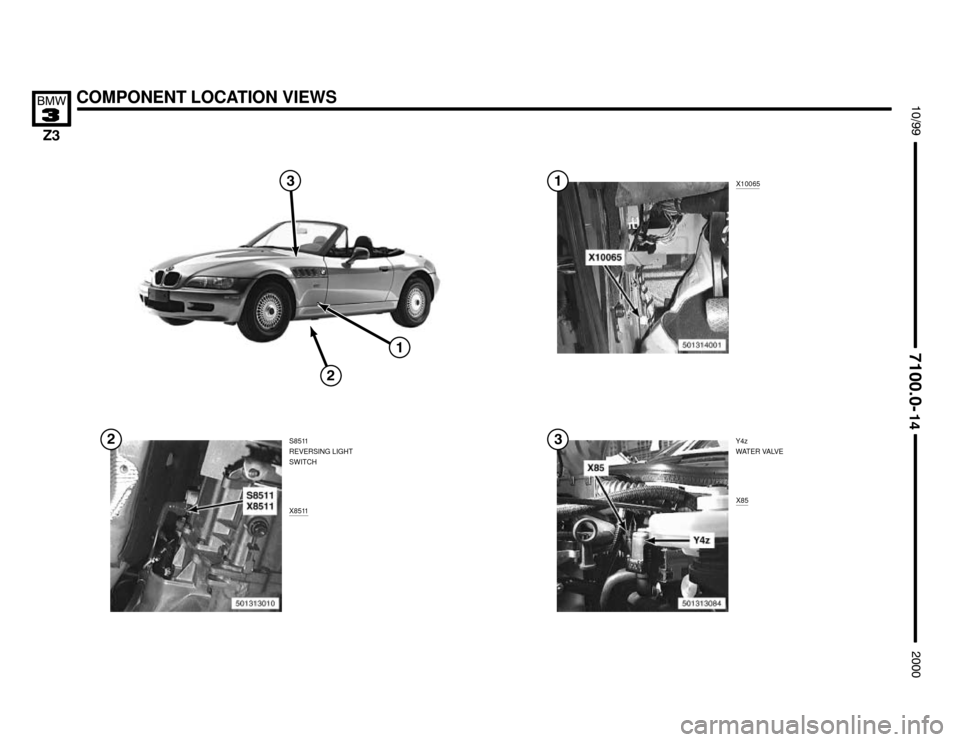

S8511
REVERSING LIGHT
SWITCH
X8511
COMPONENT LOCATION VIEWS











X10065







Y4z
WATER VALVE
X85

COMPONENT LOCATION VIEWS











B10
VEHICLE SPEED
SENSOR
X383
X8505



X143
X713

Y8521
TRANSMISSION
VALVE UNIT

X1883
X142
COMPONENT LOCATION VIEWS












G14
LEFT SIDE AIR BAG
GAS GENERATORX257
X18196







COMPONENT LOCATION VIEWS











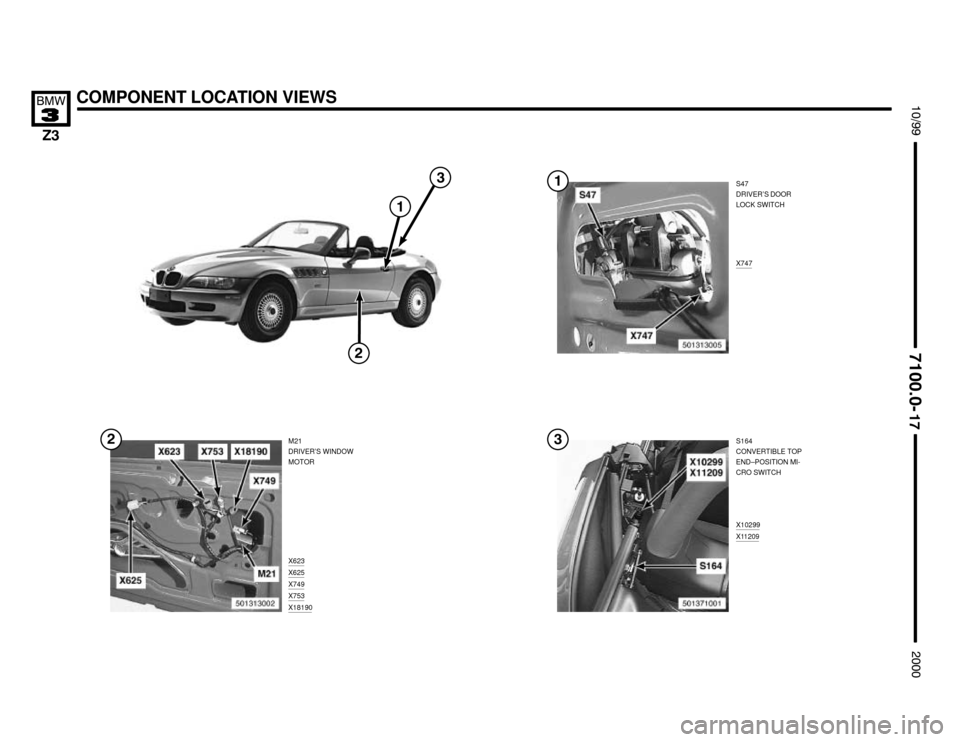

S47
DRIVER’S DOOR
LOCK SWITCH
M21
DRIVER’S WINDOW
MOTOR
X623
X625X749
X747
X753X18190






S164
CONVERTIBLE TOP
END–POSITION MI-
CRO SWITCH
X10299
X11209



X641M23
PASSENGER’S
WINDOW MOTOR
X624
X744
COMPONENT LOCATION VIEWS











X746X18516


X256
X18198
