About this Owner's Manual
We have tried to make all the information in this
Owner's Manual easy to find. The fastest way to
find specific topics is to refer to the detailed
index at the back of the manual. If you wish to
gain an initial overview of your vehicle, you will
find this in the first chapter.
Should you sell your BMW at some time in the
future, please remember to pass the Owner's
Manual on to the new owner. The manual repre-
sents an important component of the vehicle.
Additional sources of information
Should you have any other questions, your
BMW center will be glad to advise you at any
time.
Information on BMW, e.g. on technical aspects,
can also be found on the Internet at
www.bmwusa.com
Symbols used
Indicates precautions that must be fol-
lowed precisely in order to avoid the pos-
sibility of personal injury and serious damage to
the vehicle.
Indicates information that will assist you
in gaining the optimum benefit from your
vehicle and enable you to care more effectively
for your vehicle.
Refers to measures that can be taken to
help protect the environment.
< Marks the end of a specific item of informa-
tion.
* Indicates special equipment, country-specific
equipment and optional extras, as well as
equipment and functions not yet available at the
time of printing.
Vehicle Memory, Key Memory, refer to
page18. Identifies functions that can be
specifically adapted for a particular key or vehi-
cle. These adjustments can be performed by
your BMW center.
Symbols on vehicle components
Indicates that you should consult the rel-
evant section of this Owner's Manual for
information on a particular part or assembly.

Cockpit
12
Instrument cluster
1Speedometer
2Indicator lamps for turn signals
3Indicator and warning lamps12
4Tachometer48
with indicator and warning lamps12
5Engine coolant temperature gauge49
6Fuel gauge48
7Button for
>Displaying the clock49
>Service interval display49
>Checking the oil level93
8Position of automatic transmission
*42
9Button for
>Resetting trip odometer48
>Setting the clock49
10Display for
>Trip odometer/Odometer48
>Clock49
>Service interval49
>Computer
*50
>Checking the oil level93
Indicator and warning lamps
Technology that monitors itself
Indicator and warning lamps that are identified
by
+ are tested for proper functioning whenever
the key is turned. They each light up once for
different periods of time.
If a malfunction occurs in one of the monitored
systems, the corresponding lamp does not go
out after the engine has started, or it lights up
again while the vehicle is in motion. You can find
more information about each system on the
specified pages.
Turn signal indicators44
Battery charge current
+102
Headlamp flasher/High beams44, 60
Engine oil pressure/
Engine oil level
+92
Antilock Brake System ABS/Driving
stability control systems
+51

Opening and closing
18
Opening and closing
The key set
1Master keys with remote control
2Spare key
Master key with remote control
Each master key contains a rechargeable bat-
tery that is automatically recharged when it is in
the ignition lock while the car is being driven.
Use the master key at least twice a year in order
to keep the batteries charged.
Depending on which master key is recognized
when the vehicle is unlocked, different settings
are called up and carried out in the vehicle, refer
to Key Memory.
Spare key
For storage in a safe place, e.g. in your wallet.
This key is not intended for constant use.
New keys
You can obtain new keys, whether as additional
keys or replacement keys, at your BMW center.
Vehicle Memory, Key Memory
How the system functions
You can have your BMW center program a vari-
ety of functions on your BMW according to your
individual requirements.
Vehicle Memory refers to vehicle-oriented set-
tings and Key Memory refers to person-ori-ented settings. You can have up to four different
basic settings adjusted for four different per-
sons. The only requirement is that each person
uses his or her own master key with remote
control.
When your vehicle is unlocked with the remote
control, the vehicle recognizes the individual
user by means of a data exchange with the key,
and makes adjustments accordingly.
Colored decals were provided with the keys to
help you distinguish between the different per-
sonal remote control keys.
What the system can do
You can learn about the entire array of features
that Vehicle Memory and Key Memory offer you
at your BMW center.
You will see this symbol throughout the
Owner's Manual. It is to remind you at
appropriate places of the settings that are avail-
able to you.<
Depending on how the memory functions
are configured, the vehicle may be oper-
ated differently from what is described in the
Owner's Manual. Should you decide to sell your
BMW one day, please remember to have the
memory functions returned to their original fac-
tory settings.<
Examples for Vehicle Memory
>Signal as acknowledgment when locking or
unlocking your vehicle, refer to page19, 20
>Automatic opening of windows, refer to
page25
>Acoustic warning when the key is still in the
ignition switch after the driver's door has
been opened, refer to page41
>Activation/deactivation of triple turn signal,
refer to page44
>Activation/deactivation of daytime running
lamps
*, refer to page59

Reference
At a glance
Controls
Driving tips
Mobility
19
>Activation/deactivation and duration of
pathway lighting, refer to page60
>Adjustment of sensitivity of automatic
headlamp control
*, refer to page59
>Setting unit of measure for displaying the
time and outside temperature in the instru-
ment cluster, refer to page50
Examples for Key Memory
>Automatic call-up* of the driver's seat posi-
tion after unlocking, refer to page33
>Locking of the vehicle after starting off, refer
to page21
Central locking system
The concept
The central locking system is ready for opera-
tion whenever the driver's door is closed.
The system simultaneously engages and
releases the locks on the following:
>Doors
>Luggage compartment lid/tailgate
>Fuel filler door
>Storage compartment between the back-
rests
>Roadster: opened manual convertible top
Operating from outside
>Via the remote control
>Via the door lock
The anti-theft system is operated at the same
time. It prevents the doors from being unlocked
with the lock buttons or release handles. The
remote control is also used to switch the interior
lamps on and off. In addition, the alarm system
*
is armed or disarmed.
For further details of the alarm system
*, refer to
page23.
Operating from inside
By means of the button for central locking, refer
to page21.In the event of a sufficiently severe accident, the
central locking system unlocks automatically. In
addition, the hazard warning flashers and inte-
rior lamps come on.
Opening and closing:
from outside
With the remote control
Persons or animals in the vehicle could
lock the doors from the inside. You should
therefore take the remote control with you
when leaving the vehicle so that the car can be
opened from the outside.<
Unlocking
1.Press the button once.
The driver's door and fuel filler door are
unlocked.
2.Press the button again.
The entire vehicle is unlocked.
Convenience opening
Hold the button down.
Coupe: the windows are opened.
Roadster: the windows and the fully automatic
convertible top
* are opened.
Locking
Press the button.
The hazard warning flashers light up once.
If you wish, you can have this special fea-
ture activated/deactivated.<
Switching on interior lamps
With the vehicle locked:
Press the button.
With this function, you can also search for your
vehicle when parked in an underground garage,
for instance.
Unlocking the luggage compartment
lid/tailgate
Press the button for approx. 1 second.

Opening and closing
20 The luggage compartment lid/tailgate opens a
short distance, regardless of whether it was
locked or unlocked.
A previously locked luggage compart-
ment lid/tailgate is locked again after
closing.
Before and after each trip, check that the lug-
gage compartment lid/tailgate has not been
inadvertently unlocked.<
Panic mode*
You can also trigger the alarm system* if you
find yourself in a dangerous situation:
Press the button for at least 3 seconds.
To switch off the alarm: press any button.
Malfunctions
The remote control may malfunction due to
local radio waves. If this occurs, unlock and lock
the car at the door lock or luggage compart-
ment lid/tailgate lock with the key.
If the car can no longer be locked with a remote
control, the battery in the remote control is dis-
charged. Use this remote control key while driv-
ing for an extended period in order to recharge
the battery, refer to page18.
For US owners only
The transmitter and receiver units comply with
part 15 of the FCC/Federal Communications
Commission regulations. Operation is gov-
erned by the following:
FCC ID:
LX8EWS
LX8FZVS
LX8FZVE
Compliance statement:
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
>This device may not cause harmful interfer-
ence, and
>this device must accept any interference
received, including interference that may
cause undesired operation.Any unauthorized modifications or
changes to these devices could void the
user’s authority to operate this equipment.<
At the door lock
1.Turn the key.
The driver's door and fuel filler door are
unlocked.
2.Turn the key again.
The entire vehicle is unlocked.
When the vehicle is locked, the hazard warning
flashers light up once.
If you wish, you can have these special
features activated/deactivated.<
Convenience operation
You can also operate the windows and the
Roadster's fully automatic convertible top
* via
the door lock.
Hold the key in the position for unlocking or
locking.
Watch the closing process to ensure that
no one is trapped. Releasing the key
stops the operation.<
Manual operation
If there is a malfunction, you can unlock or lock
the driver's door by turning the key in the lock all
the way to the left or right.

Reference
At a glance
Controls
Driving tips
Mobility
21
Opening and closing:
from inside
This button serves to unlock or lock doors and
the luggage compartment lid/tailgate when the
doors are closed, but does not activate the anti-
theft system. The fuel filler door remains
unlocked.
If only the driver's door was unlocked from the
outside and you press the button, then, with the
driver's door still open, the luggage compart-
ment lid/tailgate and the fuel filler door will
unlock, too. If the driver's door is closed, it will
be locked.
If you prefer, the central locking system is
activated automatically as soon as you
begin to drive. You can have the corresponding
adjustment made for each key specifically.<
Unlocking and opening
>Either unlock the doors together using the
button for the central locking system and
then pull the door handle above the armrest
or
>pull the release handle for each door twice:
the initial pull unlocks the door, and the sec-
ond one opens it.
Locking
>Either use the central locking button to lock
both doors simultaneously, or
>press down the safety lock button of a door.
To prevent you from being locked out, the
open driver's door cannot be locked using
the lock button.
Persons or animals in the vehicle could
lock the doors from the inside. You should therefore take the key with you when leaving
the vehicle so that the car can be opened from
the outside.<
Coupe: tailgate
The tailgate swings upward and towards
the rear when it is opened. Make sure that
it has enough clearance.<
Opening from inside the vehicle
If the tailgate has not been locked separately,
you can open it with this button in the footwell
on the driver's side when the vehicle is station-
ary.
Opening from the outside
Press the top half of the BMW emblem or press
the button on the remote control for approx.
1 second:
The tailgate will open.

Opening and closing
22

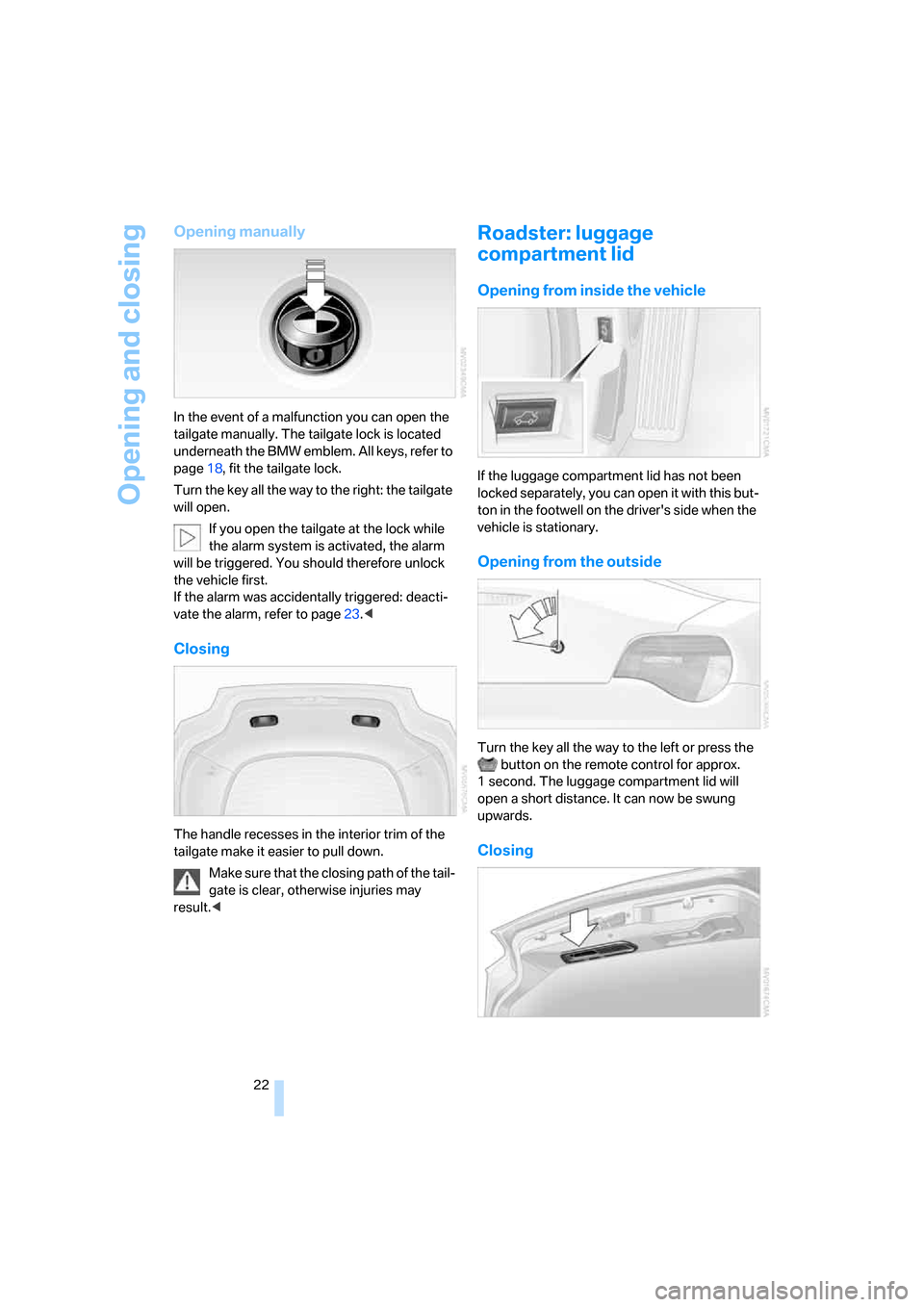

Opening manually
In the event of a malfunction you can open the
tailgate manually. The tailgate lock is located
underneath the BMW emblem. All keys, refer to
page18, fit the tailgate lock.
Turn the key all the way to the right: the tailgate
will open.
If you open the tailgate at the lock while
the alarm system is activated, the alarm
will be triggered. You should therefore unlock
the vehicle first.
If the alarm was accidentally triggered: deacti-
vate the alarm, refer to page23.<
Closing
The handle recesses in the interior trim of the
tailgate make it easier to pull down.
Make sure that the closing path of the tail-
gate is clear, otherwise injuries may
result.<
Roadster: luggage
compartment lid
Opening from inside the vehicle
If the luggage compartment lid has not been
locked separately, you can open it with this but-
ton in the footwell on the driver's side when the
vehicle is stationary.
Opening from the outside
Turn the key all the way to the left or press the
button on the remote control for approx.
1 second. The luggage compartment lid will
open a short distance. It can now be swung
upwards.
Closing

Opening and closing

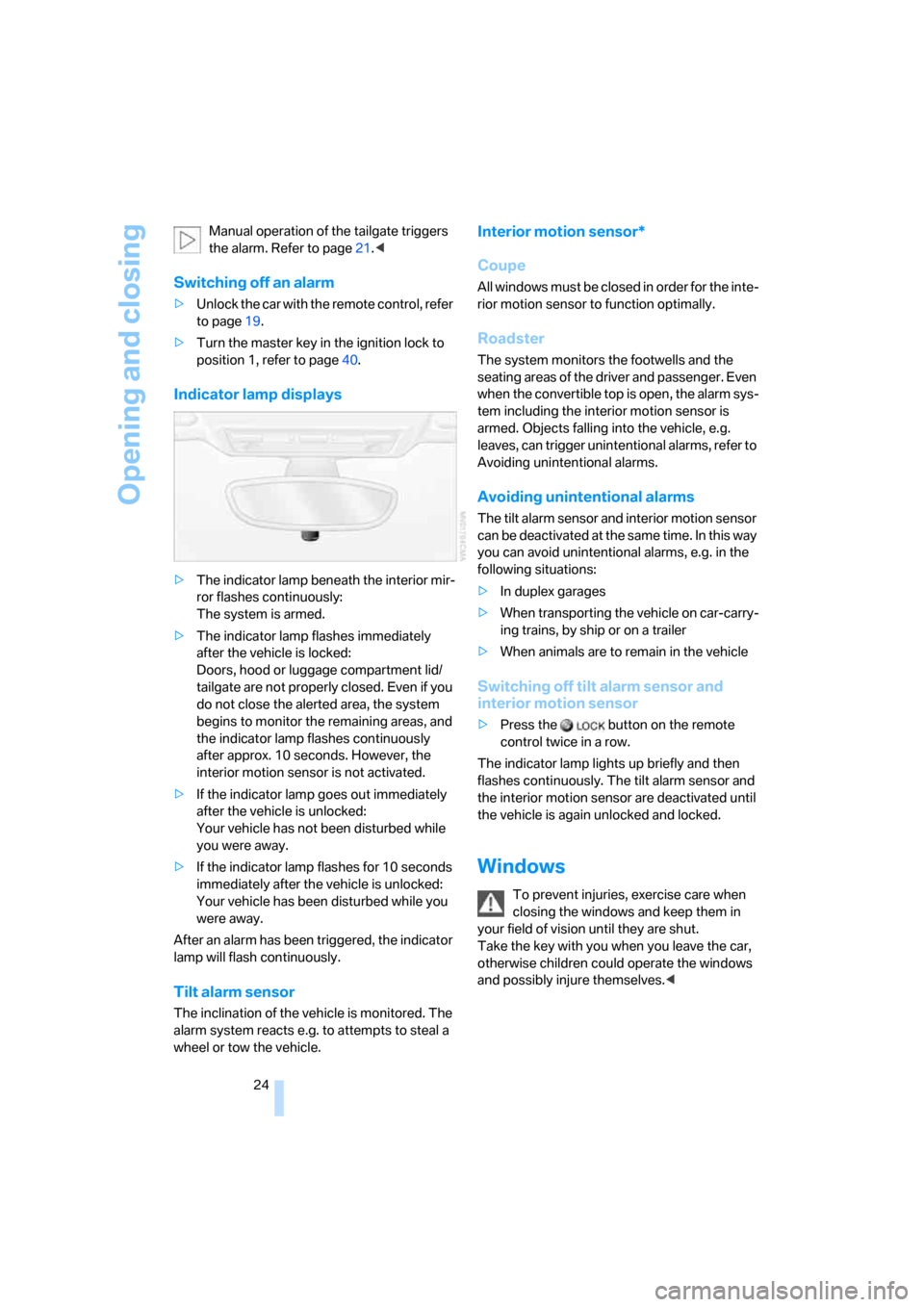

24 Manual operation of the tailgate triggers
the alarm. Refer to page21.<
Switching off an alarm
>Unlock the car with the remote control, refer
to page19.
>Turn the master key in the ignition lock to
position 1, refer to page40.
Indicator lamp displays
>The indicator lamp beneath the interior mir-
ror flashes continuously:
The system is armed.
>The indicator lamp flashes immediately
after the vehicle is locked:
Doors, hood or luggage compartment lid/
tailgate are not properly closed. Even if you
do not close the alerted area, the system
begins to monitor the remaining areas, and
the indicator lamp flashes continuously
after approx. 10 seconds. However, the
interior motion sensor is not activated.
>If the indicator lamp goes out immediately
after the vehicle is unlocked:
Your vehicle has not been disturbed while
you were away.
>If the indicator lamp flashes for 10 seconds
immediately after the vehicle is unlocked:
Your vehicle has been disturbed while you
were away.
After an alarm has been triggered, the indicator
lamp will flash continuously.
Tilt alarm sensor
The inclination of the vehicle is monitored. The
alarm system reacts e.g. to attempts to steal a
wheel or tow the vehicle.
Interior motion sensor*
Coupe
All windows must be closed in order for the inte-
rior motion sensor to function optimally.
Roadster
The system monitors the footwells and the
seating areas of the driver and passenger. Even
when the convertible top is open, the alarm sys-
tem including the interior motion sensor is
armed. Objects falling into the vehicle, e.g.
leaves, can trigger unintentional alarms, refer to
Avoiding unintentional alarms.
Avoiding unintentional alarms
The tilt alarm sensor and interior motion sensor
can be deactivated at the same time. In this way
you can avoid unintentional alarms, e.g. in the
following situations:
>In duplex garages
>When transporting the vehicle on car-carry-
ing trains, by ship or on a trailer
>When animals are to remain in the vehicle
Switching off tilt alarm sensor and
interior motion sensor
>Press the button on the remote
control twice in a row.
The indicator lamp lights up briefly and then
flashes continuously. The tilt alarm sensor and
the interior motion sensor are deactivated until
the vehicle is again unlocked and locked.
Windows
To prevent injuries, exercise care when
closing the windows and keep them in
your field of vision until they are shut.
Take the key with you when you leave the car,
otherwise children could operate the windows
and possibly injure themselves.<

Reference
At a glance
Controls
Driving tips
Mobility
25
Opening, closing
Ignition key in position 1 or higher:
>Press the switch downward to the resis-
tance point.
The window continues to open as long as
you press the switch.
>Press the switch beyond the resistance
point.
The window opens automatically. Press the
switch again to stop the opening move-
ment.
You can close the window in the same manner
by pulling the switch upward.
If you wish, you can have this special fea-
ture activated/deactivated.<
After switching off the ignition
You can still open or close the windows for
approx. 1 minute, as long as no one opens any
of the doors.
For convenience operation via the remote con-
trol or the door lock, refer to page19 or20,
respectively.
Pinch protection system
If the closing force exceeds a certain value while
a window is being raised, the system responds
by stopping the window and then retracting it a
short distance.
Despite the pinch protection system
check and clear the window's travel path
prior to closing it, otherwise the safety system
might fail to detect certain kinds of obstruc-
tions, such as thin objects, and the window
would continue closing.
Do not install any accessories within the win-dows' range of movement; otherwise the pinch
protection system could be impaired.<
The closing force can change as a result
of extreme temperature fluctuations. The
window then opens slightly after closing even if
there is no obstacle within the window's travel
path. If this occurs, override the pinch protec-
tion system.<
Pulling the switch beyond the resistance point
and holding it there overrides and deactivates
the pinch protection system.
After a power supply interruption
After a power supply interruption, for instance
after disconnecting the battery, the pinch pro-
tection system must be reinitialized.
Roadster: when the convertible top has
been stored in the convertible top com-
partment for an extended period of time, e.g. in
the winter months because the hardtop was
being used, it may also be necessary to reinitial-
ize the pinch protection system.<
Ensure that the doors and the Roadster's con-
vertible top are closed before initializing.
1.Open the window completely.
2.Press the switch 4 times within approx.
10 seconds.
Afterward, perform the following procedure
twice for each window:
1.Close the window completely by pulling the
switch.
2.After the window is closed, keep pulling the
switch for approx. 2 seconds.
3.Open the window completely by pressing
the switch.
Roadster: manual convertible
top
The fabric top offers perfect protection against
the weather and can be opened easily and
quickly by one person alone.
Here are a few tips so that you get the most out
of your BMW:

Reference
At a glance
Controls
Driving tips
Mobility
27

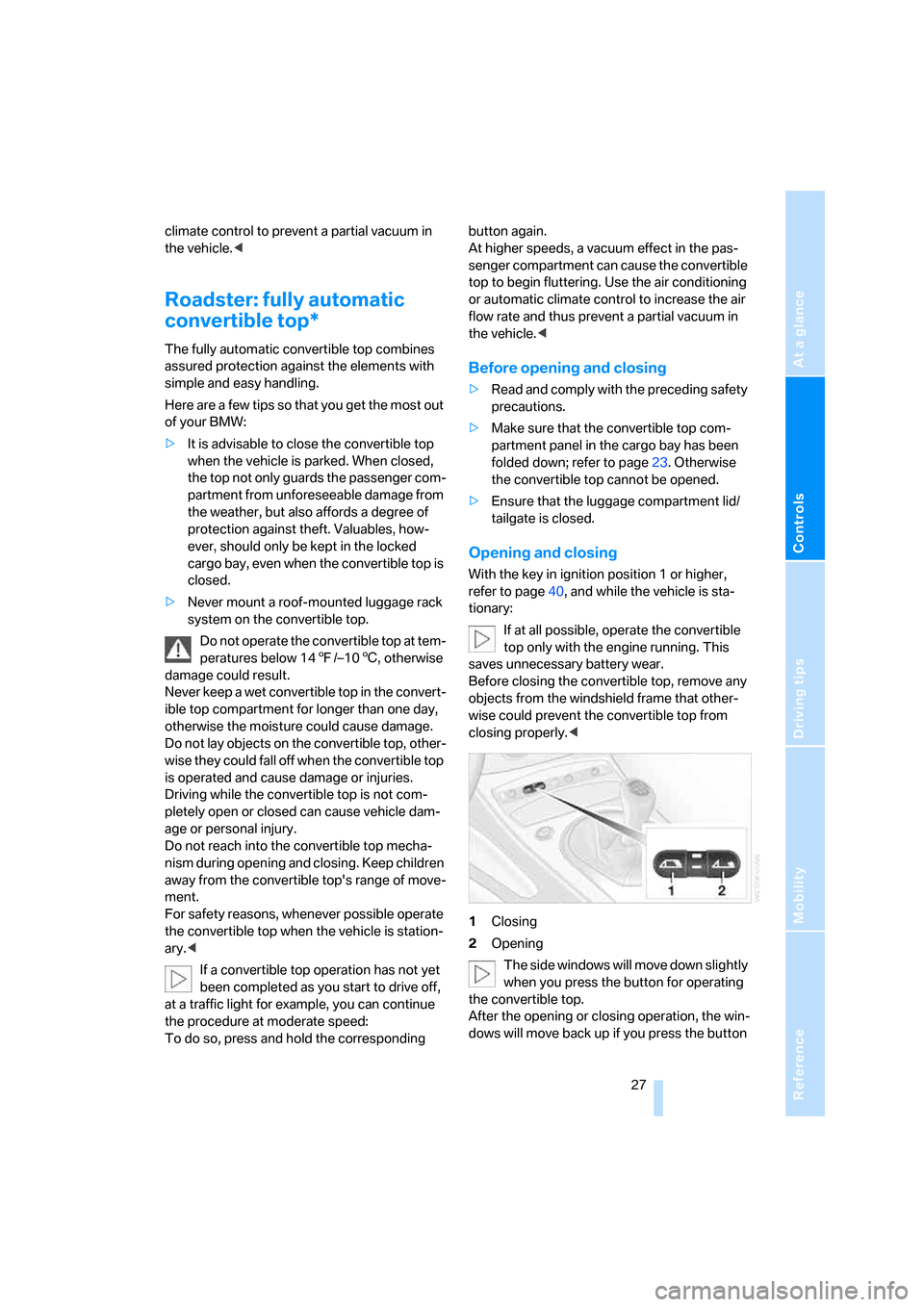

climate control to prevent a partial vacuum in
the vehicle.<
Roadster: fully automatic
convertible top*
The fully automatic convertible top combines
assured protection against the elements with
simple and easy handling.
Here are a few tips so that you get the most out
of your BMW:
>It is advisable to close the convertible top
when the vehicle is parked. When closed,
the top not only guards the passenger com-
partment from unforeseeable damage from
the weather, but also affords a degree of
protection against theft. Valuables, how-
ever, should only be kept in the locked
cargo bay, even when the convertible top is
closed.
>Never mount a roof-mounted luggage rack
system on the convertible top.
Do not operate the convertible top at tem-
peratures below 147/–106, otherwise
damage could result.
Never keep a wet convertible top in the convert-
ible top compartment for longer than one day,
otherwise the moisture could cause damage.
Do not lay objects on the convertible top, other-
wise they could fall off when the convertible top
is operated and cause damage or injuries.
Driving while the convertible top is not com-
pletely open or closed can cause vehicle dam-
age or personal injury.
Do not reach into the convertible top mecha-
nism during opening and closing. Keep children
away from the convertible top's range of move-
ment.
For safety reasons, whenever possible operate
the convertible top when the vehicle is station-
ary.<
If a convertible top operation has not yet
been completed as you start to drive off,
at a traffic light for example, you can continue
the procedure at moderate speed:
To do so, press and hold the corresponding button again.
At higher speeds, a vacuum effect in the pas-
senger compartment can cause the convertible
top to begin fluttering. Use the air conditioning
or automatic climate control to increase the air
flow rate and thus prevent a partial vacuum in
the vehicle.<
Before opening and closing
>Read and comply with the preceding safety
precautions.
>Make sure that the convertible top com-
partment panel in the cargo bay has been
folded down; refer to page23. Otherwise
the convertible top cannot be opened.
>Ensure that the luggage compartment lid/
tailgate is closed.
Opening and closing
With the key in ignition position 1 or higher,
refer to page40, and while the vehicle is sta-
tionary:
If at all possible, operate the convertible
top only with the engine running. This
saves unnecessary battery wear.
Before closing the convertible top, remove any
objects from the windshield frame that other-
wise could prevent the convertible top from
closing properly.<
1Closing
2Opening
The side windows will move down slightly
when you press the button for operating
the convertible top.
After the opening or closing operation, the win-
dows will move back up if you press the button
