BMW recommends that you check engine oil
level whenever fuel is added to your vehicle.
– Inspection I: Major vehicle maintenance as specified in the following pages under Inspec-
tion I.
– Inspection II: Additional major vehicle mainte- nance as specified in the following pages under
Inspection II.
The following maintenance elements must be
performed at the mileage/time stated (time inter-
vals begin from the vehicle’s production date):
– Brake Fluid Service: Change brake fluid every two years.
– Oxygen Sensor Service: The oxygen sensor deteriorates strictly on a mileage basis and
must therefore be replaced every 100,000
miles to maximize vehicle fuel economy and
minimize exhaust pollution. The replacement of
the oxygen sensor is required under the terms
of the applicable BMW emission system war-
ranties.
– Spark Plug Service: Replace spark plugs at every Inspection 2.
The engine coolant has a lifetime rating and does
not need to be changed.
For your convenience, you may also wish to have
your BMW center perform any necessary opera-
tions to fulfill any state inspection requirements
in your area concurrent with the maintenance
elements specified above during other repairs.
Make sure that confirmation of maintenance
work is always entered in this Service and War-
ranty Information Statement. You may need this
for any warranty claims that become necessary,
and later on as evidence that your car has been
given the correct and regular maintenance that
justifies its resale or trade-in value.
BMW has applied the most modern technologi-
cal advances not only to the design and produc-
tion of your vehicle, but also to computing of the
optimum maintenance interval for your type of
operations and driving style. Your BMW center
has made a substantial investment in unique
BMW special service tools to enable his BMW
factory trained service technicians to perform
quality repairs on your BMW in minimal time. He/she looks forward to serving your every ser-
vice need and to help maximize your satisfaction
with your BMW, its longevity, and resale value.
Quality Certification I
For a detailed list of items inspected, refer to the
Quality Certification I form provided to the Owner
at time of delivery. A copy of the form is on file at
the selling BMW center.
Confirmation Stamp For 1200
Mile Service
The engine in your BMW M Coupe and Roadster
is a race-bred engine design which includes
increased power output and maximum engine
speeds compared to conventional BMW Z4
engines. The increased power output also affects
other major drivetrain components such as the
transmission and the rear axle differential. The
1200 Mile Service requires changing the oil in
the engine and both the transmission and the
differential.
3

Inspection II
Includes all items listed under Inspection I, and the following checks and maintenance operations.
Engine Compartment M Coupe, Roadster
Replace air cleaner element. (Note: Reduce replacement interval in dusty
operating conditions). •
Replace spark plugs. •
Undercarriage
Replace transmission fluid. •
Replace differential oil. •
Brake Fluid Service
Replace brake fluid every 2 years (time interval begins from the vehicle’s
production date). •
Oxygen Sensor Service
Replace Oxygen Sensor every 100,000 miles.
•
M-Mobility System Service
Replace sealant cartridge every 4 years. •
8

Speedometer
(Odometer Memory)
changed:
MileageDate
Record of Spark Plug Replacement
(Every Inspection 2) Record of Oxygen
Sensor replacement
(Every 100,000 Miles) Record of
brake/clutch fluid changes
(Every 2 years) Record of
M—Mobility
System Sealant
cartridge changes (Every 4 years)
Date Mileage Date Mileage Date Mileage
Speedometer
(Odometer Memory)
changed:
Mileage
Date
9

Emission Control Maintenance Schedule BMW M Coupe and Roadster
The maintenance schedule as shown is required
for the proper functioning of the emission control
systems for optimum vehicle performance and
fuel economy.
Abbreviations:
I - Inspect
R - Replace part(s) and/or fluid listed
Basic Engine
Engine oil ........................
Engine oil filter .....................
Fuel System
Air filter ..........................
Ignition System
Spark plugs .......................
Emission Control Components
Oxygen sensor .....................
BMW M Coupe,
Roadster
Oil Service
Inspection I
Oil Service
Inspection II
R
R R
R R
R R
R
R
R
Replace at intervals of 100,000 miles
Oxygen Sensor Service: The oxygen sensor deteriorates strictly on a mileage basis and must therefore
be replaced to maximize vehicle fuel economy and minimize exhaust pollution.
The mileage interval varies according to individual driving conditions and is determined by the service
interval indicator.
13

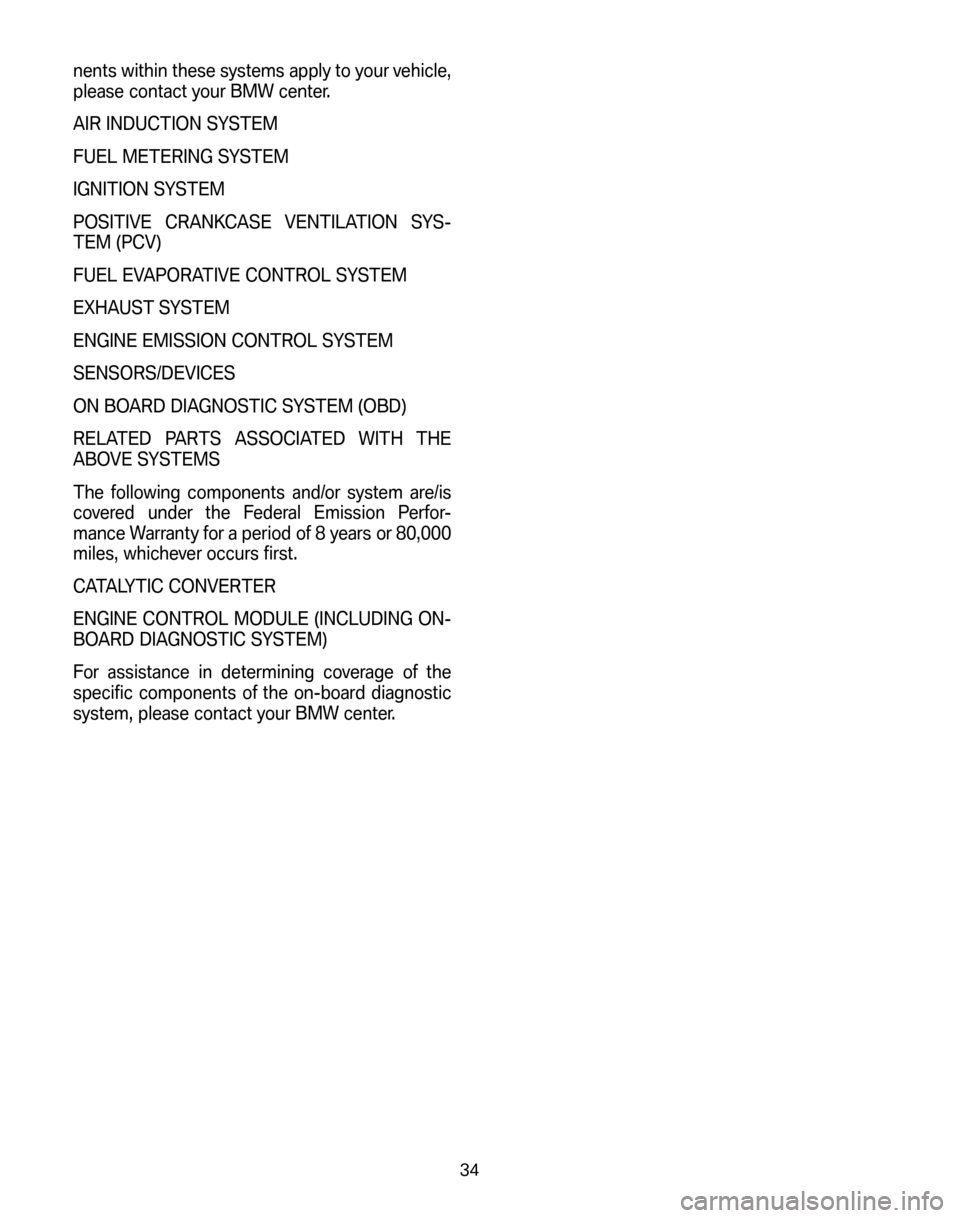

nents within these systems apply to your vehicle,
please contact your BMW center.
AIR INDUCTION SYSTEM
FUEL METERING SYSTEM
IGNITION SYSTEM
POSITIVE CRANKCASE VENTILATION SYS-
TEM (PCV)
FUEL EVAPORATIVE CONTROL SYSTEM
EXHAUST SYSTEM
ENGINE EMISSION CONTROL SYSTEM
SENSORS/DEVICES
ON BOARD DIAGNOSTIC SYSTEM (OBD)
RELATED PARTS ASSOCIATED WITH THE
ABOVE SYSTEMS
The following components and/or system are/is
covered under the Federal Emission Perfor-
mance Warranty for a period of 8 years or 80,000
miles, whichever occurs first.
CATALYTIC CONVERTER
ENGINE CONTROL MODULE (INCLUDING ON-
BOARD DIAGNOSTIC SYSTEM)
For assistance in determining coverage of the
specific components of the on-board diagnostic
system, please contact your BMW center.
34

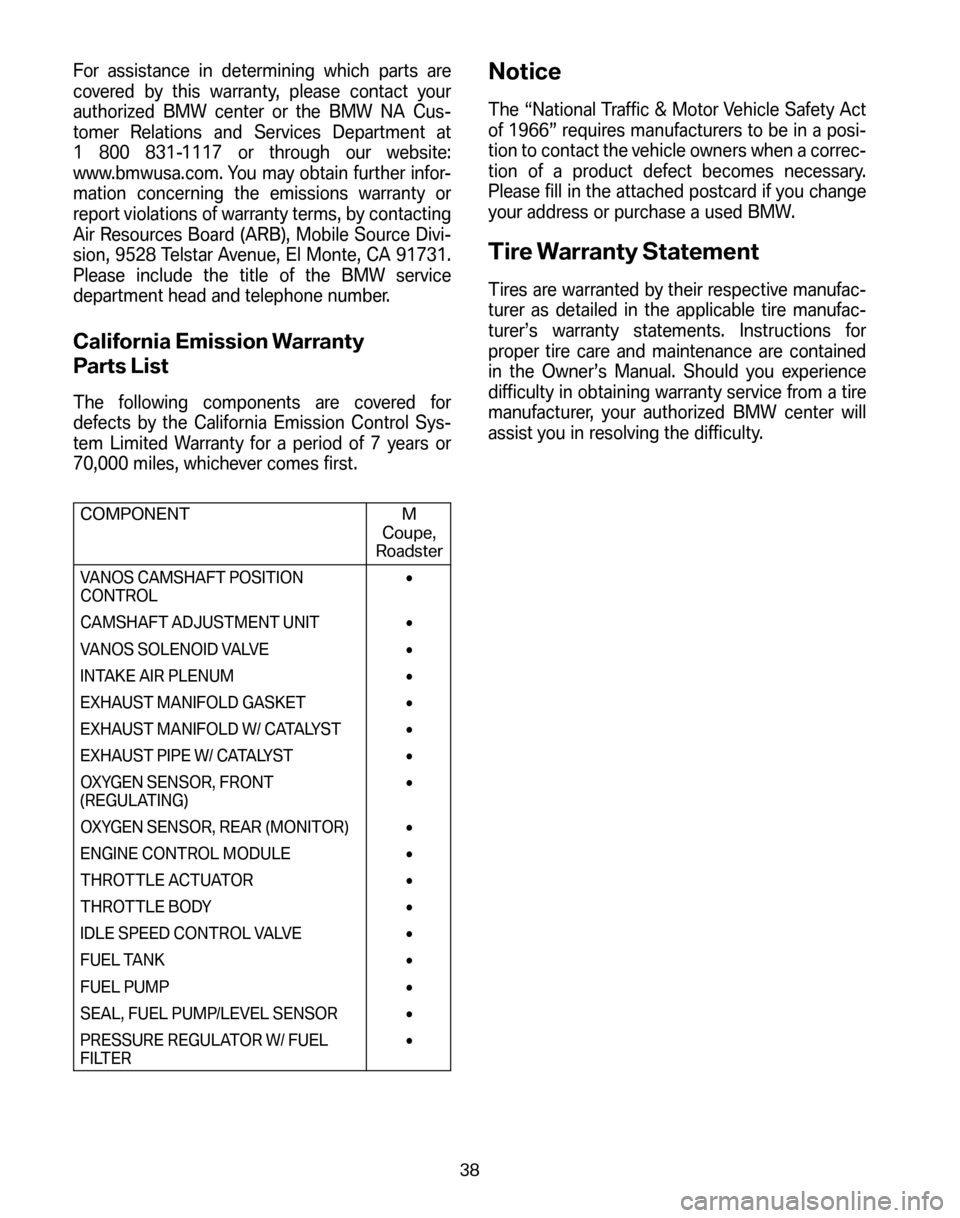

For assistance in determining which parts are
covered by this warranty, please contact your
authorized BMW center or the BMW NA Cus-
tomer Relations and Services Department at
1 800 831-1117 or through our website:
www.bmwusa.com. You may obtain further infor-
mation concerning the emissions warranty or
report violations of warranty terms, by contacting
Air Resources Board (ARB), Mobile Source Divi-
sion, 9528 Telstar Avenue, El Monte, CA 91731.
Please include the title of the BMW service
department head and telephone number.
California Emission Warranty
Parts List
The following components are covered for
defects by the California Emission Control Sys-
tem Limited Warranty for a period of 7 years or
70,000 miles, whichever comes first.
COMPONENT M Coupe,
Roadster
VANOS CAMSHAFT POSITION
CONTROL •
CAMSHAFT ADJUSTMENT UNIT •
VANOS SOLENOID VALVE •
INTAKE AIR PLENUM •
EXHAUST MANIFOLD GASKET •
EXHAUST MANIFOLD W/ CATALYST •
EXHAUST PIPE W/ CATALYST •
OXYGEN SENSOR, FRONT
(REGULATING) •
OXYGEN SENSOR, REAR (MONITOR) •
ENGINE CONTROL MODULE •
THROTTLE ACTUATOR •
THROTTLE BODY •
IDLE SPEED CONTROL VALVE •
FUEL TANK •
FUEL PUMP •
SEAL, FUEL PUMP/LEVEL SENSOR •
PRESSURE REGULATOR W/ FUEL
FILTER •
Notice
The “National Traffic & Motor Vehicle Safety Act
of 1966” requires manufacturers to be in a posi-
tion to contact the vehicle owners when a correc-
tion of a product defect becomes necessary.
Please fill in the attached postcard if you change
your address or purchase a used BMW.
Tire Warranty Statement
Tires are warranted by their respective manufac-
turer as detailed in the applicable tire manufac-
turer’s warranty statements. Instructions for
proper tire care and maintenance are contained
in the Owner’s Manual. Should you experience
difficulty in obtaining warranty service from a tire
manufacturer, your authorized BMW center will
assist you in resolving the difficulty.
