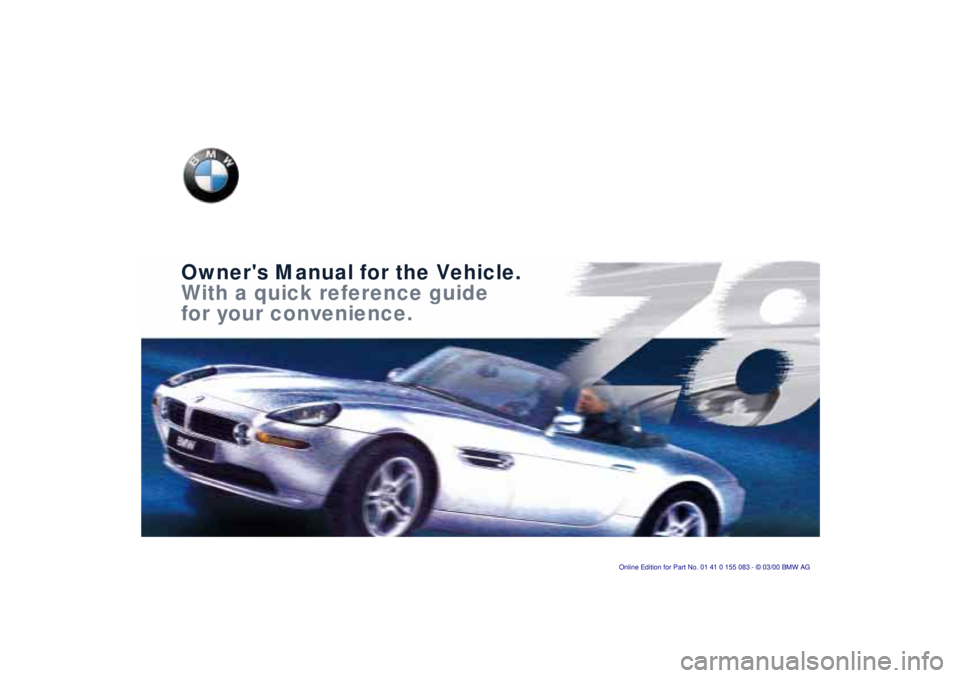

engine BMW Z8 2000 Owners Manual

Contents

Overview
Controls and features

Cockpit14
Instrument cluster16
Indicator and warning lamps18
Hazard warning flashers22
Warning triangle22
First-aid kit22
Refueling23
Fuel quality24
Tire inflation pressure24

Locks and security systems:

Keys28
Electronic vehicle
immobilizer29
Central locking system30
Opening and closing Ð from
outside30
Using the key30
Using the remote control31
Opening and closing Ð from
inside34
Luggage compartment lid35
Alarm system36
Electric power windows38
The automatic convertible
top39

Adjustments:

Seats43
Steering wheel45
Mirrors45
Car Memory, Key Memory46

Passenger safety systems:

Safety belts48
Airbags49
Child restraints51
Child seat safety52

Driving:

Steering/Ignition lock53
Starting the engine54
Turning the engine off54
Parking brake55
Manual transmission56
Turn signal indicator/Headlamp
flasher56
Wiper/Washer system57
Rear window defroster58
Cruise control59

Everything under control:

Odometer60
Tachometer60
Fuel gauge60
Coolant temperature gauge61
Service Interval Display61
Clock62
Multi-Information Radio (MIR)62

Technology for safety and
driving convenience:

Dynamic Stability Control
(DSC)63
Dynamic Driving Control64
Tire Pressure Warning (RDW)65

Contents

9n

Controls and features
Operation, care and maintenance

Lamps:

Side lamps/Low beams67
Instrument lighting67
High beams/Parking lamps68
Rear foglamp68
Interior lamps68
Reading lamps69

Controlling the climate for
pleasant driving:

Heating and ventilation/
Air conditioning70
Seat heating75

Interior conveniences:

Glove compartment76
Storage compartments76
Beverage can holder78
Cellular phone79
Ashtray79
Cigarette lighter80

Loading and transporting:

Cargo loading81

Special operating instructions:

Break-in procedures84
Driving notes85
Catalytic converter85
Antilock Brake System (ABS)86
Dynamic Brake Control
(DBC)88
Disc brakes88
Brake system89
Winter operation90
Power steering92
Cellular phone92
Radio reception92
Wind protection93
Hardtop94

Wheels and tires:

Tire inflation pressure96
Tire condition97
Tire replacement98
Tire rotation100
Wheel and tire
combinations101
Winter tires102
Snow chains102
Approved wheel and tire
specifications103

Under the hood:

Hood104
Engine compartment106
Washer fluids108
Washer nozzles108
Engine oil109
Coolant111
Brake fluid112
Vehicle Identification
Number113

Maintenance and care:

The BMW Maintenance
System114
Caring for your vehicle115
Airbags121
Storing your vehicle122

Laws and regulations:

Technical modifications123
California Proposition 65
Warning123
OBD interface socket124

Contents

Owner service procedures
Advanced technology
Technical data

Replacement procedures:

Onboard tool kit128
Windshield wiper blades128
Lamps and bulbs129
Changing a wheel135
Battery136
Fuses138

In case of electrical
malfunction:

Fuel filler door140
Luggage compartment lid,
storage compartment140
Passenger-side door141
Closing the convertible top141

Giving and receiving
assistance:

Jump starting143
Towing144Airbags148
Radio reception148
Dynamic Stability Control
(DSC)149
Safety belt tensioner149
Interior rearview mirror with
automatic dimmer150
Xenon lamps151Engine data154
Dimensions155
Weights156
Capacities157
Electrical system158
Drive belts158

17n

IndexDataTechnologyRepairsCar careControlsOverview

Instrument cluster

1 Fuel gauge with indicator lamp for
fuel reserve60
2 Speedometer with indicator and
warning lamps for

>

Dynamic Stability Control
(DSC)20

>

Engine electronics20
3 Instrument lighting67
4 Tachometer60
with indicator and warning lamps
for

>

Battery charge current18

>

Convertible top operation39

>

Tire Pressure Warning (RDW)18

>

Antilock Brake System (ABS)19

>

Parking brake/Brake hydraulic
system/Cornering Brake Control
(CBC)18

>

Service Engine Soon20

>

Engine oil pressure/Engine oil
level18, 19
5 Engine coolant temperature gauge
with "Coolant temperature too high"
warning lamp61
6 Indicator and warning lamps for

>

Rear foglamps20

>

Turn signal indicator right21
7 Clock628 Control knob for

>

Clock62

>

Trip odometer, reset to zero60
9 Indicator and warning lamps for

>

Please fasten safety belts19

>

High beams21

>

Airbags19
10 Indicator for

>

Odometer60

>

Trip odometer60

>

Service Interval61
11 Indicator and warning lamps for

>

Turn signal indicator left21

>

Brake pads20

18n

Indicator and warning lamps

Technology that monitors itself

Many of the systems for your BMW
monitor themselves automatically, both
during engine starts and while you are
driving. Indicator and warning lamps
that are identified by "

l

" are tested for
proper functioning whenever the igni-
tion key is turned. They each light up
once for different periods of time.
If a fault should occur in one of these
systems, the corresponding lamp does
not go out after the engine is started, or
it lights up while the vehicle is moving.
You will see how to react to this below.

Red: stop immediately

Battery charge current
The battery is no longer being
charged. There is a malfunction
in the alternator V-belt or in the charg-
ing circuit of the alternator. Please con-
tact the nearest BMW center.
If the V-belt is defective, do not
continue driving. The engine could
be damaged due to overheating. If the
V-belt is defective, increased steering
effort is also required.

<

Engine oil pressure

l

Stop vehicle and switch off en-
gine immediately. Check the en-
gine oil level and top off as required. If
the oil level is correct, please contact
the nearest BMW center.
Do not continue driving. The en-
gine could be damaged because
of inadequate lubrication.

<



Tire Pressure Warning (RDW)

l

Flashing warning lamp in addi-
tion to an acoustic signal: a tire
failure has occurred. Carefully reduce
speed to less than 50 mph (80 km/h),
thus preventing any hard braking or
steering maneuvers.
For additional information, refer to
page 65.
Brake warning indicator

l

If the lamp comes on when the
parking brake is not engaged,
check the brake fluid level. Before driv-
ing further, be sure to read the notes on
pages 89 and 112.
Brake warning lamp for Cana-
dian models.

19n

IndexDataTechnologyRepairsCar careControlsOverview

Indicator and warning lamps

Red and yellow: continue driving
cautiously

The red brake warning lamp
comes on together with the yel-
low indicator lamps for ABS and
DSC:
The entire ABS, CBC, DSC and
DBC control system has failed.
Continue driving cautiously and
defensively. Avoid full brake
applications. Please have the
system checked by your BMW center
as soon as possible.
For additional information, refer to
pages 63, 86.
Warning lamps for Canadian
models.

Red: an important reminder

Brake warning lamp

l

Comes on when the parking
brake is applied Ð an additional
acoustic signal sounds when starting
off.
For additional information, refer to
page 55.



Brake warning lamp for Cana-
dian models.
Please fasten safety belts

l

Together with an acoustic sig-
nal. Comes on until the safety
belts are fastened.
For additional information on safety
belts, refer to page 48.
Airbags

l



Please have the system in-
spected by your BMW center.
For additional information, refer to
pages 49, 148.

Yellow: check as soon as
possible

Antilock Brake System (ABS)

l

ABS has been deactivated in re-
sponse to system malfunction.
Conventional braking efficiency is avail-
able and unrestricted. Please have the
system inspected by your BMW center.
For additional information, refer to
page 86.
Antilock Brake System (ABS)
warning lamp for Canadian
models.
Engine oil level


Comes on while driving: the oil
level is at the absolute minimum;
refill as soon as possible. Do not drive
more than approx. 30 miles (50 km) until
you add oil.
For additional information, refer to
page 109.
Engine oil level
Comes on after the engine has
been shut off: add engine oil at
your earliest opportunity (when you
stop to refuel).
For additional information, refer to
page 109.

20n

Indicator and warning lamps

Brake pads

l


Have the brake pads checked.
For additional information, refer
to page 89.
Dynamic Brake Control (DBC) l
Malfunction in the DBC system.
Conventional braking efficiency
is available and unrestricted.
For additional information, refer to
page 88.
Warning lamp, Dynamic Brake
Control (DBC) for Canadian
models.
Dynamic Stability Control
(DSC) l
Indicator lamp flashes:
The system is active and governs drive
and braking force.
If the indicator lamp does not go out
after the engine is started, or if it comes
on during normal driving and stays on:
DSC has been switched off or has been
deactivated because of a malfunction.
In the event of a malfunction, have the
system checked by your BMW center.
For additional information, refer to
page 63.
Service Engine Soon l
If the indicator lamp either re-
mains on or comes on intermit-
tently, this indicates a fault in the emis-
sions-related electronic systems.
Although the vehicle remains opera-
tional, you should have the systems
checked by your BMW center at the
earliest possible opportunity.
For additional information, refer to
page 124.
"Service Engine Soon" warning
lamp for Canadian models.
Engine electronics
Malfunction in the engine elec-
tronic control system. The elec-
tronics will permit continued driving at
reduced engine output or engine speed.
Please have the system inspected by
your BMW center.
Yellow: for your information
Rear foglamp
Lights up whenever the rear
foglamp is turned on.
For additional information, refer to
page 68.

23n
IndexDataTechnologyRepairsCar careControlsOverview
Refueling Fuel filler door
Before filling the tank, shut off the
engine. If you do not, fuel cannot
flow into the tank and the "Service
Engine Soon" lamp may come on.<
Press on the lower part of the button
to open (symbol fuel pump).
Unlocking in the event the central lock-
ing system fails, refer to page 140.
When handling fuels, comply with
all of the applicable safety precau-
tions and regulations pertaining to fuels.
Never carry spare fuel containers in your
vehicle. Whether empty or full, these
containers can leak, cause an explosion,
or lead to fire in the event of a collision.<
520de006
Simple and environmentally
friendly
Open the filler cap carefully to
prevent fuel from spraying out.
Fuel spray may cause injury.
Do not top off. Topping off may cause
fuel spillage.<
Keep the filler cap in the bracket
attached to the fuel filler door.
520de007
When refueling, insert the filler nozzle
completely into the filler pipe. Pulling
the nozzle out of the pipe during refuel-
ing
>results in premature pump shutoff
>and will reduce the effect of the vapor
recovery system on the pump.
If the filler nozzle is used correctly, the
fuel tank is full when it shuts off for the
first time.
Tank capacity, refer to page 157.
Close the fuel cap carefully after
refueling until a "click" is heard.
While closing, be sure not to squeeze
the strap which is fastened to the cap.
A loose or missing cap will activate the
Service Engine Soon warning lamp.<

24n
Fuel quality Tire inflation pressure The engine uses lead-free gasoline
only.
Required fuel:
>Premium Unleaded Gasoline,
min. 91 AKI
AKI = Anti Knock Index
Do not use leaded fuels. The use
of leaded fuels will cause perma-
nent damage to the system's oxygen
sensor and the catalytic converter.<
You will find the tire inflation pressures
on the door pillar (visible with door
open).Check tire pressuresAll pressure specifications are stated in
psi (kilopascal) for tires at ambient tem-
perature (refer also to the next page).
Reactivate the Tire Pressure
Warning (RDW) after changing a
tire or a wheel. Refer to page 65.<520de008
Check tire inflation pressures reg-
ularly Ð at least every two weeks
and before beginning a longer trip.
Incorrect tire pressure can lead to tire
damage and accidents.<
Comply with tire approval
specificationsThe inflation pressures in the table
apply to tires made by BMW-approved
manufacturers. Your BMW center is
familiar with these pressures. Higher
pressures may be specified for tires
made by other manufacturers.
You will find a list of approved tire sizes
on page 103.
Your vehicle is equipped with tires that
not only meet US standards, but also
European standards. We recommend
the exclusive use of BMW-approved
tires.

Overview
Controls and features
Operation, care
and maintenance
Owner service procedures
Technical data
Index Advanced technology
27n
IndexDataTechnologyRepairsCar careControlsOverview
Driving:
Steering/Ignition lock53
Starting the engine54
Turning the engine off54
Parking brake55
Manual transmission56
Turn signal indicator/Headlamp
flasher56
Wiper/Washer system57
Rear window defroster58
Cruise control59
Everything under control:
Odometer60
Tachometer60
Fuel gauge60
Coolant temperature gauge61
Service Interval Display61
Clock62
Multi-Information Radio (MIR)62
Technology for safety and
driving convenience:
Dynamic Stability Control
(DSC)63
Dynamic Driving Control64
Tire Pressure Warning (RDW)65Lamps:
Side lamps/Low beams67
Instrument lighting67
High beams/Parking lamps68
Rear foglamp68
Interior lamps68
Reading lamps69
Controlling the climate for
pleasant driving:
Heating and ventilation/
Air conditioning70
Seat heating75
Interior conveniences:
Glove compartment76
Storage compartments76
Beverage can holder78
Cellular phone79
Ashtray79
Cigarette lighter80
Loading and transporting:
Cargo loading81
