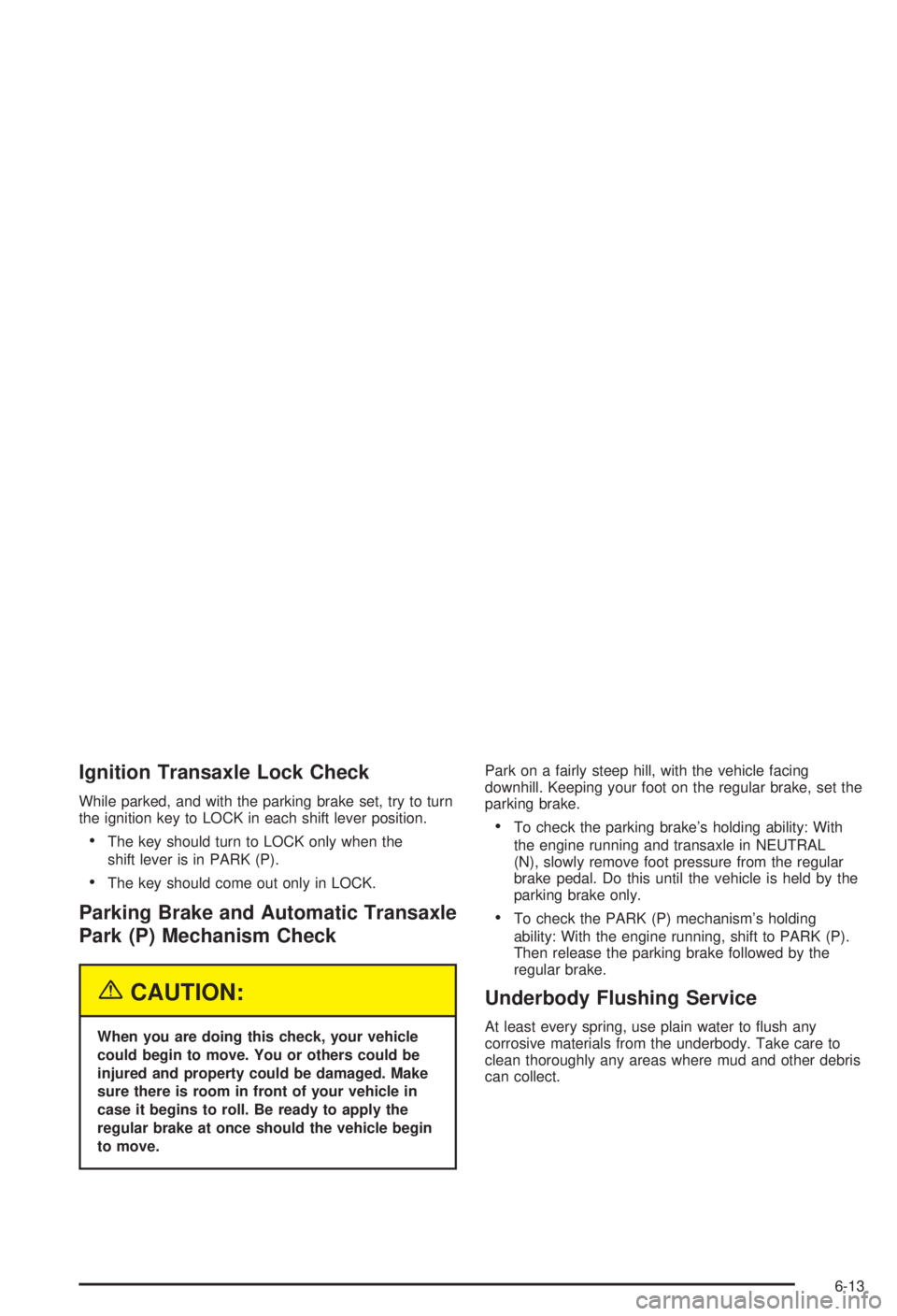

Ignition Transaxle Lock Check
While parked, and with the parking brake set, try to turn
the ignition key to LOCK in each shift lever position.
·The key should turn to LOCK only when the
shift lever is in PARK (P).
·The key should come out only in LOCK.
Parking Brake and Automatic Transaxle
Park (P) Mechanism Check
{CAUTION:
When you are doing this check, your vehicle
could begin to move. You or others could be
injured and property could be damaged. Make
sure there is room in front of your vehicle in
case it begins to roll. Be ready to apply the
regular brake at once should the vehicle begin
to move.Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake, set the
parking brake.
·To check the parking brake's holding ability: With
the engine running and transaxle in NEUTRAL
(N), slowly remove foot pressure from the regular
brake pedal. Do this until the vehicle is held by the
parking brake only.
·To check the PARK (P) mechanism's holding
ability: With the engine running, shift to PARK (P).
Then release the parking brake followed by the
regular brake.
Underbody Flushing Service
At least every spring, use plain water to ¯ush any
corrosive materials from the underbody. Take care to
clean thoroughly any areas where mud and other debris
can collect.
6-13

A
Activating the Theft-Deterrent Feature................3-48
Adding Washer Fluid.......................................5-38
Additional Program Information........................... 7-9
Additives, Fuel................................................. 5-6
Add-On Electrical Equipment............................5-88
Adjusting the Speakers (Balance/Fade)......3-41, 3-44
Air Bag Systems.............................................1-53
How Does an Air Bag Restrain?....................1-59
Servicing Your Air Bag-Equipped Vehicle.........1-62
What Makes an Air Bag In¯ate?....................1-59
What Will You See After an Air Bag In¯ates?......1-60
When Should an Air Bag In¯ate?...................1-58
Where Are the Air Bags?..............................1-56
Air Bag .........................................................3-25
Readiness Light..........................................3-25
Air Cleaner/Filter, Engine.................................5-18
AM-FM Radio.................................................3-40
AM ...............................................................3-50
Antenna, Fixed Mast.......................................3-52
Anti-lock Brake System (ABS)............................ 4-7
Anti-Lock Brake, System Warning Light..............3-28
Appearance Care............................................5-79
Care of Safety Belts....................................5-82
Chemical Paint Spotting...............................5-85
Cleaning the Inside of Your Vehicle................5-79Appearance Care (cont.)
Cleaning the Outside of Your Vehicle..............5-82
Finish Damage............................................5-84
Sheet Metal Damage...................................5-84
Underbody Maintenance...............................5-85
Vehicle Care/Appearance Materials................5-85
Weatherstrips..............................................5-82
Ashtrays........................................................3-16
Audio System(s).............................................3-39
AM-FM Radio.............................................3-40
Audio Steering Wheel Controls......................3-50
Care of Your Cassette Tape Player................3-51
Care of Your CD Player...............................3-52
Care of Your CDs........................................3-52
Fixed Mast Antenna.....................................3-52
Radio with Cassette and CD.........................3-42
Setting the Time..........................................3-39
Theft-Deterrent Feature................................3-48
Understanding Radio Reception.....................3-50
Automatic Transaxle Check..............................6-11
Automatic Transaxle Shift Lock Control System
Check........................................................6-12
Automatic Transaxle........................................5-19
Fluid..........................................................5-19
Operation...................................................2-23
Auxiliary Power Connection (Power Drop)...........3-16
1

B
Backing Up....................................................4-39
Battery Replacement......................................... 2-8
Battery Rundown Protection.............................3-15
Battery..........................................................5-42
Before Leaving on a Long Trip.........................4-23
Body Lubrication Service..................................6-11
Brake Fluid....................................................5-39
Brake Wear...................................................5-41
Brake............................................................2-26
Parking......................................................2-26
System Inspection.......................................6-15
System Warning Light..................................3-27
Brakes..........................................................5-39
Braking in Emergencies..................................... 4-9
Braking........................................................... 4-6
Break-In, New Vehicle.....................................2-19
Bulb Replacement...........................................5-51
Back-Up Lamps...........................................5-55
Center High-Mounted Stoplamp (CHMSL)........5-53
Front Turn Signal and Parking Lamps.............5-52
Halogen Bulbs............................................5-51
Headlamp Aiming........................................5-49
Headlamps.................................................5-51
Replacement Bulbs......................................5-55
Taillamps, Turn Signal, and Stoplamps............5-54
Buying New Tires...........................................5-62
C
California Fuel.................................................. 5-6
Canada ± Customer Assistance.......................... 7-5
Canadian Owners................................................ ii
Canadian Roadside Assistance........................... 7-7
Capacities and Speci®cations............................5-94
Carbon Monoxide...................4-26, 4-35, 2-13, 2-30
Care of.........................................................5-82
Safety Belts................................................5-82
Your Cassette Tape Player............................3-51
Your CD Player...........................................3-52
Your CDs ...................................................3-52
Cassette Tape Messages.................................3-45
Cassette Tape Player Service...........................6-10
Center High-Mounted Stoplamp (CHMSL)...........5-53
Center Passenger Position, Safety Belts.............1-22
Chains, Tires..................................................5-66
Charging System Light....................................3-26
Checking Coolant............................................5-24
Checking Engine Oil........................................5-13
Checking Things Under the Hood......................5-10
Checking Your Restraint Systems......................1-63
Check...........................................................3-31
Engine Light...............................................3-31
Chemical Paint Spotting...................................5-85
Child Restraints..............................................1-36
Child Restraint Systems...............................1-36
2

E
Electrical System............................................5-88
Add-On Equipment......................................5-88
Fuses and Circuit Breakers...........................5-89
Headlamp Wiring.........................................5-88
Power Windows and Other Power Options......5-88
Windshield Wiper Fuses...............................5-88
Emergency Trunk Release Handle.....................2-14
Emissions Inspection and Maintenance
Programs...................................................3-33
Engine Coolant Level Check.............................6-10
Engine Cooling When Trailer Towing..................4-41
Engine Oil Additives........................................5-16
Engine Oil Level Check...................................6-10
Engine Oil Scheduled Maintenance..................... 6-5
Engine..........................................................5-18
Air Cleaner/Filter.........................................5-18
Battery.......................................................5-42
Change Engine Oil Light...............................3-35
Check and Service Engine Soon Light............3-31
Compartment Overview................................5-12
Coolant Heater............................................2-21
Coolant Temperature Gage...........................3-30
Coolant Temperature Warning Light................3-29
Coolant......................................................5-23
Cooling System Inspection............................6-14Engine (cont.)
Exhaust.....................................................2-30
Oil .............................................................5-13
Overheating................................................5-26
Starting......................................................2-20
Enhanced Traction System (ETS)......................4-10
Warning Light.............................................3-28
Entry Lighting.................................................3-14
Express-Down Window....................................2-16
Extender, Safety Belt.......................................1-29
Exterior Lamps...............................................3-11
F
Filter.............................................................5-18
Engine Air Cleaner......................................5-18
Finding a Station....................................3-40, 3-42
Finish Care....................................................5-83
Finish Damage...............................................5-84
Fixed Mast Antenna........................................3-52
Flash-to-Pass................................................... 3-7
Flat Tire, Changing.........................................5-67
Flat Tire........................................................5-66
Fluid.............................................................5-19
Automatic Transaxle.....................................5-19
Power Steering...........................................5-36
Windshield Washer......................................5-38
5

FM ...............................................................3-50
Folding Rear Seat............................................ 1-6
Following Distance..........................................4-39
Footnotes........................................................ 6-5
Fuel............................................................... 5-5
Additives...................................................... 5-6
California Fuel.............................................. 5-6
Filling a Portable Fuel Container..................... 5-9
Filling Your Tank........................................... 5-7
Fuels in Foreign Countries.............................. 5-7
Gage.........................................................3-37
Gasoline Octane........................................... 5-5
Gasoline Speci®cations.................................. 5-5
Low Warning Light.......................................3-38
System Inspection.......................................6-14
Fuses...........................................................5-89
Fuses and Circuit Breakers...........................5-89
Windshield Wiper.........................................5-88
G
Gage............................................................3-30
Engine Coolant Temperature.........................3-30
Fuel..........................................................3-37
Speedometer..............................................3-24
Gasoline......................................................... 5-5
Octane........................................................ 5-5
Speci®cations............................................... 5-5Glove Box.....................................................2-35
GM Mobility Program for Persons with
Disabilities.................................................... 7-6
H
Hazard Warning Flashers................................... 3-3
Head Restraints............................................... 1-5
Headlamp High/Low-Beam Changer.................... 3-6
Headlamp Wiring............................................5-88
Headlamp......................................................5-49
Aiming.......................................................5-49
Headlamps....................................................5-51
Bulb Replacement.......................................5-51
Front Turn Signal and Parking Lamps.............5-52
Halogen Bulbs............................................5-51
Highway Hypnosis...........................................4-24
Hill and Mountain Roads..................................4-24
Hitches..........................................................4-38
Hood............................................................5-10
Checking Things Under................................5-10
Release.....................................................5-11
Horn............................................................... 3-4
How to Add Coolant to the Coolant
Recovery Tank............................................5-31
How to Add Coolant to the Radiator..................5-33
How to Add Fluid............................................5-22
6

How to Check Power Steering Fluid..................5-37
How to Check........................................5-20, 5-58
How to Use This Manual...................................... ii
How to Wear Safety Belts Properly...................1-12
Hydroplaning..................................................4-19
I
If No Steam Is Coming From Your Engine..........5-28
If Steam Is Coming From Your Engine...............5-27
If the Light Is Flashing.....................................3-32
If the Light Is On Steady.................................3-32
If You Are Stuck in Sand, Mud, Ice or Snow.......4-31
If You Do Decide To Pull A Trailer.....................4-36
If You're Caught in a Blizzard...........................4-29
Ignition Positions.............................................2-19
Ignition Transaxle Lock Check..........................6-13
Illumination on Remote Activation........................ 2-8
Infants and Young Children, Restraints...............1-32
In¯ation Ð Tire Pressure.................................5-57
Inspection......................................................6-15
Brake System.............................................6-15
Engine Cooling System................................6-14
Exhaust System..........................................6-14
Fuel System...............................................6-14
Part C - Periodic Maintenance.......................6-14
Steering, Suspension and Front Drive Axle
Boot and Seal.........................................6-14
Throttle System...........................................6-15Inspection (cont.)
Instrument Panel Brightness.............................3-14
Instrument Panel Fuse Block............................5-89
Instrument Panel.............................................3-23
Cluster.......................................................3-23
Overview..................................................... 3-2
Interior Lamps................................................3-14J
Jump Starting.................................................5-43
K
Key Lock Cylinders Service..............................6-11
Keyless Entry System....................................... 2-4
Keys............................................................... 2-2
L
Lamps...........................................................3-11
Exterior......................................................3-11
Interior.......................................................3-14
Lap Belt........................................................1-22
Lap-Shoulder Belt...................................1-13, 1-24
LATCH System...............................................1-42
Child Restraints...........................................1-42
7

LATCH System (cont.)
Securing a Child Restraint Designed for the
LATCH System........................................1-45
Leaving Your Vehicle With the Engine Running . . . 2-28
Leaving Your Vehicle.......................................2-12
Lighted Visor Vanity Mirrors..............................2-16
Light.............................................................3-25
Air Bag Readiness.......................................3-25
Anti-Lock Brake System Warning...................3-28
Brake System Warning.................................3-27
Change Engine Oil......................................3-35
Charging System.........................................3-26
Cruise Control.............................................3-36
Door/Trunk Ajar Warning...............................3-36
Engine Coolant Temperature Warning.............3-29
Enhanced Traction System (ETS) Warning
Light......................................................3-28
Low Fuel Warning.......................................3-38
Low Oil Level.............................................3-35
Low Traction...............................................3-29
Low Washer Fluid Warning...........................3-36
Malfunction Indicator....................................3-31
Oil Pressure...............................................3-34
Safety Belt Reminder...................................3-24
Security.....................................................3-36
Service Vehicle Soon...................................3-37
Tire Pressure..............................................3-30
Loading Your Vehicle.......................................4-33
Lockout Protection..........................................2-12
Locks............................................................2-10Door..........................................................2-10
Leaving Your Vehicle....................................2-12
Lockout Protection.......................................2-12
Power Door................................................2-11
Programmable Automatic Door Locks.............2-11
Loss of Control...............................................4-15
Low Fuel Warning Light...................................3-38
Low Traction Light..........................................3-29
Low Washer Fluid Warning Light.......................3-36
M
Maintenance, Normal Replacement Parts............5-95
Maintenance Schedule.....................................6-10
At Each Fuel Fill.........................................6-10
At Least Once a Month................................6-10
At Least Once a Year..................................6-11
At Least Twice a Year..................................6-11
Brake System Inspection..............................6-15
Engine Cooling System Inspection.................6-14
Exhaust System Inspection...........................6-14
Fuel System Inspection................................6-14
How This Section is Organized....................... 6-3
Introduction.................................................. 6-2
Maintenance Requirements............................. 6-2
Part A - Scheduled Maintenance Services......... 6-4
Part B - Owner Checks and Services.............6-10
Part C - Periodic MaintenanceInspections......6-14
Part D - Recommended Fluids and Lubricants . . . 6-16
8

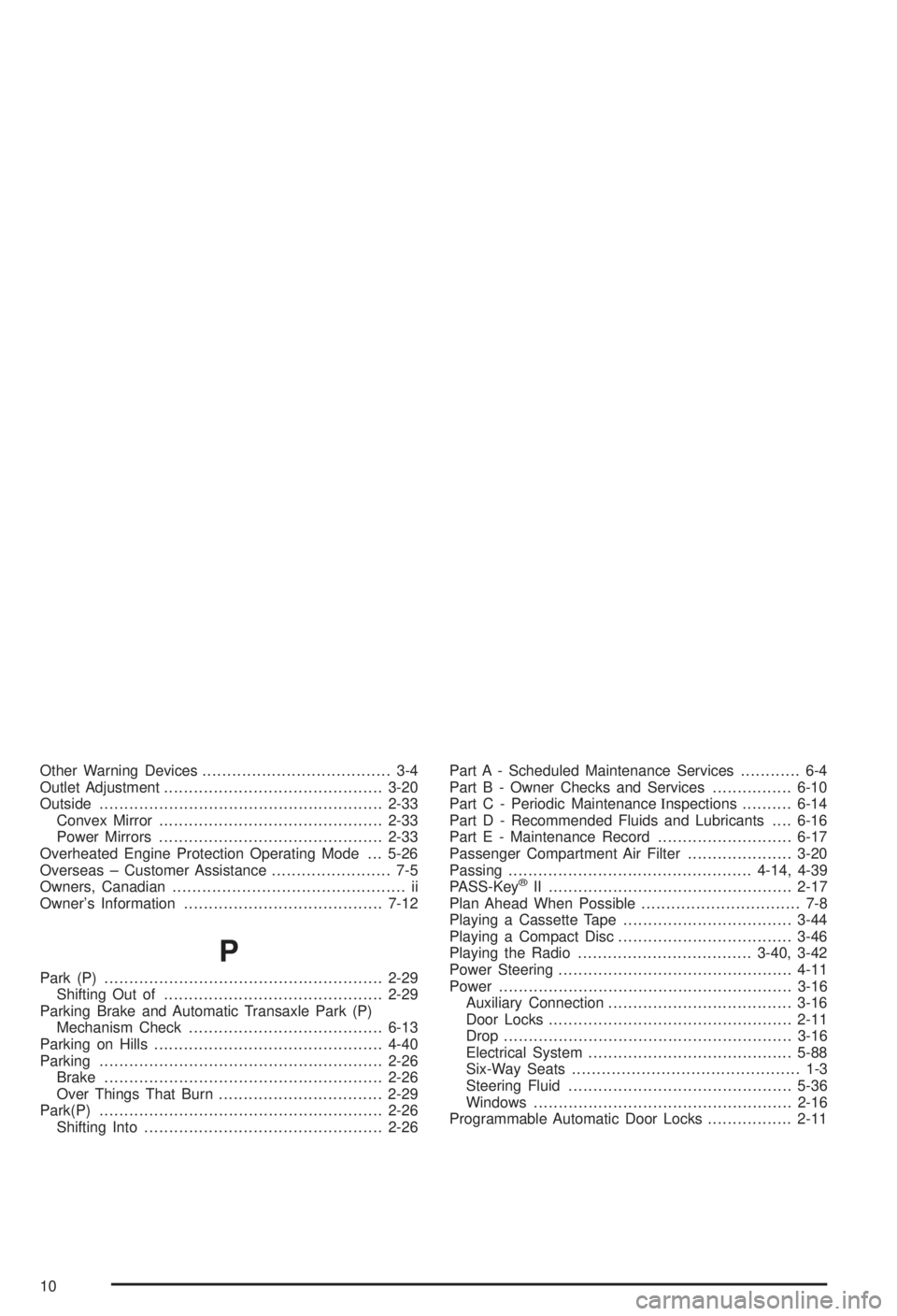

Other Warning Devices...................................... 3-4
Outlet Adjustment............................................3-20
Outside.........................................................2-33
Convex Mirror.............................................2-33
Power Mirrors.............................................2-33
Overheated Engine Protection Operating Mode . . . 5-26
Overseas ± Customer Assistance........................ 7-5
Owners, Canadian............................................... ii
Owner's Information........................................7-12
P
Park (P)........................................................2-29
Shifting Out of............................................2-29
Parking Brake and Automatic Transaxle Park (P)
Mechanism Check.......................................6-13
Parking on Hills..............................................4-40
Parking.........................................................2-26
Brake........................................................2-26
Over Things That Burn.................................2-29
Park(P).........................................................2-26
Shifting Into................................................2-26Part A - Scheduled Maintenance Services............ 6-4
Part B - Owner Checks and Services................6-10
Part C - Periodic MaintenanceInspections..........6-14
Part D - Recommended Fluids and Lubricants....6-16
Part E - Maintenance Record...........................6-17
Passenger Compartment Air Filter.....................3-20
Passing.................................................4-14, 4-39
PASS-Key
žII .................................................2-17
Plan Ahead When Possible................................ 7-8
Playing a Cassette Tape..................................3-44
Playing a Compact Disc...................................3-46
Playing the Radio...................................3-40, 3-42
Power Steering...............................................4-11
Power...........................................................3-16
Auxiliary Connection.....................................3-16
Door Locks.................................................2-11
Drop..........................................................3-16
Electrical System.........................................5-88
Six-Way Seats.............................................. 1-3
Steering Fluid.............................................5-36
Windows....................................................2-16
Programmable Automatic Door Locks.................2-11
10

Q
Questions and Answers About Safety Belts.........1-11
R
Radiator Pressure Cap....................................5-26
Radios..........................................................3-39
AM-FM Radio.............................................3-40
Care of Your Cassette Tape Player................3-51
Care of Your CD Player...............................3-52
Care of Your CDs........................................3-52
Radio with Cassette and CD.........................3-42
Setting the Time..........................................3-39
Theft-Deterrent............................................3-48
Understanding Reception..............................3-50
Reading Lamps..............................................3-15
Rear Safety Belt Comfort Guides......................1-27
Rear Seat Outside Passenger Positions.............1-24
Rear Seat Passengers, Safety Belts..................1-24
Rear Window Defogger....................................3-19
Rearview Mirror with OnStar
ž...........................2-32
Rearview Mirrors.............................................2-32
Reclining Seatbacks.......................................... 1-3
Recreational Vehicle Towing.............................4-32
Remote Keyless Entry System, Operation............ 2-5
Remote Keyless Entry System............................ 2-4Remote Trunk Release....................................2-13
Removing the Flat Tire and Installing
the Spare Tire.............................................5-71
Removing the Spare Tire and Tools...................5-68
Removing the Wheel Center Caps....................5-70
Removing the Wheel Covers............................5-70
Replacement Bulbs.........................................5-55
Replacing Brake System Parts..........................5-42
Replacing Restraint System Parts After a Crash.....1-63
Reporting Safety Defects.................................7-10
Canadian Government..................................7-10
General Motors...........................................7-11
United States Government............................7-10
Restraint System Check...................................6-11
Checking Your Restraint Systems...................1-63
Replacing Restraint System Parts After
a Crash..................................................1-63
Restraint Systems...........................................1-63
Checking....................................................1-63
Replacing Parts...........................................1-63
Resynchronization............................................. 2-9
Retained Accessory Power (RAP)......................2-20
Right Front Passenger Position, Safety Belts......1-21
Roadside......................................................... 7-6
Assistance Program....................................... 7-6
Rocking Your Vehicle To Get It Out...................4-31
Running Your Engine While You Are Parked.......2-31
11

Shifting Out of Park (P)...................................2-29
Shoulder Belt Height Adjuster...........................1-15
Skidding........................................................4-15
Some Other Rainy Weather Tips.......................4-20
Special Fabric Cleaning Problems.....................5-80
Speci®cations, Capacities.................................5-94
Speedometer..................................................3-24
Split Folding Rear Seat..................................... 1-6
Starter Switch Check.......................................6-12
Starting Your Engine.......................................2-20
Steering in Emergencies..................................4-12
Steering, Suspension and Front Drive Axle Boot
and Seal Inspection.....................................6-14
Steering Tips..................................................4-11
Steering Wheel Controls, Audio.........................3-50
Steering........................................................4-11
Storage Areas................................................2-35
Convenience Net.........................................2-35
Glove Box..................................................2-35
Storing the Flat Tire and Tools..........................5-76
Storing the Spare Tire and Tools.......................5-77
Stuck in Sand, Mud, Ice or Snow......................4-31
Sun Visors.....................................................2-16T
Taillamps.......................................................5-54
Turn Signal, and Stoplamps..........................5-54
Theft-Deterrent, Radio.....................................3-48
Theft-Deterrent Systems...................................2-17
PASS-Key
žII ..............................................2-17
Throttle System Inspection...............................6-15
Tilt Wheel........................................................ 3-4
Tire In¯ation Check.........................................6-10
Tire ...............................................................3-30
Pressure Light.............................................3-30
Tires.............................................................5-57
Buying New Tires........................................5-62
Chains.......................................................5-66
Changing a Flat Tire....................................5-67
Compact Spare Tire.....................................5-78
If a Tire Goes Flat.......................................5-66
In¯ation Ð Tire Pressure..............................5-57
Inspection and Rotation................................5-60
Pressure Monitor System..............................5-58
Uniform Tire Quality Grading.........................5-63
Wheel Alignment and Tire Balance.................5-64
13
