keyless entry BUICK CENTURY 2004 Owner's Manual

Keys...............................................................2-2
Remote Keyless Entry System.........................2-4
Remote Keyless Entry System Operation...........2-5

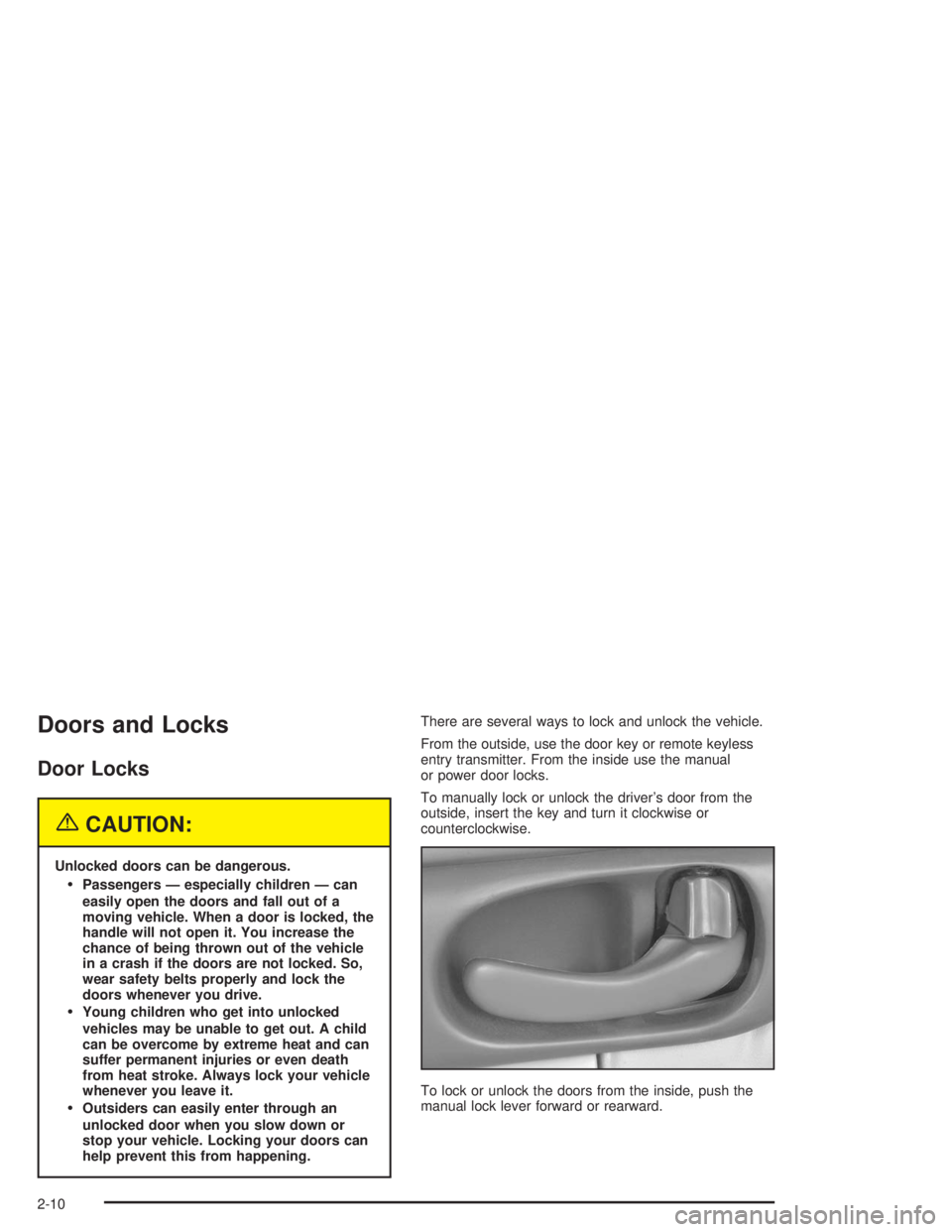

Doors and Locks............................................2-10
Door Locks..................................................2-10
Power Door Locks........................................2-11
Programmable Automatic Door Locks..............2-11
Lockout Protection........................................2-12
Leaving Your Vehicle....................................2-12
Trunk..........................................................2-13
Windows........................................................2-15
Power Windows............................................2-16
Sun Visors...................................................2-17
Theft-Deterrent Systems..................................2-17
PASS-Key
®II ...............................................2-17
Starting and Operating Your Vehicle................2-18
New Vehicle Break-In....................................2-18
Ignition Positions..........................................2-19
Starting Your Engine.....................................2-20
Engine Coolant Heater..................................2-21Automatic Transaxle Operation.......................2-22
Parking Brake..............................................2-25
Shifting Into Park (P).....................................2-26
Shifting Out of Park (P).................................2-28
Parking Over Things That Burn.......................2-29
Engine Exhaust............................................2-29
Running Your Engine While You Are
Parked.....................................................2-30
Mirrors...........................................................2-31
Manual Rearview Mirror.................................2-31
Manual Rearview Mirror with OnStar
®..............2-31
Outside Power Mirrors...................................2-32
Outside Convex Mirror...................................2-32
OnStar
®System.............................................2-33
Storage Areas................................................2-34
Glove Box...................................................2-34
Front Storage Area.......................................2-34
Center Console Storage Area.........................2-35
Convenience Net..........................................2-35
Sunroof.........................................................2-36
Section 2 Features and Controls
2-1

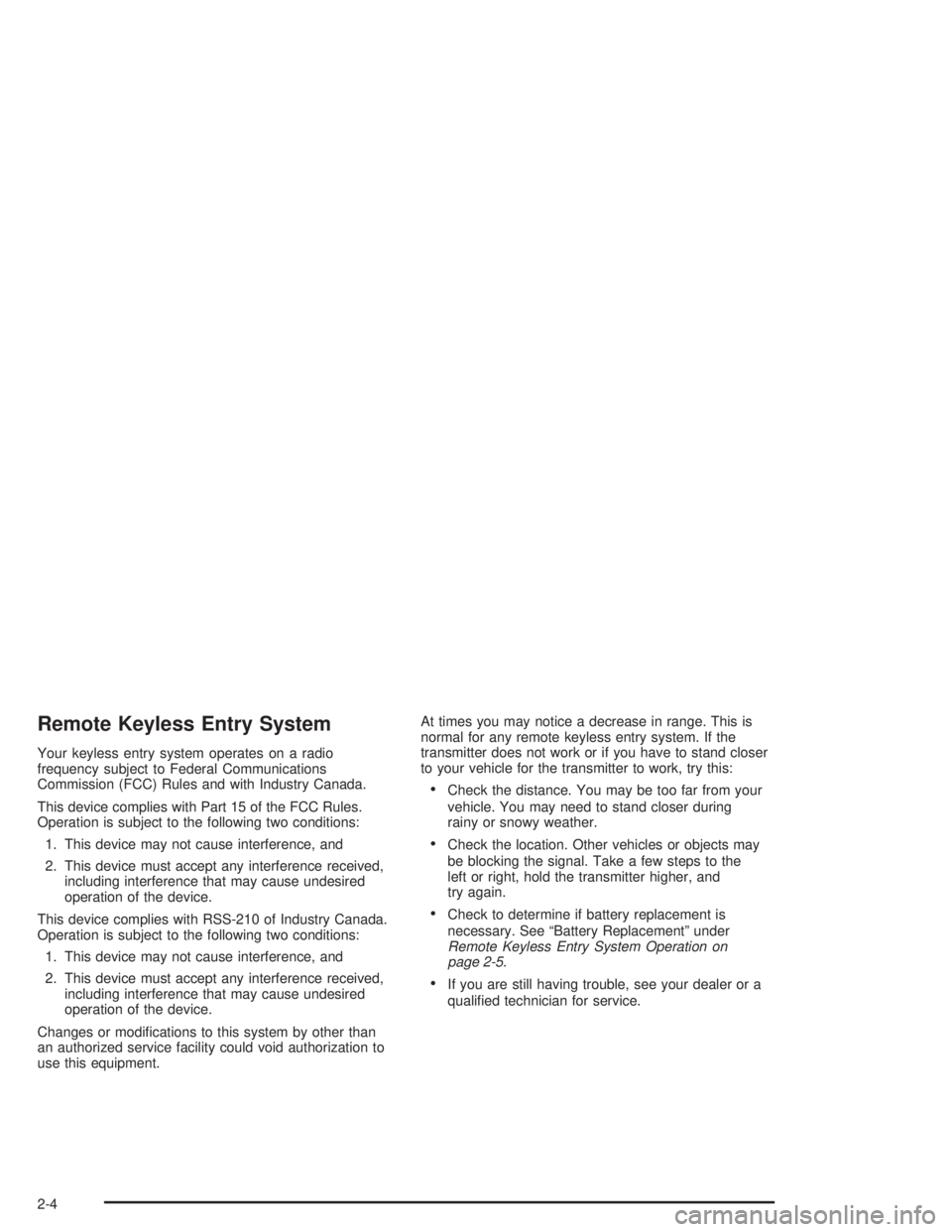

Remote Keyless Entry System
Your keyless entry system operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modications to this system by other than
an authorized service facility could void authorization to
use this equipment.At times you may notice a decrease in range. This is
normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:
Check the distance. You may be too far from your
vehicle. You may need to stand closer during
rainy or snowy weather.
Check the location. Other vehicles or objects may
be blocking the signal. Take a few steps to the
left or right, hold the transmitter higher, and
try again.
Check to determine if battery replacement is
necessary. See “Battery Replacement” under
Remote Keyless Entry System Operation on
page 2-5.
If you are still having trouble, see your dealer or a
qualied technician for service.
2-4

Remote Keyless Entry System
Operation
The remote keyless entry transmitter lets you lock and
unlock the vehicle’s doors or release its trunk lid
from about 3 feet (1 m) and up to 30 feet (9 m) away.
LOCK:Press the LOCK
button to lock all the doors.UNLOCK:Press the UNLOCK button to unlock the
driver door and turn on the interior lamps. See
“Illumination on Remote Activation” later in this section
for more details. Press UNLOCK again to unlock
the passenger doors.
F(Trunk Release):To release the trunk lid, press
this button. The trunk will only unlock if the transaxle
is in PARK (P).
L(Remote Alarm):Press this button to activate an
alarm. The ignition must be in OFF or ACCESSORY for
the remote alarm to work. When the remote alarm
button is pressed, the headlamps will ash, the horn will
sound repeatedly, and the interior lamps will turn on.
The alarms will turn off when one of the following occurs:
The remote alarm button on the remote keyless
entry transmitter is pressed a second time.
The ignition is moved to RUN.
The alarms have been on for about two minutes.
2-5

Security Feedback
The remote keyless entry transmitter can be
programmed so that when the LOCK or UNLOCK
button is pressed, the vehicle gives visual or audible
feedback conrmation. Each lock or unlock command
verication must be programmed individually. The
ignition must be OFF for this feature to work.
Programming the LOCK Command
One of four modes can be selected to conrm a
LOCK command.
Mode 1 (One Chime):No Verication
Mode 2 (Two Chimes):Horn Chirp
Mode 3 (Three Chimes):Headlamps Flash
Mode 4 (Four Chimes):Horn Chirp and
Headlamps Flash
The vehicle was originally programmed to Mode 3.
The mode may have been changed since then.
To determine the current lock mode mode, or to change
the lock mode, do the following:
1. Close all doors and turn the ignition key to RUN.
2. Press and hold the power door lock switch in
the LOCK position.3. While holding the power door lock switch in the
LOCK position, press and release the remote
keyless entry transmitter LOCK button.
A series of one to four chimes will sound,
corresponding to the current lock mode.
4. Press the remote keyless entry transmitter LOCK
button to advance to the next lock mode.
If cycled beyond Mode 4, the vehicle will
enter Mode 1.
5. To set a mode, release the power door LOCK
switch after the chime sequence of the desired
mode is heard.
Disconnecting the vehicle’s battery for up to a year will
not affect the programmed mode.
Programming the UNLOCK Command
One of four modes can be selected to conrm an
UNLOCK command.
Mode 1 (One Chime):No Verication
Mode 2 (Two Chimes):Horn Chirp
Mode 3 (Three Chimes):Headlamps Flash
Mode 4 (Four Chimes):Horn Chirp and
Headlamps Flash
2-6

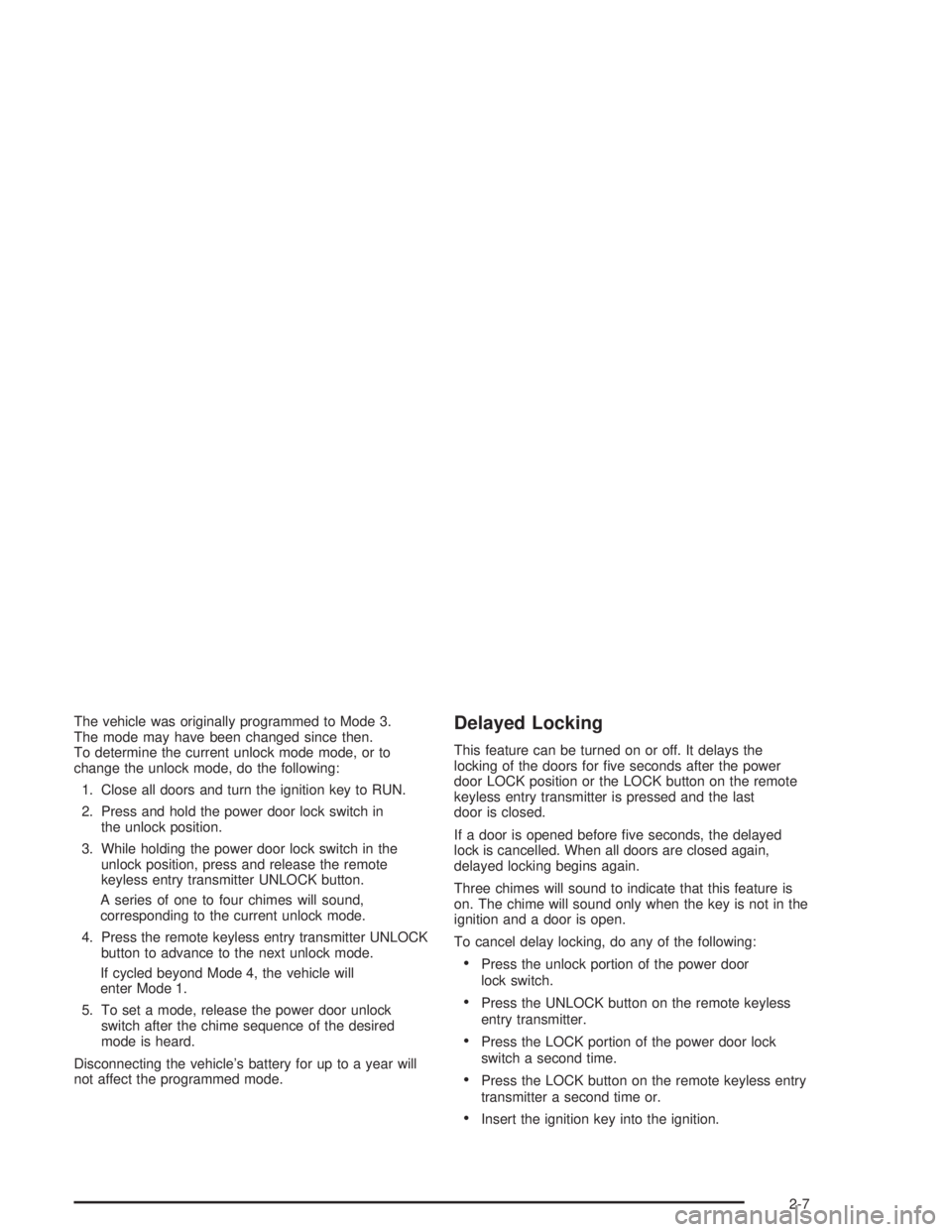

The vehicle was originally programmed to Mode 3.
The mode may have been changed since then.
To determine the current unlock mode mode, or to
change the unlock mode, do the following:
1. Close all doors and turn the ignition key to RUN.
2. Press and hold the power door lock switch in
the unlock position.
3. While holding the power door lock switch in the
unlock position, press and release the remote
keyless entry transmitter UNLOCK button.
A series of one to four chimes will sound,
corresponding to the current unlock mode.
4. Press the remote keyless entry transmitter UNLOCK
button to advance to the next unlock mode.
If cycled beyond Mode 4, the vehicle will
enter Mode 1.
5. To set a mode, release the power door unlock
switch after the chime sequence of the desired
mode is heard.
Disconnecting the vehicle’s battery for up to a year will
not affect the programmed mode.Delayed Locking
This feature can be turned on or off. It delays the
locking of the doors for ve seconds after the power
door LOCK position or the LOCK button on the remote
keyless entry transmitter is pressed and the last
door is closed.
If a door is opened before ve seconds, the delayed
lock is cancelled. When all doors are closed again,
delayed locking begins again.
Three chimes will sound to indicate that this feature is
on. The chime will sound only when the key is not in the
ignition and a door is open.
To cancel delay locking, do any of the following:
Press the unlock portion of the power door
lock switch.
Press the UNLOCK button on the remote keyless
entry transmitter.
Press the LOCK portion of the power door lock
switch a second time.
Press the LOCK button on the remote keyless entry
transmitter a second time or.
Insert the ignition key into the ignition.
2-7

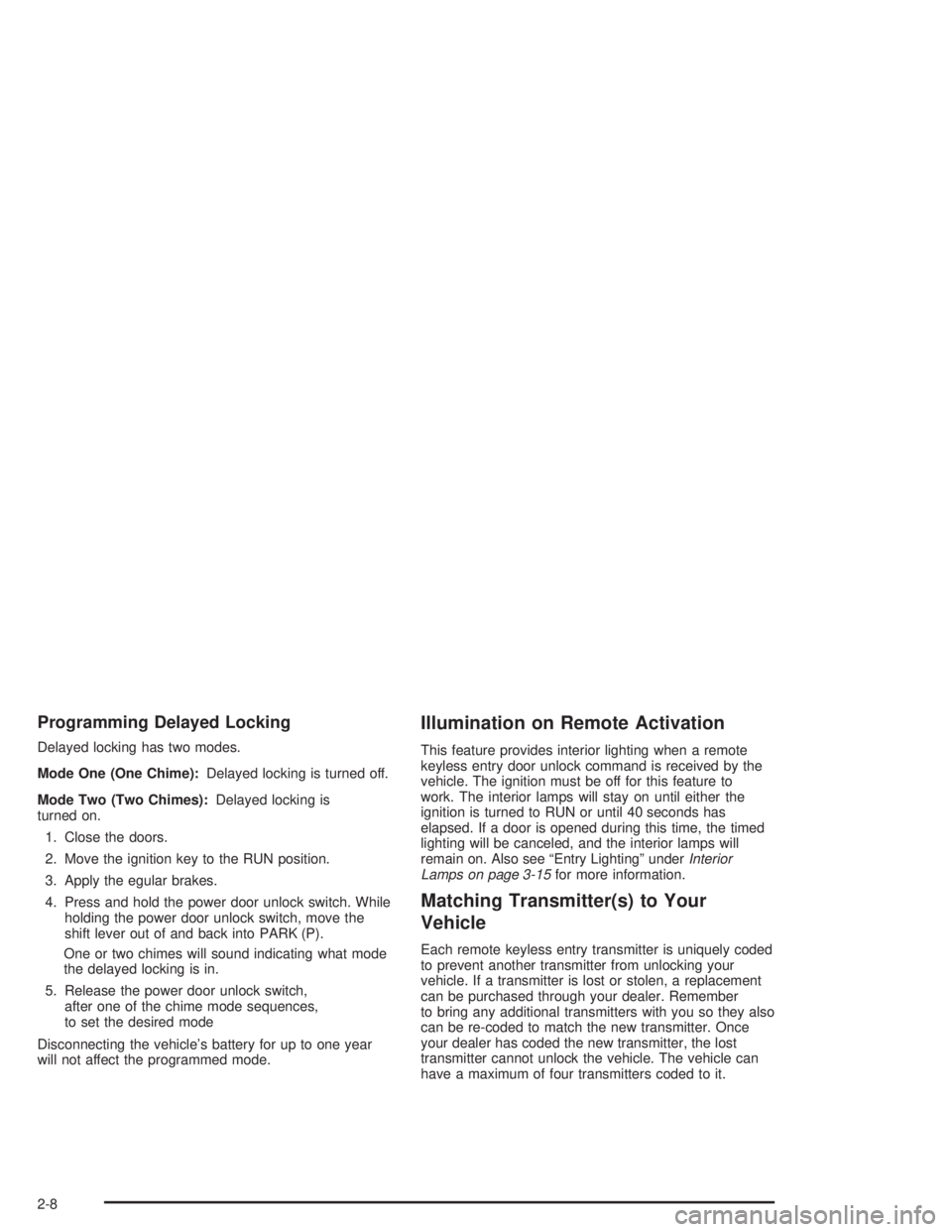

Programming Delayed Locking
Delayed locking has two modes.
Mode One (One Chime):Delayed locking is turned off.
Mode Two (Two Chimes):Delayed locking is
turned on.
1. Close the doors.
2. Move the ignition key to the RUN position.
3. Apply the egular brakes.
4. Press and hold the power door unlock switch. While
holding the power door unlock switch, move the
shift lever out of and back into PARK (P).
One or two chimes will sound indicating what mode
the delayed locking is in.
5. Release the power door unlock switch,
after one of the chime mode sequences,
to set the desired mode
Disconnecting the vehicle’s battery for up to one year
will not affect the programmed mode.
Illumination on Remote Activation
This feature provides interior lighting when a remote
keyless entry door unlock command is received by the
vehicle. The ignition must be off for this feature to
work. The interior lamps will stay on until either the
ignition is turned to RUN or until 40 seconds has
elapsed. If a door is opened during this time, the timed
lighting will be canceled, and the interior lamps will
remain on. Also see “Entry Lighting” underInterior
Lamps on page 3-15for more information.
Matching Transmitter(s) to Your
Vehicle
Each remote keyless entry transmitter is uniquely coded
to prevent another transmitter from unlocking your
vehicle. If a transmitter is lost or stolen, a replacement
can be purchased through your dealer. Remember
to bring any additional transmitters with you so they also
can be re-coded to match the new transmitter. Once
your dealer has coded the new transmitter, the lost
transmitter cannot unlock the vehicle. The vehicle can
have a maximum of four transmitters coded to it.
2-8

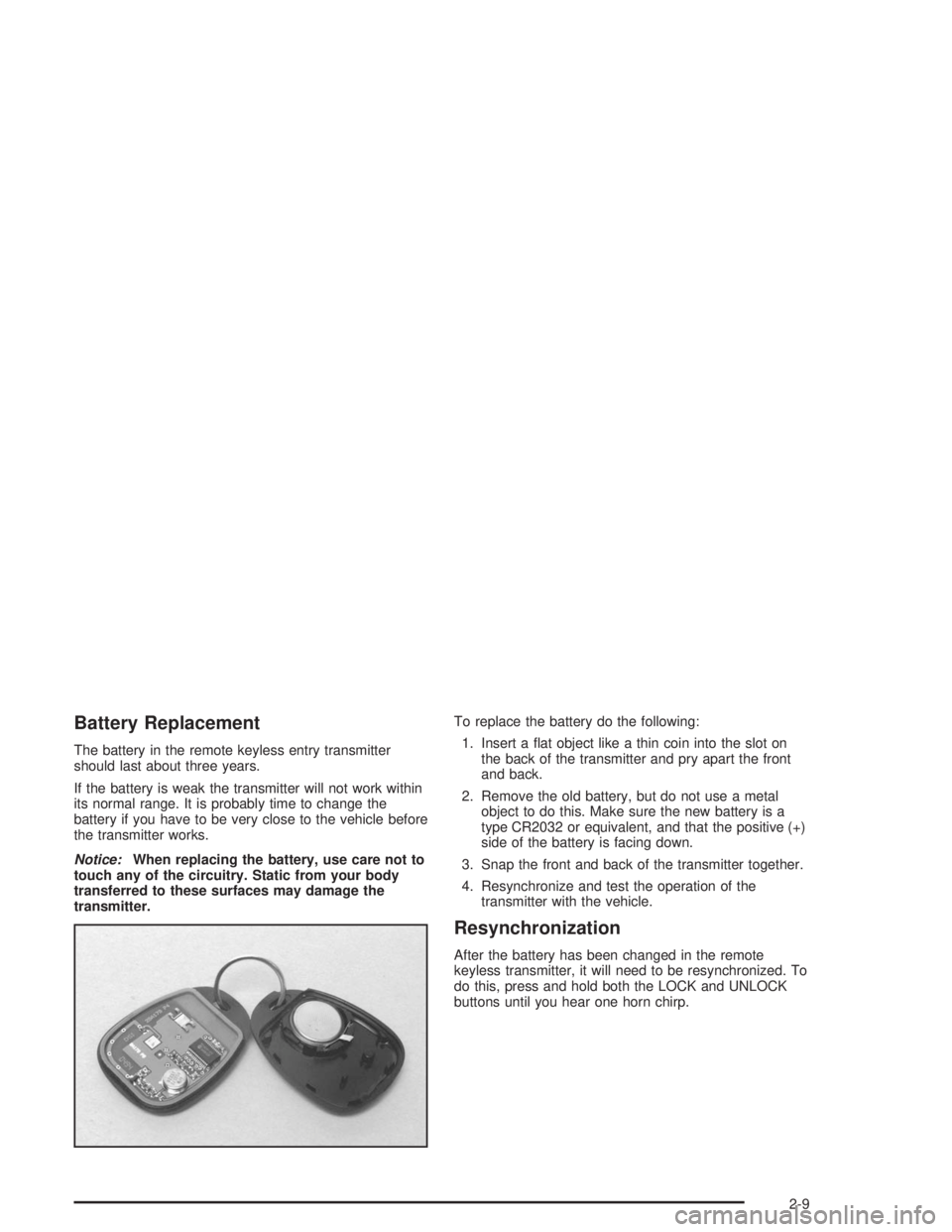

Battery Replacement
The battery in the remote keyless entry transmitter
should last about three years.
If the battery is weak the transmitter will not work within
its normal range. It is probably time to change the
battery if you have to be very close to the vehicle before
the transmitter works.
Notice:When replacing the battery, use care not to
touch any of the circuitry. Static from your body
transferred to these surfaces may damage the
transmitter.To replace the battery do the following:
1. Insert a at object like a thin coin into the slot on
the back of the transmitter and pry apart the front
and back.
2. Remove the old battery, but do not use a metal
object to do this. Make sure the new battery is a
type CR2032 or equivalent, and that the positive (+)
side of the battery is facing down.
3. Snap the front and back of the transmitter together.
4. Resynchronize and test the operation of the
transmitter with the vehicle.
Resynchronization
After the battery has been changed in the remote
keyless transmitter, it will need to be resynchronized. To
do this, press and hold both the LOCK and UNLOCK
buttons until you hear one horn chirp.
2-9

Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers — especially children — can
easily open the doors and fall out of a
moving vehicle. When a door is locked, the
handle will not open it. You increase the
chance of being thrown out of the vehicle
in a crash if the doors are not locked. So,
wear safety belts properly and lock the
doors whenever you drive.
Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.
Outsiders can easily enter through an
unlocked door when you slow down or
stop your vehicle. Locking your doors can
help prevent this from happening.There are several ways to lock and unlock the vehicle.
From the outside, use the door key or remote keyless
entry transmitter. From the inside use the manual
or power door locks.
To manually lock or unlock the driver’s door from the
outside, insert the key and turn it clockwise or
counterclockwise.
To lock or unlock the doors from the inside, push the
manual lock lever forward or rearward.
2-10

Trunk
{CAUTION:
It can be dangerous to drive with the trunk lid
open because carbon monoxide (CO) gas can
come into your vehicle. You can not see or
smell CO. It can cause unconsciousness and
even death. If you must drive with the trunk lid
open or if electrical wiring or other cable
connections must pass through the seal
between the body and the trunk lid:
Make sure all other windows are shut.
Turn the fan on your heating or cooling
system to its highest speed and select the
control setting that will force outside air
into your vehicle. See Climate Control
System in the Index.
If you have air outlets on or under the
instrument panel, open them all the way.
SeeEngine Exhaust on page 2-29.
Trunk Lock
To unlock the trunk lid from the outside, insert the door
key into the trunk lock and turn it counterclockwise.
Or, with the vehicle in PARK (P), press the open trunk
symbol on the remote keyless entry transmitter.
Remote Trunk Release
Press the remote trunk
release button located
behind the glove box door
to release the trunk lid
from inside the vehicle.
The shift lever must be in PARK (P), but the key does
not have to be in the ignition for the remote trunk
lid release button to work.
2-13

Interior Lamps
Instrument Panel Brightness
The instrument panel lights can be brightened or
dimmed by turning the exterior lamps knob.
Turning the control all the way clockwise turns on the
courtesy lamps.
Courtesy Lamps
When any door is opened, several courtesy lamps come
on to make it easier to enter and exit the vehicle.
These lamps can also be turned on by turning the
exterior lamps control all the way clockwise to MAX.
Entry Lighting
The courtesy lamps will come on and stay on for a set
time whenever you press UNLOCK on the remote
keyless entry transmitter.
The lamps will stay on while a door is opened and then
turn off automatically about 25 seconds after it is
closed. If the UNLOCK button is pressed and a door is
not open, the lamps will turn off after about 40 seconds.Entry lighting includes a feature called theater dimming.
With theater dimming, the lamps do not turn off at
the end of the delay time. Instead, they slowly dim after
the delay time and then turn off.
The courtesy lamps are canceled if the ignition key is
turned to RUN or START and will not come on unless a
door is opened.
Delayed Entry Lighting
Delayed entry lighting lights the vehicle’s interior for a
period of time after all the doors have been closed.
The ignition must be off for delayed entry lighting
to work. After all the doors have been closed, the
delayed entry lighting feature will continue to work until
one of the following occurs:
The ignition is in RUN.
The doors are locked.
An illumination period of 25 seconds has elapsed.
If during the illumination period a door is opened,
the timed illumination period will be canceled and the
interior lamps will remain on.
3-15
