remote start BUICK CENTURY 2004 Owner's Manual
[x] Cancel search | Manufacturer: BUICK, Model Year: 2004, Model line: CENTURY, Model: BUICK CENTURY 2004Pages: 358, PDF Size: 4.01 MB
Page 67 of 358
![BUICK CENTURY 2004 Owners Manual Keys...............................................................2-2
Remote Keyless Entry System.........................2-4
Remote Keyless Entry System Operation...........2-5
Doors and Locks...... BUICK CENTURY 2004 Owners Manual Keys...............................................................2-2
Remote Keyless Entry System.........................2-4
Remote Keyless Entry System Operation...........2-5
Doors and Locks......](/img/43/35385/w960_35385-66.png)

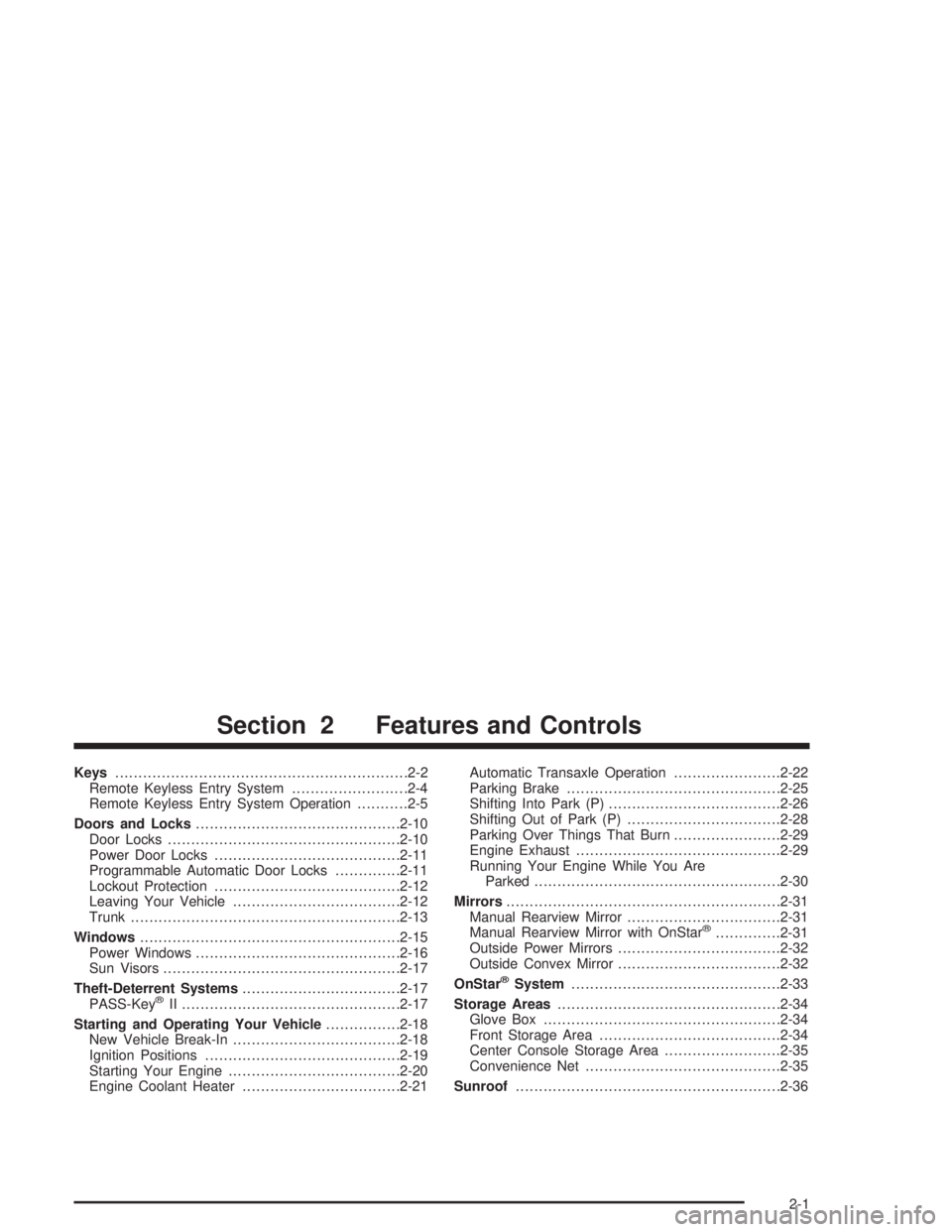

Keys...............................................................2-2
Remote Keyless Entry System.........................2-4
Remote Keyless Entry System Operation...........2-5
Doors and Locks............................................2-10
Door Locks..................................................2-10
Power Door Locks........................................2-11
Programmable Automatic Door Locks..............2-11
Lockout Protection........................................2-12
Leaving Your Vehicle....................................2-12
Trunk..........................................................2-13
Windows........................................................2-15
Power Windows............................................2-16
Sun Visors...................................................2-17
Theft-Deterrent Systems..................................2-17
PASS-Key
®II ...............................................2-17
Starting and Operating Your Vehicle................2-18
New Vehicle Break-In....................................2-18
Ignition Positions..........................................2-19
Starting Your Engine.....................................2-20
Engine Coolant Heater..................................2-21Automatic Transaxle Operation.......................2-22
Parking Brake..............................................2-25
Shifting Into Park (P).....................................2-26
Shifting Out of Park (P).................................2-28
Parking Over Things That Burn.......................2-29
Engine Exhaust............................................2-29
Running Your Engine While You Are
Parked.....................................................2-30
Mirrors...........................................................2-31
Manual Rearview Mirror.................................2-31
Manual Rearview Mirror with OnStar
®..............2-31
Outside Power Mirrors...................................2-32
Outside Convex Mirror...................................2-32
OnStar
®System.............................................2-33
Storage Areas................................................2-34
Glove Box...................................................2-34
Front Storage Area.......................................2-34
Center Console Storage Area.........................2-35
Convenience Net..........................................2-35
Sunroof.........................................................2-36
Section 2 Features and Controls
2-1
Page 117 of 358
![BUICK CENTURY 2004 Owners Manual Interior Lamps
Instrument Panel Brightness
The instrument panel lights can be brightened or
dimmed by turning the exterior lamps knob.
Turning the control all the way clockwise turns on the
courtesy l BUICK CENTURY 2004 Owners Manual Interior Lamps
Instrument Panel Brightness
The instrument panel lights can be brightened or
dimmed by turning the exterior lamps knob.
Turning the control all the way clockwise turns on the
courtesy l](/img/43/35385/w960_35385-116.png)

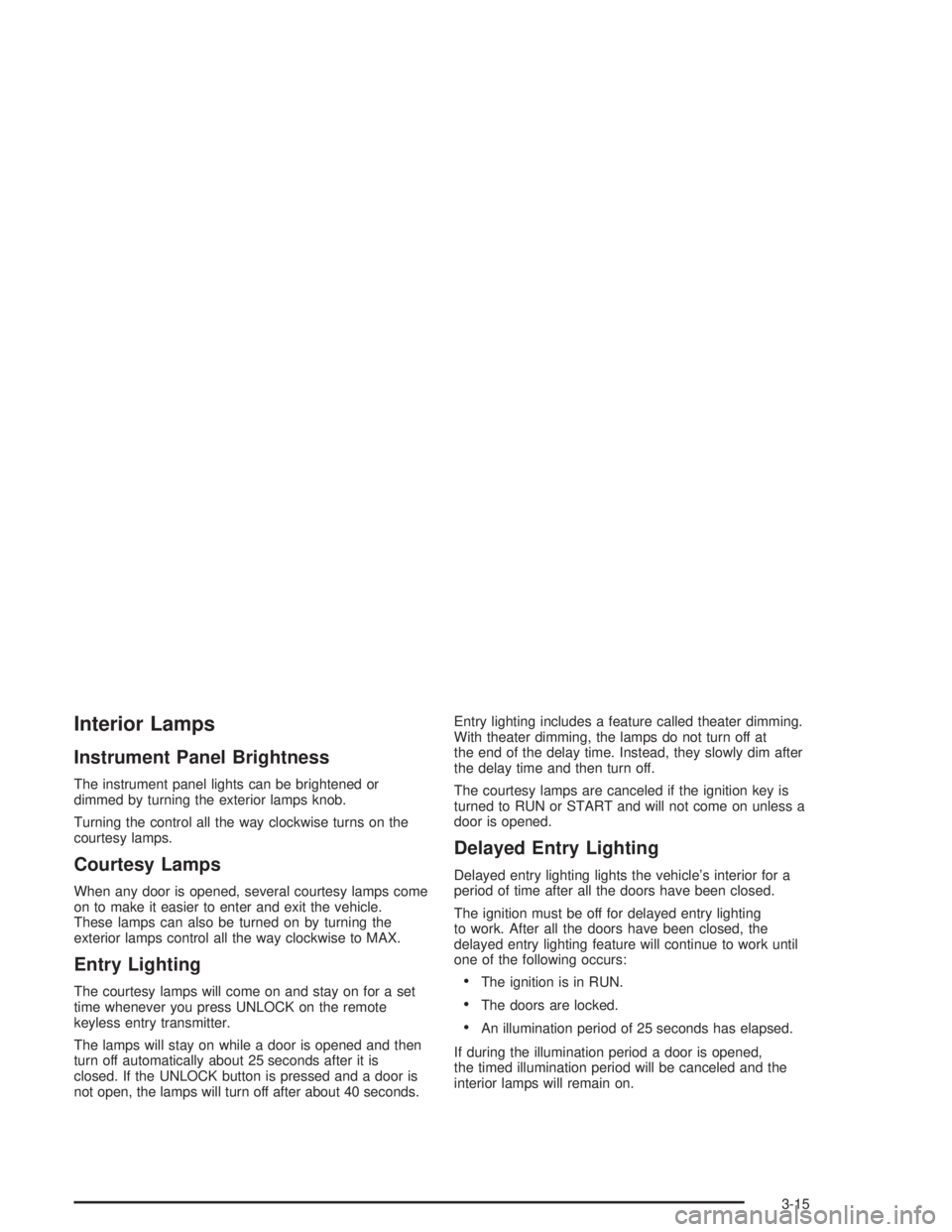

Interior Lamps
Instrument Panel Brightness
The instrument panel lights can be brightened or
dimmed by turning the exterior lamps knob.
Turning the control all the way clockwise turns on the
courtesy lamps.
Courtesy Lamps
When any door is opened, several courtesy lamps come
on to make it easier to enter and exit the vehicle.
These lamps can also be turned on by turning the
exterior lamps control all the way clockwise to MAX.
Entry Lighting
The courtesy lamps will come on and stay on for a set
time whenever you press UNLOCK on the remote
keyless entry transmitter.
The lamps will stay on while a door is opened and then
turn off automatically about 25 seconds after it is
closed. If the UNLOCK button is pressed and a door is
not open, the lamps will turn off after about 40 seconds.Entry lighting includes a feature called theater dimming.
With theater dimming, the lamps do not turn off at
the end of the delay time. Instead, they slowly dim after
the delay time and then turn off.
The courtesy lamps are canceled if the ignition key is
turned to RUN or START and will not come on unless a
door is opened.
Delayed Entry Lighting
Delayed entry lighting lights the vehicle’s interior for a
period of time after all the doors have been closed.
The ignition must be off for delayed entry lighting
to work. After all the doors have been closed, the
delayed entry lighting feature will continue to work until
one of the following occurs:
The ignition is in RUN.
The doors are locked.
An illumination period of 25 seconds has elapsed.
If during the illumination period a door is opened,
the timed illumination period will be canceled and the
interior lamps will remain on.
3-15
Page 225 of 358
![BUICK CENTURY 2004 Owners Manual A. Windshield Washer Fluid Reservoir. SeeWindshield
Washer Fluid on page 5-36.
B. Battery. SeeBattery on page 5-41.
C. Underhood Fuse Block. SeeFuses and Circuit
Breakers on page 5-97.
D. Remote Posit BUICK CENTURY 2004 Owners Manual A. Windshield Washer Fluid Reservoir. SeeWindshield
Washer Fluid on page 5-36.
B. Battery. SeeBattery on page 5-41.
C. Underhood Fuse Block. SeeFuses and Circuit
Breakers on page 5-97.
D. Remote Posit](/img/43/35385/w960_35385-224.png)
A. Windshield Washer Fluid Reservoir. SeeWindshield
Washer Fluid on page 5-36.
B. Battery. SeeBattery on page 5-41.
C. Underhood Fuse Block. SeeFuses and Circuit
Breakers on page 5-97.
D. Remote Positive (+) Battery Terminal. SeeJump
Starting on page 5-42.
E. Radiator Pressure Cap. SeeRadiator Pressure Cap
on page 5-25.
F. Engine Coolant Recovery Tank. SeeEngine Coolant
on page 5-22.
G. Power Steering Fluid Reservoir. SeePower Steering
Fluid on page 5-35.
H. Electric Engine Cooling Fan. SeeJump Starting on
page 5-42.
I. Engine Oil Fill Cap. SeeEngine Oil on page 5-13.
J. Engine Oil Dipstick. SeeEngine Oil on page 5-13.
K. Automatic Transaxle Fluid Dipstick. SeeAutomatic
Transaxle Fluid on page 5-19.
L. Brake Fluid Reservoir. SeeBrakes on page 5-38.
M. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 5-18.Engine Oil
Checking Engine Oil
It is a good idea to check your engine oil every time you
get fuel. In order to get an accurate reading, the oil
must be warm and the vehicle must be on level ground.
The engine oil dipstick handle is a yellow loop. See
Engine Compartment Overview on page 5-12for
the location of the engine oil dipstick.
Turn off the engine and give the oil several minutes to
drain back into the oil pan. If you don’t, the oil
dipstick might not show the actual level.
Pull out the dipstick and clean it with a paper towel or
cloth, then push it back in all the way. Remove it again,
keeping the tip down, and check the level.
5-13
Page 255 of 358
![BUICK CENTURY 2004 Owners Manual Notice:If you leave your radio or other accessories
on during the jump starting procedure, they could
be damaged. The repairs would not be covered
by your warranty. Always turn off your radio and
othe BUICK CENTURY 2004 Owners Manual Notice:If you leave your radio or other accessories
on during the jump starting procedure, they could
be damaged. The repairs would not be covered
by your warranty. Always turn off your radio and
othe](/img/43/35385/w960_35385-254.png)

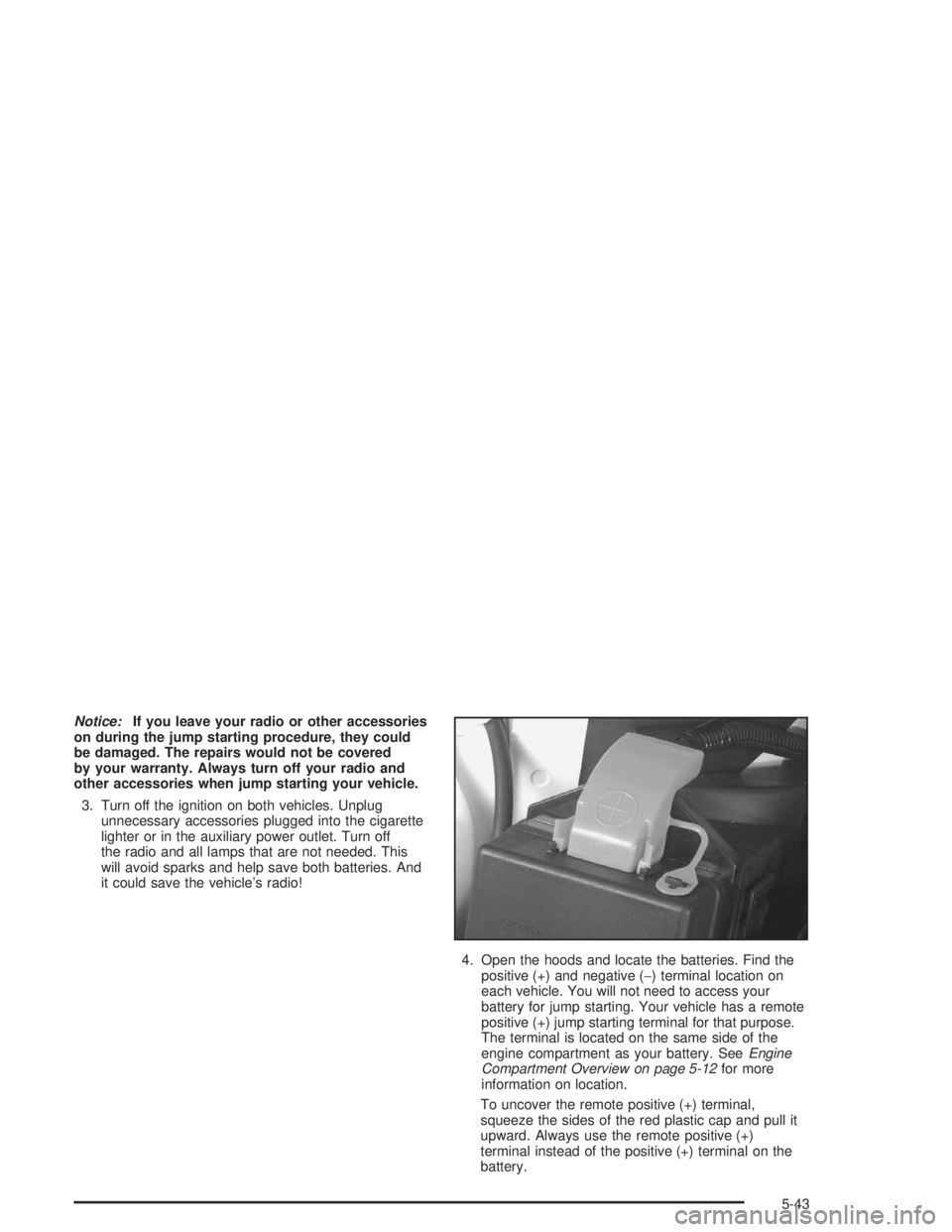

Notice:If you leave your radio or other accessories
on during the jump starting procedure, they could
be damaged. The repairs would not be covered
by your warranty. Always turn off your radio and
other accessories when jump starting your vehicle.
3. Turn off the ignition on both vehicles. Unplug
unnecessary accessories plugged into the cigarette
lighter or in the auxiliary power outlet. Turn off
the radio and all lamps that are not needed. This
will avoid sparks and help save both batteries. And
it could save the vehicle’s radio!
4. Open the hoods and locate the batteries. Find the
positive (+) and negative (−) terminal location on
each vehicle. You will not need to access your
battery for jump starting. Your vehicle has a remote
positive (+) jump starting terminal for that purpose.
The terminal is located on the same side of the
engine compartment as your battery. SeeEngine
Compartment Overview on page 5-12for more
information on location.
To uncover the remote positive (+) terminal,
squeeze the sides of the red plastic cap and pull it
upward. Always use the remote positive (+)
terminal instead of the positive (+) terminal on the
battery.
5-43
