center console BUICK ENCLAVE 2009 Get To Know Guide

Congratulations on your purchase of a Buick Enclave. Please read this information and your Owner Manual
to ensure an outstanding ownership experience. Note that your vehicle may not include all the features
described in this booklet. Keep this booklet with your Owner Manual for easy reference.
DRIVER INFORMATIONInstrument Panel . . . . . . . . . . . . .2
Instrument Panel Cluster . . . . . . .3
Driver Information Center . . . . . . .4
SAFETY & SECURITYRemote Keyless Entry . . . . . . . . .5
OnStar® . . . . . . . . . . . . . . . . . . . . . .6
Child Restraints (LATCH) . . . . . . .6
COMFORT Seat Adjustments . . . . . . . . . . . . .6
2nd-Row Seats . . . . . . . . . . . . . . .7
3rd-Row Seats . . . . . . . . . . . . . . . .8
Heated Seat Controls . . . . . . . . . .8
Heated and Cooled Seat
Controls . . . . . . . . . . . . . . . . . . . . .8
Memory Seat and Mirrors . . . . . . .9
Steering Wheel Adjustment . . . . .9
Tri-Zone Automatic
Climate Controls . . . . . . . . . . . . .10
Rear Seat Climate Controls . . . .10
ENTERTAINMENT Audio System Features . . . . . . .11
Navigation Entertainment
System . . . . . . . . . . . . . . . . . . . . .13
XM
®Radio . . . . . . . . . . . . . . . . . .13
Audio Steering Wheel Controls .14
Bluetooth
®System . . . . . . . . . . .14
Rear Seat Audio and
DVD Rear Seat
Entertainment Systems . . . . . . .14
CONVENIENCE Adaptive Forward Lighting . . . . .15
Automatic Headlamp System . . .16
Interior Lighting Features . . . . . .16
Windshield Wipers and Washer .16
Heated Washer Fluid . . . . . . . . . .17
Power Windows . . . . . . . . . . . . . .17
Cruise Control . . . . . . . . . . . . . . .18
Outside Power Foldaway
Mirrors . . . . . . . . . . . . . . . . . . . . .18
Power Liftgate . . . . . . . . . . . . . . .18Center Console Features . . . . . .19
2nd-Row Console Features . . . .19
Sunroof . . . . . . . . . . . . . . . . . . . . .20
Rear Convenience
Storage Center . . . . . . . . . . . . . .20
115-Volt Outlet . . . . . . . . . . . . . . .20
Ultrasonic Rear Park Assist . . . .20
Remote Vehicle Start . . . . . . . . .21
PERFORMANCE & MAINTENANCE Refueling the Vehicle . . . . . . . . .22
Automatic Transmission
Operation . . . . . . . . . . . . . . . . . . .22
StabiliTrak
®– Stability Control
System . . . . . . . . . . . . . . . . . . . . .22
Trailer Towing . . . . . . . . . . . . . . .23
Tire Pressure Monitor . . . . . . . . .23
Resetting the Oil Life System . .23
OWNER INFORMATIONRoadside Assistance . . . . . . . . .24
My GMLink . . . . . . . . . . . . . . . . . .24

Getting to Know Your Enclave8
Folding the Seatbacks
To fold the seatbacks forward to create
a flat load floor:
1. Pull outward on the handle located on
the outboard side of the seat cushion
and slide the seat rearward.
2. Fold the armrest into the upright
position.
3. Pull forward on the strap located on
the outboard side of the seatback and
fold down the seatback.
To return the
seatbacks
upright, pull up
the seatback
and push it
rearward until it
locks in place.
See Section 1 of your Owner Manual.
The 3rd-row 60/40 split bench seat fea-
tures folding seatbacks. Prior to folding
a seatback, make sure all of the seat-
belts are unbuckled, nothing is on the
3rd-row seat, and the 2nd-row seat is
not reclined.
Lift the lever (A) on the upper-back
outboard corner of the seatback until the
head restraint folds forward, and then
fold down the seatback.
3rd-Row Seats
B
A
The following
heated front
seat controls
are located on
the center
console in
front of the
shift lever:
(Heated Seat/Seatback):Press the
bottom button to turn on the heated seat
cushion and seatback.
(Heated Seatback):Press the top
button to turn on the heated seatback.
Continue to press the desired button to
cycle through the temperature settings
of High (three indicator lights), Medium
(two indicator lights), Low (one indicator
light), and Off (no indicator lights).
See Section 1 of your Owner Manual.
Heated Seat Controls
(if equipped)
To return the seatback to the upright
position, pull the seatback strap (B) from
the rear of the vehicle or lift up the seat-
back from inside the vehicle. Pull on the
seatback to make sure it is locked in
place. Lift up the head restraint to lock it
in place.
See Section 1 of your Owner Manual.
Heated and Cooled Seat
Controls (if equipped)
The following heated and cooled front
seat controls are located on the center
console in front of the shift lever:
(Heated Seat):Press the bottom
button to turn on the heated seat.

(Delay):Rotate the control band to
one of these positions to adjust the
delay between wipes. The wipers acti-
vate more often as the band is rotated
upward.
1 (Low):Rotate the control band to this
position for steady wipes.
2 (High): Rotate the control band to this
position for rapid wipes.
(Washer Fluid):Push the button
on the end of the lever to spray washer
fluid on the windshield.
Rear Wiper and Washer
The rear wiper
and washer
button, located
on the center
console in front
of the shift
lever, includes
the following
functions:
(Rear Wiper):Press the top of the
button (A) to turn the rear wiper on or
off.
(Washer): Press the bottom of the
button (B) to spray washer fluid on the
rear window.
See Section 3 of your Owner Manual.
17
B
A
Heated Washer Fluid
(if equipped)
Press the (Heated Washer Fluid)
button on the left side of the instrument
panel to spray heated washer fluid on
the windshield. This will help clear ice,
tree sap or bugs from the windshield.
Power Windows
Express-Down Windows
To operate the driver or front passenger
express-down window, press the switch
fully and the window will lower automati-
cally. Press the switch partway to open
the window a small amount. To stop the
window, pull or press on the switch
momentarily.
Express-Up Window
To operate the driver or front passenger
express-up window, pull up the switch
fully and the window will rise automati-
cally. To stop the window, pull or press
on the switch momentarily.
Window Lockout
Press the (Window Lockout) switch
on the driver’s door armrest to prevent
the rear windows from operating except
from the driver’s position. Press the
switch again to turn off the lockout
feature.
See Section 2 of your Owner Manual.
It may take up to
40 seconds to
heat the washer
fluid, after which
the wipers will
automatically turn
on for four heated
wash cycles.
Press the button
again to cancel any remaining cycles.
See Section 3 of your Owner Manual.

19

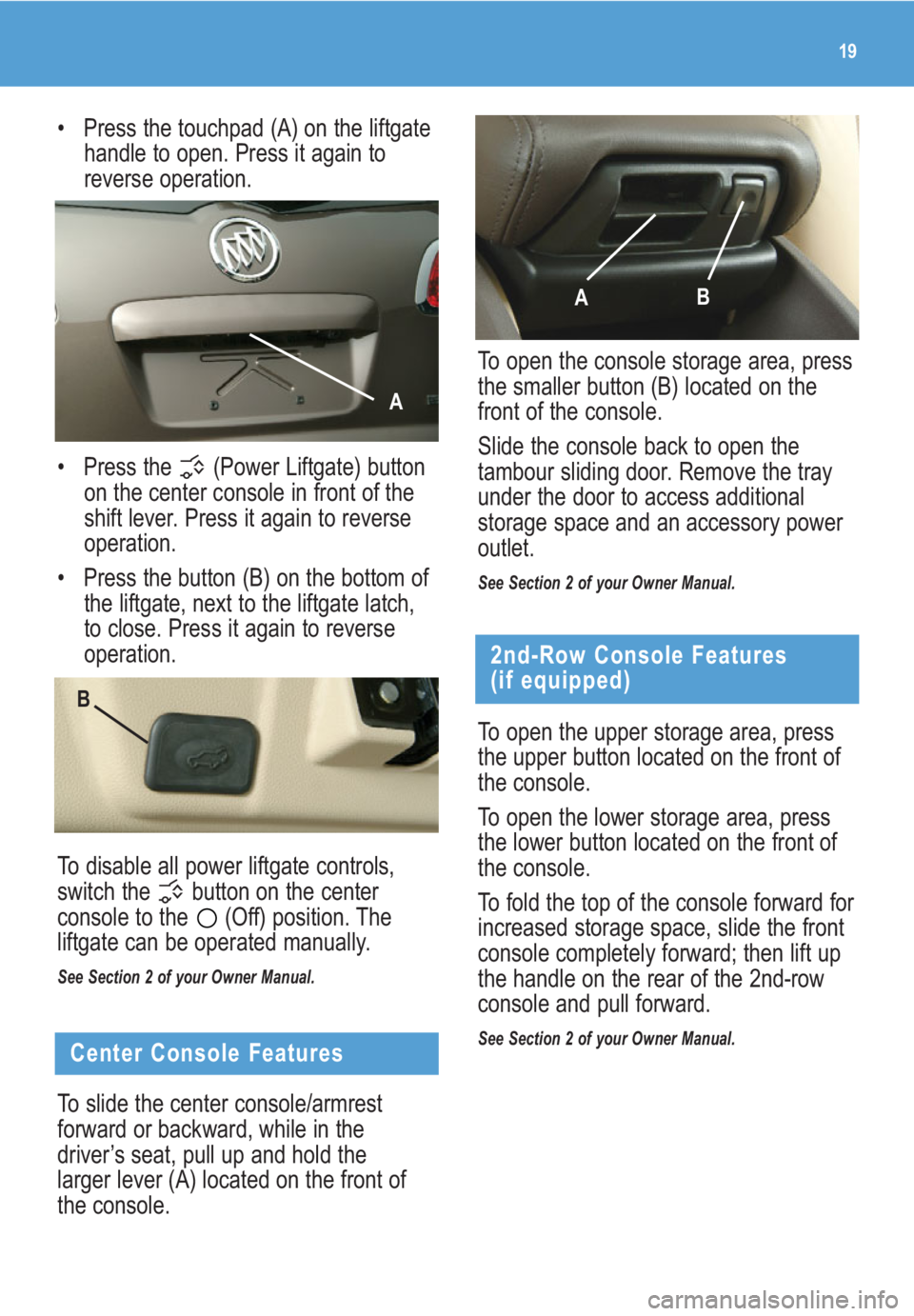

Center Console Features
To slide the center console/armrest
forward or backward, while in the
driver’s seat, pull up and hold the
larger lever (A) located on the front of
the console. • Press the touchpad (A) on the liftgate
handle to open. Press it again to
reverse operation.
• Press the (Power Liftgate) button
on the center console in front of the
shift lever. Press it again to reverse
operation.
• Press the button (B) on the bottom of
the liftgate, next to the liftgate latch,
to close. Press it again to reverse
operation.
To disable all power liftgate controls,
switch the button on the center
console to the (Off) position. The
liftgate can be operated manually.
See Section 2 of your Owner Manual.
A
B
To open the console storage area, press
the smaller button (B) located on the
front of the console.
Slide the console back to open the
tambour sliding door. Remove the tray
under the door to access additional
storage space and an accessory power
outlet.
See Section 2 of your Owner Manual.
AB
2nd-Row Console Features
(if equipped)
To open the upper storage area, press
the upper button located on the front of
the console.
To open the lower storage area, press
the lower button located on the front of
the console.
To fold the top of the console forward for
increased storage space, slide the front
console completely forward; then lift up
the handle on the rear of the 2nd-row
console and pull forward.
See Section 2 of your Owner Manual.

Getting to Know Your Enclave20
115-Volt Outlet (if equipped)
The 115-volt power outlet is located on
the back of the center console. With the
ignition turned to Accessory or On, it
provides convenient plug-in power to run
electronic equipment such as video
games, a laptop computer, or a cell
phone charger.
See Section 3 of your Owner Manual.
Rear Convenience
Storage Center
The rear convenience storage center,
located behind the 3rd-row seats, fea-
tures additional storage compartments.
To open, pull the handle up and lift the
cover.
See Section 2 of your Owner Manual
Ultrasonic Rear Park Assist
(if equipped)
This feature uses ultrasonic sensors on
the rear bumpers to help you avoid col-
liding with objects when parking the
vehicle. It operates only at speeds less
than 5 mph.
The rear park assist display is located in
the headliner near the rear window and
provides the following indicators when
an object is detected:
Sunroof (if equipped)
The following sunroof and sunshade
switches are located on the headliner
above the rearview mirror:
Express-Open/Express-Close:From
the closed position, press the rear of the
driver’s side switch (A) to express-open
the sunroof. Press the front of the switch
to express-close the sunroof.
Vent: From the closed position, press
and hold the front of the driver’s side
switch (A) to vent the sunroof. Press
and hold the rear of the switch to close
the sunroof.
Front Sunshade: Push up and slightly
forward on the sunshade handle and
then release it rearward to open the
manual sunshade.
Rear Sunshade:Press the rear of the
passenger’s side switch (B) to express-
open the sunshade over the 2nd-row
seats. Press the front of the switch to
express-close the sunshade.
See Section 2 of your Owner Manual.
AB

The transmission will be limited to the
gear selected and lower gears. Gears
higher than the gear selected will not be
available.
If current vehicle speed is too high or
too low for the requested gear, the shift
will not occur.
See Section 2 of your Owner Manual.
Getting to Know Your Enclave22
PERFORMANCE & MAINTENANCE
Refueling the Vehicle
To open the fuel door, press the center
of the rear edge of the door and it will
pop open slightly. Pull the door to open
it fully.
When closing the fuel door, press the
center of the rear edge of the door until
it latches and is flush with the side of the
vehicle.
See Section 5 of your Owner Manual.
Automatic Transmission
Operation
The automatic transmission has an
Electronic Range Select mode that
enables the driver to select the top-gear
limit desired for the current driving con-
ditions, such as when driving on down-
hill grades. This provides engine braking
and reduces brake wear.
To use this feature, move the shift lever
to the Low (L) range position and select
a lower or higher driving gear using the
+ / – button on the side of the shift
lever. The display on the instrument
panel cluster will show the current gear
selection.
StabiliTrak®– Stability Control
System
StabiliTrak is an
advanced computer-
controlled vehicle
stability and traction
enhancement sys-
tem that assists with
directional control of
the vehicle in difficult driving conditions.
It turns on automatically every time you
start your vehicle.
To limit wheelspin and help maintain
directional control, you should always
leave the system on. However, if your
vehicle becomes stuck and rocking the
vehicle is required, the system should
be turned off.
To turn off the traction control part of the
system, press the (Traction Control)
button located on the center console in
front of the shift lever.
When the system is turned off, the
Traction Control light will illuminate.
See Section 4 of your Owner Manual.

23
Trailer Towing
The Tow/Haul mode
(if equipped) assists
when pulling a heavy
trailer by reducing the
frequency of trans-
mission shifts and
improves the control of vehicle speed.
To turn on this feature, press the
(Tow/Haul) button located on the center
console in front of the shift lever. Press it
again to turn off the feature.
See Section 4 of your Owner Manual.
Tire Pressure Monitor
The Tire Pressure Monitor alerts you
when a significant reduction in pressure
occurs in one or more of your vehicle’s
tires by illuminating the (Low Tire
Pressure) warning light on the instru-
ment panel. The low tire pressure warn-
ing light will remain on until you correct
the tire pressure.
A CHECK TIRE PRESSURE message
may appear on the DIC.
Correcting the Tire Pressure
When the low tire pressure warning light
illuminates, you must inflate the tire to
the proper tire pressure. The Tire and
Loading Information label, located on
the center pillar below the driver’s door
latch, shows the correct tire pressure for
the tires when they’re cold. “Cold”
means your vehicle has been sitting for
at least three hours or driven no more
than one mile.
You can temporarily remove the DIC
message by acknowledging it with your
DIC controls. However, at the next
vehicle start-up, the DIC message will
reappear if the tire pressure has not
been corrected.
You may notice during cooler conditions
that the low tire pressure warning light
will appear when the vehicle is first
started and then turn off as you start to
drive. This could be an early indicator
that your tire pressures are getting low
and the tires need to be inflated to the
proper pressure.
See Section 5 of your Owner Manual.
Note:The Tire Pressure Monitor can
alert you about low tire pressure, but it
doesn’t replace normal monthly tire
maintenance.
Resetting the Oil Life System
The Oil Life System calculates engine
oil life based on vehicle use and dis-
plays CHANGE OIL SOON in the Driver
Information Center (DIC) when it’s
necessary to change your engine oil
and filter. The Oil Life System should be
reset to 100% only following an oil
change.
To reset the Oil Life System:
1. Turn on the ignition, with the engine
off.
2. Press the (Vehicle Information)
button until the DIC displays OIL LIFE
REMAINING.
3. Press and hold the (Set/Reset)
button until 100% is displayed.
4. Turn off the ignition.
See Section 5 of your Owner Manual.
