Page 152 of 388

Black plate (2,1)Buick Verano Owner Manual - 2012 - CRC - 1/10/12
7-2 Infotainment System
.Set up the tone, speaker
adjustments, and preset radio
stations.
For more information, see Defensive
Driving on page 9‑3.
The vehicle has Retained
Accessory Power (RAP). With RAP,
the audio system can be played
even after the ignition is turned off.
See Retained Accessory Power
(RAP) on page 9‑22 for more
information.
Navigation/Radio System
For vehicles with a navigation radio
system, see the separate navigation
manual.
Theft-Deterrent Feature
The theft-deterrent feature works by
learning a portion of the Vehicle
Identification Number (VIN) to
the infotainment system. The
infotainment system does not
operate if it is stolen or moved to a
different vehicle.
Overview (Radio with CD)
Overview (Radio with CD)
A. RADIO/BAND
.Changes the band while
listening to the radio.
.Selects the radio when
listening to a different
audio source. B. Buttons 1−6
.Radio: Saves and selects
favorite stations.
Page 154 of 388

Black plate (4,1)Buick Verano Owner Manual - 2012 - CRC - 1/10/12
7-4 Infotainment System
Overview (Radio with CD
and Touchscreen)
Infotainment System Overview
The infotainment system in the
vehicle is a touch screen system.
It is controlled by touching the
screen buttons, the TUNE/MENU
knob, preset buttons, and other
buttons on the faceplate.
The TUNE/MENU knob can be
turned and then pressed to
complete any of the highlighted
screen functions.
The preset buttons can be pressed
to select the appropriate screen
button function as shown on the
display.
Overview (Radio with CD and Touchscreen)
A. HOME (Home Page)
.See “Home Page”
following in this section. B. Buttons 1−6.The preset buttons
numbered one through
six can be used to select
stored AM, FM, and XM
(if equipped) stations.
Page 155 of 388

Black plate (5,1)Buick Verano Owner Manual - 2012 - CRC - 1/10/12
Infotainment System 7-5
C.s©(Previous/Reverse)
.Press to seek to the
beginning of the current or
previous track. If the track
has been playing for less
than five seconds, it seeks
the previous track. If longer
than five seconds, the
current track starts from
the beginning.
.Press and hold to quickly
reverse through a track.
Release the button to
return to playing speed.
See CD Player on
page 7‑22 andMP3 on
page 7‑25 for more
information.
.For AM, FM, or XM (if
equipped), press to seek to
the previous strong station. D.
O/VOL (Power/Volume)
.Press to turn the system
on and off.
.Turn to adjust the volume.
E.
¨ \(Next/Forward)
.Press to seek the next
track.
.Press and hold to fast
forward through a track.
.Release the button to
return to playing speed.
See CD Player on
page 7‑22 andMP3 on
page 7‑25 for more
information.
.For AM, FM, or XM (if
equipped), press to seek to
the next strong station. F. FAV 1-2-3 (Favorites Page)
.Press to display the
current page number
above the preset buttons.
The stored stations for
each list display on the
touch-sensitive preset
buttons at the bottom of
the screen. The number
of preset FAV lists
can be changed in the
Configuration Menu.
G. SRCE (Source)
.Press to change the audio
sources such as AM-FM
Radio, XM™ (if equipped),
CD, and AUX.
H.
p/j(Play/Pause)
.Press to start, pause, and
resume playback. See CD
Player on page 7‑22 and
MP3 on page 7‑25 for
more information.
Page 156 of 388

Black plate (6,1)Buick Verano Owner Manual - 2012 - CRC - 1/10/12
7-6 Infotainment System
I.V/8(Phone/Mute)
.SeeBluetooth
(Infotainment Controls) on
page 7‑31 orBluetooth
(Overview) on page 7‑30
or Bluetooth (Voice
Recognition) on page 7‑35
for more information.
J. CD Slot
K. TONE
.Press to access the sound
menu screen to adjust
bass, midrange, and treble.
See AM-FM Radio on
page 7‑12 for more
information.
L.
/BACK
.Press to return to the
previous screen in a menu.
.If on a page accessed
directly by a faceplate
button or Home Page
screen button,
pressing
/BACK will
go to the previous menu. M. TUNE/MENU
.Turn to highlight a feature.
Press to activate the
highlighted feature.
.Turn to manually change
the radio station.
N. CONFIG (Configuration)
.Press to adjust features
for radio, display, phone,
vehicle, and time.
O. INFO (Information)
.Press to scroll through an
audio information screen.
P.
Z(Eject)
.Press to eject a disc from
the CD player. See CD
Player on page 7‑22.
Q.
H(Clock)
.Press to set the time.
R. AS 1-2 (Autostore)
Touch Screen Buttons
Touch screen buttons are on the
screen and highlighted when a
feature is available. Some screen
buttons highlight when active and
gray out when inactive.
Home Page
The infotainment system displays a
home page that makes accessing
many of the features an easy
process.
Back: If on page 2 of the Home
Page, press Back to return to
page 1 of the Home Page. If on
page 1, Back serves no function.
Home: While navigating through
other menus, press to go back to
the Home Page to start a different
feature.
Fav: Press to display a page of
stored (favorite) AM, FM, or XM (if
equipped) stations. Keep pressing
Fav to scroll through the favorite
pages.
Page 157 of 388

Black plate (7,1)Buick Verano Owner Manual - 2012 - CRC - 1/10/12
Infotainment System 7-7
Info:Press to toggle through an
audio information screen.
The Home Page Menu lists the
options Customize Home Page and
Restore Home Page Defaults.
Out of all available Home Page
icons, up to eight icons can be
selected and sorted for the first
Home Page screen.
Home Page Features
Various functions are disabled when
the vehicle is moving.
Press the Now Playing screen
button to display the active source
page. The sources available are
AM, FM, XM (if equipped), CD,
USB/iPod, and AUX.
See AM-FM Radio on page 7‑12,
Satellite Radio on page 7‑17, and
Auxiliary Devices on page 7‑26.
Press the Phone screen button to
display the Phone main page. See
Bluetooth (Infotainment Controls) on page 7‑31
orBluetooth (Overview)
on page 7‑30 orBluetooth (Voice
Recognition) on page 7‑35.
Press the Config screen button to
display the Config main page. From
this display, you can adjust features
such as time and date, radio,
Bluetooth, vehicle, and display.
Press the Tone screen button to
display the Tone main page. Adjust
the tone and speakers by pressing
the screen buttons to change the
levels of sound for treble, midrange,
bass, fade, and balance. See
AM-FM Radio on page 7‑12. Press the FM screen button to
display the FM main page and play
the current or last tuned FM station.
See
AM-FM Radio on page 7‑12.
Press the AM screen button to
display the AM main page and play
the current or last tuned AM station.
See AM-FM Radio on page 7‑12.
Press the XM screen button (if
equipped) to display the XM main
page and play the current or last
tuned XM channel. See AM-FM
Radio on page 7‑12 andSatellite
Radio on page 7‑17.
Press the CD screen button to
display the CD main page and
play the current or last CD track
selected. See CD Player on
page 7‑22.
Press the USB screen button to
display the USB main page and play
the current or last track selected.
See Auxiliary Devices on page 7‑26.
Page 158 of 388

Black plate (8,1)Buick Verano Owner Manual - 2012 - CRC - 1/10/12
7-8 Infotainment System
Press the AUX screen button to
access any connected auxiliary
device. SeeAuxiliary Devices on
page 7‑26.
Time and Date Settings
From the Time and Date Settings
screen button, press to display the
Time and Date Settings menu.
Set Time: Press + or−to increase
or decrease the Hours and Minutes
displayed on the clock.
Set Date: Press + or−to increase
or decrease the day.
12/24 HR Format: Press the
12 Hours screen button for standard
time; press the 24 Hours screen
button for military time.
Set Date Format: Depending on
the region, the following date
formats may be available: MM/DD/
YYYY, DD.MM.YYYY, or YYYY/
MM/DD.
Day + or Day −:Press the Day +
or Day −display buttons to increase
or decrease the day. Display:
Press Display to turn the
display of the clock on the screen
On or Off.
Radio Settings
Press the Config button on the
Home Page or the CONFIG button
on the faceplate to enter the menu
options. Turn the TUNE/MENU knob
or touch-tap the scroll bar to scroll
through the available options. Press
the TUNE/MENU knob or press
Radio Settings to display the radio
settings menu. Press this feature to
make changes for radio information
displayed, preset pages, Auto
Volume Control, and XM Categories
Restore. See Satellite Radio on
page 7‑17 (if equipped), for more
information about XM Categories.
The Radio Settings are:
Speed Dependent Volume:
Select OFF, Low, Medium, or High
sensitivity to automatically adjust
the volume to minimize the effects
of unwanted background noise that
can result from changing road
surfaces, driving speeds, or open windows. This feature works best
at lower volume settings where
background noise is typically louder
than the sound system volume.
Startup Volume:
Press to set the
maximum volume level for startup
that will be used even if a higher
volume had been set when the radio
was turned off.
Radio Favorites: Press to select
the number of FAV pages to be
used in the system.
Add/Remove XM Categories:
Press to customize which available
XM Categories are used and
displayed in the system.
Phone Settings
See Bluetooth (Infotainment
Controls) on page 7‑31 orBluetooth
(Overview) on page 7‑30 or
Bluetooth (Voice Recognition) on
page 7‑35 in the“Phone” section for
more information on phone settings.
Page 159 of 388

Black plate (9,1)Buick Verano Owner Manual - 2012 - CRC - 1/10/12
Infotainment System 7-9
Vehicle Settings
SeeVehicle Personalization on
page 5‑30 for more information.
Display Settings
Press the Config button on the
Home Page or the CONFIG button
on the faceplate, then select Display
Settings from the list.
The following options may display:
Dimming Mode: Press to change
the screen background. The
Automatic setting adjusts the
screen background automatically
depending on the exterior lighting
conditions.
To change the overall brightness
setting for the display, use the
vehicle interior lighting instrument
panel illumination control.
Languages
The vehicle supports English,
French (Canadian), and Spanish.
The default language is English. Turn the TUNE/MENU knob to
highlight the language. Press
TUNE/MENU to change the display
language.
English and Metric Unit
Conversion
To change the display units between
English and metric units, see
Driver
Information Center (DIC) on
page 5‑21.
Operation
Controls
The infotainment system is
operated by using the pushbuttons,
multifunction knobs, menus shown
on the display, and steering wheel
controls, if equipped.
Turning the System On or Off
O/VOL (Power/Volume): Press to
turn the system on and off. Automatic Switch-Off
If the infotainment system has
been turned on after the ignition is
turned off, the system will turn off
automatically after 10 minutes.
Volume Control
O/VOL (Power/Volume):
Turn to
adjust the volume.
V/8(Phone/Mute): Press to
mute the infotainment system.
Press
V/8again, or turn
the
O/VOL knob to cancel mute.
Menu System (Radio with CD)
The Menu system for the uplevel
infotainment system appears
on the display screen.
Controls
The TUNE/MENU knob
and
/BACK are used to
navigate the menu system.
Page 162 of 388

Black plate (12,1)Buick Verano Owner Manual - 2012 - CRC - 1/10/12
7-12 Infotainment System
System Settings
Configuring the Number of
Favorite Pages
To configure the number of available
favorite pages:
1. Press the CONFIG button.
2. Select Radio Settings.
3. Select Radio Favorites.
4. Select the number of availablefavorite pages.
5. Press
/BACK to go back to the
System Configuration menu.
Auto Volume
The auto volume feature
automatically adjusts the radio
volume to compensate for road and
wind noise as the vehicle speeds up
or slows down, so that the volume
level is consistent. The level of volume compensation
can be selected, or the auto volume
feature can be turned off.
1. Press the CONFIG button.
2. Select Radio Settings.
3. Select Auto Volume.
4. Select the setting.
5. Press
/BACK to go back to the
System Configuration menu.
Maximum Startup Volume
The maximum volume played when
the radio is first turned on can
be set.
1. Press the CONFIG button.
2. Select Radio Settings.
3. Select Maximum Startup Volume.
4. Select the setting.
5. Press
/BACK to go back to the
System Configuration menu.
Radio
AM-FM Radio
For vehicles equipped with the
MyLink or IntelliLink infotainment
system, see the separate MyLink/
IntelliLink Features and Functions
Guide for more information.
Control Buttons
The buttons used to control the
radio are:
O/VOL (Power/Volume):
.Press to turn the radio on or off.
.Turn the knob to increase or
decrease the volume. The
volume is adjusted for the
current audio source or voice
prompts.
RADIO/BAND (Radio with CD
Only): Press to turn the radio on
and choose between AM, FM, and
XM™, if equipped.
Page 163 of 388

Black plate (13,1)Buick Verano Owner Manual - 2012 - CRC - 1/10/12

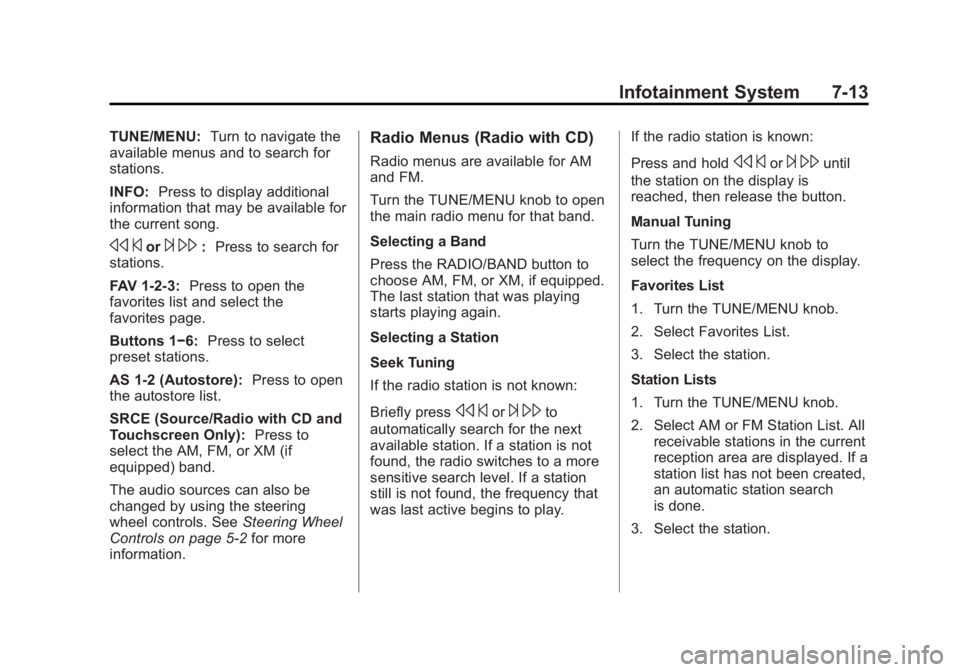

Infotainment System 7-13
TUNE/MENU:Turn to navigate the
available menus and to search for
stations.
INFO: Press to display additional
information that may be available for
the current song.
s ©or¨\: Press to search for
stations.
FAV 1-2-3: Press to open the
favorites list and select the
favorites page.
Buttons 1−6: Press to select
preset stations.
AS 1-2 (Autostore): Press to open
the autostore list.
SRCE (Source/Radio with CD and
Touchscreen Only): Press to
select the AM, FM, or XM (if
equipped) band.
The audio sources can also be
changed by using the steering
wheel controls. See Steering Wheel
Controls on page 5‑2 for more
information.
Radio Menus (Radio with CD)
Radio menus are available for AM
and FM.
Turn the TUNE/MENU knob to open
the main radio menu for that band.
Selecting a Band
Press the RADIO/BAND button to
choose AM, FM, or XM, if equipped.
The last station that was playing
starts playing again.
Selecting a Station
Seek Tuning
If the radio station is not known:
Briefly press
s ©or¨\to
automatically search for the next
available station. If a station is not
found, the radio switches to a more
sensitive search level. If a station
still is not found, the frequency that
was last active begins to play. If the radio station is known:
Press and hold
s
©or¨\until
the station on the display is
reached, then release the button.
Manual Tuning
Turn the TUNE/MENU knob to
select the frequency on the display.
Favorites List
1. Turn the TUNE/MENU knob.
2. Select Favorites List.
3. Select the station.
Station Lists
1. Turn the TUNE/MENU knob.
2. Select AM or FM Station List. All receivable stations in the current
reception area are displayed. If a
station list has not been created,
an automatic station search
is done.
3. Select the station.
Page 166 of 388

Black plate (16,1)Buick Verano Owner Manual - 2012 - CRC - 1/10/12
7-16 Infotainment System
Seeking a Station
Press
s©or¨\to search for a
station.
Local Station List Search (Radio
with CD and Touchscreen)
To find a list of local stations in the
current AM or FM band, turn the
TUNE/MENU knob. The radio
performs a search for available
stations.
Storing a Station as a Favorite
Up to 36 preset stations can be
stored. Each page can store
six preset stations. The presets
within a page can be from different
radio bands.
To scroll through the pages, press
the FAV 1-2-3 (favorites) button. The
current page number displays above
the preset buttons. The stored
stations for each list display at the
bottom of the screen. The number of
preset FAV lists can be changed. To store a radio station to a
favorites page:
1. Press the RADIO/BAND or
SRCE button until the desired
band is selected.
2. Turn the TUNE/MENU knob to the station.
3. Press the FAV 1-2-3 button to scroll the list.
4. Press and hold one of the preset buttons for more than
two seconds. The station
frequency appears on the preset
button at the bottom of the
display.
5. Repeat the steps for each preset in each page.
To recall a preset station from a
favorites page:
1. Press the FAV 1-2-3 button to scroll to the page.
2. Press the preset button. The stored preset station is recalled.
Autostore Stations
AS 1-2 (Autostore): Autostore
searches and stores six FM and
six AM stations with the strongest
signal. To use autostore:
1. Press RADIO/BAND or SRCE to select FM or AM.
2. Press AS 1-2 for at least two seconds until a beep
sounds. SEARCH displays
on the radio, followed by the
number of stations found.
3. The radio will automatically store the six strongest stations found
as autostore presets.
Press the AS 1-2 button to alternate
between the autostore stations and
favorites.
AS displays on the radio when using
autostore presets.
Autostore does not delete
previously stored favorite stations.
Autostore does not function with XM
radio stations.
