Buick Enclave Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
10999311) - 2018 - crc - 11/20/17
Driving and Operating 221
vehicle wheel brakes to assist the
driver in keeping the vehicle on the
intended path.
If cruise control is being used and
traction control or StabiliTrak begins
to limit wheel spin, cruise control will
disengage. Cruise control may be
turned back on when road
conditions allow. TCS and
StabiliTrak will automatically turn on
when cruise control is set.
Both systems come on
automatically when the vehicle is
started and begins to move. The
systems may be heard or felt while
they are operating or while
performing diagnostic checks. This
is normal and does not mean there
is a problem with the vehicle.
It is recommended to leave both
systems on for normal driving
conditions, but it may be necessary
to turn TCS off if the vehicle gets
stuck in sand, mud, ice, or snow.
SeeIf the Vehicle Is Stuck 0196
and “Turning the Systems Off and
On” later in this section.
The indicator light for both systems
is in the instrument cluster. This
light will:
.
Flash when TCS is limiting
wheel spin.
. Flash when StabiliTrak is
activated.
. Turn on and stay on when either
system is not working.
If either system fails to turn on or to
activate, a message displays in the
Driver Information Center (DIC), and
dcomes on and stays on to
indicate that the system is inactive
and is not assisting the driver in
maintaining control. The vehicle is
safe to drive, but driving should be
adjusted accordingly.
If
dcomes on and stays on:
1. Stop the vehicle. 2. Turn the engine off and wait
15 seconds.
3. Start the engine.
4. Drive the vehicle.
If
dcomes on and stays on, see
your dealer.
Turning the Systems Off
and On

Buick Enclave Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
10999311) - 2018 - crc - 11/20/17
250 Driving and Operating
Caution (Continued)
.Fuel containing metals such
as methylcyclopentadienyl
manganese tricarbonyl
(MMT), which can damage
the emissions control
system and spark plugs.
. Fuel with a posted octane
rating of less than the
recommended fuel. Using
this fuel will lower fuel
economy and performance,
and may decrease the life of
the emissions catalyst.

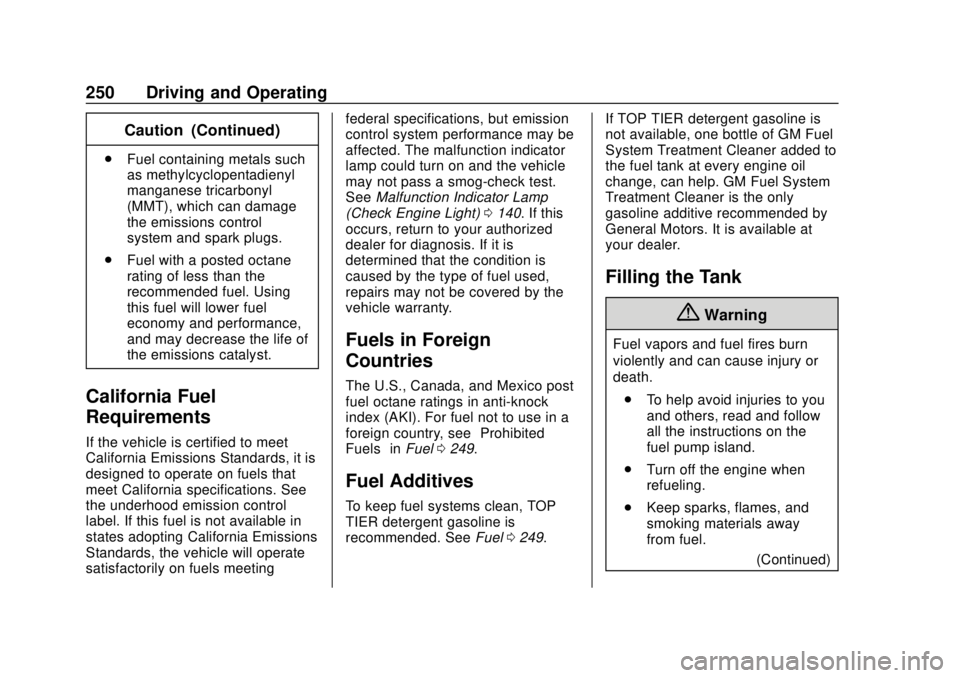

California Fuel
Requirements
If the vehicle is certified to meet
California Emissions Standards, it is
designed to operate on fuels that
meet California specifications. See
the underhood emission control
label. If this fuel is not available in
states adopting California Emissions
Standards, the vehicle will operate
satisfactorily on fuels meeting federal specifications, but emission
control system performance may be
affected. The malfunction indicator
lamp could turn on and the vehicle
may not pass a smog-check test.
See
Malfunction Indicator Lamp
(Check Engine Light) 0140. If this
occurs, return to your authorized
dealer for diagnosis. If it is
determined that the condition is
caused by the type of fuel used,
repairs may not be covered by the
vehicle warranty.
Fuels in Foreign
Countries
The U.S., Canada, and Mexico post
fuel octane ratings in anti-knock
index (AKI). For fuel not to use in a
foreign country, see “Prohibited
Fuels” inFuel 0249.
Fuel Additives
To keep fuel systems clean, TOP
TIER detergent gasoline is
recommended. See Fuel0249. If TOP TIER detergent gasoline is
not available, one bottle of GM Fuel
System Treatment Cleaner added to
the fuel tank at every engine oil
change, can help. GM Fuel System
Treatment Cleaner is the only
gasoline additive recommended by
General Motors. It is available at
your dealer.
Filling the Tank
{Warning
Fuel vapors and fuel fires burn
violently and can cause injury or
death.
. To help avoid injuries to you
and others, read and follow
all the instructions on the
fuel pump island.
. Turn off the engine when
refueling.
. Keep sparks, flames, and
smoking materials away
from fuel.
(Continued)

Buick Enclave Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
10999311) - 2018 - crc - 11/20/17
Driving and Operating 261
.Black: Ground
. White/Green: Back-up Lamps
. Red/Green: Battery Feed
. Blue: Trailer Brake*
*The fuse for this circuit is installed
in the engine compartment fuse
block, but the wires are not
connected. They should be
connected by your dealer or a
qualified service center.
If the back-up lamp circuit is not
functional, contact your dealer.
If a remote (non-vehicle) battery is
being charged, press the Tow/Haul
Mode button, if equipped on the
center stack. This will boost the
vehicle system voltage and properly
charge the battery. If the trailer is
too light for Tow/Haul Mode, turn on
the headlamps (non-HID only) as a
second way to boost the vehicle
system and charge the battery. Electric Trailer Brake Control
Wiring Provisions
These wiring provisions for an
electric trailer brake controller are
included with the vehicle as part of
the trailer wiring package. The body
harness, inside the front driver side
instrument panel, contains blunt cut
wires below the headlamp switch for
the electric trailer brake controller.
The harness contains the following
wires:
.
Blue: “To Trailer”
. Red/Black or Red/Blue:
Battery Feed
. White/Blue: Brake Apply Signal
. Black: Ground
The electric trailer brake controller
should be installed by your dealer or
a qualified service center.Conversions and
Add-Ons
Add-On Electrical
Equipment
{Warning
The Data Link Connector (DLC)
is used for vehicle service
and Emission Inspection/
Maintenance testing. See
Malfunction Indicator Lamp
(Check Engine Light) 0140.
A device connected to the DLC —
such as an aftermarket fleet or
driver-behavior tracking device —
may interfere with vehicle
systems. This could affect vehicle
operation and cause a crash.
Such devices may also access
information stored in the vehicle’s
systems.

Buick Enclave Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
10999311) - 2018 - crc - 11/20/17
Vehicle Care 263
Vehicle Care
General Information
General Information . . . . . . . . . . 264
California Proposition65 Warning . . . . . . . . . . . . . . . . . 264
California Perchlorate Materials Requirements . . . . . 265
Accessories and Modifications . . . . . . . . . . . . . . . . 265
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . . 265
Hood . . . . . . . . . . . . . . . . . . . . . . . . . 266
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . . 267
Engine Oil . . . . . . . . . . . . . . . . . . . . 268
Engine Oil Life System . . . . . . . 270
Automatic Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . . . 271
Engine Air Cleaner/Filter . . . . . . 272
Cooling System . . . . . . . . . . . . . . 272
Engine Overheating . . . . . . . . . . 276
Washer Fluid . . . . . . . . . . . . . . . . . 277
Brakes . . . . . . . . . . . . . . . . . . . . . . . 278
Brake Fluid . . . . . . . . . . . . . . . . . . . 279
Battery - North America . . . . . . 280
All-Wheel Drive . . . . . . . . . . . . . . . 281 Park Brake and P (Park)
Mechanism Check . . . . . . . . . . 281
Wiper Blade Replacement . . . . 281
Windshield Replacement . . . . . 283
Gas Strut(s) . . . . . . . . . . . . . . . . . . 283
Headlamp Aiming
Headlamp Aiming . . . . . . . . . . . . 284
Bulb Replacement
Bulb Replacement . . . . . . . . . . . . 285
LED Lighting . . . . . . . . . . . . . . . . . 285
License Plate Lamp . . . . . . . . . . 285
Electrical System
Electrical System Overload . . . 286
Fuses and Circuit Breakers . . . 286
Engine Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 287
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 290
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 292
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 295
All-Season Tires . . . . . . . . . . . . . . 296
Winter Tires . . . . . . . . . . . . . . . . . . 296
Tire Sidewall Labeling . . . . . . . . 296
Tire Designations . . . . . . . . . . . . . 298
Tire Terminology andDefinitions . . . . . . . . . . . . . . . . . . 299 Tire Pressure . . . . . . . . . . . . . . . . . 302
Tire Pressure for High-Speed
Operation . . . . . . . . . . . . . . . . . . . 303
Tire Pressure Monitor System . . . . . . . . . . . . . . . . . . . . . . 303
Tire Pressure Monitor Operation . . . . . . . . . . . . . . . . . . . 304
Tire Inspection . . . . . . . . . . . . . . . . 308
Tire Rotation . . . . . . . . . . . . . . . . . 309
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . 310
Buying New Tires . . . . . . . . . . . . . 310
Different Size Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . 312
Uniform Tire Quality Grading . . . . . . . . . . . . . . . . . . . . . 312
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . 314
Wheel Replacement . . . . . . . . . . 314
Tire Chains . . . . . . . . . . . . . . . . . . . 315
If a Tire Goes Flat . . . . . . . . . . . . 315
Tire Changing . . . . . . . . . . . . . . . . 317
Compact Spare Tire . . . . . . . . . . 323Jump Starting
Jump Starting - North America . . . . . . . . . . . . . . . . . . . . . 324
Towing the Vehicle
Towing the Vehicle . . . . . . . . . . . 327

Buick Enclave Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
10999311) - 2018 - crc - 11/20/17
Vehicle Care 279
Replacing Brake System Parts
Always replace brake system parts
with new, approved replacement
parts. If this is not done, the brakes
may not work properly. The braking
performance expected can change
in many other ways if the wrong
replacement brake parts are
installed or if parts are improperly
installed.
Brake Fluid
The brake master cylinder reservoir
is filled with GM approved DOT 3
brake fluid as indicated on the
reservoir cap. SeeEngine
Compartment Overview 0267 for
the location of the reservoir. Checking Brake Fluid
With the vehicle in P (Park) on a
level surface, the brake fluid level
should be between the minimum
and maximum marks on the brake
fluid reservoir.
There are only two reasons why the
brake fluid level in the reservoir may
go down:
.
Normal brake lining wear. When
new linings are installed, the
fluid level goes back up.
. A fluid leak in the brake
hydraulic system. Have the
brake hydraulic system fixed.
With a leak, the brakes will not
work well.
Always clean the brake fluid
reservoir cap and the area around
the cap before removing it.
Do not top off the brake fluid.
Adding fluid does not correct a leak.
If fluid is added when the linings are
worn, there will be too much fluid
when new brake linings are installed. Add or remove fluid, as
necessary, only when work is done
on the brake hydraulic system.
{Warning
If too much brake fluid is added, it
can spill on the engine and burn,
if the engine is hot enough. You
or others could be burned, and
the vehicle could be damaged.
Add brake fluid only when work is
done on the brake hydraulic
system.
When the brake fluid falls to a low
level, the brake warning light comes
on. See Brake System Warning
Light 0142.
Brake fluid absorbs water over time
which degrades the effectiveness of
the brake fluid. Replace brake fluid
at the specified intervals to prevent
increased stopping distance. See
Maintenance Schedule 0341.

Buick Enclave Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
10999311) - 2018 - crc - 11/20/17
Service and Maintenance 347
.To avoid break-down or failure to
start the vehicle, maintain a
battery with full cranking power.
. Trained dealer technicians have
the diagnostic equipment to test
the battery and ensure that the
connections and cables are
corrosion-free.
Belts
. Belts may need replacing if they
squeak or show signs of
cracking or splitting.
. Trained dealer technicians have
access to tools and equipment
to inspect the belts and
recommend adjustment or
replacement when necessary.
Brakes
Brakes stop the vehicle and are
crucial to safe driving.
. Signs of brake wear may include
chirping, grinding, or squealing
noises, or difficulty stopping. .
Trained dealer technicians have
access to tools and equipment
to inspect the brakes and
recommend quality parts
engineered for the vehicle.
Fluids
Proper fluid levels and approved
fluids protect the vehicle’s systems
and components. See
Recommended Fluids and
Lubricants 0349 for GM approved
fluids.
. Engine oil and windshield
washer fluid levels should be
checked at every fuel fill.
. Instrument cluster lights may
come on to indicate that fluids
may be low and need to be
filled.
Hoses
Hoses transport fluids and should
be regularly inspected to ensure
that there are no cracks or leaks.
With a multi-point inspection, your
dealer can inspect the hoses and
advise if replacement is needed. Lamps
Properly working headlamps,
taillamps, and brake lamps are
important to see and be seen on
the road.
.
Signs that the headlamps need
attention include dimming, failure
to light, cracking, or damage.
The brake lamps need to be
checked periodically to ensure
that they light when braking.
. With a multi-point inspection,
your dealer can check the lamps
and note any concerns.
Shocks and Struts
Shocks and struts help aid in control
for a smoother ride.
. Signs of wear may include
steering wheel vibration, bounce/
sway while braking, longer
stopping distance, or uneven
tire wear.
. As part of the multi-point
inspection, trained dealer
technicians can visually inspect
the shocks and struts for signs

Buick Enclave Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
10999311) - 2018 - crc - 11/20/17
Index 381
IndexA
Accessories andModifications . . . . . . . . . . . . . . . . . . 265
Accessory Power . . . . . . . . . . . . . . . 205
Adaptive Cruise Control . . . . . . . . 226
Add-On Electrical Equipment . . . 261
Additional Information OnStar . . . . . . . . . . . . . . . . . . . . . . . 375
Additional Maintenance and Care . . . . . . . . . . . . . . . . . . . . . . 346
Adjustments Lumbar, Front Seats . . . . . . . . . . . . 64
Air Cleaner/Filter, Engine . . . . . . . 272
Air Conditioning . . . . . . . . . . . 176, 180
Air Filter, Passenger Compartment . . . . . . . . . . . . . . . . . 183
Air Vents . . . . . . . . . . . . . . . . . . . . . . . 182
Airbag System Check . . . . . . . . . . . . . . . . . . . . . . . . . . 95
How Does an Airbag
Restrain? . . . . . . . . . . . . . . . . . . . . . 88
Passenger Sensing System . . . . 90
What Makes an Airbag Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 88
What Will You See after an Airbag Inflates? . . . . . . . . . . . . . . . 88
When Should an Airbag Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 87 Airbag System (cont'd)
Where Are the Airbags? . . . . . . . . 85
Airbags Adding Equipment to the
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . 94
Passenger Status Indicator . . . 139
Readiness Light . . . . . . . . . . . . . . 138
Servicing Airbag-Equipped Vehicles . . . . . . . . . . . . . . . . . . . . . . . 94
System Check . . . . . . . . . . . . . . . . . . 83
Alarm Vehicle Security . . . . . . . . . . . . . . . . 49
Alert Lane Change . . . . . . . . . . . . . . . . . 245
Side Blind Zone (SBZA) . . . . . . 245
All-Season Tires . . . . . . . . . . . . . . . . 296
All-Wheel Drive . . . . . . . . . . . . 216, 281
Antilock Brake System (ABS) . . . 217 Warning Light . . . . . . . . . . . . . . . . . 143
Appearance Care Exterior . . . . . . . . . . . . . . . . . . . . . . . 330
Interior . . . . . . . . . . . . . . . . . . . . . . . . 334
Assistance Program,
Roadside . . . . . . . . . . . . . . . . . . . . . . 359
Assistance Systems for Driving . . . . . . . . . . . . . . . . . . . . . . . . 239
Assistance Systems for Parking and Backing . . . . . . . . . . 235

Buick Enclave Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
10999311) - 2018 - crc - 11/20/17
382 Index
AutomaticDimming Mirrors . . . . . . . . . . . . . . . . 52
Door Locks . . . . . . . . . . . . . . . . . . . . . 40
Forward Braking . . . . . . . . . . . . . . 241
Headlamp System . . . . . . . . . . . . 169
Transmission . . . . . . . . . . . . . . . . . 210
Transmission Fluid . . . . . . . . . . . 271
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . 215
B
BatteryExterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . 174
Load Management . . . . . . . . . . . . 173
Power Protection . . . . . . . . . . . . . 173
Battery - North America . . . . 280, 324
Blade Replacement, Wiper . . . . . 281
Brake
Parking, Electric . . . . . . . . . . . . . . 218
System Warning Light . . . . . . . . 142
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 278 Antilock . . . . . . . . . . . . . . . . . . . . . . . 217
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 219
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 279
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 186
Automatic Forward . . . . . . . . . . . 241 Braking System
Front Pedestrian (FPB) . . . . . . . 243
Break-In, New Vehicle . . . . . . . . . . 200
Bulb Replacement Headlamp Aiming . . . . . . . . . . . . . 284
Headlamps . . . . . . . . . . . . . . . . . . . 285
License Plate Lamps . . . . . . . . . 285
Buying New Tires . . . . . . . . . . . . . . . 310
C
Calibration . . . . . . . . . . . . . . . . . . . . . . 126
California Fuel Requirements . . . . . . . . . . . 250
Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . 265
California Proposition
65 Warning . . . . . . . . . .264, 280, 324,
Back Cover
Canadian Vehicle Owners . . . . . . . . 2
Capacities and Specifications . . . . . . . . . . . . . . . . . 353
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . 209
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . 42
Winter Driving . . . . . . . . . . . . . . . . 194
Cargo Management System . . . . . . . . . .118 Caution, Danger, and Warning . . . . 2
Center Console Storage . . . . . . . . 118
Chains, Tire . . . . . . . . . . . . . . . . . . . . 315
Charging
Wireless . . . . . . . . . . . . . . . . . . . . . . 129
Charging System Light . . . . . . . . . 139
Check Engine Light (MalfunctionIndicator) . . . . . . . . . . . . . . . . . . . . 140
Child Restraints Infants and Young Children . . . . . 97
Lower Anchors and Tethers
for Children . . . . . . . . . . . . . . . . . 103
Older Children . . . . . . . . . . . . . . . . . . 96
Securing . . . . . . . . . . . . . . . . . . 111, 113
Systems . . . . . . . . . . . . . . . . . . . . . . 100
Circuit Breakers . . . . . . . . . . . . . . . . 286
Cleaning Exterior Care . . . . . . . . . . . . . . . . . 330
Interior Care . . . . . . . . . . . . . . . . . . 334
Climate Control Systems
Dual Automatic . . . . . . . . . . . . . . . 176
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Cluster, Instrument . . . . . . . . . . . . . 132
Collision Damage Repair . . . . . . . 362
Compact Spare Tire . . . . . . . . . . . . 323

Buick Enclave Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
10999311) - 2018 - crc - 11/20/17
384 Index
Electrical SystemEngine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 287
Fuses and Circuit Breakers . . . 286
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 290
Overload . . . . . . . . . . . . . . . . . . . . . 286
Rear Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 292
Emergency OnStar . . . . . . . . . . . . . . . . . . . . . . . 370
Engine Air Cleaner/Filter . . . . . . . . . . . . . 272
Check Light (MalfunctionIndicator) . . . . . . . . . . . . . . . . . . . . 140
Compartment Overview . . . . . . . 267
Coolant Temperature
Gauge . . . . . . . . . . . . . . . . . . . . . . 137
Cooling System . . . . . . . . . . . . . . . 272
Drive Belt Routing . . . . . . . . . . . . 354
Exhaust . . . . . . . . . . . . . . . . . . . . . . 209
Heater . . . . . . . . . . . . . . . . . . . . . . . . 204
Oil Life System . . . . . . . . . . . . . . . 270
Oil Pressure Light . . . . . . . . . . . . 145
Overheating . . . . . . . . . . . . . . . . . . 276
Power Messages . . . . . . . . . . . . . 154
Running While Parked . . . . . . . . 210
Starting . . . . . . . . . . . . . . . . . . . . . . . 202 Entry Lighting . . . . . . . . . . . . . . . . . . . 172
Equipment, Towing . . . . . . . . . . . . . 259
Event Data Recorders . . . . . . . . . . 367
Exit Lighting . . . . . . . . . . . . . . . . . . . . 173
Extended Parking . . . . . . . . . . . . . . . 208
Extender, Seat Belt . . . . . . . . . . . . . . 81
Exterior Lamp Controls . . . . . . . . . 166
Exterior Lamps Off Reminder . . . 168
Exterior Lighting Battery
Saver . . . . . . . . . . . . . . . . . . . . . . . . . 174
F
FeaturesMemory . . . . . . . . . . . . . . . . . . . . . . . . . 11
Filter, Engine Air Cleaner . . . . . . . . . . . 272
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 168
Flashers, Hazard Warning . . . . . . 170
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 315
Changing . . . . . . . . . . . . . . . . . . . . . 317
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 338
Fluid
Automatic Transmission . . . . . . 271
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 279
Washer . . . . . . . . . . . . . . . . . . . . . . . 277
Folding Mirrors . . . . . . . . . . . . . . . . . . 51
Forward Automatic Braking . . . . . 241 Forward Collision Alert
(FCA) System . . . . . . . . . . . . . . . . . 239
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . 365
Front Pedestrian Braking (FPB) System . . . . . . . . . . . . . . . . . 243
Front Seats
Heated and Ventilated . . . . . . . . . . 68
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249 Additives . . . . . . . . . . . . . . . . . . . . . 250
Economy Driving . . . . . . . . . . . . . . . 28
Filling a Portable FuelContainer . . . . . . . . . . . . . . . . . . . 252
Filling the Tank . . . . . . . . . . . . . . . 250
Foreign Countries . . . . . . . . . . . . 250
Gauge . . . . . . . . . . . . . . . . . . . . . . . . 136
Low Fuel Warning Light . . . . . . . 146
Requirements, California . . . . . 250
Fuses Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 287
Fuses and Circuit Breakers . . . 286
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 290
Rear Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 292

Buick Enclave Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
10999311) - 2018 - crc - 11/20/17
386 Index
Lamps (cont'd)Exterior Controls . . . . . . . . . . . . . . 166
Exterior Lamps Off
Reminder . . . . . . . . . . . . . . . . . . . 168
Exterior Lighting Battery Saver . . . . . . . . . . . . . . . . . . . . . . . 174
License Plate . . . . . . . . . . . . . . . . . 285
Malfunction Indicator (Check Engine) . . . . . . . . . . . . . 140
On Reminder . . . . . . . . . . . . . . . . . 147
Reading . . . . . . . . . . . . . . . . . . . . . . 171
Lane Change Alert (LCA) . . . . . . . 245
Lane Departure Warning (LDW) . . . . . . . . . . . . . . . . 247
Lane Keep Assist (LKA) . . . . . . . . 247
Lane Keep Assist Light . . . . . . . . . 143
Lap-Shoulder Belt . . . . . . . . . . . . . . . 77
LATCH System Replacing Parts after aCrash . . . . . . . . . . . . . . . . . . . . . . . . 111
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . 103
LED Lighting . . . . . . . . . . . . . . . . . . . . 285
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Lighting
Entry . . . . . . . . . . . . . . . . . . . . . . . . . 172
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Illumination Control . . . . . . . . . . . 171 Lighting (cont'd)
LED . . . . . . . . . . . . . . . . . . . . . . . . . . 285
Lights Airbag Readiness . . . . . . . . . . . . . 138
Antilock Brake System
(ABS) Warning . . . . . . . . . . . . . . 143
Brake System Warning . . . . . . . 142
Charging System . . . . . . . . . . . . . 139
Check Engine (Malfunction Indicator) . . . . . . . . . . . . . . . . . . . . 140
Cruise Control . . . . . . . . . . . . . . . . 147
Door Ajar . . . . . . . . . . . . . . . . . . . . . 147
Electric Parking Brake . . . . . . . . 142
Engine Oil Pressure . . . . . . . . . . 145
Flash-to-Pass . . . . . . . . . . . . . . . . . 168
High-Beam On . . . . . . . . . . . . . . . . 146
High/Low Beam Changer . . . . . 168
Lane Keep Assist . . . . . . . . . . . . . 143
Low Fuel Warning . . . . . . . . . . . . 146
Seat Belt Reminders . . . . . . . . . . 137
Security . . . . . . . . . . . . . . . . . . . . . . 146
Service Electric Parking Brake . . . . . . . . . . . . . . . . . . . . . . . 142
StabiliTrak OFF . . . . . . . . . . . . . . . 144
Tire Pressure . . . . . . . . . . . . . . . . . 145
Traction Control System (TCS)/StabiliTrak . . . . . . . . . . . . 145
Traction Off . . . . . . . . . . . . . . . . . . . 144 Locks
Automatic Door . . . . . . . . . . . . . . . . . 40
Delayed Locking . . . . . . . . . . . . . . . . 40
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Lockout Protection . . . . . . . . . . . . . . 41
Power Door . . . . . . . . . . . . . . . . . . . . . 40
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Loss of Control . . . . . . . . . . . . . . . . . 188
Low Fuel Warning Light . . . . . . . . . 146
Lower Anchors and Tethers for Children (LATCH
System) . . . . . . . . . . . . . . . . . . . . . . . 103
Lumbar Adjustment . . . . . . . . . . . . . . 64 Front Seats . . . . . . . . . . . . . . . . . . . . . 64
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . 351
Maintenance and Care Additional . . . . . . . . . . . . . . . . . . . . . 346
Maintenance Schedule . . . . . . . . . 341
Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . 349
Malfunction Indicator Lamp . . . . . 140
Manual Mode . . . . . . . . . . . . . . . . . . . 215
Memory Features . . . . . . . . . . . . . . . . 11
Memory Seats . . . . . . . . . . . . . . . . . . . 65
