Page 257 of 333
Buick Encore Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12163005) - 2019 - crc - 9/17/18

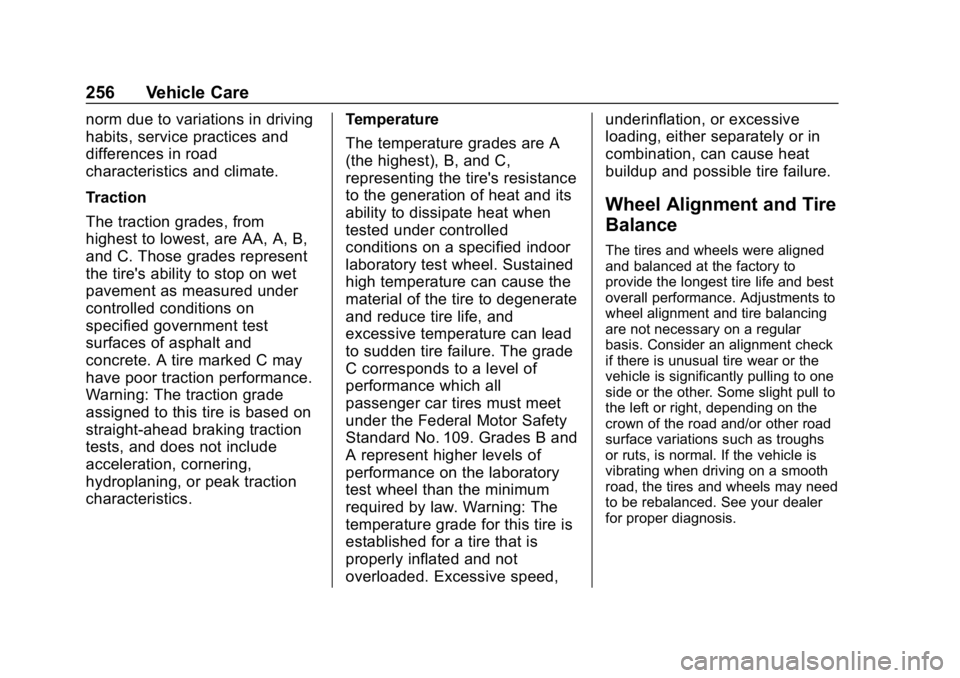

256 Vehicle Care
norm due to variations in driving
habits, service practices and
differences in road
characteristics and climate.
Traction
The traction grades, from
highest to lowest, are AA, A, B,
and C. Those grades represent
the tire's ability to stop on wet
pavement as measured under
controlled conditions on
specified government test
surfaces of asphalt and
concrete. A tire marked C may
have poor traction performance.
Warning: The traction grade
assigned to this tire is based on
straight-ahead braking traction
tests, and does not include
acceleration, cornering,
hydroplaning, or peak traction
characteristics.Temperature
The temperature grades are A
(the highest), B, and C,
representing the tire's resistance
to the generation of heat and its
ability to dissipate heat when
tested under controlled
conditions on a specified indoor
laboratory test wheel. Sustained
high temperature can cause the
material of the tire to degenerate
and reduce tire life, and
excessive temperature can lead
to sudden tire failure. The grade
C corresponds to a level of
performance which all
passenger car tires must meet
under the Federal Motor Safety
Standard No. 109. Grades B and
A represent higher levels of
performance on the laboratory
test wheel than the minimum
required by law. Warning: The
temperature grade for this tire is
established for a tire that is
properly inflated and not
overloaded. Excessive speed,underinflation, or excessive
loading, either separately or in
combination, can cause heat
buildup and possible tire failure.
Wheel Alignment and Tire
Balance
The tires and wheels were aligned
and balanced at the factory to
provide the longest tire life and best
overall performance. Adjustments to
wheel alignment and tire balancing
are not necessary on a regular
basis. Consider an alignment check
if there is unusual tire wear or the
vehicle is significantly pulling to one
side or the other. Some slight pull to
the left or right, depending on the
crown of the road and/or other road
surface variations such as troughs
or ruts, is normal. If the vehicle is
vibrating when driving on a smooth
road, the tires and wheels may need
to be rebalanced. See your dealer
for proper diagnosis.
Page 267 of 333
Buick Encore Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12163005) - 2019 - crc - 9/17/18
266 Vehicle Care
4. Turn the ignition off. Turn off alllights and accessories in both
vehicles, except the hazard
warning flashers if needed.
{Warning
An electric fan can start up even
when the engine is not running
and can injure you. Keep hands,
clothing, and tools away from any
underhood electric fan.
{Warning
Using a match near a battery can
cause battery gas to explode.
People have been hurt doing this,
and some have been blinded.
Use a flashlight if you need more
light.
Battery fluid contains acid that
can burn you. Do not get it on
you. If you accidentally get it in
your eyes or on your skin, flush
the place with water and get
medical help immediately.
{Warning
Fans or other moving engine
parts can injure you badly. Keep
your hands away from moving
parts once the engine is running.
5. Connect one end of the red positive (+) cable to the
positive (+) terminal on the
discharged battery.
6. Connect the other end of the red positive (+) cable to the
positive (+) terminal of the good
battery.
7. Connect one end of the black negative (–) cable to the
negative (–) terminal of the
good battery.
8. Connect the other end of the black negative (–) cable to the
negative (–) grounding point for
the discharged battery.
9. Start the engine in the vehicle with the good battery and run
the engine at idle speed for at
least four minutes. 10. Try to start the vehicle that had
the dead battery. If it will not
start after a few tries, it
probably needs service.
Caution
If the jumper cables are
connected or removed in the
wrong order, electrical shorting
may occur and damage the
vehicle. The repairs would not be
covered by the vehicle warranty.
Always connect and remove the
jumper cables in the correct order,
making sure that the cables do
not touch each other or other
metal.
Jumper Cable Removal
Reverse the sequence exactly when
removing the jumper cables.
After starting the disabled vehicle
and removing the jumper cables,
allow it to idle for several minutes.
Page 322 of 333
Buick Encore Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12163005) - 2019 - crc - 9/17/18
Index 321
IndexA
About Driving the Vehicle . . . . . . . . . 2
Accessories andModifications . . . . . . . . . . . . . . . . . . 203
Accessory Power . . . . . . . . . . . . . . . 172
Add-On Electrical Equipment . . . 200
Additional Information
OnStar . . . . . . . . . . . . . . . . . . . . . . . .311
Additional Maintenance and Care . . . . . . . . . . . . . . . . . . . . . . 286
Adjustments Lumbar, Front Seats . . . . . . . . . . . . 50
Air Cleaner/Filter, Engine . . . . . . . 213
Air Conditioning . . . . . . . . . . . 147, 149
Air Filter, Passenger Compartment . . . . . . . . . . . . . . . . . 153
Air Intake . . . . . . . . . . . . . . . . . . . . . . . 153
Air Vents . . . . . . . . . . . . . . . . . . . . . . . 152
Airbag System Check . . . . . . . . . . . . . . . . . . . . . . . . . . 79
How Does an AirbagRestrain? . . . . . . . . . . . . . . . . . . . . . 72
Passenger Sensing System . . . . 74
What Makes an Airbag Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 72
What Will You See after an Airbag Inflates? . . . . . . . . . . . . . . . 73 Airbag System (cont'd)
When Should an Airbag
Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 71
Where Are the Airbags? . . . . . . . . 70
Airbags Adding Equipment to theVehicle . . . . . . . . . . . . . . . . . . . . . . . . 79
Passenger Status Indicator . . . .117
Readiness Light . . . . . . . . . . . . . . .117
Servicing Airbag-Equipped Vehicles . . . . . . . . . . . . . . . . . . . . . . . 78
System Check . . . . . . . . . . . . . . . . . . 68
Alarm Vehicle Security . . . . . . . . . . . . . . . . 39
Alert Side Blind Zone (SBZA) . . . . . . 192
All-Season Tires . . . . . . . . . . . . . . . . 239
All-Wheel Drive . . . . . . . . . . . . 179, 223
Antilock Brake System (ABS) . . . 179 Warning Light . . . . . . . . . . . . . . . . . 121
Appearance Care Exterior . . . . . . . . . . . . . . . . . . . . . . . 270
Interior . . . . . . . . . . . . . . . . . . . . . . . . 275
Armrest Front Seat . . . . . . . . . . . . . . . . . . . . . . 54
Rear Seat . . . . . . . . . . . . . . . . . . . . . . 60
Assistance Program, Roadside . . . . . . . . . . . . . . . . . . . . . . 299
Page 323 of 333
Buick Encore Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12163005) - 2019 - crc - 9/17/18
322 Index
Auto StopStop/Start System . . . . . . . . . . . . 170
Automatic Door Locks . . . . . . . . . . . . . . . . . . . . . 36
Headlamp System . . . . . . . . . . . . 141
Transmission . . . . . . . . . . . . . . . . . 176
Transmission Fluid . . . . . . . . . . . 212
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . 178
Shift Lock Control FunctionCheck . . . . . . . . . . . . . . . . . . . . . . . 223
B
Battery
Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . 145
Power Protection . . . . . . . . . . . . . 145
Battery - North America . . . . 222, 264
Blade Replacement, Wiper . . . . . 224
Brake System Warning Light . . . . . . . . 120
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 220 Antilock . . . . . . . . . . . . . . . . . . . . . . . 179
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 180
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Parking . . . . . . . . . . . . . . . . . . . . . . . 180
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 158
Break-In, New Vehicle . . . . . . . . . . 167 Bulb Replacement
Halogen Bulbs . . . . . . . . . . . . . . . . 227
Headlamp Aiming . . . . . . . . . . . . . 227
Headlamps . . . . . . . . . . . . . . . . . . . 227
Headlamps, Front Turn
Signal, and Parking
Lamps . . . . . . . . . . . . . . . . . . . . . . 227
License Plate Lamps . . . . . . . . . 230
Taillamps, Turn Signal, Sidemarker, Stoplamps,
and Backup Lamps . . . . . . . . . . 229
Buying New Tires . . . . . . . . . . . . . . . 253C
Calibration . . . . . . . . . . . . . . . . . . . . . . 108
California Perchlorate Materials
Requirements . . . . . . . . . . . . . . . 203
California Proposition
65 Warning . . . . . . . . . .202, 222, 264, Back Cover
Camera Rear Vision (RVC) . . . . . . . . . . . . 187
Canadian Vehicle Owners . . . . . . . . 2
Capacities and Specifications . . . . . . . . . . . . . . . . . 293 Carbon Monoxide
Engine Exhaust . . . . . . . . . . . . . . . 175
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . 38
Winter Driving . . . . . . . . . . . . . . . . 161
Cargo Cover . . . . . . . . . . . . . . . . . . . . . . . . . 102
Management System . . . . . . . . . 102
Caution, Danger, and Warning . . . . 3
Center Console Storage . . . . . . . . 101
Chains, Tire . . . . . . . . . . . . . . . . . . . . 257
Charging System Light . . . . . . . . . 118
Check Engine Light (MalfunctionIndicator) . . . . . . . . . . . . . . . . . . . . .118
Child Restraints Infants and Young Children . . . . . 82
Lower Anchors and Tethers
for Children . . . . . . . . . . . . . . . . . . . 87
Older Children . . . . . . . . . . . . . . . . . . 80
Securing . . . . . . . . . . . . . . . . . . . . 94, 96
Systems . . . . . . . . . . . . . . . . . . . . . . . . 84
Circuit Breakers . . . . . . . . . . . . . . . . 231
Cleaning Exterior Care . . . . . . . . . . . . . . . . . 270
Interior Care . . . . . . . . . . . . . . . . . . 275
Climate Control Systems . . . . . . . 147 Air Conditioning . . . . . . . . . . . . . . 147
Dual Automatic . . . . . . . . . . . . . . . 149
Page 324 of 333
Buick Encore Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12163005) - 2019 - crc - 9/17/18
Index 323
Climate Control Systems (cont'd)Heating . . . . . . . . . . . . . . . . . . . . . . . 147
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Cluster, Instrument . . . . . . . . . . . . . 111
Collision Damage Repair . . . . . . . 302
Compact Spare Tire . . . . . . . . . . . . 263
Compartments Storage . . . . . . . . . . . . . . . . . . . . . . . 100
Compass . . . . . . . . . . . . . . . . . . . . . . . 108
Connected Services
Connections . . . . . . . . . . . . . . . . . . 318
Diagnostics . . . . . . . . . . . . . . . . . . . 320
Navigation . . . . . . . . . . . . . . . . . . . . 317
Connections
Connected Services . . . . . . . . . . 318
Control Traction and ElectronicStability . . . . . . . . . . . . . . . . . . . . . 181
Control of a Vehicle . . . . . . . . . . . . . 158
Convenience Net . . . . . . . . . . . . . . . 103
Convex Mirrors . . . . . . . . . . . . . . . . . . 41
Coolant Engine Temperature Gauge . . .115
Cooling . . . . . . . . . . . . . . . . . . . . 147, 149
Cooling System . . . . . . . . . . . . . . . . . 214
Courtesy Lamps . . . . . . . . . . . . . . . . 143
Courtesy Transportation Program . . . . . . . . . . . . . . . . . . . . . . . 301 Cover
Cargo . . . . . . . . . . . . . . . . . . . . . . . . . 102
Cruise Control . . . . . . . . . . . . . . . . . . 183 Light . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Cupholders . . . . . . . . . . . . . . . . . . . . . 101
Customer Assistance . . . . . . . . . . . 298 Offices . . . . . . . . . . . . . . . . . . . . . . . . 297
Text Telephone (TTY)
Users . . . . . . . . . . . . . . . . . . . . . . . 298
Customer Information Publications Ordering
Information . . . . . . . . . . . . . . . . . . 304
Customer Satisfaction Procedure . . . . . . . . . . . . . . . . . . . . . 295
D
Damage Repair, Collision . . . . . . . 302
Danger, Warning, and Caution . . . . 3
Data CollectionInfotainment System . . . . . . . . . . 308
OnStar . . . . . . . . . . . . . . . . . . . . . . . 308
Data Recorders, Event . . . . . . . . . 307
Daytime Running Lamps (DRL) . . . . . . . . . . . . . . . . . . 141
Defensive Driving . . . . . . . . . . . . . . . 157
Delayed Locking . . . . . . . . . . . . . . . . . 36
Diagnostics Connected Services . . . . . . . . . . 320 Distracted Driving . . . . . . . . . . . . . . . 156
Dome Lamps . . . . . . . . . . . . . . . . . . . 143
Door
Delayed Locking . . . . . . . . . . . . . . . . 36
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Power Locks . . . . . . . . . . . . . . . . . . . . 36
Drive Belt Routing, Engine . . . . . . 294
Drive Systems
All-Wheel Drive . . . . . . . . . . 179, 223
Driver Assistance Systems . . . . . 186
Driver Behavior . . . . . . . . . . . . . . . . . 156
Driver Information Center (DIC) . . . . . . . . . . . . . 125, 127
Driving Defensive . . . . . . . . . . . . . . . . . . . . . 157
Drunk . . . . . . . . . . . . . . . . . . . . . . . . . 157
Environment . . . . . . . . . . . . . . . . . . 156
For Better Fuel Economy . . . . . . . 24
Hill and Mountain Roads . . . . . . 160
If the Vehicle is Stuck . . . . . . . . . 162
Loss of Control . . . . . . . . . . . . . . . 159
Off-Road Recovery . . . . . . . . . . . 159
Vehicle Load Limits . . . . . . . . . . . 163
Wet Roads . . . . . . . . . . . . . . . . . . . 160
Winter . . . . . . . . . . . . . . . . . . . . . . . . 161
Driving the Vehicle . . . . . . . . . . . . . . . . 2
Dual Automatic Climate Control System . . . . . . . . . . . . . . . . 149
Page 325 of 333
Buick Encore Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12163005) - 2019 - crc - 9/17/18
324 Index
E
Electrical Equipment,Add-On . . . . . . . . . . . . . . . . . . . . . . . 200
Electrical System Engine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 232
Fuses and Circuit Breakers . . . 231
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 235
Overload . . . . . . . . . . . . . . . . . . . . . 231
Rear Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 237
Emergency OnStar . . . . . . . . . . . . . . . . . . . . . . . 310
Engine Air Cleaner/Filter . . . . . . . . . . . . . 213
Check Light (MalfunctionIndicator) . . . . . . . . . . . . . . . . . . . . .118
Compartment Overview . . . . . . . 206
Coolant Temperature
Gauge . . . . . . . . . . . . . . . . . . . . . . .115
Cooling System . . . . . . . . . . . . . . . 214
Drive Belt Routing . . . . . . . . . . . . 294
Exhaust . . . . . . . . . . . . . . . . . . . . . . 175
Heater . . . . . . . . . . . . . . . . . . . . . . . . 171
Oil Life System . . . . . . . . . . . . . . . .211
Oil Pressure Light . . . . . . . . . . . . 123
Overheating . . . . . . . . . . . . . . . . . . 218 Engine (cont'd)
Power Messages . . . . . . . . . . . . . 130
Running While Parked . . . . . . . . 176
Starting . . . . . . . . . . . . . . . . . . . . . . . 169
Entry Lighting . . . . . . . . . . . . . . . . . . . 144
Event Data Recorders . . . . . . . . . . 307
Exit Lighting . . . . . . . . . . . . . . . . . . . . 144
Extended Parking . . . . . . . . . . . . . . . 174
Extender, Seat Belt . . . . . . . . . . . . . . 66
Exterior Lamp Controls . . . . . . . . . 140
Exterior Lighting Battery Saver . . . . . . . . . . . . . . . . . . . . . . . . . 145
F
FeaturesMemory . . . . . . . . . . . . . . . . . . . . . . . . . 11
Filter, Engine Air Cleaner . . . . . . . . . . . 213
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 141
Flashers, Hazard Warning . . . . . . 142
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 258
Changing . . . . . . . . . . . . . . . . . . . . . 259
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 278
Fluid Automatic Transmission . . . . . . 212
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 221
Washer . . . . . . . . . . . . . . . . . . . . . . . 219 Fog Lamps
Front . . . . . . . . . . . . . . . . . . . . . . . . . 143
Folding Mirrors . . . . . . . . . . . . . . . . . . 42
Folding Seatback . . . . . . . . . . . . . . . . 55
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . 191
Frequency Statement
Radio . . . . . . . . . . . . . . . . . . . . . . . . . 305
Front Fog Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Front Seat Armrest . . . . . . . . . . . . . . 54
Front Seats
Adjustment . . . . . . . . . . . . . . . . . . . . . 49
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 54
Fuel Additives . . . . . . . . . . . . . . . . . . . . . 197
Economy Driving . . . . . . . . . . . . . . . 24
Filling a Portable Fuel
Container . . . . . . . . . . . . . . . . . . . 199
Filling the Tank . . . . . . . . . . . . . . . 197
Foreign Countries . . . . . . . . . . . . 197
Gauge . . . . . . . . . . . . . . . . . . . . . . . . .114
Low Fuel Warning Light . . . . . . . 124
Prohibited Fuels . . . . . . . . . . . . . . 196
Recommended . . . . . . . . . . . . . . . 196
Top Tier . . . . . . . . . . . . . . . . . . . . . . 196
Page 326 of 333
Buick Encore Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12163005) - 2019 - crc - 9/17/18
Index 325
FusesEngine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 232
Fuses and Circuit Breakers . . . 231
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 235
Rear Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 237
G
Garage Door Opener . . . . . . . . . . . 136Programming . . . . . . . . . . . . . . . . . 136
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . 225
Gauges Engine CoolantTemperature . . . . . . . . . . . . . . . . .115
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . .114
Odometer . . . . . . . . . . . . . . . . . . . . . .114
Speedometer . . . . . . . . . . . . . . . . . .113
Tachometer . . . . . . . . . . . . . . . . . . . .114
Trip Odometer . . . . . . . . . . . . . . . . .114
Warning Lights and
Indicators . . . . . . . . . . . . . . . . . . . .110
General Information Service and Maintenance . . . . . 279
Towing . . . . . . . . . . . . . . . . . . . . . . . . 199
Vehicle Care . . . . . . . . . . . . . . . . . . 202
Glove Box . . . . . . . . . . . . . . . . . . . . . . 100 GM Mobility Reimbursement
Program . . . . . . . . . . . . . . . . . . . . . . . 299
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . 227
Hazard Warning Flashers . . . . . . . 142
Head Restraints . . . . . . . . . . . . . . . . . 48
Headlamps
Aiming . . . . . . . . . . . . . . . . . . . . . . . . 227
Automatic . . . . . . . . . . . . . . . . . . . . . 141
Bulb Replacement . . . . . . . . . . . . 227
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . 141
Flash-to-Pass . . . . . . . . . . . . . . . . . 141
High-Beam On Light . . . . . . . . . . 124
High/Low Beam Changer . . . . . 140
Lamps On Reminder . . . . . . . . . 125
Heated Steering Wheel . . . . . . . . . . . . . . . 105
Heated Front Seats . . . . . . . . . . . . . . 54
Heated Mirrors . . . . . . . . . . . . . . . . . . . 42
Heater Engine . . . . . . . . . . . . . . . . . . . . . . . . 171
Heating . . . . . . . . . . . . . . . . . . . . 147, 149
High-Beam On Light . . . . . . . . . . . . 124
Hill and Mountain Roads . . . . . . . . 160
Hill Start Assist (HSA) . . . . . . . . . . 181
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 204 Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
How to Wear Seat Belts
Properly . . . . . . . . . . . . . . . . . . . . . . . . 61
HVAC . . . . . . . . . . . . . . . . . . . . . . 147, 149
I
Ignition Positions . . . . . . . . . . . . . . . 167
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 40 Light . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Indicator Vehicle Ahead . . . . . . . . . . . . . . . . 122
Infants and Young Children,
Restraints . . . . . . . . . . . . . . . . . . . . . . 82
Information Publication Ordering . . . . . . . . . . 304
Infotainment . . . . . . . . . . . . . . . . . . . . 146
Infotainment System . . . . . . . . . . . . 308
Instrument Cluster . . . . . . . . . . . . . . 111
Instrument Panel Storage Area . . . . . . . . . . . . . . . . . 100
Interior Rearview Mirrors . . . . . . . . . 42
Introduction . . . . . . . . . . . . . . . . . . . . . . . 2
J
Jump Starting - North
America . . . . . . . . . . . . . . . . . . . . . . . 264
Page 327 of 333
Buick Encore Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12163005) - 2019 - crc - 9/17/18
326 Index
K
Keyless EntryRemote (RKE) System . . . . . . . . . 27
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
L
Labeling, Tire Sidewall . . . . . . . . . . 240
Lamps Courtesy . . . . . . . . . . . . . . . . . . . . . . 143
Daytime Running (DRL) . . . . . . 141
Dome . . . . . . . . . . . . . . . . . . . . . . . . . 143
Exterior Controls . . . . . . . . . . . . . . 140
Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . 145
Front Fog . . . . . . . . . . . . . . . . . . . . . 143
Headlamps, Front Turn
Signal, and Parking
Lamps . . . . . . . . . . . . . . . . . . . . . . 227
License Plate . . . . . . . . . . . . . . . . . 230
Malfunction Indicator (Check Engine) . . . . . . . . . . . . . .118
On Reminder . . . . . . . . . . . . . . . . . 125
Reading . . . . . . . . . . . . . . . . . . . . . . 144
Lane Departure
Warning (LDW) . . . . . . . . . . . . . . . . 194
Lane Departure Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Lap-Shoulder Belt . . . . . . . . . . . . . . . 63 LATCH System
Replacing Parts after a
Crash . . . . . . . . . . . . . . . . . . . . . . . . . 94
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . . 87
LED Lighting . . . . . . . . . . . . . . . . . . . . 227
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Lighting Entry . . . . . . . . . . . . . . . . . . . . . . . . . 144
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Illumination Control . . . . . . . . . . . 143
LED . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Lights Airbag Readiness . . . . . . . . . . . . . .117
Antilock Brake System(ABS) Warning . . . . . . . . . . . . . . 121
Brake System Warning . . . . . . . 120
Charging System . . . . . . . . . . . . . .118
Check Engine (Malfunction Indicator) . . . . . . . . . . . . . . . . . . . . .118
Cruise Control . . . . . . . . . . . . . . . . 125
Engine Oil Pressure . . . . . . . . . . 123
Flash-to-Pass . . . . . . . . . . . . . . . . . 141
Front Fog Lamp . . . . . . . . . . . . . . 124
High-Beam On . . . . . . . . . . . . . . . . 124
High/Low Beam Changer . . . . . 140
Immobilizer . . . . . . . . . . . . . . . . . . . 124
Lane Departure Warning . . . . . . 121 Lights (cont'd)
Low Fuel Warning . . . . . . . . . . . . 124
Seat Belt Reminders . . . . . . . . . . .116
StabiliTrak OFF . . . . . . . . . . . . . . . 122
Tire Pressure . . . . . . . . . . . . . . . . . 123
Traction Control System
(TCS)/StabiliTrak . . . . . . . . . . . . 122
Traction Off . . . . . . . . . . . . . . . . . . . 122
Locks
Automatic Door . . . . . . . . . . . . . . . . . 36
Delayed Locking . . . . . . . . . . . . . . . . 36
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Lockout Protection . . . . . . . . . . . . . . 36
Power Door . . . . . . . . . . . . . . . . . . . . . 36
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Loss of Control . . . . . . . . . . . . . . . . . 159
Low Fuel Warning Light . . . . . . . . . 124
Lower Anchors and Tethers for Children (LATCH
System) . . . . . . . . . . . . . . . . . . . . . . . . 87
Lumbar Adjustment . . . . . . . . . . . . . . 50 Front Seats . . . . . . . . . . . . . . . . . . . . . 50
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . 291
Page 332 of 333
Buick Encore Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12163005) - 2019 - crc - 9/17/18
Index 331
Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
W
WarningBrake System Light . . . . . . . . . . . 120
Caution and Danger . . . . . . . . . . . . . 3
Lane Departure (LDW) . . . . . . . 194
Warning Lights, Gauges, and Indicators . . . . . . . . . . . . . . . . . . . . . 110
Warnings Hazard Flashers . . . . . . . . . . . . . . 142
Washer Fluid . . . . . . . . . . . . . . . . . . . 219
Wheels
Alignment and Tire Balance . . 256
Different Size . . . . . . . . . . . . . . . . . 254
Replacement . . . . . . . . . . . . . . . . . 257
When It Is Time for New
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Where to Put the Restraint . . . . . . 86
Windows . . . . . . . . . . . . . . . . . . . . . . . . 43 Power . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Windshield Replacement . . . . . . . . . . . . . . . . . 225
Wiper/Washer . . . . . . . . . . . . . . . . 105
Winter Driving . . . . . . . . . . . . . . . . . . . . . . . . 161
Winter Tires . . . . . . . . . . . . . . . . . . . . 239
Wiper Blade Replacement . . . . . . 224 Wipers
Rear Washer . . . . . . . . . . . . . . . . . 107
