glove box BUICK ENCORE 2019 Owner's Manual

Buick Encore Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12163005) - 2019 - crc - 9/17/18

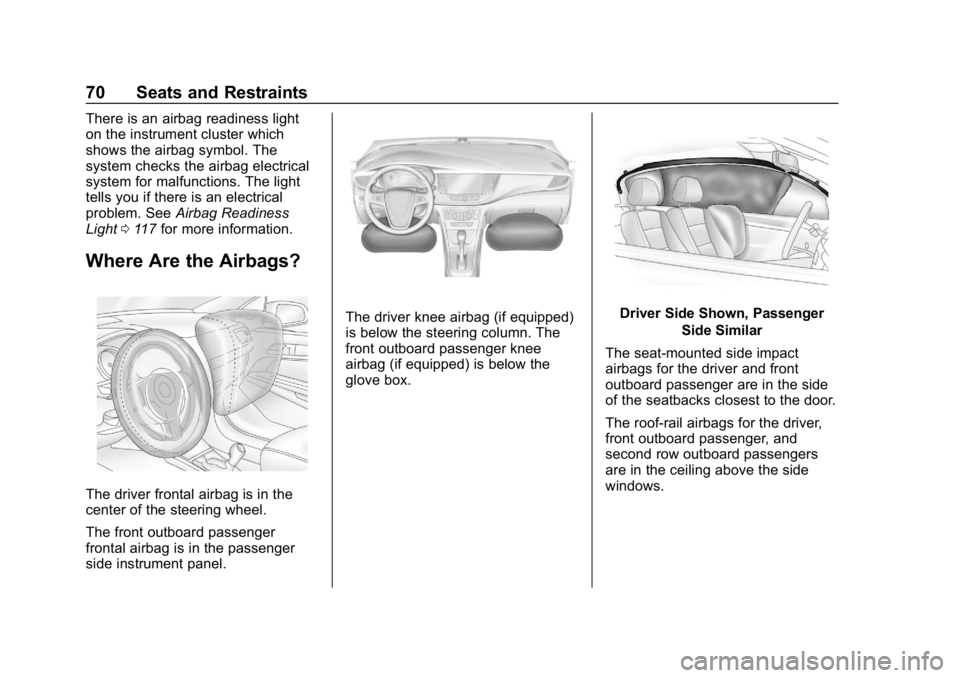

70 Seats and Restraints
There is an airbag readiness light
on the instrument cluster which
shows the airbag symbol. The
system checks the airbag electrical
system for malfunctions. The light
tells you if there is an electrical
problem. SeeAirbag Readiness
Light 0117 for more information.
Where Are the Airbags?
The driver frontal airbag is in the
center of the steering wheel.
The front outboard passenger
frontal airbag is in the passenger
side instrument panel.
The driver knee airbag (if equipped)
is below the steering column. The
front outboard passenger knee
airbag (if equipped) is below the
glove box.Driver Side Shown, Passenger
Side Similar
The seat-mounted side impact
airbags for the driver and front
outboard passenger are in the side
of the seatbacks closest to the door.
The roof-rail airbags for the driver,
front outboard passenger, and
second row outboard passengers
are in the ceiling above the side
windows.

Buick Encore Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12163005) - 2019 - crc - 9/17/18
100 Storage
Storage
Storage Compartments
Storage Compartments . . . . . . . 100
Instrument Panel Storage . . . . 100
Glove Box . . . . . . . . . . . . . . . . . . . . 100
Cupholders . . . . . . . . . . . . . . . . . . . 101
Underseat Storage . . . . . . . . . . . 101
Center Console Storage . . . . . . 101
Additional Storage Features
Cargo Cover . . . . . . . . . . . . . . . . . . 102
Cargo ManagementSystem . . . . . . . . . . . . . . . . . . . . . . 102
Convenience Net . . . . . . . . . . . . . 103
Roof Rack System
Roof Rack System . . . . . . . . . . . 103
Storage
Compartments
{Warning
Do not store heavy or sharp
objects in storage compartments.
In a crash, these objects may
cause the cover to open and
could result in injury.
Instrument Panel Storage
Pull the handle to open.
Pull up on the handle to open.
Glove Box
Lift up on the glove box lever to
open it.

Buick Encore Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12163005) - 2019 - crc - 9/17/18
Climate Controls 153
Maintenance
Air Intake
Clear away any ice, snow, or leaves
from the air intake at the base of the
windshield that can block the flow of
air into the vehicle.
Passenger Compartment
Air Filter
The filter removes dust, pollen, and
other airborne irritants from outside
air that is pulled into the vehicle.
The filter should be replaced as part
of routine scheduled maintenance.
SeeMaintenance Schedule 0281.
To find out what type of filter to use,
see Maintenance Replacement
Parts 0290.
1. Open the glove box completely and disconnect the damper on
the outboard side.2. Push in both sides of the glovebox and pull to remove.
3. Open the filter cover byreleasing tabs on both sides
and pulling up the cover.
4. Replace the air filter.
5. Close the air filter cover and reinstall the glove box.
See your dealer if additional
assistance is needed.
Service
All vehicles have a label underhood
that identifies the refrigerant used in
the vehicle. The refrigerant system
should only be serviced by trained
and certified technicians. The air
conditioning evaporator should
never be repaired or replaced by
one from a salvage vehicle.
It should only be replaced by a new
evaporator to ensure proper and
safe operation.
During service, all refrigerants
should be reclaimed with proper
equipment. Venting refrigerants
directly to the atmosphere is harmful
to the environment and may also

Buick Encore Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12163005) - 2019 - crc - 9/17/18
292 Technical Data
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . . 292
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . . 292
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . . 293
Engine Drive Belt Routing . . . . 294
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the driver side of the vehicle. It can
be seen through the windshield from
outside. The Vehicle Identification
Number (VIN) also appears on the
Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN is
the engine code. This code
identifies the vehicle's engine,
specifications, and replacement parts. See
“Engine Specifications”
under Capacities and Specifications
0 293 for the vehicle's engine code.
Service Parts
Identification Label
There may be a label on the inside
of the glove box that contains the
following information:
.
Vehicle Identification
Number (VIN).
. Model designation.
. Paint information.
. Production options and special
equipment.
If there is no label, there is a
barcode on the certification label on
the center (B) pillar to scan for this
same information.

Buick Encore Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12163005) - 2019 - crc - 9/17/18
Index 325
FusesEngine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 232
Fuses and Circuit Breakers . . . 231
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 235
Rear Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 237
G
Garage Door Opener . . . . . . . . . . . 136Programming . . . . . . . . . . . . . . . . . 136
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . 225
Gauges Engine CoolantTemperature . . . . . . . . . . . . . . . . .115
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . .114
Odometer . . . . . . . . . . . . . . . . . . . . . .114
Speedometer . . . . . . . . . . . . . . . . . .113
Tachometer . . . . . . . . . . . . . . . . . . . .114
Trip Odometer . . . . . . . . . . . . . . . . .114
Warning Lights and
Indicators . . . . . . . . . . . . . . . . . . . .110
General Information Service and Maintenance . . . . . 279
Towing . . . . . . . . . . . . . . . . . . . . . . . . 199
Vehicle Care . . . . . . . . . . . . . . . . . . 202
Glove Box . . . . . . . . . . . . . . . . . . . . . . 100 GM Mobility Reimbursement
Program . . . . . . . . . . . . . . . . . . . . . . . 299
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . 227
Hazard Warning Flashers . . . . . . . 142
Head Restraints . . . . . . . . . . . . . . . . . 48
Headlamps
Aiming . . . . . . . . . . . . . . . . . . . . . . . . 227
Automatic . . . . . . . . . . . . . . . . . . . . . 141
Bulb Replacement . . . . . . . . . . . . 227
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . 141
Flash-to-Pass . . . . . . . . . . . . . . . . . 141
High-Beam On Light . . . . . . . . . . 124
High/Low Beam Changer . . . . . 140
Lamps On Reminder . . . . . . . . . 125
Heated Steering Wheel . . . . . . . . . . . . . . . 105
Heated Front Seats . . . . . . . . . . . . . . 54
Heated Mirrors . . . . . . . . . . . . . . . . . . . 42
Heater Engine . . . . . . . . . . . . . . . . . . . . . . . . 171
Heating . . . . . . . . . . . . . . . . . . . . 147, 149
High-Beam On Light . . . . . . . . . . . . 124
Hill and Mountain Roads . . . . . . . . 160
Hill Start Assist (HSA) . . . . . . . . . . 181
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 204 Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
How to Wear Seat Belts
Properly . . . . . . . . . . . . . . . . . . . . . . . . 61
HVAC . . . . . . . . . . . . . . . . . . . . . . 147, 149
I
Ignition Positions . . . . . . . . . . . . . . . 167
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 40 Light . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Indicator Vehicle Ahead . . . . . . . . . . . . . . . . 122
Infants and Young Children,
Restraints . . . . . . . . . . . . . . . . . . . . . . 82
Information Publication Ordering . . . . . . . . . . 304
Infotainment . . . . . . . . . . . . . . . . . . . . 146
Infotainment System . . . . . . . . . . . . 308
Instrument Cluster . . . . . . . . . . . . . . 111
Instrument Panel Storage Area . . . . . . . . . . . . . . . . . 100
Interior Rearview Mirrors . . . . . . . . . 42
Introduction . . . . . . . . . . . . . . . . . . . . . . . 2
J
Jump Starting - North
America . . . . . . . . . . . . . . . . . . . . . . . 264

Buick Encore Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12163005) - 2019 - crc - 9/17/18
Index 329
SeatsAdjustment, Front . . . . . . . . . . . . . . . 49
Folding Seatback . . . . . . . . . . . . . . . 55
Head Restraints . . . . . . . . . . . . . . . . 48
Heated Front . . . . . . . . . . . . . . . . . . . 54
Lumbar Adjustment, Front . . . . . . 50
Memory . . . . . . . . . . . . . . . . . . . . . . . . . 52
Power Adjustment, Front . . . . . . . 50
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Reclining Seatbacks . . . . . . . . . . . . 50
Underseat Storage . . . . . . . . . . . 101
Securing Child Restraints . . . . 94, 96
Security OnStar . . . . . . . . . . . . . . . . . . . . . . . .311
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 39
Vehicle Alarm . . . . . . . . . . . . . . . . . . . 39
Service . . . . . . . . . . . . . . . . . . . . . . . . . 153 Accessories andModifications . . . . . . . . . . . . . . . . 203
Climate Control System . . . . . . . 147
Doing Your Own Work . . . . . . . . 203
Maintenance Records . . . . . . . . 291
Maintenance, General Information . . . . . . . . . . . . . . . . . . 279
Parts Identification Label . . . . . 292
Scheduling Appointments . . . . . 301
Services Special Application . . . . . . . . . . . 286 Servicing the Airbag . . . . . . . . . . . . . 78
Shift Lock Control Function
Check, Automatic
Transmission . . . . . . . . . . . . . . . . . . 223
Shifting Into Park . . . . . . . . . . . . . . . . . . . . . . 172
Out of Park . . . . . . . . . . . . . . . . . . . 173
Side Blind Zone Alert (SBZA) . . . 192
Sidemarker Bulb Replacement . . . . . . . . . . . . 229
Signals, Turn and
Lane-Change . . . . . . . . . . . . . . . . . 142
Spare Tire Compact . . . . . . . . . . . . . . . . . . . . . . 263
Special Application Services . . . . 286
Specifications and Capacities . . . . . . . . . . . . . . . . . . . . . 293
Speedometer . . . . . . . . . . . . . . . . . . . 113
StabiliTrak OFF Light . . . . . . . . . . . . . . . . . . . . . 122
Start Assist, Hill . . . . . . . . . . . . . . . . . 181
Start Vehicle, Remote . . . . . . . . . . . 33
Starter Switch Check . . . . . . . . . . . 223
Starting the Engine . . . . . . . . . . . . . 169
Steering . . . . . . . . . . . . . . . . . . . . . . . . 158
Heated Wheel . . . . . . . . . . . . . . . . 105
Wheel Adjustment . . . . . . . . . . . . 105
Wheel Controls . . . . . . . . . . . . . . . 105 Stop/Start System . . . . . . . . . . . . . . 170
Stoplamps and Back-Up Lamps
Bulb Replacement . . . . . . . . . . . . 229
Storage Areas Cargo Cover . . . . . . . . . . . . . . . . . . 102
Cargo ManagementSystem . . . . . . . . . . . . . . . . . . . . . . 102
Center Console . . . . . . . . . . . . . . . 101
Convenience Net . . . . . . . . . . . . . 103
Glove Box . . . . . . . . . . . . . . . . . . . . 100
Instrument Panel . . . . . . . . . . . . . 100
Roof Rack System . . . . . . . . . . . . 103
Underseat . . . . . . . . . . . . . . . . . . . . 101
Storage Compartments . . . . . . . . . 100
Struts Gas . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Stuck Vehicle . . . . . . . . . . . . . . . . . . . 162
Summer Tires . . . . . . . . . . . . . . . . . . 240
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . 45
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . 3
System Forward CollisionAlert (FCA) . . . . . . . . . . . . . . . . . . 191
Infotainment . . . . . . . . . . . . . 146, 308
Roof Rack . . . . . . . . . . . . . . . . . . . . 103
Systems Driver Assistance . . . . . . . . . . . . . 186
