Vehicle Care 241
TPMS Malfunction Light and Message
The TPMS will not function properly if one
or more of the TPMS sensors are missing or
inoperable. When the system detects a
malfunction, the low tire pressure warning
light, defined above, flashes for about
one minute and then stays on for the
remainder of the ignition cycle. A DIC
warning message may also display. The
malfunction light and DIC warning message,
if equipped, come on at each ignition cycle
until the problem is corrected. Some of the
conditions that can cause these to come
on are:
.One of the road tires has been replaced
with the spare tire. The spare tire does
not have a TPMS sensor. The malfunction
light and the DIC message, if equipped,
should go off after the road tire is
replaced and the sensor matching process
is performed successfully. See "TPMS
Sensor Matching Process" later in this
section.
.The TPMS sensor matching process was
not done or not completed successfully
after rotating the tires. The malfunction
light and the DIC message, if equipped,
should go off after successfullycompleting the sensor matching process.
See "TPMS Sensor Matching Process" later
in this section.
.One or more TPMS sensors are missing or
damaged. The malfunction light and the
DIC message, if equipped, should go off
when the TPMS sensors are installed and
the sensor matching process is performed
successfully. See your dealer for service.
.Replacement tires or wheels do not match
the original equipment tires or wheels.
Tires and wheels other than those
recommended could prevent the TPMS
from functioning properly. See
Buying
New Tires 0244.
.Operating electronic devices or being near
facilities using radio wave frequencies
similar to the TPMS could cause the TPMS
sensors to malfunction.
If the TPMS is not functioning properly, it
cannot detect or signal a low tire pressure
condition. See your dealer for service if the
TPMS malfunction light and DIC message,
if equipped, come on and stay on.
TPMS Sensor Matching Process
Each TPMS sensor has a unique
identification code. The identification code
needs to be matched to a new tire/wheel position after rotating the vehicle’s tires or
replacing one or more of the TPMS sensors.
Also, the TPMS sensor matching process
should be performed after replacing a spare
tire with a road tire containing the TPMS
sensor. The malfunction light and the DIC
message, if equipped, should go off at the
next ignition cycle. The sensors are matched
to the tire/wheel positions, using a TPMS
relearn tool, in the following order: driver
side front tire, passenger side front tire,
passenger side rear tire, and driver side rear.
See your dealer for service or to purchase a
relearn tool. A TPMS relearn tool can also be
purchased. See Tire Pressure Monitor Sensor
Activation Tool at
www.gmtoolsandequipment.com or call
1-800-GM TOOLS (1-800-468-6657).
There are two minutes to match the first
tire/wheel position, and five minutes overall
to match all four tire/wheel positions. If it
takes longer, the matching process stops
and must be restarted.
The TPMS sensor matching process is:
1. Set the parking brake.
2. Place the vehicle in Service Mode. See Ignition Positions 0174.

Buick Encore Owner Manual (GMNA-Localizing-U.S./Canada-14607636) -
2021 - CRC - 8/18/20
Vehicle Care 243
Use this rotation pattern when rotating
the tires.
Do not include the compact spare tire
in the tire rotation.
Adjust the front and rear tires to the
recommended inflation pressure on the
Tire and Loading Information label after
the tires have been rotated. SeeTire
Pressure 0238 and
Vehicle Load Limits 0170.
Reset the Tire Pressure Monitor System.
See Tire Pressure Monitor Operation
0 240. Check that all wheel nuts are properly
tightened. See
“Wheel Nut Torque”
under Capacities and Specifications
0 280, and “Removing the Flat Tire and
Installing the Spare Tire” underTire
Changing 0249.
{Warning
Rust or dirt on a wheel, or on the
parts to which it is fastened, can
cause wheel nuts to become loose
over time. The wheel could come off
and cause a crash. When changing a
wheel, remove any rust or dirt from
places where the wheel attaches to
the vehicle. In an emergency, a cloth
or paper towel can be used; however,
use a scraper or wire brush later to
remove all rust or dirt.
Lightly coat the inner diameter of the
wheel hub opening with wheel bearing
grease after a wheel change or tire
rotation to prevent corrosion or rust
buildup.
{Warning
Do not apply grease to the wheel
mounting surface, wheel conical
seats, or the wheel nuts or bolts.
Grease applied to these areas could
cause a wheel to become loose or
come off, resulting in a crash.
When It Is Time for New Tires
Factors, such as maintenance, temperatures,
driving speeds, vehicle loading, and road
conditions affect the wear rate of the tires.
Treadwear indicators are one way to tell
when it is time for new tires. Treadwear
indicators appear when the tires have only

Buick Encore Owner Manual (GMNA-Localizing-U.S./Canada-14607636) -
2021 - CRC - 8/18/20

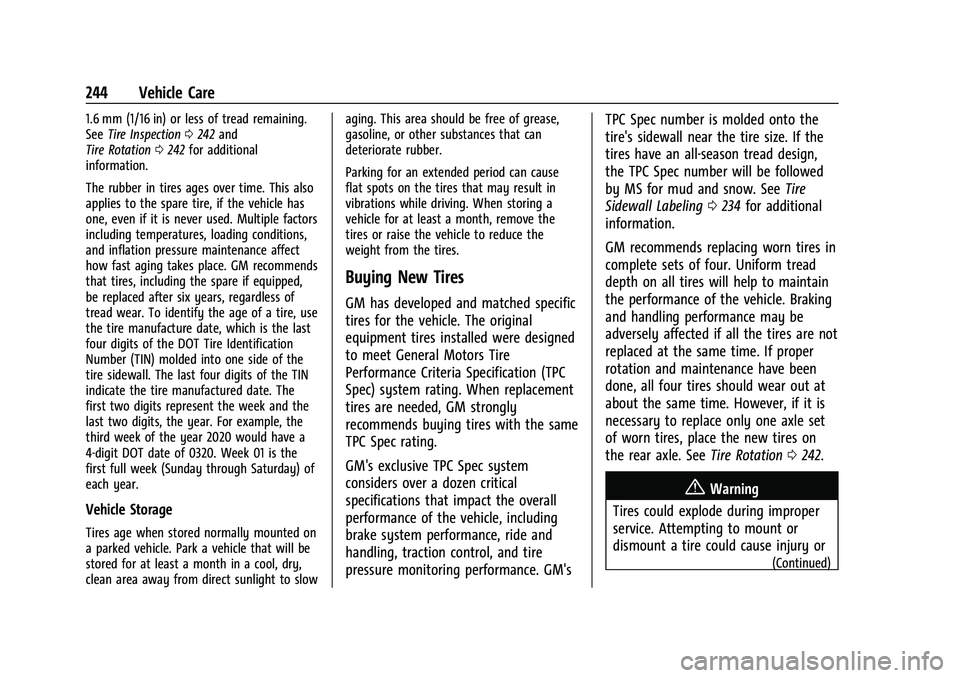

244 Vehicle Care
1.6 mm (1/16 in) or less of tread remaining.
SeeTire Inspection 0242 and
Tire Rotation 0242 for additional
information.
The rubber in tires ages over time. This also
applies to the spare tire, if the vehicle has
one, even if it is never used. Multiple factors
including temperatures, loading conditions,
and inflation pressure maintenance affect
how fast aging takes place. GM recommends
that tires, including the spare if equipped,
be replaced after six years, regardless of
tread wear. To identify the age of a tire, use
the tire manufacture date, which is the last
four digits of the DOT Tire Identification
Number (TIN) molded into one side of the
tire sidewall. The last four digits of the TIN
indicate the tire manufactured date. The
first two digits represent the week and the
last two digits, the year. For example, the
third week of the year 2020 would have a
4-digit DOT date of 0320. Week 01 is the
first full week (Sunday through Saturday) of
each year.
Vehicle Storage
Tires age when stored normally mounted on
a parked vehicle. Park a vehicle that will be
stored for at least a month in a cool, dry,
clean area away from direct sunlight to slow aging. This area should be free of grease,
gasoline, or other substances that can
deteriorate rubber.
Parking for an extended period can cause
flat spots on the tires that may result in
vibrations while driving. When storing a
vehicle for at least a month, remove the
tires or raise the vehicle to reduce the
weight from the tires.
Buying New Tires
GM has developed and matched specific
tires for the vehicle. The original
equipment tires installed were designed
to meet General Motors Tire
Performance Criteria Specification (TPC
Spec) system rating. When replacement
tires are needed, GM strongly
recommends buying tires with the same
TPC Spec rating.
GM's exclusive TPC Spec system
considers over a dozen critical
specifications that impact the overall
performance of the vehicle, including
brake system performance, ride and
handling, traction control, and tire
pressure monitoring performance. GM's
TPC Spec number is molded onto the
tire's sidewall near the tire size. If the
tires have an all-season tread design,
the TPC Spec number will be followed
by MS for mud and snow. See
Tire
Sidewall Labeling 0234 for additional
information.
GM recommends replacing worn tires in
complete sets of four. Uniform tread
depth on all tires will help to maintain
the performance of the vehicle. Braking
and handling performance may be
adversely affected if all the tires are not
replaced at the same time. If proper
rotation and maintenance have been
done, all four tires should wear out at
about the same time. However, if it is
necessary to replace only one axle set
of worn tires, place the new tires on
the rear axle. See Tire Rotation0242.
{Warning
Tires could explode during improper
service. Attempting to mount or
dismount a tire could cause injury or
(Continued)

Buick Encore Owner Manual (GMNA-Localizing-U.S./Canada-14607636) -
2021 - CRC - 8/18/20
246 Vehicle Care
The Uniform Tire Quality Grading
(UTQG) system does not apply to deep
tread, winter tires, compact spare tires,
tires with nominal rim diameters of
10 to 12 inches (25 to 30 cm), or to some
limited-production tires.
While the tires available on General
Motors passenger cars and light trucks
may vary with respect to these grades,
they must also conform to federal
safety requirements and additional
General Motors Tire Performance
Criteria (TPC) standards.
Quality grades can be found where
applicable on the tire sidewall between
tread shoulder and maximum section
width. For example:
Treadwear 200 Traction AA Temperature A
All Passenger Car Tires Must Conform to
Federal Safety Requirements In Addition
To These Grades.
Treadwear
The treadwear grade is a comparative
rating based on the wear rate of the
tire when tested under controlledconditions on a specified government
test course. For example, a tire graded
150 would wear one and one-half (1½)
times as well on the government course
as a tire graded 100. The relative
performance of tires depends upon the
actual conditions of their use, however,
and may depart significantly from the
norm due to variations in driving habits,
service practices and differences in road
characteristics and climate.
Traction
The traction grades, from highest to
lowest, are AA, A, B, and C. Those
grades represent the tire's ability to
stop on wet pavement as measured
under controlled conditions on specified
government test surfaces of asphalt and
concrete. A tire marked C may have
poor traction performance. Warning:
The traction grade assigned to this tire
is based on straight-ahead braking
traction tests, and does not include
acceleration, cornering, hydroplaning,
or peak traction characteristics.
Temperature
The temperature grades are A (the
highest), B, and C, representing the
tire's resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled conditions
on a specified indoor laboratory test
wheel. Sustained high temperature can
cause the material of the tire to
degenerate and reduce tire life, and
excessive temperature can lead to
sudden tire failure. The grade C
corresponds to a level of performance
which all passenger car tires must meet
under the Federal Motor Safety
Standard No. 109. Grades B and A
represent higher levels of performance
on the laboratory test wheel than the
minimum required by law. Warning:
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive
speed, underinflation, or excessive
loading, either separately or in
combination, can cause heat buildup
and possible tire failure.

Buick Encore Owner Manual (GMNA-Localizing-U.S./Canada-14607636) -
2021 - CRC - 8/18/20
Vehicle Care 247
Wheel Alignment and Tire
Balance
The tires and wheels were aligned and
balanced at the factory to provide the
longest tire life and best overall
performance. Adjustments to wheel
alignment and tire balancing are not
necessary on a regular basis. Consider an
alignment check if there is unusual tire wear
or the vehicle is significantly pulling to one
side or the other. Some slight pull to the
left or right, depending on the crown of the
road and/or other road surface variations
such as troughs or ruts, is normal. If the
vehicle is vibrating when driving on a
smooth road, the tires and wheels may
need to be rebalanced. See your dealer for
proper diagnosis.
Wheel Replacement
Replace any wheel that is bent, cracked,
or badly rusted or corroded. If wheel nuts
keep coming loose, the wheel, wheel bolts,
and wheel nuts should be replaced. If the
wheel leaks air, replace it. Some aluminum
wheels can be repaired. See your dealer if
any of these conditions exist.Your dealer will know the kind of wheel that
is needed.
Each new wheel should have the same
load-carrying capacity, diameter, width,
offset, and be mounted the same way as
the one it replaces.
Replace wheels, wheel bolts, wheel nuts,
or Tire Pressure Monitor System (TPMS)
sensors with new GM original equipment
parts.
{Warning
Using the wrong replacement wheels,
wheel bolts, or wheel nuts can be
dangerous. It could affect the braking and
handling of the vehicle. Tires can lose air,
and cause loss of control, causing a crash.
Always use the correct wheel, wheel
bolts, and wheel nuts for replacement.
Caution
The wrong wheel can also cause
problems with bearing life, brake cooling,
speedometer or odometer calibration,
headlamp aim, bumper height, vehicle
ground clearance, and tire or tire chain
clearance to the body and chassis.
Used Replacement Wheels
{Warning
Replacing a wheel with a used one is
dangerous. How it has been used or how
far it has been driven may be unknown.
It could fail suddenly and cause a crash.
When replacing wheels, use a new GM
original equipment wheel.
Tire Chains
{Warning
Do not use tire chains. There is not
enough clearance. Tire chains used on a
vehicle without the proper amount of
clearance can cause damage to the
brakes, suspension, or other vehicle parts.
The area damaged by the tire chains
could cause loss of control and a crash.
Use another type of traction device only
if its manufacturer recommends it for the
vehicle's tire size combination and road
conditions. Follow that manufacturer's
instructions. To avoid vehicle damage,
drive slow and readjust or remove the
(Continued)

Buick Encore Owner Manual (GMNA-Localizing-U.S./Canada-14607636) -
2021 - CRC - 8/18/20
254 Vehicle Care
1. Discharged Battery Negative GroundingPoint
2. Discharged Battery Positive Terminal
3. Good Battery Negative Terminal
4. Good Battery Positive Terminal
The jump start negative grounding point (1)
for the discharged battery is the engine
block or an engine mounting bolt. Connect
to a spot as far away from the discharged
battery as possible.
The jump start positive terminal (2) on the
discharged battery is in the engine
compartment on the driver side of the
vehicle. The jump start negative terminal (3) and
positive terminal (4) are on the battery of
the vehicle providing the jump start.
The positive jump start connection for the
discharged battery is under a trim cover.
Open the cover to expose the terminal.
1. Check the other vehicle. It must have a 12-volt battery with a negative ground
system.
Caution
If the other vehicle does not have a
12-volt system with a negative ground,
both vehicles can be damaged. Only use
a vehicle that has a 12-volt system with a
negative ground for jump starting.
2. Position the two vehicles so that they are not touching.
3. Set the parking brake firmly and put the shift lever in P (Park) with an automatic
transmission, or Neutral with a manual
transmission.
Caution
If any accessories are left on or plugged
in during the jump starting procedure,
they could be damaged. The repairs
would not be covered by the vehicle
warranty. Whenever possible, turn off or
unplug all accessories on either vehicle
when jump starting.
4. Turn the ignition off. Turn off all lights and accessories in both vehicles, except
the hazard warning flashers if needed.
{Warning
An electric fan can start up even when
the engine is not running and can injure
you. Keep hands, clothing, and tools
away from any underhood electric fan.
{Warning
Using a match near a battery can cause
battery gas to explode. People have been
hurt doing this, and some have been
blinded. Use a flashlight if you need
more light.
(Continued)

Buick Encore Owner Manual (GMNA-Localizing-U.S./Canada-14607636) -
2021 - CRC - 8/18/20
302 Index
IndexA
About Driving the Vehicle . . . . . . . . . . . . . . . . . .2
Accessories and Modifications . . . . . . . . . . . 202
Accessory Power . . . . . . . . . . . . . . . . . . . . . . . . . .178
Add-On Electrical Equipment . . . . . . . . . . . . . 200
Additional InformationOnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
Additional Maintenance and Care . . . . . . . . 272
Adjustments Lumbar, Front Seats . . . . . . . . . . . . . . . . . . . . 26
Agreements Trademarks and License . . . . . . . . . . . . . . . 132
Air Cleaner/Filter, Engine . . . . . . . . . . . . . . . . . 211
Air Conditioning . . . . . . . . . . . . . . . . . . . . . . . . . 159
Air Filter, Passenger Compartment . . . . . . . . 161
Air Intake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Air Vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Airbag System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
How Does an Airbag Restrain? . . . . . . . . . . 42
Passenger Sensing System . . . . . . . . . . . . . . 44
What Makes an Airbag Inflate? . . . . . . . . . 42
What Will You See after an AirbagInflates? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
When Should an Airbag Inflate? . . . . . . . . 41
Where Are the Airbags? . . . . . . . . . . . . . . . . 40
Airbags Adding Equipment to the Vehicle . . . . . . . 47 Airbags (cont'd)
Passenger Status Indicator . . . . . . . . . . . . . . 80
Readiness Light . . . . . . . . . . . . . . . . . . . . . . . . . 79
Servicing Airbag-Equipped Vehicles . . . . . . 47
System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Alarm Vehicle Security . . . . . . . . . . . . . . . . . . . . . . . . 18
Alert Side Blind Zone (SBZA) . . . . . . . . . . . . . . . . . 194
All-Season Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 233
All-Wheel Drive . . . . . . . . . . . . . . . . . . . . . . 183, 219
AM-FM Radio . . . . . . . . . . . . . . . . . . . . . . . . 109, 141
Antenna Multi-band . . . . . . . . . . . . . . . . . . . . . . . . . 113, 144
Antilock Brake System (ABS) . . . . . . . . . . . . . 184 Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Appearance Care Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262
Apple CarPlay and Android Auto . . . . . 128, 153
Armrest Front Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Rear Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Assistance Program, Roadside . . . . . . . . . . . . 285
Audio Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . 117, 147
Automatic Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Buick Encore Owner Manual (GMNA-Localizing-U.S./Canada-14607636) -
2021 - CRC - 8/18/20
Index 303
Automatic (cont'd)Headlamp System . . . . . . . . . . . . . . . . . . . . . . 98
Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Transmission Fluid . . . . . . . . . . . . . . . . . . . . . 210
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . . . . . . . . . 183
Shift Lock Control Function Check . . . . . . 220
Auxiliary Jack . . . . . . . . . . . . . . . . . . . . . . . . 116, 147
Avoiding Untrusted Media Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113, 144
B
BatteryExterior Lighting Battery Saver . . . . . . . . 102
Load Management . . . . . . . . . . . . . . . . . . . . . 101
Power Protection . . . . . . . . . . . . . . . . . . . . . . 102
Battery - North America . . . . . . . . . . . . . 219, 253
Blade Replacement, Wiper . . . . . . . . . . . . . . . 220
Bluetooth
Overview . . . . . . . . . . . . . . . . . . . . . 123, 126, 149
Bluetooth Audio . . . . . . . . . . . . . . . . . . . . . 117, 147
Brake System Warning Light . . . . . . . . . . . . . . . . . . 82
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217 Antilock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184 Braking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Break-In, New Vehicle . . . . . . . . . . . . . . . . . . . . . 173
Bulb Replacement
Halogen Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . 223
Headlamp Aiming . . . . . . . . . . . . . . . . . . . . . . 223
Headlamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Headlamps, Front Turn Signal, andParking Lamps . . . . . . . . . . . . . . . . . . . . . . . 223
License Plate Lamps . . . . . . . . . . . . . . . . . . . 225
Taillamps, Turn Signal, Sidemarker, Stoplamps, and Backup Lamps . . . . . . . 224
Buying New Tires . . . . . . . . . . . . . . . . . . . . . . . . 244
C
Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
California Perchlorate Materials
Requirements . . . . . . . . . . . . . . . . . . . . . . . . 202
California Proposition 65 Warning . . . . . . . . . . . . . . . . . . .202, 219, 253, Back Cover
Camera Rear Vision (RVC) . . . . . . . . . . . . . . . . . . . . . . 190
Canadian Vehicle Owners . . . . . . . . . . . . . . . . . . . 1
Capacities and Specifications . . . . . . . . . . . . . 280
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . . . . . . . . . . 180
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Carbon Monoxide (cont'd)
Winter Driving . . . . . . . . . . . . . . . . . . . . . . . . . 169
Cargo Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Management System . . . . . . . . . . . . . . . . . . . 69
Caution, Danger, and Warning . . . . . . . . . . . . . .2
Center Console Storage . . . . . . . . . . . . . . . . . . . 68
Chains, Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Charging System Light . . . . . . . . . . . . . . . . . . . . 80
Check Engine Light (Malfunction Indicator) . . . . 81
Child Restraints
Infants and Young Children . . . . . . . . . . . . . 50
Lower Anchors and Tethers forChildren . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Older Children . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62, 64
Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Circuit Breakers . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Cleaning Exterior Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Interior Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 262
Climate Control Systems . . . . . . . . . . . . . . . . . 159 Air Conditioning . . . . . . . . . . . . . . . . . . . . . . . 159
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
Cluster, Instrument . . . . . . . . . . . . . . . . . . . . . . . 76
Collision Damage Repair . . . . . . . . . . . . . . . . . 288

Buick Encore Owner Manual (GMNA-Localizing-U.S./Canada-14607636) -
2021 - CRC - 8/18/20
304 Index
Compact Spare Tire . . . . . . . . . . . . . . . . . . . . . . 252
CompartmentsStorage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Connected Services Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 300
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299
Connections Connected Services . . . . . . . . . . . . . . . . . . . . 300
Control
Traction and Electronic Stability . . . . . . . 185
Control of a Vehicle . . . . . . . . . . . . . . . . . . . . . 165
Controls Steering Wheel . . . . . . . . . . . . . . . . . . . 106, 139
Convenience Net . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Convex Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Coolant
Engine Temperature Gauge . . . . . . . . . . . . . 78
Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Courtesy Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Courtesy Transportation Program . . . . . . . . 287
Cover Cargo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Covers Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 186 Cruise Control (cont'd)
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Cupholders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Customer Assistance . . . . . . . . . . . . . . . . . . . . . 284 Offices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
Text Telephone (TTY) Users . . . . . . . . . . . . 284
Customer Information
Publications Ordering Information . . . . . 289
Customer Satisfaction Procedure . . . . . . . . . 282
Cybersecurity . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
D
Damage Repair, Collision . . . . . . . . . . . . . . . . . 288
Danger, Warning, and Caution . . . . . . . . . . . . . .2
Data Collection Infotainment System . . . . . . . . . . . . . . . . . . 293
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293
Data Recorders, Event . . . . . . . . . . . . . . . . . . . 292
Daytime Running Lamps (DRL) . . . . . . . . . . . . 98
Defensive Driving . . . . . . . . . . . . . . . . . . . . . . . . 165
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Diagnostics Connected Services . . . . . . . . . . . . . . . . . . . . 301
Distracted Driving . . . . . . . . . . . . . . . . . . . . . . . . 164
Dome Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Door Ajar Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . . 15 Door (cont'd)
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Power Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Drive Belt Routing, Engine . . . . . . . . . . . . . . . .281
Drive Systems All-Wheel Drive . . . . . . . . . . . . . . . . . . . . 183, 219
Driver Assistance Systems . . . . . . . . . . . . . . . 188
Driver Behavior . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Driver Information Center (DIC) . . . . . . . . . . . 86
Driving
Better Fuel Economy . . . . . . . . . . . . . . . . . . . 164
Defensive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Hill and Mountain Roads . . . . . . . . . . . . . . 168
If the Vehicle is Stuck . . . . . . . . . . . . . . . . . 169
Impaired . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Loss of Control . . . . . . . . . . . . . . . . . . . . . . . . 167
Off-Road Recovery . . . . . . . . . . . . . . . . . . . . . 167
Vehicle Load Limits . . . . . . . . . . . . . . . . . . . . 170
Wet Roads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Driving the Vehicle . . . . . . . . . . . . . . . . . . . . . . . . .2
E
Electrical Equipment, Add-On . . . . . . . . . . . . 200
Electrical System Engine Compartment Fuse Block . . . . . . . 227
Fuses and Circuit Breakers . . . . . . . . . . . . . 226

Buick Encore Owner Manual (GMNA-Localizing-U.S./Canada-14607636) -
2021 - CRC - 8/18/20
Index 305
Electrical System (cont'd)Instrument Panel Fuse Block . . . . . . . . . . . 230
Overload . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Rear Compartment Fuse Block . . . . . . . . . 231
Emergency OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
Engine
Air Cleaner/Filter . . . . . . . . . . . . . . . . . . . . . . . 211
Check Light (Malfunction Indicator) . . . . . 81
Compartment Overview . . . . . . . . . . . . . . . . 205
Coolant Temperature Gauge . . . . . . . . . . . . 78
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . 212
Drive Belt Routing . . . . . . . . . . . . . . . . . . . . . 281
Exhaust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Oil Life System . . . . . . . . . . . . . . . . . . . . . . . . 210
Oil Pressure Light . . . . . . . . . . . . . . . . . . . . . . . 85
Overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Power Messages . . . . . . . . . . . . . . . . . . . . . . . . 89
Running While Parked . . . . . . . . . . . . . . . . . . 181
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Entry Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . .101
Event Data Recorders . . . . . . . . . . . . . . . . . . . . 292
Exit Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101
Extended Parking . . . . . . . . . . . . . . . . . . . . . . . . 180
Extender, Seat Belt . . . . . . . . . . . . . . . . . . . . . . . .37
Exterior Lamp Controls . . . . . . . . . . . . . . . . . . . . 97
Exterior Lighting Battery Saver . . . . . . . . . . 102F
Filter, Engine Air Cleaner . . . . . . . . . . . . . . . . . . . . . . 211
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Flashers, Hazard Warning . . . . . . . . . . . . . . . . . 99
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Floor Mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
Fluid Automatic Transmission . . . . . . . . . . . . . . . 210
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Folding Seatback . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Forward Collision Alert (FCA) System . . . . 192
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
Front Seat Armrest . . . . . . . . . . . . . . . . . . . . . . . .27
Front Seats Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Fuel Additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Economy, Driving for Better . . . . . . . . . . . 164
Filling a Portable Fuel Container . . . . . . . 200
Filling the Tank . . . . . . . . . . . . . . . . . . . 197, 198
Foreign Countries . . . . . . . . . . . . . . . . . . . . . . 197
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Low Fuel Warning Light . . . . . . . . . . . . . . . . 85 Fuel (cont'd)
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . . . . 196
Recommended . . . . . . . . . . . . . . . . . . . . . . . . . 196
Top Tier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Fuses Engine Compartment Fuse Block . . . . . . . 227
Fuses and Circuit Breakers . . . . . . . . . . . . . 226
Instrument Panel Fuse Block . . . . . . . . . . . 230
Rear Compartment Fuse Block . . . . . . . . . 231
G
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
GaugesEngine Coolant Temperature . . . . . . . . . . . . 78
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Warning Lights and Indicators . . . . . . . . . . 75
General Information Service and Maintenance . . . . . . . . . . . . . . 266
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
