Vehicle Care 277
2. Bend the wheel liner back to makeenough space for hand access.
3. While holding the wheel liner with onehand and disengage the bulb socket
from the plug connector by pulling the
retaining rib.
4. Turn the bulb holder counterclockwise and remove it from the reflector using
the other hand.
5. Remove the bulb from the bulb socketand replace with a new bulb.
6. Insert the bulb socket into the reflector by turning clockwise and attach the plug
connector.
7. Reassemble the lower cover and front wheel liner.
Front Fog Lamp
The vehicle has LED fog lamp
Taillamps, Turn Signal,
Sidemarker, Stoplamps, and
Back-Up Lamps (Base Level)
Caution
Improper lamp assembly removal and
installation can cause leaks and water
intrusion which may cause damage to
the taillamp. Do not remove the taillamp
assembly to replace a bulb. Use the
tailgate opening to access the bulb.

Buick Encore GX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14608036) - 2021 - CRC - 9/21/20
278 Vehicle Care

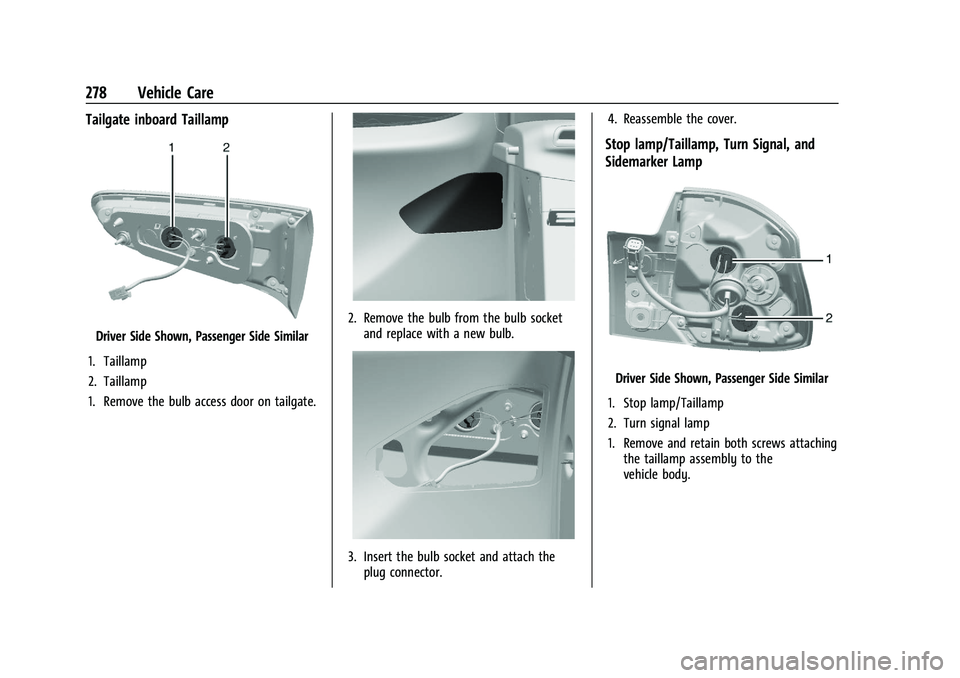

Tailgate inboard Taillamp
Driver Side Shown, Passenger Side Similar
1. Taillamp
2. Taillamp
1. Remove the bulb access door on tailgate.
2. Remove the bulb from the bulb socket and replace with a new bulb.
3. Insert the bulb socket and attach theplug connector. 4. Reassemble the cover.
Stop lamp/Taillamp, Turn Signal, and
Sidemarker Lamp
Driver Side Shown, Passenger Side Similar
1. Stop lamp/Taillamp
2. Turn signal lamp
1. Remove and retain both screws attaching the taillamp assembly to the
vehicle body.

Buick Encore GX Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14608036) - 2021 - CRC - 9/21/20
280 Vehicle Care
2. Disengage the bulb socket from the plugconnector by pressing the retaining lug.
3. Remove and replace the bulb socket with bulb and attach the plug connector.
4. Insert the bulb socket into the reflector and turn clockwise to engage.
Taillamps, Turn Signal,
Sidemarker, Stoplamps, and
Back-Up Lamps (Uplevel)
Caution
Improper lamp assembly removal and
installation can cause leaks and water
intrusion which may cause damage to
(Continued)
Caution (Continued)
the taillamp. Do not remove the taillamp
assembly to replace a bulb. Use the
tailgate opening to access the bulb.
The stoplamp/taillamp/turn signal lamp/side
marker lamp and tailgate inboard taillamp
are LEDs. To replace, see your dealer.
Electrical System
Electrical System Overload
The vehicle has fuses and circuit breakers to
protect against an electrical system
overload.
When the current electrical load is too
heavy, the circuit breaker opens and closes,
protecting the circuit until the current load
returns to normal or the problem is fixed.
This greatly reduces the chance of circuit
overload and fire caused by electrical
problems.
Fuses and circuit breakers protect power
devices in the vehicle.
Replace a bad fuse with a new one of the
identical size and rating. If there is a problem on the road and a fuse
needs to be replaced, the same amperage
fuse can be borrowed. Choose some feature
of the vehicle that is not needed to use and
replace it as soon as possible.
Headlamp Wiring
An electrical overload may cause the lamps
to go on and off, or in some cases to
remain off. Have the headlamp wiring
checked right away if the lamps go on and
off or remain off.
Windshield Wipers
If the wiper motor overheats due to heavy
snow or ice, the windshield wipers will stop
until the motor cools and will then restart.
Although the circuit is protected from
electrical overload, overload due to heavy
snow or ice may cause wiper linkage
damage. Always clear ice and heavy snow
from the windshield before using the
windshield wipers.
If the overload is caused by an electrical
problem and not snow or ice, be sure to get
it fixed.
