Buick Envision Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
8534310) - 2016 - crc - 2/29/16
Vehicle Care 335
FuseUsage
F10 Canister vent solenoid
F11 Fuel pump
F12 Heated seats
F13 Engine coolant pump
F14 –
F15 O2 sensor
F16 Ignition coils –odd
F17 Ignition coils –even
F18 –
F19 –
F20 DC DC/Transmission
F21 Liftgate
F22 ABS
F23 Washer pump
F24 Headlamp washer
F25 –
F26 Transmission oil pump
F27 ABS Fuse
Usage
F28 –
F29 Rear window defogger
F30 Mirror defogger
F31 –
F32 Various low current functions/Circuit 39
splice
F33 –
F34 Horn
F35 –
F36 Right high-beam headlamp
F37 Left high-beam headlamp
F38 Automatic headlamp leveling
F39 Front fog lamps
F40 Transmission oil pump
F41 Passenger seat ventilation
F42 Headlamp position Fuse
Usage
F43 –
F44 Interior rearview mirror
F45 –
F46 Driver seat ventilation
F47 Electric steering column lock
F48 Rear wiper
F49 –
F50 –
F51 Right daytime running lamp
F52 Engine control module/
Transmission control
module
F53 –
F54 –
F55 Front wiper
F56 –
F57 Left daytime running lamp

Buick Envision Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
8534310) - 2016 - crc - 2/29/16

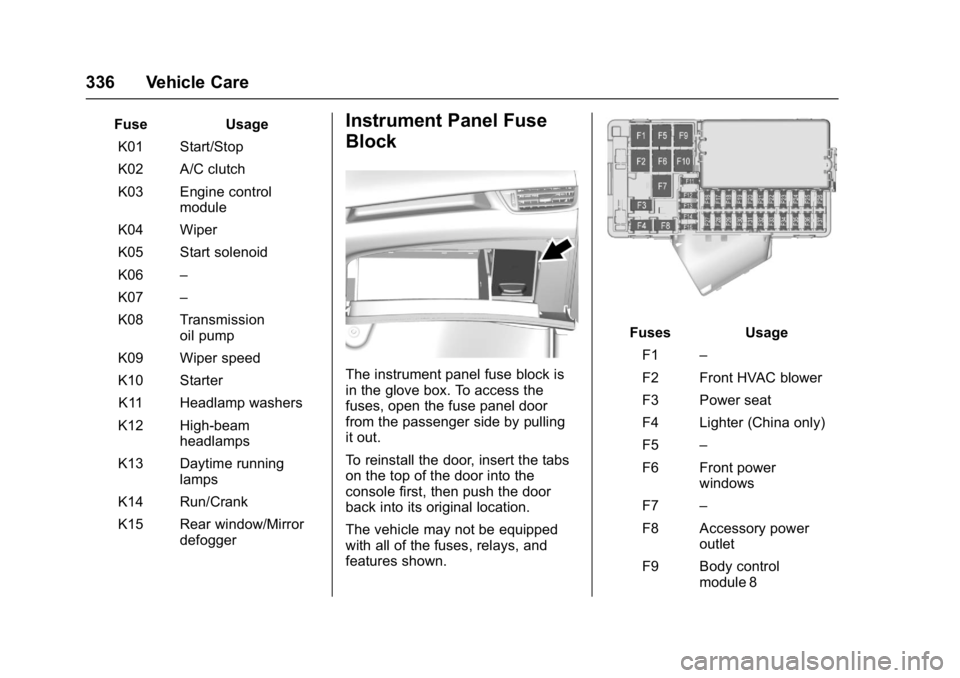

336 Vehicle Care
FuseUsage
K01 Start/Stop
K02 A/C clutch
K03 Engine control module
K04 Wiper
K05 Start solenoid
K06 –
K07 –
K08 Transmission oil pump
K09 Wiper speed
K10 Starter K11 Headlamp washers
K12 High-beam headlamps
K13 Daytime running lamps
K14 Run/Crank
K15 Rear window/Mirror defoggerInstrument Panel Fuse
Block
The instrument panel fuse block is
in the glove box. To access the
fuses, open the fuse panel door
from the passenger side by pulling
it out.
To reinstall the door, insert the tabs
on the top of the door into the
console first, then push the door
back into its original location.
The vehicle may not be equipped
with all of the fuses, relays, and
features shown.
Fuses Usage
F1 –
F2 Front HVAC blower
F3 Power seat
F4 Lighter (China only)
F5 –
F6 Front power windows
F7 –
F8 Accessory power outlet
F9 Body control module 8

Buick Envision Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
8534310) - 2016 - crc - 2/29/16
Vehicle Care 357
Warning (Continued)
affect the braking and handling of
the vehicle. Tires can lose air,
and cause loss of control, causing
a crash. Always use the correct
wheel, wheel bolts, and wheel
nuts for replacement.
Caution
The wrong wheel can also cause
problems with bearing life, brake
cooling, speedometer or
odometer calibration, headlamp
aim, bumper height, vehicle
ground clearance, and tire or tire
chain clearance to the body and
chassis.
Used Replacement Wheels
{Warning
Replacing a wheel with a used
one is dangerous. How it has
been used or how far it has been
driven may be unknown. It could
fail suddenly and cause a crash.
When replacing wheels, use a
new GM original equipment
wheel.
Tire Chains
{Warning
Do not use tire chains. There is
not enough clearance. Tire chains
used on a vehicle without the
proper amount of clearance can
cause damage to the brakes,
suspension, or other vehicle
parts. The area damaged by the
tire chains could cause loss of
control and a crash.(Continued)
Warning (Continued)
Use another type of traction
device only if its manufacturer
recommends it for the vehicle's
tire size combination and road
conditions. Follow that
manufacturer's instructions. To
avoid vehicle damage, drive slow
and readjust or remove the
traction device if it contacts the
vehicle. Do not spin the wheels.
If traction devices are used, install
them on the front tires.
If a Tire Goes Flat
It is unusual for a tire to blow out
while driving, especially if the tires
are maintained properly. See Tires
0 338. If air goes out of a tire, it is
much more likely to leak out slowly.
But if there ever is a blowout, here
are a few tips about what to expect
and what to do:
If a front tire fails, the flat tire
creates a drag that pulls the vehicle
toward that side. Take your foot off
the accelerator pedal and grip the

Buick Envision Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
8534310) - 2016 - crc - 2/29/16
388 Service and Maintenance
Battery
The 12-volt battery supplies power
to start the engine and operate any
additional electrical accessories.
.To avoid break-down or failure to
start the vehicle, maintain a
battery with full cranking power.
. Trained dealer technicians have
the diagnostic equipment to test
the battery and ensure that the
connections and cables are
corrosion-free.
Belts
. Belts may need replacing if they
squeak or show signs of
cracking or splitting.
. Trained dealer technicians have
access to tools and equipment
to inspect the belts and
recommend adjustment or
replacement when necessary.
Brakes
Brakes stop the vehicle and are
crucial to safe driving. .
Signs of brake wear may include
chirping, grinding, or squealing
noises, or difficulty stopping.
. Trained dealer technicians have
access to tools and equipment
to inspect the brakes and
recommend quality parts
engineered for the vehicle.
Fluids
Proper fluid levels and approved
fluids protect the vehicle’s systems
and components. See
Recommended Fluids and
Lubricants 0390 for GM approved
fluids.
. Engine oil and windshield
washer fluid levels should be
checked at every fuel fill.
. Instrument cluster lights may
come on to indicate that fluids
may be low and need to be
filled.
Hoses
Hoses transport fluids and should
be regularly inspected to ensure
that there are no cracks or leaks. With a multi-point inspection, your
dealer can inspect the hoses and
advise if replacement is needed.
Lamps
Properly working headlamps,
taillamps, and brake lamps are
important to see and be seen on
the road.
.
Signs that the headlamps need
attention include dimming, failure
to light, cracking, or damage.
The brake lamps need to be
checked periodically to ensure
that they light when braking.
. With a multi-point inspection,
your dealer can check the lamps
and note any concerns.
Shocks and Struts
Shocks and struts help aid in control
for a smoother ride.
. Signs of wear may include
steering wheel vibration, bounce/
sway while braking, longer
stopping distance, or uneven
tire wear.

Buick Envision Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
8534310) - 2016 - crc - 2/29/16
Index 421
Antilock Brake System(ABS) (cont'd)
Warning Light . . . . . . . . . . . . . . . . . 122
Appearance Care
Exterior . . . . . . . . . . . . . . . . . . . . . . . 371
Interior . . . . . . . . . . . . . . . . . . . . . . . . 376
Armrest Rear Seat . . . . . . . . . . . . . . . . . . . . . . 57
Assistance Program,
Roadside . . . . . . . . . . . . . . . . . . . . . . 400
Assistance Systems for Driving . . . . . . . . . . . . . . . . . . . . . . . . 289
Assistance Systems for
Parking and Backing . . . . . . . . . . 285
Audio Bluetooth . . . . . . . . . . . . . . . . . . . . . 185
Audio Players CD . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Automatic Dimming Mirrors . . . . . . . . . . . . . . . . 44
Door Locks . . . . . . . . . . . . . . . . . . . . . 35
Headlamp System . . . . . . . . . . . . 157
Transmission . . . . . . . . . . . . . . . . . 267
Transmission Fluid . . . . . . . . . . . 317
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . 269
Shift Lock Control FunctionCheck . . . . . . . . . . . . . . . . . . . . . . . 328 Auxiliary Jack . . . . . . . . . . . . . . . . . . . 184
Avoiding Untrusted Media
Devices . . . . . . . . . . . . . . . . . . . . . . . 179
B
BatteryExterior Lighting Battery
Saver . . . . . . . . . . . . . . . . . . . . . . . 162
Power Protection . . . . . . . . . . . . . 162
Voltage and Charging Messages . . . . . . . . . . . . . . . . . . . 137
Battery - North America . . . . 326, 365
Blade Replacement, Wiper . . . . . 329
Bluetooth
Overview . . . . . . . . . . . 220, 221, 224
Bluetooth Audio . . . . . . . . . . . . . . . . 185
Brake Parking, Electric . . . . . . . . . . . . . . 271
System Warning Light . . . . . . . . 121
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 325 Antilock . . . . . . . . . . . . . . . . . . . . . . . 270
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 272
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 325
System Messages . . . . . . . . . . . . 137
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 250
Break-In, New Vehicle . . . . . . . . . . 259
Bulb Replacement . . . . . . . . . . . . . . 332 Halogen Bulbs . . . . . . . . . . . . . . . . 331
Headlamp Aiming . . . . . . . . . . . . . 331 Bulb Replacement (cont'd)
Headlamps . . . . . . . . . . . . . . . . . . . 331
High Intensity Discharge
(HID) Lighting . . . . . . . . . . . . . . . 331
License Plate Lamps . . . . . . . . . 332
Buying New Tires . . . . . . . . . . . . . . . 353
C
California Fuel Requirements . . . . . . . . . . . 299
Perchlorate Materials
Requirements . . . . . . . . . . . . . . . 310
California Proposition
65 Warning . . . . . . . . . .310, 326, 365
Canadian Vehicle Owners . . . . . . . . 2
Capacities and Specifications . . . . . . . . . . . . . . . . . 394
Carbon Monoxide
Engine Exhaust . . . . . . . . . . . . . . . 266
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . 36
Winter Driving . . . . . . . . . . . . . . . . 253
Card Reader SD . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Cargo Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Tie-Downs . . . . . . . . . . . . . . . . . . . . . . 99
Caution, Danger, and Warning . . . . 3
CD Player . . . . . . . . . . . . . . . . . . . . . . 179

Buick Envision Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
8534310) - 2016 - crc - 2/29/16
424 Index
Flat Tire (cont'd)Changing . . . . . . . . . . . . . . . . . . . . . 359
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 379
Fluid Automatic Transmission . . . . . . 317
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 325
Washer . . . . . . . . . . . . . . . . . . . . . . . 324
Fog Lamps . . . . . . . . . . . . . . . . . . . . . 160
Folding Mirrors . . . . . . . . . . . . . . . . . . 44
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . 290
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . 406
Front Automatic Braking
(FAB) System . . . . . . . . . . . . . . . . . 292
Front Fog Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Front Seats
Heated and Cooled . . . . . . . . . . . . . 55
Front Storage . . . . . . . . . . . . . . . . . . . . 97
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298 Additives . . . . . . . . . . . . . . . . . . . . . 299
Economy Driving . . . . . . . . . . . . . . . 24
Filling a Portable FuelContainer . . . . . . . . . . . . . . . . . . . 301
Filling the Tank . . . . . . . . . . . . . . . 299
Foreign Countries . . . . . . . . . . . . 299
Gauge . . . . . . . . . . . . . . . . . . . . . . . . .115 Fuel (cont'd)
Low Fuel Warning Light . . . . . . . 126
Requirements, California . . . . . 299
System Messages . . . . . . . . . . . . 140
Fuses Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 334
Fuses and Circuit Breakers . . . 333
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 336
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 337
G
Garage Door Opener . . . . . . . . . . . 151Programming . . . . . . . . . . . . . . . . . 151
Gauges Engine CoolantTemperature . . . . . . . . . . . . . . . . .116
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . .115
Odometer . . . . . . . . . . . . . . . . . . . . . .114
Speedometer . . . . . . . . . . . . . . . . . .114
Tachometer . . . . . . . . . . . . . . . . . . . .114
Trip Odometer . . . . . . . . . . . . . . . . .114
Warning Lights and Indicators . . . . . . . . . . . . . . . . . . . .110
General Information Service and Maintenance . . . . . 381
Towing . . . . . . . . . . . . . . . . . . . . . . . . 301 General Information (cont'd)
Vehicle Care . . . . . . . . . . . . . . . . . . 310
Global Positioning System (GPS) . . . . . . . . . . . . . . . . . 211
Glove Box . . . . . . . . . . . . . . . . . . . . . . . 97
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . 399
Guidance Problems with the Route . . . . . . 212
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . 331
Hazard Warning Flashers . . . . . . . 159
HD Radio Technology . . . . . . . . . . 173
Head Restraints . . . . . . . . . . . . . . . . . 50
Head-up Display . . . . . . . . . . . . . . . . 133
Headlamp Leveling Control . . . . . 158
HeadlampsAdaptive Forward
Lighting (AFL) . . . . . . . . . . . . . . . 158
Aiming . . . . . . . . . . . . . . . . . . . . . . . . 331
Automatic . . . . . . . . . . . . . . . . . . . . . 157
Bulb Replacement . . . . . . . . . . . . 331
Daytime Running Lamps (DRL) . . . . . . . . . . . . . . . . 157
Flash-to-Pass . . . . . . . . . . . . . . . . . 157
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . 331
High-Beam On Light . . . . . . . . . . 126

Buick Envision Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
8534310) - 2016 - crc - 2/29/16
Index 425
Headlamps (cont'd)High/Low Beam Changer . . . . . 157
Lamps On Reminder . . . . . . . . . 127
Washer . . . . . . . . . . . . . . . . . . . . . . . 107
Heated Rear Seats . . . . . . . . . . . . . . . . . . . . . 58
Steering Wheel . . . . . . . . . . . . . . . 104
Heated and Cooled Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Heated Mirrors . . . . . . . . . . . . . . . . . . . 44
Heater Engine . . . . . . . . . . . . . . . . . . . . . . . . 263
High-Beam On Light . . . . . . . . . . . . 126
Hill and Mountain Roads . . . . . . . . 253
Hill Start Assist (HSA) . . . . . . . . . . 272
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 312
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
How to Wear Safety Belts Properly . . . . . . . . . . . . . . . . . . . . . . . . 59
I
If the System Needs Service . . . . 212
Ignition Positions . . . . . . . . . . . . . . . 259
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 42
IndicatorVehicle Ahead . . . . . . . . . . . . . . . . 123
Infants and Young Children, Restraints . . . . . . . . . . . . . . . . . . . . . . 80
Infotainment System . . . . . . . . . . . . 409 Instrument Cluster . . . . . . . . . . . . . . 111
Instrument Panel Overview . . . . . . . 6
Interior Rearview Mirrors . . . . . . . . . 44
Internet Radio
Pandora . . . . . . . . . . . . . . . . . . . . . . 175
Introduction . . . . . . . . . . . . . . . . . . . . . . . 2
J
Jack Auxiliary . . . . . . . . . . . . . . . . . . . . . . 184
Jump Starting - North America . . . . . . . . . . . . . . . . . . . . . . . 365
K
Key and Lock Messages . . . . . . . . 140
Keyless EntryRemote (RKE) System . . . . . . . . . 26
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
L
Labeling, Tire Sidewall . . . . . . . . . . 340
Lamps Courtesy . . . . . . . . . . . . . . . . . . . . . . 160
Daytime Running (DRL) . . . . . . 157
Dome . . . . . . . . . . . . . . . . . . . . . . . . . 160
Exterior Controls . . . . . . . . . . . . . . 155
Exterior Lamps OffReminder . . . . . . . . . . . . . . . . . . . 157
Exterior Lighting Battery Saver . . . . . . . . . . . . . . . . . . . . . . . 162 Lamps (cont'd)
License Plate . . . . . . . . . . . . . . . . . 332
Malfunction Indicator . . . . . . . . . .119
On Reminder . . . . . . . . . . . . . . . . . 127
Reading . . . . . . . . . . . . . . . . . . . . . . 161
Lane Change Alert (LCA) . . . . . . . 294
Lane Departure Warning (LDW) . . . . . . . . . . . . . . . . 296
Lane Keep Assist (LKA) . . . . . . . . 296
Lane Keep Assist Light . . . . . . . . . 123
Lap-Shoulder Belt . . . . . . . . . . . . . . . 60
LATCH System
Replacing Parts after aCrash . . . . . . . . . . . . . . . . . . . . . . . . . 91
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . . 85
Leveling Control Headlamp . . . . . . . . . . . . . . . . . . . . 158
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Light Adaptive Forward Lighting(AFL) Light . . . . . . . . . . . . . . . . . . 126
Lighting
Adaptive Forward . . . . . . . . . . . . . 158
Entry . . . . . . . . . . . . . . . . . . . . . . . . . 161
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Illumination Control . . . . . . . . . . . 160
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Buick Envision Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
8534310) - 2016 - crc - 2/29/16
Index 431
U
Uniform Tire Quality Grading . . . 355
Universal Remote System . . . . . . 151Operation . . . . . . . . . . . . . . . . . . . . . 154
Programming . . . . . . . . . . . . . . . . . 151
Updates Map Data . . . . . . . . . . . . . . . . . . . . . 212
Software . . . . . . . . . . . . . . . . . . . . . . 169
USB Port . . . . . . . . . . . . . . . . . . . . . . . 182
Using the Navigation System . . . 187
Using the System . . . . . . . . . . . . . . . 167
Using This Manual . . . . . . . . . . . . . . . . 2
V
Vehicle Alarm System . . . . . . . . . . . . . . . . . . 41
Canadian Owners . . . . . . . . . . . . . . . 2
Control . . . . . . . . . . . . . . . . . . . . . . . 250
Design . . . . . . . . . . . . . . . . . . . . . . . . 248
Identification Number (VIN) . . . 393
Load Limits . . . . . . . . . . . . . . . . . . . 255
Messages . . . . . . . . . . . . . . . . . . . . 136
Personalization . . . . . . . . . . . . . . . 146
Remote Start . . . . . . . . . . . . . . . . . . . 32
Security . . . . . . . . . . . . . . . . . . . . . . . . 41
Towing . . . . . . . . . . . . . . . . . . . . . . . . 368
Vehicle Ahead Indicator . . . . . . . . 123 Vehicle Care
Tire Pressure . . . . . . . . . . . . . . . . . 346
Vehicle Data Recording and Privacy . . . . . . . . . . . . . . . . . . . . . . . . 407
Vehicle Positioning . . . . . . . . . . . . . 211
Ventilation, Air . . . . . . . . . . . . . . . . . . 244
Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Voice Recognition . . . . . . . . . . . . . . 213
W
Warning Brake System Light . . . . . . . . . . . 121
Caution and Danger . . . . . . . . . . . . . 3
Lane Departure (LDW) . . . . . . . 296
Warning Lights, Gauges, and Indicators . . . . . . . . . . . . . . . . . . . . . 110
Warnings
Hazard Flashers . . . . . . . . . . . . . . 159
Washer Fluid . . . . . . . . . . . . . . . . . . . 324 Messages . . . . . . . . . . . . . . . . . . . . 145
Washer, Headlamps . . . . . . . . . . . . 107
Wheels
Alignment and Tire Balance . . 356
Different Size . . . . . . . . . . . . . . . . . 354
Replacement . . . . . . . . . . . . . . . . . 356
When It Is Time for New
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 352
Where to Put the Restraint . . . . . . 84
Windows . . . . . . . . . . . . . . . . . . . . . . . . 45 Windows (cont'd)
Messages . . . . . . . . . . . . . . . . . . . . 145
Power . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Windshield
Replacement . . . . . . . . . . . . . . . . . 330
Wiper/Washer . . . . . . . . . . . . . . . . 104
Winter Driving . . . . . . . . . . . . . . . . . . . . . . . . 253
Winter Tires . . . . . . . . . . . . . . . . . . . . 339
Wiper Blade Replacement . . . . . . 329
Wipers
Rear Washer . . . . . . . . . . . . . . . . . 106
