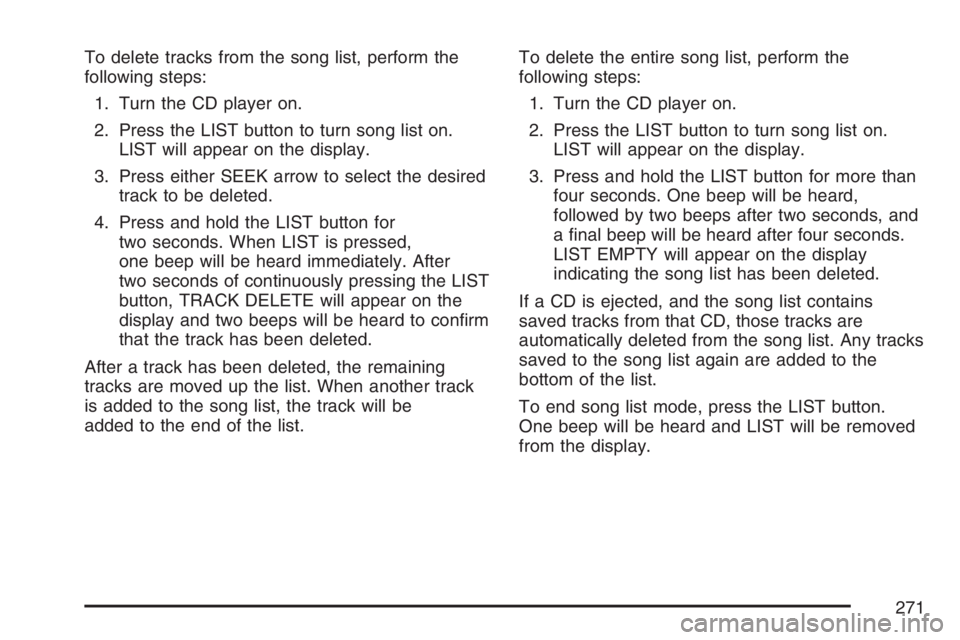

To delete tracks from the song list, perform the
following steps:
1. Turn the CD player on.
2. Press the LIST button to turn song list on.
LIST will appear on the display.
3. Press either SEEK arrow to select the desired
track to be deleted.
4. Press and hold the LIST button for
two seconds. When LIST is pressed,
one beep will be heard immediately. After
two seconds of continuously pressing the LIST
button, TRACK DELETE will appear on the
display and two beeps will be heard to conrm
that the track has been deleted.
After a track has been deleted, the remaining
tracks are moved up the list. When another track
is added to the song list, the track will be
added to the end of the list.To delete the entire song list, perform the
following steps:
1. Turn the CD player on.
2. Press the LIST button to turn song list on.
LIST will appear on the display.
3. Press and hold the LIST button for more than
four seconds. One beep will be heard,
followed by two beeps after two seconds, and
a nal beep will be heard after four seconds.
LIST EMPTY will appear on the display
indicating the song list has been deleted.
If a CD is ejected, and the song list contains
saved tracks from that CD, those tracks are
automatically deleted from the song list. Any tracks
saved to the song list again are added to the
bottom of the list.
To end song list mode, press the LIST button.
One beep will be heard and LIST will be removed
from the display.
271

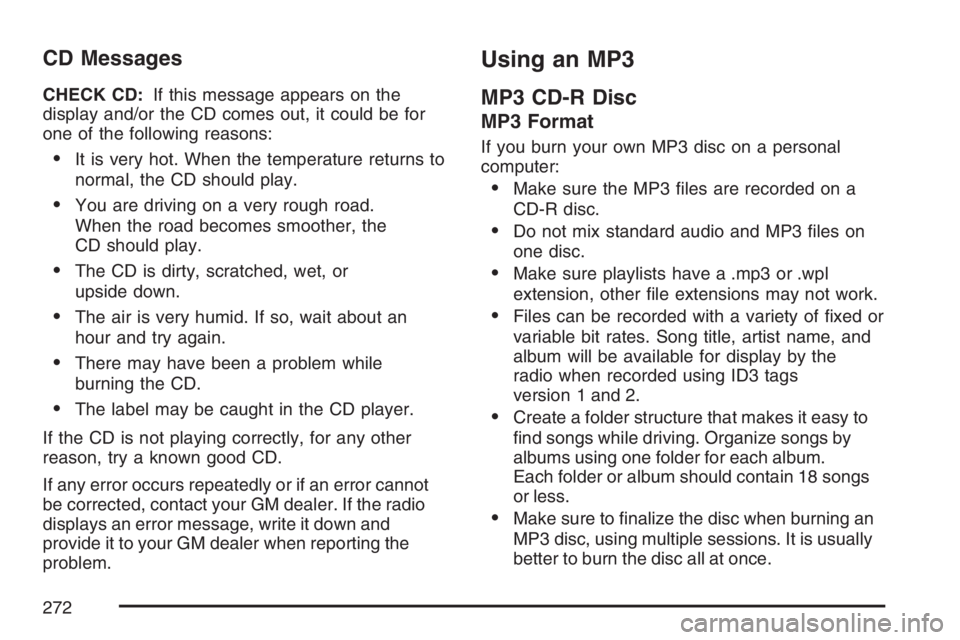

CD Messages
CHECK CD:If this message appears on the
display and/or the CD comes out, it could be for
one of the following reasons:
It is very hot. When the temperature returns to
normal, the CD should play.
You are driving on a very rough road.
When the road becomes smoother, the
CD should play.
The CD is dirty, scratched, wet, or
upside down.
The air is very humid. If so, wait about an
hour and try again.
There may have been a problem while
burning the CD.
The label may be caught in the CD player.
If the CD is not playing correctly, for any other
reason, try a known good CD.
If any error occurs repeatedly or if an error cannot
be corrected, contact your GM dealer. If the radio
displays an error message, write it down and
provide it to your GM dealer when reporting the
problem.
Using an MP3
MP3 CD-R Disc
MP3 Format
If you burn your own MP3 disc on a personal
computer:
Make sure the MP3 les are recorded on a
CD-R disc.
Do not mix standard audio and MP3 les on
one disc.
Make sure playlists have a .mp3 or .wpl
extension, other le extensions may not work.
Files can be recorded with a variety of xed or
variable bit rates. Song title, artist name, and
album will be available for display by the
radio when recorded using ID3 tags
version 1 and 2.
Create a folder structure that makes it easy to
nd songs while driving. Organize songs by
albums using one folder for each album.
Each folder or album should contain 18 songs
or less.
Make sure to nalize the disc when burning an
MP3 disc, using multiple sessions. It is usually
better to burn the disc all at once.
272

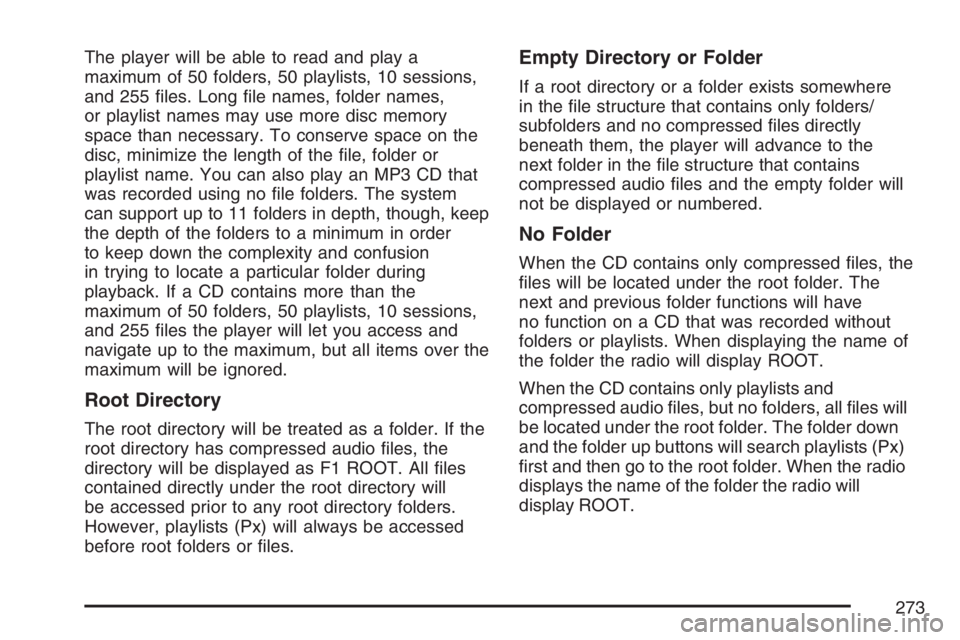

The player will be able to read and play a
maximum of 50 folders, 50 playlists, 10 sessions,
and 255 les. Long le names, folder names,
or playlist names may use more disc memory
space than necessary. To conserve space on the
disc, minimize the length of the le, folder or
playlist name. You can also play an MP3 CD that
was recorded using no le folders. The system
can support up to 11 folders in depth, though, keep
the depth of the folders to a minimum in order
to keep down the complexity and confusion
in trying to locate a particular folder during
playback. If a CD contains more than the
maximum of 50 folders, 50 playlists, 10 sessions,
and 255 les the player will let you access and
navigate up to the maximum, but all items over the
maximum will be ignored.
Root Directory
The root directory will be treated as a folder. If the
root directory has compressed audio les, the
directory will be displayed as F1 ROOT. All les
contained directly under the root directory will
be accessed prior to any root directory folders.
However, playlists (Px) will always be accessed
before root folders or les.
Empty Directory or Folder
If a root directory or a folder exists somewhere
in the le structure that contains only folders/
subfolders and no compressed les directly
beneath them, the player will advance to the
next folder in the le structure that contains
compressed audio les and the empty folder will
not be displayed or numbered.
No Folder
When the CD contains only compressed les, the
les will be located under the root folder. The
next and previous folder functions will have
no function on a CD that was recorded without
folders or playlists. When displaying the name of
the folder the radio will display ROOT.
When the CD contains only playlists and
compressed audio les, but no folders, all les will
be located under the root folder. The folder down
and the folder up buttons will search playlists (Px)
rst and then go to the root folder. When the radio
displays the name of the folder the radio will
display ROOT.
273

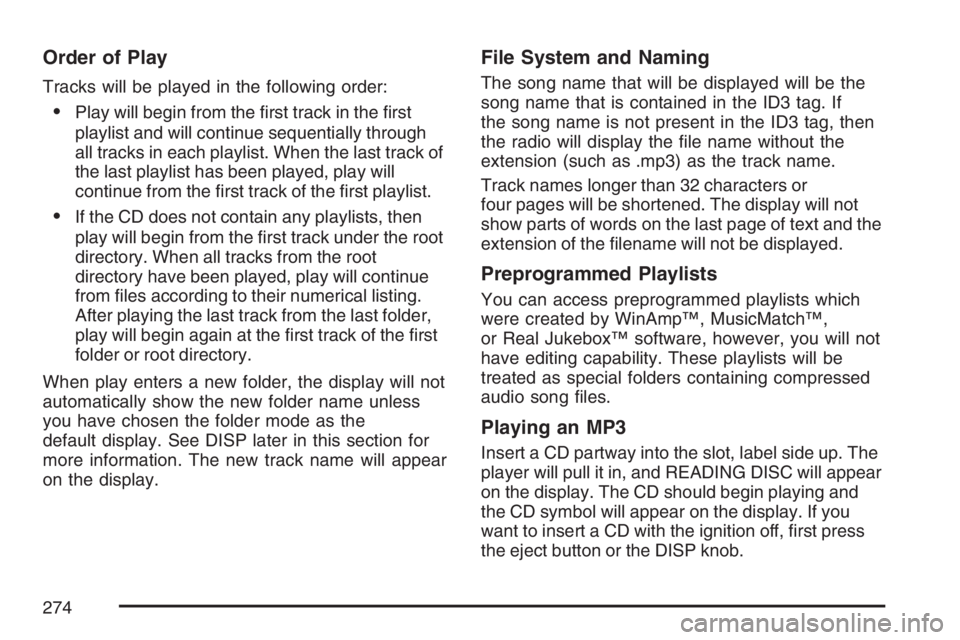

Order of Play
Tracks will be played in the following order:
Play will begin from the rst track in the rst
playlist and will continue sequentially through
all tracks in each playlist. When the last track of
the last playlist has been played, play will
continue from the rst track of the rst playlist.
If the CD does not contain any playlists, then
play will begin from the rst track under the root
directory. When all tracks from the root
directory have been played, play will continue
from les according to their numerical listing.
After playing the last track from the last folder,
play will begin again at the rst track of the rst
folder or root directory.
When play enters a new folder, the display will not
automatically show the new folder name unless
you have chosen the folder mode as the
default display. See DISP later in this section for
more information. The new track name will appear
on the display.
File System and Naming
The song name that will be displayed will be the
song name that is contained in the ID3 tag. If
the song name is not present in the ID3 tag, then
the radio will display the le name without the
extension (such as .mp3) as the track name.
Track names longer than 32 characters or
four pages will be shortened. The display will not
show parts of words on the last page of text and the
extension of the lename will not be displayed.
Preprogrammed Playlists
You can access preprogrammed playlists which
were created by WinAmp™, MusicMatch™,
or Real Jukebox™ software, however, you will not
have editing capability. These playlists will be
treated as special folders containing compressed
audio song les.
Playing an MP3
Insert a CD partway into the slot, label side up. The
player will pull it in, and READING DISC will appear
on the display. The CD should begin playing and
the CD symbol will appear on the display. If you
want to insert a CD with the ignition off, rst press
the eject button or the DISP knob.
274

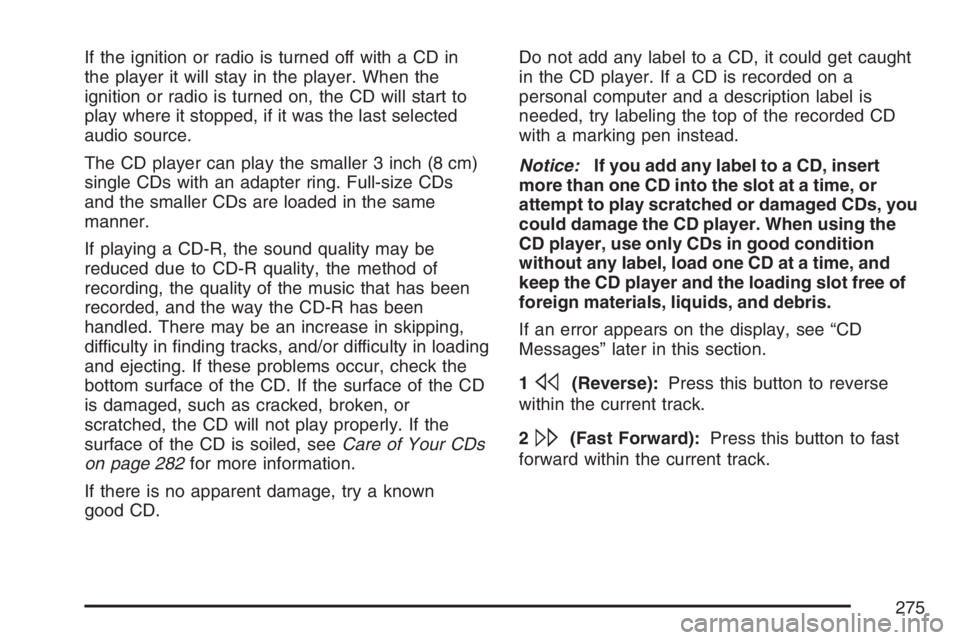

If the ignition or radio is turned off with a CD in
the player it will stay in the player. When the
ignition or radio is turned on, the CD will start to
play where it stopped, if it was the last selected
audio source.
The CD player can play the smaller 3 inch (8 cm)
single CDs with an adapter ring. Full-size CDs
and the smaller CDs are loaded in the same
manner.
If playing a CD-R, the sound quality may be
reduced due to CD-R quality, the method of
recording, the quality of the music that has been
recorded, and the way the CD-R has been
handled. There may be an increase in skipping,
difficulty in nding tracks, and/or difficulty in loading
and ejecting. If these problems occur, check the
bottom surface of the CD. If the surface of the CD
is damaged, such as cracked, broken, or
scratched, the CD will not play properly. If the
surface of the CD is soiled, seeCare of Your CDs
on page 282for more information.
If there is no apparent damage, try a known
good CD.Do not add any label to a CD, it could get caught
in the CD player. If a CD is recorded on a
personal computer and a description label is
needed, try labeling the top of the recorded CD
with a marking pen instead.
Notice:If you add any label to a CD, insert
more than one CD into the slot at a time, or
attempt to play scratched or damaged CDs, you
could damage the CD player. When using the
CD player, use only CDs in good condition
without any label, load one CD at a time, and
keep the CD player and the loading slot free of
foreign materials, liquids, and debris.
If an error appears on the display, see “CD
Messages” later in this section.
1
s(Reverse):Press this button to reverse
within the current track.
2
\(Fast Forward):Press this button to fast
forward within the current track.
275

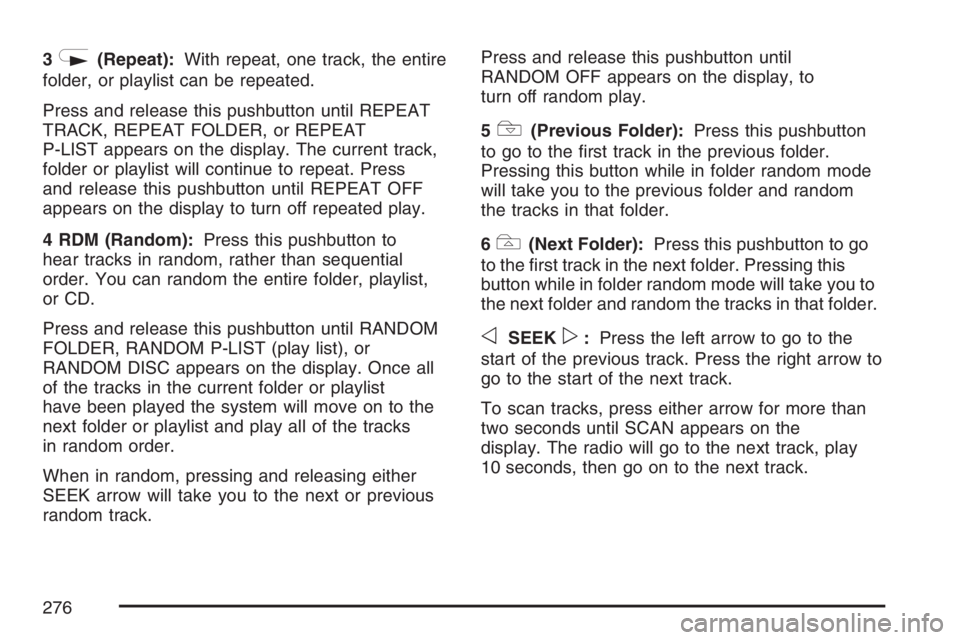

3N(Repeat):With repeat, one track, the entire
folder, or playlist can be repeated.
Press and release this pushbutton until REPEAT
TRACK, REPEAT FOLDER, or REPEAT
P-LIST appears on the display. The current track,
folder or playlist will continue to repeat. Press
and release this pushbutton until REPEAT OFF
appears on the display to turn off repeated play.
4 RDM (Random):Press this pushbutton to
hear tracks in random, rather than sequential
order. You can random the entire folder, playlist,
or CD.
Press and release this pushbutton until RANDOM
FOLDER, RANDOM P-LIST (play list), or
RANDOM DISC appears on the display. Once all
of the tracks in the current folder or playlist
have been played the system will move on to the
next folder or playlist and play all of the tracks
in random order.
When in random, pressing and releasing either
SEEK arrow will take you to the next or previous
random track.Press and release this pushbutton until
RANDOM OFF appears on the display, to
turn off random play.
5
!(Previous Folder):Press this pushbutton
to go to the rst track in the previous folder.
Pressing this button while in folder random mode
will take you to the previous folder and random
the tracks in that folder.
6
#(Next Folder):Press this pushbutton to go
to the rst track in the next folder. Pressing this
button while in folder random mode will take you to
the next folder and random the tracks in that folder.
oSEEKp:Press the left arrow to go to the
start of the previous track. Press the right arrow to
go to the start of the next track.
To scan tracks, press either arrow for more than
two seconds until SCAN appears on the
display. The radio will go to the next track, play
10 seconds, then go on to the next track.
276

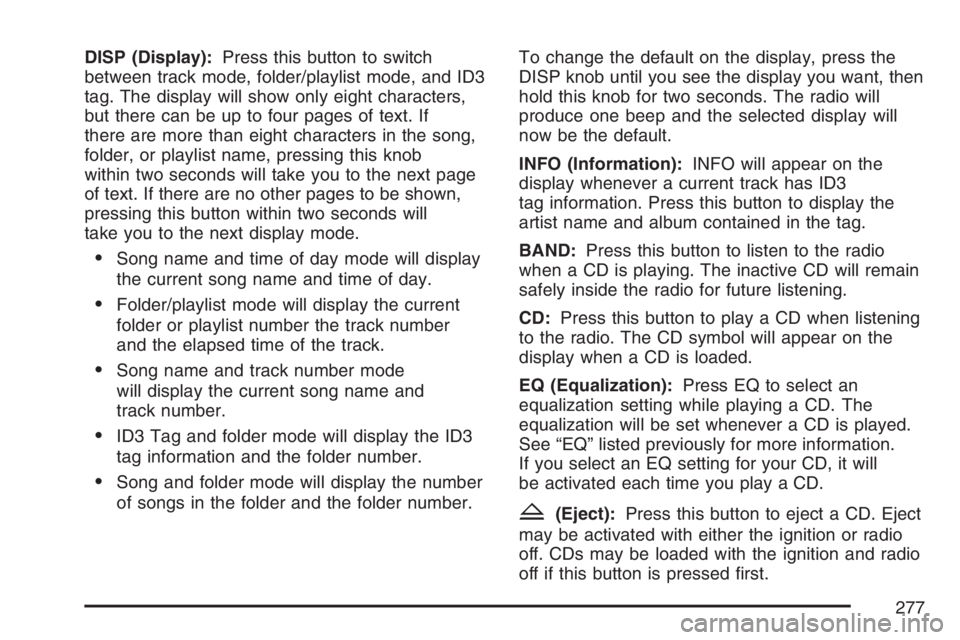

DISP (Display):Press this button to switch
between track mode, folder/playlist mode, and ID3
tag. The display will show only eight characters,
but there can be up to four pages of text. If
there are more than eight characters in the song,
folder, or playlist name, pressing this knob
within two seconds will take you to the next page
of text. If there are no other pages to be shown,
pressing this button within two seconds will
take you to the next display mode.
Song name and time of day mode will display
the current song name and time of day.
Folder/playlist mode will display the current
folder or playlist number the track number
and the elapsed time of the track.
Song name and track number mode
will display the current song name and
track number.
ID3 Tag and folder mode will display the ID3
tag information and the folder number.
Song and folder mode will display the number
of songs in the folder and the folder number.To change the default on the display, press the
DISP knob until you see the display you want, then
hold this knob for two seconds. The radio will
produce one beep and the selected display will
now be the default.
INFO (Information):INFO will appear on the
display whenever a current track has ID3
tag information. Press this button to display the
artist name and album contained in the tag.
BAND:Press this button to listen to the radio
when a CD is playing. The inactive CD will remain
safely inside the radio for future listening.
CD:Press this button to play a CD when listening
to the radio. The CD symbol will appear on the
display when a CD is loaded.
EQ (Equalization):Press EQ to select an
equalization setting while playing a CD. The
equalization will be set whenever a CD is played.
See “EQ” listed previously for more information.
If you select an EQ setting for your CD, it will
be activated each time you play a CD.
Z(Eject):Press this button to eject a CD. Eject
may be activated with either the ignition or radio
off. CDs may be loaded with the ignition and radio
off if this button is pressed rst.
277

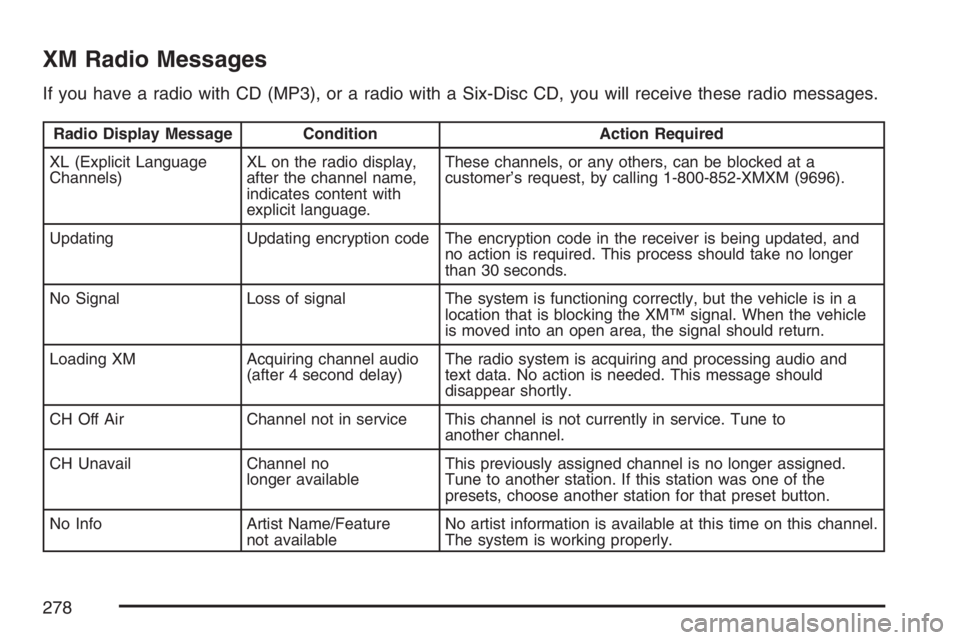

XM Radio Messages
If you have a radio with CD (MP3), or a radio with a Six-Disc CD, you will receive these radio messages.
Radio Display Message Condition Action Required
XL (Explicit Language
Channels)XL on the radio display,
after the channel name,
indicates content with
explicit language.These channels, or any others, can be blocked at a
customer’s request, by calling 1-800-852-XMXM (9696).
Updating Updating encryption code The encryption code in the receiver is being updated, and
no action is required. This process should take no longer
than 30 seconds.
No Signal Loss of signal The system is functioning correctly, but the vehicle is in a
location that is blocking the XM™ signal. When the vehicle
is moved into an open area, the signal should return.
Loading XM Acquiring channel audio
(after 4 second delay)The radio system is acquiring and processing audio and
text data. No action is needed. This message should
disappear shortly.
CH Off Air Channel not in service This channel is not currently in service. Tune to
another channel.
CH Unavail Channel no
longer availableThis previously assigned channel is no longer assigned.
Tune to another station. If this station was one of the
presets, choose another station for that preset button.
No Info Artist Name/Feature
not availableNo artist information is available at this time on this channel.
The system is working properly.
278

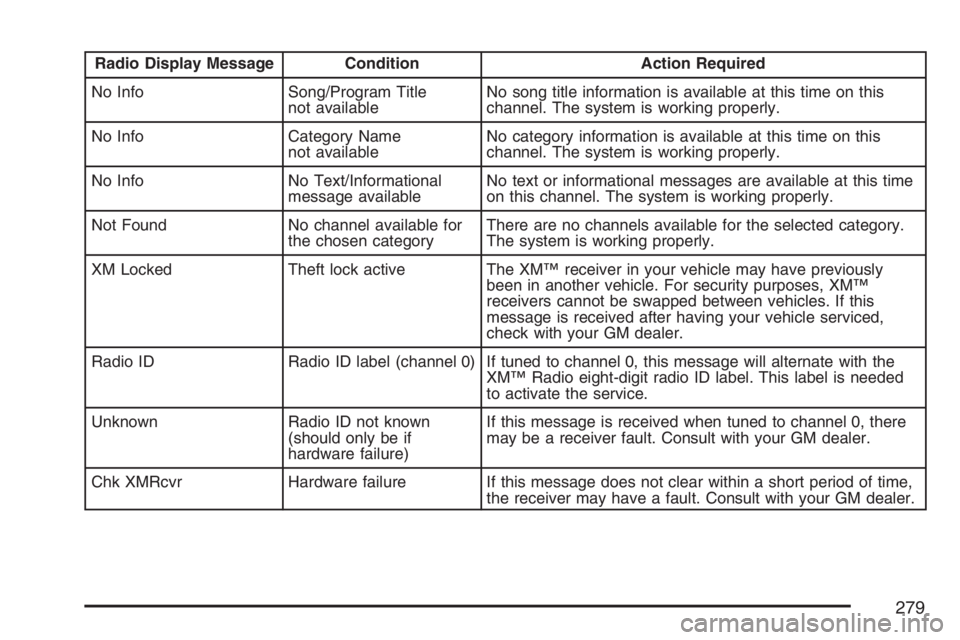

Radio Display Message Condition Action Required
No Info Song/Program Title
not availableNo song title information is available at this time on this
channel. The system is working properly.
No Info Category Name
not availableNo category information is available at this time on this
channel. The system is working properly.
No Info No Text/Informational
message availableNo text or informational messages are available at this time
on this channel. The system is working properly.
Not Found No channel available for
the chosen categoryThere are no channels available for the selected category.
The system is working properly.
XM Locked Theft lock active The XM™ receiver in your vehicle may have previously
been in another vehicle. For security purposes, XM™
receivers cannot be swapped between vehicles. If this
message is received after having your vehicle serviced,
check with your GM dealer.
Radio ID Radio ID label (channel 0) If tuned to channel 0, this message will alternate with the
XM™ Radio eight-digit radio ID label. This label is needed
to activate the service.
Unknown Radio ID not known
(should only be if
hardware failure)If this message is received when tuned to channel 0, there
may be a receiver fault. Consult with your GM dealer.
Chk XMRcvr Hardware failure If this message does not clear within a short period of time,
the receiver may have a fault. Consult with your GM dealer.
279

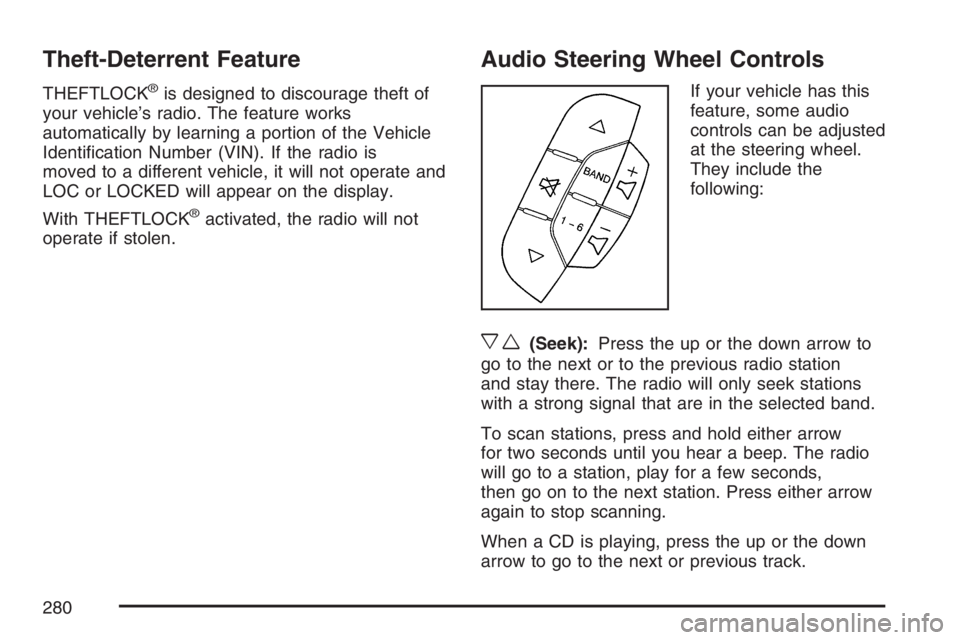

Theft-Deterrent Feature
THEFTLOCK®is designed to discourage theft of
your vehicle’s radio. The feature works
automatically by learning a portion of the Vehicle
Identication Number (VIN). If the radio is
moved to a different vehicle, it will not operate and
LOC or LOCKED will appear on the display.
With THEFTLOCK
®activated, the radio will not
operate if stolen.
Audio Steering Wheel Controls
If your vehicle has this
feature, some audio
controls can be adjusted
at the steering wheel.
They include the
following:
xw(Seek):Press the up or the down arrow to
go to the next or to the previous radio station
and stay there. The radio will only seek stations
with a strong signal that are in the selected band.
To scan stations, press and hold either arrow
for two seconds until you hear a beep. The radio
will go to a station, play for a few seconds,
then go on to the next station. Press either arrow
again to stop scanning.
When a CD is playing, press the up or the down
arrow to go to the next or previous track.
280
