Page 71 of 512

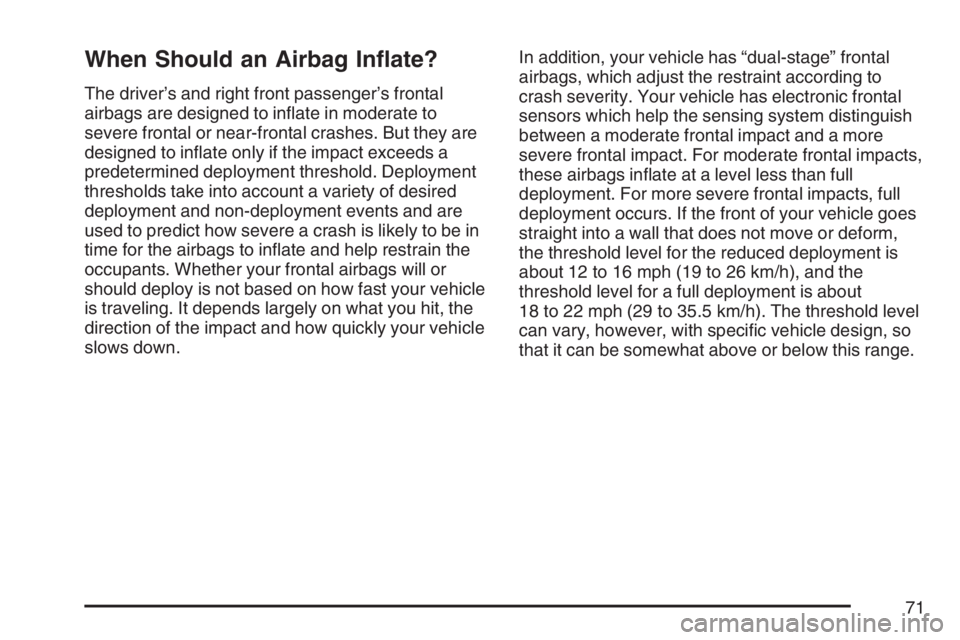

When Should an Airbag In ate?
The driver’s and right front passenger’s frontal
airbags are designed to in ate in moderate to
severe frontal or near-frontal crashes. But they are
designed to in ate only if the impact exceeds a
predetermined deployment threshold. Deployment
thresholds take into account a variety of desired
deployment and non-deployment events and are
used to predict how severe a crash is likely to be in
time for the airbags to in ate and help restrain the
occupants. Whether your frontal airbags will or
should deploy is not based on how fast your vehicle
is traveling. It depends largely on what you hit, the
direction of the impact and how quickly your vehicle
slows down.In addition, your vehicle has “dual-stage” frontal
airbags, which adjust the restraint according to
crash severity. Your vehicle has electronic frontal
sensors which help the sensing system distinguish
between a moderate frontal impact and a more
severe frontal impact. For moderate frontal impacts,
these airbags in ate at a level less than full
deployment. For more severe frontal impacts, full
deployment occurs. If the front of your vehicle goes
straight into a wall that does not move or deform,
the threshold level for the reduced deployment is
about 12 to 16 mph (19 to 26 km/h), and the
threshold level for a full deployment is about
18 to 22 mph (29 to 35.5 km/h). The threshold level
can vary, however, with speci c vehicle design, so
that it can be somewhat above or below this range.
71
Page 72 of 512

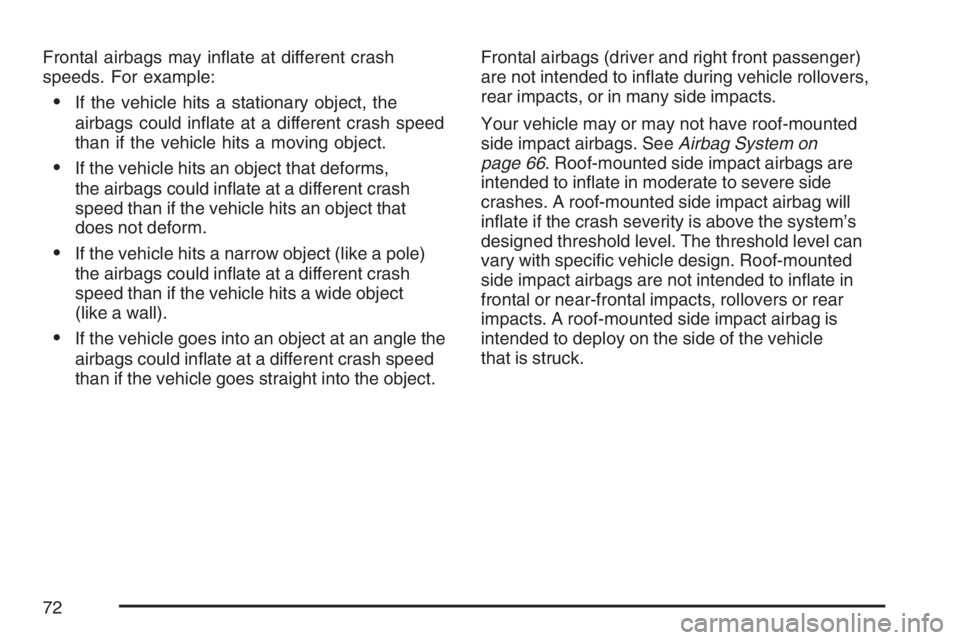

Frontal airbags may in ate at different crash
speeds. For example:
If the vehicle hits a stationary object, the
airbags could in ate at a different crash speed
than if the vehicle hits a moving object.
If the vehicle hits an object that deforms,
the airbags could in ate at a different crash
speed than if the vehicle hits an object that
does not deform.
If the vehicle hits a narrow object (like a pole)
the airbags could in ate at a different crash
speed than if the vehicle hits a wide object
(like a wall).
If the vehicle goes into an object at an angle the
airbags could in ate at a different crash speed
than if the vehicle goes straight into the object.Frontal airbags (driver and right front passenger)
are not intended to in ate during vehicle rollovers,
rear impacts, or in many side impacts.
Your vehicle may or may not have roof-mounted
side impact airbags. SeeAirbag System on
page 66. Roof-mounted side impact airbags are
intended to in ate in moderate to severe side
crashes. A roof-mounted side impact airbag will
in ate if the crash severity is above the system’s
designed threshold level. The threshold level can
vary with speci c vehicle design. Roof-mounted
side impact airbags are not intended to in ate in
frontal or near-frontal impacts, rollovers or rear
impacts. A roof-mounted side impact airbag is
intended to deploy on the side of the vehicle
that is struck.
72
Page 73 of 512

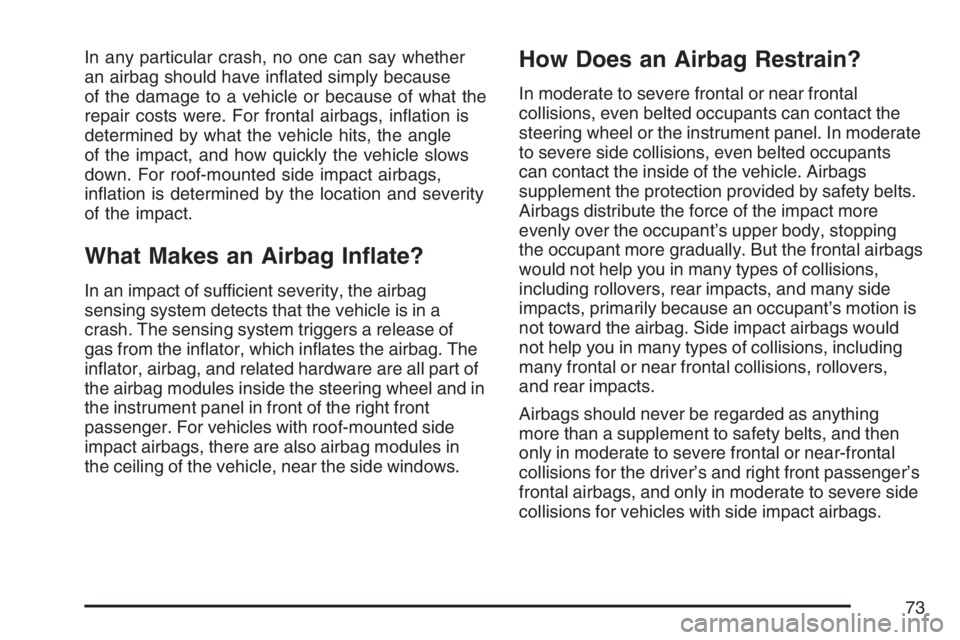

In any particular crash, no one can say whether
an airbag should have in ated simply because
of the damage to a vehicle or because of what the
repair costs were. For frontal airbags, in ation is
determined by what the vehicle hits, the angle
of the impact, and how quickly the vehicle slows
down. For roof-mounted side impact airbags,
in ation is determined by the location and severity
of the impact.
What Makes an Airbag In ate?
In an impact of sufficient severity, the airbag
sensing system detects that the vehicle is in a
crash. The sensing system triggers a release of
gas from the in ator, which in ates the airbag. The
in ator, airbag, and related hardware are all part of
the airbag modules inside the steering wheel and in
the instrument panel in front of the right front
passenger. For vehicles with roof-mounted side
impact airbags, there are also airbag modules in
the ceiling of the vehicle, near the side windows.
How Does an Airbag Restrain?
In moderate to severe frontal or near frontal
collisions, even belted occupants can contact the
steering wheel or the instrument panel. In moderate
to severe side collisions, even belted occupants
can contact the inside of the vehicle. Airbags
supplement the protection provided by safety belts.
Airbags distribute the force of the impact more
evenly over the occupant’s upper body, stopping
the occupant more gradually. But the frontal airbags
would not help you in many types of collisions,
including rollovers, rear impacts, and many side
impacts, primarily because an occupant’s motion is
not toward the airbag. Side impact airbags would
not help you in many types of collisions, including
many frontal or near frontal collisions, rollovers,
and rear impacts.
Airbags should never be regarded as anything
more than a supplement to safety belts, and then
only in moderate to severe frontal or near-frontal
collisions for the driver’s and right front passenger’s
frontal airbags, and only in moderate to severe side
collisions for vehicles with side impact airbags.
73
Page 74 of 512
What Will You See After an Airbag
In ates?
After a frontal airbag in ates, it quickly de ates, so
quickly that some people may not even realize the
airbag in ated. Roof-mounted side impact airbags
may still be at least partially in ated minutes after
the vehicle comes to rest. Some components of the
airbag module — the steering wheel hub for the
driver’s airbag, the instrument panel for the right
front passenger’s airbag, or the ceiling of your
vehicle near the side windows for vehicles with
roof–mounted side impact airbags — may be hot for
a short time. The parts of the airbag that come into
contact with you may be warm, but not too hot to
touch. There may be some smoke and dust coming
from the vents in the de ated airbags. Airbag
in ation does not prevent the driver from seeing out
of the windshield or being able to steer the vehicle,
nor does it prevent people from leaving the vehicle.
{CAUTION:
When an airbag in ates, there may be
dust in the air. This dust could cause
breathing problems for people with a
history of asthma or other breathing
trouble. To avoid this, everyone in the
vehicle should get out as soon as it is
safe to do so. If you have breathing
problems but cannot get out of the vehicle
after an airbag in ates, then get fresh air
by opening a window or a door. If you
experience breathing problems following
an airbag deployment, you should seek
medical attention.
Your vehicle has a feature that may automatically
unlock the doors, turn the interior lamps on, and
turn on the hazard warning ashers when the
airbags in ate. You can lock the doors again, turn
the interior lamps off, and turn the hazard warning
ashers off by using the controls for those features.
74
Page 75 of 512

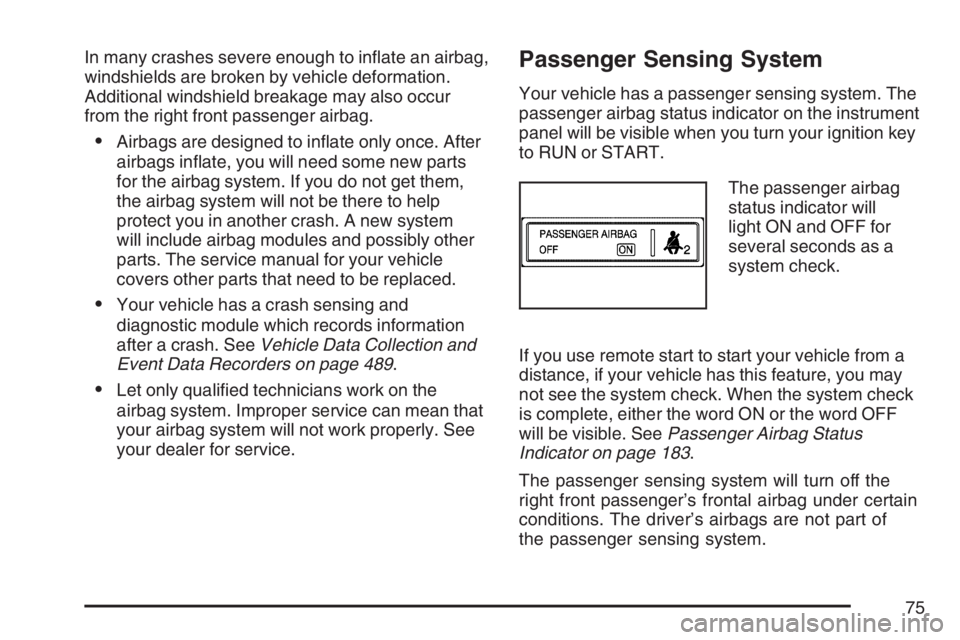

In many crashes severe enough to in ate an airbag,
windshields are broken by vehicle deformation.
Additional windshield breakage may also occur
from the right front passenger airbag.
Airbags are designed to in ate only once. After
airbags in ate, you will need some new parts
for the airbag system. If you do not get them,
the airbag system will not be there to help
protect you in another crash. A new system
will include airbag modules and possibly other
parts. The service manual for your vehicle
covers other parts that need to be replaced.
Your vehicle has a crash sensing and
diagnostic module which records information
after a crash. SeeVehicle Data Collection and
Event Data Recorders on page 489.
Let only quali ed technicians work on the
airbag system. Improper service can mean that
your airbag system will not work properly. See
your dealer for service.
Passenger Sensing System
Your vehicle has a passenger sensing system. The
passenger airbag status indicator on the instrument
panel will be visible when you turn your ignition key
to RUN or START.
The passenger airbag
status indicator will
light ON and OFF for
several seconds as a
system check.
If you use remote start to start your vehicle from a
distance, if your vehicle has this feature, you may
not see the system check. When the system check
is complete, either the word ON or the word OFF
will be visible. SeePassenger Airbag Status
Indicator on page 183.
The passenger sensing system will turn off the
right front passenger’s frontal airbag under certain
conditions. The driver’s airbags are not part of
the passenger sensing system.
75
Page 76 of 512

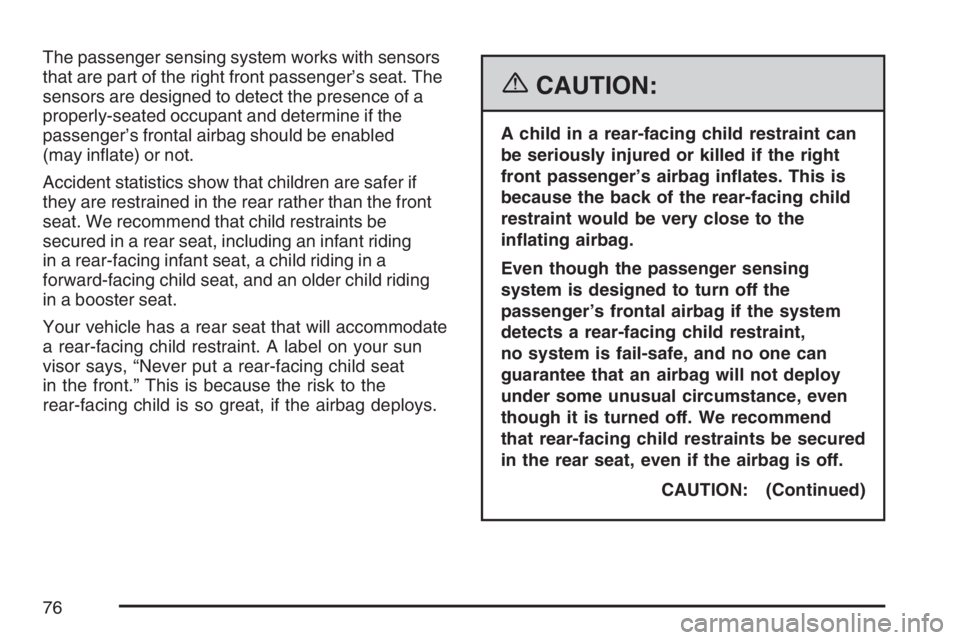

The passenger sensing system works with sensors
that are part of the right front passenger’s seat. The
sensors are designed to detect the presence of a
properly-seated occupant and determine if the
passenger’s frontal airbag should be enabled
(may in ate) or not.
Accident statistics show that children are safer if
they are restrained in the rear rather than the front
seat. We recommend that child restraints be
secured in a rear seat, including an infant riding
in a rear-facing infant seat, a child riding in a
forward-facing child seat, and an older child riding
in a booster seat.
Your vehicle has a rear seat that will accommodate
a rear-facing child restraint. A label on your sun
visor says, “Never put a rear-facing child seat
in the front.” This is because the risk to the
rear-facing child is so great, if the airbag deploys.
{CAUTION:
A child in a rear-facing child restraint can
be seriously injured or killed if the right
front passenger’s airbag in ates. This is
because the back of the rear-facing child
restraint would be very close to the
in ating airbag.
Even though the passenger sensing
system is designed to turn off the
passenger’s frontal airbag if the system
detects a rear-facing child restraint,
no system is fail-safe, and no one can
guarantee that an airbag will not deploy
under some unusual circumstance, even
though it is turned off. We recommend
that rear-facing child restraints be secured
in the rear seat, even if the airbag is off.
CAUTION: (Continued)
76
Page 77 of 512

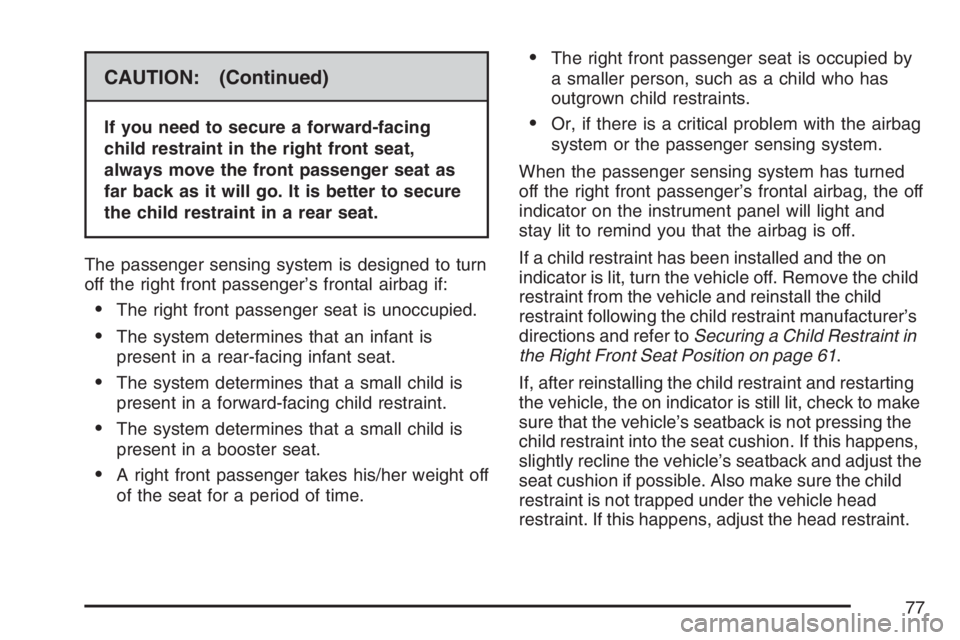

CAUTION: (Continued)
If you need to secure a forward-facing
child restraint in the right front seat,
always move the front passenger seat as
far back as it will go. It is better to secure
the child restraint in a rear seat.
The passenger sensing system is designed to turn
off the right front passenger’s frontal airbag if:
The right front passenger seat is unoccupied.
The system determines that an infant is
present in a rear-facing infant seat.
The system determines that a small child is
present in a forward-facing child restraint.
The system determines that a small child is
present in a booster seat.
A right front passenger takes his/her weight off
of the seat for a period of time.
The right front passenger seat is occupied by
a smaller person, such as a child who has
outgrown child restraints.
Or, if there is a critical problem with the airbag
system or the passenger sensing system.
When the passenger sensing system has turned
off the right front passenger’s frontal airbag, the off
indicator on the instrument panel will light and
stay lit to remind you that the airbag is off.
If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove the child
restraint from the vehicle and reinstall the child
restraint following the child restraint manufacturer’s
directions and refer toSecuring a Child Restraint in
the Right Front Seat Position on page 61.
If, after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to make
sure that the vehicle’s seatback is not pressing the
child restraint into the seat cushion. If this happens,
slightly recline the vehicle’s seatback and adjust the
seat cushion if possible. Also make sure the child
restraint is not trapped under the vehicle head
restraint. If this happens, adjust the head restraint.
77
Page 78 of 512

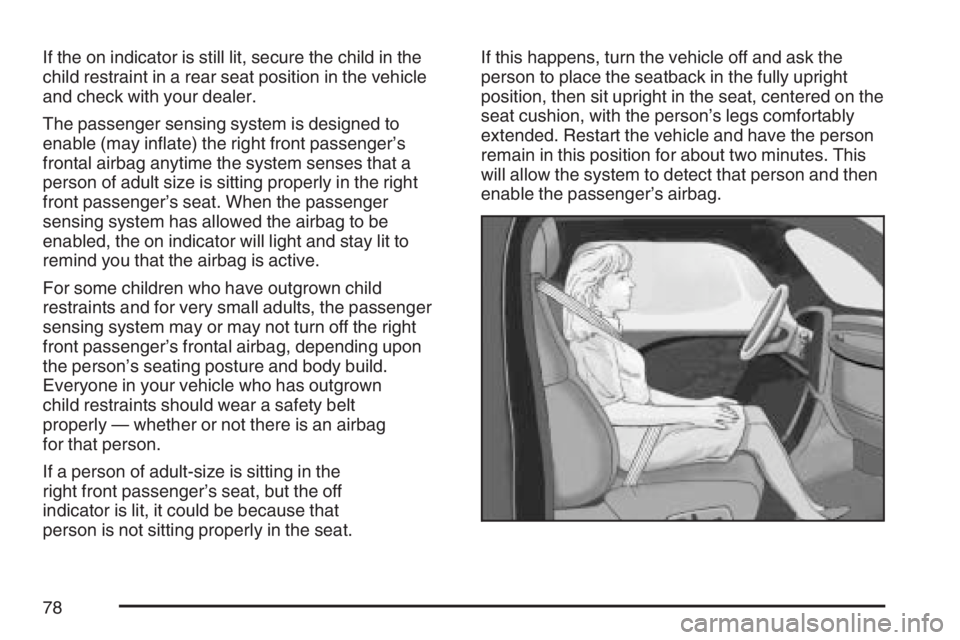

If the on indicator is still lit, secure the child in the
child restraint in a rear seat position in the vehicle
and check with your dealer.
The passenger sensing system is designed to
enable (may in ate) the right front passenger’s
frontal airbag anytime the system senses that a
person of adult size is sitting properly in the right
front passenger’s seat. When the passenger
sensing system has allowed the airbag to be
enabled, the on indicator will light and stay lit to
remind you that the airbag is active.
For some children who have outgrown child
restraints and for very small adults, the passenger
sensing system may or may not turn off the right
front passenger’s frontal airbag, depending upon
the person’s seating posture and body build.
Everyone in your vehicle who has outgrown
child restraints should wear a safety belt
properly — whether or not there is an airbag
for that person.
If a person of adult-size is sitting in the
right front passenger’s seat, but the off
indicator is lit, it could be because that
person is not sitting properly in the seat.If this happens, turn the vehicle off and ask the
person to place the seatback in the fully upright
position, then sit upright in the seat, centered on the
seat cushion, with the person’s legs comfortably
extended. Restart the vehicle and have the person
remain in this position for about two minutes. This
will allow the system to detect that person and then
enable the passenger’s airbag.
78
Page 79 of 512
{CAUTION:
If the airbag readiness light in the
instrument panel cluster ever comes on
and stays on, it means that something may
be wrong with the airbag system. If this
ever happens, have the vehicle serviced
promptly, because an adult-size person
sitting in the right front passenger’s seat
may not have the protection of the frontal
airbag. SeeAirbag Readiness Light on
page 182for more on this, including
important safety information.
A thick layer of additional material such as a
blanket, or aftermarket equipment such as seat
covers, seat heaters, and seat massagers, can
affect how well the passenger sensing system
operates. Remove any additional material from
the seat cushion before reinstalling or securing
the child restraint and before a small occupant,
including a small adult, sits in the right front
passenger’s seat. You may want to consider notusing seat covers or other aftermarket equipment if
your vehicle has the passenger sensing system.
SeeAdding Equipment to Your Airbag-Equipped
Vehicle on page 81for more information about
modi cations that can affect how the system
operates.
The passenger sensing system may suppress the
airbag deployment when liquid is soaked into the
seat. If this happens, the off indicator in the
passenger airbag status indicator and the airbag
readiness light on the instrument panel will be lit.
The system should resume normal operation after
the seat is allowed to dry. If the system operates
incorrectly after the seat has dried, have your
dealer check the system.
{CAUTION:
Stowing of articles under the passenger’s
seat or between the passenger’s seat
cushion and seatback may interfere with
the proper operation of the passenger
sensing system.
79
Page 80 of 512

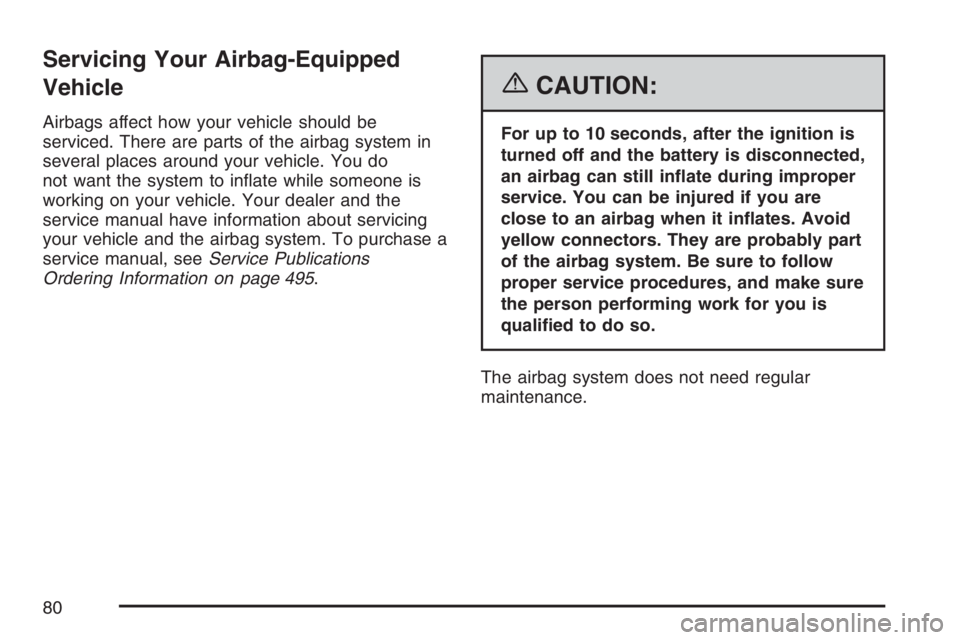

Servicing Your Airbag-Equipped
Vehicle
Airbags affect how your vehicle should be
serviced. There are parts of the airbag system in
several places around your vehicle. You do
not want the system to in ate while someone is
working on your vehicle. Your dealer and the
service manual have information about servicing
your vehicle and the airbag system. To purchase a
service manual, seeService Publications
Ordering Information on page 495.
{CAUTION:
For up to 10 seconds, after the ignition is
turned off and the battery is disconnected,
an airbag can still in ate during improper
service. You can be injured if you are
close to an airbag when it in ates. Avoid
yellow connectors. They are probably part
of the airbag system. Be sure to follow
proper service procedures, and make sure
the person performing work for you is
quali ed to do so.
The airbag system does not need regular
maintenance.
80
