BUICK LACROSSE 2010 Owner's Manual
Manufacturer: BUICK, Model Year: 2010, Model line: LACROSSE, Model: BUICK LACROSSE 2010Pages: 414
Page 381 of 414

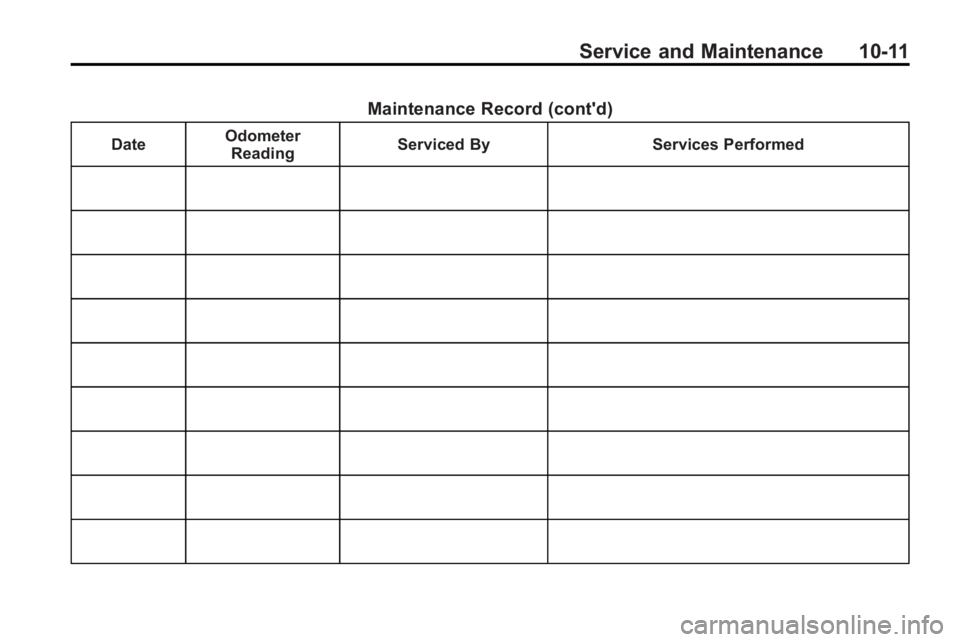

Service and Maintenance 10-11
Maintenance Record (cont'd)
DateOdometer
Reading Serviced By Services Performed
Page 382 of 414

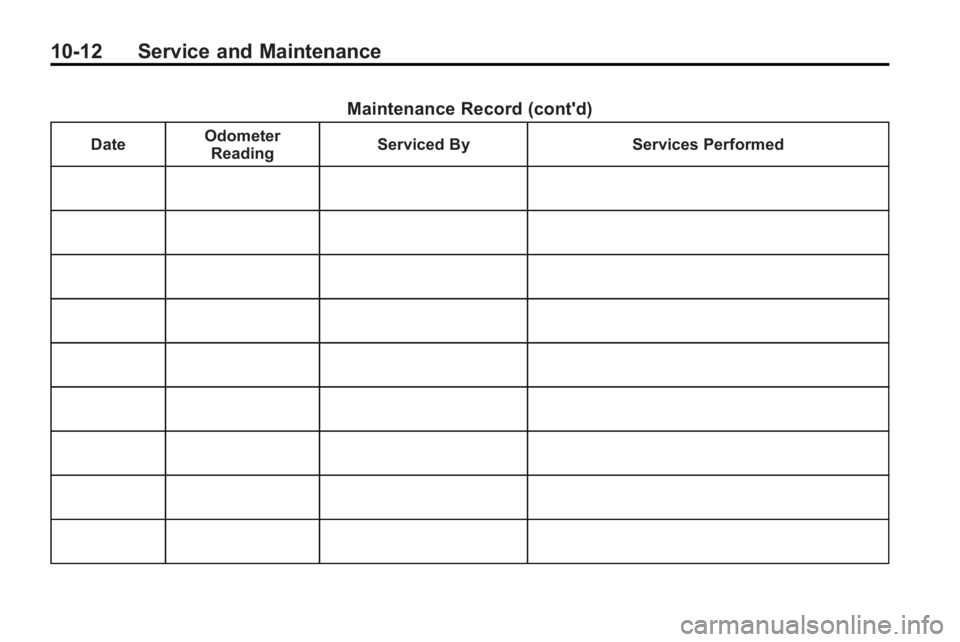

10-12 Service and Maintenance
Maintenance Record (cont'd)
DateOdometer
Reading Serviced By Services Performed
Page 383 of 414

Technical Data 11-1
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . 11-1
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . 11-1
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . 11-2
Engine Drive Belt Routing . . . . 11-4
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the left side of the vehicle. It can be
seen through the windshield from
outside. The VIN also appears on
the Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN
is the engine code. This code
identifies the vehicle's engine,
specifications, and replacement
parts. See “Engine Specifications”
under Capacities and Specifications
on page 11‑2for the vehicle's
engine code.
Service Parts
Identification Label
This label, on the inside of the glove
box, has the following information:
.Vehicle Identification
Number (VIN)
.Model designation
.Paint information
.Production options and special
equipment
Do not remove this label from the
vehicle.
Page 384 of 414

11-2 Technical Data
Vehicle Data
Capacities and Specifications
ApplicationCapacities
Metric English
Air Conditioning Refrigerant R134a For the air conditioning system refrigerant charge
amount, see the refrigerant caution label located
under the hood. See your dealer/retailer for more
information.
Engine Cooling System 2.4L L4 Engine 7.1 L 7.5 qt
3.0L V6 Engine 9.4 L 9.9 qt
3.6L V6 Engine 9.4 L 9.9 qt
Engine Oil with Filter 2.4L L4 Engine 4.7 L 5.0 qt
3.0L V6 Engine 5.7 L 6.0 qt
3.6L V6 Engine 5.2 L 5.5 qt
Page 385 of 414

Technical Data 11-3
ApplicationCapacities
Metric English
Fuel Tank
AWD 74.0 L 19.5 gal
FWD 70.5 L 18.6 gal
Transmission Fluid* (Drain and Refill)
2.4L L4 Engine, 6–Speed Automatic 8.0 L 8.5 qt
3.0L V6 Engine, All Wheel Drive, 6–Speed Automatic 9.0 L 9.5 qt
3.0L V6 Engine, Front Wheel Drive, 6–Speed Automatic 9.0 L 9.5 qt
3.6L V6 Engine, 6–Speed Automatic 9.0 L 9.5 qt
Wheel Nut Torque 150 Y110 ft lb
*See Automatic Transmission Fluid
on page 9‑15for information on checking fluid level.
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.
Page 386 of 414

11-4 Technical Data
Engine Specifications
EngineVIN CodeTransmission Spark Plug Gap
2.4L L4 Engine CAutomatic 0.9 mm (0.035 in)
3.0L V6 Engine GAutomatic 1.10 mm (0.043 in)
3.6L V6 Engine VAutomatic 1.10 mm (0.043 in)
Engine Drive Belt Routing
2.4L L4 Engine
(Electric Power Steering)
2.4L L4 Engine
(Hydraulic Power Steering)3.0L, 3.6L V6 Engines
Page 387 of 414

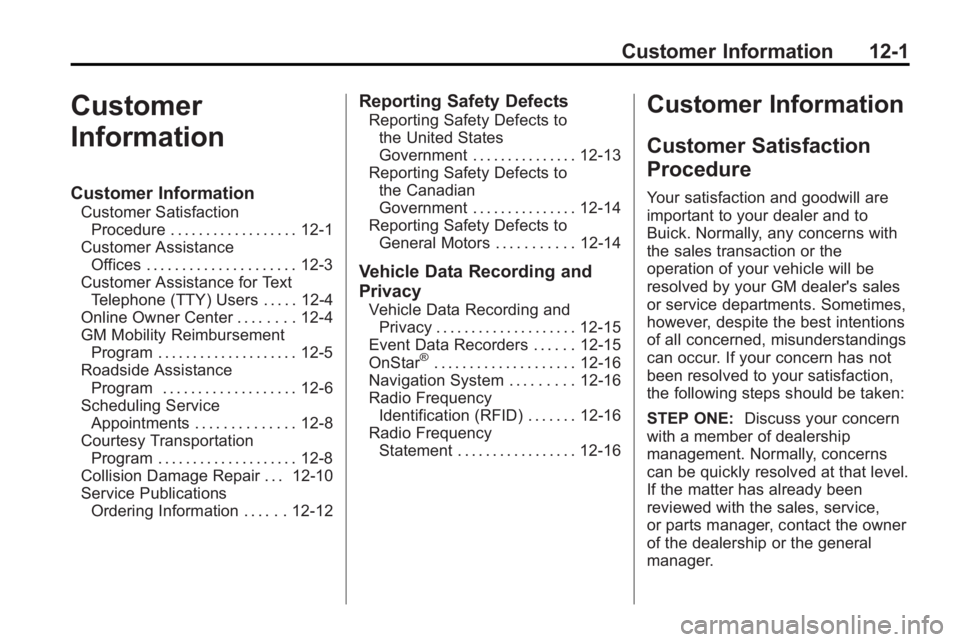

Customer Information 12-1
Customer
Information
Customer Information
Customer SatisfactionProcedure . . . . . . . . . . . . . . . . . . 12-1
Customer Assistance Offices . . . . . . . . . . . . . . . . . . . . . 12-3
Customer Assistance for Text Telephone (TTY) Users . . . . . 12-4
Online Owner Center . . . . . . . . 12-4
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . 12-5
Roadside Assistance Program . . . . . . . . . . . . . . . . . . . 12-6
Scheduling Service Appointments . . . . . . . . . . . . . . 12-8
Courtesy Transportation Program . . . . . . . . . . . . . . . . . . . . 12-8
Collision Damage Repair . . . 12-10
Service Publications Ordering Information . . . . . . 12-12
Reporting Safety Defects
Reporting Safety Defects tothe United States
Government . . . . . . . . . . . . . . . 12-13
Reporting Safety Defects to the Canadian
Government . . . . . . . . . . . . . . . 12-14
Reporting Safety Defects to General Motors . . . . . . . . . . . 12-14
Vehicle Data Recording and
Privacy
Vehicle Data Recording andPrivacy . . . . . . . . . . . . . . . . . . . . 12-15
Event Data Recorders . . . . . . 12-15
OnStar
®. . . . . . . . . . . . . . . . . . . . 12-16
Navigation System . . . . . . . . . 12-16
Radio Frequency Identification (RFID) . . . . . . . 12-16
Radio Frequency Statement . . . . . . . . . . . . . . . . . 12-16
Customer Information
Customer Satisfaction
Procedure
Your satisfaction and goodwill are
important to your dealer and to
Buick. Normally, any concerns with
the sales transaction or the
operation of your vehicle will be
resolved by your GM dealer's sales
or service departments. Sometimes,
however, despite the best intentions
of all concerned, misunderstandings
can occur. If your concern has not
been resolved to your satisfaction,
the following steps should be taken:
STEP ONE: Discuss your concern
with a member of dealership
management. Normally, concerns
can be quickly resolved at that level.
If the matter has already been
reviewed with the sales, service,
or parts manager, contact the owner
of the dealership or the general
manager.
Page 388 of 414

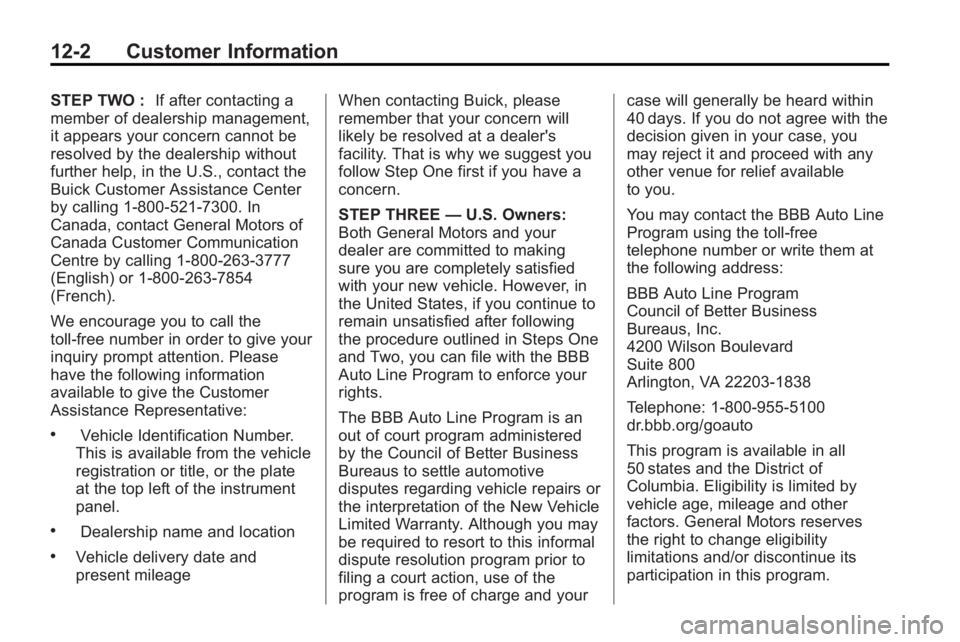

12-2 Customer Information
STEP TWO :If after contacting a
member of dealership management,
it appears your concern cannot be
resolved by the dealership without
further help, in the U.S., contact the
Buick Customer Assistance Center
by calling 1-800-521-7300. In
Canada, contact General Motors of
Canada Customer Communication
Centre by calling 1-800-263-3777
(English) or 1-800-263-7854
(French).
We encourage you to call the
toll-free number in order to give your
inquiry prompt attention. Please
have the following information
available to give the Customer
Assistance Representative:
.Vehicle Identification Number.
This is available from the vehicle
registration or title, or the plate
at the top left of the instrument
panel.
.Dealership name and location
.Vehicle delivery date and
present mileage When contacting Buick, please
remember that your concern will
likely be resolved at a dealer's
facility. That is why we suggest you
follow Step One first if you have a
concern.
STEP THREE
—U.S. Owners:
Both General Motors and your
dealer are committed to making
sure you are completely satisfied
with your new vehicle. However, in
the United States, if you continue to
remain unsatisfied after following
the procedure outlined in Steps One
and Two, you can file with the BBB
Auto Line Program to enforce your
rights.
The BBB Auto Line Program is an
out of court program administered
by the Council of Better Business
Bureaus to settle automotive
disputes regarding vehicle repairs or
the interpretation of the New Vehicle
Limited Warranty. Although you may
be required to resort to this informal
dispute resolution program prior to
filing a court action, use of the
program is free of charge and your case will generally be heard within
40 days. If you do not agree with the
decision given in your case, you
may reject it and proceed with any
other venue for relief available
to you.
You may contact the BBB Auto Line
Program using the toll-free
telephone number or write them at
the following address:
BBB Auto Line Program
Council of Better Business
Bureaus, Inc.
4200 Wilson Boulevard
Suite 800
Arlington, VA 22203-1838
Telephone: 1-800-955-5100
dr.bbb.org/goauto
This program is available in all
50 states and the District of
Columbia. Eligibility is limited by
vehicle age, mileage and other
factors. General Motors reserves
the right to change eligibility
limitations and/or discontinue its
participation in this program.
Page 389 of 414

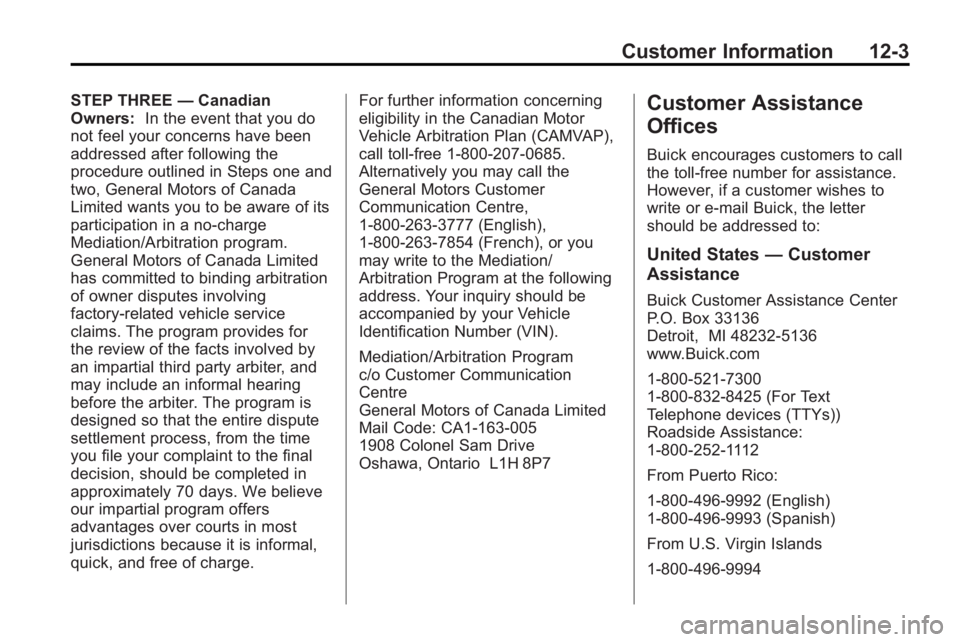

Customer Information 12-3
STEP THREE—Canadian
Owners: In the event that you do
not feel your concerns have been
addressed after following the
procedure outlined in Steps one and
two, General Motors of Canada
Limited wants you to be aware of its
participation in a no-charge
Mediation/Arbitration program.
General Motors of Canada Limited
has committed to binding arbitration
of owner disputes involving
factory-related vehicle service
claims. The program provides for
the review of the facts involved by
an impartial third party arbiter, and
may include an informal hearing
before the arbiter. The program is
designed so that the entire dispute
settlement process, from the time
you file your complaint to the final
decision, should be completed in
approximately 70 days. We believe
our impartial program offers
advantages over courts in most
jurisdictions because it is informal,
quick, and free of charge. For further information concerning
eligibility in the Canadian Motor
Vehicle Arbitration Plan (CAMVAP),
call toll-free 1-800-207-0685.
Alternatively you may call the
General Motors Customer
Communication Centre,
1-800-263-3777 (English),
1-800-263-7854 (French), or you
may write to the Mediation/
Arbitration Program at the following
address. Your inquiry should be
accompanied by your Vehicle
Identification Number (VIN).
Mediation/Arbitration Program
c/o Customer Communication
Centre
General Motors of Canada Limited
Mail Code: CA1-163-005
1908 Colonel Sam Drive
Oshawa, Ontario L1H 8P7Customer Assistance
Offices
Buick encourages customers to call
the toll-free number for assistance.
However, if a customer wishes to
write or e-mail Buick, the letter
should be addressed to:
United States
—Customer
Assistance
Buick Customer Assistance Center
P.O. Box 33136
Detroit, MI 48232-5136
www.Buick.com
1-800-521-7300
1-800-832-8425 (For Text
Telephone devices (TTYs))
Roadside Assistance:
1-800-252-1112
From Puerto Rico:
1-800-496-9992 (English)
1-800-496-9993 (Spanish)
From U.S. Virgin Islands
1-800-496-9994
Page 390 of 414

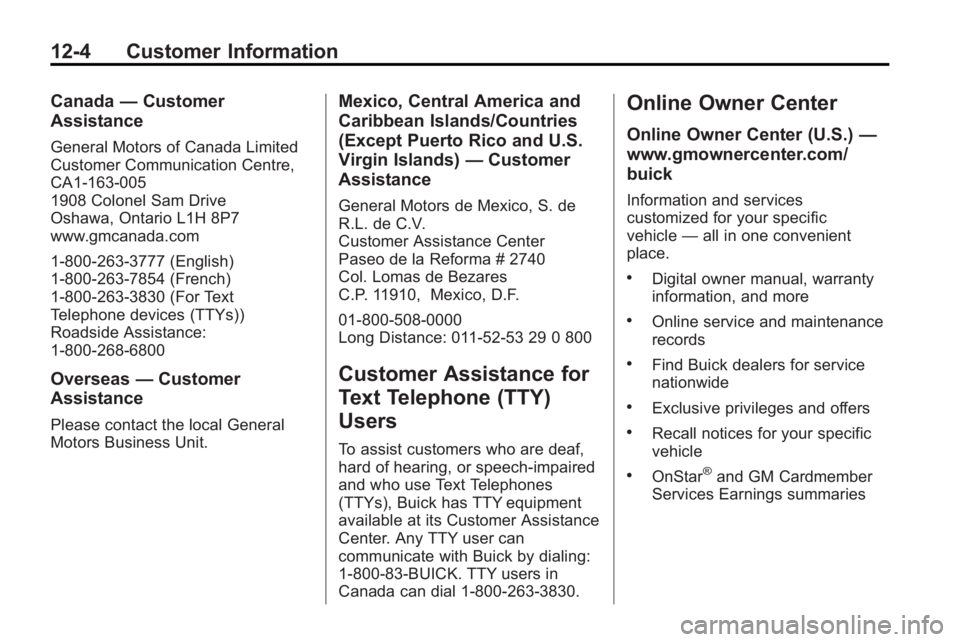

12-4 Customer Information
Canada—Customer
Assistance
General Motors of Canada Limited
Customer Communication Centre,
CA1-163-005
1908 Colonel Sam Drive
Oshawa, Ontario L1H 8P7
www.gmcanada.com
1-800-263-3777 (English)
1-800-263-7854 (French)
1-800-263-3830 (For Text
Telephone devices (TTYs))
Roadside Assistance:
1-800-268-6800
Overseas —Customer
Assistance
Please contact the local General
Motors Business Unit.
Mexico, Central America and
Caribbean Islands/Countries
(Except Puerto Rico and U.S.
Virgin Islands) —Customer
Assistance
General Motors de Mexico, S. de
R.L. de C.V.
Customer Assistance Center
Paseo de la Reforma # 2740
Col. Lomas de Bezares
C.P. 11910, Mexico, D.F.
01-800-508-0000
Long Distance: 011-52-53 29 0 800
Customer Assistance for
Text Telephone (TTY)
Users
To assist customers who are deaf,
hard of hearing, or speech-impaired
and who use Text Telephones
(TTYs), Buick has TTY equipment
available at its Customer Assistance
Center. Any TTY user can
communicate with Buick by dialing:
1-800-83-BUICK. TTY users in
Canada can dial 1-800-263-3830.
Online Owner Center
Online Owner Center (U.S.) —
www.gmownercenter.com/
buick
Information and services
customized for your specific
vehicle —all in one convenient
place.
.Digital owner manual, warranty
information, and more
.Online service and maintenance
records
.Find Buick dealers for service
nationwide
.Exclusive privileges and offers
.Recall notices for your specific
vehicle
.OnStar®and GM Cardmember
Services Earnings summaries
