BUICK LACROSSE 2011 Owner's Manual

Black plate (19,1)Buick LaCrosse Owner Manual - 2011
Instruments and Controls 5-19
Emissions Inspection and
Maintenance Programs
Some state/provincial and
local governments may have
programs to inspect the on-vehicle
emission control equipment.
For the inspection, the emission
system test equipment is connected
to the vehicle’s Data Link
Connector (DLC).
The DLC is under the instrument
panel to the left of the steering
wheel. See your dealer if assistance
is needed.The vehicle may not pass
inspection if:
.The malfunction indicator lamp is
on with the engine running, or if
the light does not come on when
the ignition is turned to ON/RUN
while the engine is off.
.The critical emission control
systems have not been
completely diagnosed by
the system. This can happen
if the battery has recently
been replaced or if the battery
has run down. The diagnostic
system evaluates critical
emission control systems during
normal driving. This can take
several days of routine driving.
If this has been done and the
vehicle still does not pass the
inspection, your dealer can
prepare the vehicle for
inspection.
Brake System Warning
Light
The vehicle brake system
consists of two hydraulic circuits.
If one circuit is not working, the
remaining circuit can still work to
stop the vehicle. For normal braking
performance, both circuits need to
be working.
If the warning light comes on, there
is a brake problem. Have your brake
system inspected right away.
EnglishMetric
If the vehicle has antilock brakes,
this light should come on when the
vehicle is placed in START. If it does
not, have the vehicle serviced by
your dealer.

Black plate (20,1)Buick LaCrosse Owner Manual - 2011
5-20 Instruments and Controls
If the light comes on while driving,
pull off the road and stop carefully.
The pedal may be harder to push or
it can go closer to the floor. It may
take longer to stop. Try turning off
and restarting the vehicle one or
two times. If the light is still on,
have the vehicle towed for service.
SeeAntilock Brake System (ABS)
Warning Light on page 5‑21 and
Towing the Vehicle on page 10‑89.
{WARNING
The brake system might not be
working properly if the brake
system warning light is on.
Driving with the brake system
warning light on can lead to a
crash. If the light is still on after
the vehicle has been pulled off
the road and carefully stopped,
have the vehicle towed for
service.
Electric Parking Brake
Light
EnglishMetric
For vehicles with the Electric
Parking Brake (EPB), the parking
brake status light comes on
when the brake is applied. If the
light continues flashing after the
parking brake is released, or while
driving, there is a problem with
the Electric Parking Brake system.
A SERVICE PARKING BRAKE
message may also display in the
Driver Information Center (DIC).
See Brake System Messages on
page 5‑33 for more information.
If the light does not come on,
or remains flashing, see your dealer.
For vehicles with the Electric
Parking Brake (EPB), the parking
brake warning light should come
on briefly when ignition is placed
in ON/RUN. If it does not come on,
then have it fixed so it will be ready
to warn if there is a problem.
If this light comes on, there is a
problem with a system on the
vehicle that is causing the parking
brake system to work at a reduced
level. The vehicle can still be driven,
but should be taken to a dealer
as soon as possible. See Parking
Brake on page 9‑33 for more
information.
For vehicles with the uplevel cluster,
this telltale displays in the Driver
Information Center (DIC) screen.

Black plate (21,1)Buick LaCrosse Owner Manual - 2011
Instruments and Controls 5-21
Antilock Brake System
(ABS) Warning Light
This light comes on briefly when the
engine is started.
If the light does not come on, have
it fixed so it will be ready to warn if
there is a problem.
If the ABS light stays on, turn the
ignition off.
If the light comes on while
driving, stop as soon as it is safely
possible and turn off the vehicle.Then start the engine again to reset
the system. If the ABS light stays
on, or comes on again while driving,
the vehicle needs service. A chime
may also sound when the light
comes on steady.
If the ABS light is the only light on,
the vehicle has regular brakes,
but the antilock brakes are not
functioning.
If both the ABS and the brake
system warning light are on, the
vehicle's antilock brakes are not
functioning and there is a problem
with the regular brakes. See your
dealer for service.
See
Brake System Warning Light on
page 5‑19.
See Brake System Messages on
page 5‑33 for all brake related DIC
messages.
Traction Off Light
This light comes on when the
Traction Control System (TCS)
has been turned off by pressing and
releasing the traction control button.
This light also comes on and the
system turns off if there is a problem
with the traction control system.
If the light comes on and stays on
for an extended period of time while
the system is turned on, the vehicle
needs service.
See Traction Control System (TCS)
on page 9‑36 andElectronic
Stability Control (ESC) on
page 9‑37 for more information.

Black plate (22,1)Buick LaCrosse Owner Manual - 2011
5-22 Instruments and Controls
Electronic Stability
Control (ESC) Indicator
Light
This light comes on briefly while
starting the engine.
If it does not, have the vehicle
serviced by your dealer. If the
system is working normally the
indicator light then goes off.If the light comes on and stays
on while driving, there could be
a problem with the ESC and the
vehicle might need service. When
this warning light is on, the ESC is
off and does not limit wheel spin.
The light flashes if the system is
active and is working to assist the
driver with directional control of the
vehicle in difficult driving conditions.
For vehicles with the uplevel cluster,
this light is shown in the Driver
Information Center (DIC) screen.
See
Electronic Stability Control
(ESC) on page 9‑37 for more
information.
Electronic Stability
Control (ESC)/Traction
Control System (TCS)
Indicator/Warning Light
This light comes on when the
Electronic Stability Control (ESC)
system is turned off. When the ESC
is off the Traction Control System
(TCS) is also off, and wheel spin
is not limited. If the ESC is off, the
system does not assist in controlling
the vehicle. Switch on the TCS
and the ESC and the warning
light turns off.
See Traction Control System (TCS)
on page 9‑36 andElectronic
Stability Control (ESC) on
page 9‑37 for more information.

Black plate (23,1)Buick LaCrosse Owner Manual - 2011
Instruments and Controls 5-23
Tire Pressure Light
For vehicles with the Tire Pressure
Monitor System (TPMS), this light
comes on briefly when the engine
is started. It provides information
about tire pressures and the TPMS.
When the Light is On Steady
This indicates that one or
more of the tires are significantly
underinflated.
A tire pressure message can
accompany the light. SeeTire
Messages on page 5‑38 for more
information. Stop as soon as
possible, and inflate the tires to
the pressure value shown on the
Tire and Loading Information label.
See Tire Pressure on page 10‑54
for more information. When the Light Flashes First and
Then is On Steady
This indicates that there may
be a problem with the TPMS.
The light flashes for about a
minute and stays on steady for
the remainder of the ignition cycle.
This sequence repeats with every
ignition cycle. See
Tire Pressure
Monitor Operation on page 10‑57
for more information.
Engine Oil Pressure Light
{WARNING
Do not keep driving if the oil
pressure is low. The engine can
become so hot that it catches fire.
Someone could be burned. Check
the oil as soon as possible and
have the vehicle serviced. Notice:
Lack of proper engine
oil maintenance can damage the
engine. The repairs would not be
covered by the vehicle warranty.
Always follow the maintenance
schedule for changing engine oil.
The oil pressure light should come
on briefly as the engine is started.
If it does not come on have the
vehicle serviced by your dealer.
If the light comes on and stays on,
it means that oil is not flowing
through the engine properly. The
vehicle could be low on oil and
might have some other system
problem. See your dealer.
For vehicles with the uplevel cluster,
this telltale displays in the Driver
Information Center (DIC) screen.

Black plate (24,1)Buick LaCrosse Owner Manual - 2011

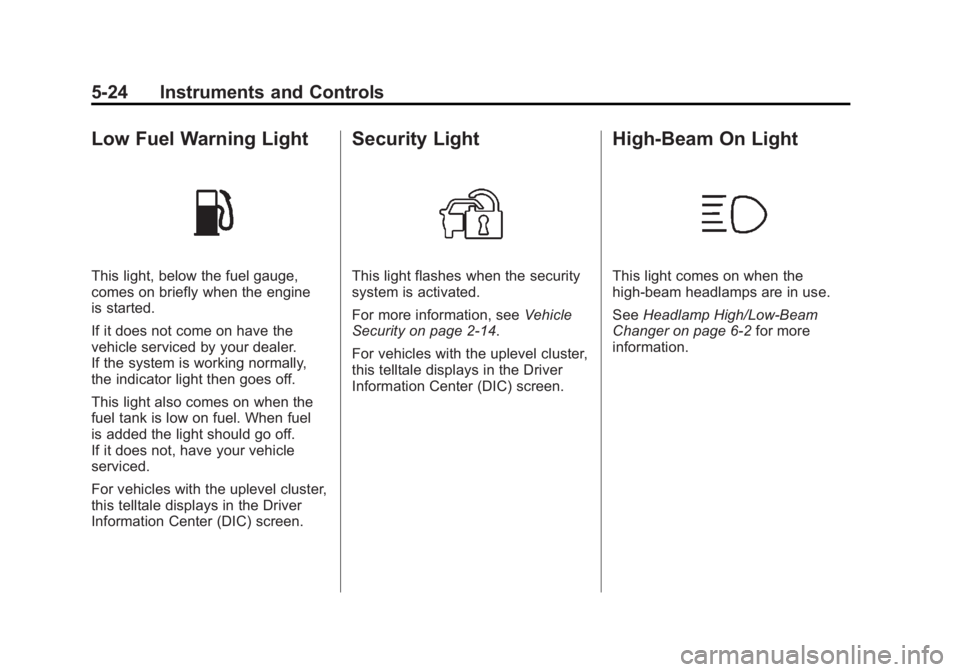

5-24 Instruments and Controls
Low Fuel Warning Light
This light, below the fuel gauge,
comes on briefly when the engine
is started.
If it does not come on have the
vehicle serviced by your dealer.
If the system is working normally,
the indicator light then goes off.
This light also comes on when the
fuel tank is low on fuel. When fuel
is added the light should go off.
If it does not, have your vehicle
serviced.
For vehicles with the uplevel cluster,
this telltale displays in the Driver
Information Center (DIC) screen.
Security Light
This light flashes when the security
system is activated.
For more information, seeVehicle
Security on page 2‑14.
For vehicles with the uplevel cluster,
this telltale displays in the Driver
Information Center (DIC) screen.
High-Beam On Light
This light comes on when the
high-beam headlamps are in use.
See Headlamp High/Low-Beam
Changer on page 6‑2 for more
information.

Black plate (25,1)Buick LaCrosse Owner Manual - 2011
Instruments and Controls 5-25
Front Fog Lamp Light
For vehicles with fog lamps, this
light comes on when the fog lamps
are on.
The light goes out when the fog
lamps are turned off. SeeFog
Lamps on page 6‑5 for more
information.
Taillamp Indicator Light
This light comes on when the
taillamps are in use.
Cruise Control Light
This light is white whenever the
cruise control is set and turns green
when the cruise control is active.
The light goes out when the cruise
control is turned off. See Cruise
Control on page 9‑39 for more
information.
For vehicles with the uplevel cluster,
this telltale will be shown in the
Driver Information Center (DIC)
screen.
Information Displays
Driver Information
Center (DIC)
The Driver Information Center (DIC)
displays information about the
vehicle. It also displays warning
messages if a system problem
is detected. See Vehicle Messages
on page 5‑33 for more information.
All messages appear in the DIC
display located in the center of
the instrument panel cluster.
On some models, the DIC may
have some warning lights or
indicators shown in the top portion
of the display. See Warning Lights,
Gauges, and Indicators on page 5‑9
for more information.
The vehicle may also have features
that can be customized through the
controls on the radio. See Vehicle
Personalization on page 5‑39 for
more information.

Black plate (26,1)Buick LaCrosse Owner Manual - 2011
5-26 Instruments and Controls
DIC Operation and Displays
The DIC has different displays
which can be accessed by using
the DIC buttons located on the
turn signal lever located on the left
side of the steering wheel. The DIC
displays trip, fuel, vehicle system
information, and warning messages
if a system problem is detected.
The bottom of the DIC display
shows what position the shift lever
is in, the odometer, and the direction
the vehicle is driving.
In cold weather the DIC display
may change slowly. This is normal
and will move more quickly as the
vehicle's interior temperature rises.DIC Buttons
MENU:
Press to get to the
Trip/Fuel Menu and the Vehicle
Information Menu.
w x(Thumbwheel): Use to scroll
through the items in each menu.
A small marker will move across the
bottom of the page as you scroll
through the items. This shows
where each page is in the menu.
SET/CLR (Set/Clear): Press to set
or clear the menu item when it is
displayed.
Trip/Fuel Menu Items
Press MENU on the turn signal
lever until Trip/Fuel Information
Menu is displayed. Use
w xto
scroll through the following menu
items:
.Digital Speedometer
.Trip 1
.Trip 2
.Fuel Range
.Average Fuel Economy
.Average Vehicle Speed
.Timer
.Turn-by-Turn

Black plate (27,1)Buick LaCrosse Owner Manual - 2011
Instruments and Controls 5-27
Digital Speedometer
The speedometer shows how fast
the vehicle is moving in either
kilometers per hour (km/h) or miles
per hour (mph). The speedometer
cannot be reset.
Trip 1 and Trip 2
This display shows the current
distance traveled, in either
kilometers (km) or miles (mi), since
the last reset for the trip odometer.
The trip odometer can be reset to
zero by pressing SET/CLR while
the trip odometer display is
showing.
Fuel Range
This display shows the approximate
distance the vehicle can be driven
without refueling. The fuel range
estimate is based on an average
of the vehicle's fuel economy
over recent driving history and the
amount of fuel remaining in the fuel
tank. Fuel range cannot be reset.Average Fuel Economy
This display shows the
approximate average liters per
100 kilometers (L/100 km) or miles
per gallon (mpg). This number is
calculated based on the number
of L/100 km (mpg) recorded since
the last time this menu item was
reset. The fuel economy can be
reset by pressing SET/CLR while
the Average Fuel Economy display
is showing.
Average Vehicle Speed
This display shows the average
speed of the vehicle in miles
per hour (mph) or kilometers
per hour (km/h). This average is
calculated based on the various
vehicle speeds recorded since
the last reset of this value.
The average speed can be reset
by pressing SET/CLR while the
Average Vehicle Speed display
is showing.
Timer
This display can be used as
a timer. To start the timer, press
SET/CLR while Timer is displayed.
The display will show the amount of
time that has passed since the timer
was last reset, not including time the
ignition is off. Time will continue to
be counted as long as the ignition is
on, even if another display is being
shown on the DIC. The timer will
record up to 99 hours, 59 minutes
and 59 seconds (99:59:59) after
which the display will return to zero.
To stop the timer, press SET/CLR
briefly while Timer is displayed.
To reset the timer to zero, press
and hold SET/CLR.
Turn-by-Turn
This display is used for the OnStar
or Navigation System Turn-by-Turn
guidance. See the OnStar manual
or the Navigation manual, if the
vehicle has navigation, for more
information.

Black plate (28,1)Buick LaCrosse Owner Manual - 2011
5-28 Instruments and Controls
Vehicle Information Menu
Items
Press MENU on the turn signal
lever until Vehicle Information Menu
is displayed. Use
w xto scroll
through the following menu items:
.Unit
.Tire Pressure
.Remaining Oil Life
.Battery Voltage
Unit
Move
w xto switch between
Metric or US when the Unit display
is active. Press SET/CLR to confirm
the setting. This will change the
displays on the cluster and DIC
to either metric or English (US)
measurements. Tire Pressure
The display will show a vehicle
with the approximate pressures
of all four tires. Tire pressure is
displayed in either kilopascal (kPa)
or pounds per square inch (psi).
See
Tire Pressure Monitor System
on page 10‑56 andTire Pressure
Monitor Operation on page 10‑57
for more information.
Remaining Oil Life
This display shows an estimate
of the oil's remaining useful life.
If REMAINING OIL LIFE 99% is
displayed, that means 99% of the
current oil life remains.
When the remaining oil life is low,
the CHANGE ENGINE OIL SOON
message will appear on the display. See
Engine Oil Messages on
page 5‑35. The oil should changed
as soon as possible. See Engine
Oil on page 10‑9. In addition
to the engine oil life system
monitoring the oil life, additional
maintenance is recommended
in the Maintenance Schedule
in this manual. See Scheduled
Maintenance on page 11‑2 for
more information.
Remember, the Oil Life display
must be reset after each oil change.
It will not reset itself. Also, be
careful not to reset the Oil Life
display accidentally at any time
other than when the oil has just
been changed. It cannot be reset
accurately until the next oil change.
To reset the engine oil life system,
press SET/CLR while the Oil Life
display is active. See Engine Oil
Life System on page 10‑13.
