Black plate (19,1)Buick LaCrosse Owner Manual - 2011
Keys, Doors and Windows 2-19

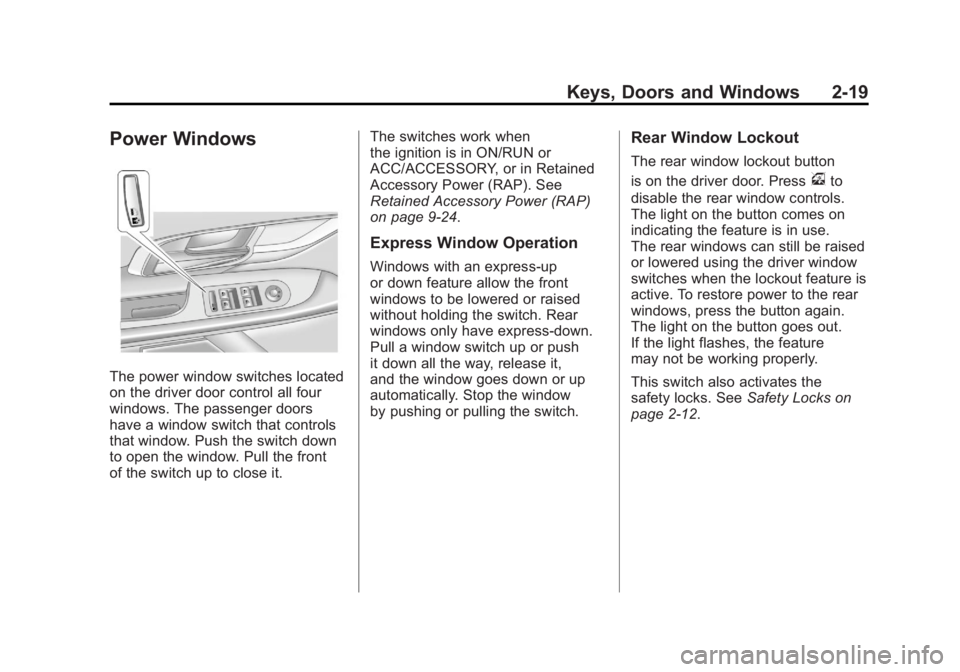

Power Windows
The power window switches located
on the driver door control all four
windows. The passenger doors
have a window switch that controls
that window. Push the switch down
to open the window. Pull the front
of the switch up to close it.The switches work when
the ignition is in ON/RUN or
ACC/ACCESSORY, or in Retained
Accessory Power (RAP). See
Retained Accessory Power (RAP)
on page 9‑24.
Express Window Operation
Windows with an express-up
or down feature allow the front
windows to be lowered or raised
without holding the switch. Rear
windows only have express-down.
Pull a window switch up or push
it down all the way, release it,
and the window goes down or up
automatically. Stop the window
by pushing or pulling the switch.
Rear Window Lockout
The rear window lockout button
is on the driver door. Press
vto
disable the rear window controls.
The light on the button comes on
indicating the feature is in use.
The rear windows can still be raised
or lowered using the driver window
switches when the lockout feature is
active. To restore power to the rear
windows, press the button again.
The light on the button goes out.
If the light flashes, the feature
may not be working properly.
This switch also activates the
safety locks. See Safety Locks on
page 2‑12.

Black plate (20,1)Buick LaCrosse Owner Manual - 2011

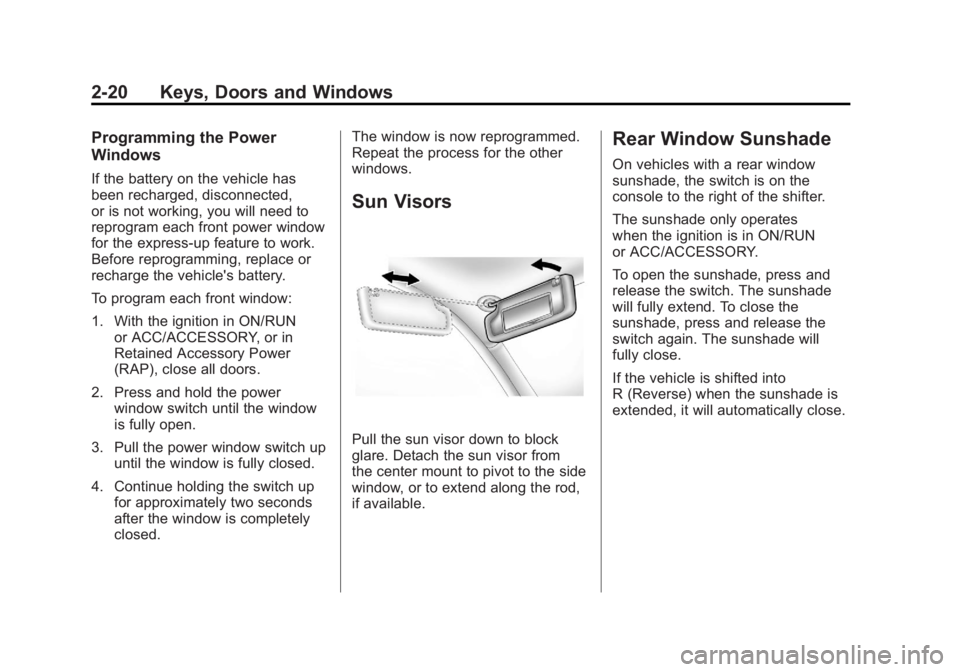

2-20 Keys, Doors and Windows
Programming the Power
Windows
If the battery on the vehicle has
been recharged, disconnected,
or is not working, you will need to
reprogram each front power window
for the express-up feature to work.
Before reprogramming, replace or
recharge the vehicle's battery.
To program each front window:
1. With the ignition in ON/RUNor ACC/ACCESSORY, or in
Retained Accessory Power
(RAP), close all doors.
2. Press and hold the power window switch until the window
is fully open.
3. Pull the power window switch up until the window is fully closed.
4. Continue holding the switch up for approximately two seconds
after the window is completely
closed. The window is now reprogrammed.
Repeat the process for the other
windows.
Sun Visors
Pull the sun visor down to block
glare. Detach the sun visor from
the center mount to pivot to the side
window, or to extend along the rod,
if available.
Rear Window Sunshade
On vehicles with a rear window
sunshade, the switch is on the
console to the right of the shifter.
The sunshade only operates
when the ignition is in ON/RUN
or ACC/ACCESSORY.
To open the sunshade, press and
release the switch. The sunshade
will fully extend. To close the
sunshade, press and release the
switch again. The sunshade will
fully close.
If the vehicle is shifted into
R (Reverse) when the sunshade is
extended, it will automatically close.

Black plate (21,1)Buick LaCrosse Owner Manual - 2011
Keys, Doors and Windows 2-21

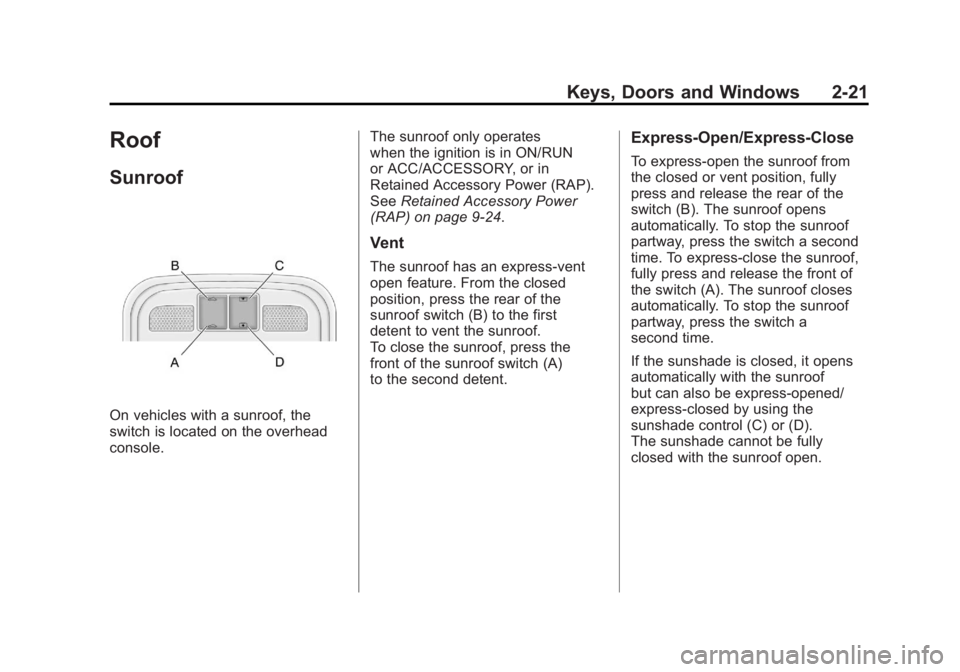

Roof
Sunroof
On vehicles with a sunroof, the
switch is located on the overhead
console.The sunroof only operates
when the ignition is in ON/RUN
or ACC/ACCESSORY, or in
Retained Accessory Power (RAP).
See
Retained Accessory Power
(RAP) on page 9‑24.
Vent
The sunroof has an express-vent
open feature. From the closed
position, press the rear of the
sunroof switch (B) to the first
detent to vent the sunroof.
To close the sunroof, press the
front of the sunroof switch (A)
to the second detent.
Express-Open/Express-Close
To express-open the sunroof from
the closed or vent position, fully
press and release the rear of the
switch (B). The sunroof opens
automatically. To stop the sunroof
partway, press the switch a second
time. To express-close the sunroof,
fully press and release the front of
the switch (A). The sunroof closes
automatically. To stop the sunroof
partway, press the switch a
second time.
If the sunshade is closed, it opens
automatically with the sunroof
but can also be express-opened/
express-closed by using the
sunshade control (C) or (D).
The sunshade cannot be fully
closed with the sunroof open.

Black plate (22,1)Buick LaCrosse Owner Manual - 2011

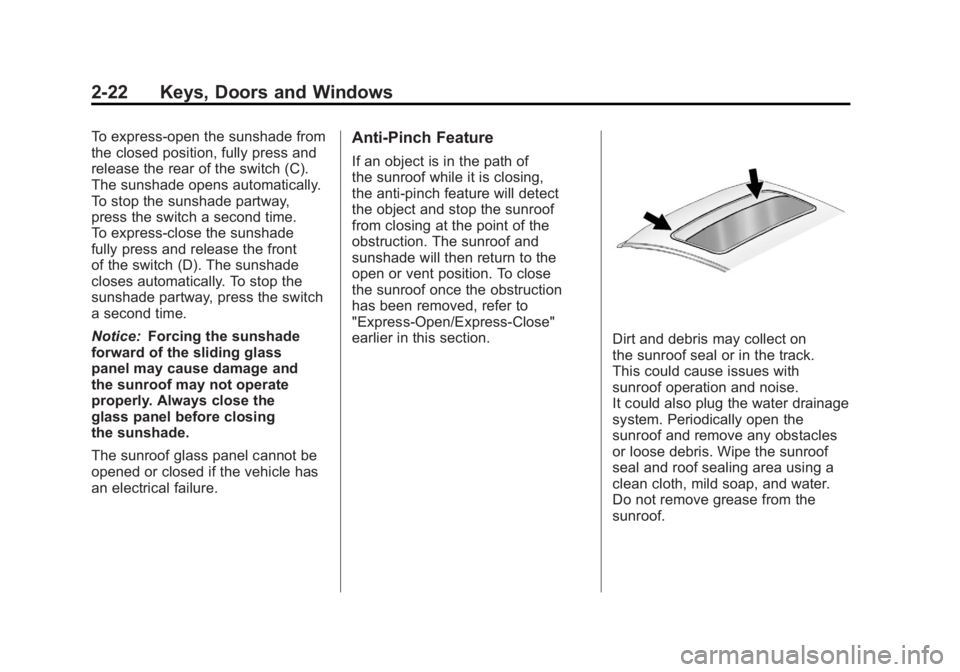

2-22 Keys, Doors and Windows
To express-open the sunshade from
the closed position, fully press and
release the rear of the switch (C).
The sunshade opens automatically.
To stop the sunshade partway,
press the switch a second time.
To express-close the sunshade
fully press and release the front
of the switch (D). The sunshade
closes automatically. To stop the
sunshade partway, press the switch
a second time.
Notice:Forcing the sunshade
forward of the sliding glass
panel may cause damage and
the sunroof may not operate
properly. Always close the
glass panel before closing
the sunshade.
The sunroof glass panel cannot be
opened or closed if the vehicle has
an electrical failure.Anti-Pinch Feature
If an object is in the path of
the sunroof while it is closing,
the anti-pinch feature will detect
the object and stop the sunroof
from closing at the point of the
obstruction. The sunroof and
sunshade will then return to the
open or vent position. To close
the sunroof once the obstruction
has been removed, refer to
"Express-Open/Express-Close"
earlier in this section.
Dirt and debris may collect on
the sunroof seal or in the track.
This could cause issues with
sunroof operation and noise.
It could also plug the water drainage
system. Periodically open the
sunroof and remove any obstacles
or loose debris. Wipe the sunroof
seal and roof sealing area using a
clean cloth, mild soap, and water.
Do not remove grease from the
sunroof.

Black plate (1,1)Buick LaCrosse Owner Manual - 2011
Seats and Restraints 3-1

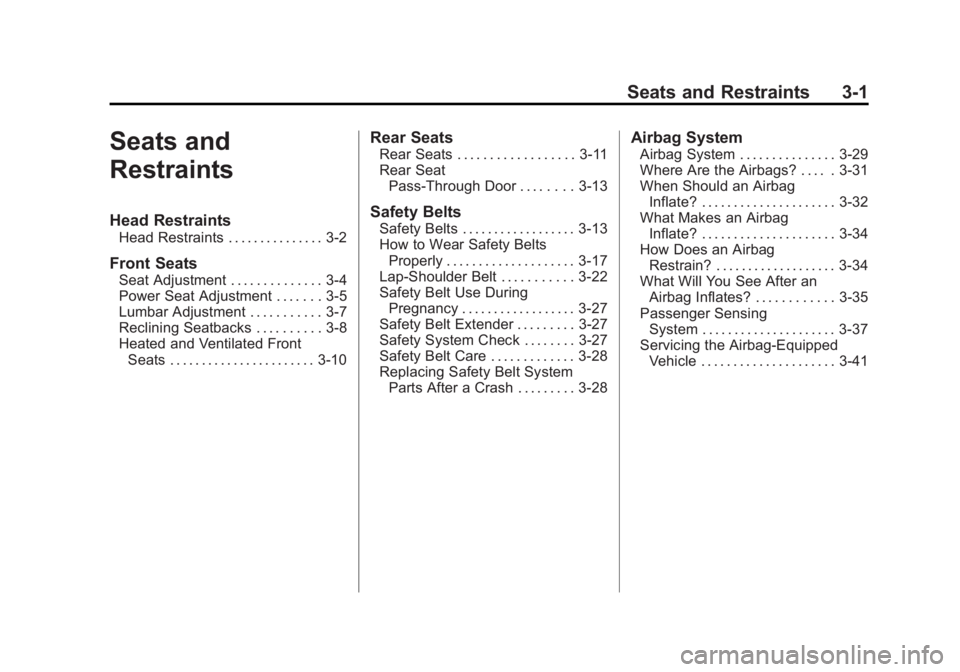

Seats and
Restraints
Head Restraints
Head Restraints . . . . . . . . . . . . . . . 3-2
Front Seats
Seat Adjustment . . . . . . . . . . . . . . 3-4
Power Seat Adjustment . . . . . . . 3-5
Lumbar Adjustment . . . . . . . . . . . 3-7
Reclining Seatbacks . . . . . . . . . . 3-8
Heated and Ventilated FrontSeats . . . . . . . . . . . . . . . . . . . . . . . 3-10
Rear Seats
Rear Seats . . . . . . . . . . . . . . . . . . 3-11
Rear SeatPass-Through Door . . . . . . . . 3-13
Safety Belts
Safety Belts . . . . . . . . . . . . . . . . . . 3-13
How to Wear Safety BeltsProperly . . . . . . . . . . . . . . . . . . . . 3-17
Lap-Shoulder Belt . . . . . . . . . . . 3-22
Safety Belt Use During Pregnancy . . . . . . . . . . . . . . . . . . 3-27
Safety Belt Extender . . . . . . . . . 3-27
Safety System Check . . . . . . . . 3-27
Safety Belt Care . . . . . . . . . . . . . 3-28
Replacing Safety Belt System Parts After a Crash . . . . . . . . . 3-28
Airbag System
Airbag System . . . . . . . . . . . . . . . 3-29
Where Are the Airbags? . . . . . 3-31
When Should an AirbagInflate? . . . . . . . . . . . . . . . . . . . . . 3-32
What Makes an Airbag
Inflate? . . . . . . . . . . . . . . . . . . . . . 3-34
How Does an Airbag Restrain? . . . . . . . . . . . . . . . . . . . 3-34
What Will You See After an Airbag Inflates? . . . . . . . . . . . . 3-35
Passenger Sensing System . . . . . . . . . . . . . . . . . . . . . 3-37
Servicing the Airbag-Equipped Vehicle . . . . . . . . . . . . . . . . . . . . . 3-41

Black plate (2,1)Buick LaCrosse Owner Manual - 2011
3-2 Seats and Restraints
Adding Equipment to theAirbag-Equipped Vehicle . . . 3-42
Airbag System Check . . . . . . . . 3-43
Replacing Airbag System Parts After a Crash . . . . . . . . . 3-43
Child Restraints
Older Children . . . . . . . . . . . . . . . 3-44
Infants and Young
Children . . . . . . . . . . . . . . . . . . . . 3-46
Child Restraint Systems . . . . . 3-49
Where to Put the Restraint . . . 3-51
Lower Anchors and Tethers for Children
(LATCH System) . . . . . . . . . . . 3-52
Replacing LATCH System Parts After a Crash . . . . . . . . . 3-61
Securing Child Restraints (Rear Seat) . . . . . . . . . . . . . . . . . 3-61
Securing Child Restraints (Front Passenger Seat) . . . . 3-63

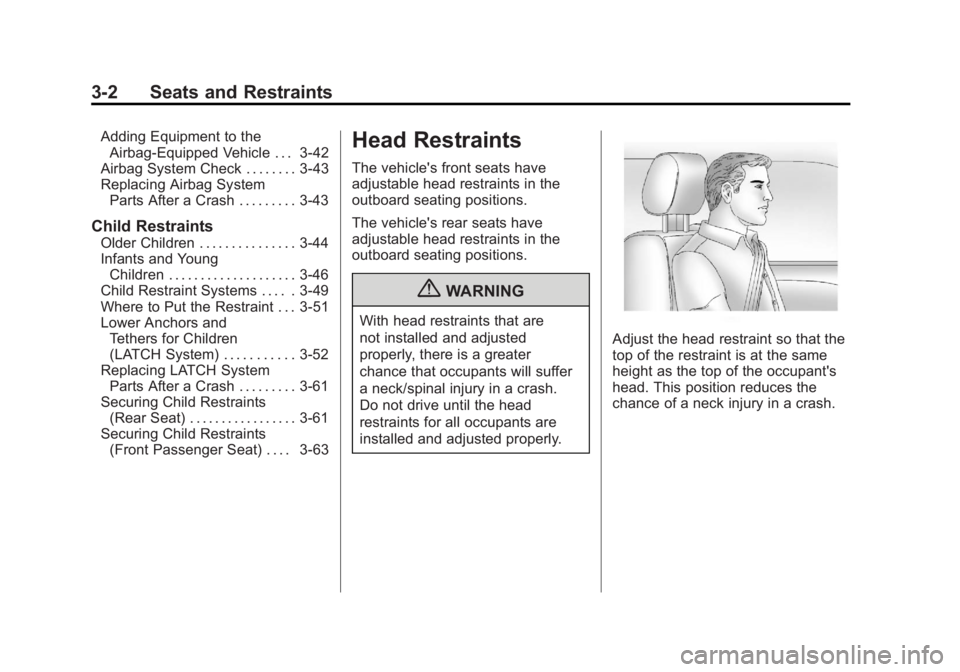

Head Restraints
The vehicle's front seats have
adjustable head restraints in the
outboard seating positions.
The vehicle's rear seats have
adjustable head restraints in the
outboard seating positions.
{WARNING
With head restraints that are
not installed and adjusted
properly, there is a greater
chance that occupants will suffer
a neck/spinal injury in a crash.
Do not drive until the head
restraints for all occupants are
installed and adjusted properly.
Adjust the head restraint so that the
top of the restraint is at the same
height as the top of the occupant's
head. This position reduces the
chance of a neck injury in a crash.

Black plate (3,1)Buick LaCrosse Owner Manual - 2011
Seats and Restraints 3-3

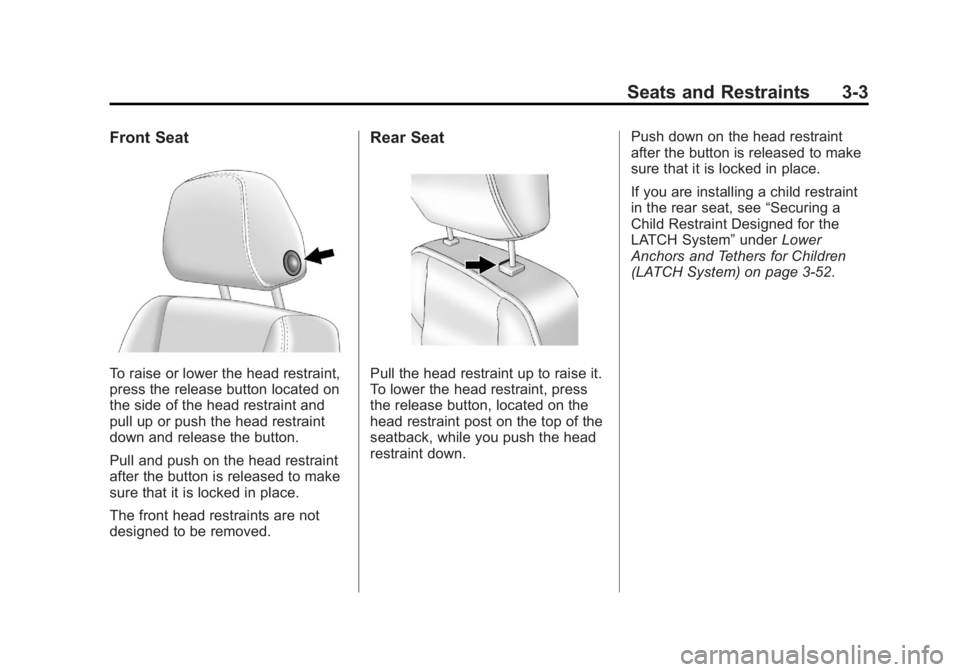

Front Seat
To raise or lower the head restraint,
press the release button located on
the side of the head restraint and
pull up or push the head restraint
down and release the button.
Pull and push on the head restraint
after the button is released to make
sure that it is locked in place.
The front head restraints are not
designed to be removed.
Rear Seat
Pull the head restraint up to raise it.
To lower the head restraint, press
the release button, located on the
head restraint post on the top of the
seatback, while you push the head
restraint down.Push down on the head restraint
after the button is released to make
sure that it is locked in place.
If you are installing a child restraint
in the rear seat, see
“Securing a
Child Restraint Designed for the
LATCH System” underLower
Anchors and Tethers for Children
(LATCH System) on page 3‑52.

Black plate (4,1)Buick LaCrosse Owner Manual - 2011
3-4 Seats and Restraints

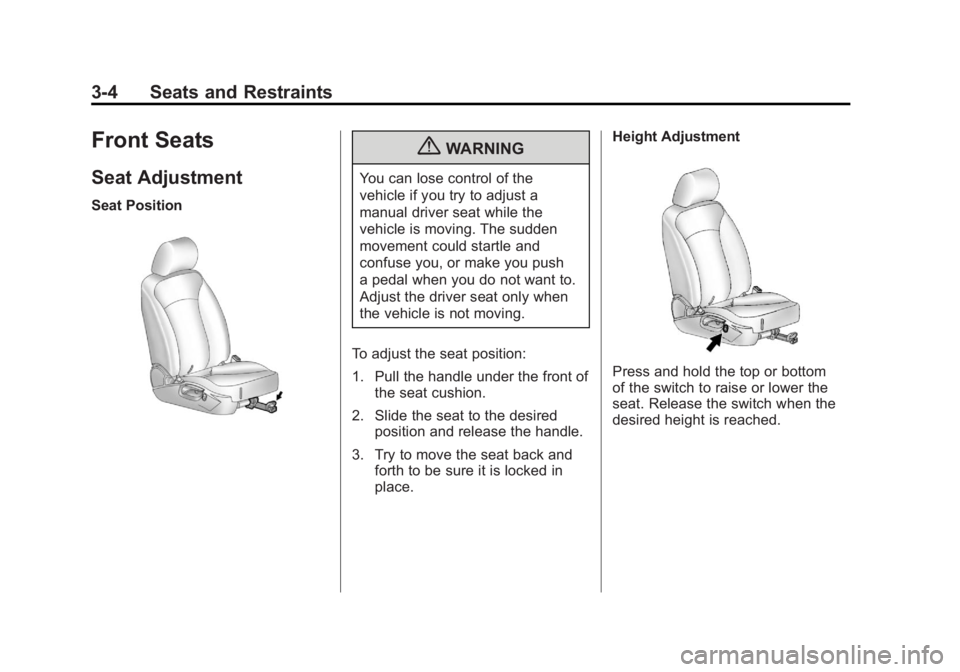

Front Seats
Seat Adjustment
Seat Position
{WARNING
You can lose control of the
vehicle if you try to adjust a
manual driver seat while the
vehicle is moving. The sudden
movement could startle and
confuse you, or make you push
a pedal when you do not want to.
Adjust the driver seat only when
the vehicle is not moving.
To adjust the seat position:
1. Pull the handle under the front of the seat cushion.
2. Slide the seat to the desired position and release the handle.
3. Try to move the seat back and forth to be sure it is locked in
place. Height Adjustment
Press and hold the top or bottom
of the switch to raise or lower the
seat. Release the switch when the
desired height is reached.

Black plate (5,1)Buick LaCrosse Owner Manual - 2011
Seats and Restraints 3-5

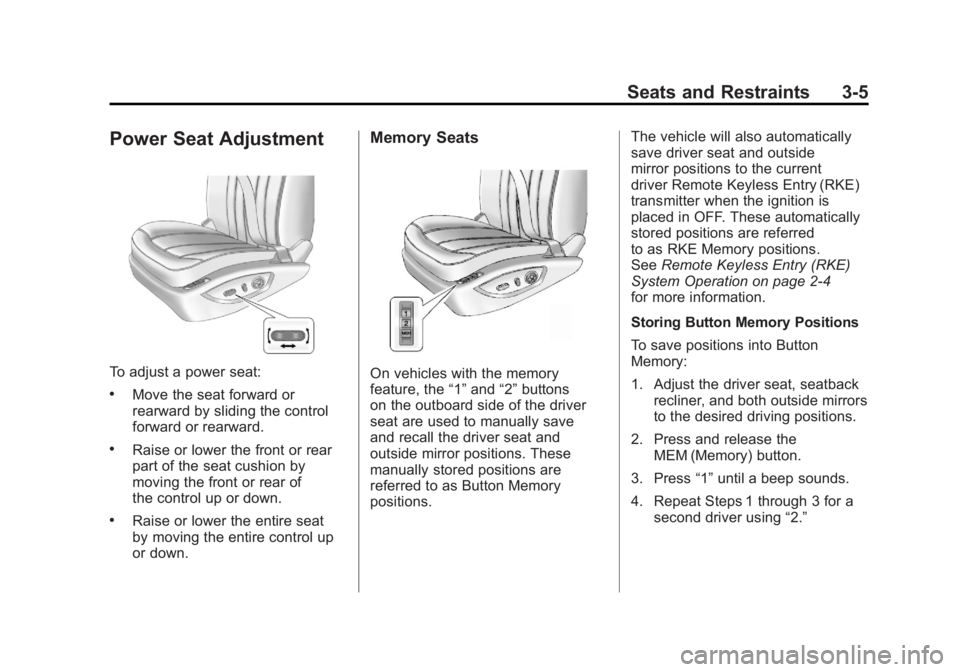

Power Seat Adjustment
To adjust a power seat:
.Move the seat forward or
rearward by sliding the control
forward or rearward.
.Raise or lower the front or rear
part of the seat cushion by
moving the front or rear of
the control up or down.
.Raise or lower the entire seat
by moving the entire control up
or down.
Memory Seats
On vehicles with the memory
feature, the“1”and “2”buttons
on the outboard side of the driver
seat are used to manually save
and recall the driver seat and
outside mirror positions. These
manually stored positions are
referred to as Button Memory
positions. The vehicle will also automatically
save driver seat and outside
mirror positions to the current
driver Remote Keyless Entry (RKE)
transmitter when the ignition is
placed in OFF. These automatically
stored positions are referred
to as RKE Memory positions.
See
Remote Keyless Entry (RKE)
System Operation on page 2‑4
for more information.
Storing Button Memory Positions
To save positions into Button
Memory:
1. Adjust the driver seat, seatback recliner, and both outside mirrors
to the desired driving positions.
2. Press and release the MEM (Memory) button.
3. Press “1”until a beep sounds.
4. Repeat Steps 1 through 3 for a second driver using “2.”

Black plate (6,1)Buick LaCrosse Owner Manual - 2011

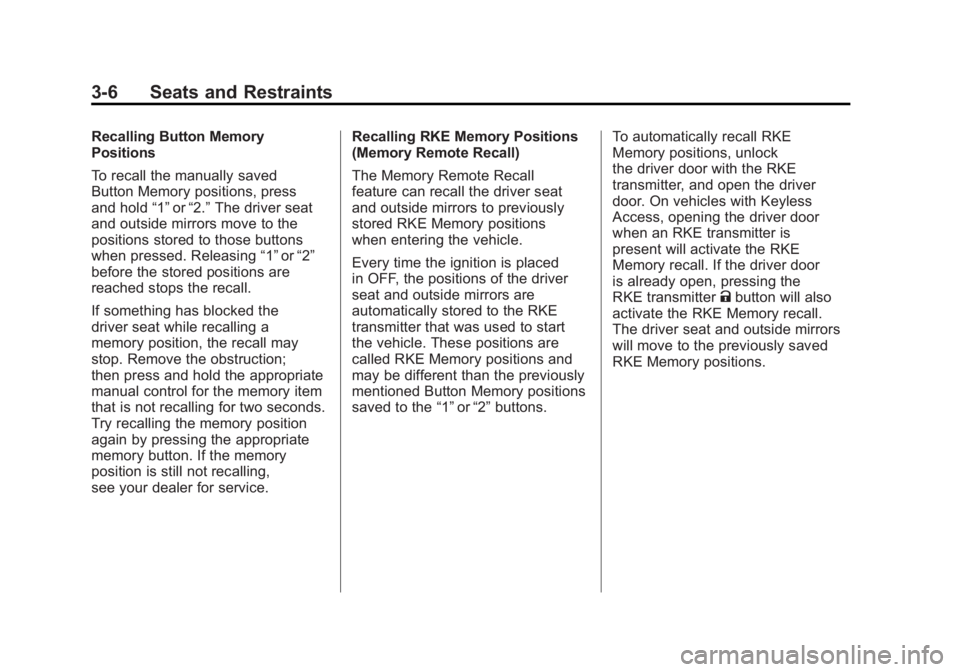

3-6 Seats and Restraints
Recalling Button Memory
Positions
To recall the manually saved
Button Memory positions, press
and hold“1”or“2.” The driver seat
and outside mirrors move to the
positions stored to those buttons
when pressed. Releasing “1”or“2”
before the stored positions are
reached stops the recall.
If something has blocked the
driver seat while recalling a
memory position, the recall may
stop. Remove the obstruction;
then press and hold the appropriate
manual control for the memory item
that is not recalling for two seconds.
Try recalling the memory position
again by pressing the appropriate
memory button. If the memory
position is still not recalling,
see your dealer for service. Recalling RKE Memory Positions
(Memory Remote Recall)
The Memory Remote Recall
feature can recall the driver seat
and outside mirrors to previously
stored RKE Memory positions
when entering the vehicle.
Every time the ignition is placed
in OFF, the positions of the driver
seat and outside mirrors are
automatically stored to the RKE
transmitter that was used to start
the vehicle. These positions are
called RKE Memory positions and
may be different than the previously
mentioned Button Memory positions
saved to the
“1”or“2” buttons. To automatically recall RKE
Memory positions, unlock
the driver door with the RKE
transmitter, and open the driver
door. On vehicles with Keyless
Access, opening the driver door
when an RKE transmitter is
present will activate the RKE
Memory recall. If the driver door
is already open, pressing the
RKE transmitter
Kbutton will also
activate the RKE Memory recall.
The driver seat and outside mirrors
will move to the previously saved
RKE Memory positions.
