wiper blades BUICK LACROSSE 2011 Owner's Manual

Black plate (4,1)Buick LaCrosse Owner Manual - 2011
5-4 Instruments and Controls
&(Adjustable Interval Wipes):
Turn the band up for more frequent
wipes or down for less frequent
wipes.
9(Off): Use to turn the windshield
wipers off.
3(Mist): For a single wipe,
briefly move the wiper lever down.
For several wipes, hold the wiper
lever down.
Clear ice and snow from the
wiper blades before using them.
If they are frozen to the windshield,
carefully loosen or thaw them. Damaged wiper blades should
be replaced. See
Wiper Blade
Replacement on page 10‑29.
Heavy snow or ice can overload the
wipers. A circuit breaker stops them
until the motor cools.
Wipe Parking
If the ignition is turned to
LOCK/OFF while the wipers
are on 1, 2, or
&, they will
immediately stop.
If the windshield wiper lever is
then moved to OFF before the
driver door is opened, or within
10 minutes, the wipers will restart
and move to the base of the
windshield.
If the ignition is turned to
LOCK/OFF during a windshield
wash, the wipers will stop when
they reach the base of the
windshield.
Windshield Washer
Pull the windshield wiper lever
toward you to spray windshield
washer fluid and activate the wipers.
The wipers will continue until the
lever is released or the maximum
wash time is reached.
When the windshield wiper lever
is released, additional wipes may
occur depending on how long
the windshield washer had been
activated. See Washer Fluid on
page 10‑24 for information on
filling the windshield washer
fluid reservoir.
{WARNING
In freezing weather, do not use
the washer until the windshield
is warmed. Otherwise the
washer fluid can form ice on the
windshield, blocking your vision.

Black plate (29,1)Buick LaCrosse Owner Manual - 2011
Vehicle Care 10-29
Park Brake and P (Park)
Mechanism Check
{WARNING
When you are doing this check,
the vehicle could begin to move.
You or others could be injured
and property could be damaged.
Make sure there is room in front
of the vehicle in case it begins to
roll. Be ready to apply the regular
brake at once should the vehicle
begin to move.Park on a fairly steep hill, with the
vehicle facing downhill. Keeping
your foot on the regular brake, set
the parking brake.
.To check the parking brake's
holding ability: With the engine
running and the transmission in
N (Neutral), slowly remove foot
pressure from the regular brake
pedal. Do this until the vehicle is
held by the parking brake only.
.To check the P (Park)
mechanism's holding ability:
With the engine running, shift
to P (Park). Then release the
parking brake followed by the
regular brake.
Contact your dealer if service is
required.
Wiper Blade Replacement
Windshield wiper blades should be
inspected for wear and cracking.
See Scheduled Maintenance on
page 11‑2 for more information.
Replacement blades come in
different types and are removed
in different ways. For proper type
and length, see Maintenance
Replacement Parts on page 11‑9.
To replace the windshield wiper
blade:
1. Pull the windshield wiper assembly away from the
windshield.

Black plate (95,1)Buick LaCrosse Owner Manual - 2011
Vehicle Care 10-95
Wheels and Trim—Aluminum
or Chrome
The vehicle may have either
aluminum or chrome-plated wheels.
Keep the wheels clean using a
soft, clean cloth with mild soap
and water. Rinse with clean water.
After rinsing thoroughly, dry with a
soft, clean towel. A wax may then
be applied.
Notice: Chrome wheels and
other chrome trim may be
damaged if the vehicle is not
washed after driving on roads
that have been sprayed with
magnesium, calcium or sodium
chloride. These chlorides are
used on roads for conditions
such as ice and dust. Always
wash the chrome with soap and
water after exposure.
Notice: Do not use strong soaps,
chemicals, abrasive polishes,
cleaners, brushes, or cleaners
that contain acid on aluminum or
chrome-plated wheels, because
the surface could be damaged. The repairs would not be covered
by the vehicle warranty. Use only
approved cleaners on aluminum
or chrome-plated wheels.
Notice:
Never drive a vehicle that
has aluminum or chrome-plated
wheels through an automatic car
wash that uses silicone carbide
tire cleaning brushes, as this
could cause damage. The repairs
would not be covered by the
vehicle warranty.
Notice: Driving the vehicle
through an automatic car wash
that has silicone carbide tire
cleaning brushes, could damage
the aluminum or chrome-plated
wheels. The repairs would not be
covered by the vehicle warranty.
Never drive a vehicle that has
aluminum or chrome-plated
wheels through an automatic
car wash that uses silicone
carbide tire cleaning brushes.
Windshield and Wiper Blades
Clean the outside of the windshield
with glass cleaner.
Clean the rubber blades using
a lint‐free cloth or paper towel
soaked with windshield washer
fluid or a mild detergent. Wash
the windshield thoroughly when
cleaning the blades. Bugs, road
grime, sap, and a buildup of vehicle
wash/wax treatments may cause
wiper streaking. Replace the wiper
blades if they are worn or damaged.
Wipers can be damaged by:
.Extreme dusty conditions
.Sand and salt
.Heat and sun
.Snow and ice, without proper
removal

Black plate (9,1)Buick LaCrosse Owner Manual - 2011
Service and Maintenance 11-9

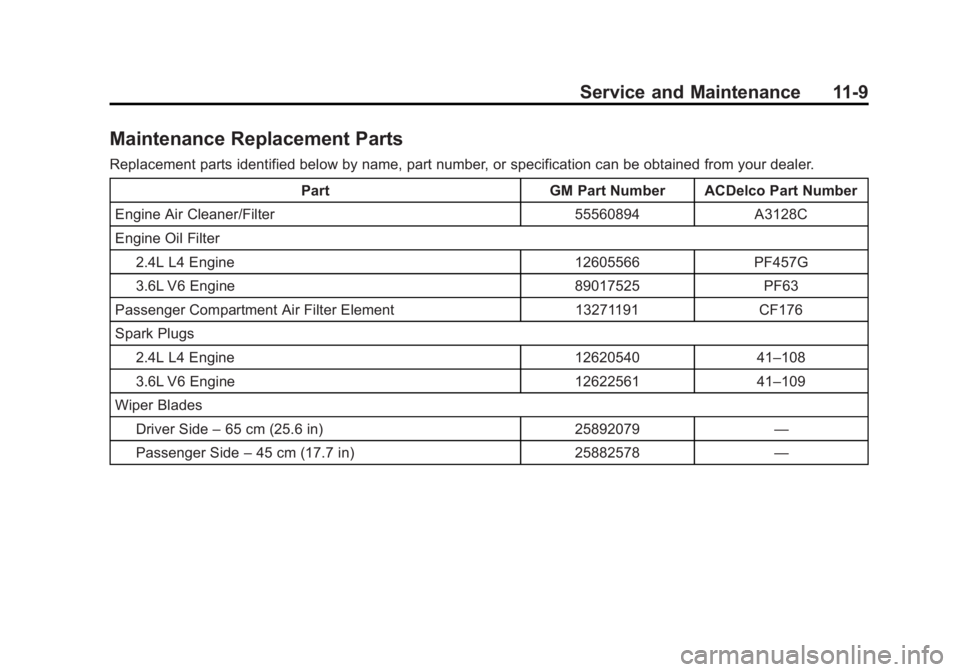

Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter 55560894 A3128C
Engine Oil Filter
2.4L L4 Engine 12605566 PF457G
3.6L V6 Engine 89017525 PF63
Passenger Compartment Air Filter Element 13271191 CF176
Spark Plugs
2.4L L4 Engine 12620540 41–108
3.6L V6 Engine 12622561 41–109
Wiper Blades
Driver Side –65 cm (25.6 in) 25892079 —
Passenger Side –45 cm (17.7 in) 25882578 —
