bulb BUICK LACROSSE 2016 Owner's Manual

Buick LaCrosse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9159288) - 2016 - CRC - 10/5/15
Lighting 151
Hazard Warning Flashers
|(Hazard Warning Flashers) :
Press this button on the center
stack above the audio system, to
make the front and rear turn signal
lamps flash on and off. Press again
to turn the flashers off.
The hazard warning flashers turn on
automatically if the airbags deploy.
Turn and Lane-Change
Signals
Move the lever all the way up or
down to signal a turn.
An arrow on the instrument cluster
flashes in the direction of the turn or
lane change.
Raise or lower the lever until the
arrow starts to flash to signal a lane
change. Hold it there until the lane
change is completed. If the lever is
briefly pressed and released, the
turn signal flashes three times.
The turn and lane-change signal
can be turned off manually by
moving the lever back to its original
position. If after signaling a turn or lane
change the arrow flashes rapidly or
does not come on, a signal bulb
might be burned out.
Have any burned out bulbs
replaced. If the bulb is not burned
out, check the fuse. See
Fuses and
Circuit Breakers 0258.
Fog Lamps
If equipped with fog lamps, the
button is on the exterior lamp
control, left of the steering wheel.
To turn on the fog lamps, the ignition
and the headlamps or parking lamps
must be on.

Buick LaCrosse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9159288) - 2016 - CRC - 10/5/15
Driving and Operating 221
vehicle itself. Get acquainted with
the handling and braking of the rig
before setting out for the open road.
Before starting, check all trailer hitch
parts and attachments, safety
chains, electrical connectors, lamps,
tires, and mirrors. If the trailer has
electric brakes, start the
combination moving and then apply
the trailer brake controller by hand
to be sure the brakes work.
During the trip, check occasionally
to be sure that the load is secure
and the lamps and any trailer
brakes still work.
Following Distance
Stay at least twice as far behind the
vehicle ahead as you would when
driving the vehicle without a trailer.
This can help to avoid heavy
braking and sudden turns.
Passing
More passing distance is needed
when towing a trailer. The
combination will not accelerate as
quickly and is longer so it isnecessary to go much farther
beyond the passed vehicle before
returning to the lane.
Backing Up
Hold the bottom of the steering
wheel with one hand. To move the
trailer to the left, move that hand to
the left. To move the trailer to the
right, move your hand to the right.
Always back up slowly and,
if possible, have someone
guide you.
Making Turns
Caution
Making very sharp turns while
trailering could cause the trailer to
come in contact with the vehicle.
The vehicle could be damaged.
Avoid making very sharp turns
while trailering.
When turning with a trailer, make
wider turns than normal. Do this so
the trailer will not strike soft
shoulders, curbs, road signs, trees, or other objects. Avoid jerky or
sudden maneuvers. Signal well in
advance.
If the trailer turn signal bulbs burn
out, the arrows on the instrument
cluster will still flash for turns. It is
important to check occasionally to
be sure the trailer bulbs are still
working.
Driving on Grades
Reduce speed and shift to a lower
gear
before starting down a long or
steep downgrade. If the
transmission is not shifted down, the
brakes might get hot and no longer
work well.
Vehicles can tow in D (Drive). Shift
the transmission to a lower gear if
the transmission shifts too often
under heavy loads and/or hilly
conditions.
When towing at high altitude on
steep uphill grades, consider the
following: Engine coolant will boil at
a lower temperature than at normal
altitudes. If the engine is turned off
immediately after towing at high
altitude on steep uphill grades, the

Buick LaCrosse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9159288) - 2016 - CRC - 10/5/15
226 Vehicle Care
Vehicle Care
General Information
General Information . . . . . . . . . . 227
California Proposition65 Warning . . . . . . . . . . . . . . . . . 227
California Perchlorate Materials Requirements . . . . . 228
Accessories and Modifications . . . . . . . . . . . . . . . . 228
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . . 229
Hood . . . . . . . . . . . . . . . . . . . . . . . . . 230
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . . 231
Engine Oil . . . . . . . . . . . . . . . . . . . . 236
Engine Oil Life System . . . . . . . 238
Automatic Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . . . 239
Engine Air Cleaner/Filter . . . . . . 239
Cooling System . . . . . . . . . . . . . . 242
Engine Coolant . . . . . . . . . . . . . . . 243
Engine Overheating . . . . . . . . . . 245
Overheated Engine Protection Operating Mode . . . . . . . . . . . . . 246 Power Steering Fluid (2.4L L4
Engine and 3.6L V6 Engine
with FWD) . . . . . . . . . . . . . . . . . . 247
Power Steering Fluid (3.6L V6 Engine with AWD) . . . . . . . 247
Washer Fluid . . . . . . . . . . . . . . . . . 247
Brakes . . . . . . . . . . . . . . . . . . . . . . . 248
Brake Fluid . . . . . . . . . . . . . . . . . . . 249
Battery - North America . . . . . . 250
All-Wheel Drive . . . . . . . . . . . . . . . 251
Starter Switch Check . . . . . . . . . 251
Automatic Transmission Shift Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . . . 252
Ignition Transmission Lock Check . . . . . . . . . . . . . . . . . . . . . . . 252
Park Brake and P (Park) Mechanism Check . . . . . . . . . . 252
Wiper Blade Replacement . . . . 253
Windshield Replacement . . . . . 253
Headlamp Aiming
Headlamp Aiming . . . . . . . . . . . . 254
Bulb Replacement
Bulb Replacement . . . . . . . . . . . . 254
Halogen Bulbs . . . . . . . . . . . . . . . . 254
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . . . . . . . 254
LED Lighting . . . . . . . . . . . . . . . . . 254 Headlamps, Front Turn Signal
and Parking Lamps . . . . . . . . . 255
Taillamps, Turn Signal, Stoplamps, and Back-Up
Lamps . . . . . . . . . . . . . . . . . . . . . . 256
License Plate Lamp . . . . . . . . . . 256
Replacement Bulbs . . . . . . . . . . . 257
Electrical System
High Voltage Devices and Wiring . . . . . . . . . . . . . . . . . . . . . . . 257
Electrical System Overload . . . 257
Fuses and Circuit Breakers . . . 258
Engine Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 259
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 262
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 264
All-Season Tires . . . . . . . . . . . . . . 265
Winter Tires . . . . . . . . . . . . . . . . . . 265
Summer Tires . . . . . . . . . . . . . . . . 265
Tire Sidewall Labeling . . . . . . . . 266
Tire Designations . . . . . . . . . . . . . 268
Tire Terminology and
Definitions . . . . . . . . . . . . . . . . . . 268
Tire Pressure . . . . . . . . . . . . . . . . . 271
Tire Pressure for High-Speed Operation . . . . . . . . . . . . . . . . . . . 272

Buick LaCrosse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9159288) - 2016 - CRC - 10/5/15
254 Vehicle Care
Headlamp Aiming
Headlamp aim has been preset and
should need no further adjustment.
If the vehicle is damaged in a crash,
the headlamp aim may be affected.
If adjustment to the headlamps is
necessary, see your dealer.
Bulb Replacement
For the proper type of replacement
bulbs, seeReplacement
Bulbs 0257.
For any bulb changing procedure
not listed in this section, see your
dealer.
Halogen Bulbs
{Warning
Halogen bulbs have pressurized
gas inside and can burst if you
drop or scratch the bulb. You or
others could be injured. Be sure
to read and follow the instructions
on the bulb package.
High Intensity Discharge
(HID) Lighting
{Warning
The high intensity discharge
lighting system operates at a very
high voltage. If you try to service
any of the system components,
you could be seriously injured.
Have your dealer or a qualified
technician service them.
After an HID headlamp bulb has
been replaced, the beam might be a
slightly different shade than it was
originally. This is normal.
LED Lighting
This vehicle has several LED lamps.
For replacement of any LED lighting
assembly, contact your dealer.

Buick LaCrosse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9159288) - 2016 - CRC - 10/5/15
Vehicle Care 255
Headlamps, Front Turn
Signal and Parking
Lamps
Base Headlamp Assembly
The base model vehicle has a
halogen high/low-beam headlamp,
parking lamp, and a turn signal lamp
on the headlamp assembly.
For replacement of the turn signal
lamp bulb on an eAssist vehicle,
contact your dealer.
1. Headlamp
2. Turn Signal Lamp
To replace one of these bulbs:1. Open the hood. See Hood 0230.
2. If replacing a headlamp bulb, remove the dust cover from the
back of the headlamp housing
by turning counterclockwise
one-quarter turn.
3. If replacing a turn signal lamp bulb on a non-eAssist vehicle,
remove the close out panel
push pins and close out panel
covering the bulb socket.
4. Remove the bulb socket from the headlamp by turning
counterclockwise
one-quarter turn.
5. Remove the bulb from the socket. If replacing the high/
low-beam bulb, pry the two
clips on either end of the bulb
and pull straight out.
6. Reverse Steps 1–5 to install.
Uplevel Headlamp Assembly
The uplevel model vehicle has a
high intensity discharge (HID) high/
low beam, DRL/parking lamp, and a turn signal lamp on the headlamp
assembly. See
High Intensity
Discharge (HID) Lighting 0254.
To replace the turn signal bulb:
1. Open the hood. See Hood 0230.
2. Turn the bulb socket counterclockwise to remove it
from the headlamp assembly.
3. Pull the bulb straight out from the socket.
4. Reverse Steps 1–3 to install.

Buick LaCrosse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9159288) - 2016 - CRC - 10/5/15

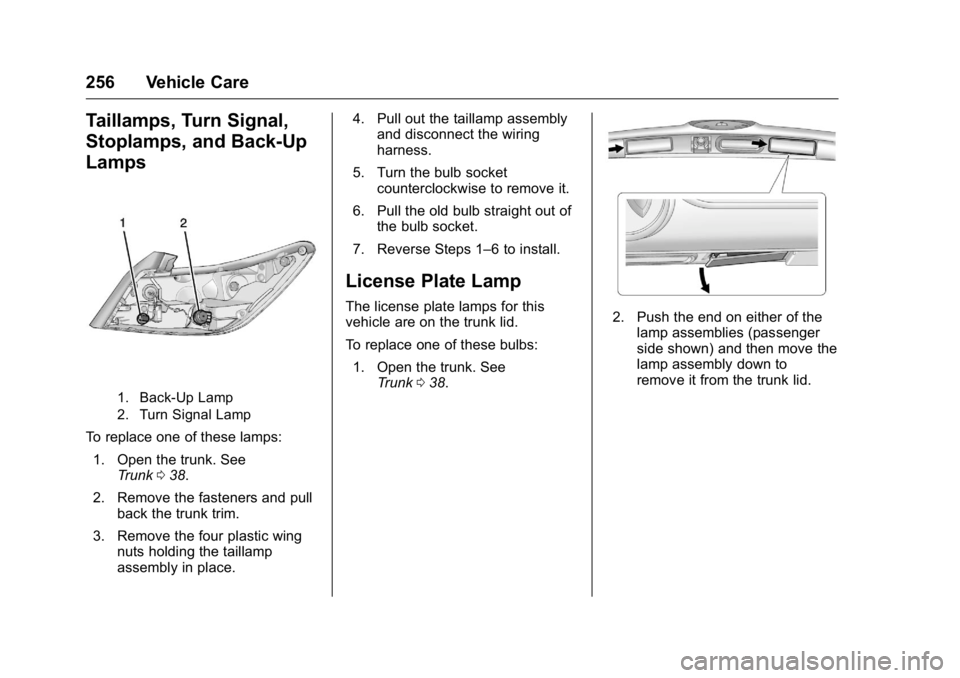

256 Vehicle Care
Taillamps, Turn Signal,
Stoplamps, and Back-Up
Lamps
1. Back-Up Lamp
2. Turn Signal Lamp
To replace one of these lamps:1. Open the trunk. See Trunk 038.
2. Remove the fasteners and pull back the trunk trim.
3. Remove the four plastic wing nuts holding the taillamp
assembly in place. 4. Pull out the taillamp assembly
and disconnect the wiring
harness.
5. Turn the bulb socket counterclockwise to remove it.
6. Pull the old bulb straight out of the bulb socket.
7. Reverse Steps 1–6 to install.
License Plate Lamp
The license plate lamps for this
vehicle are on the trunk lid.
To replace one of these bulbs: 1. Open the trunk. See Trunk 038.2. Push the end on either of the
lamp assemblies (passenger
side shown) and then move the
lamp assembly down to
remove it from the trunk lid.

Buick LaCrosse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9159288) - 2016 - CRC - 10/5/15
Vehicle Care 257
3. Turn the bulb socket (1)counterclockwise to remove it
from the lamp assembly (3).
4. Pull the bulb (2) straight out of the bulb socket.
5. Push the replacement bulb straight into the bulb socket
and turn the bulb socket
clockwise to install it into the
lamp assembly.
6. Move the lamp assembly into the trunk lid, engaging the clip
side first.
7. Push on the lamp side opposite the clip until the lamp assembly
snaps into place.
Replacement Bulbs
Exterior Lamp Bulb
Number
Back-Up Lamp 921LL (W16W)
Front Turn
Signal Lamp 7444NA
Headlamp High
Beam (Base) HIR2
Headlamp Low
Beam (Base) HIR2
License Plate Lamp W5WLL
Rear Turn Signal 7443NA (WY21W)
For replacement bulbs not listed
here, contact your dealer.
Electrical System
High Voltage Devices and
Wiring
{Warning
Exposure to high voltage can
cause shock, burns, and even
death. The high voltage
components in the vehicle can
only be serviced by technicians
with special training.
High voltage components are
identified by labels. Do not
remove, open, take apart,
or modify these components.
High voltage cable or wiring has
orange covering or labels. Do not
probe, tamper with, cut, or modify
high voltage cable or wiring.
Electrical System
Overload
The vehicle has fuses and circuit
breakers to protect against an
electrical system overload.

Buick LaCrosse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9159288) - 2016 - CRC - 10/5/15
356 Index
Assistance Program,Roadside . . . . . . . . . . . . . . . . . . . . . . 334
Assistance Systems for Driving . . . . . . . . . . . . . . . . . . . . . . . . 207
Assistance Systems for Parking and Backing . . . . . . . . . . 205
Automatic
Door Locks . . . . . . . . . . . . . . . . . . . . . 37
Headlamp System . . . . . . . . . . . . 149
Transmission . . . . . . . . . . . . . . . . . 186
Transmission Fluid . . . . . . . . . . . 239
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . 188
Shift Lock Control FunctionCheck . . . . . . . . . . . . . . . . . . . . . . . 252
B
BatteryLoad Management . . . . . . . . . . . . 154
Power Protection . . . . . . . . . . . . . 155
Voltage and ChargingMessages . . . . . . . . . . . . . . . . . . . 130
Battery - North America . . . . . . . . . . . . .250, 297, 298
Blade Replacement, Wiper . . . . . 253
Brake System Warning Light . . . . . . . . .115
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 248 Antilock . . . . . . . . . . . . . . . . . . . . . . . 189 Brakes (cont'd)
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 192
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Parking . . . . . . . . . . . . . . . . . . . . . . . 190
System Messages . . . . . . . . . . . . 130
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 165
Break-In, New Vehicle . . . . . . . . . . 174
Bulb Replacement . . . . . . . . . . . . . . 257 Fog Lamps . . . . . . . . . . . . . . . . . . . 151
Halogen Bulbs . . . . . . . . . . . . . . . . 254
Headlamp Aiming . . . . . . . . . . . . . 254
Headlamps . . . . . . . . . . . . . . . . . . . 254
Headlamps, Front TurnSignal, and Parking
Lamps . . . . . . . . . . . . . . . . . . . . . . 255
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . 254
License Plate Lamps . . . . . . . . . 256
Taillamps, Turn Signal,
Stoplamps, and Back-up
Lamps . . . . . . . . . . . . . . . . . . . . . . 256
Buying New Tires . . . . . . . . . . . . . . . 279
C
Calibration . . . . . . . . . . . . . . . . . . . . . . 103
California Fuel Requirements . . . . . . . . . . . 216
Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . 228 California
Proposition
65 Warning . . . . . . . 227, 250, 297, 298
Canadian Vehicle Owners . . . . . . . . 2
Capacities and
Specifications . . . . . . . . . . . . . . . . . 327
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . 185
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Winter Driving . . . . . . . . . . . . . . . . 169
Caution, Danger, and Warning . . . . 2
Center Console Storage . . . . . . . . . 99
Chains, Tire . . . . . . . . . . . . . . . . . . . . 283
Charging System Light . . . . . . . . . 113
Check Ignition Transmission Lock . . . 252
Malfunction IndicatorEngine Light . . . . . . . . . . . . . . . . .114
Child Restraints Infants and Young Children . . . . . 79
Lower Anchors and Tethersfor Children . . . . . . . . . . . . . . . . . . . 84
Older Children . . . . . . . . . . . . . . . . . . 77
Securing . . . . . . . . . . . . . . . . . . . . 91, 93
Systems . . . . . . . . . . . . . . . . . . . . . . . . 81
Circuit Breakers . . . . . . . . . . . . . . . . 258

Buick LaCrosse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9159288) - 2016 - CRC - 10/5/15
358 Index
Driving (cont'd)Winter . . . . . . . . . . . . . . . . . . . . . . . . 169
Dual Automatic Climate Control System . . . . . . . . . . . . . . . . 157
E
E85 or FlexFuel . . . . . . . . . . . . . . . . 217
Electric Parking Brake Light . . . . 116
Electrical Equipment,Add-On . . . . . . . . . . . . . . . . . . . . . . . 225
Electrical System Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 259
Fuses and Circuit Breakers . . . 258
Instrument Panel Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 262
Overload . . . . . . . . . . . . . . . . . . . . . 257
Emergency OnStar
®. . . . . . . . . . . . . . . . . . . . . . 346
Energy Information . . . . . . . . . . . . . 123
Engine Air Cleaner/Filter . . . . . . . . . . . . . 239
Check and Service EngineSoon Light . . . . . . . . . . . . . . . . . . .114
Compartment Overview . . . . . . . 231
Coolant . . . . . . . . . . . . . . . . . . . . . . . 243
Coolant Temperature Gauge . . . . . . . . . . . . . . . . . . . . . . . 111 Engine (cont'd)
Coolant Temperature
Warning Light . . . . . . . . . . . . . . . .118
Cooling System . . . . . . . . . . . . . . . 242
Cooling System Messages . . . 132
Drive Belt Routing . . . . . . . . . . . . 329
Exhaust . . . . . . . . . . . . . . . . . . . . . . 185
Heater . . . . . . . . . . . . . . . . . . . . . . . . 181
Oil Life System . . . . . . . . . . . . . . . 238
Oil Messages . . . . . . . . . . . . . . . . . 133
Oil Pressure Light . . . . . . . . . . . . .119
Overheated Protection
Operating Mode . . . . . . . . . . . . . 246
Overheating . . . . . . . . . . . . . . . . . . 245
Power Messages . . . . . . . . . . . . . 133
Running While Parked . . . . . . . . 186
Starting . . . . . . . . . . . . . . . . . . . . . . . 178
Entry Lighting . . . . . . . . . . . . . . . . . . . 153
Equipment, Towing . . . . . . . . . . . . . 224
Event Data Recorders . . . . . . . . . . 343
Exit Lighting . . . . . . . . . . . . . . . . . . . . 154
Extender, Safety Belt . . . . . . . . . . . . 64
Exterior Lamp Controls . . . . . . . . . 148
Exterior Lamps Off Reminder . . . 149
F
Features
Memory . . . . . . . . . . . . . . . . . . . . . . . . . 12
Filter, Engine Air Cleaner . . . . . . . . . . . 239
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 149
Flashers, Hazard Warning . . . . . . 151
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 284 Changing . . . . . . . . . . . . . . . . . . . . . 291
FlexFuel
E85 . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 311
Fluid Automatic Transmission . . . . . . 239
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 249
Power Steering . . . . . . . . . . . . . . . 247
Washer . . . . . . . . . . . . . . . . . . . . . . . 247
Fog Lamps Bulb Replacement . . . . . . . . . . . . 151
Folding Mirrors . . . . . . . . . . . . . . . . . . 44
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . 208
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . 341
Front Automatic Braking (FAB) System . . . . . . . . . . . . . . . . . 210
Front Fog Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Buick LaCrosse Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9159288) - 2016 - CRC - 10/5/15
Index 359
Front SeatsAdjustment . . . . . . . . . . . . . . . . . . . . . 52
Heated and Ventilated . . . . . . . . . . 56
Front Storage . . . . . . . . . . . . . . . . . . . . 98
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215 Additives . . . . . . . . . . . . . . . . . . . . . 216
Economy Driving . . . . . . . . . . . . . . . 25
Filling a Portable FuelContainer . . . . . . . . . . . . . . . . . . . 219
Filling the Tank . . . . . . . . . . . . . . . 217
Foreign Countries . . . . . . . . . . . . 216
Gauge . . . . . . . . . . . . . . . . . . . . . . . . .110
Low Fuel Warning Light . . . . . . . 120
Requirements, California . . . . . 216
System Messages . . . . . . . . . . . . 133
Fuses
Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 259
Fuses and Circuit Breakers . . . 258
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 262
G
Garage Door Opener . . . . . . . . . . . 145
Programming . . . . . . . . . . . . . . . . . 145
Gauges
Engine CoolantTemperature . . . . . . . . . . . . . . . . . 111
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . .110 Gauges (cont'd)
Odometer . . . . . . . . . . . . . . . . . . . . . 109
Speedometer . . . . . . . . . . . . . . . . . 109
Tachometer . . . . . . . . . . . . . . . . . . . 109
Warning Lights and
Indicators . . . . . . . . . . . . . . . . . . . 105
General Information Service and Maintenance . . . . . 313
Towing . . . . . . . . . . . . . . . . . . . . . . . . 220
Vehicle Care . . . . . . . . . . . . . . . . . . 227
Glove Box . . . . . . . . . . . . . . . . . . . . . . . 97
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . 334
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . 254
Hazard Warning Flashers . . . . . . . 151
Head Restraints . . . . . . . . . . . . . . . . . 50
Head-up Display . . . . . . . . . . . . . . . . 126
HeadlampsAdaptive ForwardLighting (AFL) . . . . . . . . . . . . . . . 150
Aiming . . . . . . . . . . . . . . . . . . . . . . . . 254
Automatic . . . . . . . . . . . . . . . . . . . . . 149
Bulb Replacement . . . . . . . . . . . . 254
Daytime Running Lamps (DRL) . . . . . . . . . . . . . . . . 149
Flash-to-Pass . . . . . . . . . . . . . . . . . 149 Headlamps (cont'd)
High Intensity Discharge
(HID) Lighting . . . . . . . . . . . . . . . 254
High-Beam On Light . . . . . . . . . . 120
High/Low Beam Changer . . . . . 149
Lamps On Reminder . . . . . . . . . 121
Heated Steering Wheel . . . . . . . . . . . . . . . 101
Heated and Ventilated Front
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Heated Mirrors . . . . . . . . . . . . . . . . . . . 44
Heater Engine . . . . . . . . . . . . . . . . . . . . . . . . 181
High Voltage Devices and
Wiring . . . . . . . . . . . . . . . . . . . . . . . . . 257
High-Beam On Light . . . . . . . . . . . . 120
High-Speed Operation . . . . . . . . . . 272
Hill and Mountain Roads . . . . . . . . 168
Hill Start Assist (HSA) . . . . . . . . . . 192
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
How to Wear Safety Belts Properly . . . . . . . . . . . . . . . . . . . . . . . . 60
I
Ignition Positions . . . . . . . . . . 175, 176
Ignition Transmission LockCheck . . . . . . . . . . . . . . . . . . . . . . . . . 252
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 41
