yellowblue
2-47
Cleaning the Photocells
Use a cotton swab and glass cleaner to clean the
photocells when necessary.
Electrochromic Day/Night Rearview Mirror
with Compass (If Equipped)
Your vehicle may have an electrochromic inside
rearview mirror with a compass.
When set in the MIRROR position, this mirror
automatically changes to reduce glare from headlamps
behind you. A time delay feature prevents rapid
changing from the day to night positions while driving
under lights and through traffic.The mirror also includes an eight
-point compass display
in the upper right corner of the mirror face. When on,
the compass automatically calibrates as the vehicle
is driven.
When cleaning the mirror, use a paper towel or similar
material dampened with glass cleaner. Do not spray
glass cleaner directly on the mirror as that may cause
the liquid cleaner to enter the mirror housing. Use a
cotton swab and glass cleaner to clean the photocells
when necessary.
Mirror Operation

yellowblue
2-50 Power Remote Control Mirrors
(If Equipped)
If your vehicle has the
outside power remote
mirrors, the control
is located on the
driver's door.
Move the switch in the middle of the control to choose
the right or left mirror. Push the arrow controls in the
direction you want to move the mirror.
Adjust each mirror so you can see the side of your
vehicle and the area behind your vehicle.
Convex Outside Mirror
Your passenger's side mirror is convex. A convex
mirror's surface is curved so you can see more from the
driver's seat.
CAUTION:
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder before
changing lanes.
Automatic Dimming/Heated Outside
Rearview Mirror (If Equipped)
If you have this feature, the outside mirrors will adjust
for the glare of headlamps behind you. This feature is
controlled by the on and off settings on the automatic
electrochromic day/night rearview mirror. See
ªElectrochromic Day/Night Rearview Mirrorº earlier in
this section.
When you operate the rear window defogger, a defogger
also warms the heated driver's and passenger's outside
rearview mirrors to help clear them of ice and snow.

yellowblue
4-16
Here are some tips on night driving.

Drive defensively.

Don't drink and drive.

Adjust your inside rearview mirror to reduce the
glare from headlamps behind you.

Since you can't see as well, you may need to
slow down and keep more space between you and
other vehicles.

Slow down, especially on higher speed roads. Your
headlamps can light up only so much road ahead.

In remote areas, watch for animals.

If you're tired, pull off the road in a safe place
and rest.
Night Vision
No one can see as well at night as in the daytime. But as
we get older these differences increase. A 50
-year-old
driver may require at least twice as much light to see the
same thing at night as a 20
-year-old.
What you do in the daytime can also affect your night
vision. For example, if you spend the day in bright
sunshine you are wise to wear sunglasses. Your eyes will
have less trouble adjusting to night. But if you're
driving, don't wear sunglasses at night. They may cutdown on glare from headlamps, but they also make a lot
of things invisible.
You can be temporarily blinded by approaching
headlamps. It can take a second or two, or even several
seconds, for your eyes to readjust to the dark. When you
are faced with severe glare (as from a driver who
doesn't lower the high beams, or a vehicle with
misaimed headlamps), slow down a little. Avoid staring
directly into the approaching headlamps.
Keep your windshield and all the glass on your vehicle
clean
-- inside and out. Glare at night is made much
worse by dirt on the glass. Even the inside of the glass
can build up a film caused by dust. Dirty glass makes
lights dazzle and flash more than clean glass would,
making the pupils of your eyes contract repeatedly.
Remember that your headlamps light up far less of a
roadway when you are in a turn or curve. Keep your
eyes moving; that way, it's easier to pick out dimly
lighted objects. Just as your headlamps should be
checked regularly for proper aim, so should your eyes
be examined regularly. Some drivers suffer from night
blindness
-- the inability to see in dim light -- and
aren't even aware of it.

yellowblue
4-29
Run your engine only as long as you must. This saves
fuel. When you run the engine, make it go a little faster
than just idle. That is, push the accelerator slightly. This
uses less fuel for the heat that you get and it keeps the
battery charged. You will need a well
-charged battery to
restart the vehicle, and possibly for signaling later on
with your headlamps. Let the heater run for a while.
Then, shut the engine off and close the window almost
all the way to preserve the heat. Start the engine again
and repeat this only when you feel really uncomfortable
from the cold. But do it as little as possible. Preserve the
fuel as long as you can. To help keep warm, you can get
out of the vehicle and do some fairly vigorous exercises
every half hour or so until help comes.
Recreational Vehicle Towing
You can tow your vehicle behind another vehicle for use
at your destination. Be sure to use the proper towing
equipment designed for recreational towing. Follow the
instructions for the towing equipment.
To tow your vehicle, follow these steps:
1. Put the front wheels on a dolly.
2. Put the vehicle in PARK (P).
3. Set the parking brake and then remove the key.
4. Clamp the steering wheel in a straight
-ahead position
with a clamping device designed for towing.
5. Release the parking brake.

yellowblue
6-32 Headlamps
This procedure is for both the driver's and passenger's
side headlamps.
1. Use a 10 mm hex socket to remove two bolts
retaining the headlamp assembly.
2. Slide the headlamp outboard until the pins are loose.
3. Remove the headlamp assembly to access the bulbs.

yellowblue
6-34
6. Push the new bulb straight onto the retainer.
7. Reverse these steps to replace the bulb assembly.Headlamp Aiming
Your vehicle has a headlamp system equipped with
horizontal and vertical aim indicators. The aim has been
pre
-set at the factory and should need no further
adjustment. This is true even though your vertical and
horizontal aim indicators may not fall exactly on the
ª0º (zero) marks on their scales.
If your vehicle is damaged in an accident, the headlamp
aim may be affected. Aim adjustment may be necessary
if it is difficult to see lane markers (for horizontal aim),
or if oncoming drivers flash their high beams at you (for
vertical aim). If you believe your headlamps need to be
re
-aimed, we recommend that you take it to your dealer
for service; however, it is possible for you to re
-aim
your headlamps as described in the following procedure.
NOTICE:
To make sure your headlamps are aimed
properly, read all the instructions before
beginning. Failure to follow these instructions
could cause damage to headlamp parts.

yellowblue
6-35
The vehicle should be properly prepared as follows:

The vehicle must have all four tires on a perfectly
level surface.

If necessary, pads may be used on an uneven surface.

The vehicle should not have any snow, ice or mud
attached to it.

The vehicle should be fully assembled and all other
work stopped while headlamp aiming is being done.

There should not be any cargo or loading of the
vehicle, except it should have a full tank of fuel and
one person or 160 lbs. (75 kg) on the driver's seat.

Close all doors.

Tires should be properly inflated.

Rock the vehicle to stabilize the suspension.
The headlamp aiming devices are under the hood near
the headlamps.
A. Horizontal Aiming Screw
B. Vertical Aiming Screw
Start with the horizontal aim. The adjustment screws
can be turned with an E8 Torx
 socket or
T15 Torx screwdriver.
Once the horizontal aim is adjusted, then adjust the
vertical aim.

yellowblue
6-36
H±46±0860±X
1. Turn the horizontal
aiming screw (A) until
the indicator (C) is lined
up with zero.
A. Horizontal Aiming
Screw
C. Indicator
H±46±0862±X
B. Vertical Aiming Screw D. Level Bubble2. Turn the vertical aiming screw (B) until the level
bubble (D) is lined up with zero.
Front Turn Signal
The front turn signal bulbs can be accessed from under
the front of the vehicle. Reach up from under the vehicle
and, while pushing in the tab on the bulb assembly, turn
the assembly counterclockwise and remove. Remove the
old bulb by pulling it straight out of the retainer. Replace
the bulb and turn the bulb assembly back into place.
Cornering Lamps
Follow the same procedure as used for replacing the
headlamps. However, to remove the cornering lamp
bulb, turn the bulb assembly counterclockwise and pull
the bulb straight out.

yellowblue
6-47

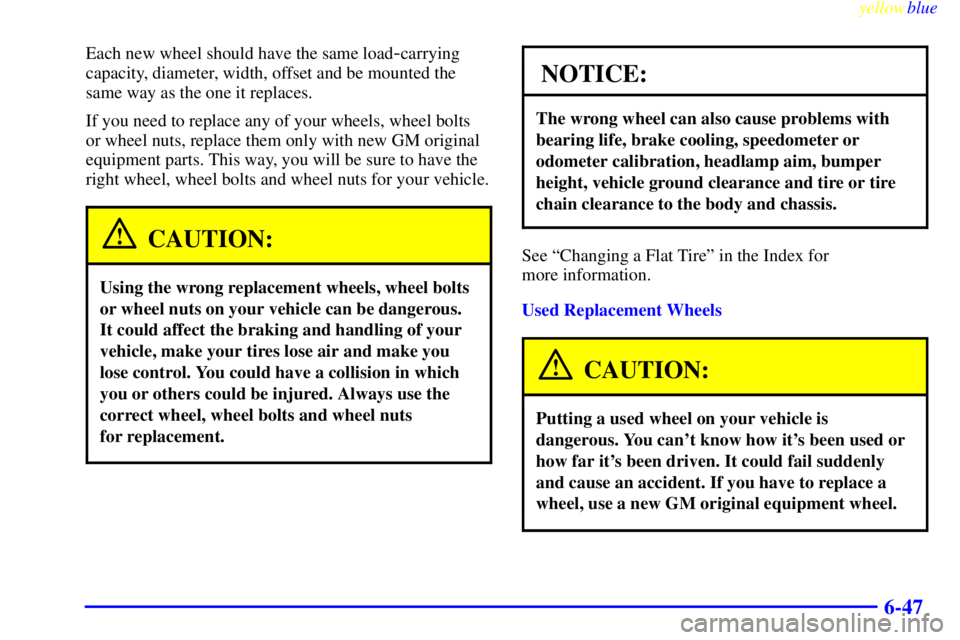

Each new wheel should have the same load-carrying
capacity, diameter, width, offset and be mounted the
same way as the one it replaces.
If you need to replace any of your wheels, wheel bolts
or wheel nuts, replace them only with new GM original
equipment parts. This way, you will be sure to have the
right wheel, wheel bolts and wheel nuts for your vehicle.
CAUTION:
Using the wrong replacement wheels, wheel bolts
or wheel nuts on your vehicle can be dangerous.
It could affect the braking and handling of your
vehicle, make your tires lose air and make you
lose control. You could have a collision in which
you or others could be injured. Always use the
correct wheel, wheel bolts and wheel nuts
for replacement.
NOTICE:
The wrong wheel can also cause problems with
bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper
height, vehicle ground clearance and tire or tire
chain clearance to the body and chassis.
See ªChanging a Flat Tireº in the Index for
more information.
Used Replacement Wheels
CAUTION:
Putting a used wheel on your vehicle is
dangerous. You can't know how it's been used or
how far it's been driven. It could fail suddenly
and cause an accident. If you have to replace a
wheel, use a new GM original equipment wheel.

yellowblue
6-58
Electrical System
Add-On Electrical Equipment
NOTICE:
Don't add anything electrical to your vehicle
unless you check with your dealer first. Some
electrical equipment can damage your vehicle
and the damage wouldn't be covered by your
warranty. Some add
-on electrical equipment
can keep other components from working as
they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical to your vehicle, see ªServicing
Your Air Bag
-Equipped Vehicleº in the Index.
Headlamp Wiring
The headlamp wiring is protected by an internal circuit
breaker. An electrical overload will cause the lamps
to go on and off, or in some cases to remain off.
If this happens, have your headlamp system checked
right away.
Windshield Wipers
The windshield wiper motor is protected by an internal
circuit breaker and a fuse. If the motor overheats due to
heavy snow, etc., the wiper will stop until the motor
cools. If the overload is caused by some electrical
problem, be sure to have it fixed.
Power Windows and Other
Power Accessories
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When the current
load is too heavy, the circuit breaker opens and closes,
protecting the circuit until the problem is fixed or
goes away.
Maxifuse
/Relay Center
To check the fuses in this underhood fuse center, turn
the two knobs one
-quarter turn counterclockwise and
loosen the metal wing nut on the passenger side of the
cover. Then remove the cover. The inside of the cover
has a chart that explains the features and controls
governed by each fuse and relay.
