Personal Choice Programming
The delayed locking feature can be turned on or off for
each remote keyless entry transmitter. Vehicles are
delivered with each transmitter defaulted with delayed
locking off.
To turn the feature on:
1. Press and hold LOCK on the driver's power door
lock switch throughout this procedure. All the doors
will lock.
2. Press the UNLOCK button on the transmitter.
The lock delay is still off and all doors will
remain locked.
3. Press the UNLOCK button on the transmitter again.
Lock delay is now active and all doors will unlock.
4. Release the power door lock switch.
To turn this feature off, repeat the previous procedure.
This procedure only changes the mode for the
transmitter used to change this setting. The procedure
will need to be repeated for the second transmitter.If your vehicle is not equipped with remote keyless
entry, the delayed locking feature can be turned on or off
by using the following procedure:
1. With the ignition on, press and hold LOCK on the
driver's power door lock switch. All doors will lock.
2. Cycle the headlamp switch four times. On the third
cycle, the doors will lock if the feature is now off, or
will unlock if the feature has been turned on.
3. To change modes, cycle the headlamp switch once
more. A locking action will confirm the new mode.
4. Release the power door lock switch.
To turn the feature off, repeat the previous procedure.

yellowblue
2-10
This system has a range of about 3 feet (1 m) up to
30 feet (9 m). At times you may notice a decrease in
range. This is normal for any remote keyless entry
system. If the transmitter does not work or if you have
to stand closer to your vehicle for the transmitter to
work, try this:

Check to determine if battery replacement or
resynchronization is necessary. See the instructions
that follow.

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.

If you're still having trouble, see your dealer or a
qualified technician for service.
Operation
The driver's door will unlock when UNLOCK
is pressed.
If UNLOCK is pressed again within five seconds, all
doors will unlock. Pressing the UNLOCK button will
also illuminate the interior lamps. See ªIlluminated
Entryº in the Index.All doors will lock when LOCK is pressed.
The trunk will unlock when the trunk symbol is pressed
when the ignition is in OFF. The trunk symbol will also
work when the ignition is on, but only while the
transaxle is in PARK (P).
Instant Alarm
When the button with the horn symbol on the remote
keyless entry transmitter is pressed, the horn will sound
and the headlamps and taillamps will flash for up to one
minute. This can be turned off by pressing the instant
alarm button again or by turning the ignition on. If your
vehicle is equipped with the Universal Theft
-Deterrent
feature, you may also turn off the instant alarm by
unlocking the vehicle with a key.
Personal Choice Features
The following list of features that are available on your
vehicle can be programmed to each driver's preference
for each of the key transmitters.

Memory Door Locks: This feature programs your
door locks to automatically lock or unlock when
shifting in and out of PARK (P).

yellowblue
2-11

Security Feedback: This feature provides feedback
to the driver when the vehicle receives a command
from the remote keyless entry transmitter.

Delayed Locking: This feature lets the driver delay
the actual locking of the vehicle. When all doors
have been closed, the doors will lock automatically
after five seconds.

Perimeter Lighting: When the UNLOCK button on
the key transmitter is pressed, the headlamps,
parking lamps, back
-up lamps and cornering lamps
will turn on.
For more detailed information and programming
instructions, refer to the Index for each individual
feature listed above.
Security Feedback
This feature provides feedback to the driver when the
vehicle receives a command from the remote keyless
entry transmitter. One of the following modes may be
selected for each transmitter:
Mode Security Feedback
0 No feedback when locking or
unlocking vehicle.Mode Security Feedback
1 No feedback when locking; headlamps,
parking lamps and cornering lamps (if
equipped) flash when unlocking vehicle.
2 Headlamps, parking lamps and cornering
lamps (if equipped) flash when locking; no
feedback when unlocking vehicle.
3 Headlamps, parking lamps and cornering
lamps (if equipped) flash when locking and
unlocking vehicle.
4 Headlamps, parking lamps and cornering
lamps (if equipped) flash and horn chirps
when locking; no feedback when
unlocking vehicle.
5 Headlamps, parking lamps and cornering
lamps (if equipped) flash and horn chirps
when locking; headlamps, parking lamps
and cornering lamps (if equipped) flash
when unlocking vehicle.
Feedback will be provided according to the mode that
has been selected.

yellowblue
2-34

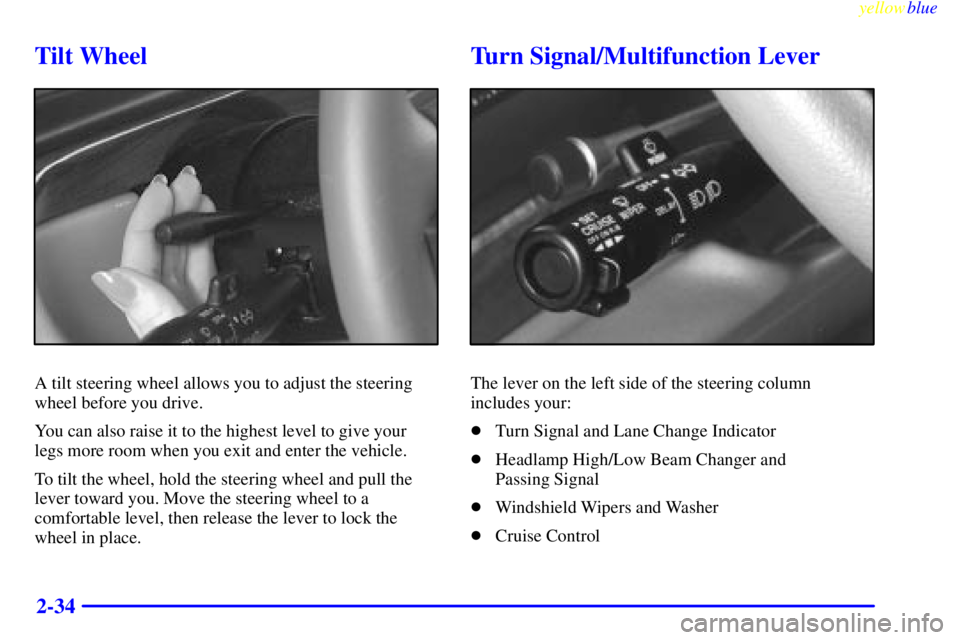

Tilt Wheel
A tilt steering wheel allows you to adjust the steering
wheel before you drive.
You can also raise it to the highest level to give your
legs more room when you exit and enter the vehicle.
To tilt the wheel, hold the steering wheel and pull the
lever toward you. Move the steering wheel to a
comfortable level, then release the lever to lock the
wheel in place.
Turn Signal/Multifunction Lever
The lever on the left side of the steering column
includes your:

Turn Signal and Lane Change Indicator

Headlamp High/Low Beam Changer and
Passing Signal

Windshield Wipers and Washer

Cruise Control

yellowblue
2-35 Turn and Lane Change Indicator
The turn signal has two upward (for right) and two
downward (for left) positions. These positions allow you
to signal a turn or a lane change.
To signal a turn, move the lever all the way up or
down. When the turn is finished, the lever will
return automatically.
An arrow on the instrument
panel will flash in the
direction of the turn or
lane change.
To signal a lane change, just raise or lower the lever
until the arrow starts to flash. Hold it there until you
complete your lane change. The lever will return by
itself when you release it.
If the arrows just stay on and don't flash as you signal a
turn or a lane change, a signal bulb may be burned out
and other drivers won't see your turn signal.If a bulb is burned out, replace it to help avoid an
accident. If the arrows don't go on at all when you
signal a turn, check the fuse (see ªFuses and Circuit
Breakersº in the Index) and for burned
-out bulbs.
Turn Signal On Chime
If your turn signal is left on for more than 3/4 of a mile
(1.2 km), a chime will sound at each flash of the turn
signal. To turn off the chime, move the turn signal lever
to the off position.
Headlamp High/Low Beam Changer
To change the headlamps from low beam to high beam
or high beam to low beam, pull the turn signal lever
toward you and release it.
When the high beams are
on, this light on the
instrument panel will
also be on.

yellowblue
2-40

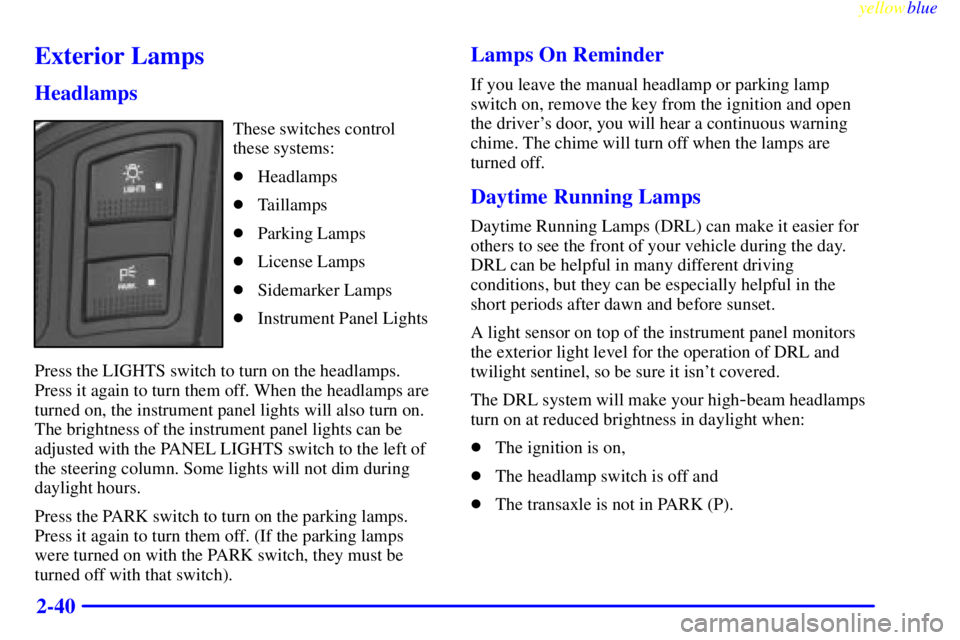

Exterior Lamps
Headlamps
These switches control
these systems:

Headlamps

Taillamps

Parking Lamps

License Lamps

Sidemarker Lamps

Instrument Panel Lights
Press the LIGHTS switch to turn on the headlamps.
Press it again to turn them off. When the headlamps are
turned on, the instrument panel lights will also turn on.
The brightness of the instrument panel lights can be
adjusted with the PANEL LIGHTS switch to the left of
the steering column. Some lights will not dim during
daylight hours.
Press the PARK switch to turn on the parking lamps.
Press it again to turn them off. (If the parking lamps
were turned on with the PARK switch, they must be
turned off with that switch).
Lamps On Reminder
If you leave the manual headlamp or parking lamp
switch on, remove the key from the ignition and open
the driver's door, you will hear a continuous warning
chime. The chime will turn off when the lamps are
turned off.
Daytime Running Lamps
Daytime Running Lamps (DRL) can make it easier for
others to see the front of your vehicle during the day.
DRL can be helpful in many different driving
conditions, but they can be especially helpful in the
short periods after dawn and before sunset.
A light sensor on top of the instrument panel monitors
the exterior light level for the operation of DRL and
twilight sentinel, so be sure it isn't covered.
The DRL system will make your high
-beam headlamps
turn on at reduced brightness in daylight when:

The ignition is on,

The headlamp switch is off and

The transaxle is not in PARK (P).

yellowblue
2-41
When the DRL are on, only your high-beam headlamps
will be on. The parking lamps, taillamps, sidemarker
and other lamps won't be on. Your instrument panel
lights won't be on either.
When it is dark enough outside, your low
-beam
headlamps will come on. The other lamps that turn on
with your headlamps will also turn on. When it is bright
enough outside, the regular lamps will go off, and your
high
-beam headlamps change to the reduced brightness
of DRL.
To turn off all exterior lighting at night when you are
parked, turn off the headlamps and move the twilight
sentinel control all the way toward MIN. The exterior
lamps will turn back on automatically when you move
the transaxle out of PARK (P).
As with any vehicle, you should turn on the regular
headlamp system when you need it.
Cornering Lamps (If Equipped)
The cornering lamps are designed to turn on when you
signal a turn. This will provide more lighting when
cornering at night.

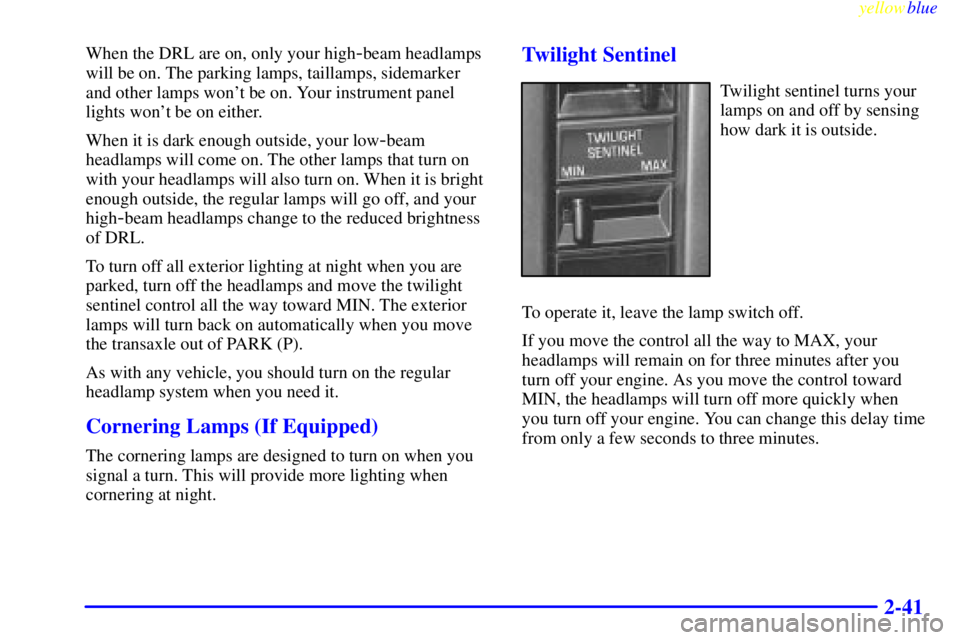

Twilight Sentinel
Twilight sentinel turns your
lamps on and off by sensing
how dark it is outside.
To operate it, leave the lamp switch off.
If you move the control all the way to MAX, your
headlamps will remain on for three minutes after you
turn off your engine. As you move the control toward
MIN, the headlamps will turn off more quickly when
you turn off your engine. You can change this delay time
from only a few seconds to three minutes.

yellowblue
2-42
The exterior lamps can be completely shut off while the
vehicle is in PARK (P) by sliding the twilight sentinel
control all the way toward MIN, and release. To turn the
exterior lamps back on, slide the control all the way
toward MIN again, and release; or, shift out of
PARK (P).

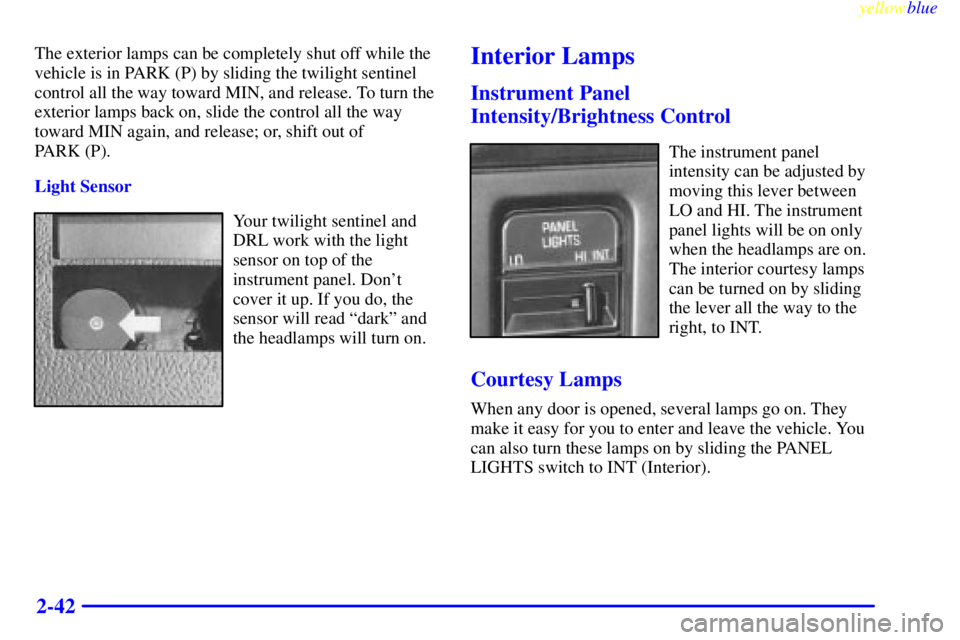

Light Sensor
Your twilight sentinel and
DRL work with the light
sensor on top of the
instrument panel. Don't
cover it up. If you do, the
sensor will read ªdarkº and
the headlamps will turn on.
Interior Lamps
Instrument Panel
Intensity/Brightness Control
The instrument panel
intensity can be adjusted by
moving this lever between
LO and HI. The instrument
panel lights will be on only
when the headlamps are on.
The interior courtesy lamps
can be turned on by sliding
the lever all the way to the
right, to INT.
Courtesy Lamps
When any door is opened, several lamps go on. They
make it easy for you to enter and leave the vehicle. You
can also turn these lamps on by sliding the PANEL
LIGHTS switch to INT (Interior).

yellowblue
2-43 Illuminated Entry (If Equipped)
Press the UNLOCK button on the remote keyless entry
transmitter (if equipped) and the interior courtesy lamps
will turn on and stay on for up to one minute. The lamps
will turn off immediately by pressing the LOCK button
on the remote keyless entry transmitter, starting the
engine or activating the power door locks.
Delayed Entry Lighting
When you open the door, the interior lamps will turn on.
When you close the door with the ignition off, the
interior lamps will stay on for 25 seconds or until the
ignition is turned to an on position. Note that locking the
doors will override the delayed entry lighting feature
and the lamps will turn off right away.
Theater Dimming
This feature allows for a three to five-second fade out of
the courtesy lamps instead of immediate turn off.
Delayed Exit Lighting
With this feature, the interior lamps will turn on and stay
on for up to 25 seconds after you remove the key from
the ignition. This will give you time to find the door pull
handle or lock switches.
Perimeter Lighting (If Equipped)
When the UNLOCK button on the remote keyless entry
transmitter is pressed, the headlamps, parking lamps,
back
-up lamps and cornering lamps will turn on if it is
dark enough outside according to the twilight sentinel.
If your vehicle is not equipped with twilight sentinel
and perimeter lighting is active, the lights will turn on
whenever the UNLOCK button on the transmitter
is pressed.
Personal Choice Programming
This feature can be programmed in the on or off mode
for each transmitter.
To turn the feature off:
1. Turn the ignition key to OFF.
2. Press and hold LOCK on the power door lock switch
throughout this procedure. All the doors will lock.
3. Press the instant alarm on the remote keyless entry
transmitter. Perimeter lighting remains on at this
time and the horn will chirp two times.

yellowblue
2-46
When you are sitting in a comfortable driving position,
adjust the mirror so you can see clearly behind your
vehicle. The day
-night adjustment allows you to
adjust the mirror to avoid glare from the headlamps
behind you.
The integral reading lamps are turned on or off by
pressing the toggle switch at the bottom of the mirror.
These lamps are also part of the courtesy lamps
described earlier in this section.

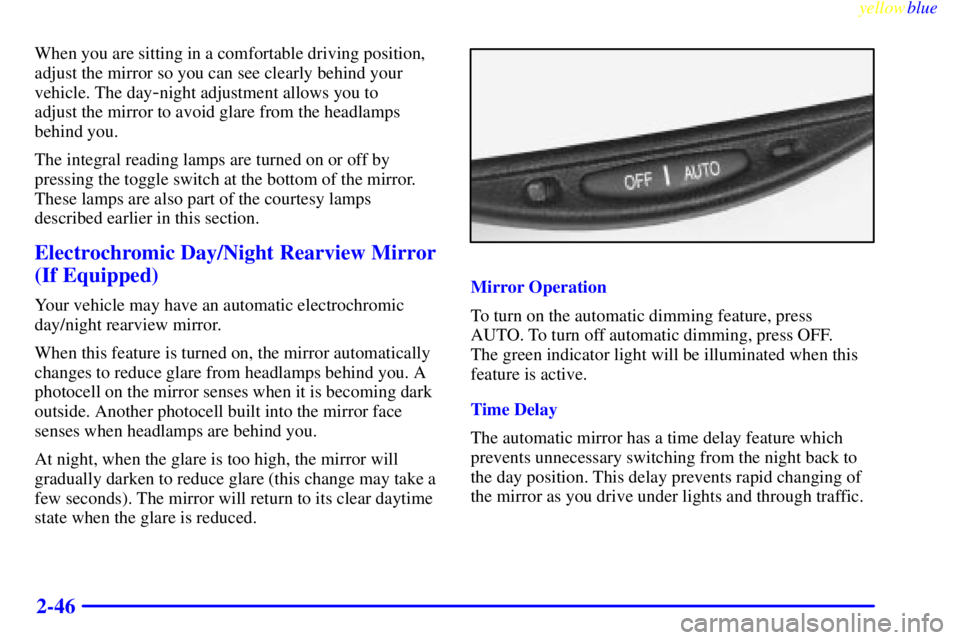

Electrochromic Day/Night Rearview Mirror
(If Equipped)
Your vehicle may have an automatic electrochromic
day/night rearview mirror.
When this feature is turned on, the mirror automatically
changes to reduce glare from headlamps behind you. A
photocell on the mirror senses when it is becoming dark
outside. Another photocell built into the mirror face
senses when headlamps are behind you.
At night, when the glare is too high, the mirror will
gradually darken to reduce glare (this change may take a
few seconds). The mirror will return to its clear daytime
state when the glare is reduced.Mirror Operation
To turn on the automatic dimming feature, press
AUTO. To turn off automatic dimming, press OFF.
The green indicator light will be illuminated when this
feature is active.
Time Delay
The automatic mirror has a time delay feature which
prevents unnecessary switching from the night back to
the day position. This delay prevents rapid changing of
the mirror as you drive under lights and through traffic.
