2-66 Speedometer and Odometer
Your speedometer lets you see your speed in both miles
per hour (mph) and kilometers per hour (km/h). Your
odometer shows how far your vehicle has been driven,
in either miles or kilometers. Press The ENG/MET
button which is located to the left of the speedometer to
change from mph to km/h.
Your vehicle has a tamper resistant odometer.
You may wonder what happens if your vehicle needs a
new odometer installed. If the new one can be set to the
mileage total of the old odometer, then it must be. But if
it can't, then it's set at zero and a label must be put on
the driver's door to show the old mileage reading when
the new odometer was installed.
Trip Odometer
A trip odometer can tell you how far you have driven
since you last set it to zero. To reset it, push the TRIP
RESET button. If your vehicle is equipped with a DIC,
see ªDICº in the Index for information on resetting the
trip odometer.
Tachometer (If Equipped)
The tachometer tells you
how fast the engine is
running. It displays engine
speed in thousands of
revolutions per
minute (rpm).
NOTICE:
Do not operate the engine with the tachometer in
the red area or engine damage may occur.

yellowblue
2-75 Oil Pressure Light
If your vehicle has the
standard instrument panel
cluster, this light will come
on if there is a problem with
your engine oil pressure.
If your vehicle has the optional gage cluster, you can
read your oil pressure directly from the Driver
Information Center (DIC). See ªDIC Displays and
Controlsº in the Index.
The oil light will come on briefly when you turn your
key to RUN. That's just a check to be sure the light
works. If it doesn't, be sure to have it fixed so it will be
there to warn you if something goes wrong.
But, when this light comes on and stays on, and a chime
sounds, it means oil isn't going through your engine
properly. You could be low on oil, or you might have
some other oil problem. See your dealer for service.CAUTION:
Don't keep driving if the oil pressure is low.
If you do, your engine can become so hot that it
catches fire. You or others could be burned.
Check your oil as soon as possible and have your
vehicle serviced.
NOTICE:
Damage to your engine from neglected oil
problems can be costly and is not covered by
your warranty.

yellowblue
2-77
Here are some things that some owners ask about.
None of these show a problem with your fuel gage:

At the service station, the gas pump shuts off before
the gage reads FULL (F).

It takes a little more or less fuel to fill up than the
gage indicated. For example, the gage may have
indicated the tank was half full, but it actually took a
little more or less than half the tank's capacity to
fill the tank.

The gage moves a little when you turn a corner,
speed up, or make a hard stop.

The gage doesn't go back to EMPTY (E) when you
turn off the ignition.Head-Up Display (HUD)
(If Equipped)
CAUTION:
If the HUD image is too bright, or too high in
your field of view, it may take you more time to
see things you need to see when it's dark outside.
Be sure to keep the HUD image dim and placed
low in your field of view.
If your vehicle is equipped with the Head-Up Display
(HUD), you can see some of the driver information that
appears on your instrument cluster.
The information may be displayed in English or metric
units and appears as a reflection in the windshield. The
HUD consists of the following information:

Speedometer Reading

Turn Signal Indicators

High
-Beam Headlamp Indicator

Check Gages Message

yellowblue
2-78
The HUD shows these images when they are lighted on
the instrument panel cluster.Be sure to continue scanning your displays, controls and
driving environment just as you would in a vehicle
without HUD. If you never look at your instrument
panel, you may not see something important, such as a
warning light.
NOTICE:
Although the HUD image appears to be near the
front of the vehicle, do not use it as a parking aid.
The HUD was not designed for that purpose.
If you try to use the display as a marker for the
front of your vehicle, such as in a parking lot, you
may misjudge distance and hit an obstacle or
another vehicle.

yellowblue
2-79

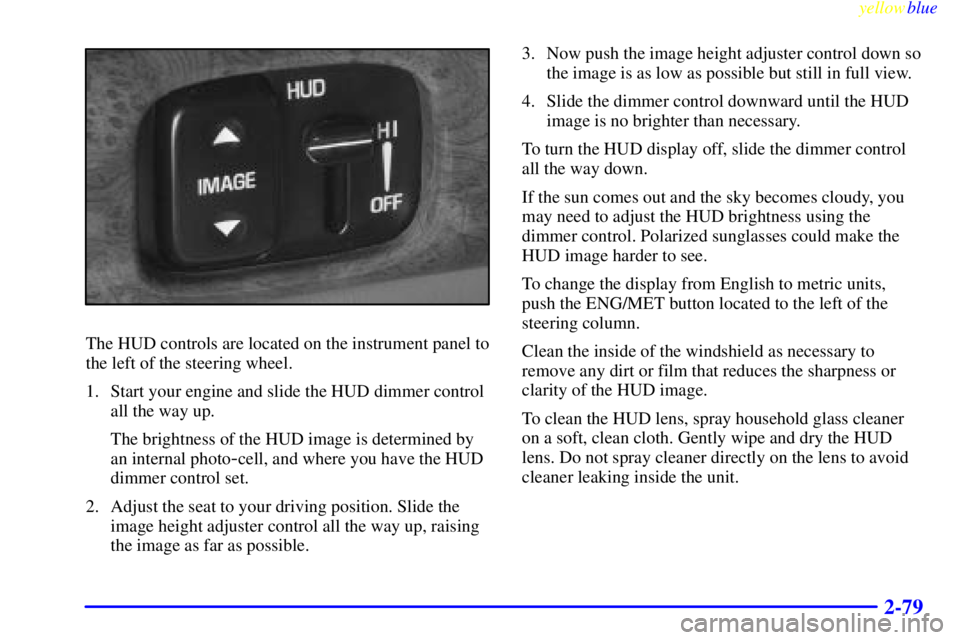

The HUD controls are located on the instrument panel to
the left of the steering wheel.
1. Start your engine and slide the HUD dimmer control
all the way up.
The brightness of the HUD image is determined by
an internal photo
-cell, and where you have the HUD
dimmer control set.
2. Adjust the seat to your driving position. Slide the
image height adjuster control all the way up, raising
the image as far as possible.3. Now push the image height adjuster control down so
the image is as low as possible but still in full view.
4. Slide the dimmer control downward until the HUD
image is no brighter than necessary.
To turn the HUD display off, slide the dimmer control
all the way down.
If the sun comes out and the sky becomes cloudy, you
may need to adjust the HUD brightness using the
dimmer control. Polarized sunglasses could make the
HUD image harder to see.
To change the display from English to metric units,
push the ENG/MET button located to the left of the
steering column.
Clean the inside of the windshield as necessary to
remove any dirt or film that reduces the sharpness or
clarity of the HUD image.
To clean the HUD lens, spray household glass cleaner
on a soft, clean cloth. Gently wipe and dry the HUD
lens. Do not spray cleaner directly on the lens to avoid
cleaner leaking inside the unit.

yellowblue
2-80
If the ignition is on and you can't see the HUD image,
check to see if:

Something is covering the HUD unit.

The HUD dimmer control is adjusted properly.

The HUD image is adjusted to the proper height.

A fuse is blown. See ªFuses and Circuit Breakersº
in the Index.
Keep in mind that your windshield is part of the HUD
system. If you ever have to have your windshield
replaced, be sure to get one that is designed for HUD or
your HUD image may look blurred or out of focus.
Driver Information Center (DIC)
(If Equipped)
Your vehicle may be equipped with a Driver Information
Center (DIC). The DIC will display information about
how your vehicle is functioning, as well as warning
messages if a system problem is detected. This feature also
allows two different drivers to store and recall their own
personal choice settings. See ªDIC Personal Choice
Programmingº later in this section.
DIC Displays and Controls
There are two lines in the DIC display. The DIC displays
the driver number identified when entering the vehicle.
You can have your dealer program your name to appear on
this display line. See your dealer for more information.
When you turn the ignition on, the DIC will display your
DRIVER NUMBER. The system will then perform a status
check and display any messages if a problem is detected.
If there are no problems detected, the display will return
to the mode selected by that driver the last time the
ignition was turned off.
If a problem is detected, a diagnostic message will
appear in the display. The following pages will show the
messages you may see on the DIC display.
The message center is continuously updated with the
vehicle's performance status.

yellowblue
2-81

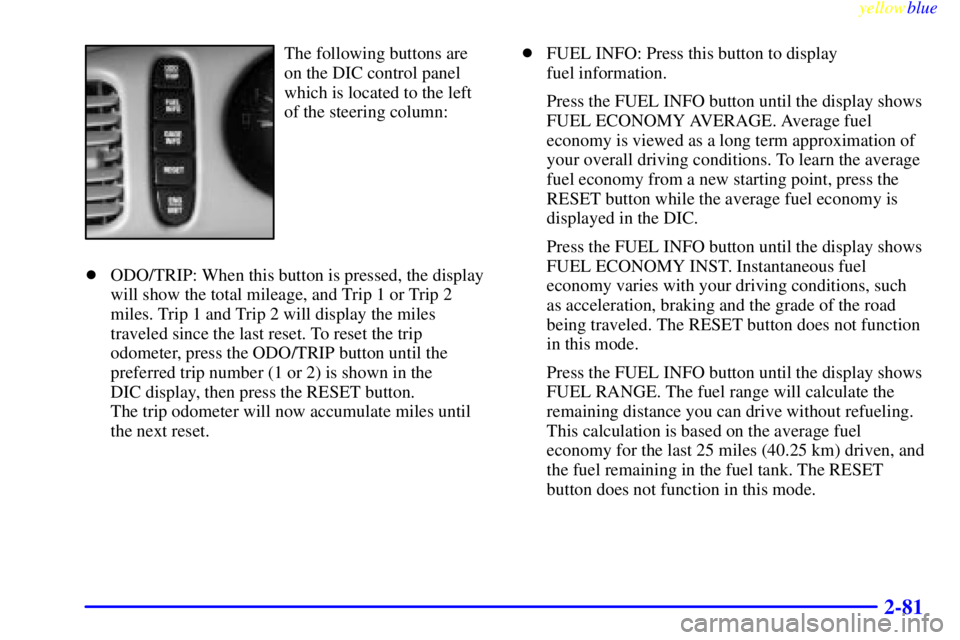

The following buttons are
on the DIC control panel
which is located to the left
of the steering column:

ODO/TRIP: When this button is pressed, the display
will show the total mileage, and Trip 1 or Trip 2
miles. Trip 1 and Trip 2 will display the miles
traveled since the last reset. To reset the trip
odometer, press the ODO/TRIP button until the
preferred trip number (1 or 2) is shown in the
DIC display, then press the RESET button.
The trip odometer will now accumulate miles until
the next reset.
FUEL INFO: Press this button to display
fuel information.
Press the FUEL INFO button until the display shows
FUEL ECONOMY AVERAGE. Average fuel
economy is viewed as a long term approximation of
your overall driving conditions. To learn the average
fuel economy from a new starting point, press the
RESET button while the average fuel economy is
displayed in the DIC.
Press the FUEL INFO button until the display shows
FUEL ECONOMY INST. Instantaneous fuel
economy varies with your driving conditions, such
as acceleration, braking and the grade of the road
being traveled. The RESET button does not function
in this mode.
Press the FUEL INFO button until the display shows
FUEL RANGE. The fuel range will calculate the
remaining distance you can drive without refueling.
This calculation is based on the average fuel
economy for the last 25 miles (40.25 km) driven, and
the fuel remaining in the fuel tank. The RESET
button does not function in this mode.

yellowblue
2-82

GAGE INFO: Use this button to display oil pressure,
oil life, coolant temperature, tire pressure and
battery information.
Press the GAGE INFO button until OIL PRESSURE
appears in the display. If there are no problems
detected with the oil pressure, the display will show
OIL PRESSURE NORMAL. If a low oil pressure
condition is detected, the display will show OIL
PRESSURE LOW. If you see the OIL PRESSURE
LOW message, your vehicle could be low on oil or
the oil is not going through the engine properly.
See your dealer for service.
Press the GAGE INFO button until COOLANT
TEMP appears in the display. If there are no
problems detected with the temperature, COOLANT
TEMP NORMAL will appear in the display. If the
temperature is too high, COOLANT TEMP HOT
will appear in the display. If you see the COOLANT
TEMP HOT message, the engine is overheated. You
should pull off the road, stop your vehicle and turn
off your engine as soon as possible. This manual
explains what to do. See ªEngine Overheatingº in
the Index.Press the GAGE INFO button until the display
shows BATTERY STATE. If the voltage is normal
the display will show BATTERY STATE NORMAL.
If the voltage drops below 10.5 volts, the display will
show BATTERY STATE LOW. If the voltage is
above 16 volts, the display will show BATTERY
STATE HIGH. If the display shows the high or low
message, you need to have your battery and charging
system checked.
Press the GAGE INFO button until OIL LIFE
INDEX appears in the display. The OIL LIFE
INDEX NORMAL display will show an estimate of
the oil's remaining useful life. When the oil life
index is less than 10%, the display will show OIL
LIFE INDEX CHANGE OIL. When you have the
oil changed according to the maintenance schedule
(see ªMaintenance Scheduleº in the Index), you will
have to reset the oil life monitor. To reset the Oil
Life System (Index), see ªOil Life Systemº or
ªEngine Oil, When to Changeº in the Index.

yellowblue
2-83
Press the GAGE INFO button until TIRE PRESSURE
appears in the display. TIRE PRESSURE NORMAL is
displayed when the Check Tire Pressure System
believes your vehicle's tire pressures are normal. If a
potential tire pressure problem is detected, the display
will show TIRE PRESSURE LOW: CHECK TIRES.
If you see the TIRE PRESSURE LOW: CHECK
TIRES message, you should stop as soon as you can
and check all your tires for damage. (If a tire is flat, see
ªIf a Tire Goes Flatº in the Index.) Also check the
tire pressure in all four tires as soon as you can.
See ªInflation
-- Tire Pressureº and ªCheck Tire
Pressure Systemº in the Index. There are times
when you will have to reset (calibrate) the Check
Tire Pressure System. See ªCheck Tire Pressure
Systemº in the Index.

RESET: This button, used along with other buttons,
will reset system functions.

ENG/MET: Use this button to change the display
between English and metric units.
DIC Warnings and Messages
Other messages or warnings may appear in the DIC
display. For Canadian drivers, in addition to the DIC
message your DIC will display EXP with a number after
it which reflects the following messages:EXP (Export ID) Warning Message
2 ENG COOLANT LOW
- CHECK LEVEL . . . . . .
20 TURN SIGNAL STILL ON?. . . . . . . . . . . . . . . .
24 TRUNK AJAR. . . . . . . . . . . . . . . . . . . . . . . . . . .
25 WINDSHIELD WASHER FLUID LOW. . . . . . .
27 BATTERY SAVER ACTIVE. . . . . . . . . . . . . . . .
36 ENGINE OIL LOW
- CHECK LEVEL . . . . . . . .
40 THEFT ATTEMPT DETECTED. . . . . . . . . . . . .
54 SERVICE STABILITY SYSTEM. . . . . . . . . . . .
55 STABILITY SYSTEM ACTIVE. . . . . . . . . . . . .
61 GAS CAP LOOSE
- CHECK CAP . . . . . . . . . . .
81 CHANGE ENGINE OIL SOON. . . . . . . . . . . . .
91 TRACTION CONTROL SYSTEM ACTIVE. . .
102 CHECK CHARGE SYSTEM. . . . . . . . . . . . . . .
139 DOOR AJAR. . . . . . . . . . . . . . . . . . . . . . . . . . .
144 CHECK TIRE PRESSURE. . . . . . . . . . . . . . . .
The EXP codes are used to make translation from
English to other languages easier.
Pressing any of the DIC control buttons will remove the
messages or warnings from the DIC display.

yellowblue
2-84
SERVICE STABILITY SYSTEM - 54: If you ever
see the SERVICE STABILITY SYSTEM message, it
means there may be a problem with your stability
enhancement system. If you see this message, try to
reset the system (stop; turn off the engine; then start the
engine again). If the SERVICE STABILITY SYSTEM
message still comes on, it means there is a problem. You
should see your dealer for service. Reduce your speed
and drive accordingly.
STABILITY SYSTEM ACTIVE
- 55: You may see
the STABILITY SYSTEM ACTIVE message on the
Driver Information Center. It means that an advanced,
computer
-controlled system has come on to help your
vehicle continue to go in the direction in which you're
steering. This stability enhancement system activates when
the computer senses that your vehicle is just starting to
spin, as it might if you hit a patch of ice or other slippery
spot on the road. When the system is on, you may hear a
noise or feel a vibration in the brake pedal. This is normal.
When the STABILITY SYSTEM ACTIVE message is
on, you should continue to steer in the direction you
want to go. The system is designed to help you in bad
weather or other difficult driving situations by making
the most of whatever road conditions will permit. If the
STABILITY SYSTEM ACTIVE message comes on,
you'll know that something has caused your vehicle to
start to spin, so you should consider slowing down.
DIC Personal Choice Programming
The DIC can be used to program the following personal
choice features available with your vehicle:

Automatic Door Locks

Window Lockout

Security Feedback

Delayed Locking

Perimeter Lighting

Memory Seats

Tilt Mirrors (If Equipped)

Driver ID ON/OFF
For vehicles not equipped with a DIC, see
ªPersonal Choice Programmingº in the Index.
The personal choice settings displayed on the
DIC are determined by the transmitter used to enter
the vehicle. Each remote keyless entry transmitter was
pre
-programmed to belong to DRIVER 1 or DRIVER 2
and is numbered on the back. After the button with the
unlock symbol on a remote keyless entry transmitter is
pressed and the ignition is in RUN, the DIC will display
the identified driver and recall the settings previously
programmed for that driver. The settings can also be
recalled by briefly pressing one of the MEMORY
buttons located on the driver's door.
