2-4

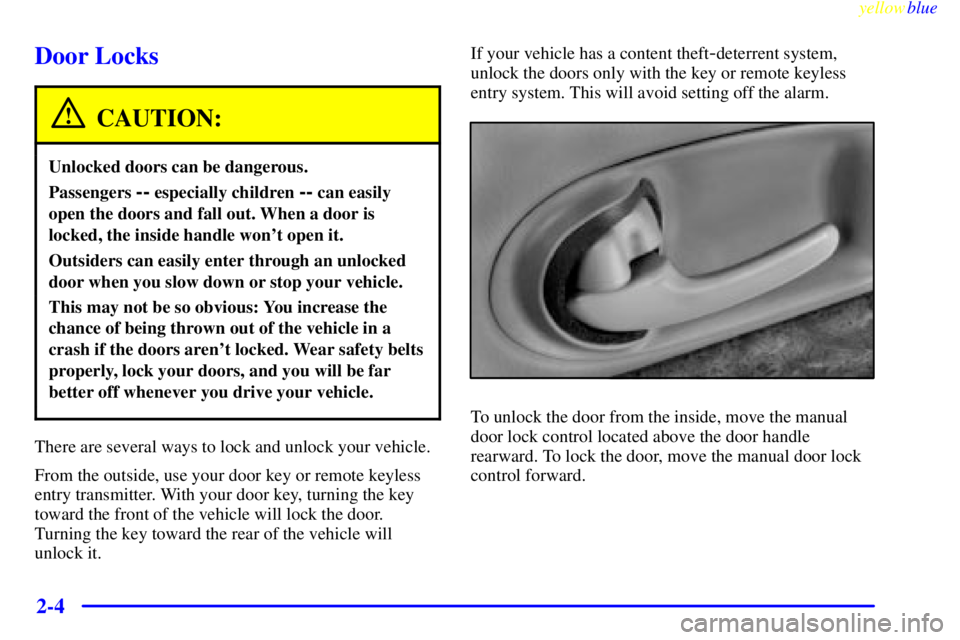

Door Locks
CAUTION:
Unlocked doors can be dangerous.
Passengers -- especially children -- can easily
open the doors and fall out. When a door is
locked, the inside handle won't open it.
Outsiders can easily enter through an unlocked
door when you slow down or stop your vehicle.
This may not be so obvious: You increase the
chance of being thrown out of the vehicle in a
crash if the doors aren't locked. Wear safety belts
properly, lock your doors, and you will be far
better off whenever you drive your vehicle.
There are several ways to lock and unlock your vehicle.
From the outside, use your door key or remote keyless
entry transmitter. With your door key, turning the key
toward the front of the vehicle will lock the door.
Turning the key toward the rear of the vehicle will
unlock it.If your vehicle has a content theft
-deterrent system,
unlock the doors only with the key or remote keyless
entry system. This will avoid setting off the alarm.
To unlock the door from the inside, move the manual
door lock control located above the door handle
rearward. To lock the door, move the manual door lock
control forward.

yellowblue
2-5 Central Door Unlocking System
If your vehicle has a theft-deterrent system, all doors will
unlock if the key is held in the unlock position for more
than two seconds. The doors will also unlock if the key is
turned to the unlock position twice in three seconds.
Power Door Locks
With power door locks, you
can lock or unlock all the
doors of your vehicle
using the driver's or front
passenger's door lock switch.
Door Ajar Reminder (If Equipped)
If your vehicle is equipped with the Driver Information
Center (DIC), and a door is not fully closed, the DIC
will display a DOOR AJAR message. See ªDriver
Information Centerº in the Index.
Automatic Door Locks
Close the doors and turn on the ignition. Every time you
move the shift lever out of PARK (P), all of the doors
will lock. And, every time you stop and move the shift
lever into PARK (P), the doors will unlock. If someone
needs to get out while you're not in PARK (P), have that
person use the manual or power lock. When the door is
closed again, it will not lock automatically. Just use the
manual or power lock to lock the door again. If you
need to lock the doors before shifting out of PARK (P),
just use the manual or power lock button.
Personal Choice Programming
You can program the automatic door locks feature to
change to the following modes:
Mode 0: No automatic door lock or unlock.
Mode 1: All doors automatically lock when shifted out
of PARK (P). No automatic door unlock.
Mode 2: All doors automatically lock when shifted out
of PARK (P). Only the driver's door automatically
unlocks when shifted into PARK (P).
Mode 3: All doors automatically lock when shifted out
of PARK (P). All doors automatically unlock when
shifted into PARK (P).

yellowblue
2-6
Vehicles are delivered programmed in Mode 3.
Use the following procedure to change modes:
1. Close all the doors and turn the ignition on.
Keep all doors closed throughout this procedure.
2. Press and hold LOCK on the driver's power door
lock switch throughout this procedure. All the doors
will lock.
3. Press the button with the lock symbol on the remote
keyless entry transmitter. The automatic door locks
will remain in the current mode.
4. Press the button with the lock symbol on the
transmitter again. Each time this button is pressed,
the mode will advance by one, going from
3 to 0 to 1, etc.
Note: The door locks will cycle according to the
mode entered while customizing the memory door
locks. (Mode ª0º has no feedback.)
5. Release the power door lock switch. The automatic door
locks will remain in the most recent mode selected.This procedure only changes the mode for the
transmitter used to change this setting. The procedure
will need to be repeated for the second transmitter.
If your vehicle is equipped with the Driver Information
Center (DIC), you must program this feature through the
DIC. See ªDriver Information Centerº in the Index.
Delayed Locking
This feature lets the driver delay the actual locking of
the vehicle. When the driver's power door lock switch
or remote keyless entry lock button is pressed with the
key removed from the ignition, and the driver's door
open, a chime will sound three times to signal that
delayed locking system is active. When all doors have
been closed, the doors will lock automatically after five
seconds. If any door is opened before this, the
five
-second timer will reset itself once all the doors have
been closed again.
Pressing the driver's door lock switch or remote keyless
entry transmitter button again will override this feature.
Pressing the passenger's door lock switch will also
override this feature.

yellowblue
2-7
Personal Choice Programming
The delayed locking feature can be turned on or off.
Vehicles are delivered with delayed locking off.
To turn the feature on:
1. Close all the doors and turn the ignition on. Keep all
doors closed throughout this procedure.
2. Press and hold LOCK on the driver's power door
lock switch throughout this procedure. All the doors
will lock.
3. Press the button with the unlock symbol on the
transmitter. The lock delay is still off and all doors
will remain locked.
4. Press the button with the unlock symbol on the
transmitter again. Lock delay is now active and all
doors will unlock.
5. Release the power door lock switch.
To turn this feature off, repeat the previous procedure.
This procedure only changes the mode for the
transmitter used to change this setting. The procedure
will need to be repeated for the second transmitter.
If your vehicle is equipped with the Driver Information
Center (DIC), you must program this feature through the
DIC. See ªDriver Information Centerº in the Index.Rear Door Security Lock
Your vehicle is equipped
with rear door security
locks that help prevent
passengers from opening
the rear doors of your
vehicle from the inside.
To Use One of These Locks
1. Open the rear door you wish to lock.
2. Move the lever located on the door edge, all the way
up to the ENGAGED position.
3. Close the door.
4. Do the same thing to the other rear door lock.
The rear doors of your vehicle cannot be opened from
the inside when this feature is in use.

yellowblue
2-8
To Open a Rear Door When the Security Lock is On
1. Unlock the door.
2. Then open the door from the outside.
If you don't cancel the security lock feature, adults or
older children who ride in the rear seat won't be able to
open the rear door from the inside. You should let adults
and older children know how these security locks work,
and how to cancel the locks.
To Cancel the Rear Door Lock
1. Unlock the door and open the door from the outside.
2. Move the lever all the way down.
3. Do the same for the other rear door.
The rear door locks will now work normally.Lockout Protection
The power door locks will not work if the key is in the
ignition and a door is open. You can override this feature
by holding the driver's side power door lock switch for
more than three seconds.
Leaving Your Vehicle
If you are leaving the vehicle, take your keys, open your
door and set the locks from the inside. Then get out and
close the door. Or, you may also use the button with the
lock symbol on the remote keyless entry transmitter
after shutting the doors.
If your vehicle has a theft
-deterrent system, see
ªContent Theft
-Deterrentº in the Index.

yellowblue
2-9
Remote Keyless Entry System
If your vehicle has this feature, you can lock and unlock
your doors or unlock your trunk from about 3 feet (1 m)
up to 30 feet (9 m) away using the remote keyless entry
lock control transmitter supplied with your vehicle.
Your keyless entry system operates on a radio frequency
subject to Federal Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation of
the device.Changes or modifications to this system by other than an
authorized service facility could void authorization to
use this equipment.
At times you may notice a decrease in range. This is
normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:

Check to determine if battery replacement or
resynchronization is necessary. See the instructions
that follow.

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.

If you're still having trouble, see your dealer or a
qualified technician for service.

yellowblue
2-10 Operation
The numbers on the back of your transmitter correspond to
DRIVER #1 and DRIVER #2 on the DIC (if equipped).
For more information see ªDICº in the Index.
The driver's door will
unlock and the exterior
lights will flash twice
when the unlock symbol
is pressed.
If the unlock symbol is pressed again within five
seconds, all doors will unlock, the exterior lamps will
flash twice and the horn will sound. See ªSecurity
Feedbackº in the Index.
Pressing the unlock symbol button will also illuminate
the interior lamps. See ªIlluminated Entryº in the Index.
All doors will lock, the exterior lamps will flash once and
the horn will sound when the lock symbol is pressed.The trunk will unlock when the trunk symbol is pressed
when the ignition is in OFF. The trunk symbol will also
work when the ignition is on, but only while the
transaxle is in PARK (P) or NEUTRAL (N).
Instant Alarm
When the button with the horn symbol on the remote
keyless entry transmitter is pressed, the horn will
sound and the headlamps and taillamps will flash for up
to 30 seconds. This can be turned off by pressing the
instant alarm button again or by turning the ignition on.
If your vehicle is equipped with the Content
Theft
-Deterrent feature, you may also turn off the
instant alarm by unlocking the vehicle with a key.
Personal Choice Features
The following list of features that are available on your
vehicle can be programmed to each driver's preference
for each of the key transmitters.

Automatic Door Locks: This feature programs your
door locks to automatically lock or unlock when
shifting in and out of PARK (P).

Security Feedback: This feature provides feedback
to the driver when the vehicle receives a command
from the remote keyless entry transmitter.

yellowblue
2-11

Delayed Locking: This feature lets the driver delay
the actual locking of the vehicle. When all doors
have been closed, the doors will lock automatically
after five seconds.

Perimeter Lighting: When the button with the
unlock symbol on the keyless entry transmitter is
pressed, the Daytime Running Lamps (DRL),
parking lamps and back
-up lamps will turn on.
For more detailed information and programming
instructions, refer to the Index for each individual
feature listed above.
Security Feedback
This feature provides feedback to the driver when the
vehicle receives a command from the remote keyless
entry transmitter. Feedback is only provided if all doors
are closed. One of the following modes may be selected
for each transmitter:
Mode 1: No feedback when locking or unlocking
vehicle.
Mode 2: Parking lamps, back
-up lamps and the
DRL exterior lamps will flash twice when unlocking the
vehicle and flash once when locking the vehicle.
Mode 3: Horn chirps when all doors are unlocked (second
time the button is pressed) and when locking the vehicle.Mode 4: Parking lamps, back
-up lamps and the
DRL exterior lamps will flash twice each time the
button with the unlock symbol is pressed; the horn
chirps when all doors are unlocked. Parking lamps and
the DRL exterior lamps flash once and the horn chirps
when locking the vehicle.
Feedback will be provided according to the mode that
has been selected. The exterior lamps will not flash if
the manual parking lamps are on.
Vehicles are delivered programmed in Mode 4.
To change to another mode:
1. Close all the doors and turn the ignition on.
Keep all doors closed throughout this procedure.
2. Press and hold LOCK on the driver's power door
lock switch throughout this procedure. All the doors
will lock.
3. Press the trunk button on the transmitter. The
security feedback will remain in its current mode.
4. Press the trunk button again. Each time the trunk
button is pressed, the security feedback will advance
to the next mode, and the horn will chirp.
5. Release the power door lock switch.

yellowblue
2-12
This procedure only changes the mode for the
transmitter used to change this setting. The procedure
will need to be repeated for the second transmitter.
If your vehicle is equipped with the Driver Information
Center (DIC), you must program this feature through the
DIC. See ªDriver Information Centerº in the Index.
Matching Transmitter(s) To Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring any
remaining transmitters with you when you go to your
dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have only four transmitters
matched to it.
See your dealer to match transmitters to another vehicle.
Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about two years.
You can tell the battery is weak if the transmitter won't
work at the normal range in any location. If you have to
get close to your vehicle before the transmitter works,
it's probably time to change the battery.
NOTICE:
When replacing the battery, use care not to touch
any of the circuitry. Static from your body
transferred to these surfaces may damage
the transmitter.

yellowblue
2-13
For battery replacement, use one Duracell
battery, type
DL
-2032, or a similar type.
To replace the battery:
1. Insert a coin into the notch near the key ring. Turn
the coin counterclockwise to separate the two halves
of the transmitter.
2. Once the transmitter is separated, use a pencil eraser
to remove the old battery. Do not use a metal object.3. Remove and replace the battery. Replace it as the
instructions inside the cover indicate.
4. Snap the transmitter back together tightly to be sure
no moisture can enter.
5. Test the operation of the transmitter with your
vehicle. If the transmitter does not work,
resynchronize the transmitter.
Resynchronization
Pressing the transmitter buttons numerous times
(approximately 250 times) out of the vehicle's operating
range may cause the transmitter not to work. Replacing
the battery and pressing the transmitter buttons out of
range will also cause the transmitter not to work. If only
the instant alarm works, the transmitter needs to be
resynchronized to the receiver. Resynchronize by
pressing and holding both the buttons with the lock and
unlock symbols at the same time for about eight
seconds. You must be within range of the vehicle.
Once the transmitter has been resynchronized, the locks
will cycle (the horn may chirp and the exterior lamps
may flash) depending on the security feedback settings.
The system should now operate properly.
