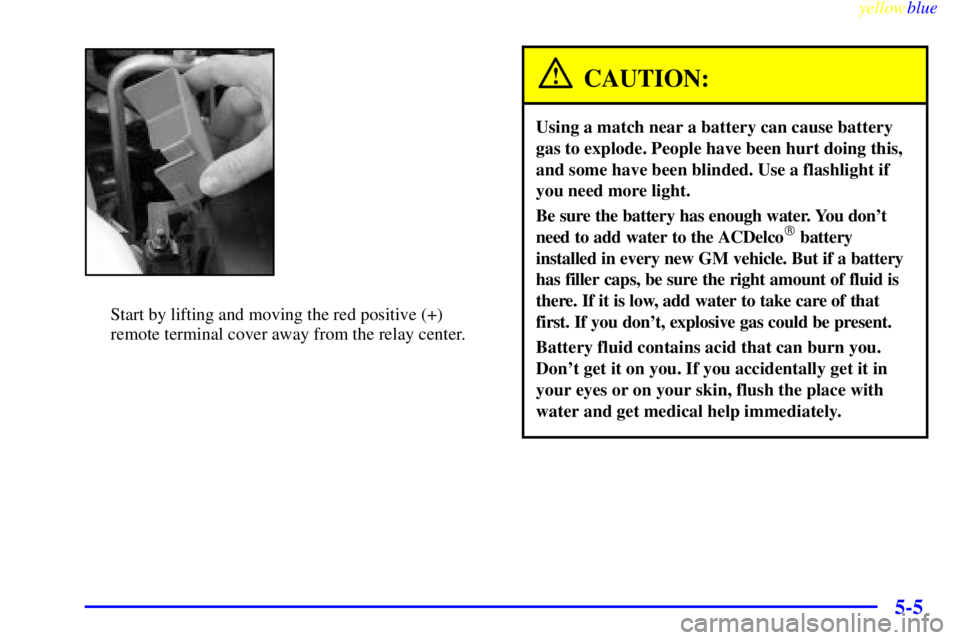

Start by lifting and moving the red positive (+)
remote terminal cover away from the relay center.
CAUTION:
Using a match near a battery can cause battery
gas to explode. People have been hurt doing this,
and some have been blinded. Use a flashlight if
you need more light.
Be sure the battery has enough water. You don't
need to add water to the ACDelco
battery
installed in every new GM vehicle. But if a battery
has filler caps, be sure the right amount of fluid is
there. If it is low, add water to take care of that
first. If you don't, explosive gas could be present.
Battery fluid contains acid that can burn you.
Don't get it on you. If you accidentally get it in
your eyes or on your skin, flush the place with
water and get medical help immediately.

yellowblue
6-63
Micro Relays Usage
27 High
-Beam Headlamp
28 Low
-Beam Headlamp
29 Fog Lamps
30 Daytime Running Lamps
31 Horn
32 Air Conditioner Clutch
33 HVAC Solenoid
Mini Relays Usage
34 Accessory
35 Air Pump
36 Starter 1
37 Cooling Fan 2
38 Ignition 1
39 Cooling Fan Series/Parallel
40 Cooling Fan 1Maxibreaker Usage
41 Starter
MaxiFuses Usage
42 AIR
43 ABS
44 Air Pump B
45 Air Pump A
46 Cooling Fan 2
47 Cooling Fan 1
Spare Fuses Usage
48 Spare
49 Not Used
50 Not Used
51 Not Used
52 Not Used
53 Fuse Puller

yellowblue
6-64

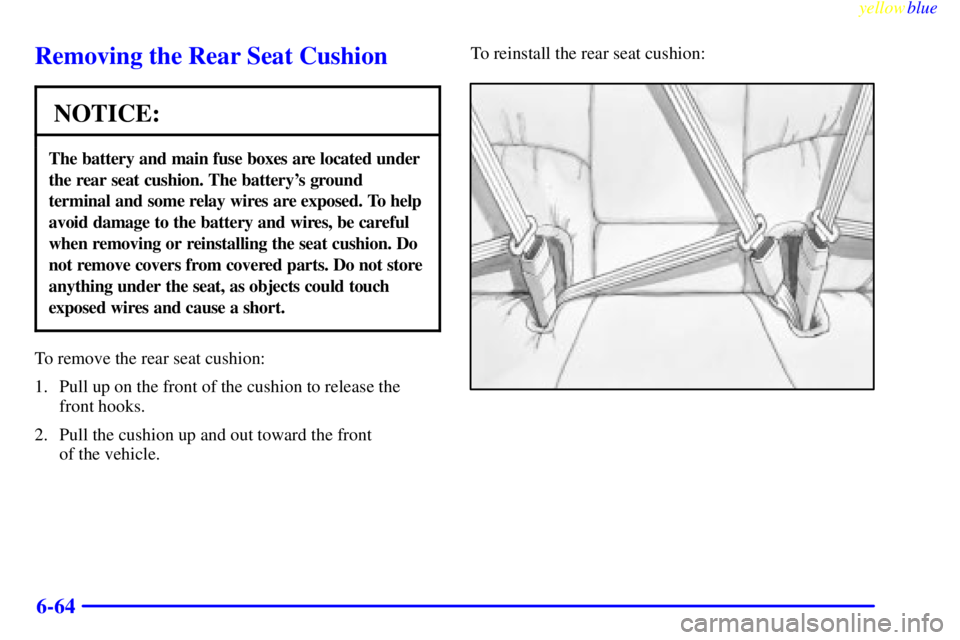

Removing the Rear Seat Cushion
NOTICE:
The battery and main fuse boxes are located under
the rear seat cushion. The battery's ground
terminal and some relay wires are exposed. To help
avoid damage to the battery and wires, be careful
when removing or reinstalling the seat cushion. Do
not remove covers from covered parts. Do not store
anything under the seat, as objects could touch
exposed wires and cause a short.
To remove the rear seat cushion:
1. Pull up on the front of the cushion to release the
front hooks.
2. Pull the cushion up and out toward the front
of the vehicle.To reinstall the rear seat cushion:

yellowblue
6-67
Minifuses Usage
31 Right Front Heated Seat
32 Not Used
33 HVAC
34 Ignition 3 Rear
35 Anti
-Lock Brake System (ABS)
36 Turn Signal/Hazard
37 HVAC Battery
38 Dimmer
Micro Relays Usage
39 Fuel Pump
40 Parking Lamp
41 Ignition 1
42 Rear Fog Lamp
43 Not Used
44 Park
45 Reverse
46 Retained Accessory Power (RAP)
47 Fuel Tank Door LockMicro Relays Usage
48 Not Used
49 Ignition 3
50 Fuel Tank Door Release
51 Interior Lamps
52 Trunk Release
53 Front Courtesy Lamps
54 Not Used
55 Electronic Level Control (ELC)
Circuit
BreakersUsage
56 Power Seats
57 Power Windows
Mini Relays Usage
58 Cigar
59 Rear Defogger
