2-19
If a door is opened without the key or remote
keyless entry transmitter, the alarm will go off.
Your vehicle's lamps will flash and the horn will sound
for 30 seconds. The lamps and horn will then turn off
to save battery power.
Remember, the content theft
-deterrent system won't
activate if you lock the doors with a key or use the
manual door lock. It activates only if you use a power
door lock switch with a door open, or with the remote
keyless entry transmitter. You should also remember
that you can start your vehicle with the correct ignition
key if the alarm has been set off.
Here's how to avoid setting off the alarm by accident:

If you don't want to activate the theft
-deterrent
system, the vehicle should be locked with the door
key after the doors are closed.

Always unlock a door with a key, or use the remote
keyless entry transmitter. Unlocking a door any other
way will set off the alarm.
If you set off the alarm by accident, unlock any door
with your key. You can also turn off the alarm by
pressing the button with the unlock symbol on the
remote keyless entry transmitter. The alarm won't
stop if you try to unlock a door any other way.
Testing the Alarm
The alarm can be tested by following these steps:
1. From inside the vehicle, roll down the driver's
window and open the driver's door.
2. Activate the system by locking the doors with the
power door lock switch while the door is open, or
with the remote keyless entry transmitter.
3. Get out of the car, close the door and wait for the
SECURITY light to go out.
4. Then reach in through the window, unlock the
door with the manual door lock and open the door.
This should set off the alarm.
If the alarm does not sound when it should, but the
vehicle's lamps flash, check to see if the horn works.
The horn fuse may be blown. To replace the fuse,
see ªFuses and Circuit Breakersº in the Index.
If the alarm does not sound or the vehicle's lamps do not
flash, the vehicle should be serviced by an authorized
service center.

2-63
1. If you have previously programmed a transmitter
channel, proceed to Step 2. Otherwise, hold
down the two outside buttons on the HomeLink
Transmitter until the indicator light begins to flash
rapidly (after 20 seconds). Then release the buttons.
This procedure initializes the memory and erases any
previous settings for all three channels.
2. Decide which one of the three channels you want to
program. Hold the end of the hand
-held transmitter
about 2 to 5 inches (5 to 13 cm) away from the
surface of the HomeLink Transmitter so that you
can still see the indicator light.
3. Using both hands, press the hand
-held transmitter
button and the desired button on the HomeLink
Transmitter. Continue to press both buttons
through Step 4.
4. Hold down both buttons until you see the indicator
light on the HomeLink Transmitter flash slowly
and then rapidly. The rapid flashing indicates that
the HomeLink Transmitter has been programmed.
Release both buttons once the indicator light starts
to flash rapidly.If you have trouble programming the HomeLink
Transmitter, make sure that you have followed the
directions exactly as described. The HomeLink
Transmitter may not work with older garage door
openers that do not meet current Federal Consumer
Safety Standards. If you cannot program the
transmitter after repeated attempts, refer to
ªRolling Code Programmingº later in this
section or contact the HomeLink Transmitter
manufacturer at 1
-800-355-3515.
Be sure to keep the original hand
-held transmitter
in case you need to erase and reprogram the
HomeLink Transmitter.
Canadian Owners: During programming, the
hand
-held transmitter may automatically stop
transmitting after one or two seconds. In this case,
you should press and re
-press the button on the
hand
-held transmitter every two seconds without
ever releasing the button on the HomeLink Transmitter.
Release both buttons when the indicator light on the
HomeLink Transmitter begins to flash rapidly.

2-83

FUEL INFO: Press this button to display
fuel information.
Press the FUEL INFO button until the display
shows FUEL ECONOMY AVERAGE. Average fuel
economy is viewed as a long term approximation of
your overall driving conditions. To learn the average
fuel economy from a new starting point, press the
RESET button while the average fuel economy is
displayed in the DIC.
Press the FUEL INFO button until the display
shows FUEL ECONOMY INST. Instantaneous fuel
economy varies with your driving conditions, such
as acceleration, braking and the grade of the road
being traveled. The RESET button does not function
in this mode.
Press the FUEL INFO button until the display shows
FUEL RANGE. The fuel range will calculate the
remaining distance you can drive without refueling.
This calculation is based on the average fuel
economy for the last 25 miles (40.25 km) driven,
and the fuel remaining in the fuel tank. The RESET
button does not function in this mode.
GAGE INFO: Use this button to display oil
pressure, oil life, coolant temperature, tire pressure
and battery information.
Press the GAGE INFO button until OIL PRESSURE
appears in the display. If there are no problems
detected with the oil pressure, the display will show
OIL PRESSURE NORMAL. If a low oil pressure
condition is detected, the display will show OIL
PRESSURE LOW. If you see the OIL PRESSURE
LOW message, your vehicle could be low on oil
or the oil is not going through the engine properly.
See your dealer for service.
Press the GAGE INFO button until COOLANT
TEMP appears in the display. If there are no
problems detected with the temperature, COOLANT
TEMP NORMAL will appear in the display. If the
temperature is too high, COOLANT TEMP HOT
will appear in the display. If you see the COOLANT
TEMP HOT message, the engine is overheated.
You should pull off the road, stop your vehicle
and turn off your engine as soon as possible.
This manual explains what to do. See ªEngine
Overheatingº in the Index.

2-85 DIC Warnings and Messages
Other messages or warnings may appear in the DIC
display. For Canadian drivers, in addition to the DIC
message your DIC will display EXP with a number
after it which reflects the following messages:
EXP (Export ID) Warning Message
20 TURN SIGNAL STILL ON?. . . . . . . . . . . . . . . . .
24 TRUNK AJAR. . . . . . . . . . . . . . . . . . . . . . . . . . . .
25 WINDSHIELD WASHER FLUID LOW. . . . . . . .
27 BATTERY SAVER ACTIVE. . . . . . . . . . . . . . . . .
36 ENGINE OIL LOW
- CHECK LEVEL . . . . . . . . .
40 THEFT ATTEMPT DETECTED. . . . . . . . . . . . . .
54 SERVICE STABILITY SYSTEM. . . . . . . . . . . . .
55 STABILITY SYSTEM ACTIVE. . . . . . . . . . . . . .
61 GAS CAP LOOSE
- CHECK CAP . . . . . . . . . . . .
81 CHANGE ENGINE OIL SOON. . . . . . . . . . . . . .
91 TRACTION CONTROL SYSTEM ACTIVE. . . .
102 CHECK CHARGE SYSTEM. . . . . . . . . . . . . . . .
139 DOOR AJAR. . . . . . . . . . . . . . . . . . . . . . . . . . . .
144 CHECK TIRE PRESSURES. . . . . . . . . . . . . . . . The EXP codes are used to make translation from
English to other languages easier.
Pressing any of the DIC control buttons will remove the
messages or warnings from the DIC display.
SERVICE STABILITY SYSTEM
- 54: If you
ever see the SERVICE STABILITY SYSTEM message,
it means there may be a problem with your stability
enhancement system. If you see this message, try to
reset the system (stop; turn off the engine; then start the
engine again). If the SERVICE STABILITY SYSTEM
message still comes on, it means there is a problem. You
should see your dealer for service. Reduce your speed
and drive accordingly.
STABILITY SYSTEM ACTIVE
- 55: You may see
the STABILITY SYSTEM ACTIVE message on the
Driver Information Center. It means that an advanced,
computer
-controlled system has come on to help your
vehicle continue to go in the direction in which you're
steering. This stability enhancement system activates
when the computer senses that your vehicle is just
starting to spin, as it might if you hit a patch of ice or
other slippery spot on the road. When the system is on,
you may hear a noise or feel a vibration in the brake
pedal. This is normal.

3-27
RAND (6): Press this button to hear the tracks in
random, rather than sequential, order. Press RAND
again to turn off random play.
RECALL: Press this button to see which track is
playing. Press it again within five seconds to see how
long it has been playing. To change what is normally
shown on the display (track or elapsed time), press the
button until you see the display you want, then hold the
button until the display flashes.
AM
-FM: Press this button to play the radio when a
disc is in the player.
SOURCE: Press this button to change to the disc
function when the radio is on. When a disc is inserted,
the disc will play until you press AM
-FM. Then the
disc will stop playing and the radio will play. Press
SOURCE again to play a disc again. CD PLAY will
show on the display.
EJECT: Press this button to remove the disc. The radio
will play.
If you turn off the ignition or radio with a disc in the
player, it will stay in the player. When you turn on the
ignition or system, the disc will start playing where it
stopped, if it was the last selected audio source.

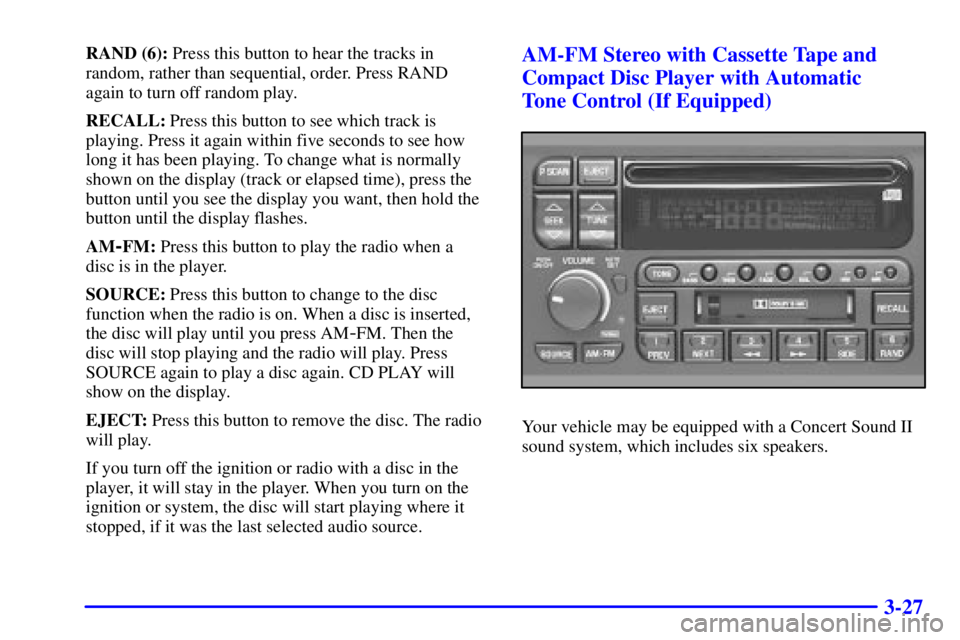

AM-FM Stereo with Cassette Tape and
Compact Disc Player with Automatic
Tone Control (If Equipped)
Your vehicle may be equipped with a Concert Sound II
sound system, which includes six speakers.

3-32
PREV (1): Press this button to go to the start of the
current track, if more than eight seconds have played.
If you hold the button or press it more than once, the
player will continue moving back through the disc.
The sound will mute while seeking.
NEXT (2): Press this button to go to the next track.
If you hold the button or press it more than once, the
player will continue moving forward through the disc.
The sound will mute while seeking.
The SEEK down and up arrows will also find the
previous and next selections on the disc.
 (3): Press and hold this button to quickly reverse
within a track. You will hear sound.


(4): Press and hold this button to quickly advance
within a track. You will hear sound.
RAND (6): Press this button to hear the tracks in
random, rather than sequential, order. Press RAND
again to turn off random play.RECALL: Press this button to see which track is
playing. Press it again within five seconds to see how
long it has been playing. To change what is normally
shown on the display (track or elapsed time), press the
RECALL button until you see the display you want,
then hold the RECALL button until the display flashes.
AM
-FM: Press this button to play the radio when a disc
is in the player.
SOURCE: Press this button to change to the disc
function when the radio is on. When a disc is inserted,
the disc will play until you press AM
-FM. Then the disc
will stop playing and the radio will play. Press SOURCE
again to play a disc again. CD PLAY will show on
the display.
EJECT: Press this button to remove the disc.
The radio will play.
If you turn off the ignition or radio with a disc in the
player, it will stay in the player. When you turn on the
ignition or system, the disc will start playing where it
stopped, if it was the last selected audio source.
Also, as a protection feature, if a CD is ejected and left
in the player, it will be pulled back in the player with the
ignition on or off.

3-36
If your vehicle is equipped with the AM-FM Stereo
with Compact Disc Player and Automatic Tone Control,
pushbutton (5) is not labeled ªSIDE,º but still functions
as described.
RAND (6): Press this button to enter the random play
mode. RAND will appear on the display. While in this
mode, tracks and discs will be played in random order.
Press the button again to turn off the random feature
and return to normal operation.
RECALL: Press this button to see how long the current
track has been playing. Press RECALL again to display
the disc and track number. To change what is normally
shown on the display (track or elapsed time), press the
RECALL button until you see the display you want,
then hold the RECALL button until the display flashes
and a chime is heard. While elapsed time is showing,
CD TIME will appear on the display.SEEK: Press the down arrow to go to the start of the
current track, if more than eight seconds have played.
If you press it more than once, the player will continue
moving backward through the disc. Press the up arrow
to go to the next track on the disc. If you press it more
than once, the player will continue moving forward
through the disc. The sound will mute while seeking
backward and forward.
P SCAN: Press P SCAN and you will hear the first few
seconds of each track on each disc. The sound will mute
while scanning and SCAN will appear on the display.
Press P SCAN again to stop disc scan.
SOURCE: Press this button to play a CD if you have a
magazine loaded in the changer and the radio is playing.
To return to the radio while a CD is playing, press
AM
-FM. You can also press this button to switch
between a cassette tape, CD or the CD changer if all
three are loaded.
