headlamp BUICK LUCERNE 2007 Owner's Guide

You will need a well-charged battery to restart the
vehicle, and possibly for signaling later on with
your headlamps. Let the heater run for a while.
Then, shut the engine off and close the window
almost all the way to preserve the heat. Start
the engine again and repeat this only when you
feel really uncomfortable from the cold. But do it as
little as possible. Preserve the fuel as long as
you can. To help keep warm, you can get out of
the vehicle and do some fairly vigorous exercises
every half hour or so until help comes.
If Your Vehicle is Stuck in Sand,
Mud, Ice, or Snow
In order to free your vehicle when it is stuck,
you will need to spin the wheels, but you do not
want to spin your wheels too fast. The method
known as rocking can help you get out when you
are stuck, but you must use caution.
{CAUTION:
If you let your vehicle’s tires spin at high
speed, they can explode, and you or others
could be injured. And, the transaxle or
other parts of the vehicle can overheat.
That could cause an engine compartment
re or other damage. When you are stuck,
spin the wheels as little as possible. Do not
spin the wheels above 35 mph (55 km/h) as
shown on the speedometer.
Notice:Spinning the wheels can destroy parts
of your vehicle as well as the tires. If you spin
the wheels too fast while shifting the transaxle
back and forth, you can destroy the transaxle.
SeeRocking Your Vehicle to Get It Out on
page 307.
For information about using tire chains on your
vehicle, seeTire Chains on page 406.
306

Service........................................................ 325
Accessories and Modications................... 325
California Proposition 65 Warning.............. 326
Doing Your Own Service Work.................. 326
Adding Equipment to the Outside of
Your Vehicle.......................................... 327
Fuel............................................................. 327
Gasoline Octane........................................ 327
Gasoline Specications.............................. 328
California Fuel........................................... 328
Additives................................................... 328
Fuels in Foreign Countries........................ 329
Filling the Tank......................................... 330
Filling a Portable Fuel Container............... 332
Checking Things Under the Hood.............. 332
Hood Release........................................... 333
Engine Compartment Overview.................. 334
Engine Oil................................................. 337
Engine Oil Life System.............................. 340
Engine Air Cleaner/Filter............................ 342
Automatic Transaxle Fluid......................... 343
Engine Coolant.......................................... 347
Radiator Pressure Cap.............................. 351
Engine Overheating................................... 351Overheated Engine Protection
Operating Mode..................................... 353
Cooling System (3.8L V6 Engine).............. 354
Cooling System (4.6L V8 Engine).............. 360
Power Steering Fluid ................................. 364
Windshield Washer Fluid........................... 365
Brakes...................................................... 367
Battery...................................................... 370
Jump Starting............................................ 372
Headlamp Aiming........................................ 377
Bulb Replacement....................................... 380
Halogen Bulbs........................................... 380
Taillamps, Turn Signal, Stoplamps and
Sidemarker Lamps ................................. 380
Taillamps and Back-Up Lamps.................. 382
License Plate Lamp................................... 383
Replacement Bulbs................................... 383
Windshield Wiper Blade Replacement....... 383
Tires............................................................ 385
Tire Sidewall Labeling............................... 386
Tire Terminology and Denitions............... 389
Ination - Tire Pressure............................. 392
Tire Pressure Monitor System................... 393
Section 5 Service and Appearance Care
323

To disconnect the jumper cables from both
vehicles, do the following:
1. Disconnect the black negative (−) cable from
the vehicle that had the dead battery.
2. Disconnect the black negative (−) cable from
the vehicle with the good battery.
3. Disconnect the red positive (+) cable from the
vehicle with the good battery.
4. Disconnect the red positive (+) cable from the
other vehicle.
5. Return the positive (+) remote terminal cover
to its original position.
Headlamp Aiming
The vehicle has a visual optical headlamp aiming
system. The aim of the headlamps have been
preset at the factory and should need no further
adjustment.
However, if the vehicle is damaged in an accident,
the aim of the headlamps may be affected and
adjustment may be necessary.
If oncoming vehicles ash their high beams at
you, this may mean the vertical aim of your
headlamps needs to be adjusted.It is recommended that the vehicle is taken to your
dealer for service if the headlamps need to be
adjusted. It is possible however, to re-aim the
headlamps as described in the following procedure.
The vehicle should be properly prepared as
follows:
The vehicle should be placed so the
headlamps are 25 ft. (7.6 m) from a light
colored wall.
The vehicle must have all four tires on a level
surface which is level all the way to the wall.
The vehicle should be placed so it is
perpendicular to the wall.
The vehicle should not have any snow, ice or
mud on it.
The vehicle should be fully assembled and all
other work stopped while headlamp aiming is
being performed.
The vehicle should be normally loaded with a
full tank of fuel and one person or 160 lbs
(75 kg) sitting on the driver’s seat.
Tires should be properly inated.
The spare tire is in its proper location in the
vehicle.
377

Headlamp aiming is done with the vehicle’s
low-beam headlamps. The high-beam headlamps
will be correctly aimed if the low-beam headlamps
are aimed properly.
To adjust the vertical aim, do the following:
1. Open the hood. SeeHood Release on
page 333for more information.
2. Locate the aim dot on the lens of the
low-beam headlamp.
3. Measure the distance from the ground to the
aim dot on the low-beam headlamp. Record
the distance.4. At the wall measure from the ground
upward (A) to the recorded distance
from Step 3 and mark it.
5. Draw or tape a horizontal line (B) on the wall
the width of the vehicle at the height of the
mark in Step 4.
Notice:Do not cover a headlamp to improve
beam cut-off when aiming. Covering a
headlamp may cause excessive heat build-up
which may cause damage to the headlamp.
378

6. Turn on the low-beam headlamps and place a
piece of cardboard or equivalent in front of the
headlamp not being adjusted. Do not place
directly on the headlamp. This allows only the
beam of light from the headlamp being
adjusted to be seen on the at surface.
7. Locate the vertical headlamp aiming screws,
which are under the hood near each headlamp
assembly.
The adjustment screw can be turned with a
6 mm male hex.8. Turn the vertical aiming screw until the
headlamp beam is aimed to the horizontal tape
line. Turn it clockwise or counterclockwise to
raise or lower the angle of the beam.
9. Make sure that the light from the headlamp is
positioned at the bottom edge of the horizontal
tape line. The lamp on the left (A) shows
the correct headlamp aim. The lamp on the
right (B) shows the incorrect headlamp aim.
10. Repeat Steps 7 through 9 for the opposite
headlamp.
379

If you need to replace any of your wheels, wheel
bolts, or wheel nuts, replace them only with
new GM original equipment parts. This way, you
will be sure to have the right wheel, wheel
bolts, and wheel nuts for your vehicle.
{CAUTION:
Using the wrong replacement wheels,
wheel bolts, or wheel nuts on your vehicle
can be dangerous. It could affect the
braking and handling of your vehicle,
make your tires lose air and make you
lose control. You could have a collision in
which you or others could be injured.
Always use the correct wheel, wheel bolts,
and wheel nuts for replacement.Notice:The wrong wheel can also cause
problems with bearing life, brake cooling,
speedometer or odometer calibration,
headlamp aim, bumper height, vehicle ground
clearance, and tire or tire chain clearance
to the body and chassis.
SeeChanging a Flat Tire on page 408for more
information.Used Replacement Wheels
{CAUTION:
Putting a used wheel on your vehicle is
dangerous. You cannot know how it has
been used or how far it has been driven. It
could fail suddenly and cause a crash. If
you have to replace a wheel, use a new
GM original equipment wheel.
405

Fuses Usage
F7 Spare
F8 Spare
F9 Spare
F10Passenger’s Side High-Beam
Headlamp
F11 Driver’s Side High-Beam Headlamp
F12 Windshield Washer Pump
F13 Spare
F14Climate Controls, Instrument Panel
Cluster
F15 Spare
F16 Fog Lamps
F17 Horn
F18 Windshield Wiper
F19 Driver’s Side Corner Lamp
F20 Passenger’s Side Corner Lamp
F21 Oxygen Sensor
F22 Powertrain
F23Engine Control Module (ECM),
Crank
F24 Injector Coil
F25 Injector Coil
F26 Air Conditioning
F27 Air SolenoidFuses Usage
F28Engine Control Module, Transaxle
Control Module (ECM/TCM)
F29 Spare
F30 Spare
F31 Spare
F32 Spare
J-Case Fuse Usage
JC1 Heated Windshield Washer
JC2 Cooling Fan 1
JC3 Spare
JC4 Crank
JC5 Cooling Fan 2
JC6 Anti-lock Brake System 2
JC7 Anti-lock Brake System 1
JC8 Air Pump
Relays Usage
R1 Cooling Fan 1
R2 Cooling Fan
R3 Crank
R4 Powertrain
R5 Spare
430

Audio System(s) (cont.)
Navigation/Radio System,
see Navigation Manual......................... 271
Radio with CD................................245, 251
Setting the Time..............................242, 243
Theft-Deterrent Feature............................ 271
Understanding Radio Reception............... 272
XM™ Satellite Radio Antenna System...... 274
Automatic Transaxle
Fluid........................................................ 343
Operation................................................. 119
B
Backglass Antenna...................................... 274
Battery........................................................ 370
Electric Power Management..................... 176
Exterior Lighting Battery Saver................. 173
Inadvertent Power Saver.......................... 177
Run-Down Protection............................... 177Before Leaving on a Long Trip.................... 298
Brake
Anti-Lock Brake System (ABS)................. 281
Emergencies............................................ 283
Panic Assist............................................. 285
Parking.................................................... 122
System Warning Light.............................. 201
Brakes........................................................ 367
Braking....................................................... 280
Braking in Emergencies............................... 283
Break-In, New Vehicle................................. 113
Bulb Replacement....................................... 380
Halogen Bulbs......................................... 380
Headlamp Aiming..................................... 377
License Plate Lamps................................ 383
Replacement Bulbs.................................. 383
Taillamps and Back-Up Lamps................. 382
Taillamps, Turn Signal, Stoplamps and
Sidemarker Lamps................................ 380
Buying New Tires........................................ 400
482

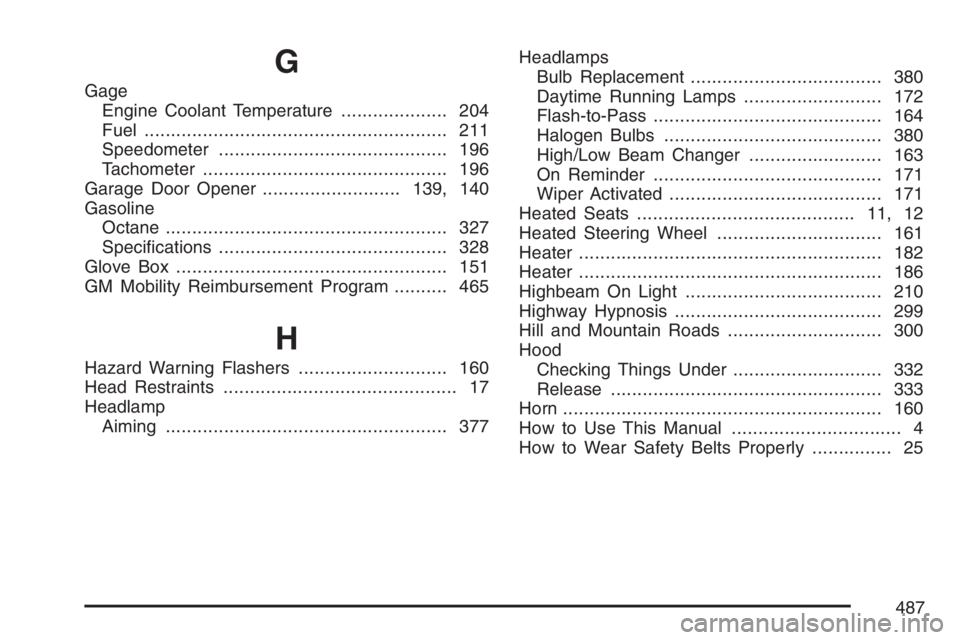

G
Gage
Engine Coolant Temperature.................... 204
Fuel......................................................... 211
Speedometer........................................... 196
Tachometer.............................................. 196
Garage Door Opener..........................139, 140
Gasoline
Octane..................................................... 327
Specications........................................... 328
Glove Box................................................... 151
GM Mobility Reimbursement Program.......... 465
H
Hazard Warning Flashers............................ 160
Head Restraints............................................ 17
Headlamp
Aiming..................................................... 377Headlamps
Bulb Replacement.................................... 380
Daytime Running Lamps.......................... 172
Flash-to-Pass........................................... 164
Halogen Bulbs......................................... 380
High/Low Beam Changer......................... 163
On Reminder........................................... 171
Wiper Activated........................................ 171
Heated Seats......................................... 11, 12
Heated Steering Wheel............................... 161
Heater......................................................... 182
Heater......................................................... 186
Highbeam On Light..................................... 210
Highway Hypnosis....................................... 299
Hill and Mountain Roads............................. 300
Hood
Checking Things Under............................ 332
Release................................................... 333
Horn............................................................ 160
How to Use This Manual ................................ 4
How to Wear Safety Belts Properly............... 25
487

V
Vehicle
Control..................................................... 280
Damage Warnings....................................... 5
Loading.................................................... 307
Symbols...................................................... 5
Vehicle Customization, DIC......................... 231
Vehicle Data Collection and
Event Data Recorders.............................. 471
Vehicle Identication
Number (VIN).......................................... 427
Service Parts Identication Label.............. 427
Ventilation Adjustment.................................. 192
Visors.......................................................... 109
W
Warning Lights, Gages and Indicators......... 194
Warnings
DIC Warnings and Messages................... 221
Hazard Warning Flashers......................... 160
Other Warning Devices............................ 160
Safety and Symbols..................................... 4
Vehicle Damage.......................................... 5Wheels
Alignment and Tire Balance..................... 404
Different Size........................................... 402
Replacement............................................ 404
Where to Put the Restraint............................ 53
Windows..................................................... 108
Power...................................................... 109
Windshield
Rainsense™ II Wipers............................. 165
Washer.................................................... 166
Washer Fluid........................................... 365
Wiper Blade Replacement........................ 383
Wiper Blades, Cleaning............................ 423
Wipers..................................................... 164
Winter Driving............................................. 302
Wiper Activated Headlamps ......................... 171X
XM Radio Messages................................... 269
XM™ Satellite Radio Antenna System......... 274
Y
Your Vehicle and the Environment............... 440
496
