Page 1 of 496
Seats and Restraint Systems
........................ 7
Front Seats
.............................................. 9
Rear Seats
............................................. 19
Safety Belts
............................................ 19
Child Restraints
...................................... 43
Airbag System
........................................ 70
Restraint System Check
......................... 88
Features and Controls
................................. 91
Keys
....................................................... 93
Doors and Locks
.................................. 102
Windows
............................................... 108
Theft-Deterrent Systems
....................... 110
Starting and Operating Your Vehicle
..... 113
Mirrors
.................................................. 129
OnStar
®System
................................... 135
Universal Home Remote System
.......... 139
Storage Areas
...................................... 151
Sunroof
................................................ 153Instrument Panel
........................................ 155
Instrument Panel Overview
................... 158
Climate Controls
................................... 182
Warning Lights, Gages, and Indicators
.... 194
Driver Information Center (DIC)
............ 212
Audio System(s)
................................... 241
Driving Your Vehicle
.................................. 275
Your Driving, the Road, and
Your Vehicle
..................................... 276
Towing
................................................. 313
Service and Appearance Care
................... 323
Service
................................................. 325
Fuel
...................................................... 327
Checking Things Under the Hood
......... 332
Headlamp Aiming
................................. 377
Bulb Replacement
................................ 380
Windshield Wiper Blade Replacement
.... 383
2007 Buick Lucerne Owner ManualM
1
Page 91 of 496
Keys.............................................................. 93
Remote Keyless Entry (RKE) System.......... 94
Remote Keyless Entry (RKE) System
Operation................................................. 95
Doors and Locks........................................ 102
Door Locks................................................ 102
Power Door Locks..................................... 103
Delayed Locking........................................ 103
Programmable Automatic Door Locks........ 104
Rear Door Security Locks......................... 104
Lockout Protection..................................... 105
Trunk........................................................ 106
Windows...................................................... 108
Power Windows........................................ 109
Sun Visors................................................ 109
Theft-Deterrent Systems............................. 110
Content Theft-Deterrent............................. 110
PASS-Key
®III+......................................... 111
PASS-Key®III+ Operation......................... 112
Starting and Operating Your Vehicle......... 113
New Vehicle Break-In................................ 113
Ignition Positions....................................... 114
Retained Accessory Power (RAP)............. 115Starting the Engine.................................... 116
Engine Coolant Heater.............................. 117
Automatic Transaxle Operation.................. 119
Parking Brake........................................... 122
Shifting Into Park (P) ................................. 123
Shifting Out of Park (P)............................. 125
Parking Over Things That Burn................. 126
Engine Exhaust......................................... 127
Running the Engine While Parked............. 128
Mirrors......................................................... 129
Manual Rearview Mirror............................. 129
Manual Rearview Mirror with OnStar
®....... 129
Automatic Dimming Rearview Mirror
with OnStar
®.......................................... 129
Automatic Dimming Rearview Mirror with
OnStar
®and Compass........................... 130
Automatic Dimming Rearview Mirror
with Compass........................................ 132
Outside Power Mirrors............................... 133
Outside Curb View Assist Mirror................ 134
Outside Convex Mirror............................... 134
Outside Automatic Dimming
Heated Mirror......................................... 135
OnStar
®System.......................................... 135
Section 2 Features and Controls
91
Page 129 of 496
Mirrors
Manual Rearview Mirror
While sitting in a comfortable driving position,
adjust the mirror so you can see clearly behind your
vehicle. Grip the mirror in the center to move it up or
down and side to side. The control at the bottom of
the mirror is the day/night feature that allows
adjustment to the mirror so that the glare of
headlamps from behind is reduced. Push the
control for daytime use; pull it for night use.
Manual Rearview Mirror with
OnStar®
Mirror Operation
Your vehicle may have a manual rearview mirror
with the OnStar®System. You can adjust the mirror
for day or night driving. Press the tab forward for
day driving. Pull the tab back for night driving.
There are also three OnStar
®buttons located at
the bottom of the mirror. See your dealer for more
information on the system and how to subscribe
to OnStar
®. SeeOnStar®System on page 135for
more information about the services OnStar®
provides.
Cleaning the Mirror
When cleaning the mirror, use a paper towel or
similar material dampened with glass cleaner.
Do not spray glass cleaner directly on the mirror
housing.
Automatic Dimming Rearview Mirror
with OnStar
®
Your vehicle may have an automatic-dimming
rearview mirror with the OnStar®system.
There are three additional buttons for the OnStar
®
system. See your dealer for more information
on the system and how to subscribe to OnStar®.
SeeOnStar®System on page 135for more
information about the services OnStar®provides.
O(On/Off):This is the on/off button.
129
Page 130 of 496
Automatic Dimming Mirror Operation
The automatic dimming mirror function is turned on
automatically each time the ignition is started. To
operate the automatic dimming mirror, do the
following:
1. Make sure the indicator light, located to the left
of the on/off button, is lit. If it’s not, press and
hold the on/off button until the light comes on,
indicating that the mirror is in automatic
dimming mode.
2. Turn off the automatic dimming mirror function
by pressing and holding the on/off button until
the indicator light turns off.
Automatic Dimming Rearview Mirror
with OnStar®and Compass
Your vehicle may have an automatic-dimming
rearview mirror with a compass and the OnStar®
system.
There are three additional buttons for the OnStar®
system. See your dealer for more information on
the system and how to subscribe to OnStar®. See
OnStar®System on page 135for more information
about the services OnStar®provides.
O(On/Off):This is the on/off button.
Automatic Dimming Mirror Operation
The automatic dimming mirror function is turned on
automatically each time the ignition is started.
To operate the automatic dimming mirror, do the
following:
1. Make sure the indicator light, located to the
left of the on/off button, is lit. If it’s not, press
and hold the on/off button until the light
comes on, indicating that the mirror is in
automatic dimming mode.
2. Turn off the automatic dimming mirror function
by pressing and holding the on/off button until
the indicator light turns off.
Compass Operation
Press the on/off button once to turn the compass
on or off.
There is a compass display in the window in the
upper right corner of the mirror face. The compass
displays a maximum of two characters. For
example, “NE” is displayed for north-east.
130
Page 132 of 496
Automatic Dimming Rearview Mirror
with Compass
Your vehicle may have an automatic dimming
rearview mirror with a compass. This feature
enables the mirror to sense nighttime glare from
vehicle headlamps from behind and automatically
dim to reduce the glare to a safe level. The
automatic dimming feature turns on each time the
vehicle is started.
O(On/Off):This is the on/off button.
Automatic Dimming Mirror Operation
The automatic dimming mirror function is turned on
automatically each time the ignition is started. To
operate the automatic dimming mirror, do the
following:
1. Make sure the indicator light, located to the left
of the on/off button, is on. If it’s not, press and
hold the on/off button until the light comes on,
indicating that the mirror is in automatic
dimming mode.
2. Turn off the automatic dimming mirror function
by pressing and holding the on/off button until
the indicator light turns off.
Compass Operation
Press the on/off button once to turn the compass
on or off.
When the ignition and the compass feature are
on, the compass will show two character boxes for
a few seconds. After a few seconds, the mirror
will display the current compass direction.
Compass Calibration
If after a few seconds the display does not show a
compass direction, (N for North for example), there
may be a strong magnetic eld interfering with the
compass. Such interference may be caused by a
magnetic antenna mount, note pad holder, or
similar object. If the letter C or CAL appears in the
compass window, the compass may need to be
reset or calibrated.
The compass can be calibrated by driving the
vehicle in circles at 5 mph (8 km/h) or less until the
display reads a direction.
132
Page 133 of 496
Compass Variance
Compass variance is the difference between earth’s
magnetic north and true geographic north. If the
mirror is not adjusted for compass variance, the
compass could give false readings.
The mirror is set in zone eight upon leaving the
factory. It will be necessary to adjust the compass
to compensate for compass variance if the
vehicle is driven outside zone eight. Under
certain circumstances, such as a long distance,
cross-country trip, it will be necessary to adjust the
compass variance.
To adjust for compass variance, do the following:
1. Find your current location and variance
zone number on the zone map. SeeAutomatic
Dimming Rearview Mirror with OnStar
®and
Compass on page 130for map information.
2. Press and hold the on/off button until a zone
number appears on the display.
3. Once the zone number appears on the display,
press the on/off button quickly until you reach
the correct zone number. If C or CAL appears
in the compass window, the compass may
need calibration. See “Compass Calibration”
listed previously.
Outside Power Mirrors
The controls for the
outside power mirrors
are located on the
driver’s door armrest.
Press the left or right side of the selector switch
located beneath the control pad to choose the left
or right mirror.
To adjust the mirror, press one of the four arrows
located on the control pad to move the mirror
in the direction you want it to go. Adjust each
outside mirror so that you can see a little of your
vehicle, and the area behind your vehicle.
The mirrors may also have an arrow that ashes
when the turn signal is used. SeeTurn and
Lane-Change Signals on page 162.
133
Page 135 of 496
Outside Automatic Dimming
Heated Mirror
If you have this feature, the outside driver’s mirror
will adjust for the glare of headlamps behind you.
When you operate the rear window defogger, the
heated driver’s and passenger’s outside rearview
mirrors are warmed to help clear them of ice and
snow. See “Rear Window Defogger” underClimate
Control System on page 182orDual Automatic
Climate Control System on page 186for more
information.
Your vehicle may also have a turn signal indicator
on the mirror. An arrow on the outside rearview
mirror will ash in the direction of the turn or lane
change. SeeTurn and Lane-Change Signals
on page 162for more information.
OnStar®System
OnStar®uses several innovative technologies and
live advisors to provide you with a wide range of
safety, security, information, and convenience
services. If your airbags deploy, the system is
designed to make an automatic call to OnStar
®
Emergency advisors who can request emergency
services be sent to your location. If you lock
your keys in the vehicle, call OnStar
®at
1-888-4-ONSTAR and they can send a signal to
unlock your doors. If you need roadside assistance,
press the OnStar
®button and they can contact
Roadside Service for you.
135
Page 165 of 496

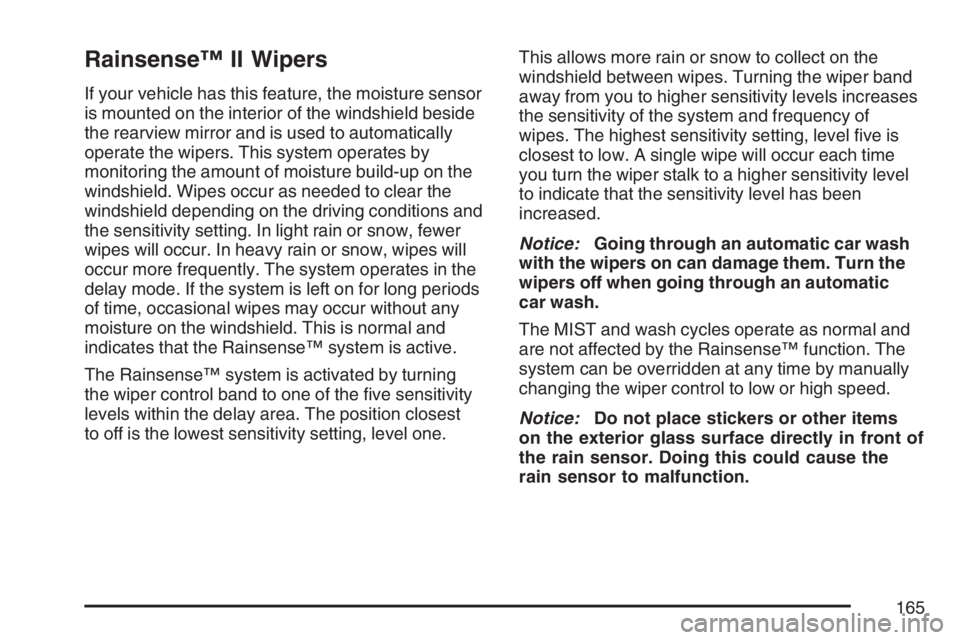

Rainsense™ II Wipers
If your vehicle has this feature, the moisture sensor
is mounted on the interior of the windshield beside
the rearview mirror and is used to automatically
operate the wipers. This system operates by
monitoring the amount of moisture build-up on the
windshield. Wipes occur as needed to clear the
windshield depending on the driving conditions and
the sensitivity setting. In light rain or snow, fewer
wipes will occur. In heavy rain or snow, wipes will
occur more frequently. The system operates in the
delay mode. If the system is left on for long periods
of time, occasional wipes may occur without any
moisture on the windshield. This is normal and
indicates that the Rainsense™ system is active.
The Rainsense™ system is activated by turning
the wiper control band to one of the ve sensitivity
levels within the delay area. The position closest
to off is the lowest sensitivity setting, level one.This allows more rain or snow to collect on the
windshield between wipes. Turning the wiper band
away from you to higher sensitivity levels increases
the sensitivity of the system and frequency of
wipes. The highest sensitivity setting, level ve is
closest to low. A single wipe will occur each time
you turn the wiper stalk to a higher sensitivity level
to indicate that the sensitivity level has been
increased.
Notice:Going through an automatic car wash
with the wipers on can damage them. Turn the
wipers off when going through an automatic
car wash.
The MIST and wash cycles operate as normal and
are not affected by the Rainsense™ function. The
system can be overridden at any time by manually
changing the wiper control to low or high speed.
Notice:Do not place stickers or other items
on the exterior glass surface directly in front of
the rain sensor. Doing this could cause the
rain sensor to malfunction.
165
Page 185 of 496

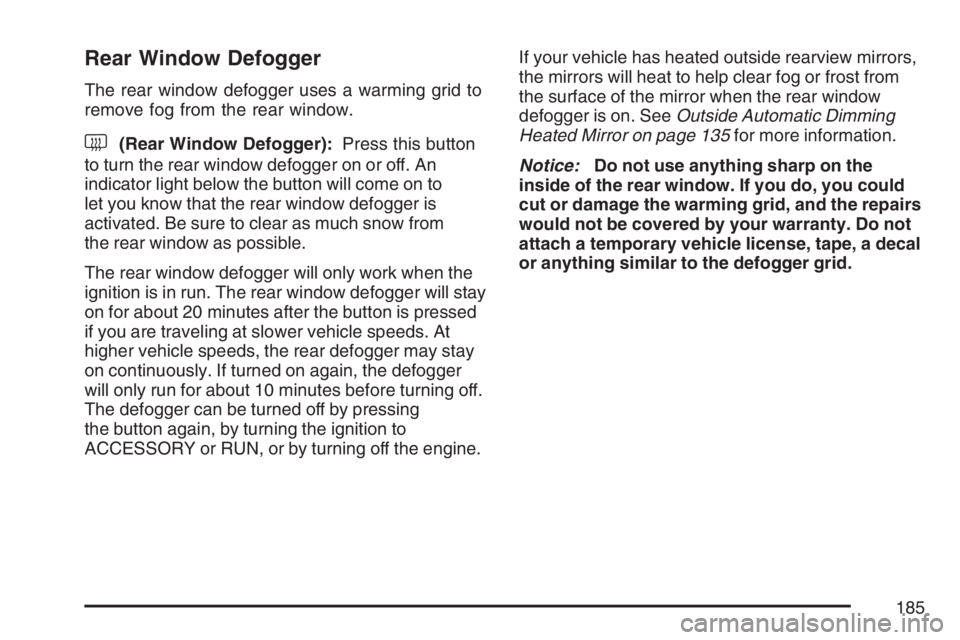

Rear Window Defogger
The rear window defogger uses a warming grid to
remove fog from the rear window.
<(Rear Window Defogger):Press this button
to turn the rear window defogger on or off. An
indicator light below the button will come on to
let you know that the rear window defogger is
activated. Be sure to clear as much snow from
the rear window as possible.
The rear window defogger will only work when the
ignition is in run. The rear window defogger will stay
on for about 20 minutes after the button is pressed
if you are traveling at slower vehicle speeds. At
higher vehicle speeds, the rear defogger may stay
on continuously. If turned on again, the defogger
will only run for about 10 minutes before turning off.
The defogger can be turned off by pressing
the button again, by turning the ignition to
ACCESSORY or RUN, or by turning off the engine.If your vehicle has heated outside rearview mirrors,
the mirrors will heat to help clear fog or frost from
the surface of the mirror when the rear window
defogger is on. SeeOutside Automatic Dimming
Heated Mirror on page 135for more information.
Notice:Do not use anything sharp on the
inside of the rear window. If you do, you could
cut or damage the warming grid, and the repairs
would not be covered by your warranty. Do not
attach a temporary vehicle license, tape, a decal
or anything similar to the defogger grid.
185
Page 191 of 496

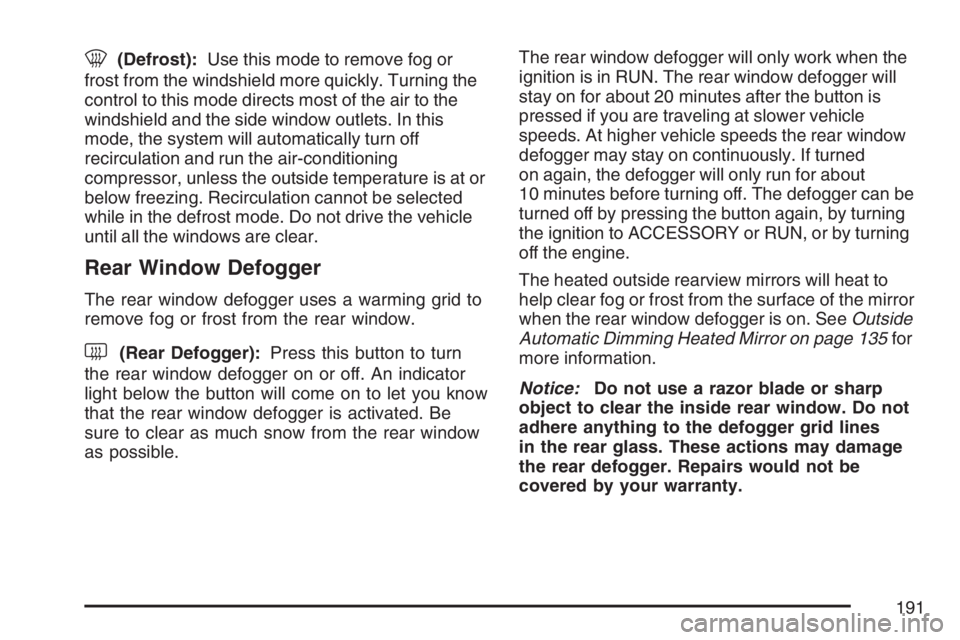

0(Defrost):Use this mode to remove fog or
frost from the windshield more quickly. Turning the
control to this mode directs most of the air to the
windshield and the side window outlets. In this
mode, the system will automatically turn off
recirculation and run the air-conditioning
compressor, unless the outside temperature is at or
below freezing. Recirculation cannot be selected
while in the defrost mode. Do not drive the vehicle
until all the windows are clear.
Rear Window Defogger
The rear window defogger uses a warming grid to
remove fog or frost from the rear window.
<(Rear Defogger):Press this button to turn
the rear window defogger on or off. An indicator
light below the button will come on to let you know
that the rear window defogger is activated. Be
sure to clear as much snow from the rear window
as possible.The rear window defogger will only work when the
ignition is in RUN. The rear window defogger will
stay on for about 20 minutes after the button is
pressed if you are traveling at slower vehicle
speeds. At higher vehicle speeds the rear window
defogger may stay on continuously. If turned
on again, the defogger will only run for about
10 minutes before turning off. The defogger can be
turned off by pressing the button again, by turning
the ignition to ACCESSORY or RUN, or by turning
off the engine.
The heated outside rearview mirrors will heat to
help clear fog or frost from the surface of the mirror
when the rear window defogger is on. SeeOutside
Automatic Dimming Heated Mirror on page 135for
more information.
Notice:Do not use a razor blade or sharp
object to clear the inside rear window. Do not
adhere anything to the defogger grid lines
in the rear glass. These actions may damage
the rear defogger. Repairs would not be
covered by your warranty.
191
