Black plate (6,1)Buick Lucerne Owner Manual - 2011
Replace as needed.An Emission Control Service.
The U.S. Environmental Protection Agency or the
California Air Resources Board has determined
that the failure to perform this maintenance item
will not nullify the emission warranty or limit
recall liability prior to the completion of the
vehicle's useful life. We, however, urge that all
recommended maintenance services be performed
at the indicated intervals and the maintenance be
recorded.
First Engine Oil Change After Every
160 000 km/100,000 Miles
.Automatic transmission fluid change (normal
service). See Automatic Transmission Fluidon
page 6‑24.
.Spark plug replacement and spark plug wires
inspection. An Emission Control Service.
First Engine Oil Change After Every
240 000 km/150,000 Miles
.Engine cooling system drain, flush, and refill (or
every five years, whichever occurs first). See
Engine Coolant (4.6L Engine)
on page 6‑28or
Engine Coolant (3.9L Engine)on page 6‑31. An
Emission Control Service.
.Engine drive belts inspection for fraying, excessive
cracks, or obvious damage (or every 10 years,
whichever occurs first). Replace, if needed.
Owner Checks and Services
Starter Switch Check
{WARNING:
When you are doing this inspection, the vehicle
could move suddenly. If the vehicle moves, you or
others could be injured.
1. Before starting this check, be sure there is enough room around the vehicle.
2. Firmly apply both the parking brake and the regular brake. See Parking Brake on page 3‑26.
Do not use the accelerator pedal, and be ready to
turn off the engine immediately if it starts.
3. Try to start the engine in each gear. The vehicle should start only in P (Park) or N (Neutral). If the
vehicle starts in any other position, contact your
dealer for service.
7-6

Black plate (7,1)Buick Lucerne Owner Manual - 2011
Automatic Transmission Shift Lock
Control Function Check
{WARNING:
When you are doing this inspection, the vehicle
could move suddenly. If the vehicle moves, you or
others could be injured.
1. Before starting this check, be sure there is enough room around the vehicle. It should be parked on a
level surface.
2. Firmly apply the parking brake. See Parking Brake
on page 3‑26.
Be ready to apply the regular brake immediately if
the vehicle begins to move. 3. With the engine off, turn the ignition to ON/RUN,
but do not start the engine. Without applying the
regular brake, try to move the shift lever out of
P (Park) with normal effort. If the shift lever moves
out of P (Park), contact your dealer for service.
Ignition Transmission Lock Check
While parked, and with the parking brake set, try to turn
the ignition to LOCK/OFF in each shift lever position.
.The ignition should turn to LOCK/OFF only when
the shift lever is in P (Park).
.The ignition key should come out only in
LOCK/OFF.
Contact your dealer if service is required.
7-7

Black plate (8,1)Buick Lucerne Owner Manual - 2011
Parking Brake and Automatic
Transmission P (Park) Mechanism
Check
{WARNING:
When you are doing this check, the vehicle could
begin to move. You or others could be injured and
property could be damaged. Make sure there is
room in front of the vehicle in case it begins to
roll. Be ready to apply the regular brake at once
should the vehicle begin to move.
Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake, set the
parking brake.
.To check the parking brake's holding ability: With
the engine running and the transmission in
N (Neutral), slowly remove foot pressure from the
regular brake pedal. Do this until the vehicle is held
by the parking brake only.
.To check the P (Park) mechanism's holding ability:
With the engine running, shift to P (Park). Then
release the parking brake followed by the regular
brake.
Contact your dealer if service is required.
Recommended Fluids and
Lubricants
Fluids and lubricants identified below by name, part
number, or specification can be obtained from your
dealer.
Usage Fluid/Lubricant
Engine Oil The engine requires engine oil
approved to the dexos specification.
Oils meeting this specification can be
identified with the dexos certification
mark. Look for and use only an
engine oil that displays the dexos
certification mark of the proper
viscosity grade. See
Engine Oil
on
page 6‑18.
Engine Coolant 50/50 mixture of clean, drinkable
water and use only DEX-COOL
Coolant. See
Engine Coolant
(4.6L Engine)
on page 6‑28or
Engine Coolant (3.9L Engine)on
page 6‑31.
Hydraulic Brake System DOT 3 Hydraulic Brake Fluid
(GM Part No. 88862806, in
Canada 88862807).
7-8

Black plate (10,1)Buick Lucerne Owner Manual - 2011

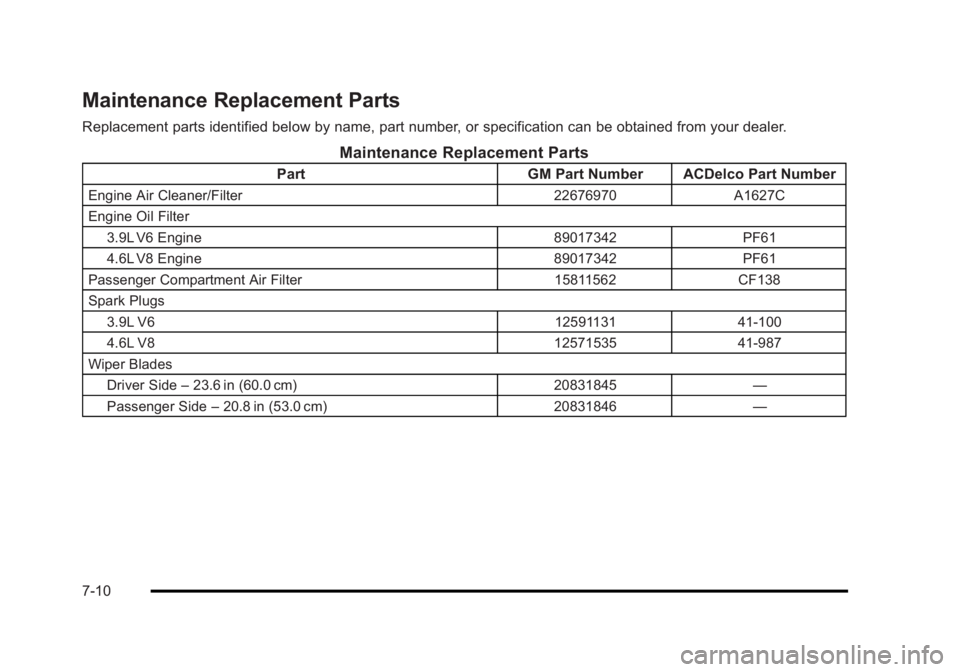

Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.
Maintenance Replacement Parts
PartGM Part Number ACDelco Part Number
Engine Air Cleaner/Filter 22676970A1627C
Engine Oil Filter 3.9L V6 Engine 89017342PF61
4.6L V8 Engine 89017342PF61
Passenger Compartment Air Filter 15811562CF138
Spark Plugs 3.9L V6 1259113141-100
4.6L V8 1257153541-987
Wiper Blades Driver Side –23.6 in (60.0 cm) 20831845—
Passenger Side –20.8 in (53.0 cm) 20831846—
7-10

Black plate (11,1)Buick Lucerne Owner Manual - 2011

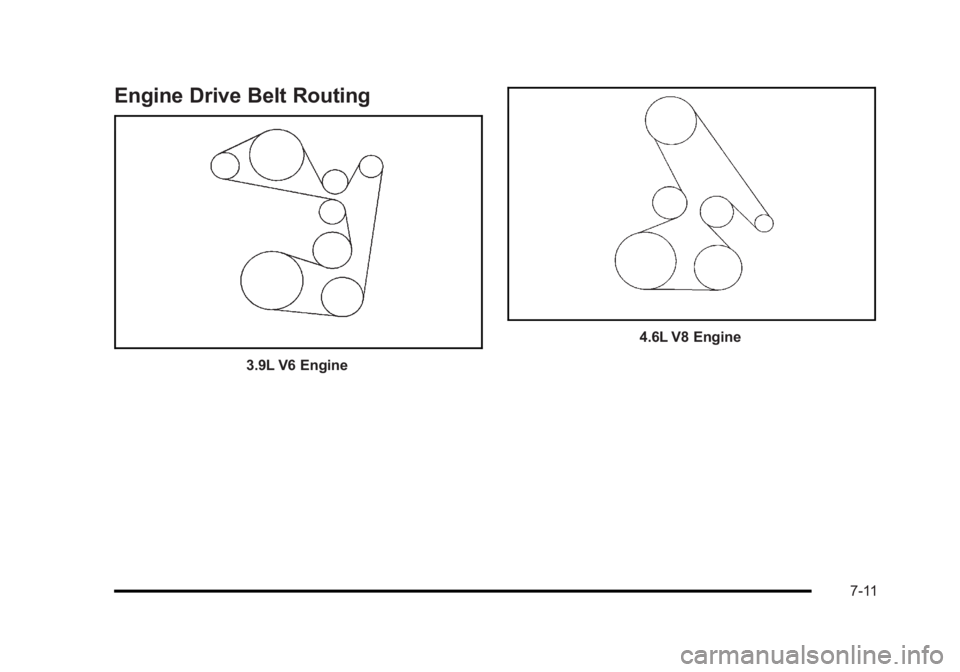

Engine Drive Belt Routing
3.9L V6 Engine
4.6L V8 Engine
7-11

Black plate (14,1)Buick Lucerne Owner Manual - 2011

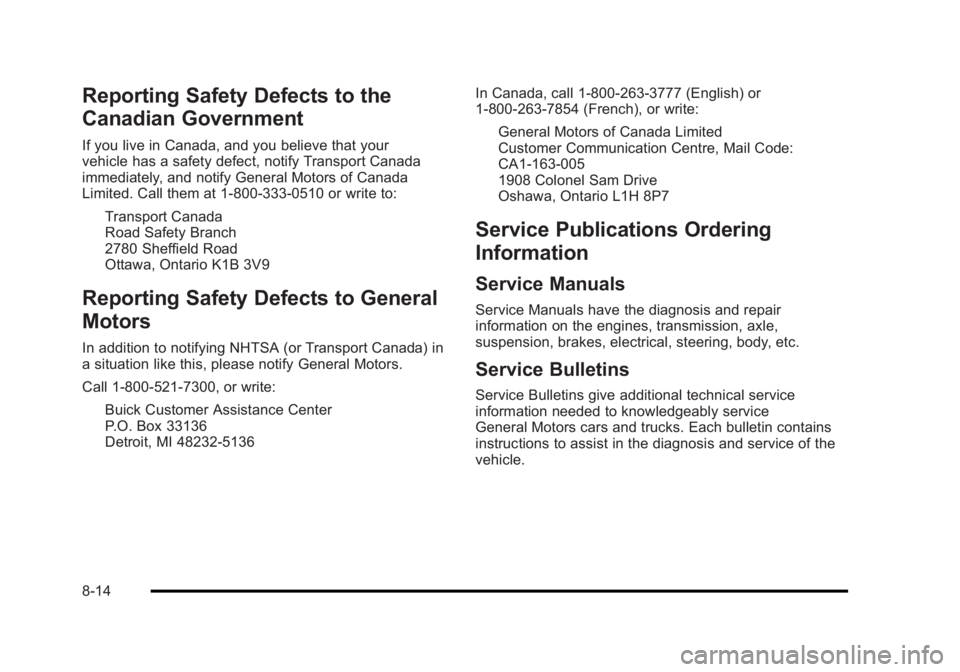

Reporting Safety Defects to the
Canadian Government
If you live in Canada, and you believe that your
vehicle has a safety defect, notify Transport Canada
immediately, and notify General Motors of Canada
Limited. Call them at 1-800-333-0510 or write to:Transport Canada
Road Safety Branch
2780 Sheffield Road
Ottawa, Ontario K1B 3V9
Reporting Safety Defects to General
Motors
In addition to notifying NHTSA (or Transport Canada) in
a situation like this, please notify General Motors.
Call 1-800-521-7300, or write:Buick Customer Assistance Center
P.O. Box 33136
Detroit, MI 48232-5136 In Canada, call 1-800-263-3777 (English) or
1-800-263-7854 (French), or write:
General Motors of Canada Limited
Customer Communication Centre, Mail Code:
CA1-163-005
1908 Colonel Sam Drive
Oshawa, Ontario L1H 8P7
Service Publications Ordering
Information
Service Manuals
Service Manuals have the diagnosis and repair
information on the engines, transmission, axle,
suspension, brakes, electrical, steering, body, etc.
Service Bulletins
Service Bulletins give additional technical service
information needed to knowledgeably service
General Motors cars and trucks. Each bulletin contains
instructions to assist in the diagnosis and service of the
vehicle.
8-14

Black plate (16,1)Buick Lucerne Owner Manual - 2011

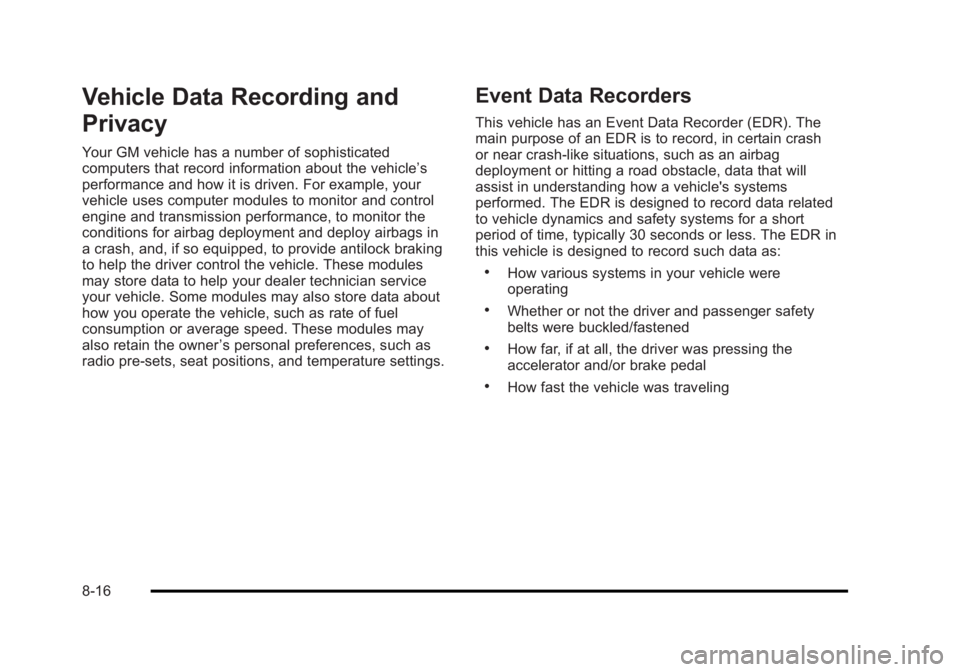

Vehicle Data Recording and
Privacy
Your GM vehicle has a number of sophisticated
computers that record information about the vehicle’s
performance and how it is driven. For example, your
vehicle uses computer modules to monitor and control
engine and transmission performance, to monitor the
conditions for airbag deployment and deploy airbags in
a crash, and, if so equipped, to provide antilock braking
to help the driver control the vehicle. These modules
may store data to help your dealer technician service
your vehicle. Some modules may also store data about
how you operate the vehicle, such as rate of fuel
consumption or average speed. These modules may
also retain the owner’s personal preferences, such as
radio pre-sets, seat positions, and temperature settings.
Event Data Recorders
This vehicle has an Event Data Recorder (EDR). The
main purpose of an EDR is to record, in certain crash
or near crash-like situations, such as an airbag
deployment or hitting a road obstacle, data that will
assist in understanding how a vehicle's systems
performed. The EDR is designed to record data related
to vehicle dynamics and safety systems for a short
period of time, typically 30 seconds or less. The EDR in
this vehicle is designed to record such data as:
.How various systems in your vehicle were
operating
.Whether or not the driver and passenger safety
belts were buckled/fastened
.How far, if at all, the driver was pressing the
accelerator and/or brake pedal
.How fast the vehicle was traveling
8-16

Black plate (1,1)Buick Lucerne Owner Manual - 2011
A
Accessories and Modifications . . . . . . . . . . . . . . . . . . . . . . .6-3
Accessory Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21
Accessory Power Outlets . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
Add-On Electrical Equipment . . . . . . . . . . . . . . . . . . . . . 6-107
Additives, Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7
Air Cleaner/Filter, Engine . . . . . . . . . . . . . . . . . . . . . . . . . . 6-23
Air Conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
Air Filter, Passenger Compartment . . . . . . . . . . . . . . . . 4-25
AirbagAdding Equipment to Your Airbag-Equipped
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-69
Airbag System How Does an Airbag Restrain? . . . . . . . . . . . . . . . . . . . 2-62
Passenger Sensing System . . . . . . . . . . . . . . . . . . . . . . 2-64
Servicing Your Airbag-Equipped Vehicle . . . . . . . . . . 2-68
What Makes an Airbag Inflate? . . . . . . . . . . . . . . . . . . . 2-61
What Will You See After an Airbag Inflates? . . . . . . 2-62
When Should an Airbag Inflate? . . . . . . . . . . . . . . . . . . 2-60
Where Are the Airbags? . . . . . . . . . . . . . . . . . . . . . . . . . . 2-57
Airbags Passenger Status Indicator . . . . . . . . . . . . . . . . . . . . . . . 4-31
Readiness Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-30
System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-55
Antenna
Backglass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-97
Antenna, XM™ Satellite Radio Antenna System . . . 4-98 Antilock Brake System (ABS) . . . . . . . . . . . . . . . . . . . . . . . .5-4
Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-33
Appearance Care Aluminum or Chrome-Plated Wheels . . . . . . . . . . . .6-104
Care of Safety Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-101
Chemical Paint Spotting . . . . . . . . . . . . . . . . . . . . . . . . .6-106
Cleaning Exterior Lamps/Lenses . . . . . . . . . . . . . . . .6-102
Fabric/Carpet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-99
Finish Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-102
Finish Damage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-105
Instrument Panel, Vinyl, and Other PlasticSurfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-101
Interior Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-98
Leather . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-100
Sheet Metal Damage . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-105
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-105
Underbody Maintenance . . . . . . . . . . . . . . . . . . . . . . . . .6-105
Washing Your Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . .6-102
Weatherstrips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-101
Windshield and Wiper Blades . . . . . . . . . . . . . . . . . . . .6-103
Ashtray(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
Assistance Program, Roadside . . . . . . . . . . . . . . . . . . . . . .8-7
Audio System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-67
Audio Steering Wheel Controls . . . . . . . . . . . . . . . . . . . 4-94
Navigation/Radio System, see NavigationManual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-85
Radio Reception . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-97
i - 1

Black plate (2,1)Buick Lucerne Owner Manual - 2011
Audio System (cont.)Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-68
Theft-Deterrent Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-94
XM™ Satellite Radio Antenna System . . . . . . . . . . . . 4-98
Audio System(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-69
Automatic Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-24
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-24
B
Backglass Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-97
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-42Electric Power Management . . . . . . . . . . . . . . . . . . . . . . 4-14
Exterior Lighting Battery Saver . . . . . . . . . . . . . . . . . . . 4-12
Inadvertent Power Saver . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
Run-Down Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
Belt Routing, Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-11
Bluetooth
®. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-86
Brake Emergencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-39 Antilock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-26
System Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-32
Braking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-3
Braking in Emergencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-5
Break-In, New Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19 Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-55
Fog Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
Halogen Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-52
Headlamp Aiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-49
Headlamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-52
License Plate Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-55
Taillamps and Back-Up Lamps . . . . . . . . . . . . . . . . . . . . 6-54
Taillamps, Turn Signal, Stoplamps and
Sidemarker Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-52
Buying New Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-72
C
Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12, 3-32, 4-47
California Perchlorate Materials Requirements . . . . . . . . . . . . . . . 6-4
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
California Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-6
Canadian Owners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii
Capacities and Specifications . . . . . . . . . . . . . . . . . . . . . 6-116
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-30
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
Winter Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-15
Care of Safety Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-101
CD, MP3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-78
Center Console Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-49
i - 2

Black plate (3,1)Buick Lucerne Owner Manual - 2011
Center Flex Storage Unit . . . . . . . . . . . . . . . . . . . . . . . . . . 3-49
Center Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
Chains, Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-78
ChargingSystem Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-32
Check Engine Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-37
Checking Things Under the Hood . . . . . . . . . . . . . . . . . . 6-12
Chemical Paint Spotting . . . . . . . . . . . . . . . . . . . . . . . . . . 6-106
Child Restraints Infants and Young Children . . . . . . . . . . . . . . . . . . . . . . . 2-36
Lower Anchors and Tethers for Children . . . . . . . . . . 2-42
Older Children . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-33
Securing a Child Restraint in a Rear Seat
Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-49
Securing a Child Restraint in the Center Front
Seat Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-51
Securing a Child Restraint in the Right Front Seat Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-52
Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-39
Circuit Breakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-108
Cleaning
Aluminum or Chrome-Plated Wheels . . . . . . . . . . . .6-104
Exterior Lamps/Lenses . . . . . . . . . . . . . . . . . . . . . . . . . .6-102
Fabric/Carpet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-99
Finish Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-102
Instrument Panel, Vinyl, and Other PlasticSurfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-101 Cleaning (cont.)
Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-98
Leather . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-100
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-105
Underbody Maintenance . . . . . . . . . . . . . . . . . . . . . . . . .6-105
Washing Your Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . .6-102
Weatherstrips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-101
Windshield and Wiper Blades . . . . . . . . . . . . . . . . . . . .6-103
Climate Control System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
Outlet Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25
Climate Control Systems Dual Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20
Climate Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14
Clock, Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-68
Collision Damage Repair . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11
Compact Spare Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-97
Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12, 3-32, 4-47
Compressor Kit, Tire Sealant . . . . . . . . . . . . . . . . . . . . . . 6-80
Content Theft-Deterrent . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
Control of a Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-3
Convenience Net . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-51
Coolant Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-28, 6-31
Engine Temperature Gauge . . . . . . . . . . . . . . . . . . . . . . 4-36
Engine Temperature Warning Light . . . . . . . . . . . . . . . 4-36
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-27
Cornering Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
Courtesy Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
i - 3
