BUICK PARK AVENUE 1993 Owners Manual

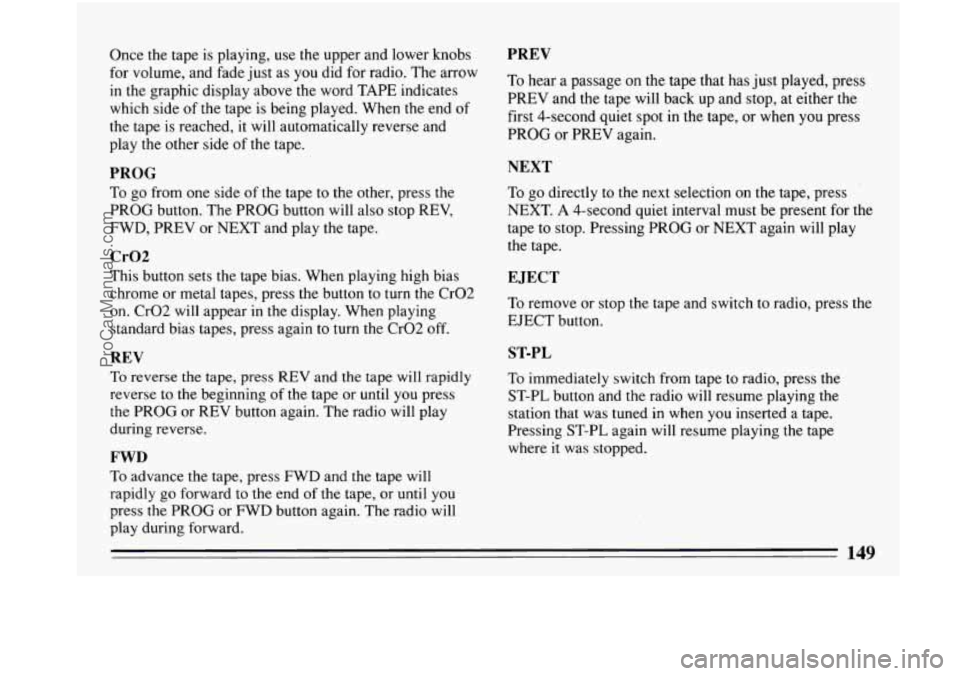

Once the tape is playing, use the upper and lower knobs
for volume, and fade just
as you did for radio. The arrow
in the graphic.display above the word TAPE indicates
which side of the tape is being played. When the end
of
the tape is reached, it will automatically reverse and
play the other side of the tape.
PROG
To go from one side of the tape to the other, press the
PROG button. The PROG button will also stop REV,
FWD, PREV or NEXT and play the tape,
Cr02
This button sets the tape bias. When playing high bias
chrome or metal tapes, press the button to turn the Cr02
on. Cr02 will appear
in the display. When playing
standard bias tapes, press again to turn the Cr02 off.
REV
To reverse the tape, press REV and the tape will rapidly
reverse
to the beginning of the tape or until you press
the PROG or REV button again. The radio will play
during reverse.
FWD
To advance the tape, press FWD and the tape will
rapidly
go forward to the end of the tape, or until you
press the PROG or FWD button again. The radio will
play during forward.
PREV
To hear a passage on the tape that has just played, press
PREV and the tape will back up and stop, at either the
first 4-second quiet spot in the tape, or when you press
PROG or PREV again.
NEXT
To go directly to the next selection on the tape, press
NEXT.
A 4-second quiet interval must be present for the
tape to stop. Pressing PROG or NEXT again will play
the tape.
EJECT
To remove or stop the tape and switch to radio, press the
EJECT button.
ST-PL
To immediately switch from tape to radio, press the
ST-PL button and the radio will resume playing the
station that was tuned in when you inserted a tape.
Pressing
ST-PL again will resume playing the tape
where it was stopped.
ProCarManuals.com

4 'W .r.

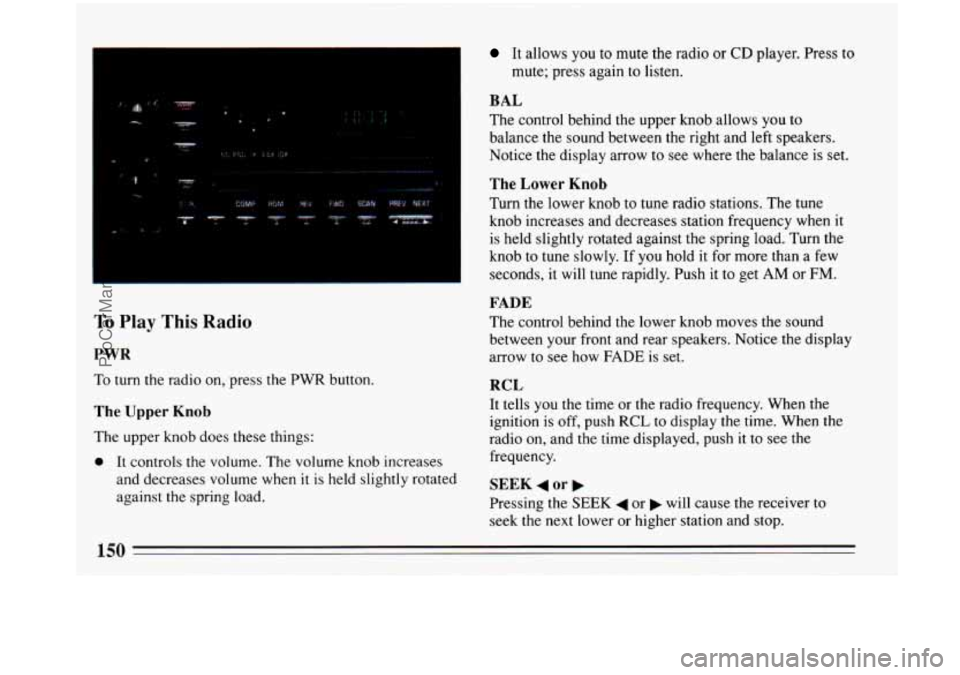

To Play This Radio
PWR
To turn the radio on, press the PWR button.
The Upper Knob
The upper knob does these things:
0 It controls the volume. The volume knob increases
and decreases volume when it is held slightly rotated
against the spring load.
It allows you to mute the radio or CD player. Press to
mute; press again to listen.
BAL
The control behind the upper knob allows you to
balance the sound between the right and left speakers.
Notice
the display arrow to see where the balance is set.
The Lower Knob
Turn the lower knob to tune radio stations. The tune
knob increases and decreases station frequency when it
is held slightly rotated against the spring load. Turn the
knob to tune slowly. If you hold it for more than a few
seconds, it will tune rapidly. Push it to get
AM or FM.
FADE
The control behind the lower knob moves the sound
between your front and rear speakers. Notice the display
arrow to see how FADE is set.
RCL
It tells you the time or the radio frequency. When the
ignition is
off, push RCL to display the time. When the
radio on, and the time displayed, push it to see the
frequency.
SEEK 4 or
Pressing the SEEK 4 or will cause the receiver to
seek the next lower or higher station and stop.
ProCarManuals.com

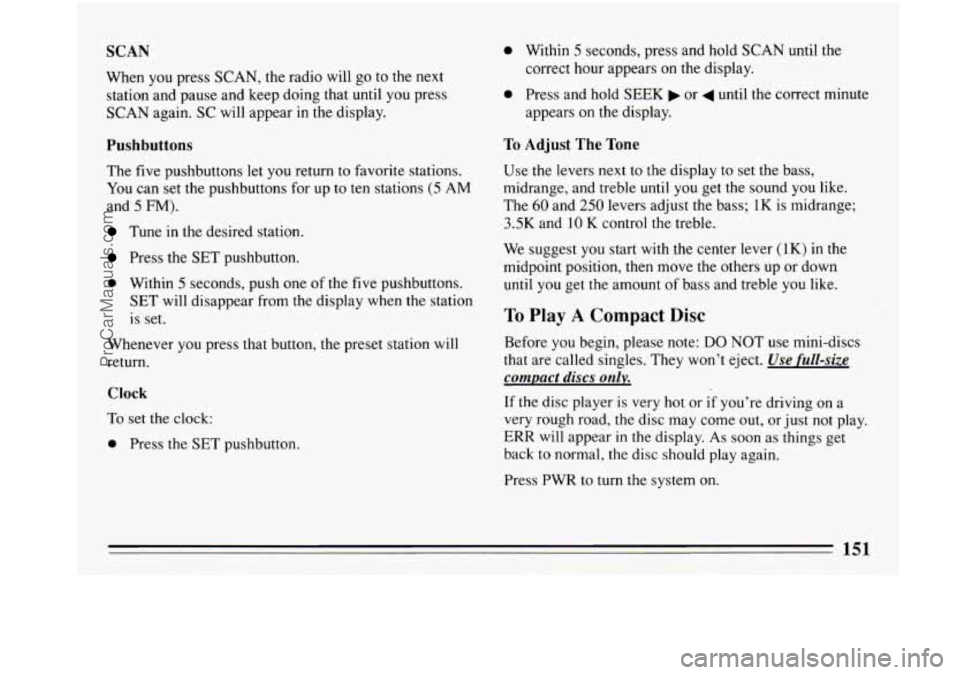

SCAN
When you press SCAN, the radio will go to the next
station and pause and keep doing that until you press
SCAN again. SC will appear in the display.
Pushbuttons
The five pushbuttons let you return to favorite stations.
You can set the pushbuttons for up to ten stations (5 AM
and 5 FM).
Tune in the desired station.
Press the SET pushbutton.
0 Within 5 seconds, push one of the five pushbuttons.
SET will disappear from the display when the station
is set.
Whenever
you press that button, the preset station will
return.
Clock
To set the clock:
0 Press the SET pushbutton.
0 Within 5 seconds, press and hold SCAN until the
correct hour appears on the display.
0 Press and hold SEEK or 4 until the correct minute
appears on the display.
To Adjust The Tone
Use the levers next to the display to set the bass,
midrange, and treble until you get the sound you like.
The
60 and 250 levers adjust the bass; 1K is midrange;
-3.5K and 10 K control the treble.
We suggest
you start with the center lever (1K) in the
midpoint position, then move the others up or down
until you get the amount
of bass and treble you like.
To Play A Compact Disc
Before you begin, please note: DO NOT use mini-discs
that are called singles. They won’t eject.
Use full-size
compact discs only.
If the disc player is very hot or if you’re driving on a
very rough road, the disc may come out, or just not play.
ERR will appear
in the display. As soon as things get
back to normal, the disc should play again.
Press PWR to turn the system on.
ProCarManuals.com

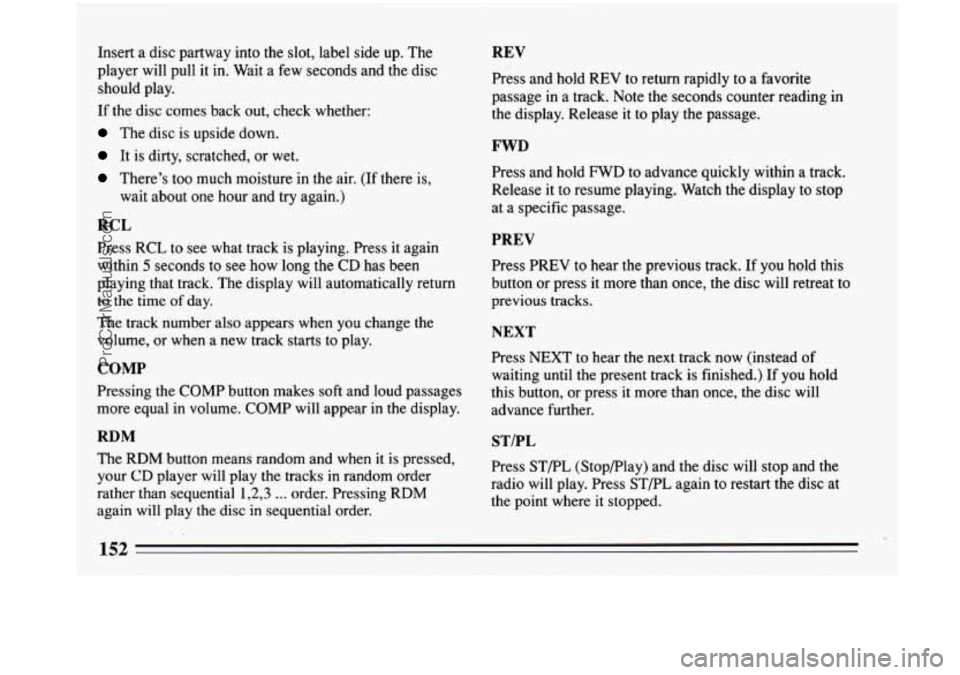

Insert a disc partway into the slot, label side up. The
player will pull it in. Wait a few seconds and the disc
should play.
If the disc comes back out, check whether:
The disc is upside down.
It is dirty, scratched, or wet.
There’s too much moisture in the air. (If there is,
wait about one hour and try again.)
RCL
Press RCL to see what track is playing. Press it again
within 5 seconds to see how long the CD has been
playing that track. The display will automatically return
to the time of day.
The track number also appears when you change the
volume, or when a new track starts to play.
COMP
Pressing the COMP button makes soft and loud passages
more equal in volume.
COMP will appear in the display.
RDM
The RDM button means random and when it is pressed,
your
CD player will play the tracks in random order
rather than sequential
1,2,3 ... order. Pressing RDM
again will play the disc in sequential order.
REV
Press and hold REV to return rapidly to a favorite
passage in a track. Note the seconds counter reading in
the display. Release it to play the passage.
FWD
Press and hold FWD to advance quickly within a track.
Release it to resume playing. Watch the display to ston
at
a specific passage.
PREV
Press PREV to hear the previous track. If you hold this
button or press it more than once,
the disc will retreat to
previous tracks.
NEXT
Press NEXT to hear the next track now (instead of
waiting until the present track is finished.) If you hold
this button, or press it more than once, the disc will
advance further.
STlPL
Press ST/PL (Stop/Play) and the disc will stop and the
radio will play. Press ST/PL again
to restart the disc at
the point where it stopped.
ProCarManuals.com

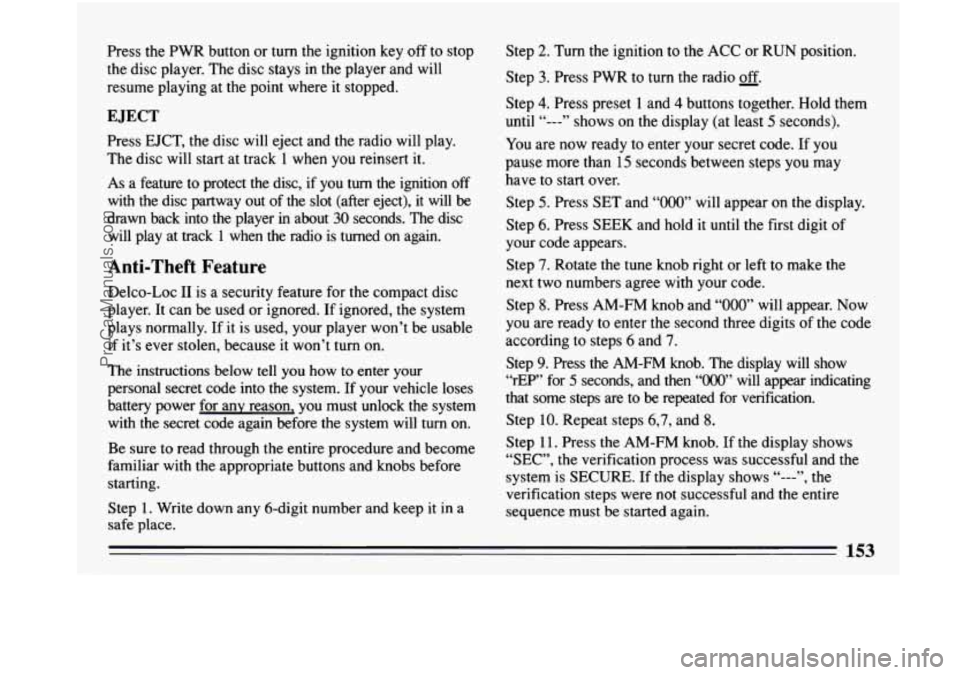

Press the PWR button or turn the ignition key off to stop
the disc player. The disc stays in the player and will
resume playing at the point where it stopped.
EJECT
Press EJCT, the disc will eject and the radio will play.
The disc will start at track
1 when you reinsert it.
As a feature to protect the disc,
if you turn the ignition off
with the disc partway out of the slot (after eject), it will be
drawn back into the player in about 30 seconds. The disc
will play at track
1 when the radio is turned on again.
Anti-Theft Feature
Delco-Loc I1 is a security feature for the compact disc
player. It can be used or ignored.
If ignored, the system
plays normally. If it is used, your player won’t be usable
if it’s ever stolen, because it won’t turn on.
The instructions below tell you how to enter your
personal secret code into the system. If your vehicle loses
battery power for any reason, you must unlock the system
with the secret code again before the system will
turn on.
Be sure to read through the entire procedure and become
familiar with
the appropriate buttons and knobs before
starting.
Step
1. Write clown any 6-digit number and keep it in a
safe place. Step
2. Turn
the ignition to the ACC or RUN position.
Step
3. Press PWR to turn the radio off.
Step 4. Press preset 1 and 4 buttons together. Hold them
until
“---” shows on the display (at least 5 seconds).
You are now ready to enter your secret code. If you
pause more than
15 seconds between steps you may
have to start over.
Step
5. Press SET and “000” will appear on the display.
Step 6. Press SEEK and hold
it until the first digit of
your code appears.
Step 7. Rotate the tune knob right or left to make the
next two numbers agree
with your code.
Step
8. Press AM-FM knob and “000” will appear. Now
you are ready to enter the second three digits of the code
according to steps
6 and 7.
Step 9. Press the AM-FM knob. The display will show
“rEP” for
5 seconds, and then “OOO” will appear indicating
that some steps are to
be repeated for verification.
Step
10. Repeat steps 6,7, and 8.
Step 11. Press the AM-FM knob. If the display shows
“SEC”, the verification process was successful and the
system
is SECURE. If the display shows “---”, the
verification steps were not successful and the entire
sequence must be started again.
ProCarManuals.com

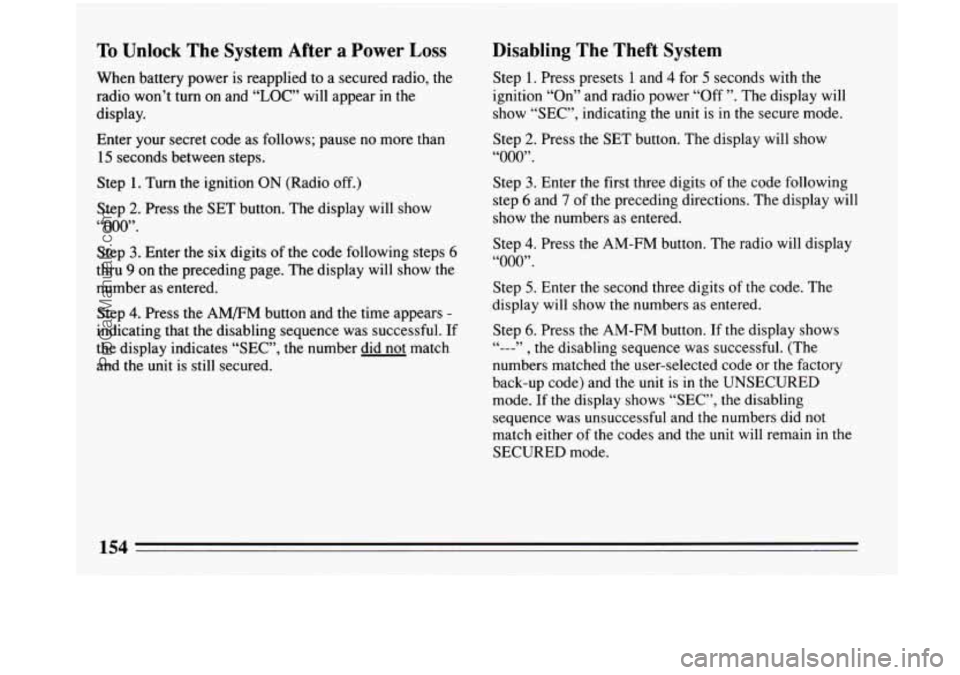

To Unlock The System After a Power Loss
When battery power is reapplied to a secured radio, the
radio won’t turn on and
“LOC” will appear in the
display.
Enter your secret code as follows; pause no more than
15 seconds between steps.
Step
1. Turn the ignition ON (Radio off.)
Step 2. Press the SET button. The display will show
“000”.
Step 3. Enter the six digits of the code following steps 6
thru 9 on the preceding page. The display will show the
number as entered.
Step
4. Press the AM/FM button and the time appears -
indicating that the disabling sequence was successful. If
the display indicates “SEC”, the number did not match
and the unit is still secured.
Disabling The Theft System
Step 1. Press presets 1 and 4 for 5 seconds with the
ignition “On” and radio power “Off
”. The display will
show
“SEC”, indicating the unit is in the secure mode.
Step
2. Press the SET button. The display will show
“000”.
Step 3. Enter the first three digits of the code following
step
6 and 7 of the preceding directions. The display will
show the numbers as entered.
Step
4. Press the AM-FM button. The radio will display
“000”.
Step 5. Enter the second three digits of the code. The
display will show the numbers as entered.
Step
6. Press the AM-FM button. If the display shows
“ --- ” , the disabling sequence was successful. (The
numbers matched the user-selected code or the factory
back-up code) and the unit is in the UNSECURED
mode.
If the display shows “SEC”, the disabling
sequence was unsuccessful and the numbers did not
match either
of the codes and the unit will remain in the
SECURED mode.
ProCarManuals.com

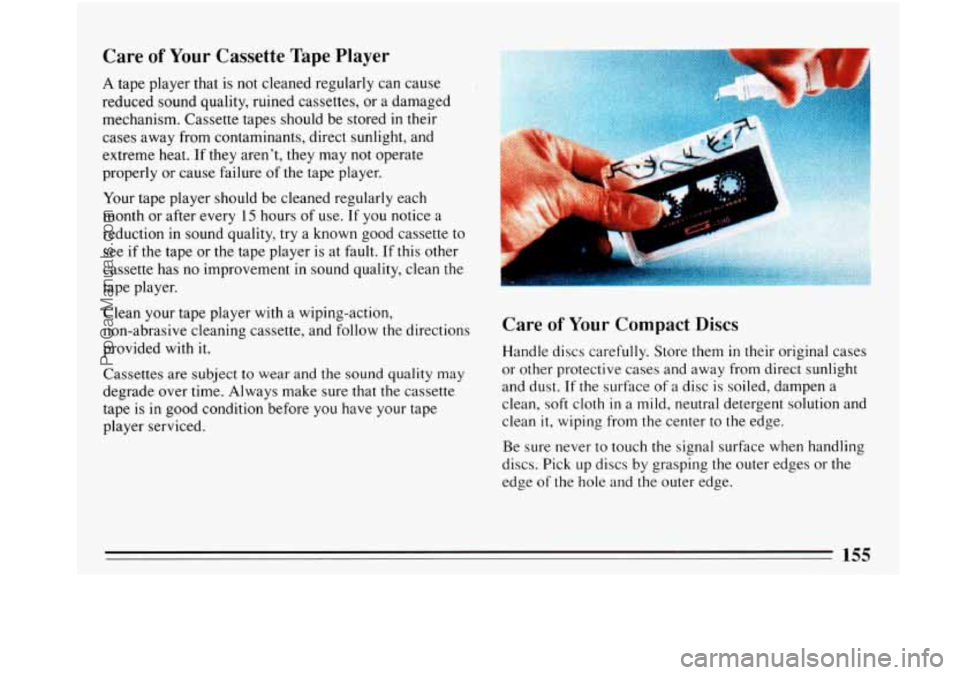

Care of Your Cassette Tape Player
A tape player that is not cleaned regularly can cause
reduced sound quality, ruined cassettes, or a damaged
mechanism. Cassette tapes should be stored in their
cases away from contaminants, direct sunlight, and
extreme heat. If they aren’t, they may not operate
properly or cause failure
of the tape player.
Your tape player should be cleaned regularly each
month or after every
15 hours of use. If you notice a
reduction in sound quality, try a known good cassette to
see if the tape or the tape player is at fault. If this other
cassette has no improvement in sound quality, clean the
tape player.
Clean your tape player with a wiping-action,
non-abrasive cleaning cassette, and follow the directions
provided with it.
Cassettes
are subject to wear and the sound quality may
degrade over time. Always make sure that the cassette
tape is
in good condition before you have your tape
player serviced.
Care of Your Compact Discs
Handle discs carefully. Store them in their original cases
or other protective cases and away from direct sunlight
and dust. If
the surface of a disc is soiled, dampen a
clean, soft cloth
in a mild, neutral detergent solution and
clean
it, wiping from the center to the edge.
Be sure never to touch the signal surface when handling
discs. Pick up discs by grasping the outer edges or the
edge of the hole and
the outer edge.
155
ProCarManuals.com

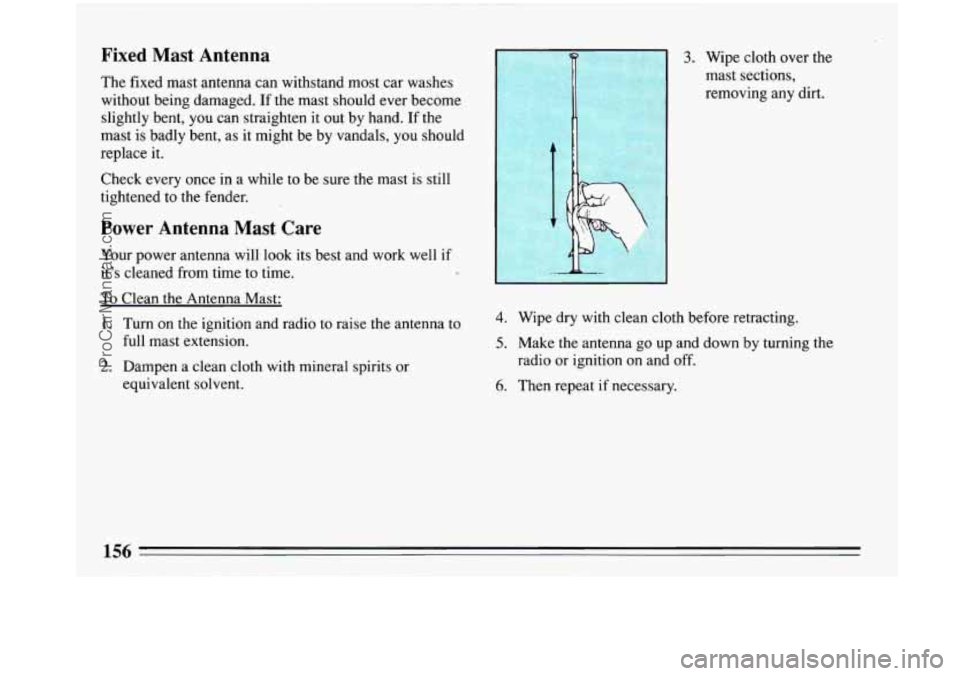

Fixed Mast Antenna
The fixed mast antenna can withstand most car washes
without being damaged. If the mast should ever become
slightly bent, you
can straighten it out by hand. If the
mast is badly bent, as it might be by vandals,
you should
replace it.
Check every once in a while to be sure the mast is still
tightened to the fender.
Power Antenna Mast Care
Your power antenna will look its best and work well if
it’s cleaned from time
to time.
To Clean the Antenna Mast:
1. Turn on the ignition and radio to raise the antenna to
full mast extension.
2. Dampen a clean cloth with mineral spirits or
equivalent solvent.
. 1 3. Wipe cloth over the
mast sections,
removing any dirt.
4. Wipe dry with clean cloth before retracting.
5. Make the antenna go up and down by turning the
6. Then repeat if necessary.
radio or
ignition on and
off.
ProCarManuals.com

I NOTICE:
I
Don’t lubricate the power antenna. Lubrication
could damage it.
If the mast portion of your antenna is damaged, you can
easily replace it. See your dealer for a replacement kit
and follow the instructions in the kit.
I NOTICE:
. ,.
:. . ..
157
ProCarManuals.com

I
I931 Buick Model 90
ProCarManuals.com
